  1. Radian and Degree Measure Section 4.1

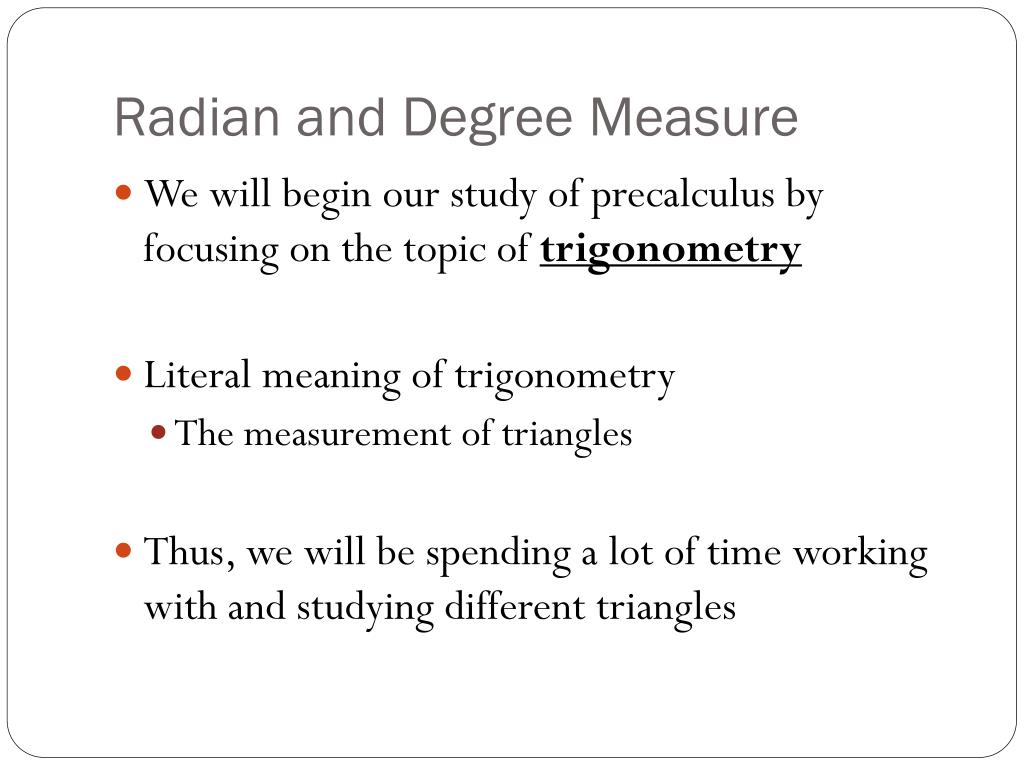

  2. Radian and Degree Measure • We will begin our study of precalculus by focusing on the topic of trigonometry • Literal meaning of trigonometry • The measurement of triangles • Thus, we will be spending a lot of time working with and studying different triangles

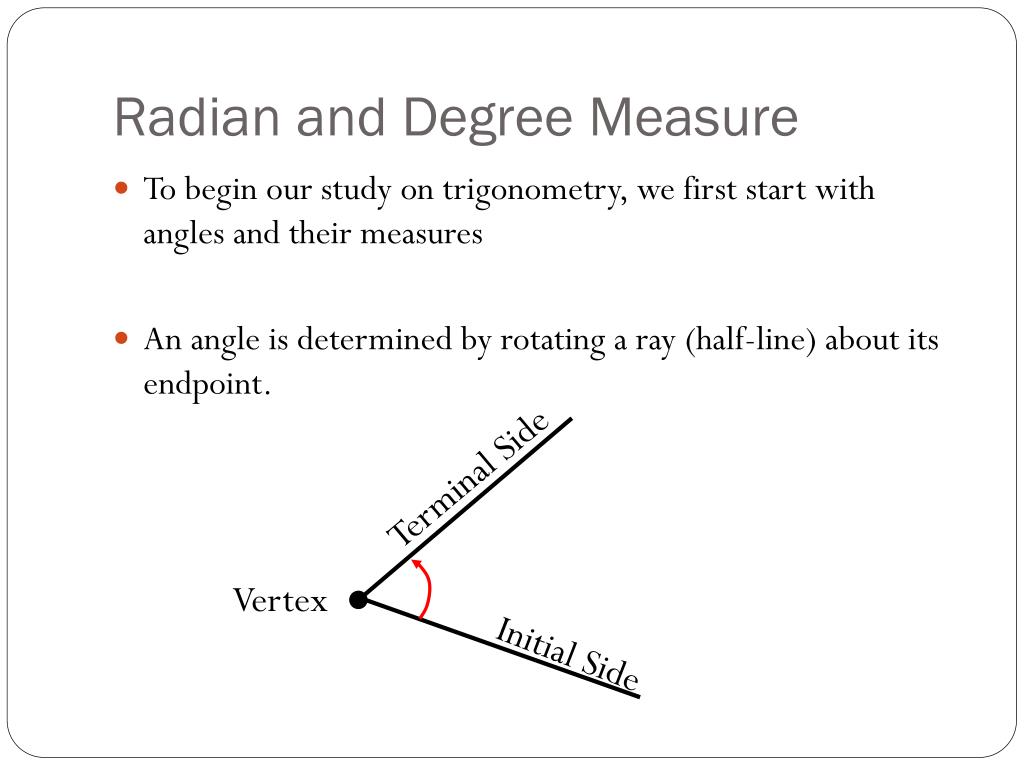

  3. Radian and Degree Measure • To begin our study on trigonometry, we first start with angles and their measures • An angle is determined by rotating a ray (half-line) about its endpoint. Terminal Side Vertex Initial Side

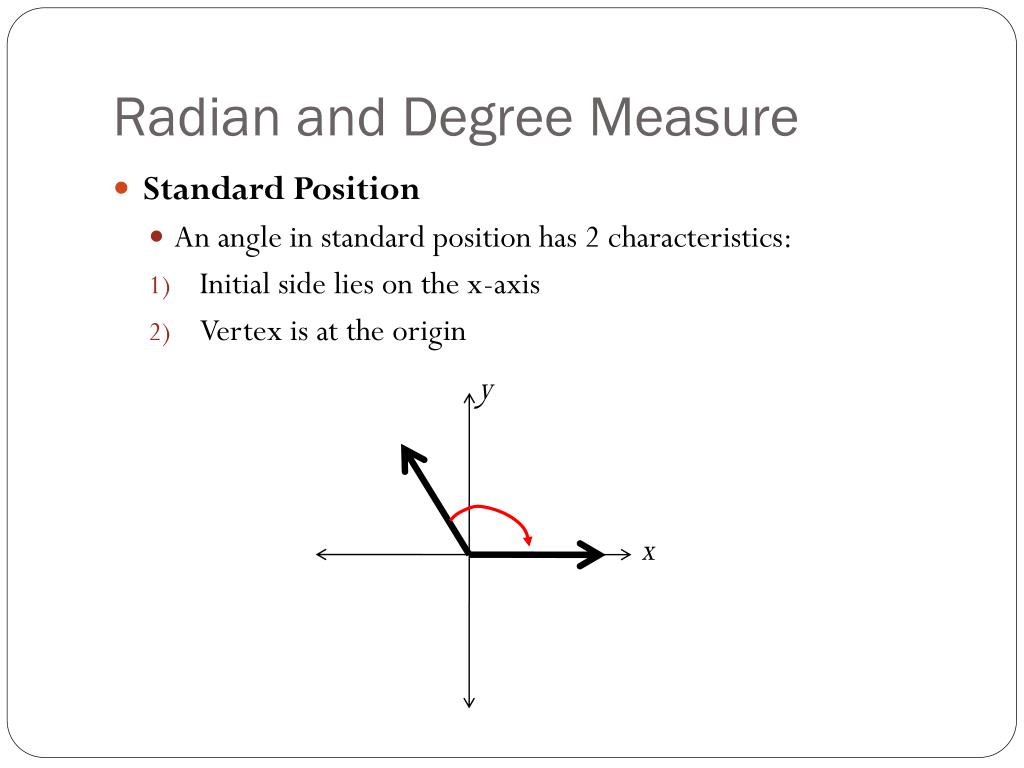

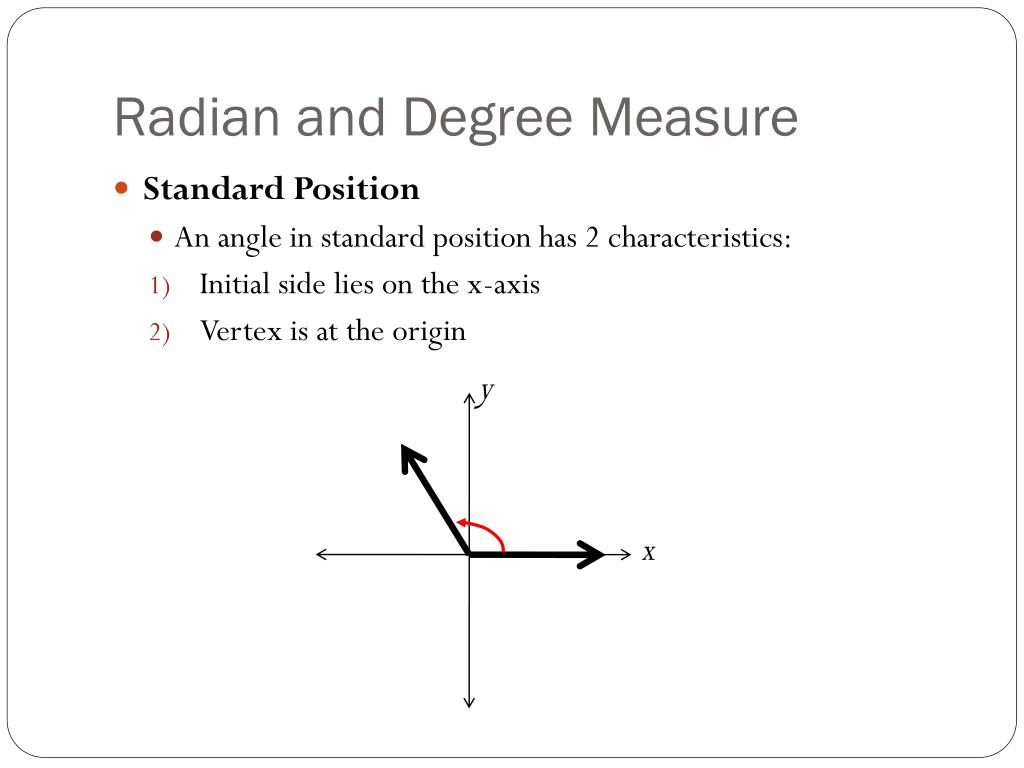

  4. Radian and Degree Measure • Standard Position • An angle in standard position has 2 characteristics: • Initial side lies on the x-axis • Vertex is at the origin y x

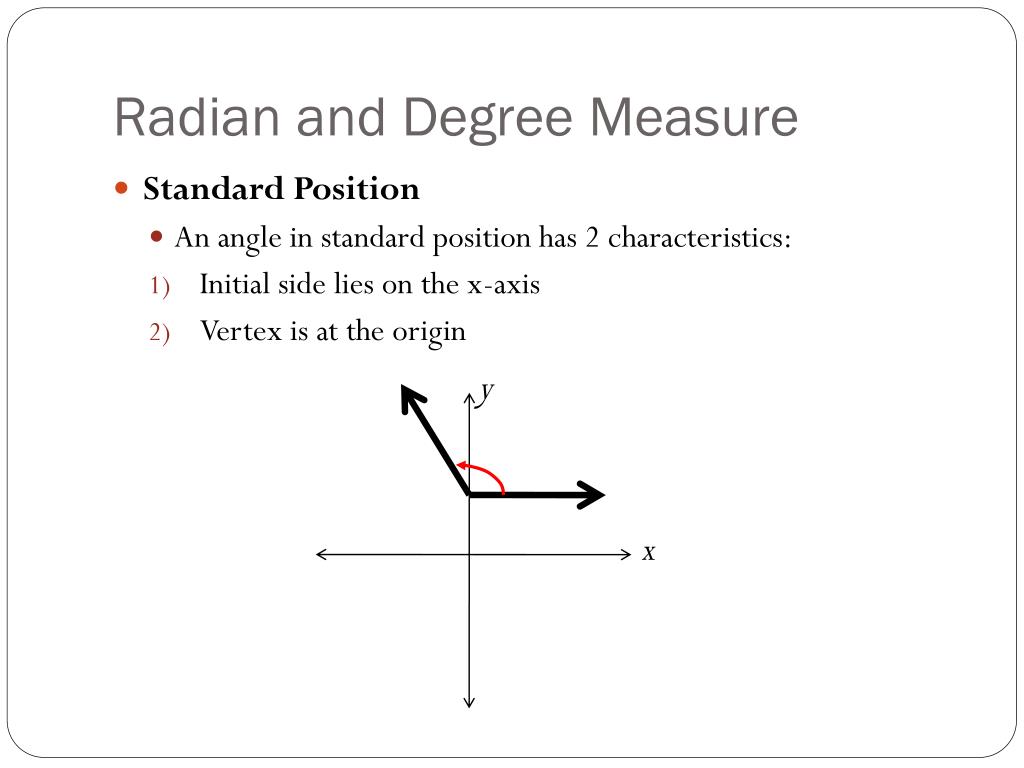

  5. Radian and Degree Measure • Standard Position • An angle in standard position has 2 characteristics: • Initial side lies on the x-axis • Vertex is at the origin y x

  6. Radian and Degree Measure • Standard Position • An angle in standard position has 2 characteristics: • Initial side lies on the x-axis • Vertex is at the origin y x

  7. Radian and Degree Measure • Positive Angles • Rotate clockwise • In standard position, start by going up • Negative Angles • Rotate counterclockwise • In standard position, start by going down

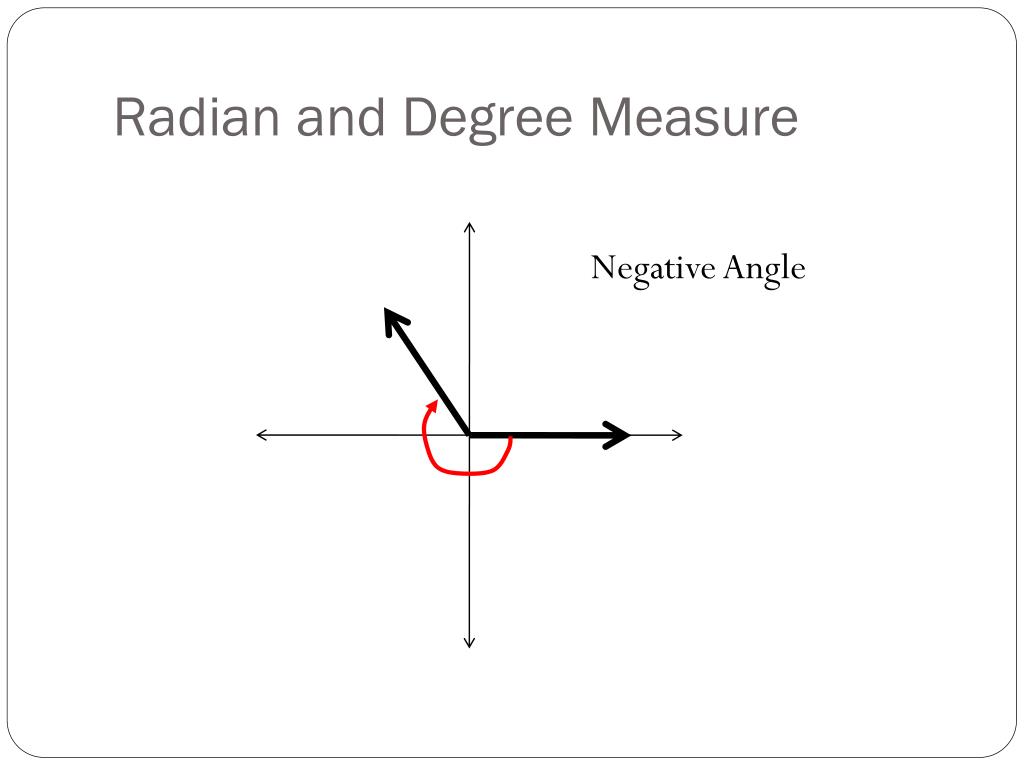

  8. Radian and Degree Measure Negative Angle

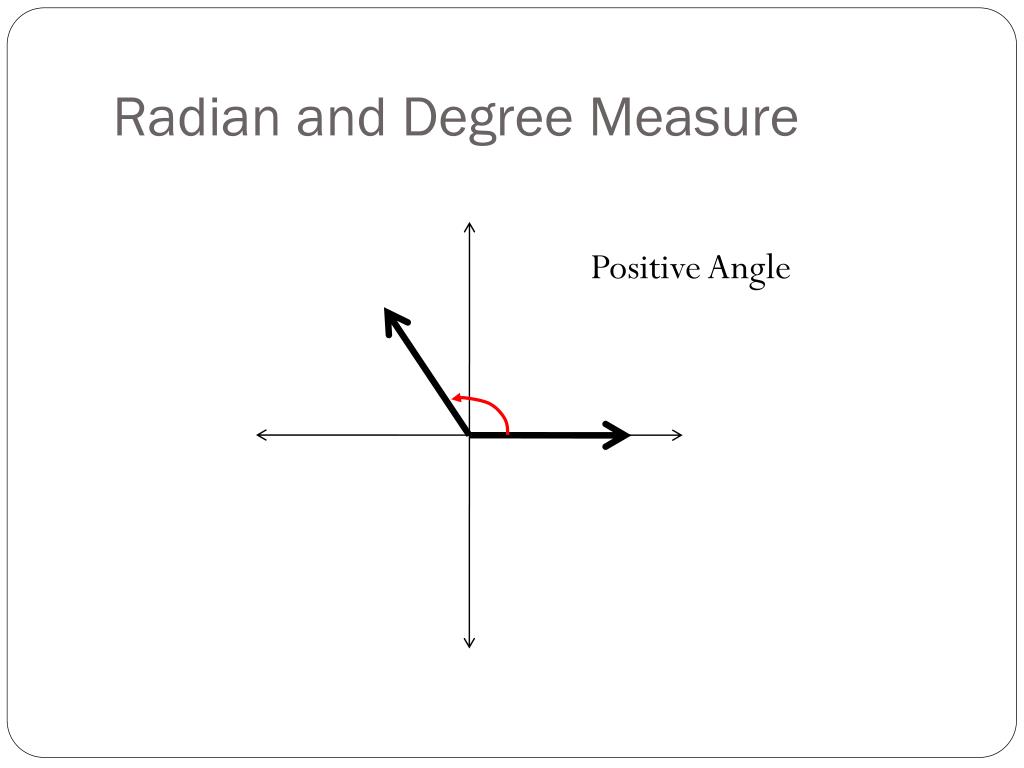

  9. Radian and Degree Measure Positive Angle

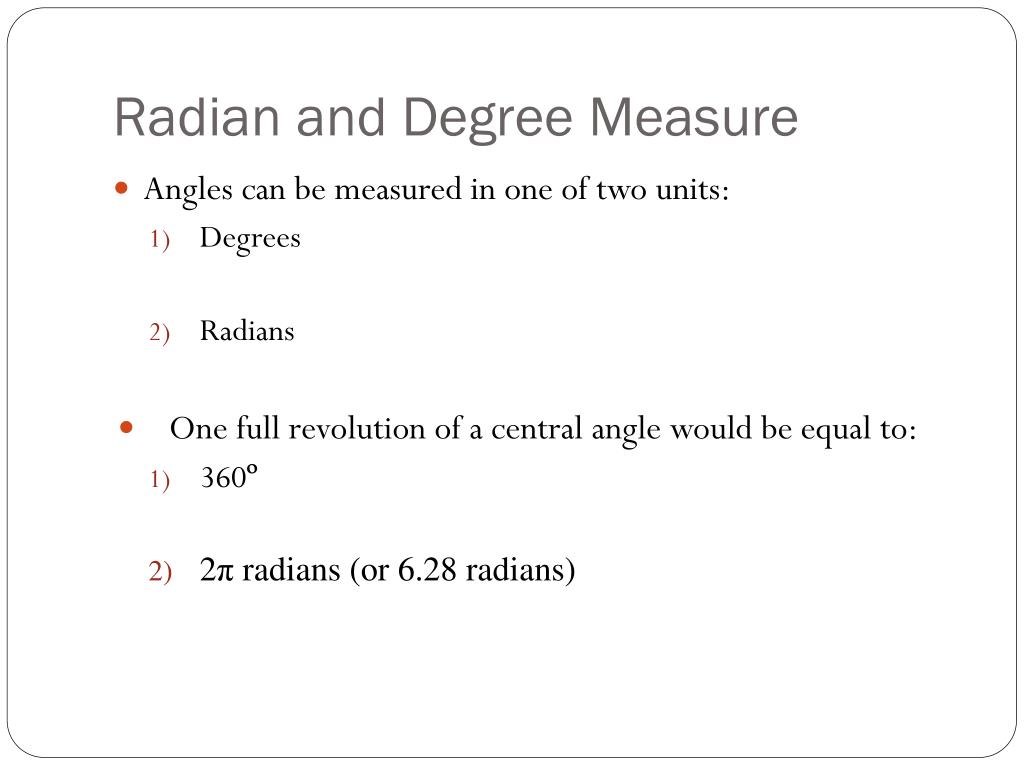

  10. Radian and Degree Measure • Angles can be measured in one of two units: • Degrees • Radians • One full revolution of a central angle would be equal to: • 360º • 2π radians (or 6.28 radians)

  11. Radian and Degree Measure • In radians, there are common angles that will need to be memorized = 180º = 90º = 270º

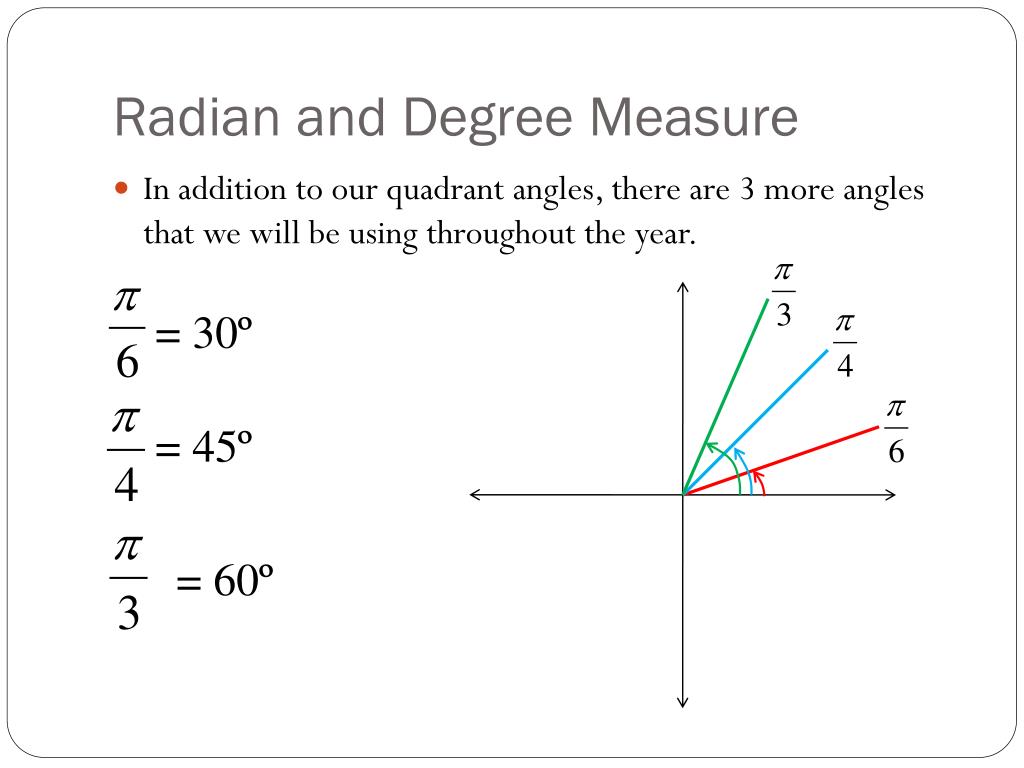

  12. Radian and Degree Measure • In addition to our quadrant angles, there are 3 more angles that we will be using throughout the year. = 30º = 45º = 60º

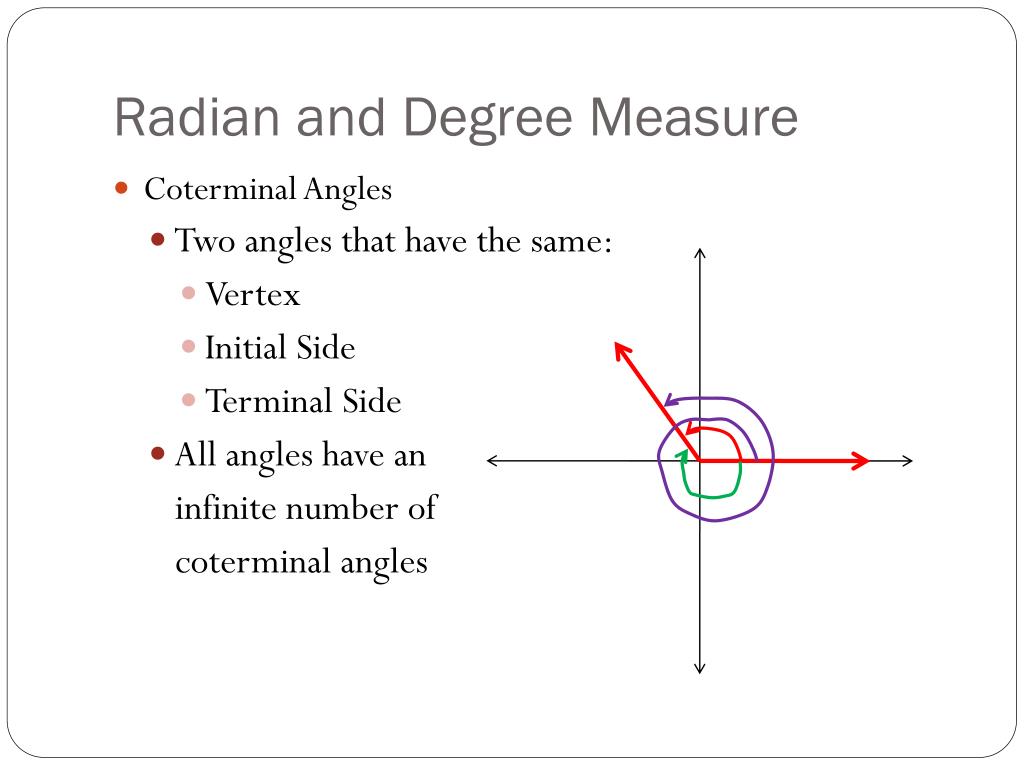

  13. Radian and Degree Measure • Coterminal Angles • Two angles that have the same: • Vertex • Initial Side • Terminal Side • All angles have an infinite number of coterminal angles

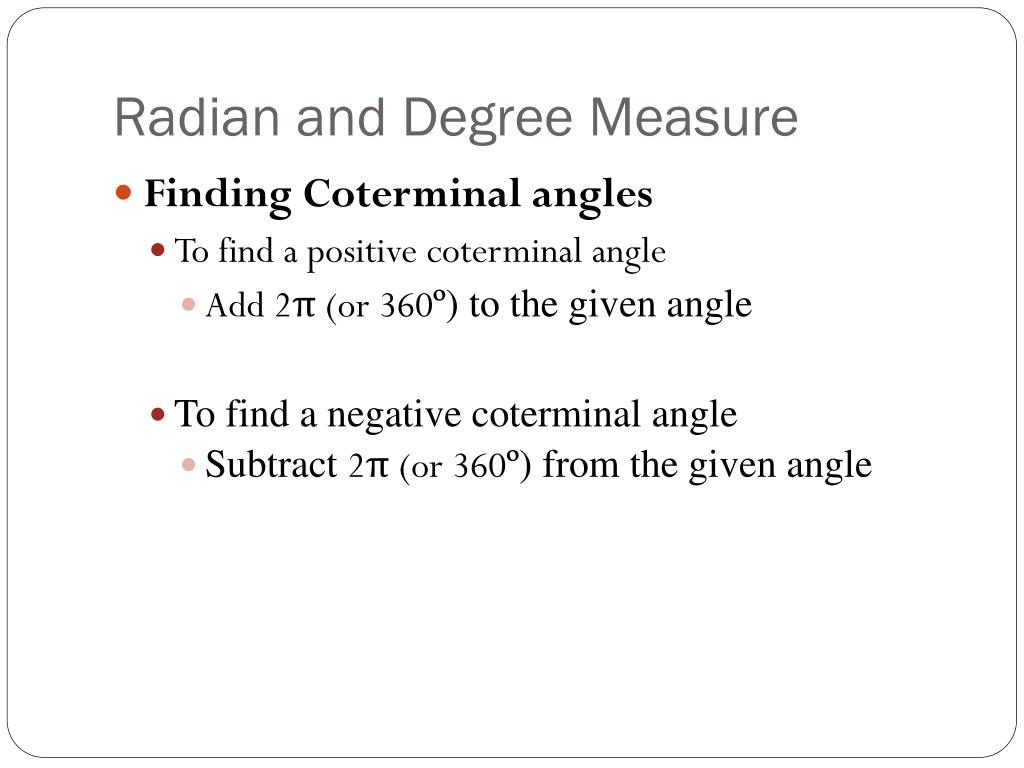

  14. Radian and Degree Measure • Finding Coterminal angles • To find a positive coterminal angle • Add 2π (or 360º) to the given angle • To find a negative coterminal angle • Subtract 2π (or 360º) from the given angle

  15. Radian and Degree Measure • Graph the following angle and determine two coterminal angles, one positive and one negative.

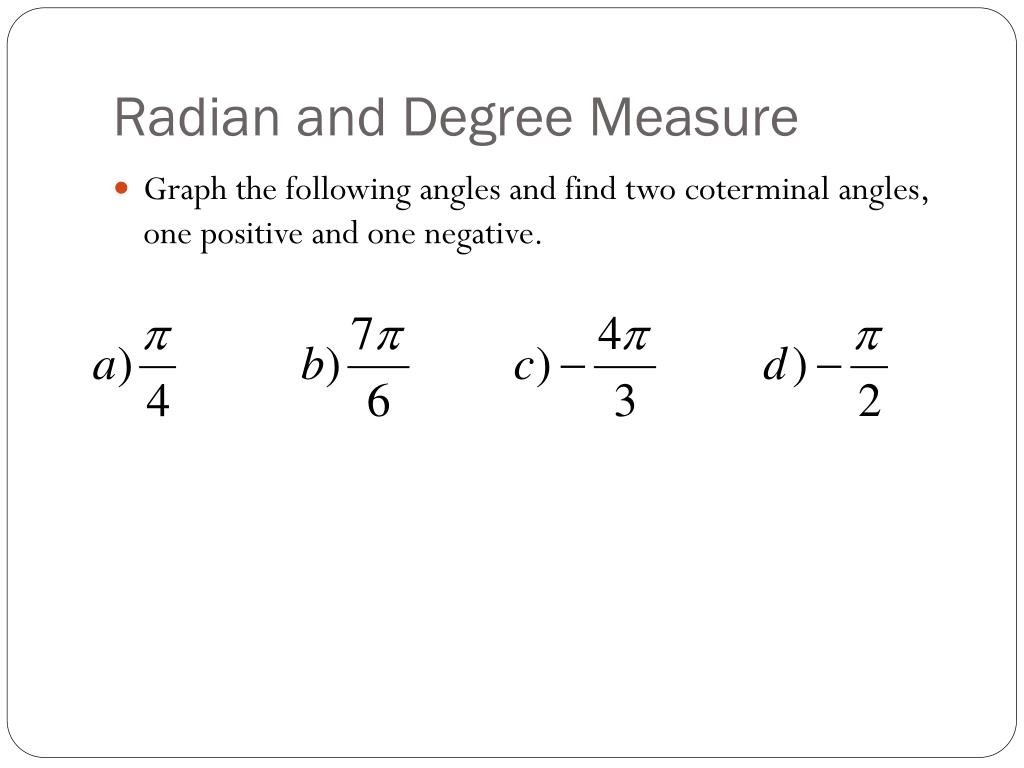

  16. Radian and Degree Measure • Graph the following angles and find two coterminal angles, one positive and one negative.

  17. Radian and Degree Measure

  18. Radian and Degree Measure

  19. Radian and Degree Measure

  20. Radian and Degree Measure

  21. Radian and Degree Measure Section 4.1

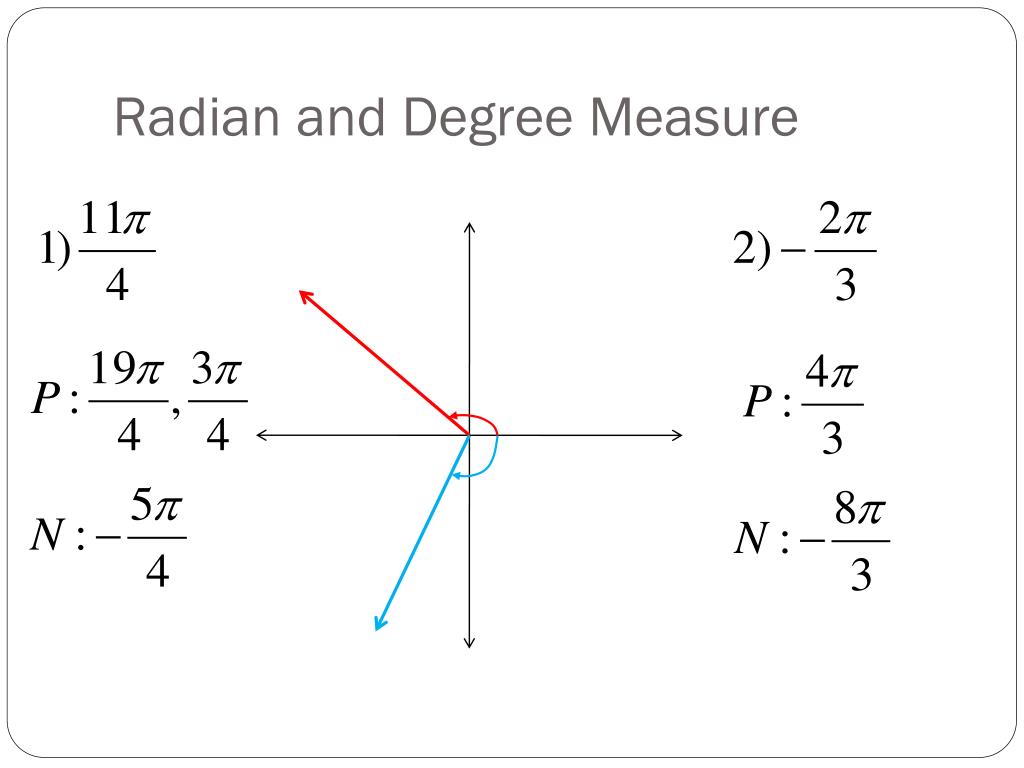

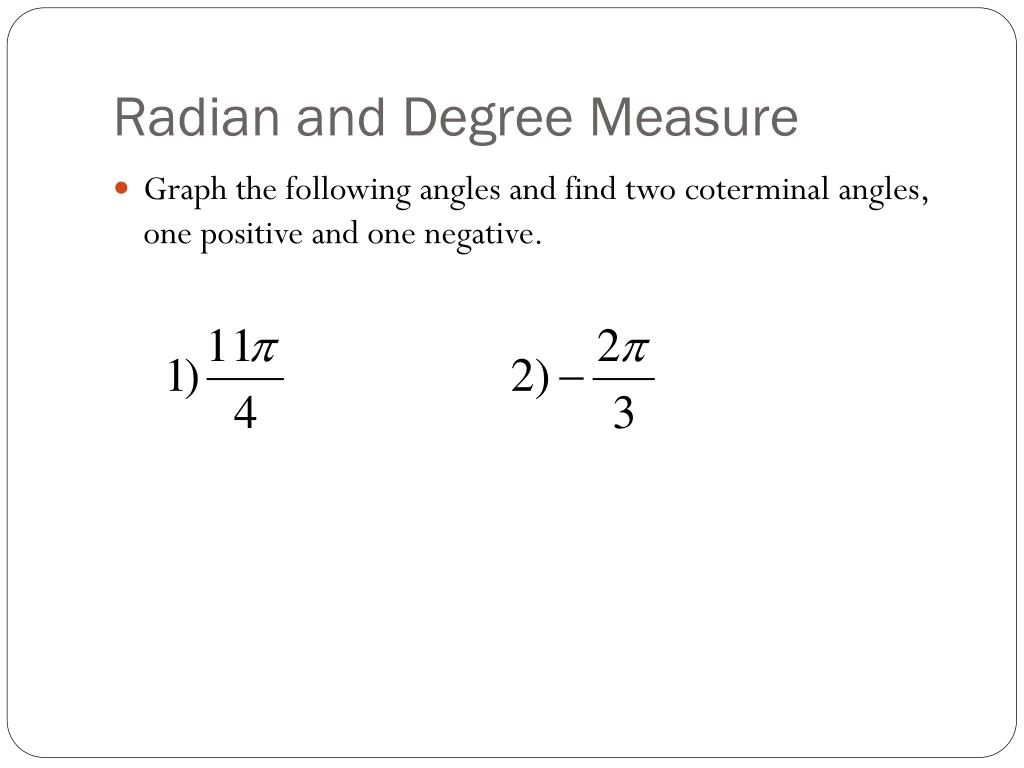

  22. Radian and Degree Measure • Graph the following angles and find two coterminal angles, one positive and one negative.

  23. Radian and Degree Measure

  24. Radian and Degree Measure • Yesterday we covered: • Angles in degrees and radians • Coterminal angles • Today we are going to cover: • Complementary and supplementary angles • Converting between degrees and radians • Converting minutes & seconds to degrees

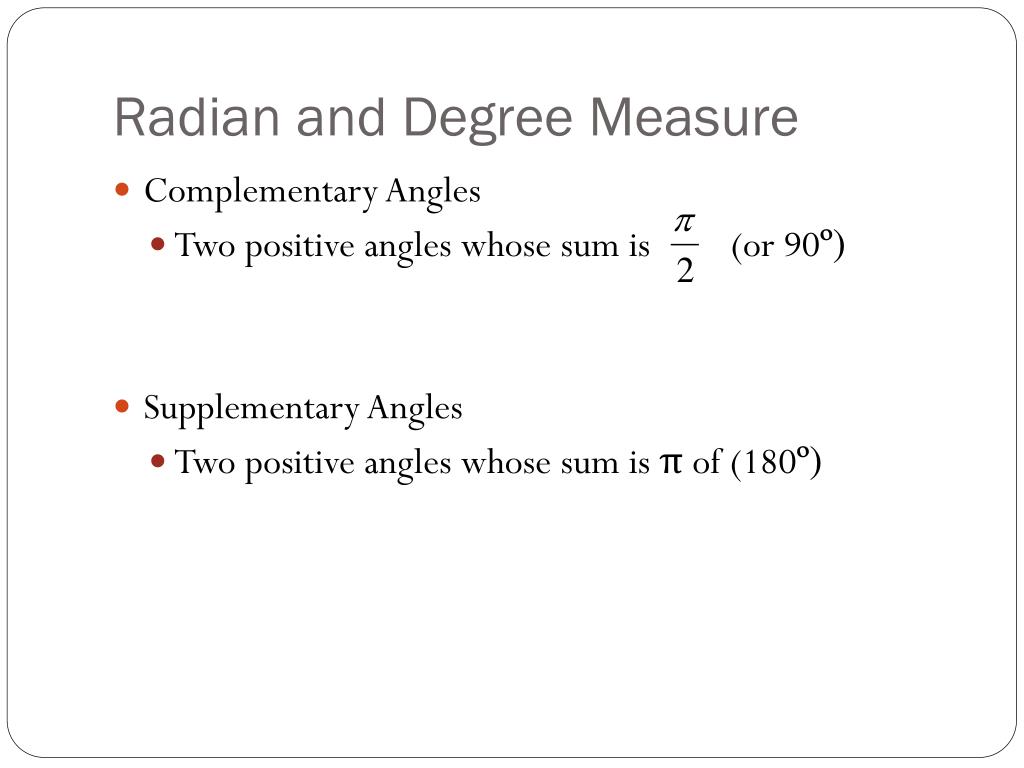

  25. Radian and Degree Measure • Complementary Angles • Two positive angles whose sum is (or 90º) • Supplementary Angles • Two positive angles whose sum is π of (180º)

  26. Radian and Degree Measure • Find the complement and supplement to the following angle. supplement:

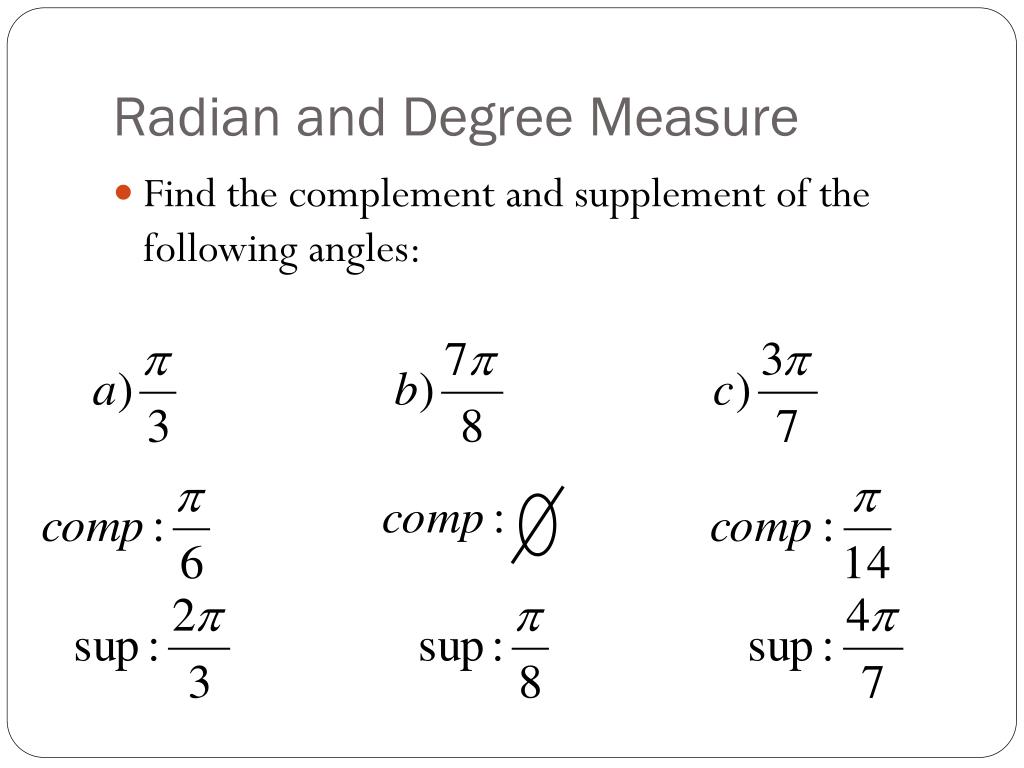

  27. Radian and Degree Measure • Find the complement and supplement of the following angles:

  28. Radian and Degree Measure • Conversions between degrees and radians • To convert degrees to radians, multiply degrees by: • To convert radians to degrees, multiply radians by:

  29. Radian and Degree Measure Degrees to Radians Radians to Degrees

  30. Radian and Degree Measure • Convert the following from degrees to radians.

  31. Radian and Degree Measure • Convert the following from radians to degrees.

  32. Radian and Degree Measure Section 4.1

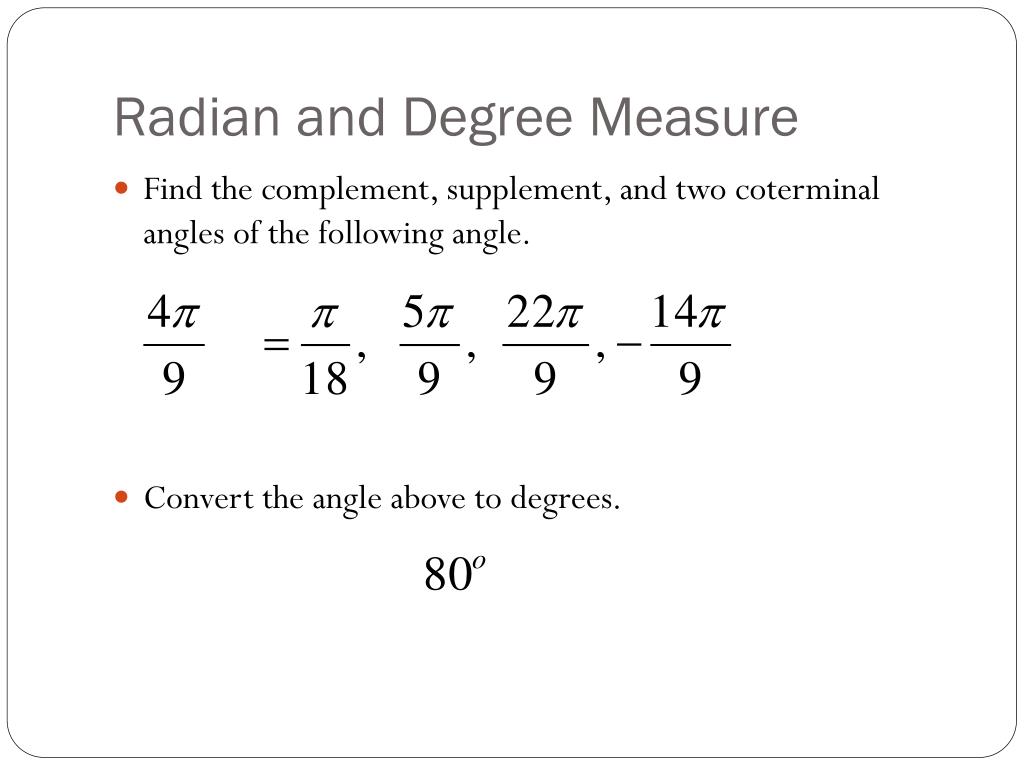

  33. Radian and Degree Measure • Find the complement, supplement, and two coterminal angles of the following angle. • Convert the angle above to degrees.

  34. Radian and Degree Measure • So far in this section, we have: • Graphed angles in both radians & degrees • Found positive and negative coterminal angles • Found complementary and supplementary angles • Converted between radians and degrees • Today we are going to apply this to different word problems (arc length, linear speed, angular speed)

  35. Radian and Degree Measure • Arc Length • The distance along the circumference of a circle with a central angle of θ • Given by the formula: s = rθ Where: s = the arc length r = the radius of the circle θ = the central angle in radians

  36. Radian and Degree Measure • A circle has a radius of 4 inches. Find the length of the arc intercepted by a central angle of 240º. • Convert the angle to radians. • Apply the formula. S = (4) =16.7 inches

  37. Radian and Degree Measure • On a circle with a radius of 9 inches, find the length of the arc intercepted by a central angle of 140º. S = (9) = 22 inches

  38. Radian and Degree Measure • Linear & Angular Speed • Linear speed measures how fast a particle is moving along the circular arc of a circle with radius r • Given by the formula:

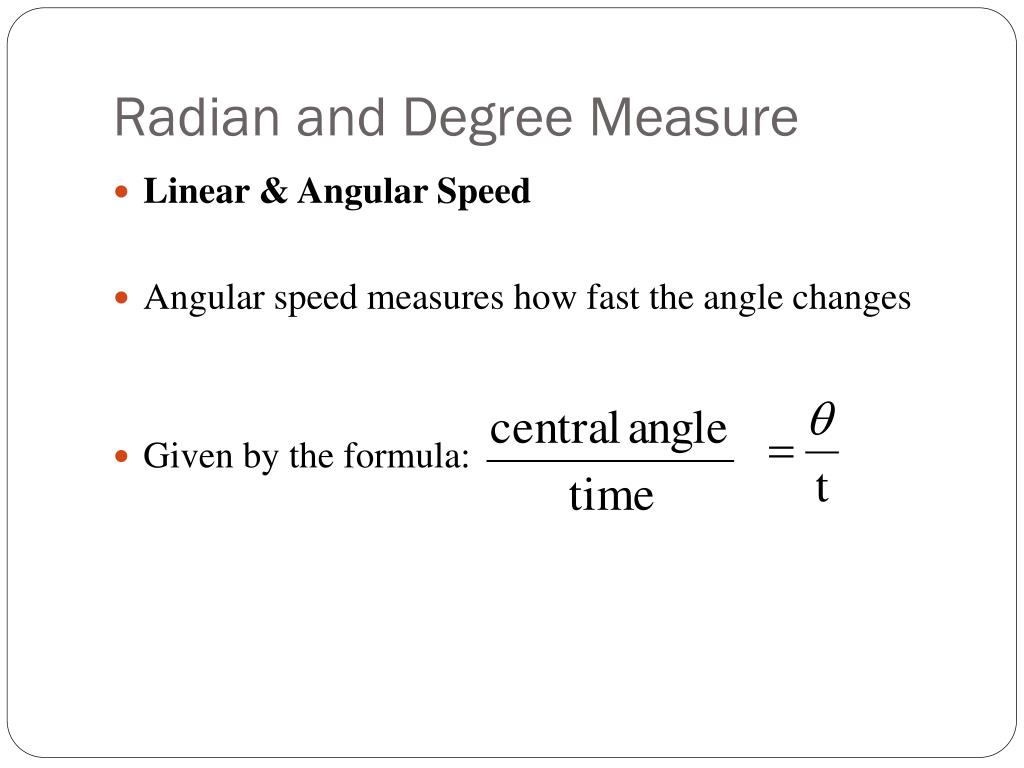

  39. Radian and Degree Measure • Linear & Angular Speed • Angular speed measures how fast the angle changes • Given by the formula:

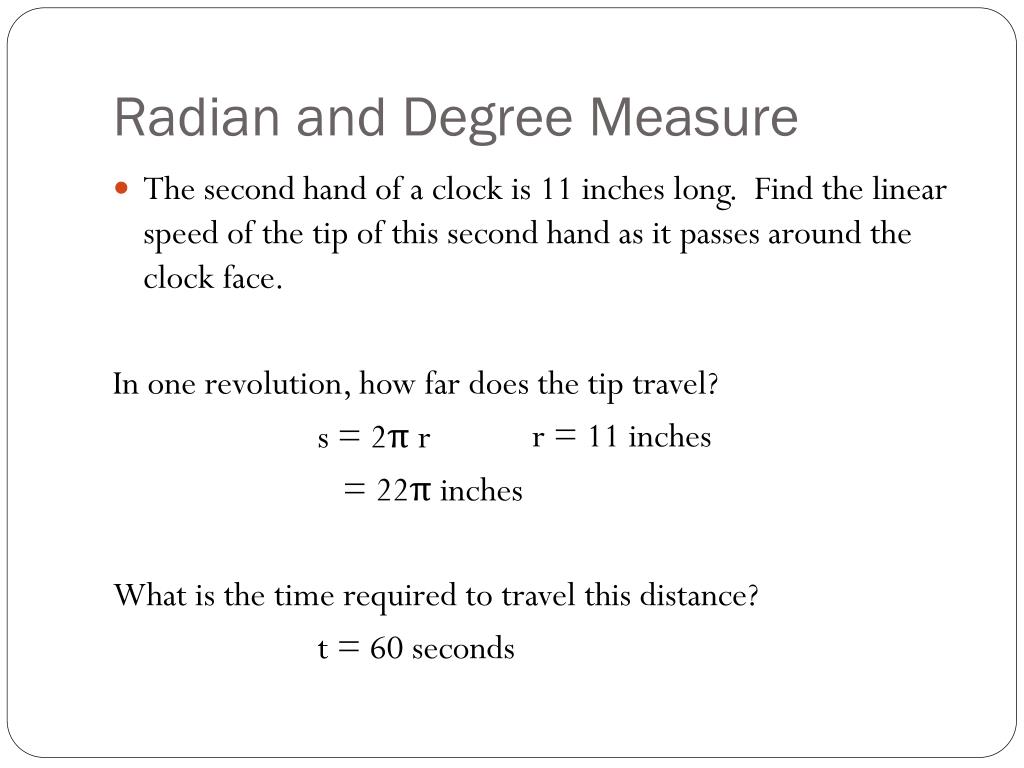

  40. Radian and Degree Measure • The second hand of a clock is 11 inches long. Find the linear speed of the tip of this second hand as it passes around the clock face. In one revolution, how far does the tip travel? s = 2π r = 22π inches What is the time required to travel this distance? t = 60 seconds r = 11 inches

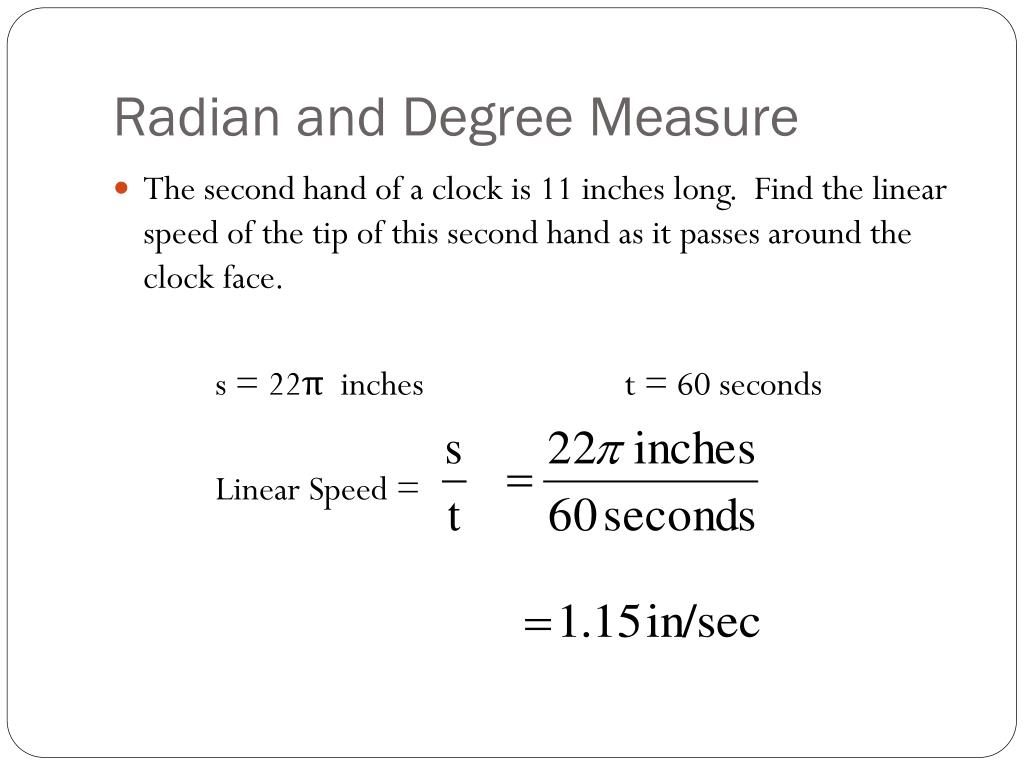

  41. Radian and Degree Measure • The second hand of a clock is 11 inches long. Find the linear speed of the tip of this second hand as it passes around the clock face. s = 22π inches t = 60 seconds Linear Speed =

  42. Radian and Degree Measure • A car is moving at a rate of 65 mph, and the diameters of its wheels is 2.5 feet. • Find the number of revolutions per minute the wheels are rotating. • Find the angular speed of the wheels in radians per minute.

  43. Radian and Degree Measure • A car is moving at a rate of 65 mph, and the diameters of its wheels is 2.5 feet. • Find the number of revolutions per minute the wheels are rotating. Find the arc length for one revolution: S = r θ = (1.25) (2π) = 2.5 π feet per revolution How many feet per hour is the car traveling? (65 mph ) (5,280 feet) = 343,200 feet/hour = 5,720 feet/min = 728.3 revolutions

  44. Radian and Degree Measure • A car is moving at a rate of 65 mph, and the diameters of its wheels is 2.5 feet. b) Find the angular speed of the wheels in radians per minute. (728.3 revolutions) (2π) = 4,576 radians Angular Speed

  45. Radian and Degree Measure • A car is moving at a rate of 35 mph, and the radius of its wheels is 2 feet. • Find the number of revolutions per minute the wheels are rotating. • Find the angular speed of the wheels in radians per minute. 245.1 revolutions per minute

  46. Radian and Degree Measure
