Comprehensive Analysis of Global In-Situ Environmental Measurements and Statistics

Explore a diverse range of global in-situ measurements covering oceans and aerosols from various projects and expeditions. Discover extensive statistical data on chlorophyll, aerosols, and light attenuation.

pennie
Download Presentation

Comprehensive Analysis of Global In-Situ Environmental Measurements and Statistics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

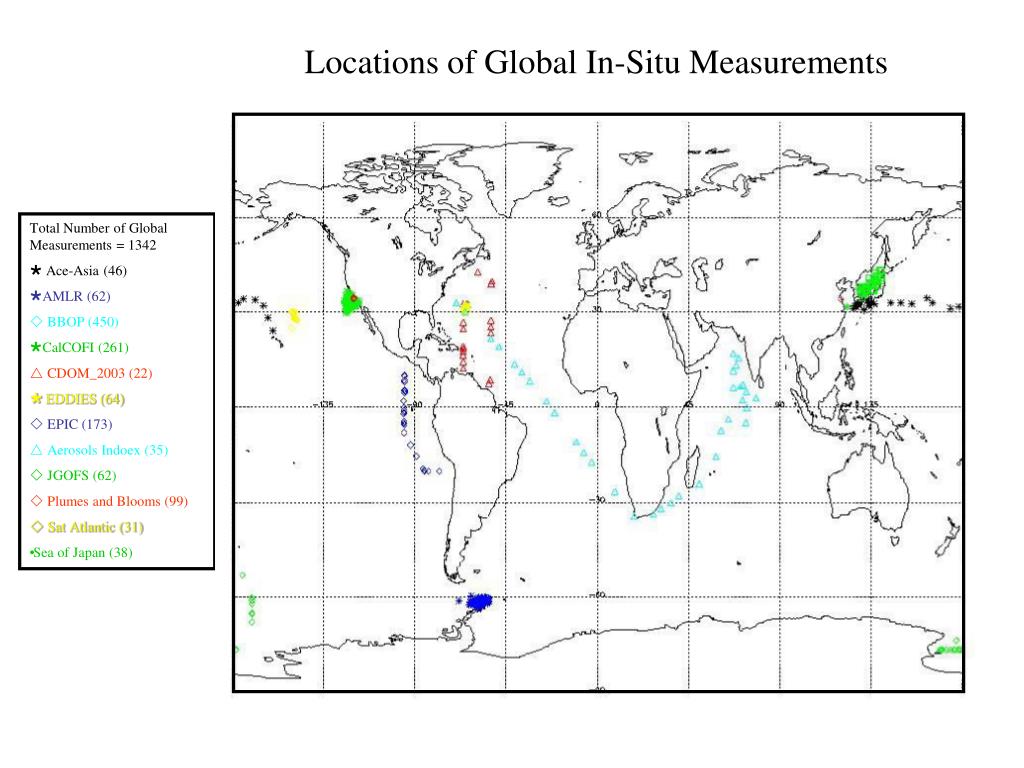

  1. Locations of Global In-Situ Measurements • Total Number of Global Measurements = 1342 •  Ace-Asia (46) • AMLR (62) •  BBOP (450) • CalCOFI (261) • CDOM_2003 (22) • EDDIES (64) •  EPIC (173) •  Aerosols Indoex (35) • JGOFS (62) • Plumes and Blooms (99) • Sat Atlantic (31) • Sea of Japan (38)

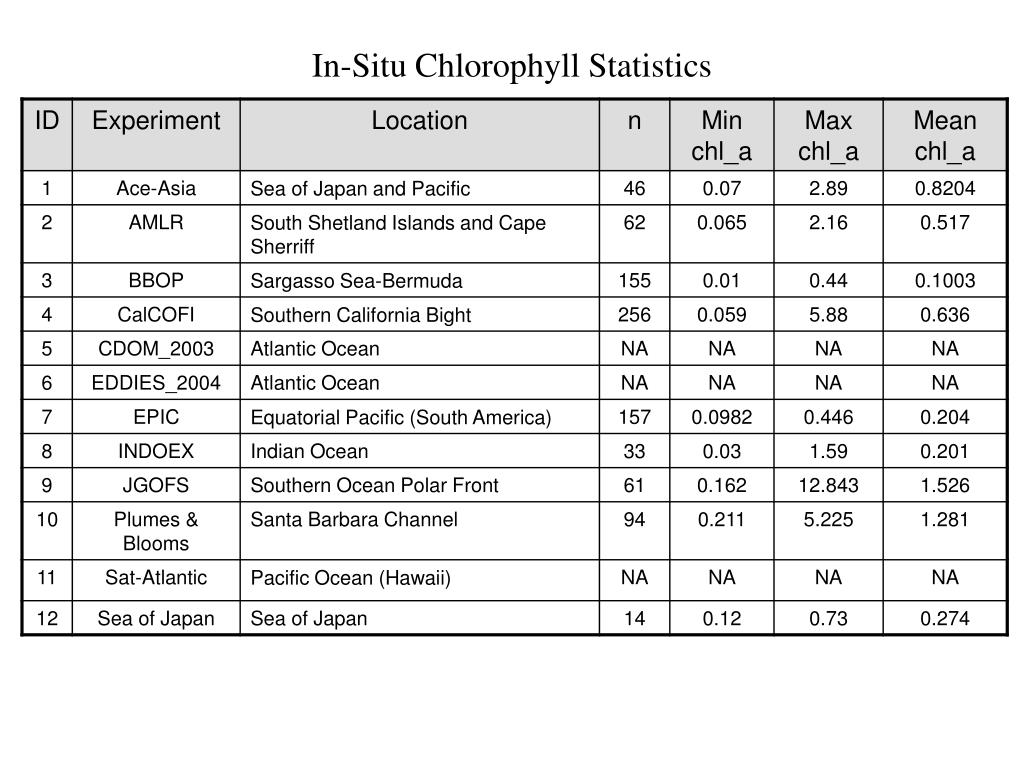

  2. In-Situ Chlorophyll Statistics

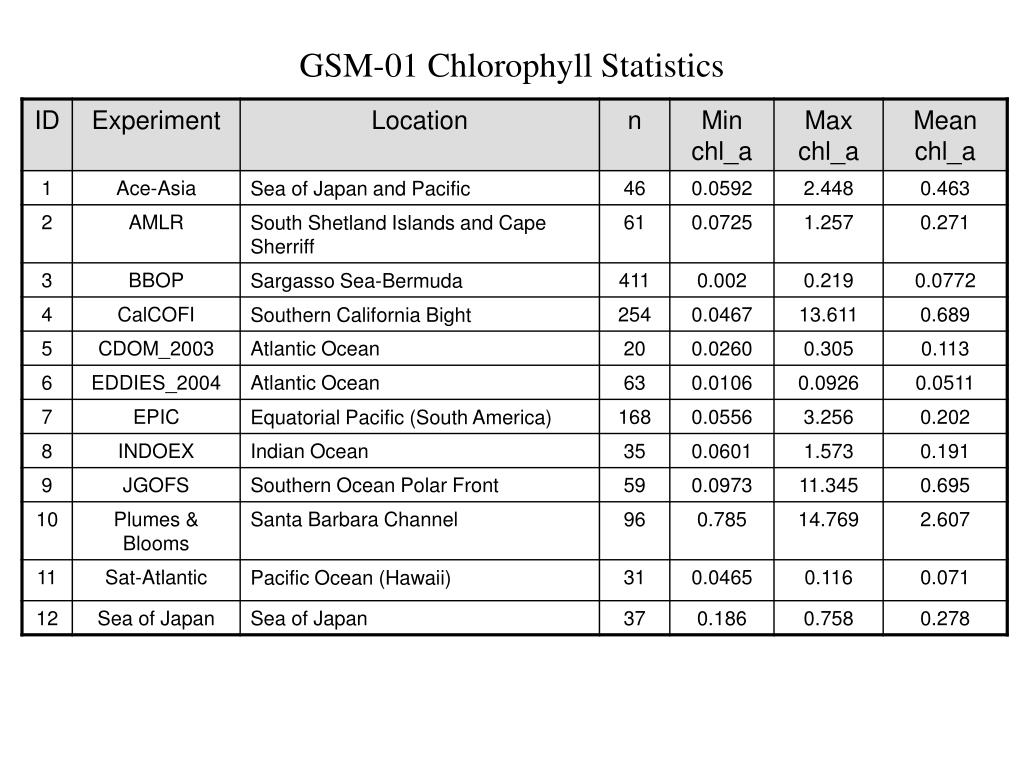

  3. GSM-01 Chlorophyll Statistics

  4. S = S0 + S1.*acdm_gsm + S2.*acdm_gsm.*acdm_gsm; CC = w0.*acdm_gsm + w1.*acdm_gsm.*acdm_gsm; for i=1:4 Kdmod(:,i) = kw(i) + CC.*exp(-S*(wave(i)-443)) + aphstar.*chl_gsm + ... beta0*bbp_gsm.*(wave(i)./443).^(-1); end S0 S1 w0 aph* S2 beta w1 0.0124 -0.0772 2.0896 0.0155 0.5993 4.8921 -8.3816
