Hawaii CanSat Design: Characteristics, Construction, and Recovery Strategy

Explore the design criteria for a CanSat to be launched in Hawaii, including its electronics setup, air brake system, and fin design for a successful flight profile. Learn about the construction materials used and the dual deployment recovery system required for close and intact recovery. Includes RockSim data analysis and flight testing phases for a 5,280 ft altitude mission.

penha
Download Presentation

Hawaii CanSat Design: Characteristics, Construction, and Recovery Strategy

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PDR Presentation Hawaii - WCC

  2. Characteristics,Construction,Recovery

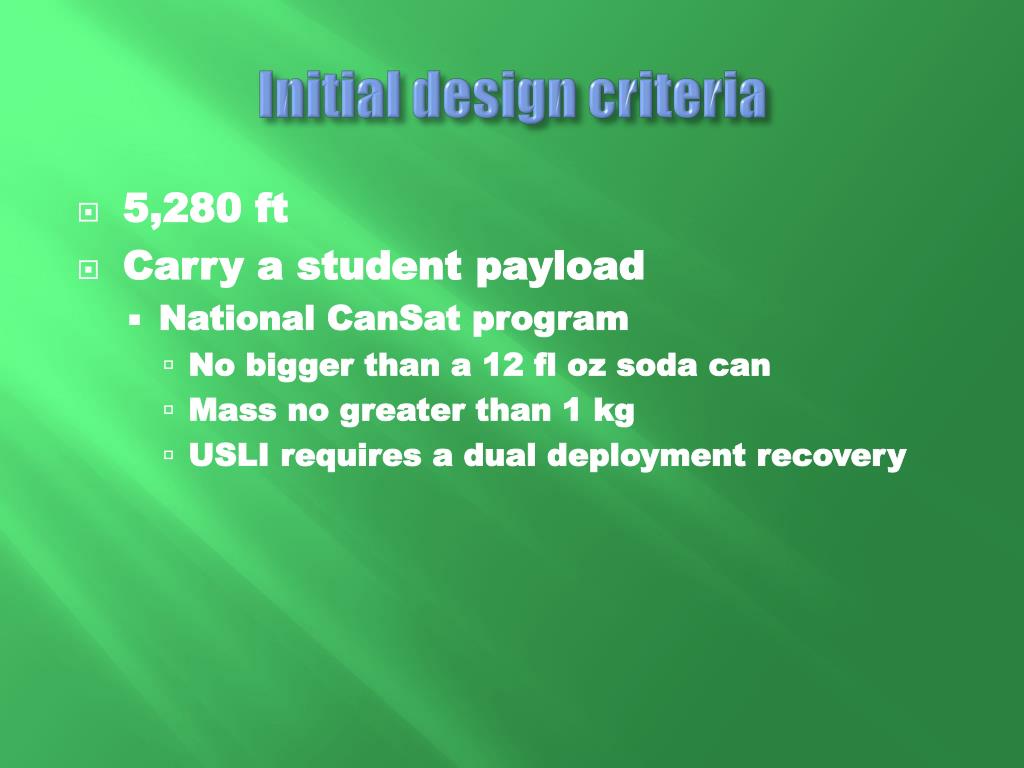

  3. Initial design criteria • 5,280 ft • Carry a student payload • National CanSat program • No bigger than a 12 fl oz soda can • Mass no greater than 1 kg • USLI requires a dual deployment recovery

  4. Characteristics • Electronics in nose cone • Air brake system • Three fin design

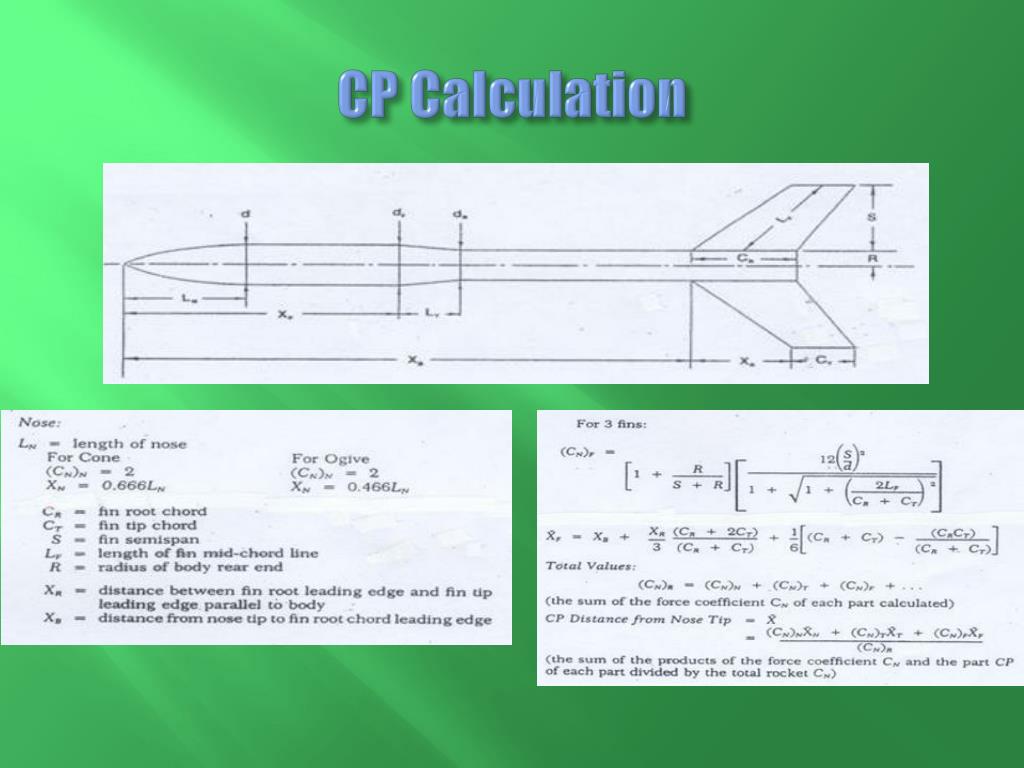

  5. CP Calculation

  6. RockSim Data

  7. RockSim Data

  8. RockSim Results

  9. RockSim Results

  10. Flight Profile 5 phases • Boost phase • Coast phase Deployment of drogue chute at apogee • Initial decent rate • Approximately 60 ft/sec • Deployment of main chute at 500 ft • Slows approximately to less than 20 ft/sec • Close and intact recovery

  11. Boost Phase

  12. Insert Apogee

  13. Insert Drogue Descent

  14. Insert 500’ Main

  15. Insert Main Descent

  16. Construction • G10 fiberglass • Motor • K560W by Aerotech • 2,560 Newton seconds (thrust)x(burn time) • 120 lbs of thrust • 4.5 seconds of burn time

  17. Sustainer Parts

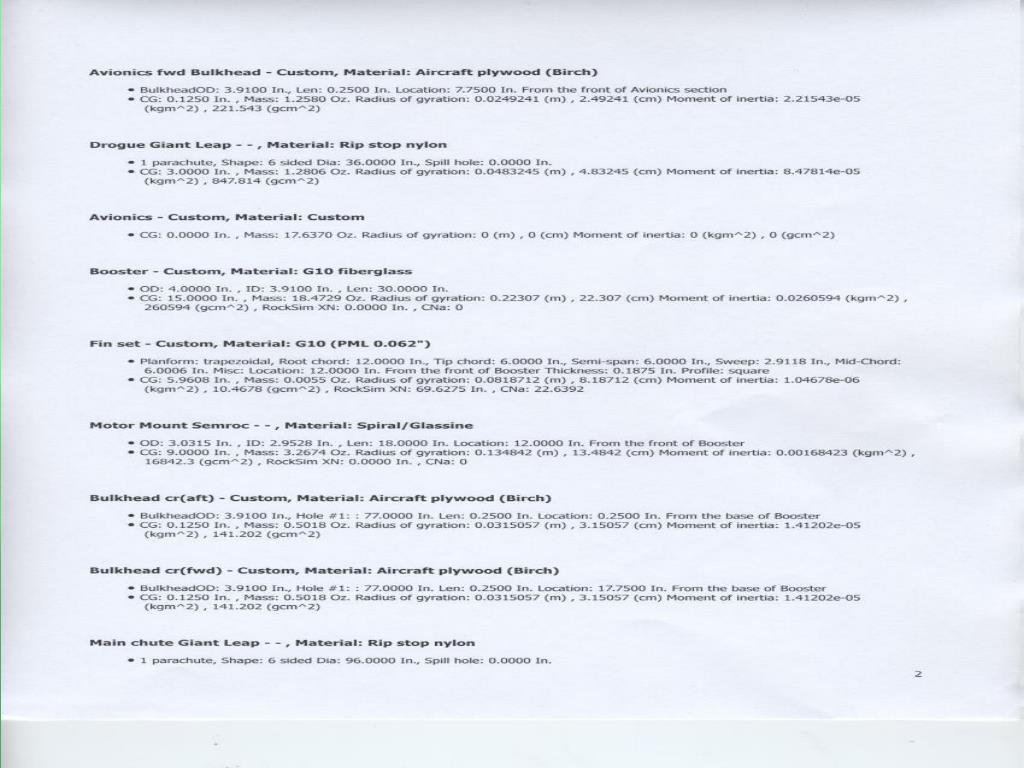

  18. Sustainer Parts Continue

  19. 3/8 Scale Proof –of -Concept

  20. Flight Testing

  21. Outreach

  22. pau
