  1. CHE 185 – PROCESS CONTROL AND DYNAMICS PID ENHANCEMENTS

  2. Limitations of Convential PID Controllers • The performance of PID controllers can be substantially limited by: • Process nonlinearity • Measurement deadtime • Process constraints • there are several approaches for PID controllers to handle each of these problems

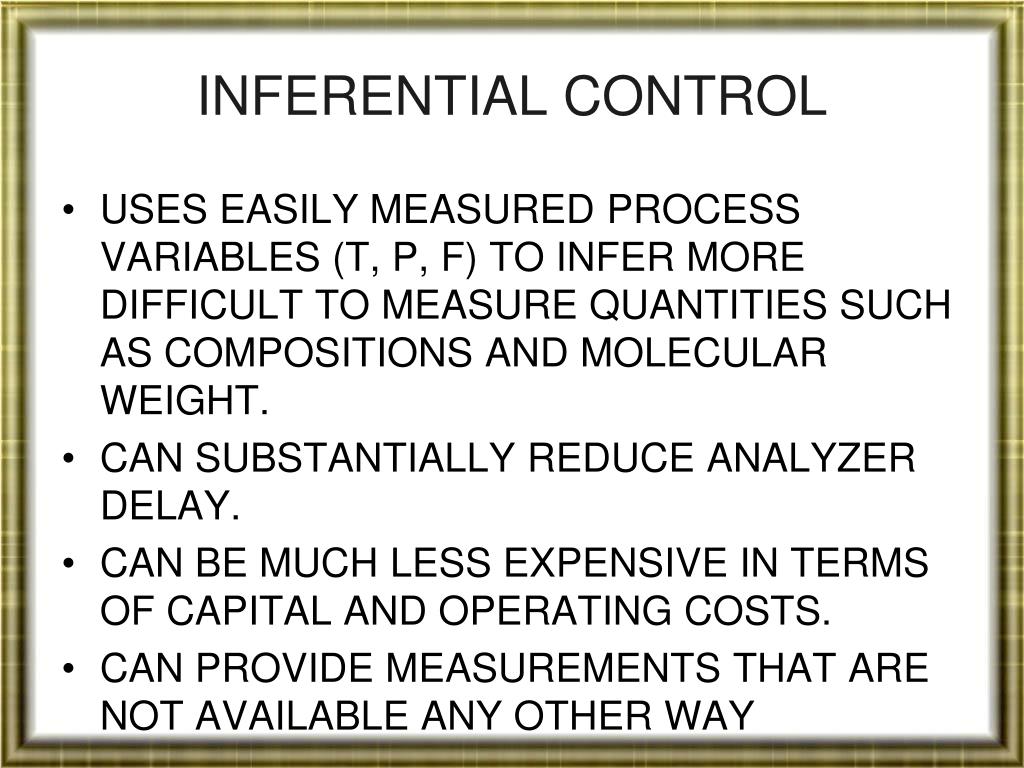

  3. Inferential Control • Uses easily measured process variables (T, P, F) to infer more difficult to measure quantities such as compositions and molecular weight. • Can substantially reduce analyzer delay. • Can be much less expensive in terms of capital and operating costs. • Can provide measurements that are not available any other way

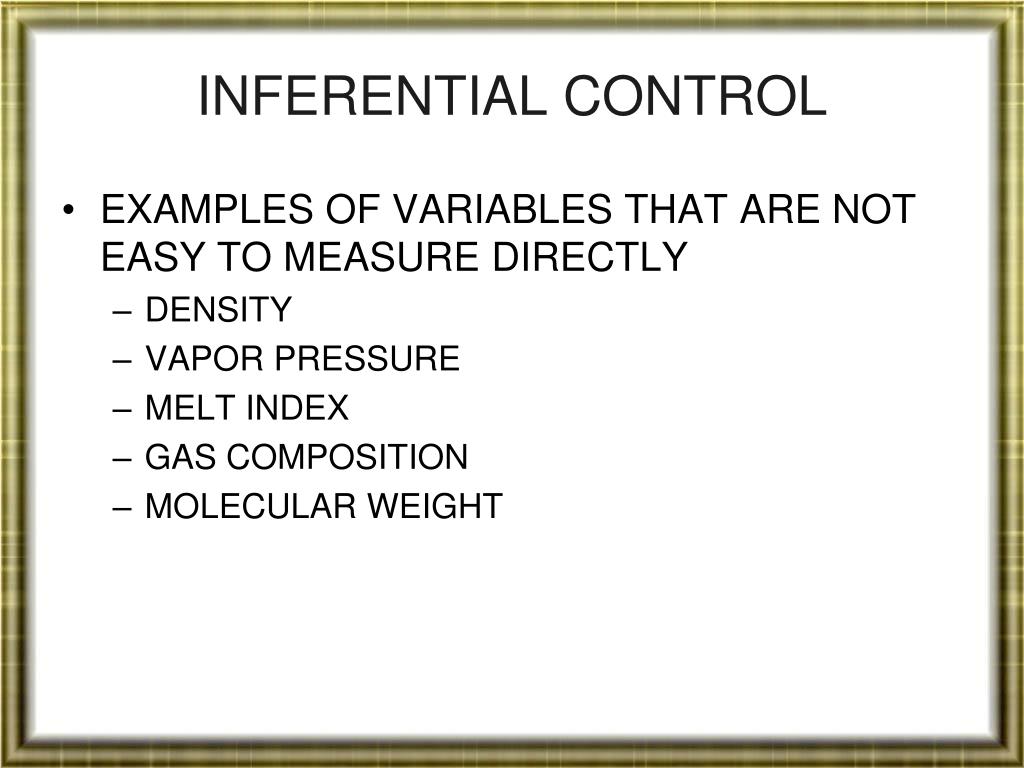

  4. Inferential Control • Examples of variables that are not easy to measure directly • DENSITY • VAPOR PRESSURE • MELT INDEX • GAS COMPOSITION • MOLECULAR WEIGHT

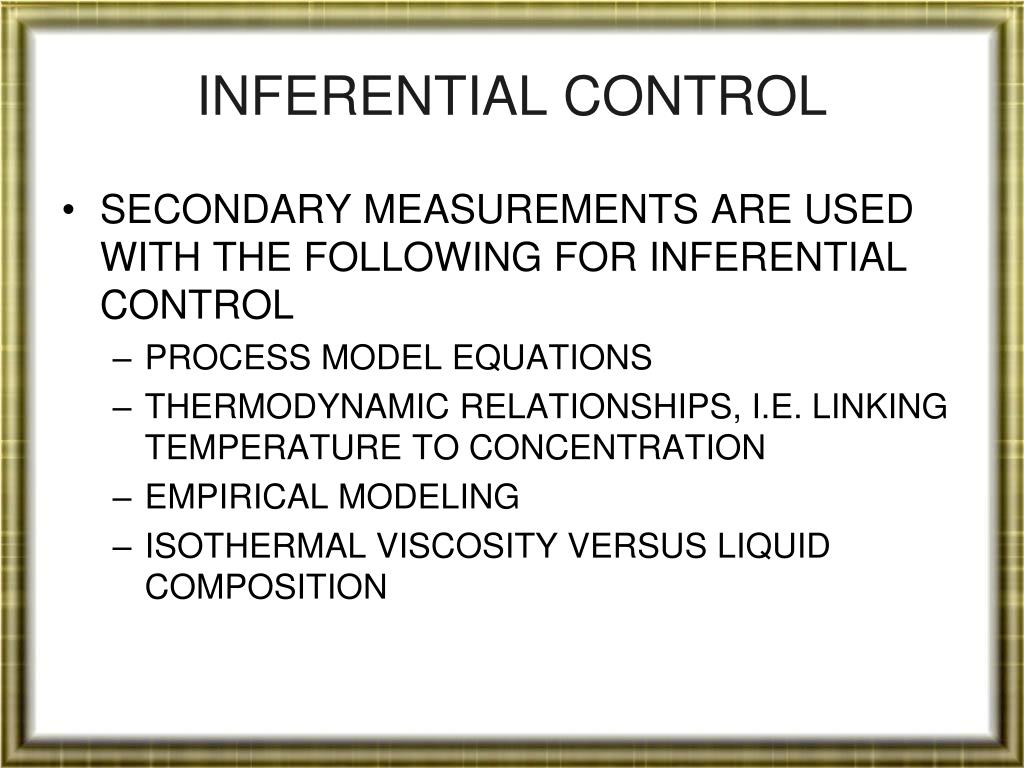

  5. Inferential Control • SECONDARY MEASUREMENTS ARE USED WITH THE FOLLOWING FOR INFERENTIAL CONTROL • PROCESS MODEL EQUATIONS • THERMODYNAMIC RELATIONSHIPS, I.E. LINKING TEMPERATURE TO CONCENTRATION • EMPIRICAL MODELING • ISOTHERMAL VISCOSITY VERSUS LIQUID COMPOSITION

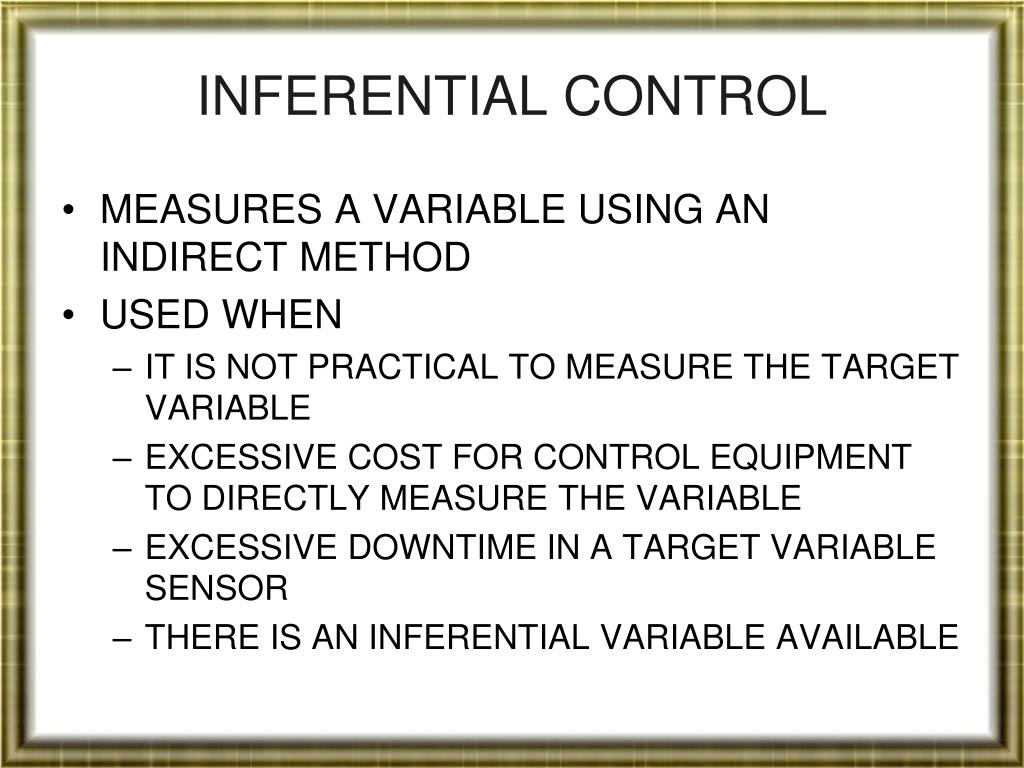

  6. INFERENTIAL CONTROL • MEASURES A VARIABLE USING AN INDIRECT METHOD • USED WHEN • IT IS NOT PRACTICAL TO MEASURE THE TARGET VARIABLE • EXCESSIVE COST FOR CONTROL EQUIPMENT TO DIRECTLY MEASURE THE VARIABLE • EXCESSIVE DOWNTIME IN A TARGET VARIABLE SENSOR • THERE IS AN INFERENTIAL VARIABLE AVAILABLE

  7. INFERENTIAL CONTROL • CHARACTERISTICS OF THE INFERENTIAL VARIABLE • IT MUST BE CLOSELY RELATED TO THE TARGET VARIABLE • IT MUST NOT BE AFFECTED BY CHANGES IN THE PROCESS CONDITIONS • DYNAMICS ARE ADEQUATE FOR FEEDBACK CONTROL

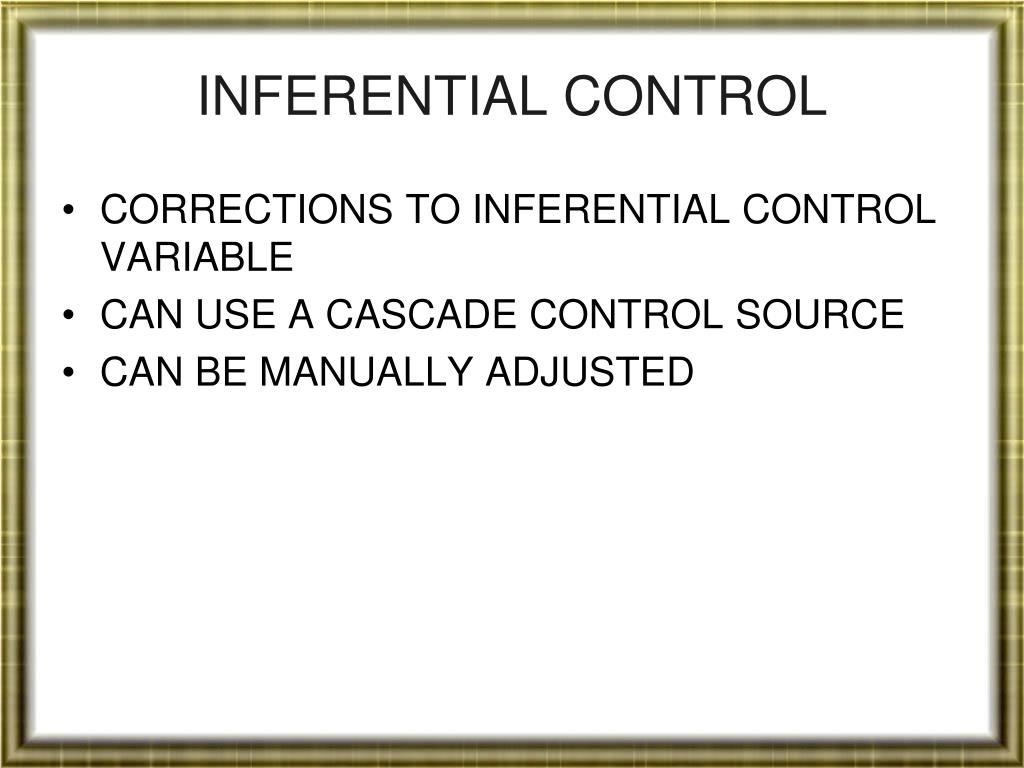

  8. INFERENTIAL CONTROL • CORRECTIONS TO INFERENTIAL CONTROL VARIABLE • CAN USE A CASCADE CONTROL SOURCE • CAN BE MANUALLY ADJUSTED

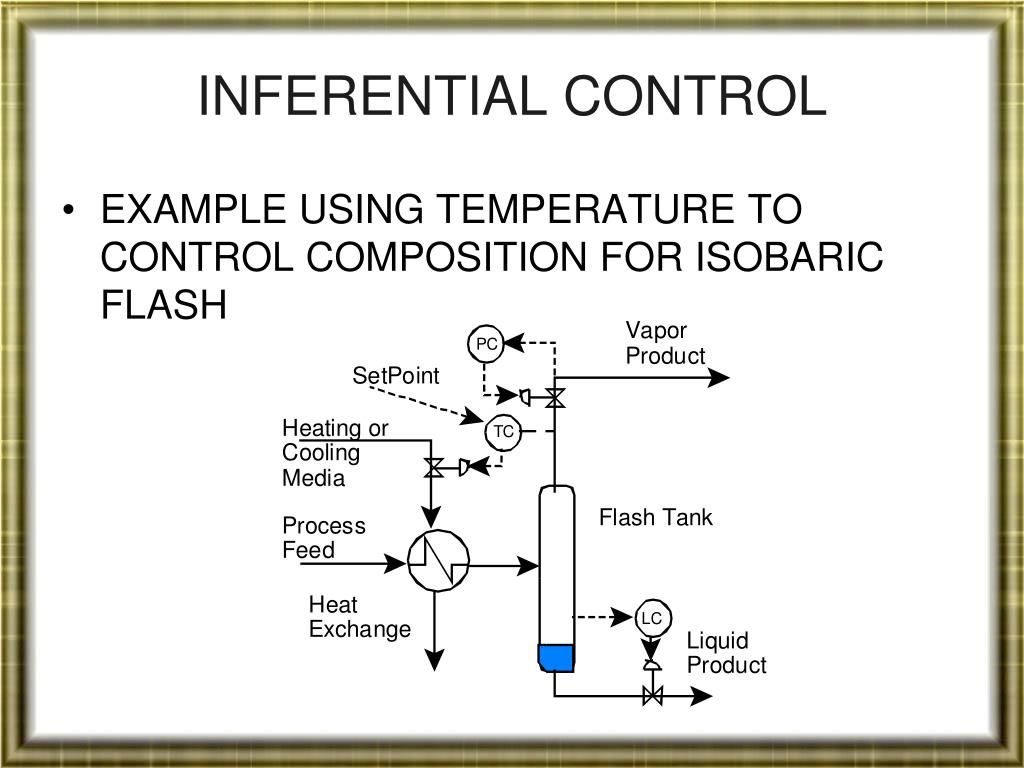

  9. INFERENTIAL CONTROL • example USING TEMPERATURE TO CONTROL COMPOSITION for isobaric flash

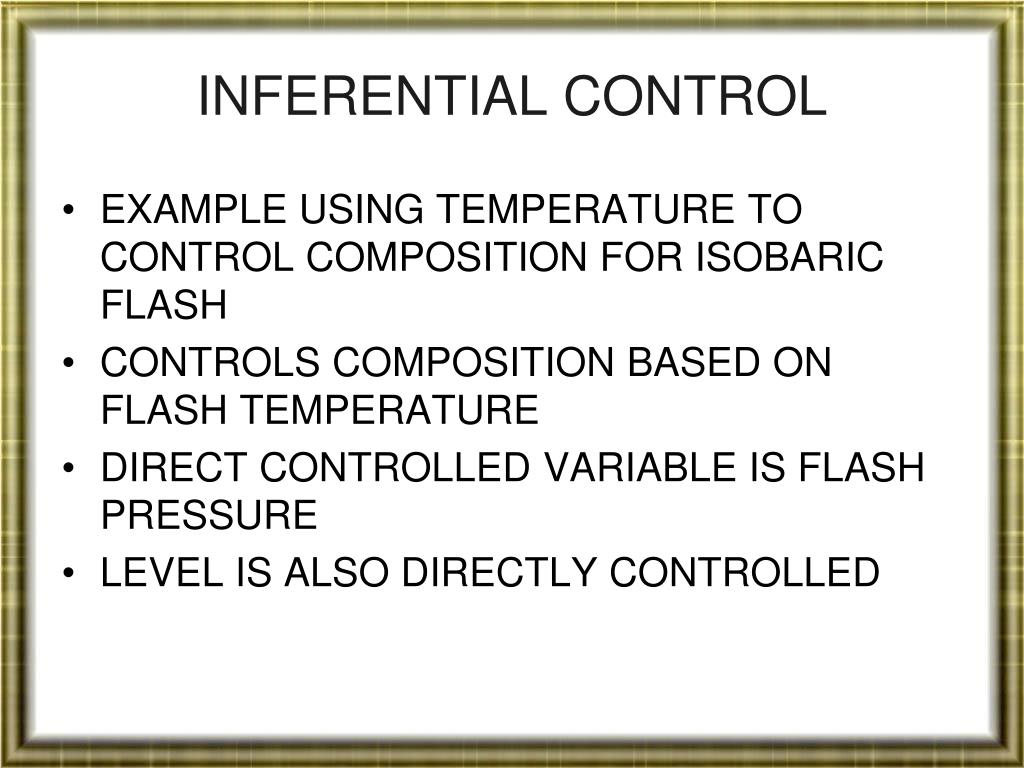

  10. INFERENTIAL CONTROL • example USING TEMPERATURE TO CONTROL COMPOSITION for isobaric flash • CONTROLS COMPOSITION BASED ON FLASH TEMPERATURE • DIRECT CONTROLLED VARIABLE IS FLASH PRESSURE • LEVEL IS ALSO DIRECTLY CONTROLLED

  11. INFERENTIAL CONTROL • example USING TEMPERATURE TO CONTROL COMPOSITION for isobaric flash • HOW IS THE TEMPERATURE SETTING CHECKED FOR THIS EXAMPLE? • MANUAL ANALYSIS CAN BE USED TO ADJUST • A FEED FORWARD SIGNAL FROM A PROCESS ANALYZER CAN ALSO BE USED (SEE SKETCH next slide)

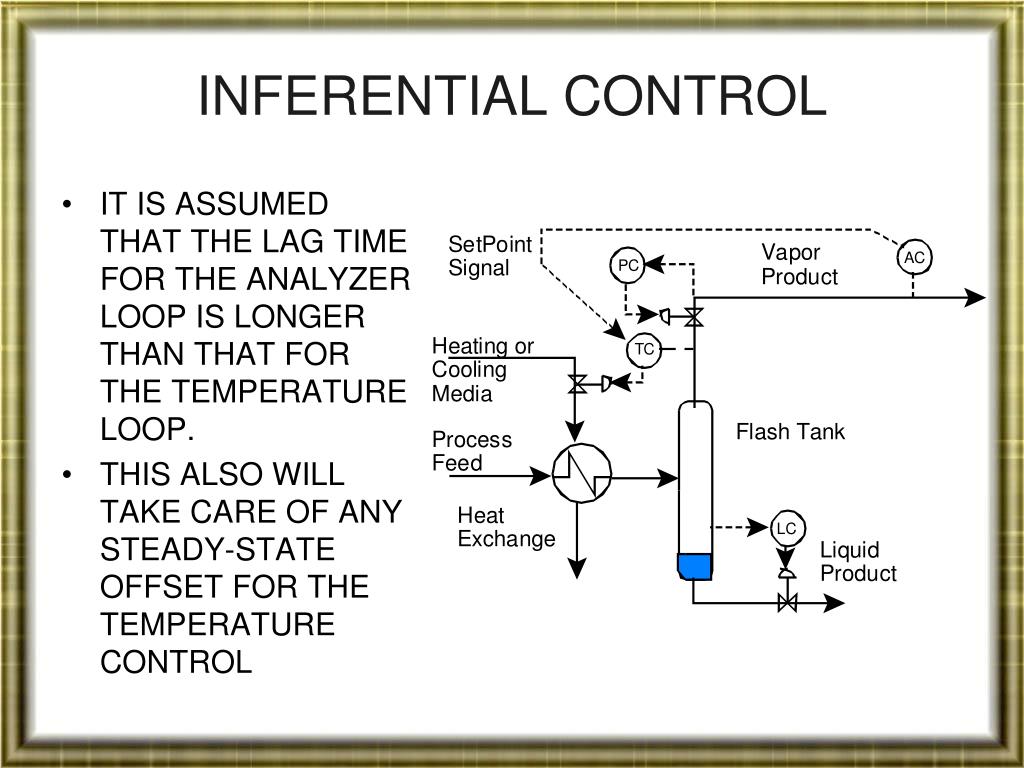

  12. INFERENTIAL CONTROL • IT IS ASSUMED THAT THE LAG TIME FOR THE ANALYZER LOOP IS LONGER THAN THAT FOR THE TEMPERATURE LOOP. • THIS ALSO WILL TAKE CARE OF ANY STEADY-STATE OFFSET FOR THE TEMPERATURE CONTROL

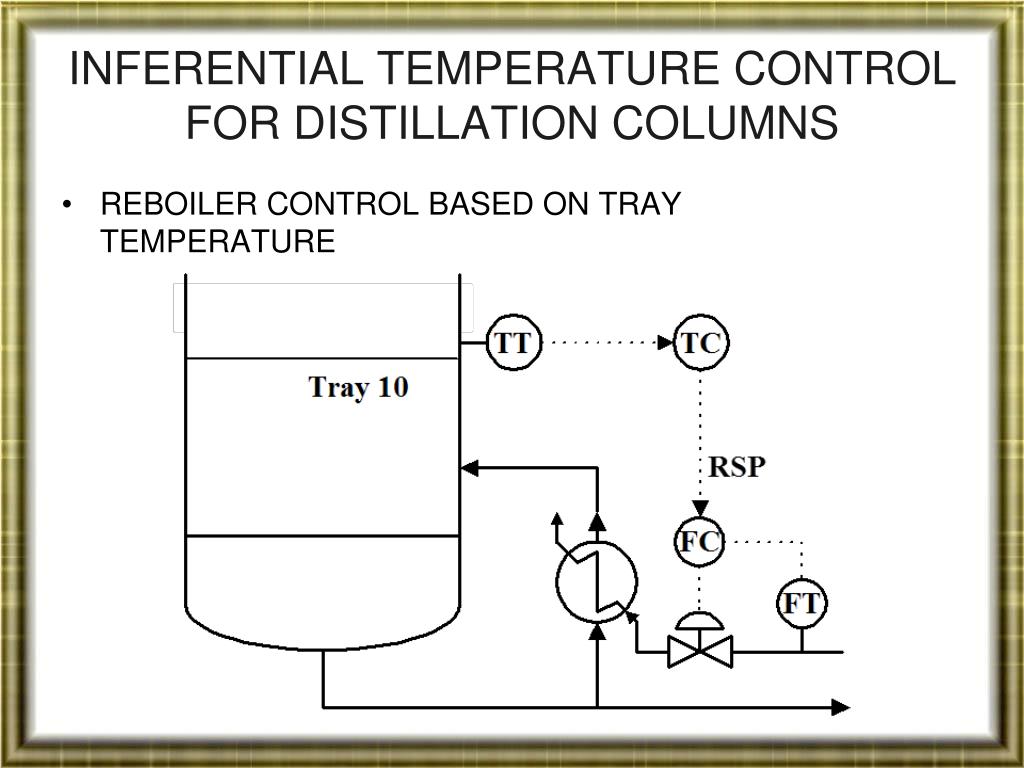

  13. Inferential Temperature Control for Distillation Columns • Reboiler control based on tray temperature

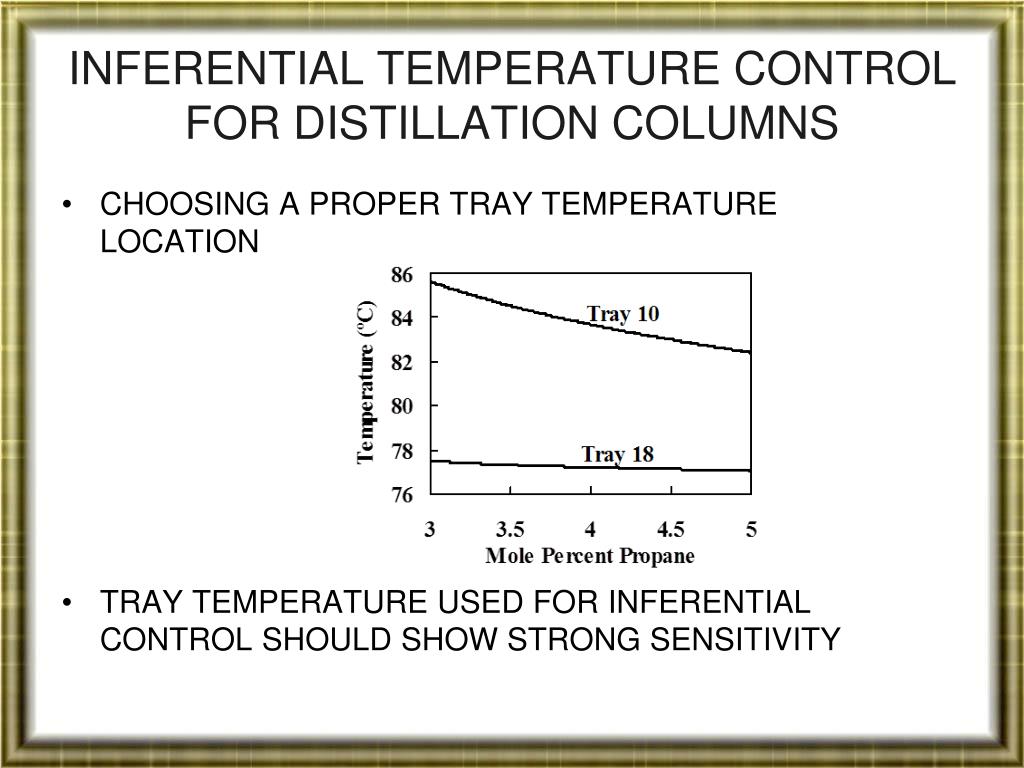

  14. Inferential Temperature Control for Distillation Columns • Choosing a Proper Tray Temperature Location • tray temperature used for inferential control should show strong sensitivity

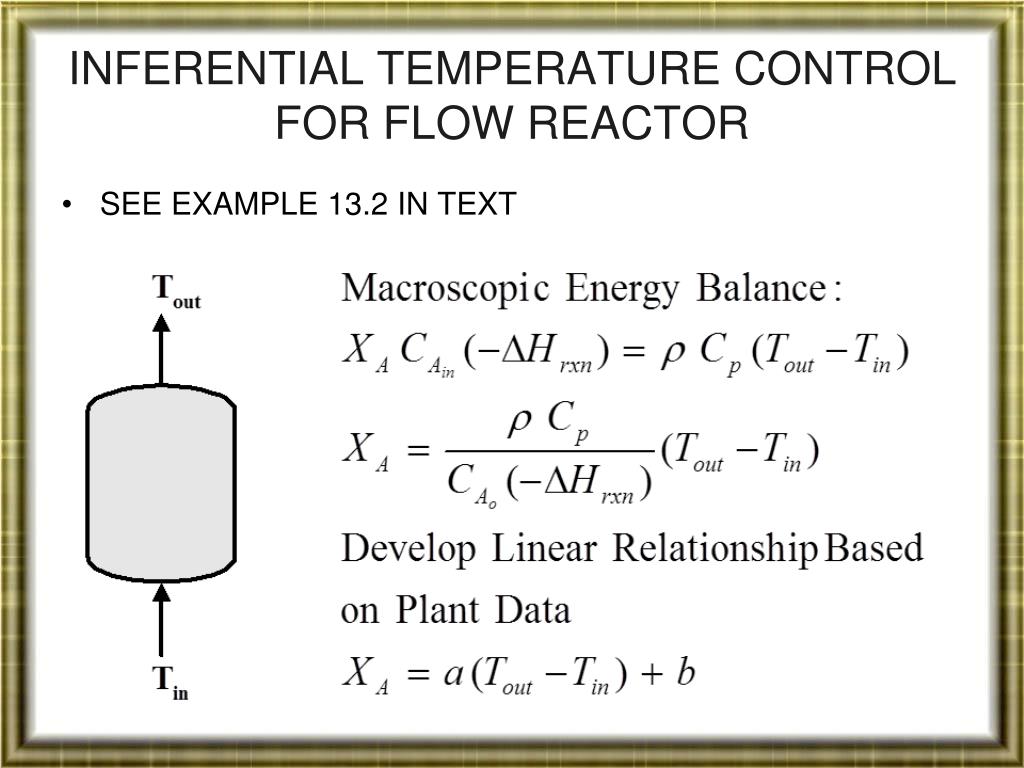

  15. Inferential Temperature Control for flow reactor • See example 13.2 in text

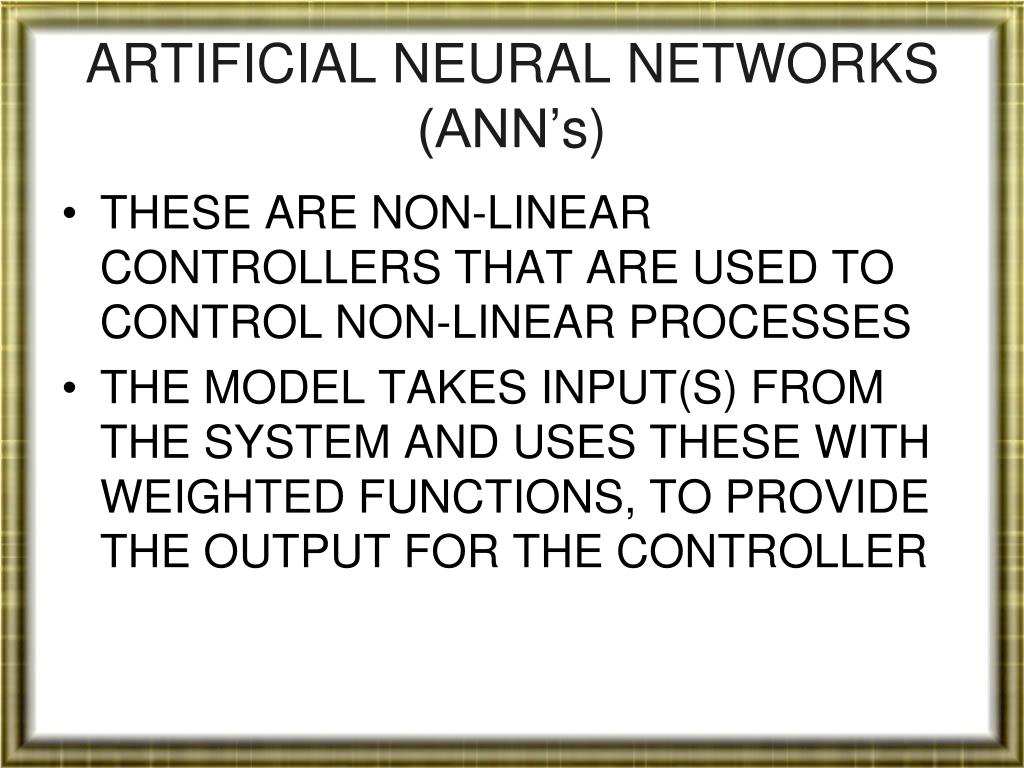

  16. ARTIFICIAL NEURAL NETWORKS (ANN’s) • THESE ARE NON-LINEAR CONTROLLERS THAT ARE USED TO CONTROL NON-LINEAR PROCESSES • THE MODEL TAKES INPUT(S) FROM THE SYSTEM AND USES THESE WITH WEIGHTED FUNCTIONS, TO PROVIDE THE OUTPUT FOR THE CONTROLLER

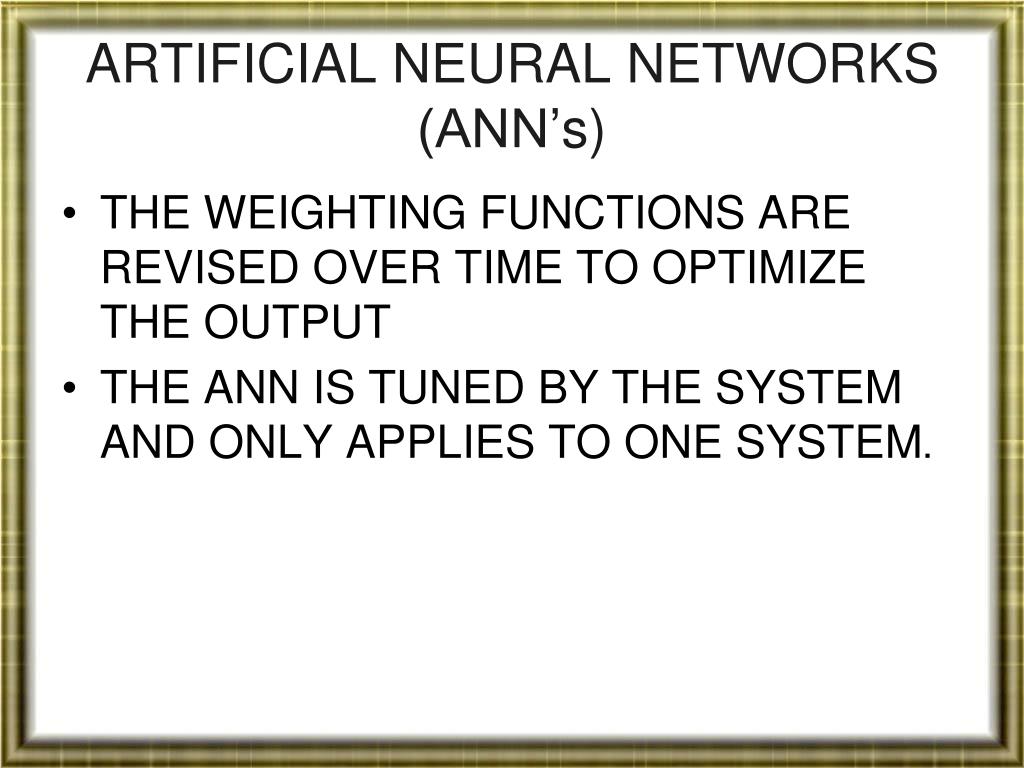

  17. ARTIFICIAL NEURAL NETWORKS (ANN’s) • THE WEIGHTING FUNCTIONS ARE REVISED OVER TIME TO OPTIMIZE THE OUTPUT • THE ANN IS TUNED BY THE SYSTEM AND ONLY APPLIES TO ONE SYSTEM.

  18. ARTIFICIAL NEURAL NETWORKS (ANN’s) • Soft Sensors Based on Neural Networks • Neural network (NN) provides nonlinear correlation. • Weights are adjusted until NN agrees with plant data • NN-based soft sensors are used to infer NOx levels in the flue gas from power plants.

  19. SCHEDULING CONTROLLER TUNING • THIS IS A METHOD TO COMPENSATE FOR PROCESS NON-LINEARITY THAT CAN AFFECT CONTROL RESPONSE • THE BASIC TECHNIQUE IS TO TUNE THE CONTROLLER BASED ON EMPIRICAL DATA • OPTIMUM TUNING DATA IS OBTAINED OVER A RANGE OF PROCESS SETTINGS.

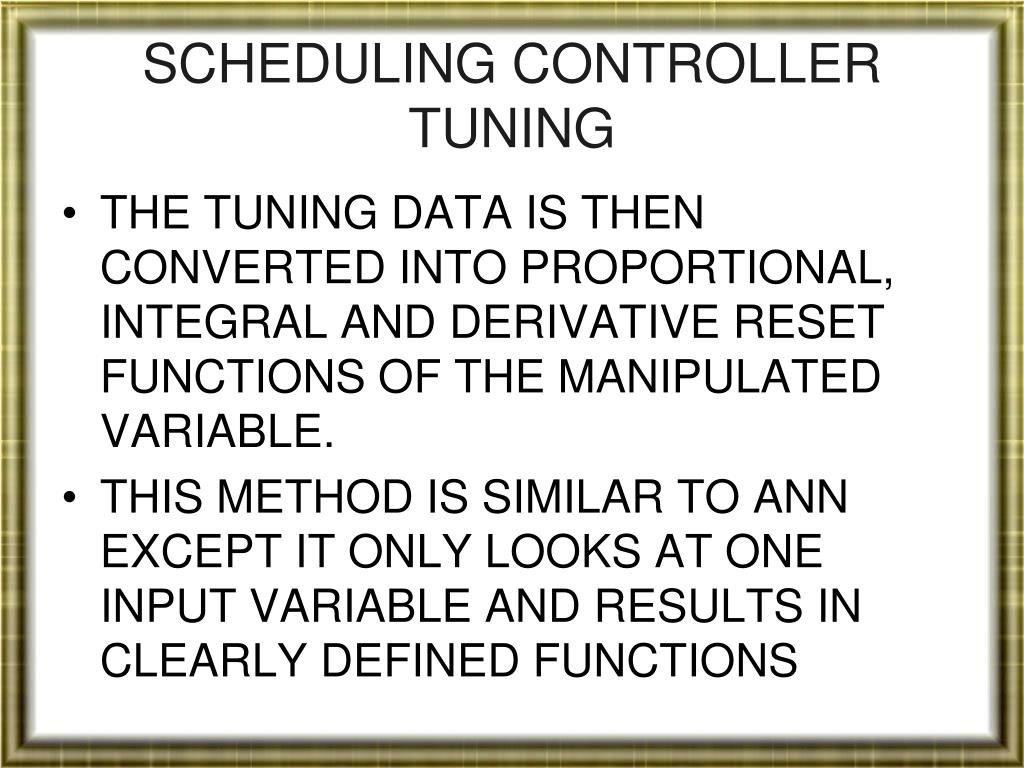

  20. SCHEDULING CONTROLLER TUNING • THE TUNING DATA IS THEN CONVERTED INTO Proportional, INTEGRAL AND DERIVATIVE RESET FUNCTIONS OF THE MANIPULATED VARIABLE. • THIS METHOD IS SIMILAR TO ANN EXCEPT IT ONLY LOOKS AT ONE INPUT VARIABLE AND RESULTS IN CLEARLY DEFINED FUNCTIONS

  21. SCHEDULING CONTROLLER TUNING • Adjust tuning of heat exchanger control for various feed rates • Link tuning parameters to the flow rates

  22. SCHEDULING CONTROLLER TUNING • Typical open loop response

  23. SCHEDULING CONTROLLER TUNING • Close loop response with scheduling

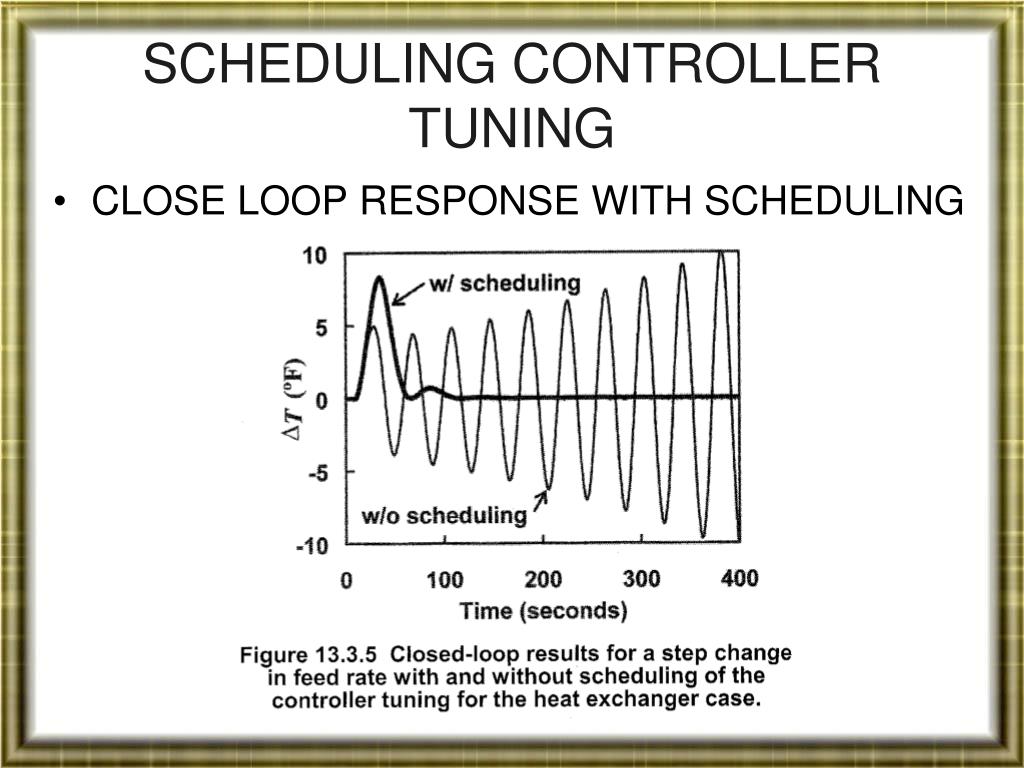

  24. SCHEDULING CONTROLLER TUNING • Close loop response with scheduling

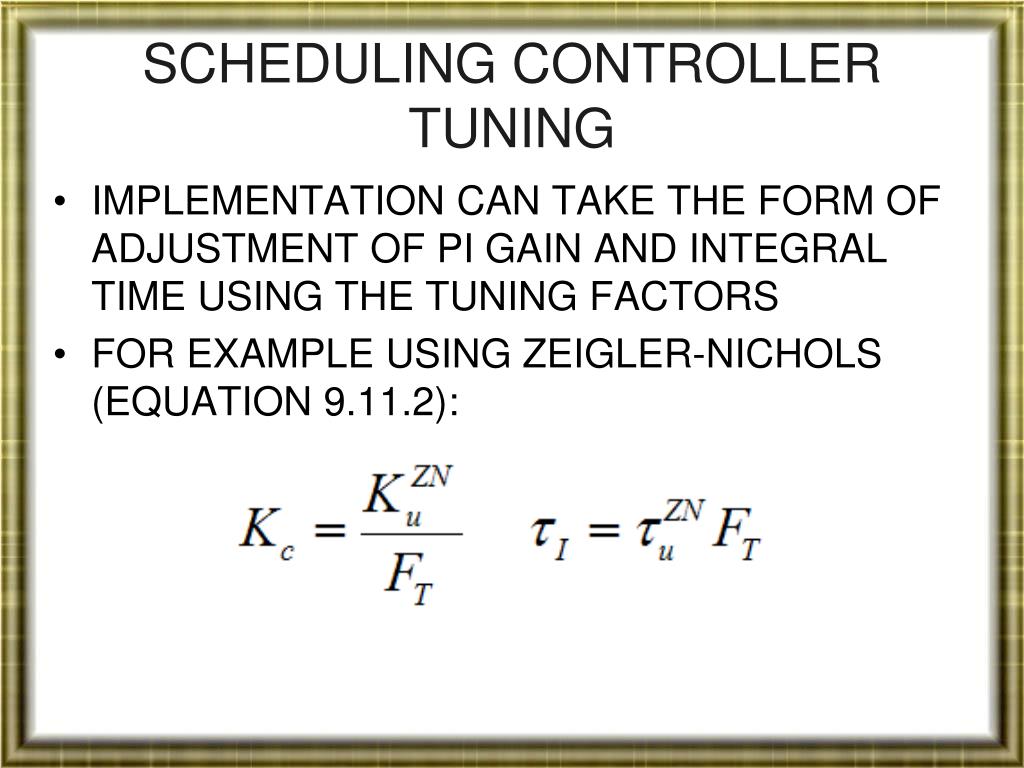

  25. SCHEDULING CONTROLLER TUNING • IMPLEMENTATION CAN TAKE THE FORM OF ADJUSTMENT OF PI GAIN AND INTEGRAL TIME USING THE TUNING FACTORS • For example using zeigler-nichols (equation 9.11.2):

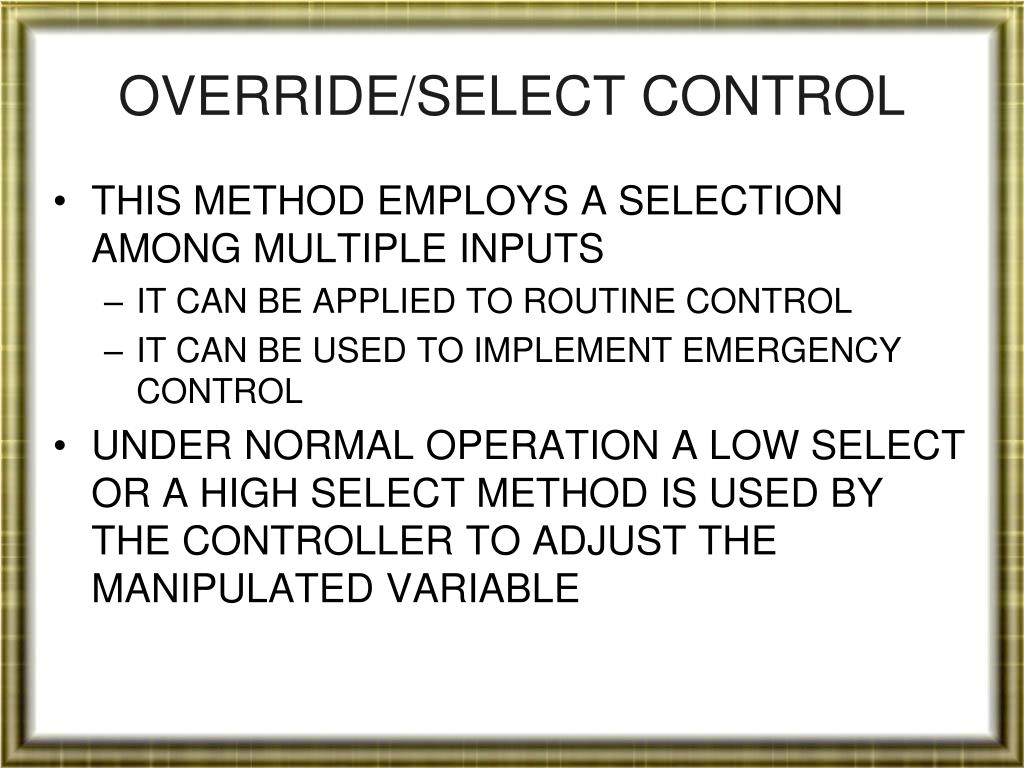

  26. OVERRIDE/SELECT CONTROL • THIS METHOD EMPLOYS A SELECTION AMONG MULTIPLE INPUTS • IT CAN BE APPLIED TO ROUTINE CONTROL • IT CAN BE USED TO IMPLEMENT EMERGENCY CONTROL • UNDER NORMAL OPERATION A LOW SELECT OR A HIGH SELECT METHOD IS USED BY THE CONTROLLER TO ADJUST THE MANIPULATED VARIABLE

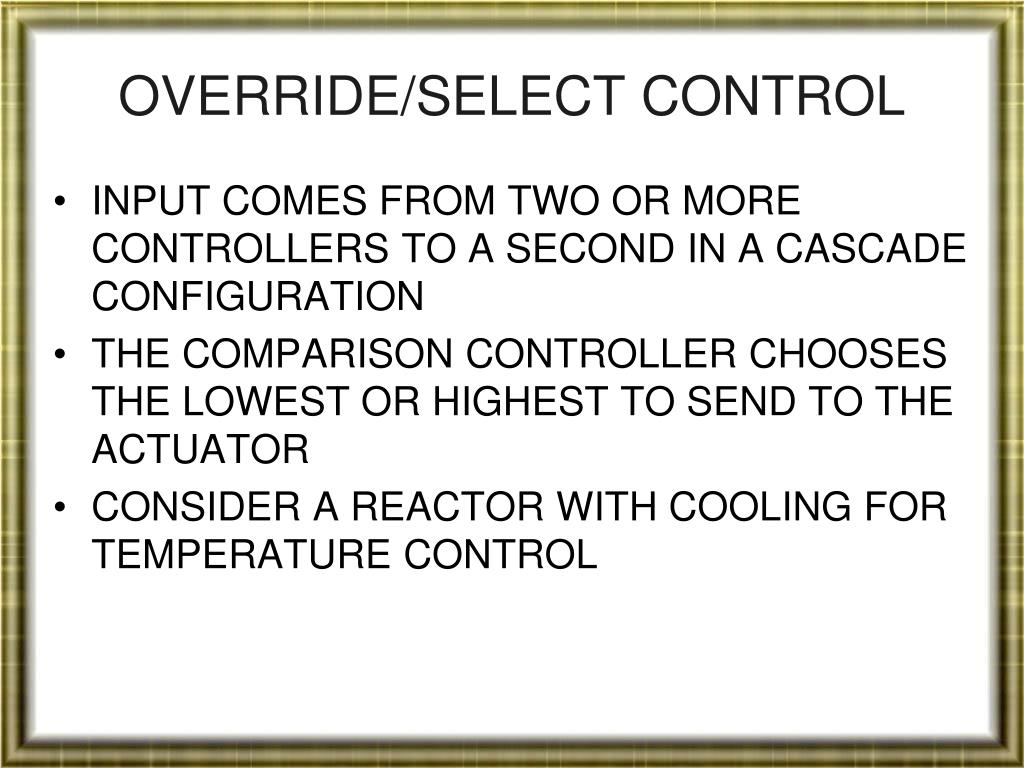

  27. OVERRIDE/SELECT CONTROL • INPUT COMES FROM TWO OR MORE CONTROLLERS TO A SECOND IN A CASCADE CONFIGURATION • THE COMPARISON CONTROLLER CHOOSES THE LOWEST OR HIGHEST TO SEND TO THE ACTUATOR • CONSIDER A REACTOR WITH COOLING FOR TEMPERATURE CONTROL

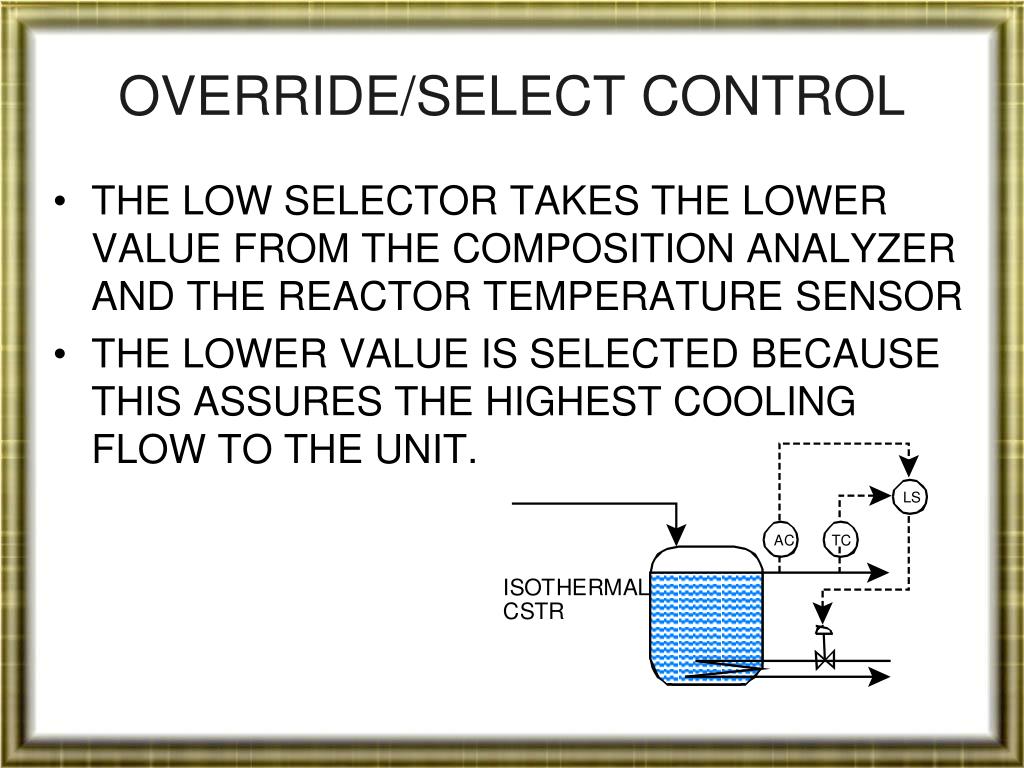

  28. OVERRIDE/SELECT CONTROL • THE LOW SELECTOR TAKES THE LOWER VALUE FROM THE COMPOSITION ANALYZER AND THE REACTOR TEMPERATURE SENSOR • THE LOWER VALUE IS SELECTED BECAUSE THIS ASSURES THE HIGHEST COOLING FLOW TO THE UNIT.

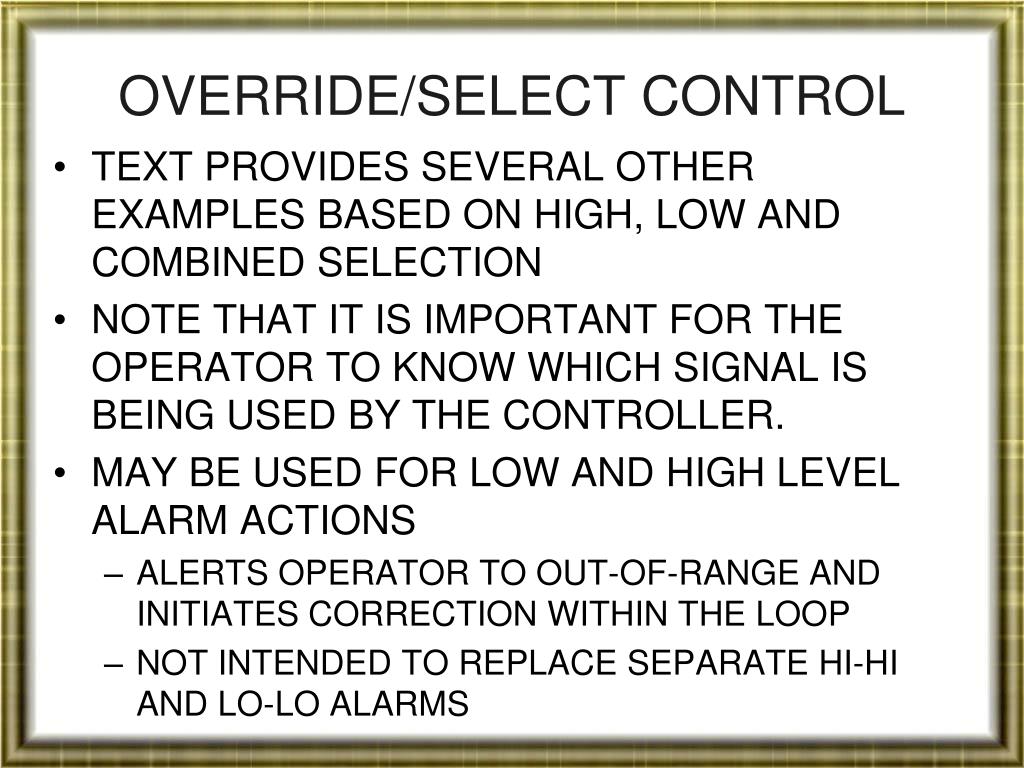

  29. OVERRIDE/SELECT CONTROL • TEXT PROVIDES SEVERAL OTHER EXAMPLES BASED ON HIGH, LOW AND COMBINED SELECTION • NOTE THAT IT IS IMPORTANT FOR THE OPERATOR TO KNOW WHICH SIGNAL IS BEING USED BY THE CONTROLLER. • mAY BE USED FOR LOW AND HIGH LEVEL ALARM ACTIONS • ALERTS OPERATOR TO OUT-OF-RANGE AND INITIATES CORRECTION WITHIN THE LOOP • NOT INTENDED TO REPLACE SEPARATE HI-HI AND LO-LO ALARMS

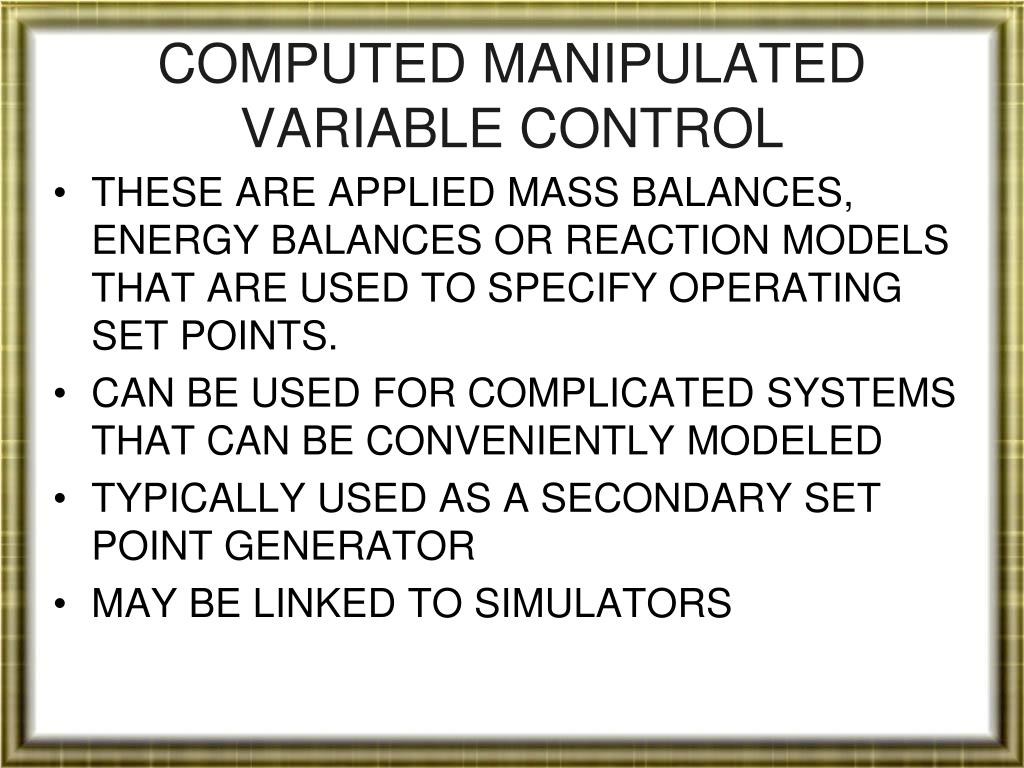

  30. COMPUTED MANIPULATED VARIABLE CONTROL • THESE ARE APPLIED MASS BALANCES, ENERGY BALANCES OR REACTION MODELS THAT ARE USED TO SPECIFY OPERATING SET POINTS. • CAN BE USED FOR COMPLICATED SYSTEMS THAT CAN BE CONVENIENTLY MODELED • TYPICALLY USED AS A SECONDARY SET POINT GENERATOR • May be linked to simulators

  31. COMPUTED MANIPULATED VARIABLE CONTROL • Computed Reboiler Duty Control

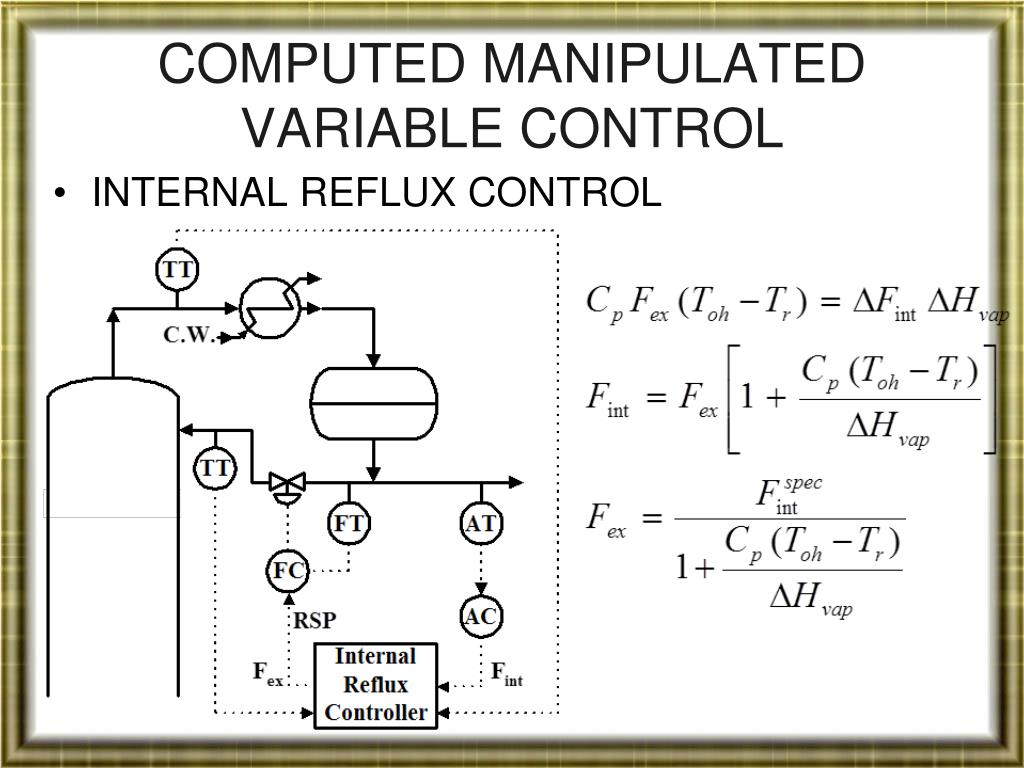

  32. COMPUTED MANIPULATED VARIABLE CONTROL • Internal Reflux Control
