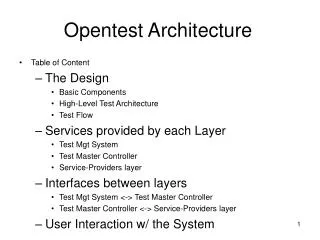

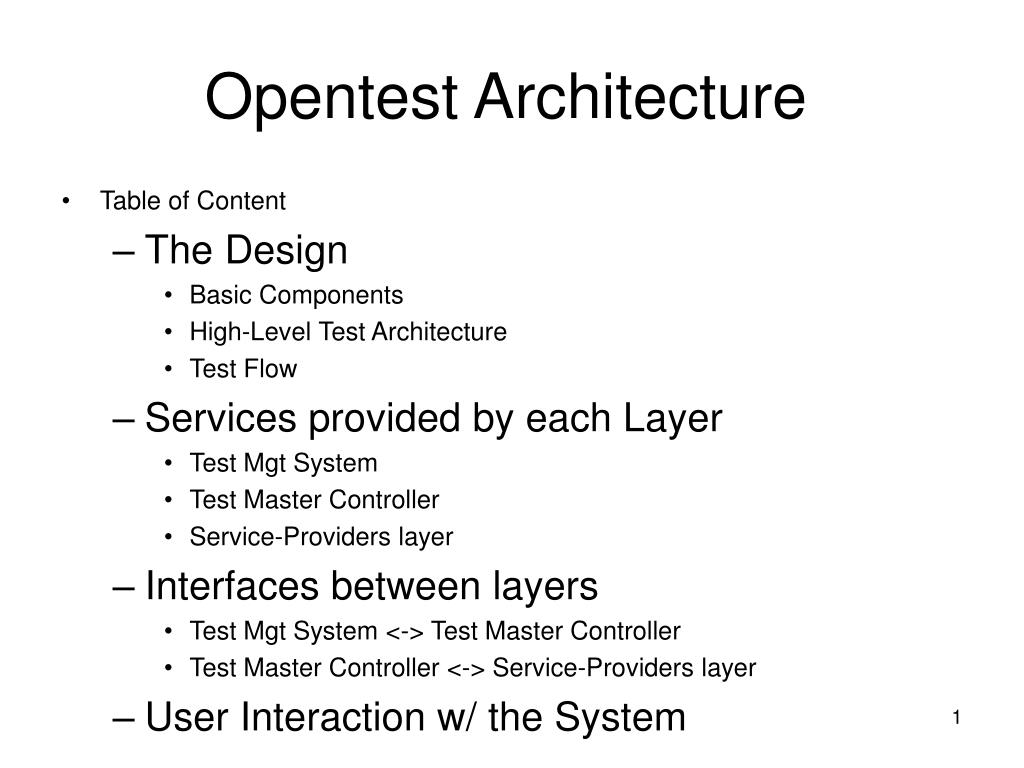

opentest architecture
Opentest Architecture
  • Table of Content
    • The Design
      • Basic Components
      • High-Level Test Architecture
      • Test Flow
    • Services provided by each Layer
      • Test Mgt System
      • Test Master Controller
      • Service-Providers layer
    • Interfaces between layers
      • Test Mgt System <-> Test Master Controller
      • Test Master Controller <-> Service-Providers layer
    • User Interaction w/ the System
test architecture s basic components
Test Architecture’s Basic Components

3-Layer Architecture:

1) Test Management System. 2) Test Master Controller. 3) Service Providers

Test Management System

1

Front-End

TestLink (GPL) + Staf

Test Projects

n

Custom

Fields*

* Custom fields= Test Execution Engine,

Test Execution Logic, Required HW assets,

Required SW assets and Test Parameters.

n

Test Cases

Test Reports

Test Requirements

STAF Request + XML

Test Master Controller

Staf (EPL v1.0)

1

Dispatcher

Monitor

TMS Writer

Resource Manager

STAF Request + XML

STAF Request

Build Execution Engine

Test Execution Engine

Staf +

Vatf|Stax|iCOTS|LinuxTEE|Other

Execution Logic

Execution Logic

Equipment Drivers

high level test architecture

Test Management System

Test Management System

Test Artifacts

(Mysql)

Test Artifacts

(Mysql)

Test Master Controller

Test Master Controller

Build

Execution

Engine

Service

Provider

Test

Execution

Engine

Test

Execution

Engine

Service

Provider

Test

Execution

Engine

Build

Execution

Engine

Service

Provider

Test

Execution

Engine

Test

Execution

Engine

Service

Provider

Test

Execution

Engine

High-Level Test Architecture

Site A

Site B

IP Network

  • Test Artifacts Databases must be synchronized on a periodic basis
  • The 3rd layer is the service-providers layer. TEE and BEE are just special Service Providers.
  • It should be possible to reuse Service Providers across sites if/when desired
  • Typically 1 TMS : 1 TMC
  • 1 TMC : Many Service Providers

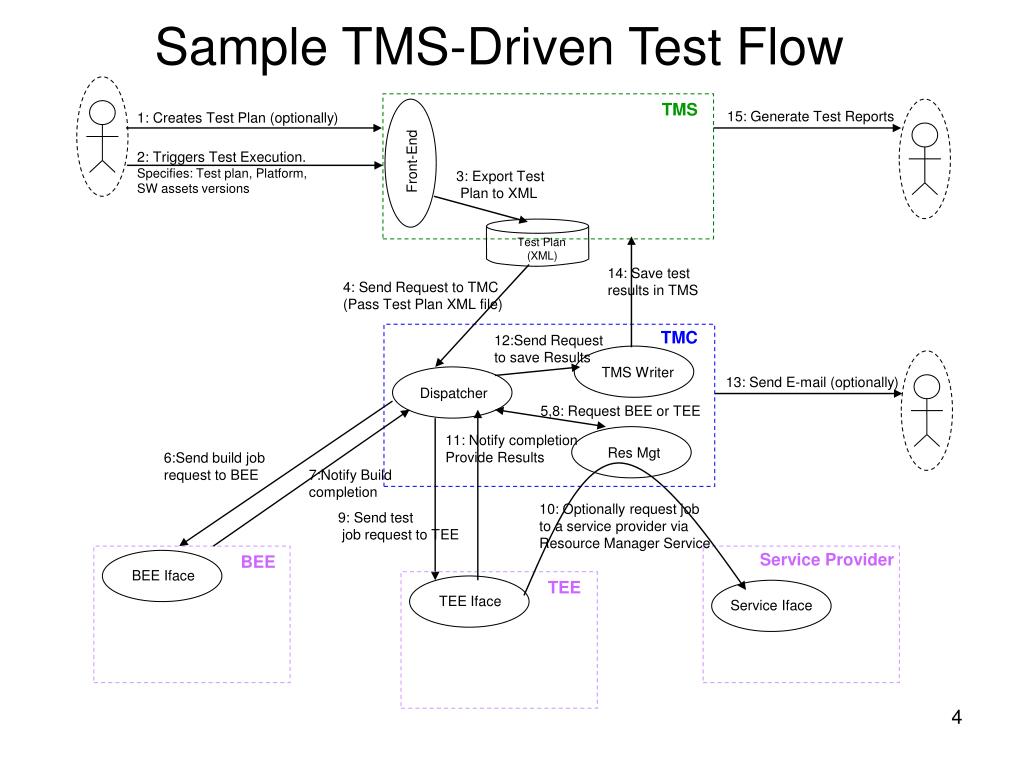

sample tms driven test flow

Test Plan

(XML)

TMS Writer

Sample TMS-Driven Test Flow

TMS

15: Generate Test Reports

1: Creates Test Plan (optionally)

2: Triggers Test Execution.

Specifies: Test plan, Platform,

SW assets versions

Front-End

3: Export Test

Plan to XML

14: Save test

results in TMS

4: Send Request to TMC

(Pass Test Plan XML file)

TMC

12:Send Request

to save Results

13: Send E-mail (optionally)

Dispatcher

5,8: Request BEE or TEE

11: Notify completion

Provide Results

Res Mgt

6:Send build job

request to BEE

7:Notify Build

completion

10: Optionally request job

to a service provider via

Resource Manager Service

9: Send test

job request to TEE

Service Provider

BEE

BEE Iface

TEE

TEE Iface

Service Iface

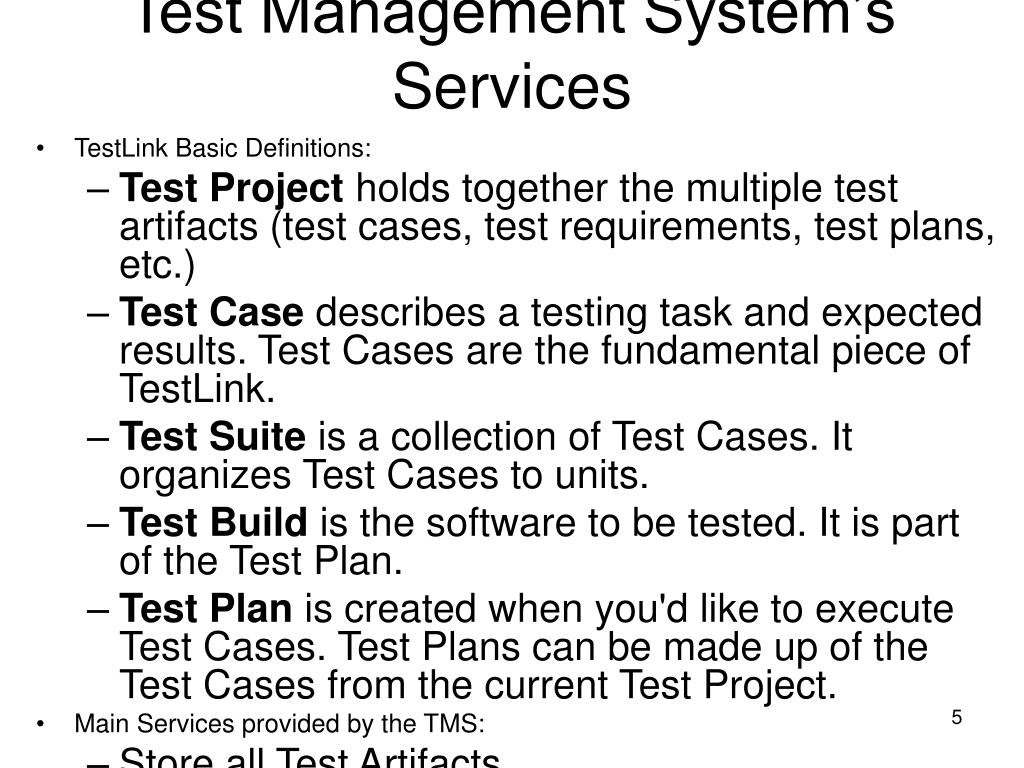

test management system s services
Test Management System’s Services
  • TestLink Basic Definitions:
    • Test Project holds together the multiple test artifacts (test cases, test requirements, test plans, etc.)
    • Test Case describes a testing task and expected results. Test Cases are the fundamental piece of TestLink.
    • Test Suite is a collection of Test Cases. It organizes Test Cases to units.
    • Test Build is the software to be tested. It is part of the Test Plan.
    • Test Plan is created when you'd like to execute Test Cases. Test Plans can be made up of the Test Cases from the current Test Project.
  • Main Services provided by the TMS:
    • Store all Test Artifacts
    • Provides ways to Add/Edit/Delete Test Artifacts:
      • Test Cases
      • Test Suites
      • Test Requirements
      • Test Builds
      • Test Plans (Test Cases + Build Tag)
        • Test Results
    • Export/Import Test Plans to/from XML
    • Trigger test execution (optionally)
test master controller s services
Test Master Controller’s Services
  • Dispatch Jobs to appropriate BEE & TEE
  • Translate Test parameters between TMS and BEE/TEE
  • Provide TMS-independent test case representation to TEE
  • Provide a mechanism by which TEE can save test results in TMS
  • Manage Service Providers

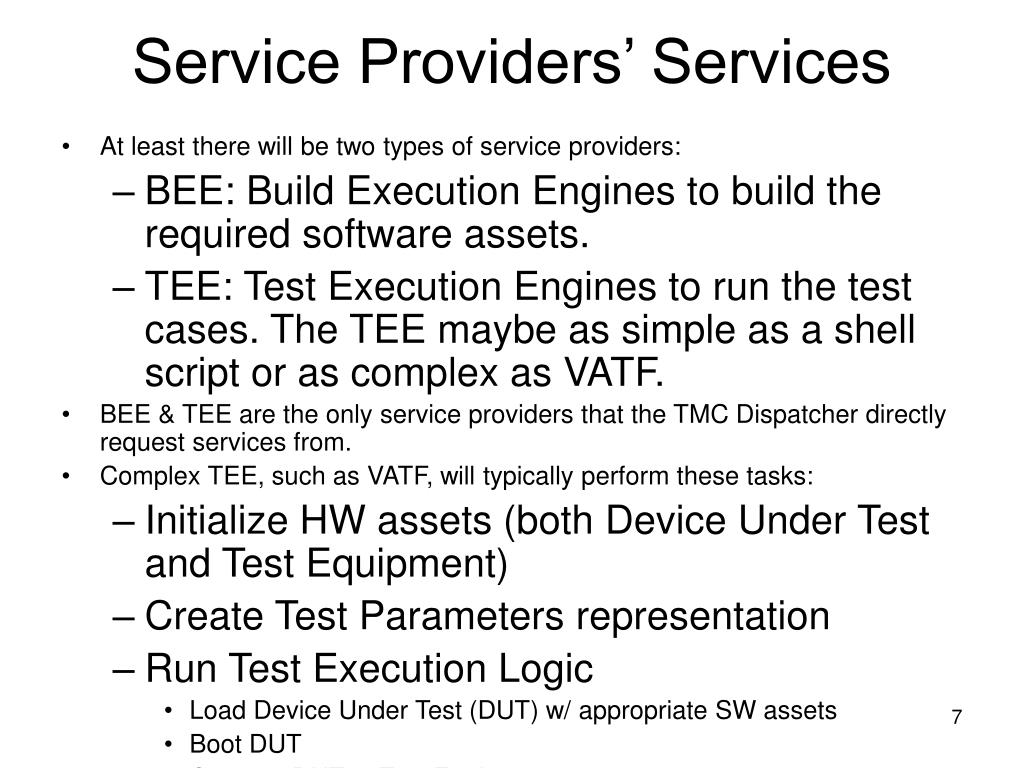

service providers services
Service Providers’ Services
  • At least there will be two types of service providers:
    • BEE: Build Execution Engines to build the required software assets.
    • TEE: Test Execution Engines to run the test cases. The TEE maybe as simple as a shell script or as complex as VATF.
  • BEE & TEE are the only service providers that the TMC Dispatcher directly request services from.
  • Complex TEE, such as VATF, will typically perform these tasks:
    • Initialize HW assets (both Device Under Test and Test Equipment)
    • Create Test Parameters representation
    • Run Test Execution Logic
      • Load Device Under Test (DUT) w/ appropriate SW assets
      • Boot DUT
      • Connect DUT to Test Equipment
      • Configure DUT and Test Equipment
      • Check conditions or measure metrics
      • Determine Pass/Fail
    • Save Results & Logs

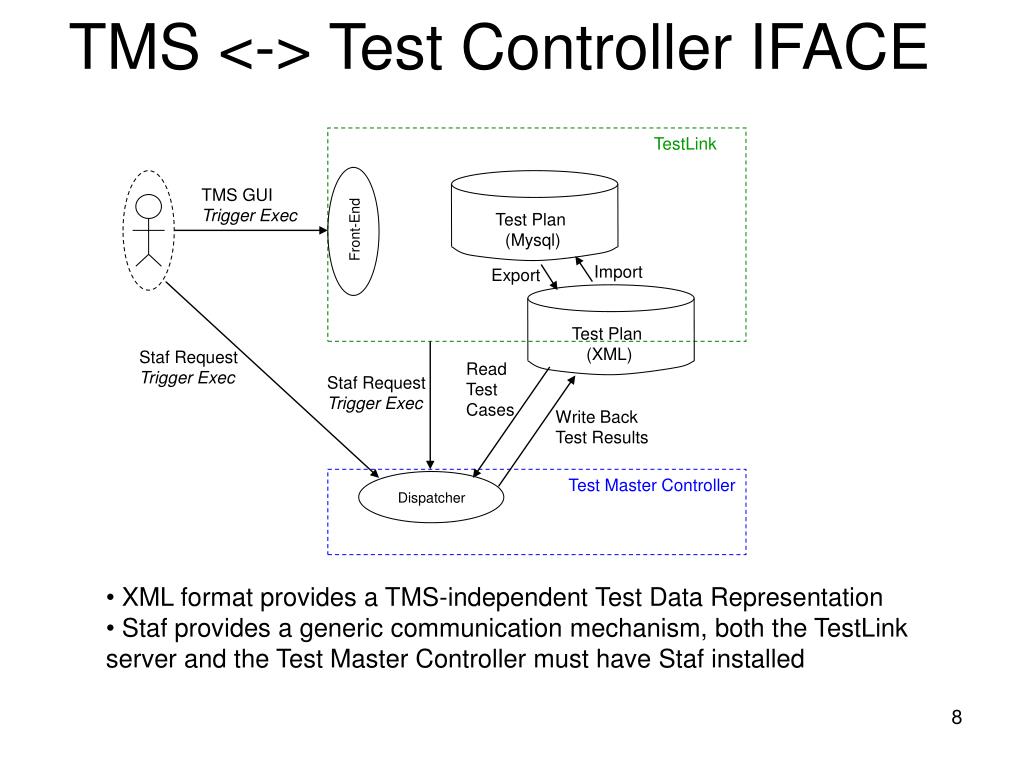

tms test controller iface

Test Plan

(Mysql)

Test Plan

(XML)

Dispatcher

TMS <-> Test Controller IFACE

TestLink

TMS GUI

Trigger Exec

Front-End

Import

Export

Staf Request

Trigger Exec

Read

Test

Cases

Staf Request

Trigger Exec

Write Back

Test Results

Test Master Controller

  • XML format provides a TMS-independent Test Data Representation
  • Staf provides a generic communication mechanism, both the TestLink
  • server and the Test Master Controller must have Staf installed

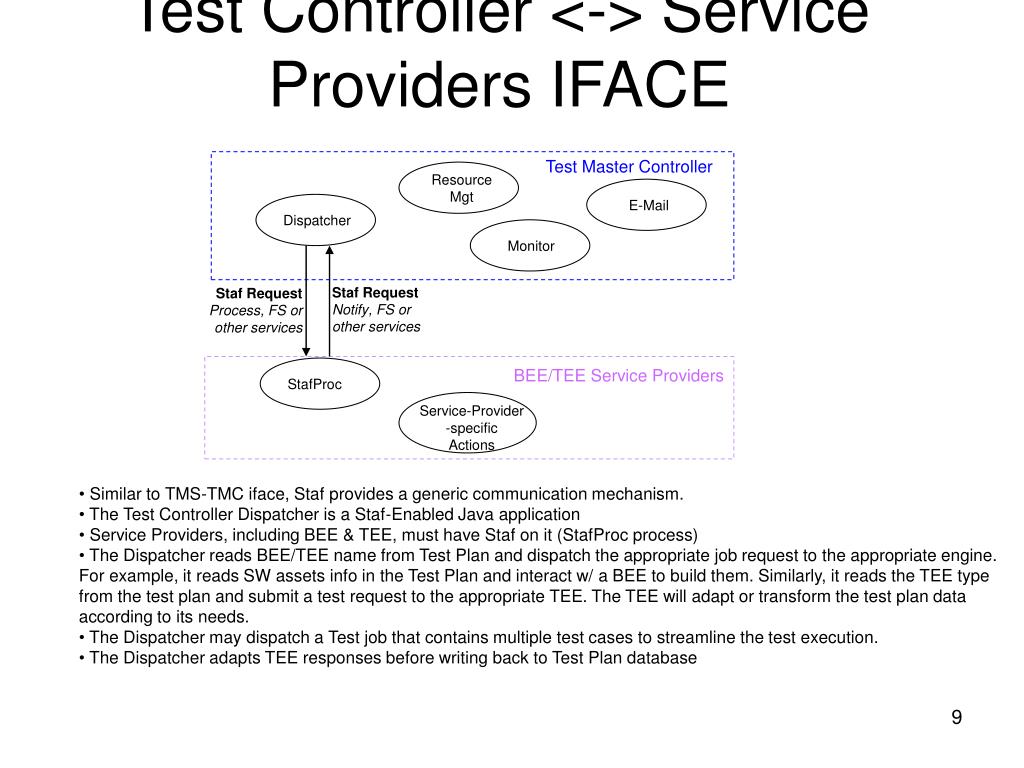

test controller service providers iface

Service-Provider

-specific

Actions

Resource

Mgt

Monitor

E-Mail

Test Controller <-> Service Providers IFACE

Test Master Controller

Dispatcher

Staf Request

Notify, FS or

other services

Staf Request

Process, FS or

other services

BEE/TEE Service Providers

StafProc

  • Similar to TMS-TMC iface, Staf provides a generic communication mechanism.
  • The Test Controller Dispatcher is a Staf-Enabled Java application
  • Service Providers, including BEE & TEE, must have Staf on it (StafProc process)
  • The Dispatcher reads BEE/TEE name from Test Plan and dispatch the appropriate job request to the appropriate engine.
  • For example, it reads SW assets info in the Test Plan and interact w/ a BEE to build them. Similarly, it reads the TEE type
  • from the test plan and submit a test request to the appropriate TEE. The TEE will adapt or transform the test plan data
  • according to its needs.
  • The Dispatcher may dispatch a Test job that contains multiple test cases to streamline the test execution.
  • The Dispatcher adapts TEE responses before writing back to Test Plan database

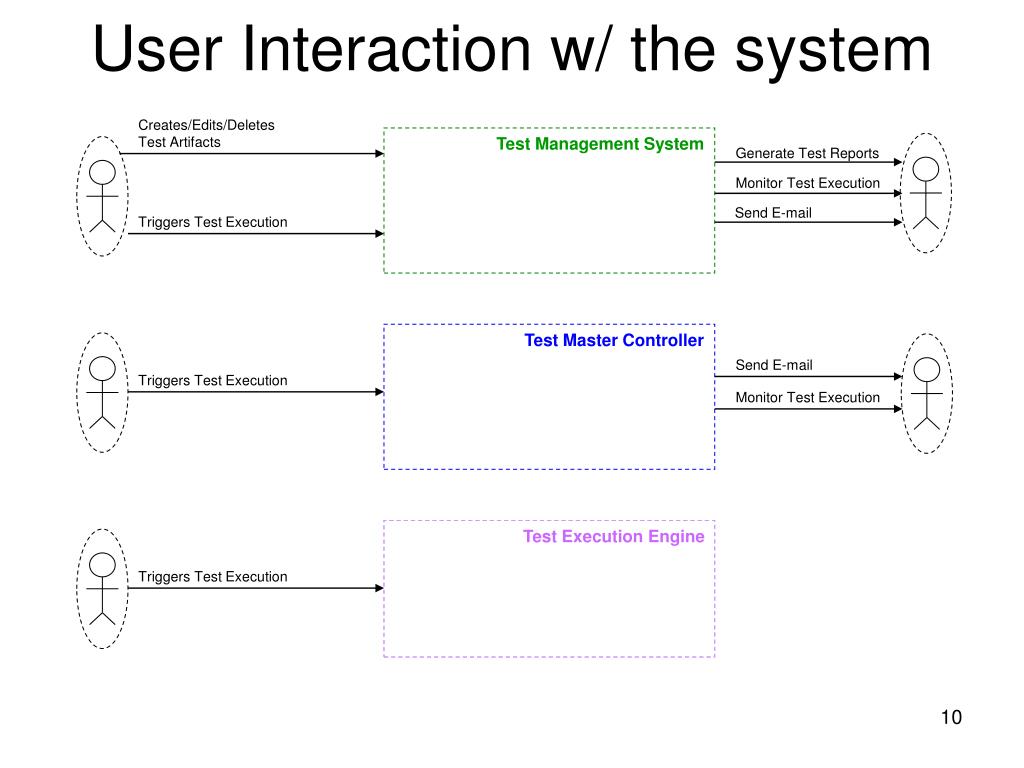

user interaction w the system
User Interaction w/ the system

Creates/Edits/Deletes

Test Artifacts

Test Management System

Generate Test Reports

Monitor Test Execution

Send E-mail

Triggers Test Execution

Test Master Controller

Send E-mail

Triggers Test Execution

Monitor Test Execution

Test Execution Engine

Triggers Test Execution
