Presentation Transcript
slide1

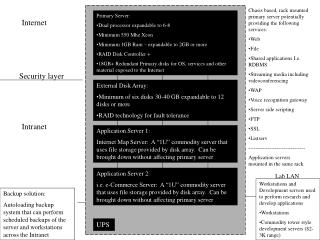

Chasis based, rack mounted primary server potentially providing the following services:

  • Web
  • File
  • Shared applications I.e. RDBMS
  • Streaming media including videoconferencing
  • WAP
  • Voice recognition gateway
  • Server side scripting
  • FTP
  • SSL
  • Listserv
  • --------------------------------
  • Application servers mounted in the same rack
  • Primary Server:
  • Dual processor expandable to 6-8
  • Minimum 550 Mhz Xeon
  • Minimum 1GB Ram – expandable to 2GB or more
  • RAID Disk Controller +
  • 18GB+ Redundant Primary disks for OS, services and other material exposed to the Internet

Internet

Security layer

  • External Disk Array:
  • Minimum of six disks 30-40 GB expandable to 12 disks or more
  • RAID technology for fault tolerance

Intranet

Application Server 1:

Internet Map Server: A “1U” commodity server that uses file storage provided by disk array. Can be brought down without affecting primary server

Application Server 2:

i.e. e-Commerce Server: A “1U” commodity server that uses file storage provided by disk array. Can be brought down without affecting primary server

Lab LAN

  • Workstations and Development servers used to perform research and develop applications
  • Workstations
  • Commodity tower style development servers ($2-3K range)

Backup solution:

Autoloading backup system that can perform scheduled backups of the server and workstations across the Intranet

UPS
