copernicus a generalized trajectory design and optimization system

Copernicus, A Generalized Trajectory Design and Optimization System

Greg Johnson

Sebastian Munoz

The University of Texas at Austin

November 25, 2003

overview
Overview
  • What is trajectory design and optimization?
  • What makes this problem so difficult?
  • The necessity for a generalized trajectory system
  • Existing systems
  • The Copernicus trajectory system
  • Conclusions
what is trajectory design and optimization

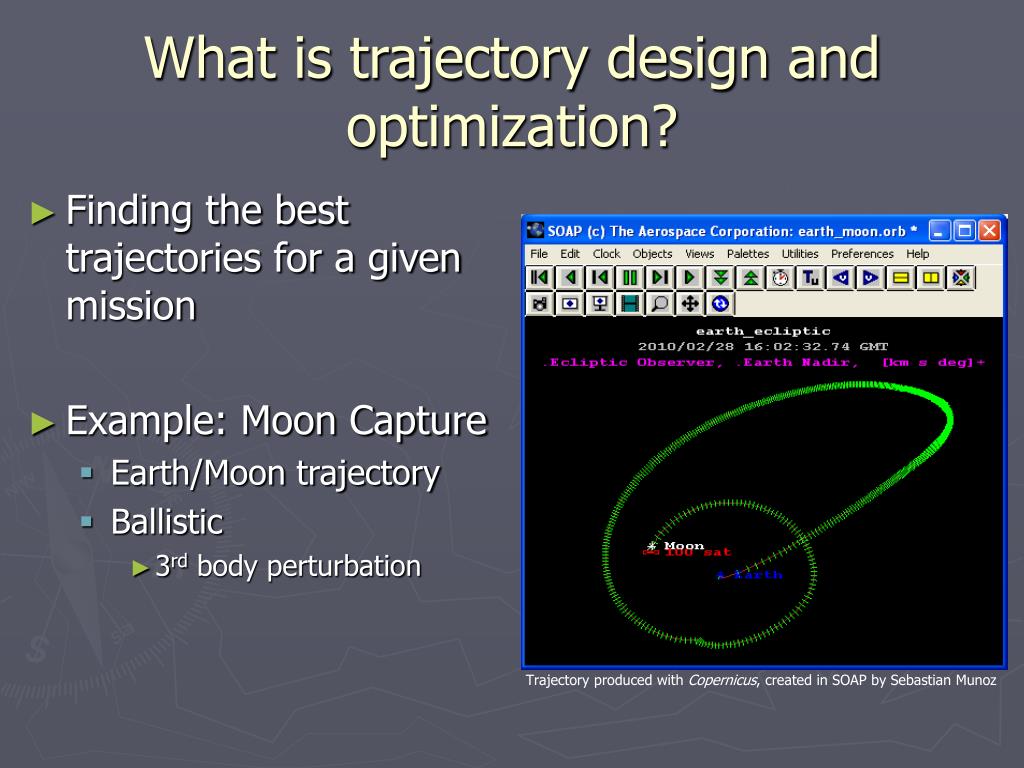

Trajectory produced with Copernicus, created in SOAP by Sebastian Munoz

What is trajectory design and optimization?
  • Finding the best trajectories for a given mission
  • Example: Moon Capture
    • Earth/Moon trajectory
    • Ballistic
      • 3rd body perturbation
what makes this problem so difficult

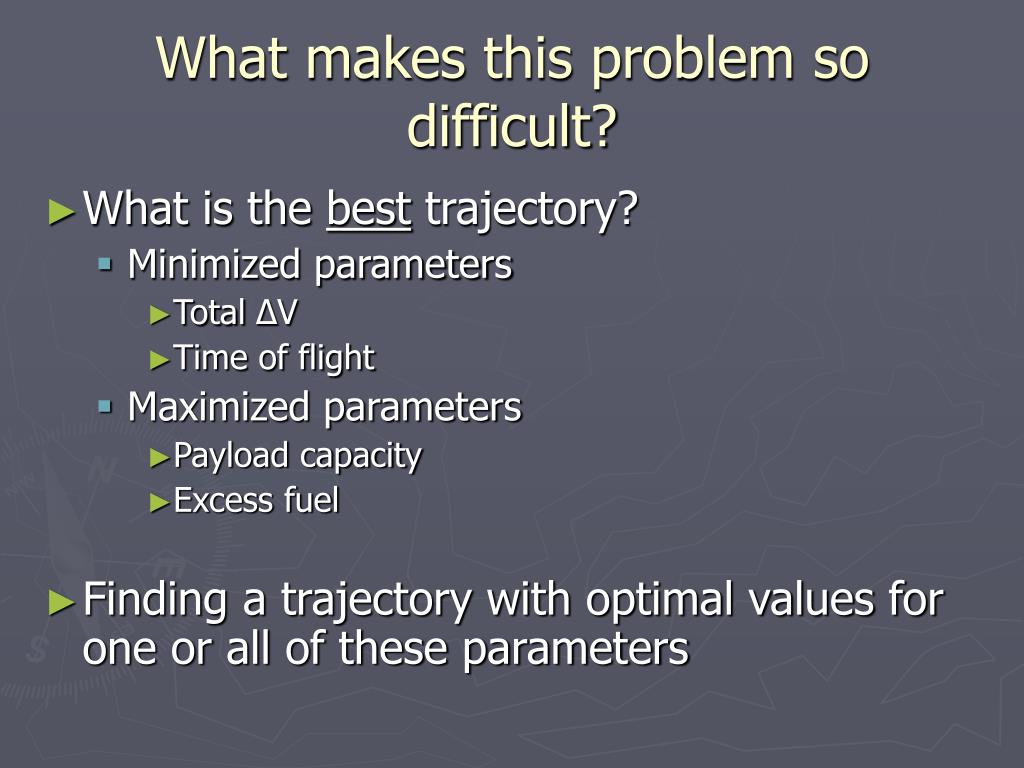

What makes this problem so difficult?
  • What is the best trajectory?
    • Minimized parameters
      • Total ΔV
      • Time of flight
    • Maximized parameters
      • Payload capacity
      • Excess fuel
  • Finding a trajectory with optimal values for one or all of these parameters
the necessity of a general system

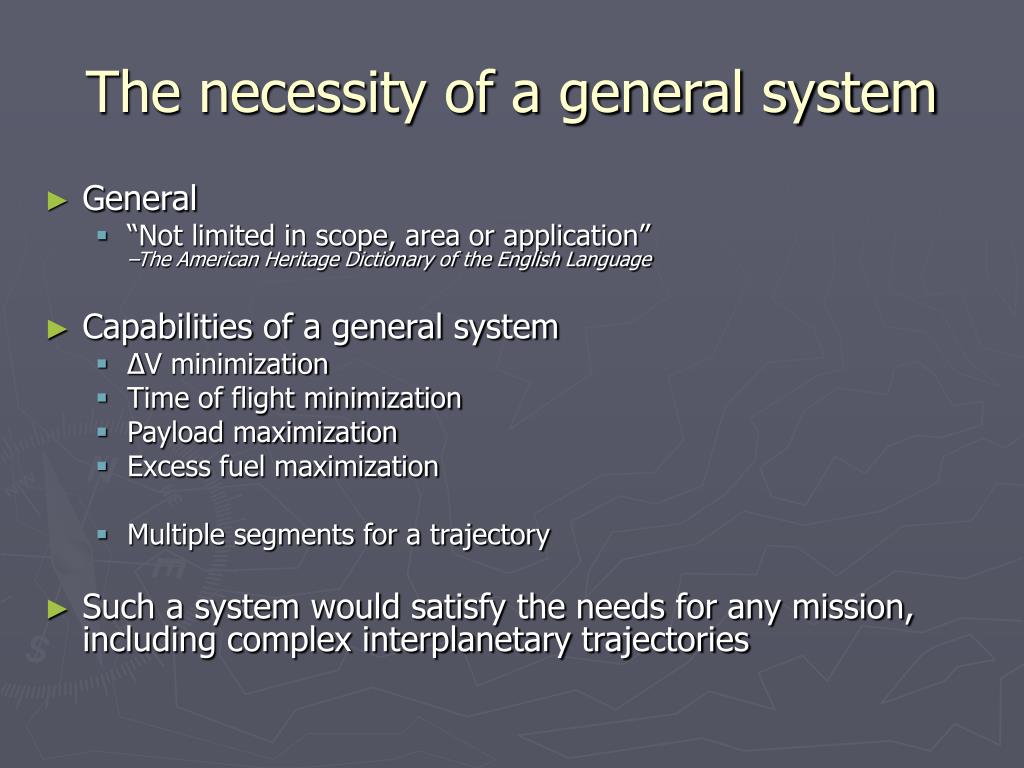

The necessity of a general system
  • General
    • “Not limited in scope, area or application” –The American Heritage Dictionary of the English Language
  • Capabilities of a general system
    • ΔV minimization
    • Time of flight minimization
    • Payload maximization
    • Excess fuel maximization
    • Multiple segments for a trajectory
  • Such a system would satisfy the needs for any mission, including complex interplanetary trajectories
some other systems
Some other systems
  • VARITOP
  • CHEBYTOP
  • MIDAS
  • SEPSPOT
  • GESOP & ASTOS
  • Strengths and weaknesses
varitop

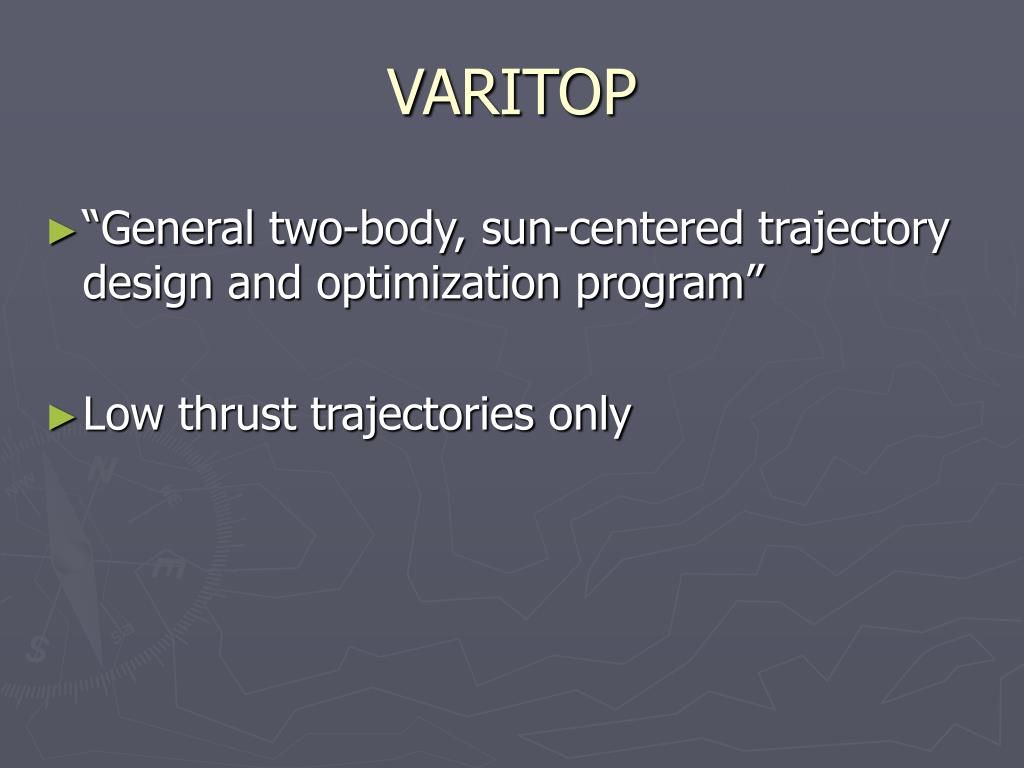

VARITOP
  • “General two-body, sun-centered trajectory design and optimization program”
  • Low thrust trajectories only
chebytop
CHEBYTOP
  • “General two-body, sun-centered trajectory design and optimization program”
  • Computationally quick, but inaccurate
    • Quick mission planning, but future analysis required
midas

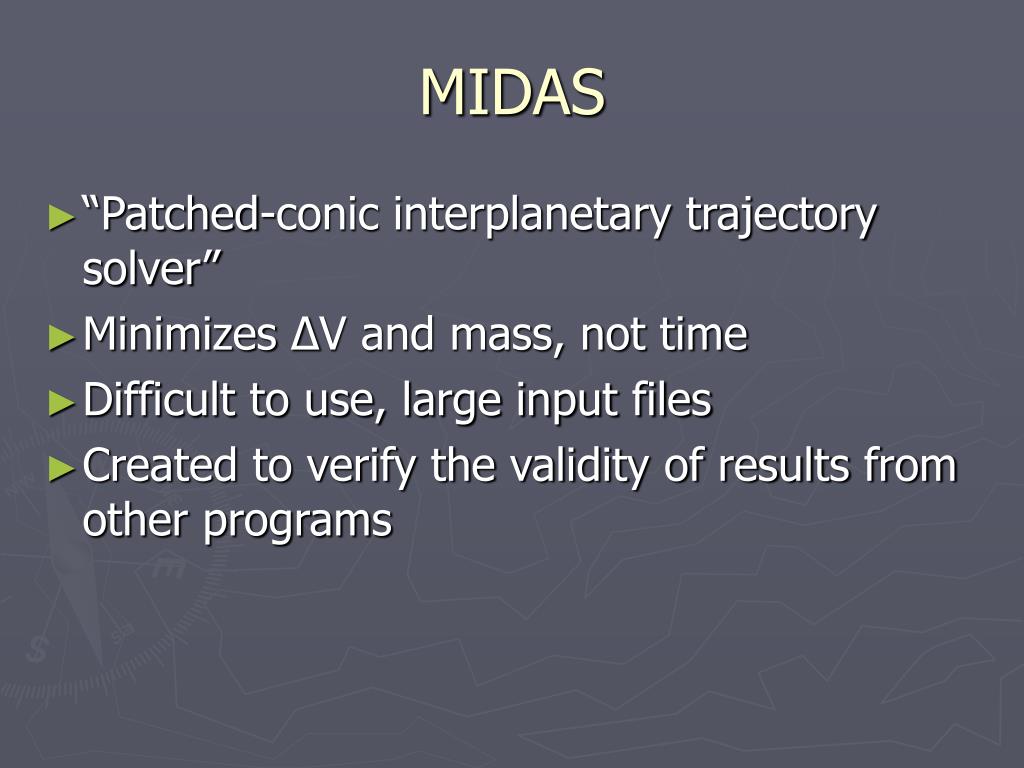

MIDAS
  • “Patched-conic interplanetary trajectory solver”
  • Minimizes ΔV and mass, not time
  • Difficult to use, large input files
  • Created to verify the validity of results from other programs
sepspot

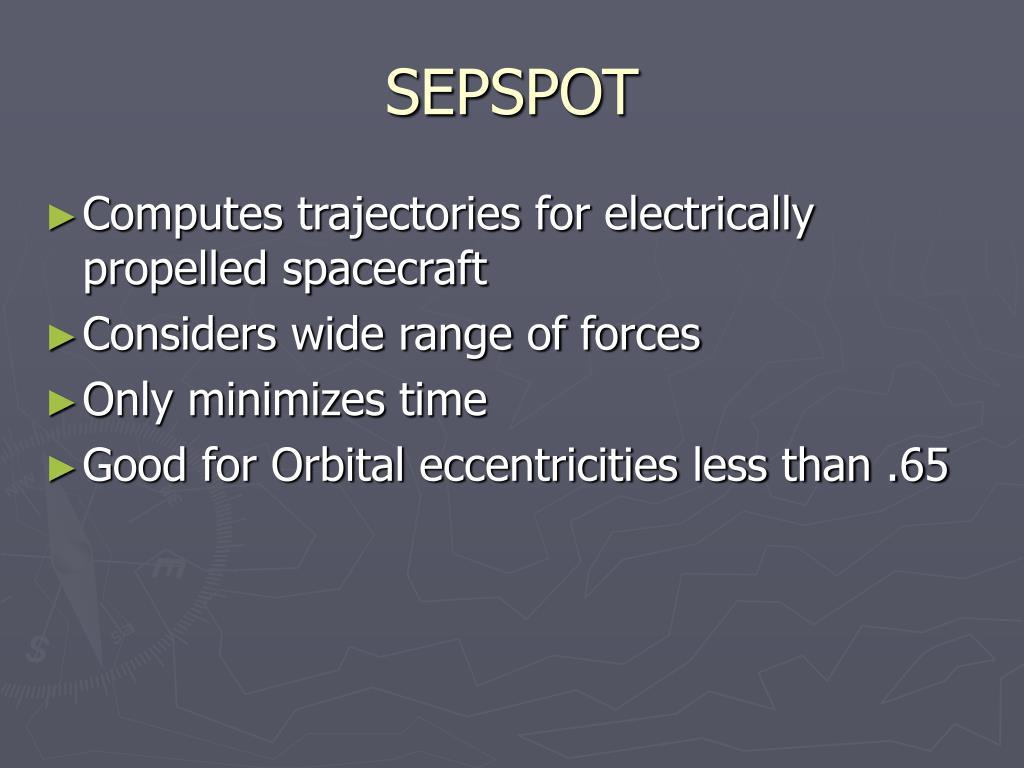

SEPSPOT
  • Computes trajectories for electrically propelled spacecraft
  • Considers wide range of forces
  • Only minimizes time
  • Good for Orbital eccentricities less than .65
gesop astos

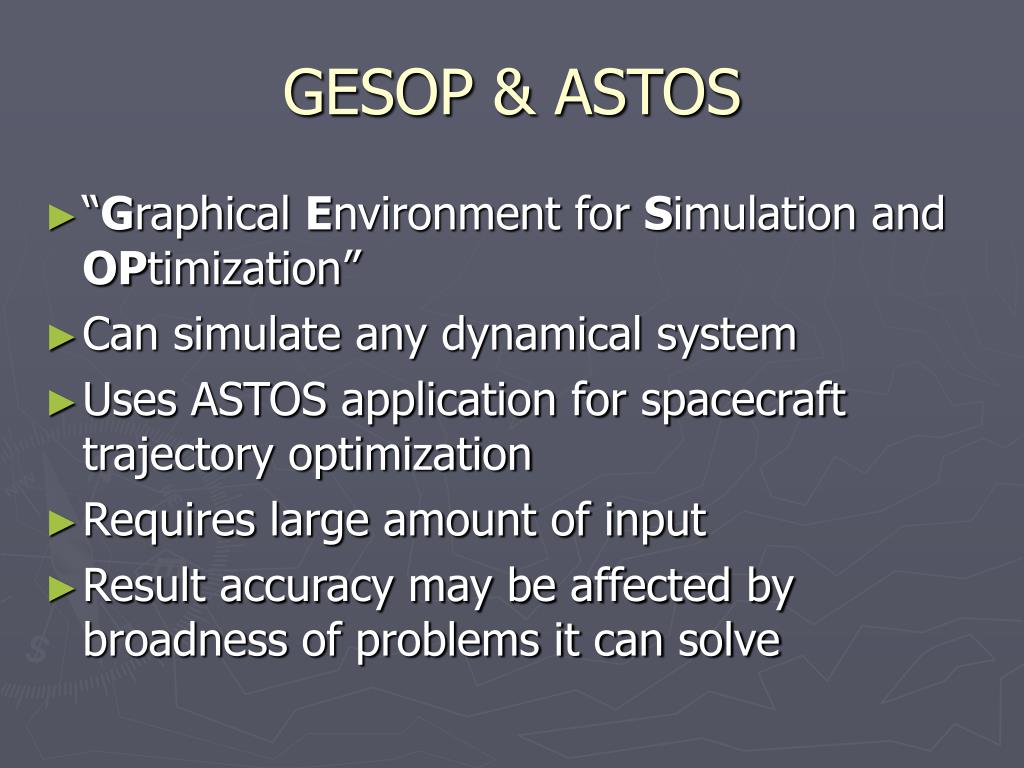

GESOP & ASTOS
  • “Graphical Environment for Simulation and OPtimization”
  • Can simulate any dynamical system
  • Uses ASTOS application for spacecraft trajectory optimization
  • Requires large amount of input
  • Result accuracy may be affected by broadness of problems it can solve
inspiration

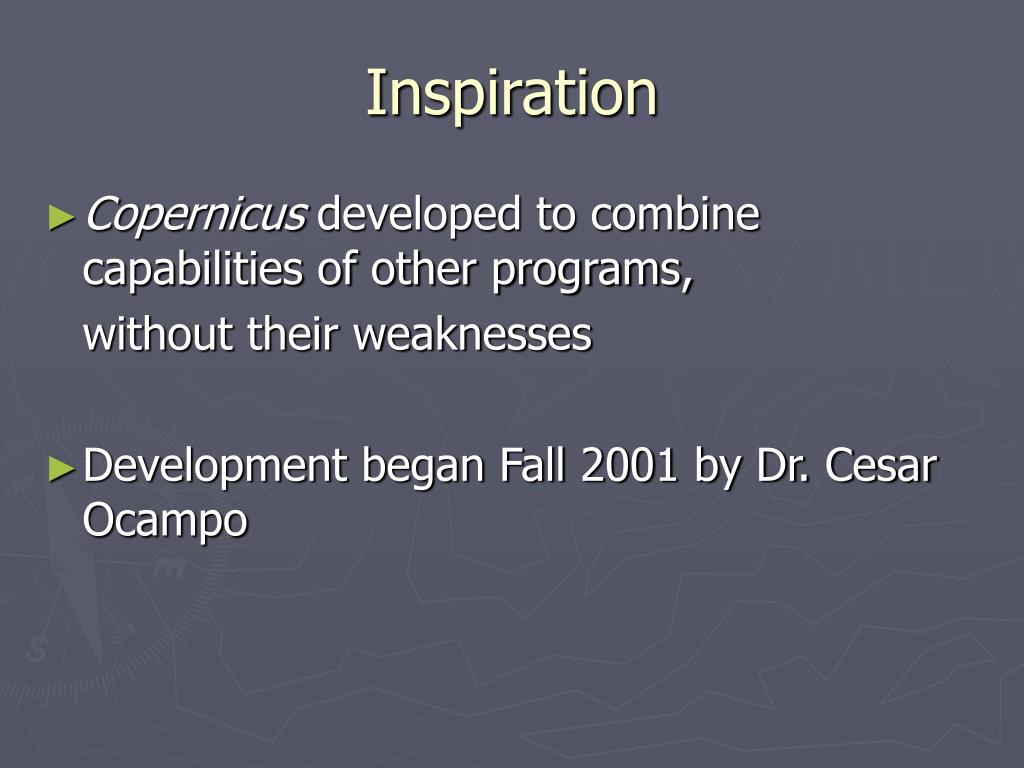

Inspiration
  • Copernicus developed to combine capabilities of other programs,

without their weaknesses

  • Development began Fall 2001 by Dr. Cesar Ocampo
copernicus trajectory system

Ocampo, Cesar, “An Architecture for a Generalized Spacecraft Trajectory Design and Optimization System,” The University of Texas at Austin, Austin, TX, 2003.

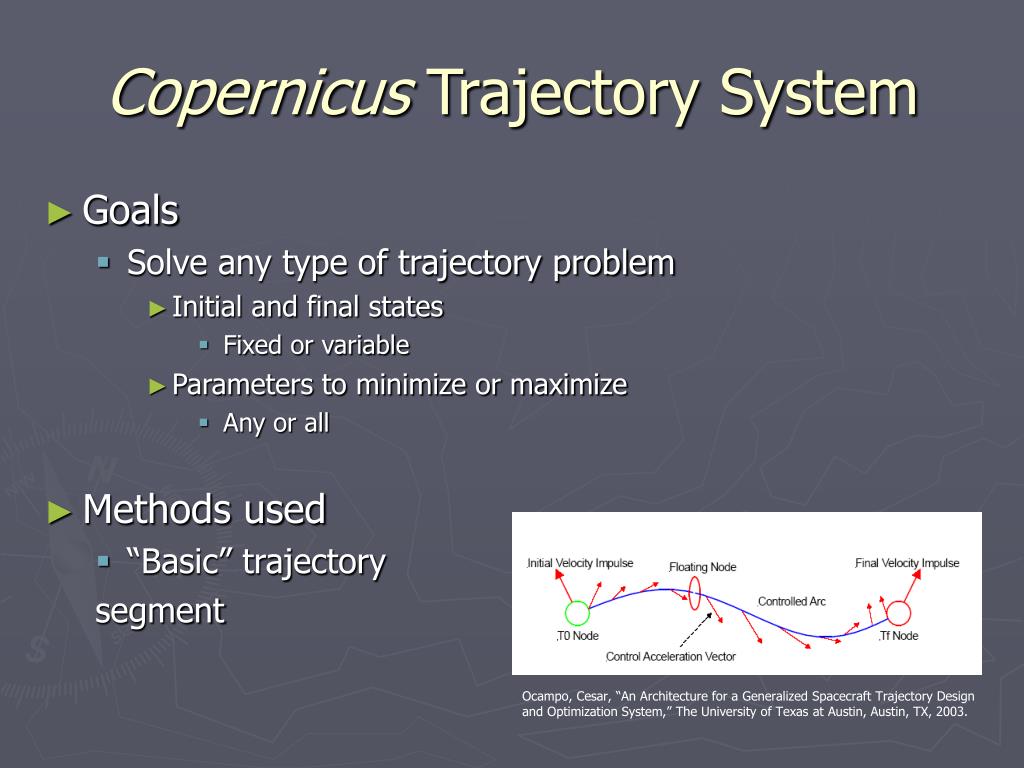

Copernicus Trajectory System
  • Goals
    • Solve any type of trajectory problem
      • Initial and final states
        • Fixed or variable
      • Parameters to minimize or maximize
        • Any or all
  • Methods used
    • “Basic” trajectory

segment

the trajectory segment

Ocampo, Cesar, “An Architecture for a Generalized Spacecraft Trajectory Design and Optimization System,” The University of Texas at Austin, Austin, TX, 2003.

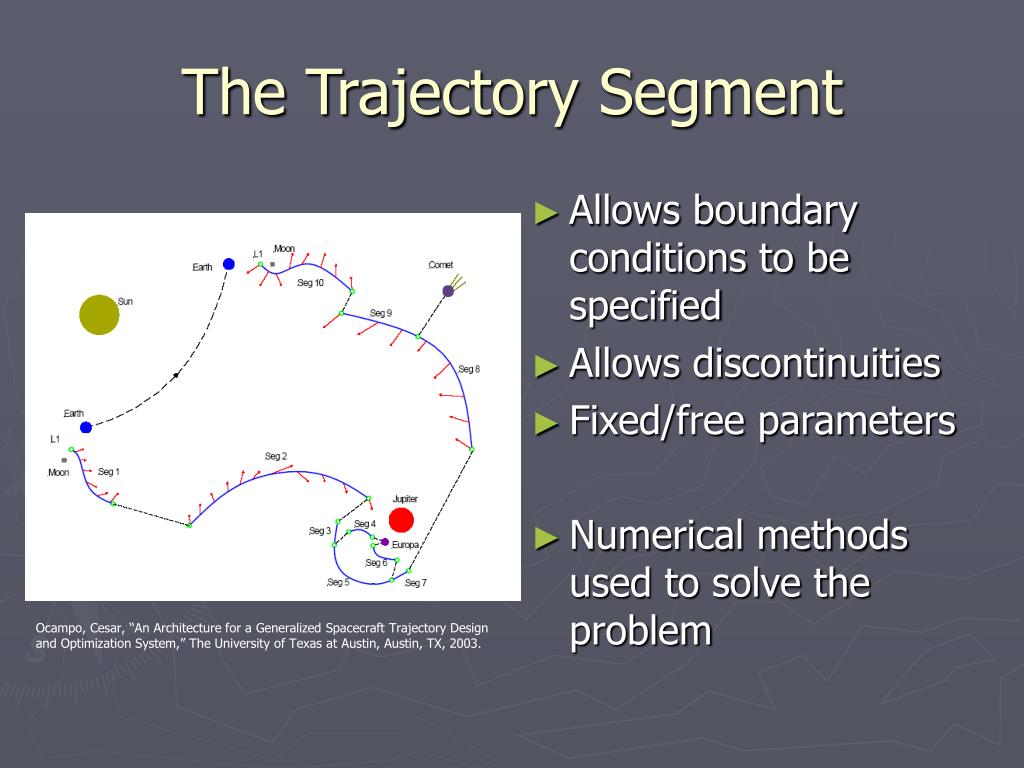

The Trajectory Segment
  • Allows boundary conditions to be specified
  • Allows discontinuities
  • Fixed/free parameters
  • Numerical methods used to solve the problem
what it can do
What it can do…
  • 2-body transfer/rendezvous
  • Return trajectories
  • Libration point considerations
  • Low thrust trajectories
  • Gravity assists
  • Ballistic/low energy captures using third-body effects
conclusions

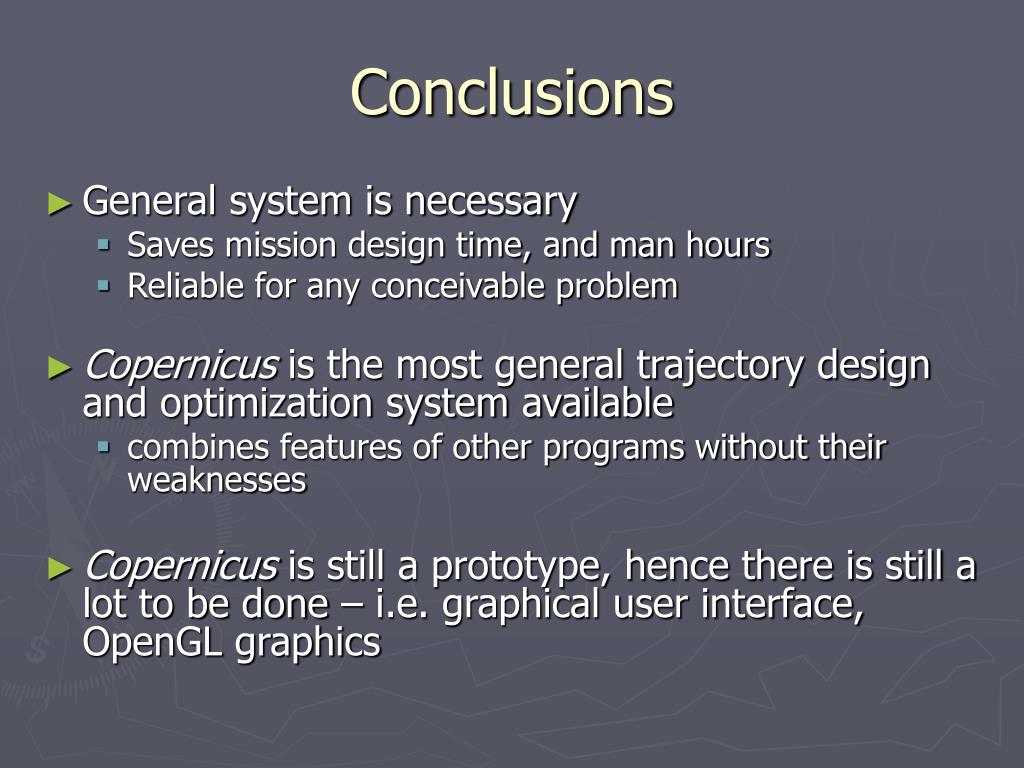

Conclusions
  • General system is necessary
    • Saves mission design time, and man hours
    • Reliable for any conceivable problem
  • Copernicus is the most general trajectory design and optimization system available
    • combines features of other programs without their weaknesses
  • Copernicus is still a prototype, hence there is still a lot to be done – i.e. graphical user interface, OpenGL graphics
references

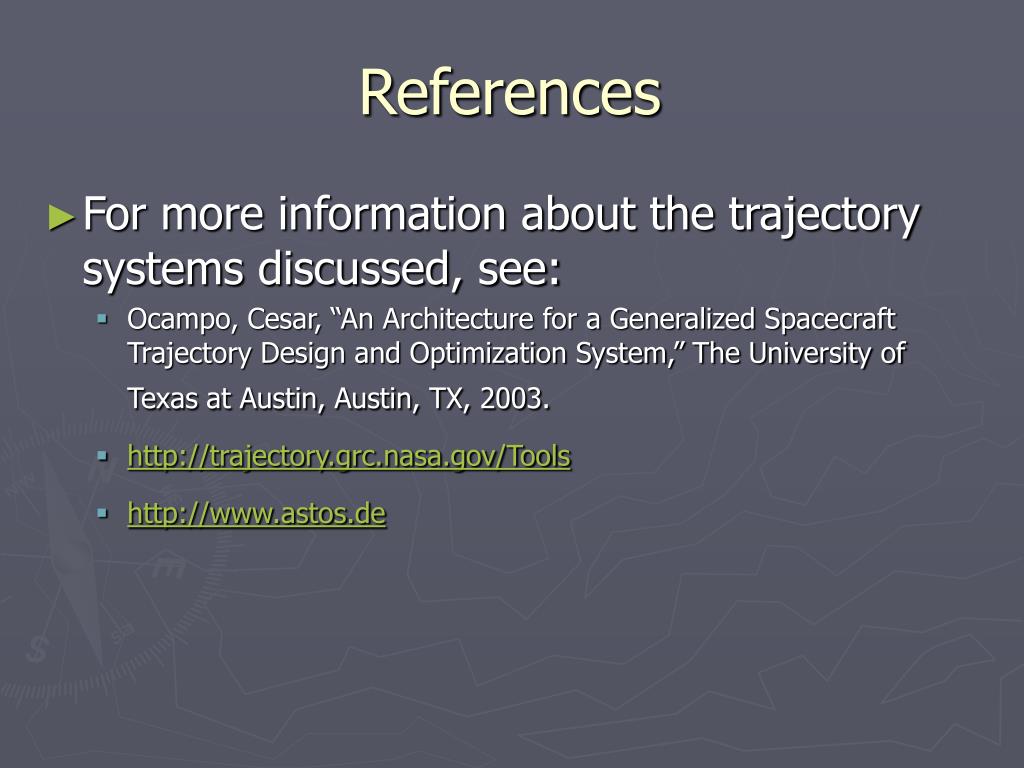

References
  • For more information about the trajectory systems discussed, see:
    • Ocampo, Cesar, “An Architecture for a Generalized Spacecraft Trajectory Design and Optimization System,” The University of Texas at Austin, Austin, TX, 2003.
    • http://trajectory.grc.nasa.gov/Tools
    • http://www.astos.de
