Presentation Transcript
slide1

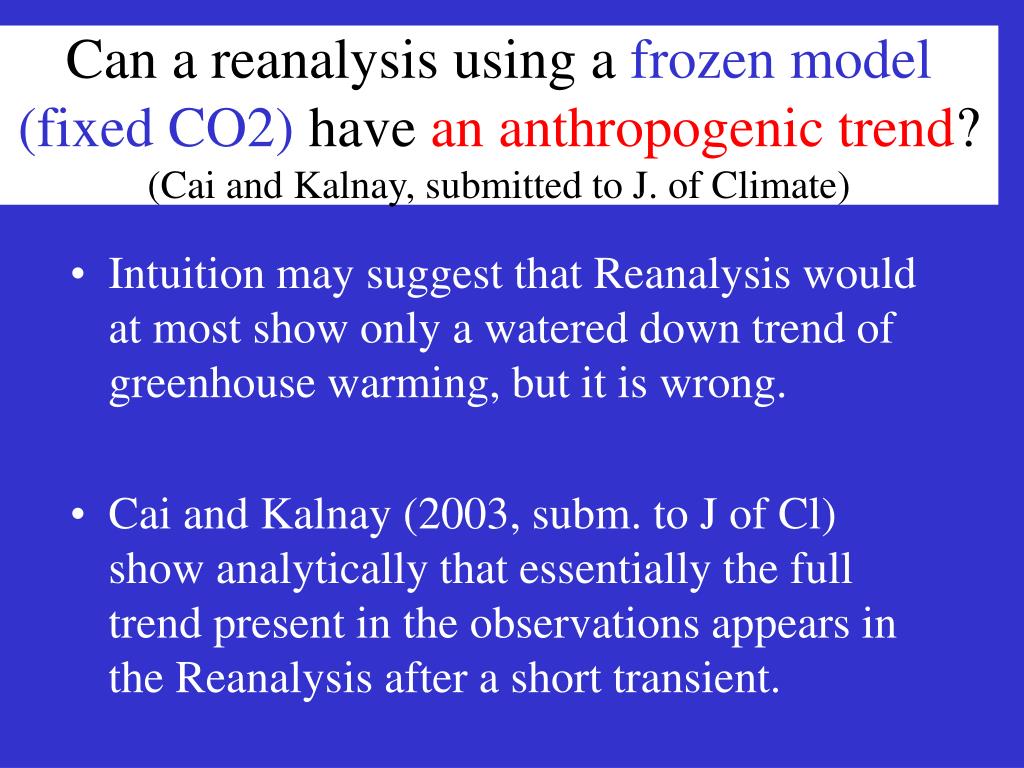

Can a reanalysis using a frozenmodel (fixed CO2) have an anthropogenic trend?(Cai and Kalnay, submitted to J. of Climate)
  • Intuition may suggest that Reanalysis would at most show only a watered down trend of greenhouse warming, but it is wrong.
  • Cai and Kalnay (2003, subm. to J of Cl) show analytically that essentially the full trend present in the observations appears in the Reanalysis after a short transient.
an analogy of our reasoning

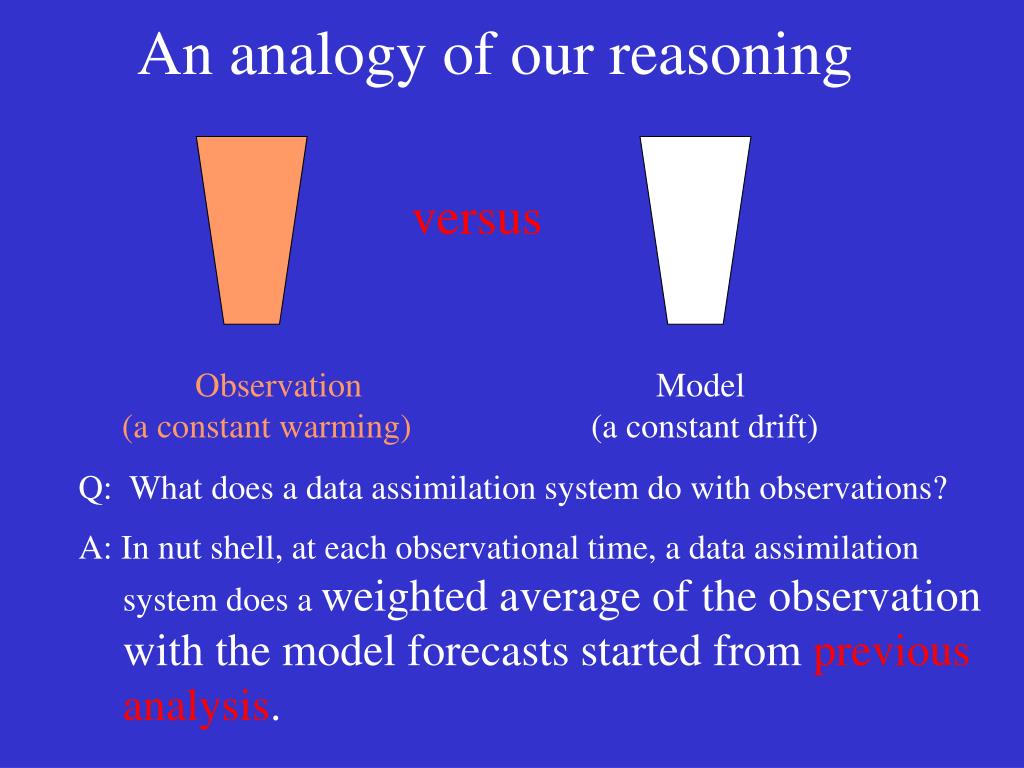

An analogy of our reasoning

versus

Observation Model

(a constant warming) (a constant drift)

Q: What does a data assimilation system do with observations?

A: In nut shell, at each observational time, a data assimilation

system does a weighted average of the observation

with the model forecasts started from previous

analysis.

an analogy of our reasoning cont

= 50/%

< 36%

Step 1

Step 2

The bleaching glass represents the model adjustment to the imbalance

between the model physics and the assimilated temperature.

< 22%

< 2%

Step 3

Step N

Weights assigned to observation and to model = 0.5

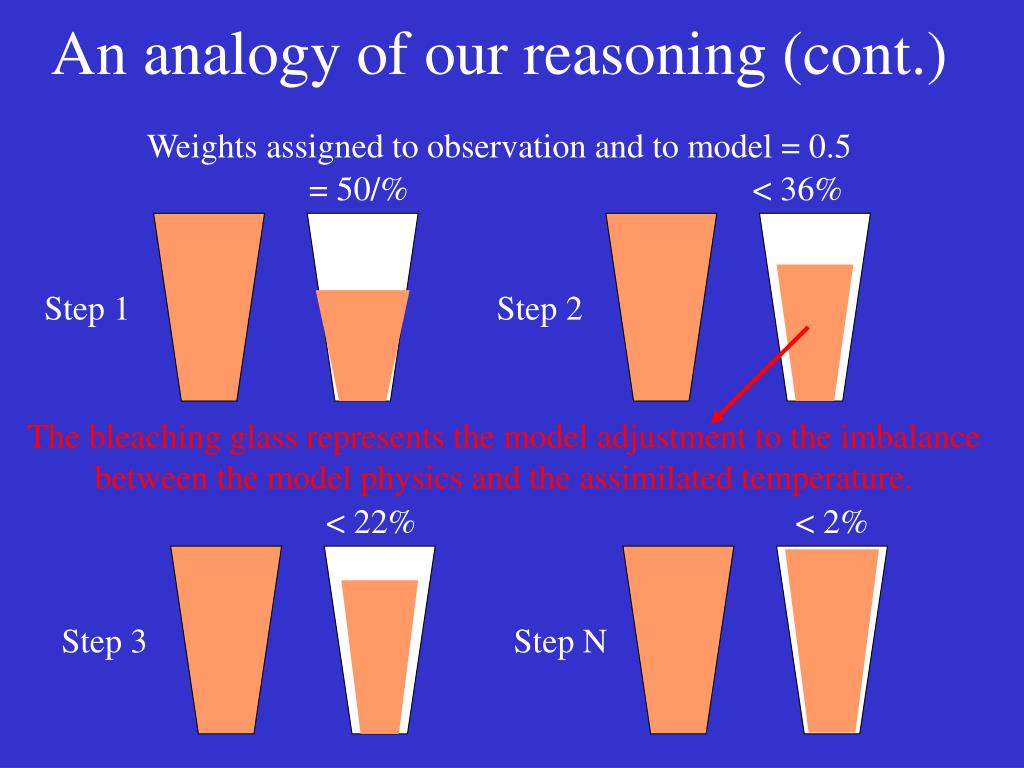

An analogy of our reasoning (cont.)

results

Observation:

  • Model without data assimilation:

“Watered-down

effect”

  • Analysis (weight assign to model a ):

Analysis step/model adjustment time step

RESULTS

slide5

0.995

0.99

0.98

0.95

0.90

0.75

0.5

0.25

Analysis Step N

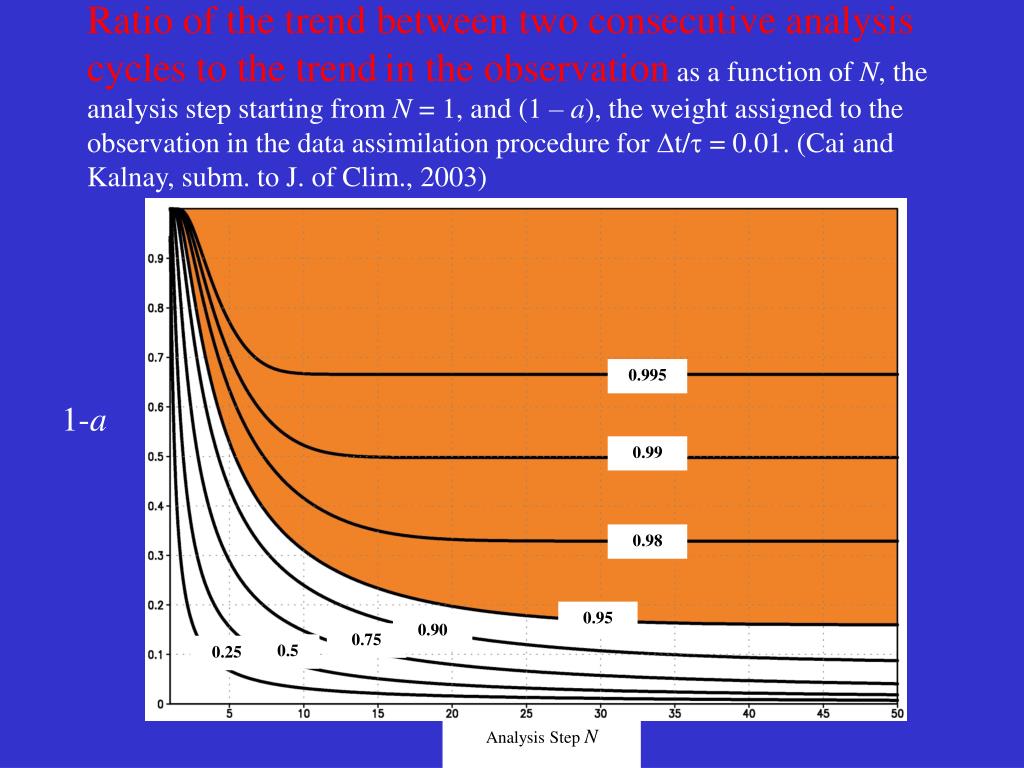

Ratio of the trend between two consecutive analysis cycles to the trendin the observation as a function of N, the analysis step starting from N = 1, and (1 – a), the weight assigned to the observation in the data assimilation procedure for Dt/t = 0.01. (Cai and Kalnay, subm. to J. of Clim., 2003)

1-a
