Presentation Transcript
slide1

Type III

Construction

Jeff Prokop

Ordinary Construction

200

slide2

Type II

Construction

Non-combustible or

Limited combustible

construction

Jeff Prokop

400

slide3

Type I

Construction

Fire-Resistive

Construction

Jeff Prokop

600

slide4

Type V

Construction

Wood-Frame

Construction

Jeff Prokop

800

slide5

Type IV

Construction

Jeff Prokop

Heavy Timber

Construction

1000

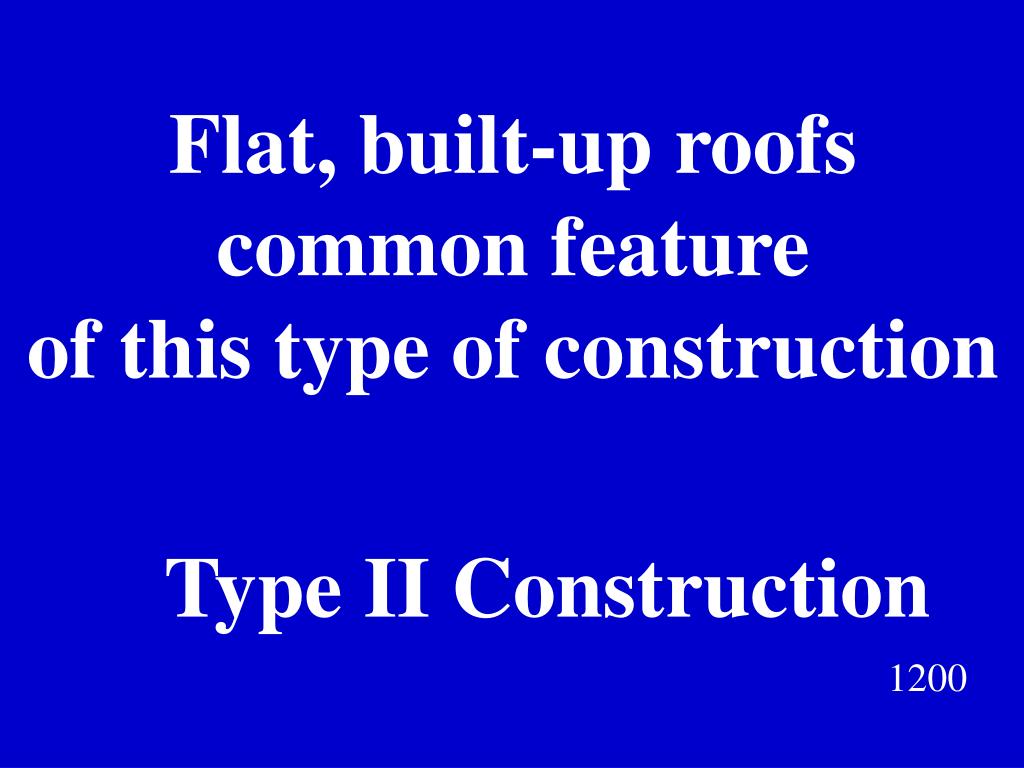

slide6

Flat, built-up roofs

common feature

of this type of construction

Jeff Prokop

Type II Construction

1200

slide7

Decorative wall;

usually attached to the

outside of some load-

bearing frame or structure

Veneer

200

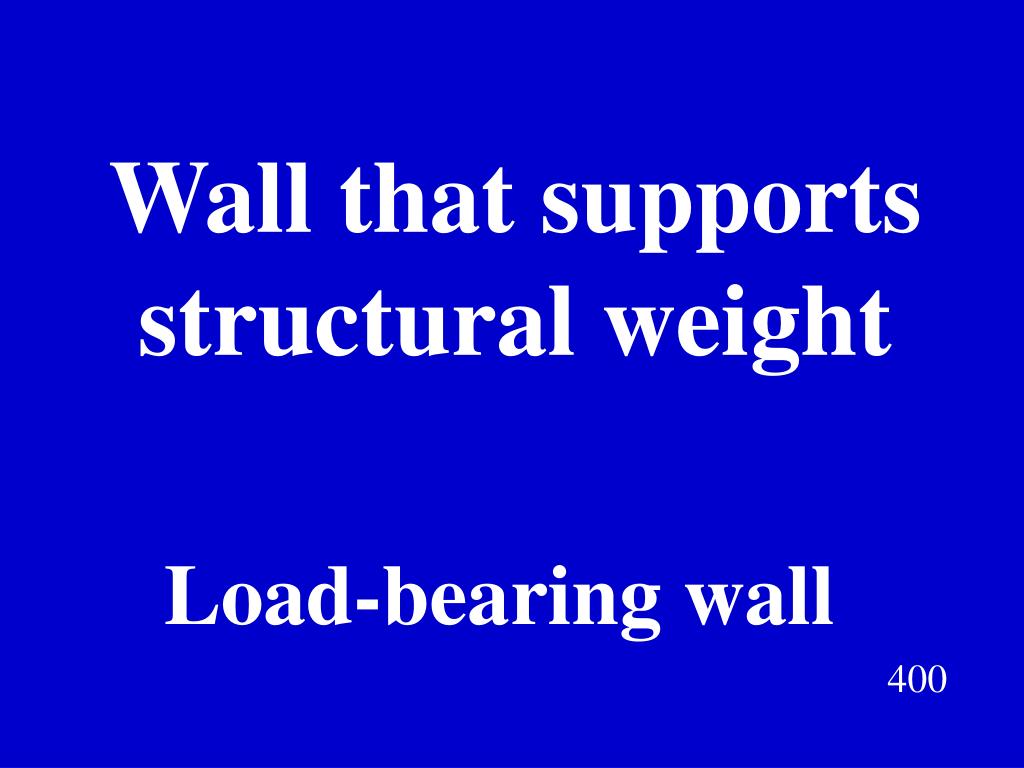

slide8

Wall that supports

structural weight

Jeff Prokop

Load-bearing wall

400

slide9

Wall that does not

support structural

weight

Jeff Prokop

Non-load bearing wall

600

slide10

Freestanding, non-

load bearing wall

Jeff Prokop

Cantilever

800

slide11

Load-bearing wall

that separates two

connected structures

Jeff Prokop

Party

1000

slide12

Wall made-up of

Non, or limited

combustible materials

Jeff Prokop

Fire Wall

1200

slide13

Reason firefighters

should study

building construction

Firefighters know signs

of collapse, speed of fire

spread, need for evacuation

Jeff Prokop

200

slide14

3 Construction

features assessed in

building size-up

Built-in fire protection equipment, type of roof covering,

types of doors and windows, roof design, age of building, building height, ventilation characteristics, egress path, security measures, type of construction, construction materials, modifications

Jeff Prokop

400

slide15

Name 4 signs of

a building collapse

Cracks or separation in walls, floors, ceilings, and

roof structures; evidence of existing instability; loose

bricks, blocks or stones; deteriorated mortar

between masonry; walls that appear to be leaning;

structural members that appear to be distorted;

fires beneath floors or in walls; unusual creaks or

cracking noises; prolonged fire exposure

Jeff Prokop

600

slide16

Damaged wall that would

most concern firefighters:

non-load bearing, veneer

or

Load-bearing, Fire

Jeff Prokop

Load-Bearing Fire

800

slide17

Collapse zone for

Building that is

240 feet tall.

Jeff Prokop

360 feet

1000

slide18

2 fire risks for

buildings under

construction

Additional fire load, and ignition sources; no fire protective features; disable fire protection systems; easy access to building; use of construction machinery

Jeff Prokop

1200

slide19

Difference between

Older vs. Newer

Construction

Older: exposed to weather;

Not maintained; less fire

codes

Jeff Prokop

200

slide20

Difference between

Load vs. non-load

Bearing wall

Load bearing wall

Carries weight of wall, non-load bearing does not

Jeff Prokop

400

slide21

Difference between

Fire resistive vs.

Non-combustible

construction

All materials in fire resistive construction

are fire resistive; in non-combustible,

flat roof is made of limited combustible

materials

Jeff Prokop

600

slide22

Which is more

more susceptible

to fire spread:

Type IV or V Construction

Jeff Prokop

Type V Construction

800

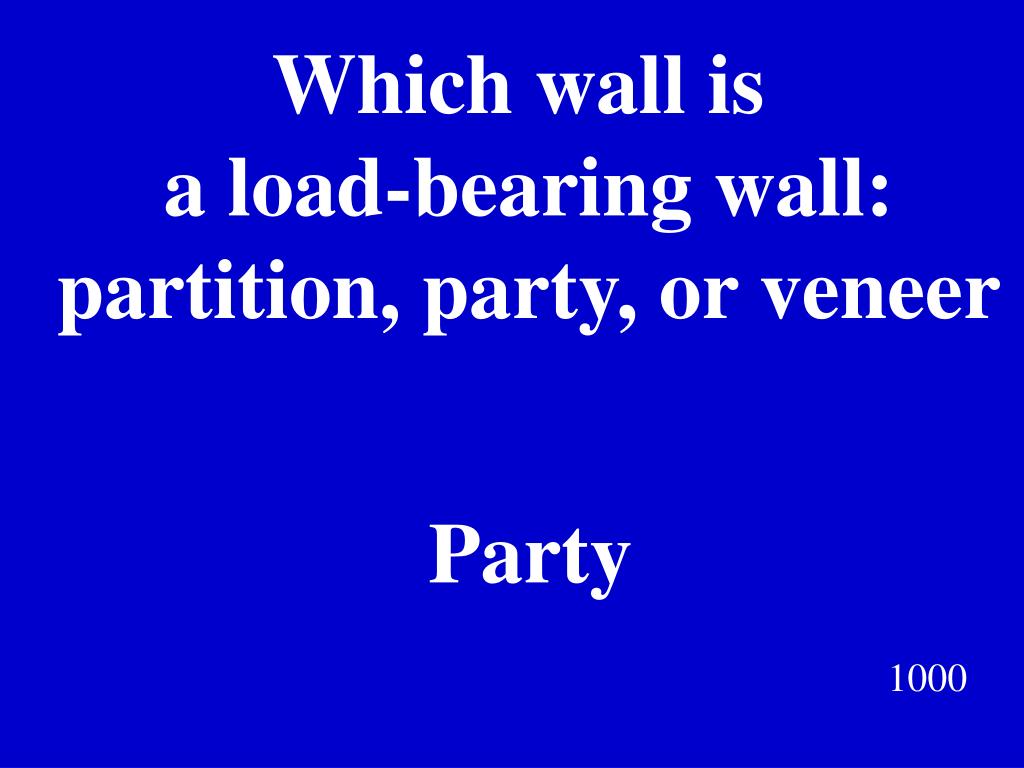

slide23

Which wall is

a load-bearing wall:

partition, party, or veneer

Party

Jeff Prokop

1000

slide24

This is the most

fire resistant building

What is Type I Fire

Resistive

Jeff Prokop

1200

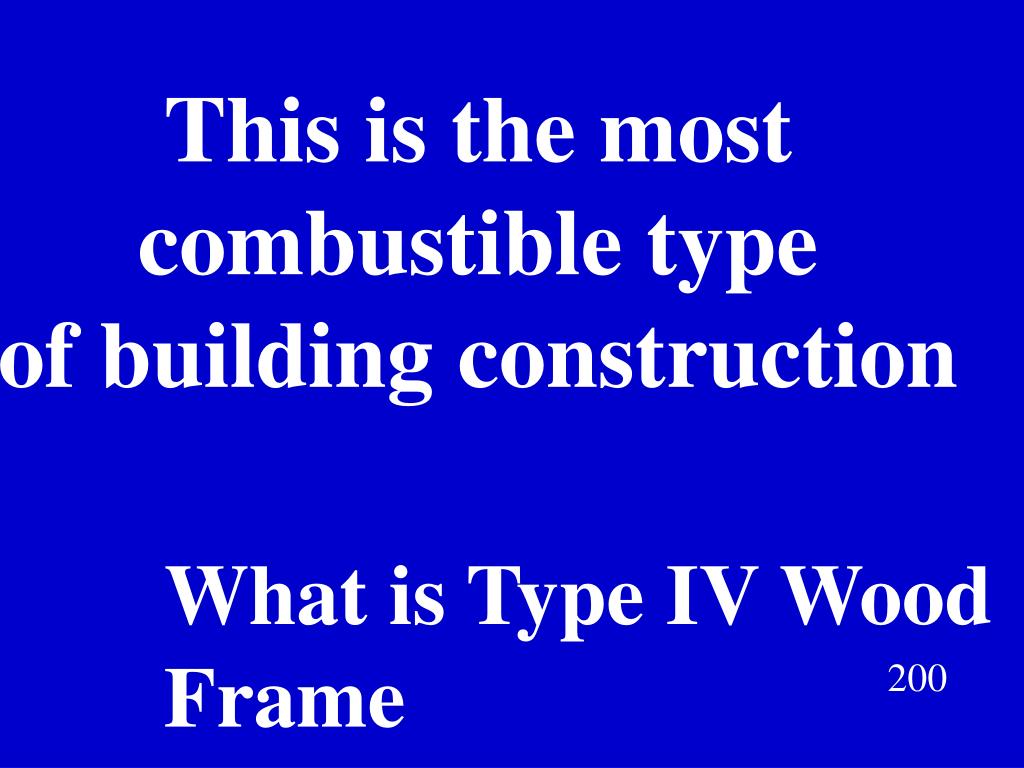

slide25

This is the most

combustible type

of building construction

Jeff Prokop

What is Type IV Wood

Frame

200

slide26

This is the formula

for measuring a

collapse zone

Jeff Prokop

Y=1 ½ x or

Collapse zone= 1.5 x height of building

400

slide27

What is collapse

zone of building

84 ft tall

Jeff Prokop

What is 126 ft tall

600

slide28

This is the collapse

zone of a building

375 ft tall

Jeff Prokop

What is 563 ft tall

800

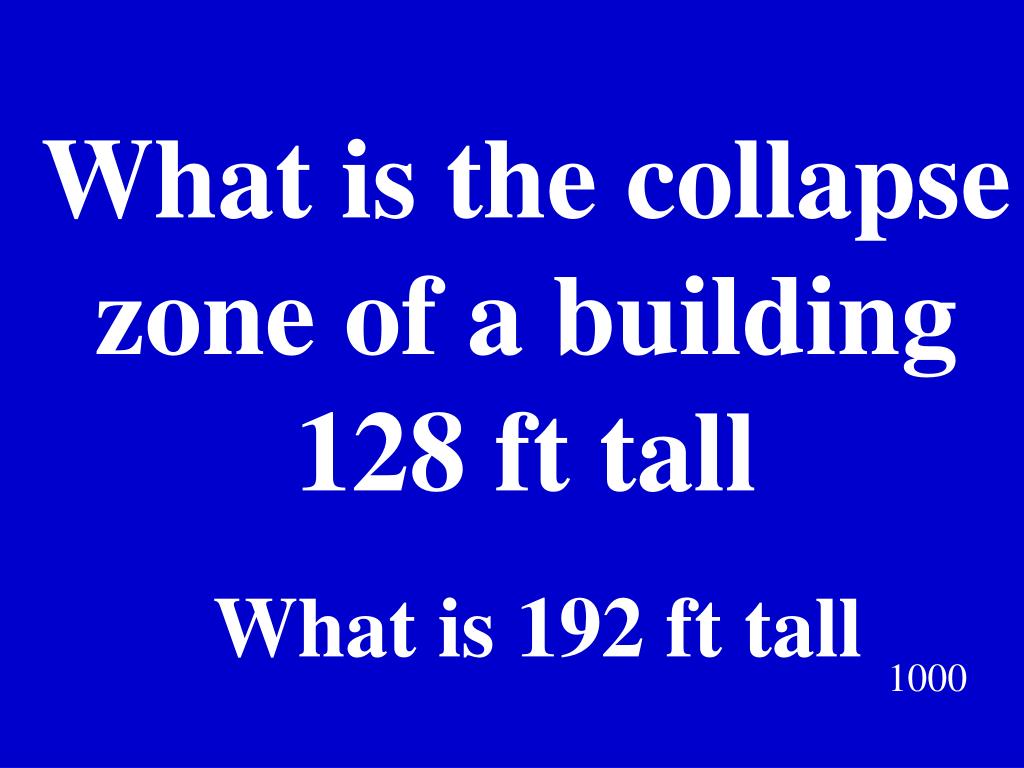

slide29

What is the collapse

zone of a building

128 ft tall

Jeff Prokop

What is 192 ft tall

1000

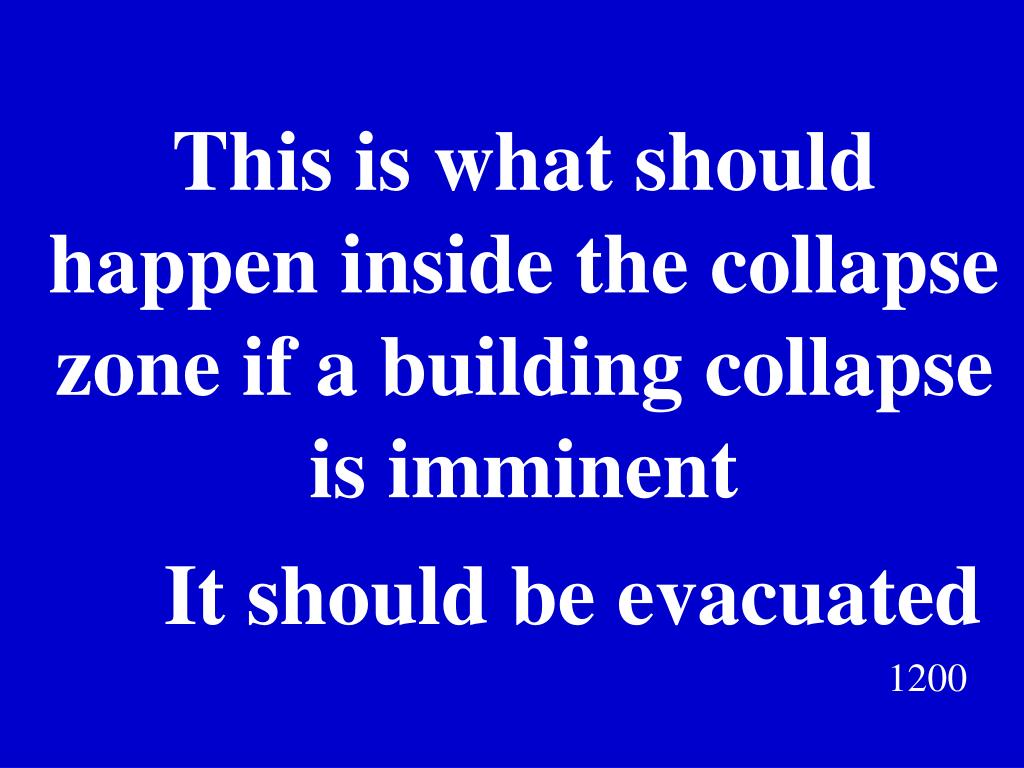

slide30

This is what should

happen inside the collapse

zone if a building collapse

is imminent

Jeff Prokop

It should be evacuated

1200

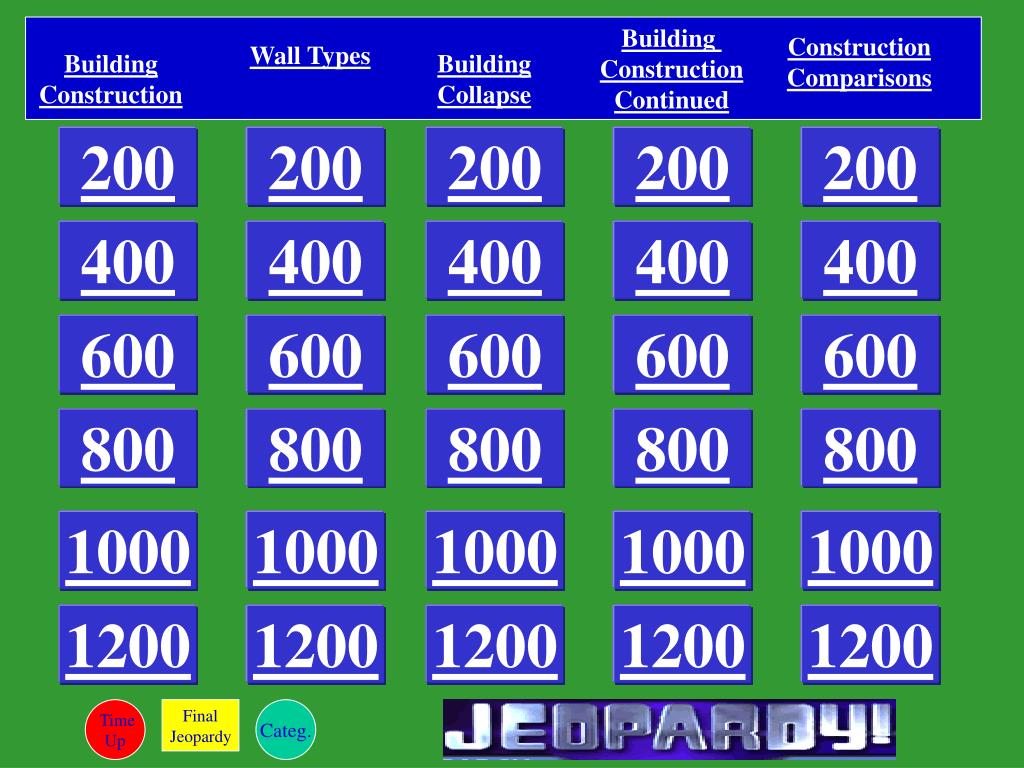

slide31

Building

Construction

Continued

Construction

Comparisons

Wall Types

Building

Construction

Building

Collapse

200

200

200

200

200

400

400

400

400

400

600

600

600

600

600

800

800

800

800

800

1000

1000

1000

1000

1000

Jeff Prokop

1200

1200

1200

1200

1200

Time

Up

Final

Jeopardy

Categ.

slide33

Building

Construction

Jeff Prokop

slide34

Wall

Types

Jeff Prokop

slide35

Building

Collapses

Jeff Prokop

slide36

Building

Construction

Continued

Jeff Prokop

slide37

Construction

Comparisons

Jeff Prokop

slide38

DAILY

DOUBLE

Jeff Prokop

slide39

Final

Jeopardy!

Jeff Prokop

slide40

NBHS is this type

of construction

Jeff Prokop

slide41

What is Type I

Fire Resistive

Jeff Prokop
