  1. Best Practice: Alarming for Wonderware System Platform Altmar du Toit Wonderware Southern Africa

  2. Agenda • What is alarms and events? • Alarms in System Platform • New Alarm Control • Demo • Conclusion

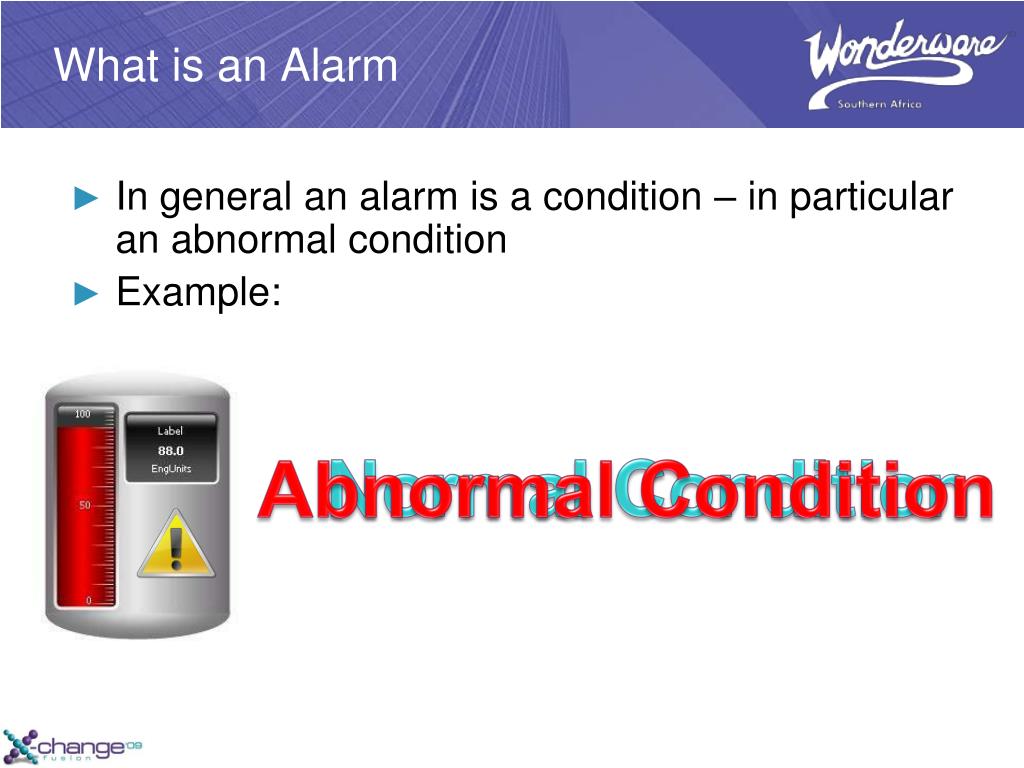

  3. What is an Alarm • In general an alarm is a condition – in particular an abnormal condition • Example: Normal Condition Abnormal Condition

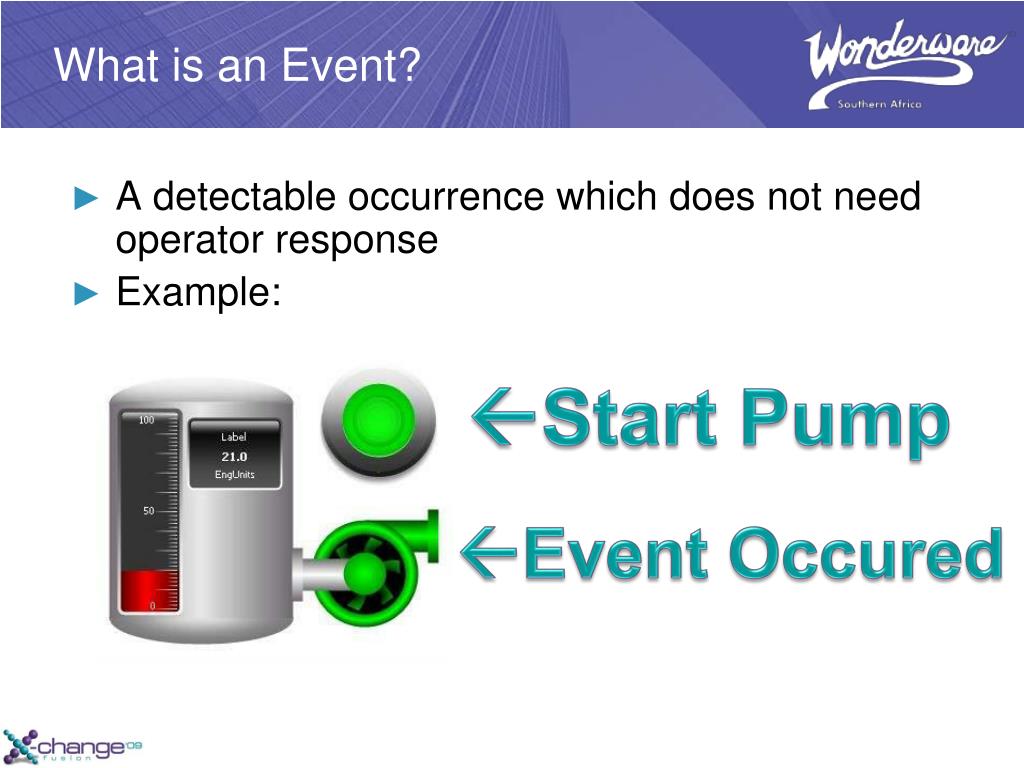

  4. What is an Event? • A detectable occurrence which does not need operator response • Example: Start Pump Event Occured

  5. Alarms and Events • Grouped • Prioritized • Distributed • Visualized • Stored

  6. Agenda • What is alarms and events? • Alarms in System Platform • New Alarm Controls • Demo • Conclusion

  7. Alarms in System Platform Consumer Galaxy Consumer Consumer

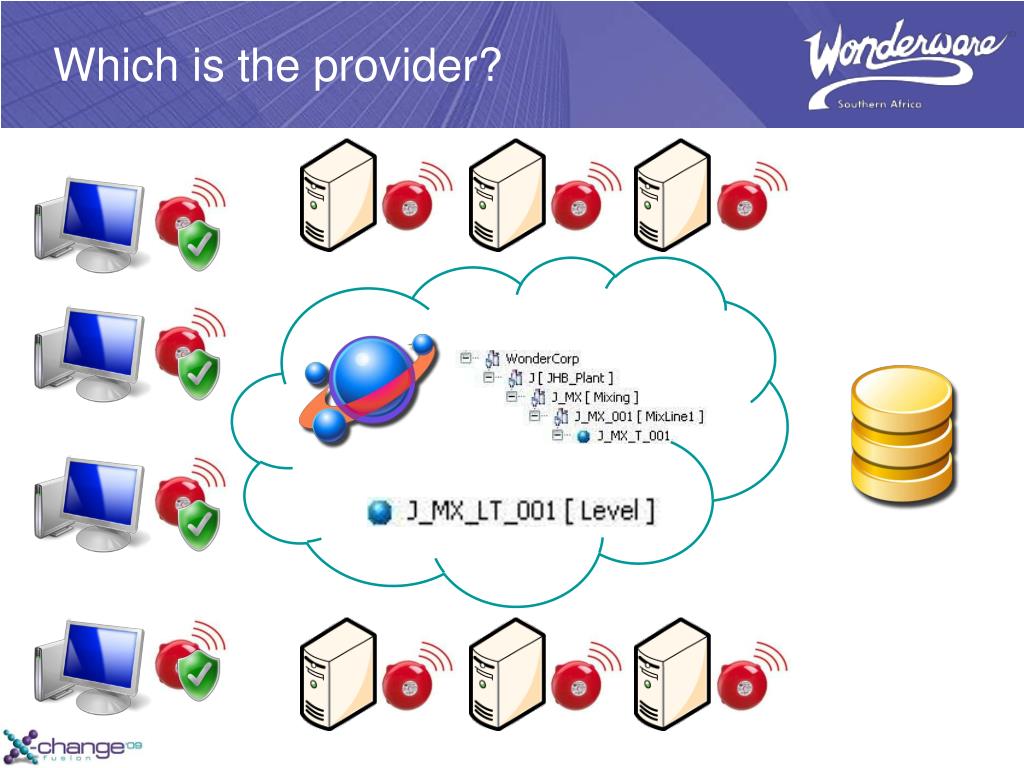

  8. Which is the provider?

  9. Best practice planning alarm system • Determine Alarms before hand • Use IO/Lists • Communicate with the process department • Do not alarm on every single I/O only the absolute necessary ones • Prioritize your alarms (Critical to Info) • Build the critical alarms into your templates to enforce standards through to all the instances • Plan the areas before hand and build your model accordingly • How will you visualize the alarms?

  10. Where do we store the alarms

  11. Alarms in a Network Environment • Different Alarm Providers View2 View1 View3 AOS 01 AOS 02 Historian PLC PLC PLC

  12. Historical Alarms • Benefit of using multiples alarm providers • No historical data loss • Minimize Network Traffic • No single point of failure

  13. Historical Alarms and redundancy • Alarms in redundant configuration : • Described in Implementing Redundancy section of the deployment guide • Also refer to Technote 430

  14. Agenda • What is alarms and events? • Alarms in System Platform • New Alarm Controls • Demo • Conclusion

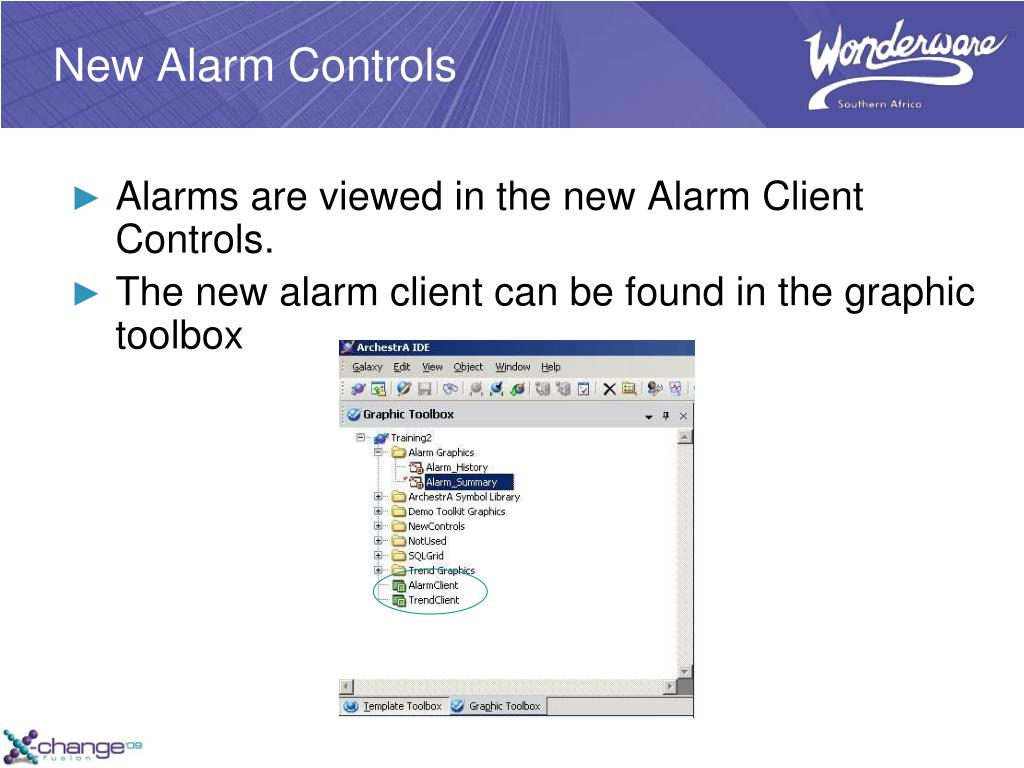

  15. New Alarm Controls • Alarms are viewed in the new Alarm Client Controls. • The new alarm client can be found in the graphic toolbox

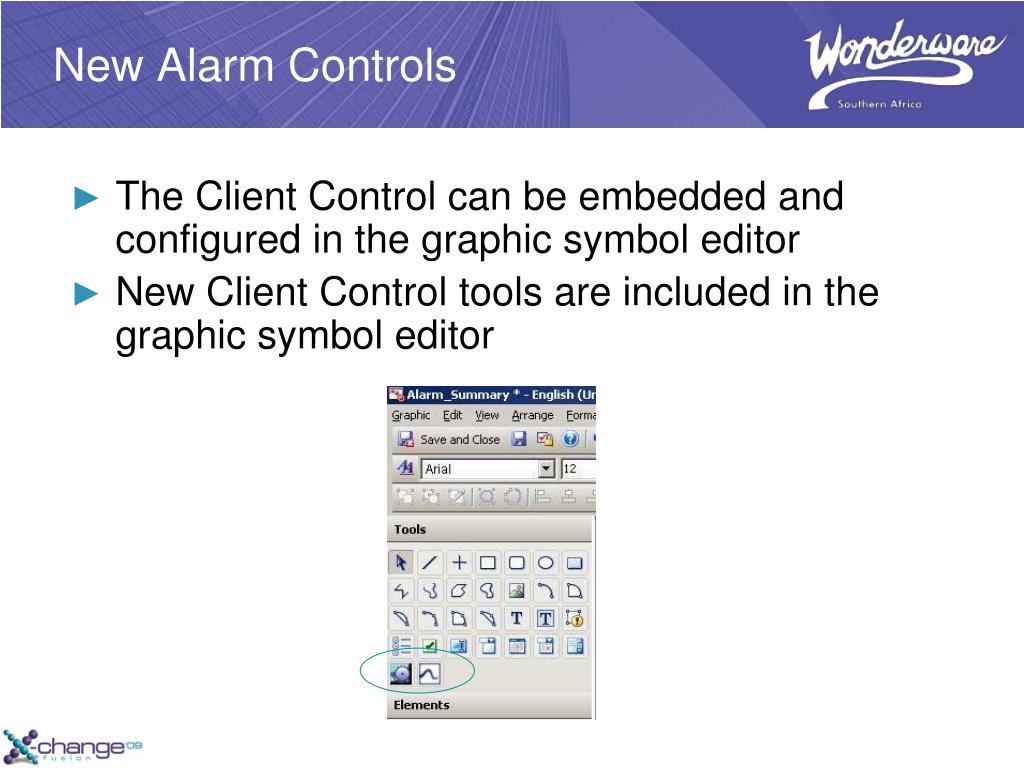

  16. New Alarm Controls • The Client Control can be embedded and configured in the graphic symbol editor • New Client Control tools are included in the graphic symbol editor

  17. New Alarm Controls • Once the alarm control is embedded it can be configured

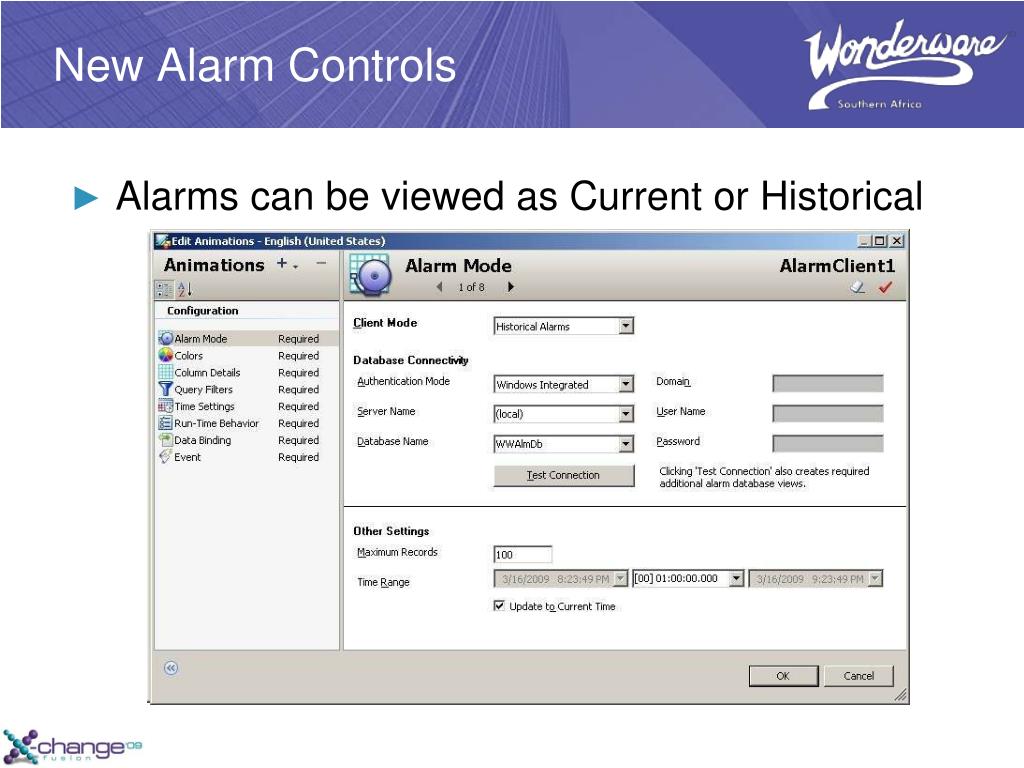

  18. New Alarm Controls • Alarms can be viewed as Current or Historical

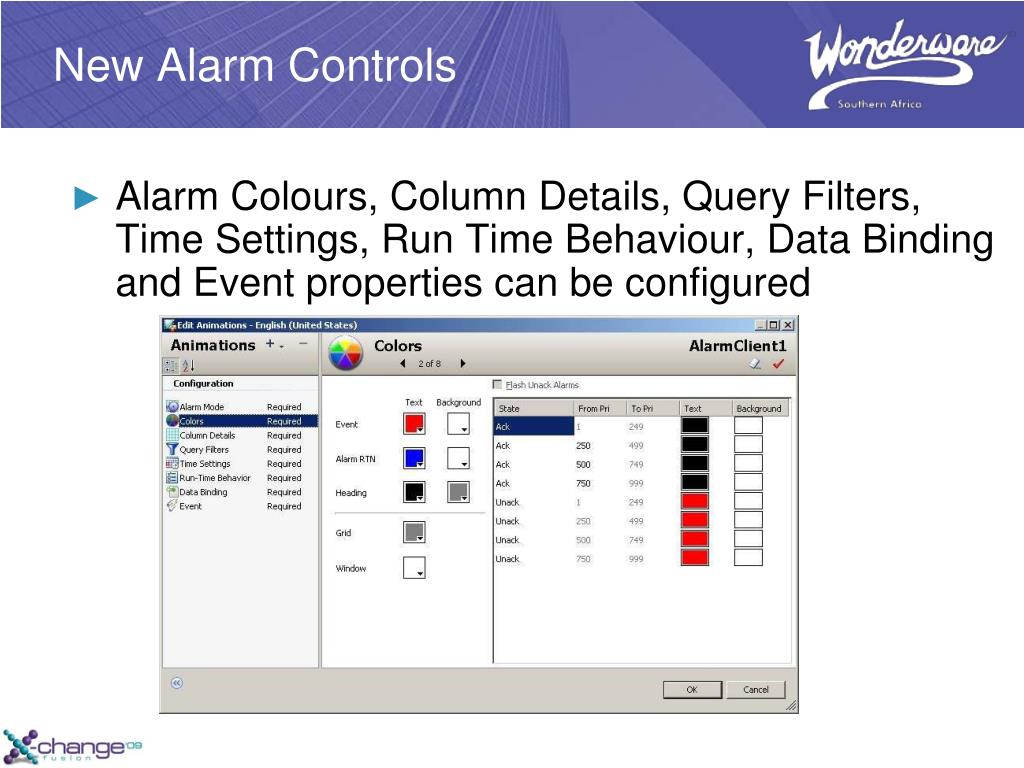

  19. New Alarm Controls • Alarm Colours, Column Details, Query Filters, Time Settings, Run Time Behaviour, Data Binding and Event properties can be configured

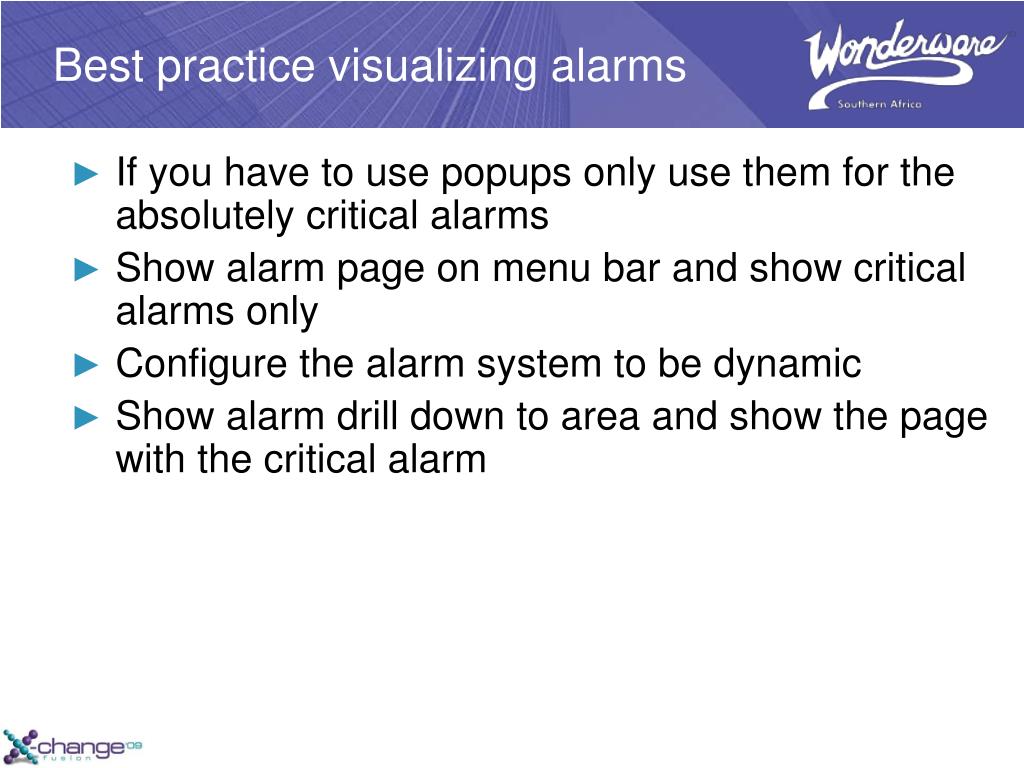

  20. Best practice visualizing alarms • If you have to use popups only use them for the absolutely critical alarms • Show alarm page on menu bar and show critical alarms only • Configure the alarm system to be dynamic • Show alarm drill down to area and show the page with the critical alarm

  21. Demo DEMO

  22. Agenda • What is alarms and events? • Alarms in System Platform • New Alarm Controls • Demo • Conclusion

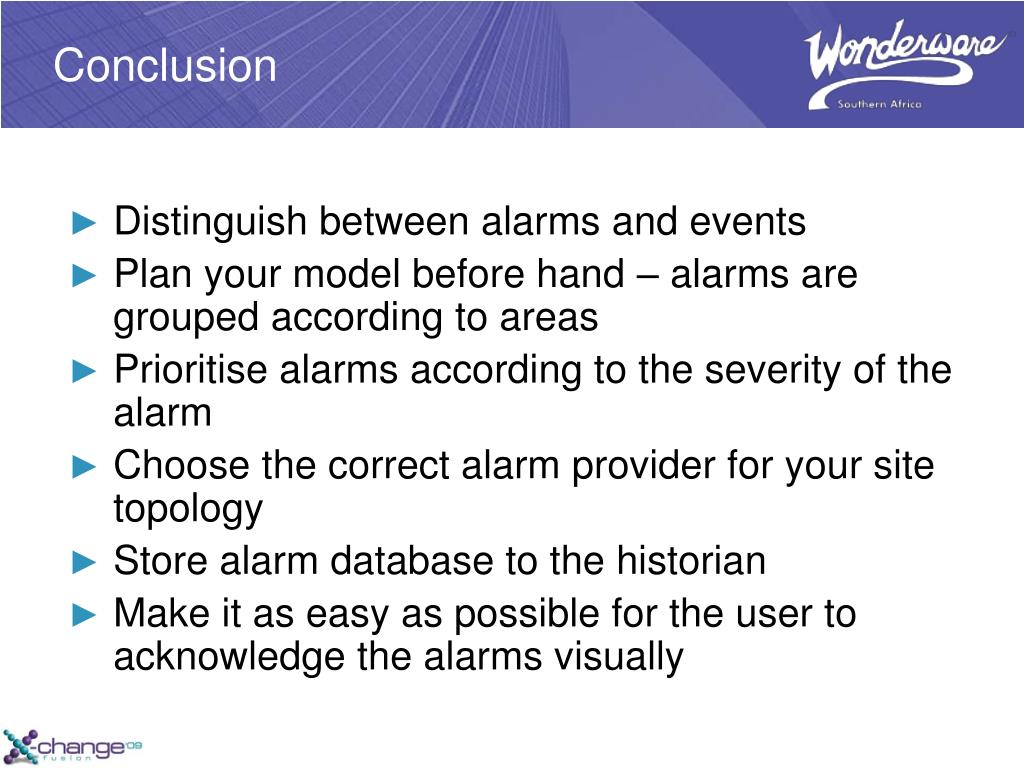

  23. Conclusion • Distinguish between alarms and events • Plan your model before hand – alarms are grouped according to areas • Prioritise alarms according to the severity of the alarm • Choose the correct alarm provider for your site topology • Store alarm database to the historian • Make it as easy as possible for the user to acknowledge the alarms visually

  24. Questions Questions
