Continuous Random Variables. Section 7.1.2. Starter 7.1.2. A 9-sided die has three faces that show 1, two faces that show 2, and one face each showing 3, 4, 5, 6. Let X be the number that shows face-up. Draw the PDF histogram of X. Objectives.

Download Presentation
## Continuous Random Variables

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

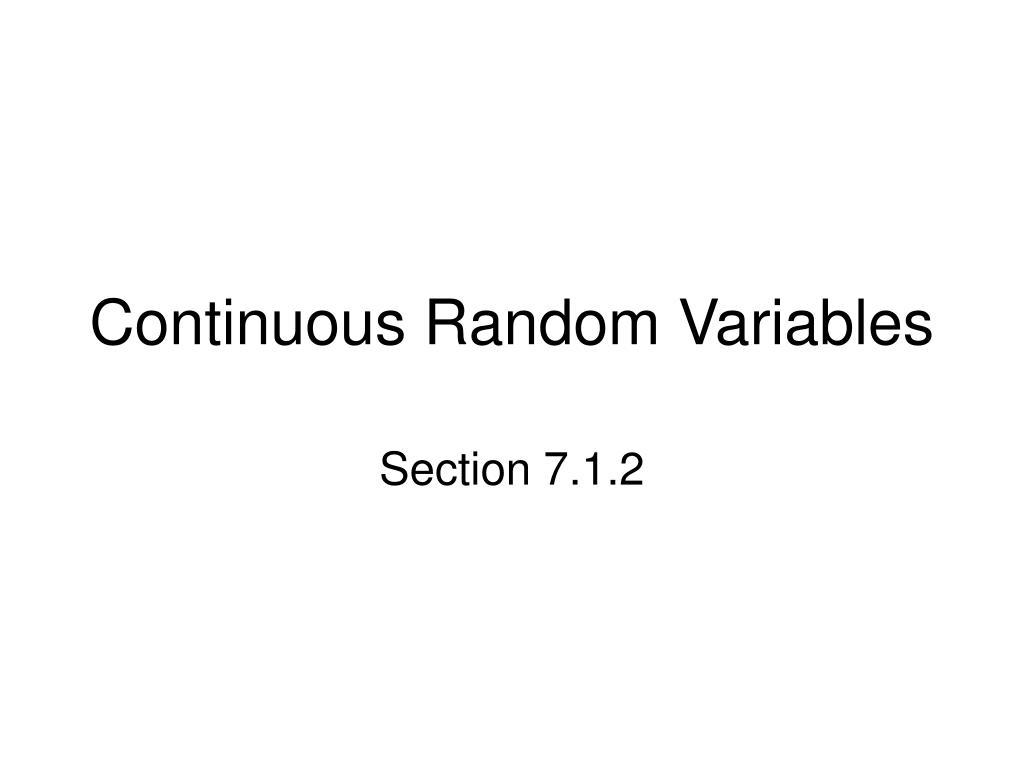

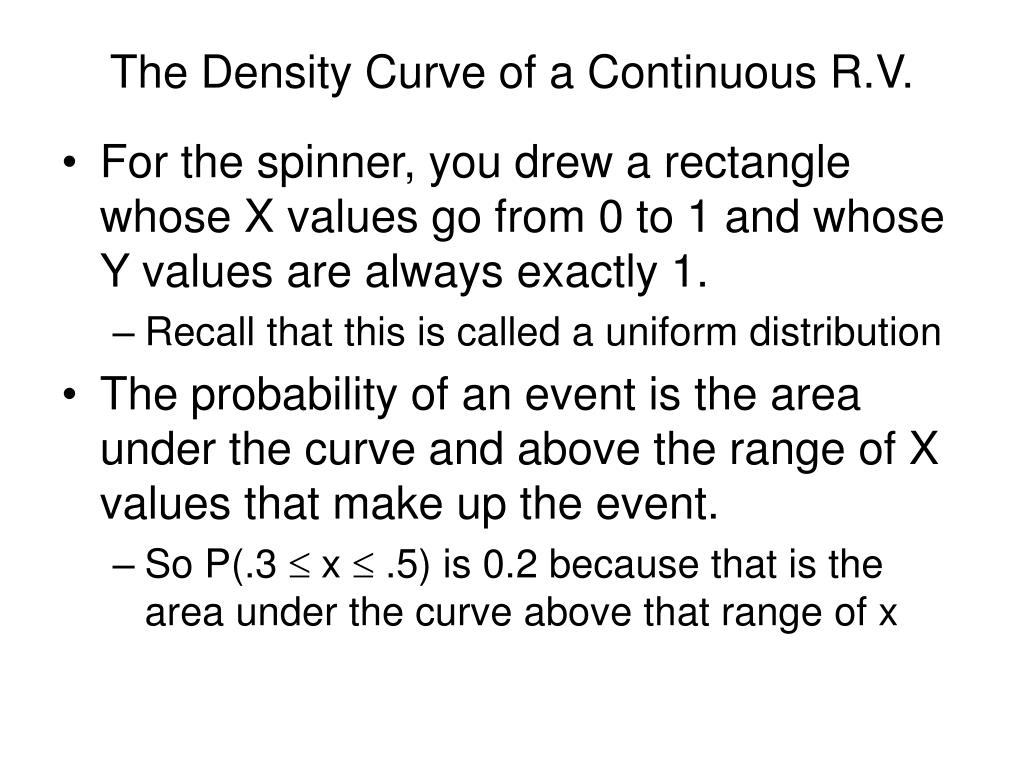

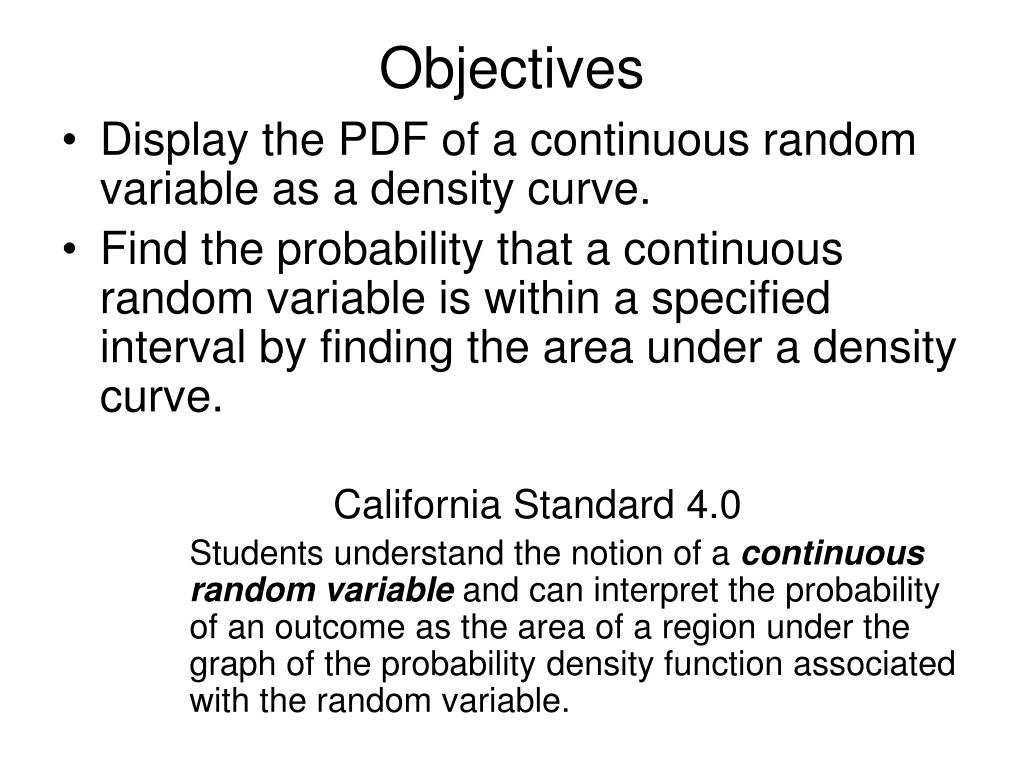

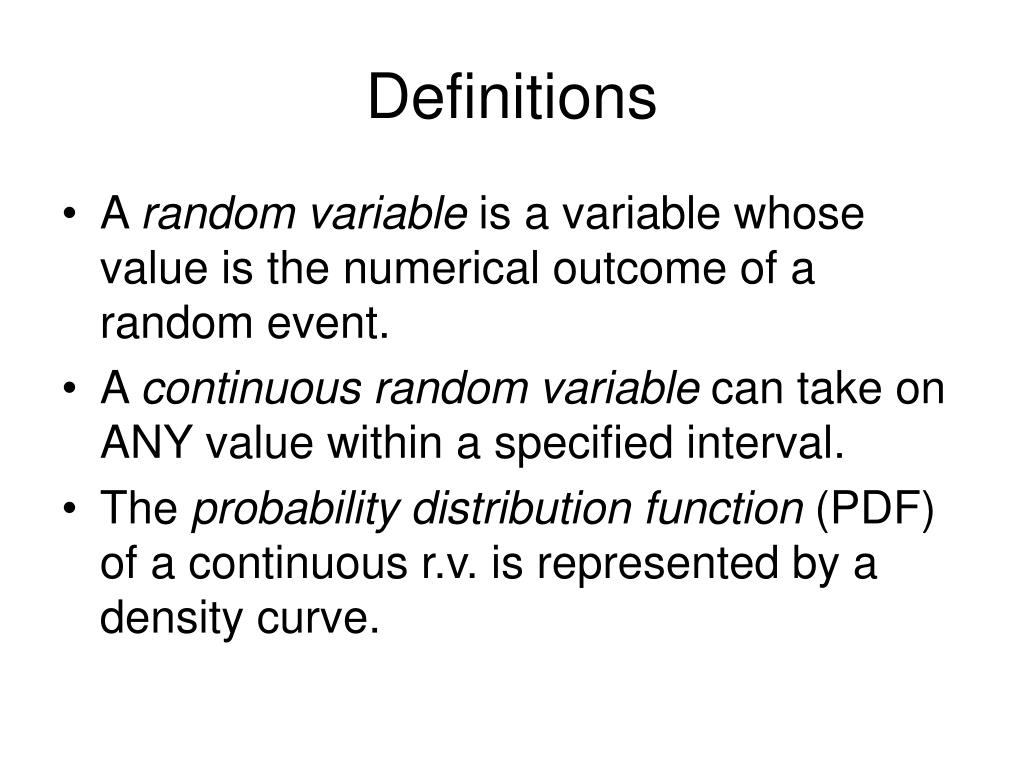

**Continuous Random Variables**Section 7.1.2**Starter 7.1.2**• A 9-sided die has three faces that show 1, two faces that show 2, and one face each showing 3, 4, 5, 6. • Let X be the number that shows face-up. • Draw the PDF histogram of X.**Objectives**• Display the PDF of a continuous random variable as a density curve. • Find the probability that a continuous random variable is within a specified interval by finding the area under a density curve. California Standard 4.0 Students understand the notion of a continuous random variableand can interpret the probability of an outcome as the area of a region under the graph of the probability density function associated with the random variable.**Definitions**• A random variable is a variable whose value is the numerical outcome of a random event. • A continuous random variable can take on ANY value within a specified interval. • The probability distribution function (PDF) of a continuous r.v. is represented by a density curve.**The Probability of a Continuous R.V.**• Consider the spinner on the overhead projector. • When I spin it, what is the probability that it lands on a number between .3 and .5? • What is the probability that it lands on a number between 0 and 1? • Draw a density curve that shows the possible outcomes and probabilities. • You are drawing the PDF of X**The Density Curve of a Continuous R.V.**• For the spinner, you drew a rectangle whose X values go from 0 to 1 and whose Y values are always exactly 1. • Recall that this is called a uniform distribution • The probability of an event is the area under the curve and above the range of X values that make up the event. • So P(.3 x .5) is 0.2 because that is the area under the curve above that range of x**The Probability of One Exact Outcome**• When I spin the spinner, what is the probability of hitting 0.3 exactly? • In notation: evaluate P(X = 3) • No matter how close I come, a really precise measurement will show some error. • Example: How tall are you EXACTLY? • Example: Watch the TI try to match an exact number with its random number generator. • Run program CONTRV • Conclusion: The probability of any exact outcome is always zero! • Note that the area above a point (like x = .3) is zero • So P(a x b) is the same as P(a < x < b)**A New Problem**• For a certain random variable the density curve that follows the line y = x • Draw the PDF of X (i.e. the density curve) • You should have drawn a triangle that goes from the origin to (√2, √2) • Find P(0 < x < 1) • .5(1)(1) = .5**Another Problem**• Suppose we know the heights of Northgate girls to be N(166, 7.3) cm • Remember what that means? • Find P(height < 155) • A normal distribution is a density curve, so draw a normal curve and find the area below h = 155 • Normalcdf(0, 155, 166, 7.3) = .0659 • So P(h < 155) = 6.6% • We could also find z = (155 – 166) / 7.3 = -1.51 and use Table A**Objectives**• Display the PDF of a continuous random variable as a density curve. • Find the probability that a continuous random variable is within a specified interval by finding the area under a density curve. California Standard 4.0 Students understand the notion of a continuous random variableand can interpret the probability of an outcome as the area of a region under the graph of the probability density function associated with the random variable.**Homework**• Read pages 375 – 378 • Do problems 4 and 5
