Accu Shrink i9 (ISO)

PARAMOUNT Accu SHRINK i9 (ISO) is our latest Model, specially designed, expertly crafted equipment which is not only its easy to use but it gives consistent & accurate results. Consists of a fine Calibrated Marking Template which is used to mark fabric with 500mm bench-marks for accurately determining change in Fabrics/Garments.

paramountinstruments
Download Presentation

Accu Shrink i9 (ISO)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

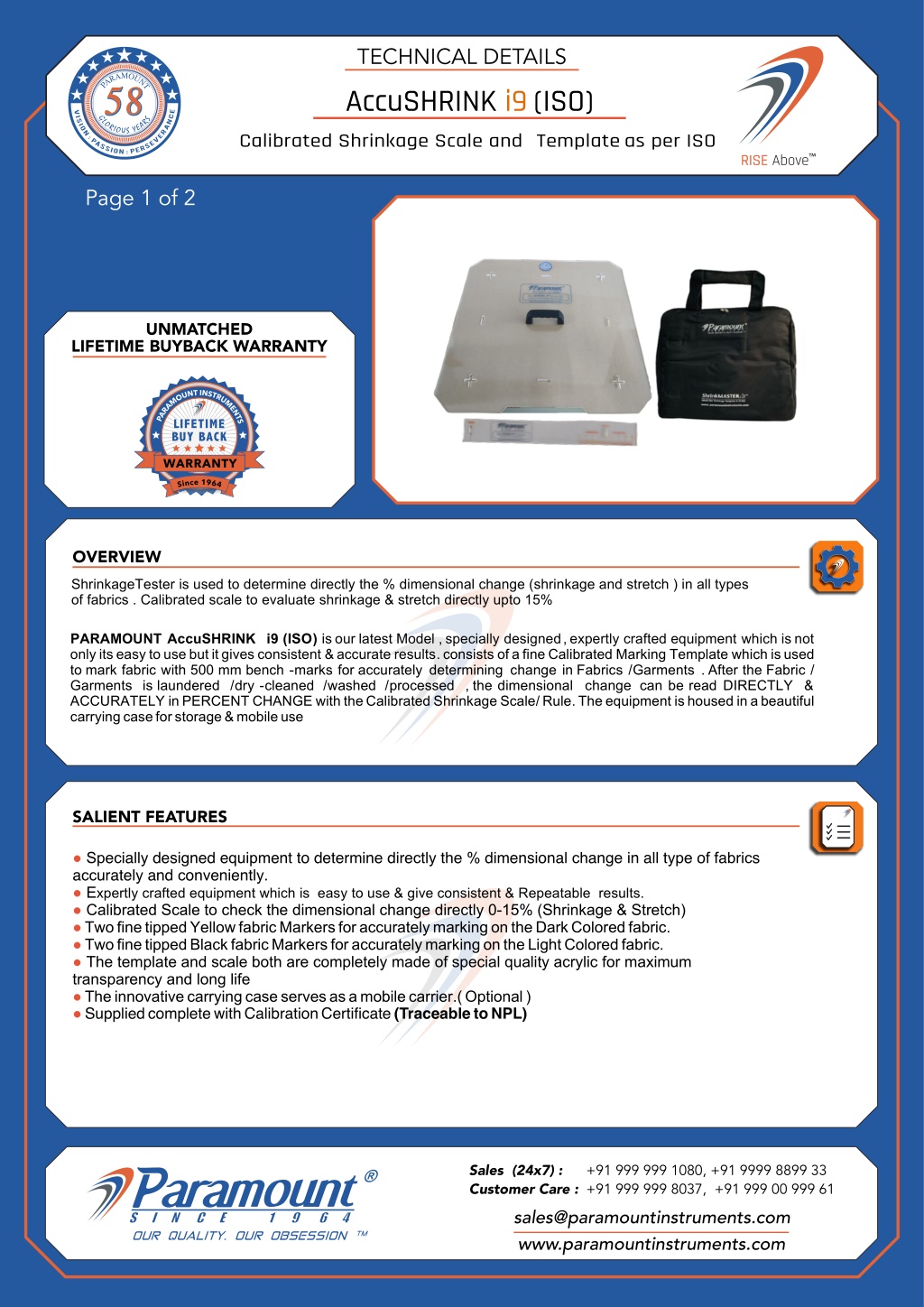

  1. TECHNICAL DETAILS AccuSHRINK i9 (ISO) Calibrated Shrinkage Scale and Template as per ISO 58 58 58 58 Page 1 of 2 UNMATCHED LIFETIME BUYBACK WARRANTY OVERVIEW ShrinkageTester is used to determine directly the % dimensional change (shrinkage and stretch ) in all types of fabrics . Calibrated scale to evaluate shrinkage & stretch directly upto 15% PARAMOUNT AccuSHRINK i9 (ISO) is our latest Model , specially designed, expertly crafted equipment which is not only its easy to use but itgives consistent & accurate results.consists of afine Calibrated Marking Template which is used to mark fabric with 500 mm bench -marks for accurately determining change in Fabrics /Garments . After the Fabric / Garments is laundered /dry -cleaned /washed /processed , the dimensional change can be read DIRECTLY & ACCURATELY inPERCENT CHANGE with the Calibrated Shrinkage Scale/Rule.The equipment ishoused inabeautiful carryingcaseforstorage&mobileuse SALIENT FEATURES ● Specially designed equipment to determine directly the % dimensional change in all type of fabrics accurately and conveniently. ● Expertly crafted equipment which is easy to use & give consistent & Repeatable results. ● Calibrated Scale to check the dimensional change directly 0-15% (Shrinkage & Stretch) ●TwofinetippedYellowfabricMarkersforaccuratelymarkingontheDarkColoredfabric. ●TwofinetippedBlackfabricMarkersforaccuratelymarkingontheLightColoredfabric. ● The template and scale both are completely made of special quality acrylic for maximum transparency and long life ●Theinnovativecarryingcaseservesasamobilecarrier.(Optional) ●SuppliedcompletewithCalibrationCertificate(TraceabletoNPL) Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com

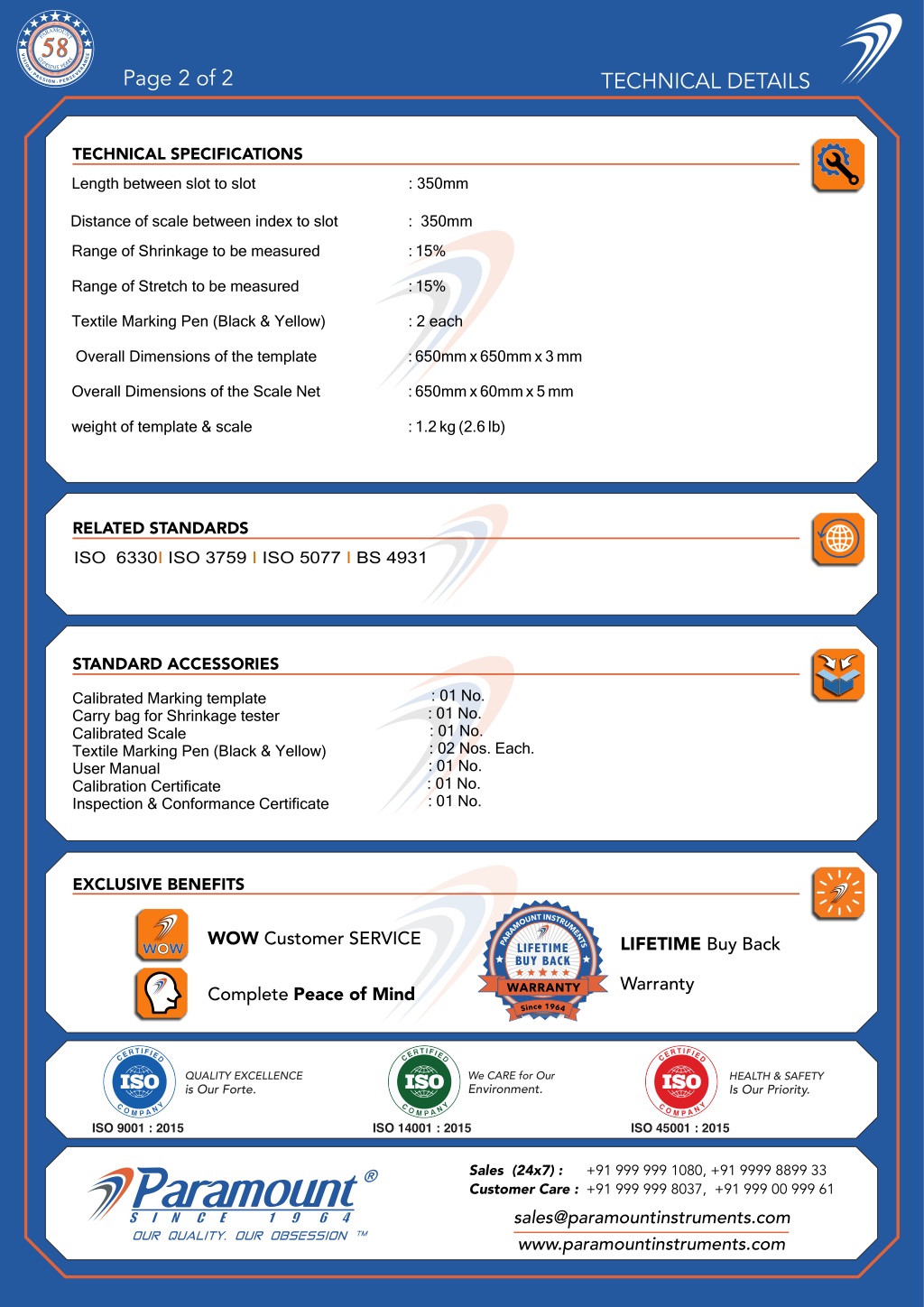

  2. 58 58 58 58 Page 2 of 2 TECHNICAL DETAILS TECHNICAL SPECIFICATIONS Length between slot to slot : 350mm Distance of scale between index to slot : 350mm Range of Shrinkage to be measured :15% Range of Stretch to be measured :15% Textile Marking Pen (Black & Yellow) : 2 each Overall Dimensions of the template :650mmx650mmx3mm Overall Dimensions of the Scale Net :650mmx60mmx5mm weight of template & scale :1.2kg(2.6lb) RELATED STANDARDS ISO 6330I ISO 3759 I ISO 5077 I BS 4931 STANDARD ACCESSORIES : 01 No. : 01 No. : 01 No. : 02 Nos. Each. : 01 No. : 01 No. : 01 No. Calibrated Marking template Carry bag for Shrinkage tester Calibrated Scale Textile Marking Pen (Black & Yellow) User Manual Calibration Certificate Inspection & Conformance Certificate EXCLUSIVE BENEFITS WOW Customer SERVICE LIFETIME Buy Back Warranty Complete Peace of Mind We CARE for Our Environment. QUALITY EXCELLENCE is Our Forte. HEALTH & SAFETY Is Our Priority. ISO 9001 : 2015 ISO 14001 : 2015 ISO 45001 : 2015 Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com
