  1. Tutorial 5 Exploring Protein Sequences

  2. Exploring Protein Sequences • Multiple alignment • ClustalW • Motif discovery • MEME • Jaspar

  3. A C D B Multiple Sequence Alignment • More than two sequences • DNA • Protein • Evolutionary relation • Homology  Phylogenetic tree • Detect motif GTCGTAGTCGGCTCGACGTCTAGCGAGCGTGATGCGAAGAGGCGAGCGCCGTCGCGTCGTAAC GTCGTAGTCG-GC-TCGACGTC-TAG-CGAGCGT-GATGC-GAAG-AG-GCG-AG-CGCCGTCG-CG-TCGTA-AC

  4. A C D B Multiple Sequence Alignment • Dynamic Programming • Optimal alignment • Exponential in #Sequences • Progressive • Efficient • Heuristic GTCGTAGTCGGCTCGACGTCTAGCGAGCGTGATGCGAAGAGGCGAGCGCCGTCGCGTCGTAAC GTCGTAGTCG-GC-TCGACGTC-TAG-CGAGCGT-GATGC-GAAG-AG-GCG-AG-CGCCGTCG-CG-TCGTA-AC

  5. ClustalW “CLUSTAL W: improving the sensitivity of progressive multiple sequence alignment through sequence weighting, position-specific gap penalties and weight matrix choice”, J D Thompson et al

  6. ClustalW • Progressive • At each step align two existing alignments or sequences • Gaps present in older alignments remain fixed GTCGTAGTCGGCTCGACGTCTAGCGAGCGTGATGCGAAGAGGCGAGCGCCGTCGCGTCGTAAC GTCGTAGTCG-GC-TGTC-TAG-CGAGCGTGC-GAAG-AG-GCG-GCCGTCG-CG-TCGT

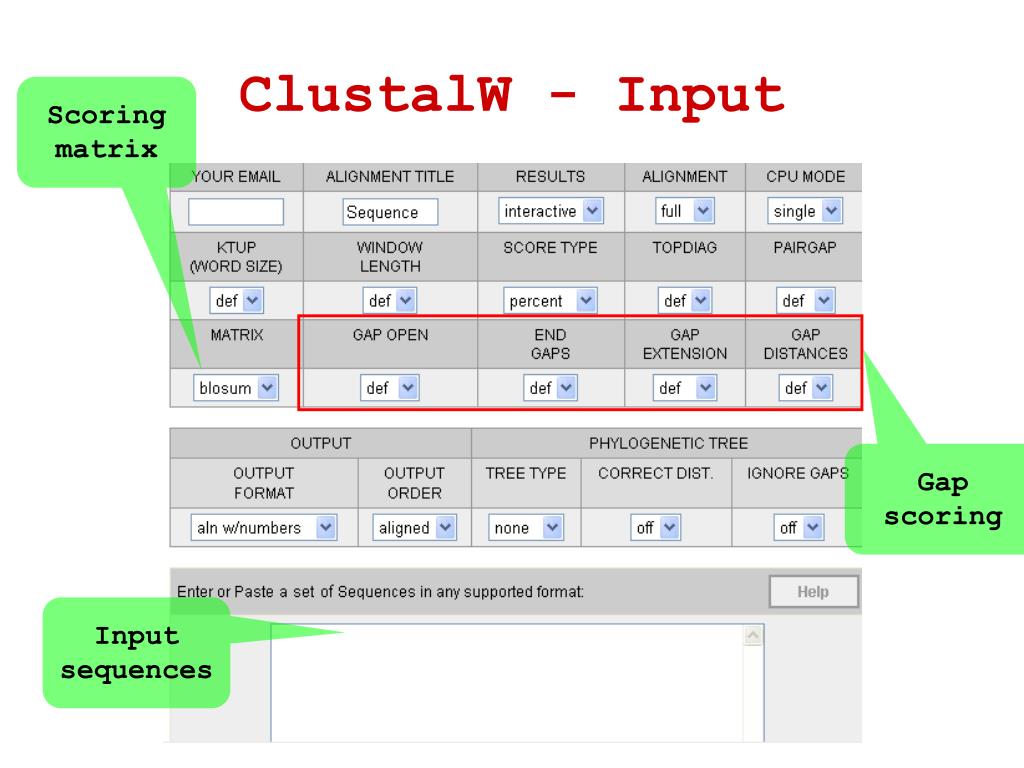

  7. ClustalW - Input Scoring matrix Gap scoring Input sequences

  8. ClustalW - Output

  9. ClustalW - Output Input sequences Pairwise alignment scores Building alignment Final score

  10. ClustalW - Output

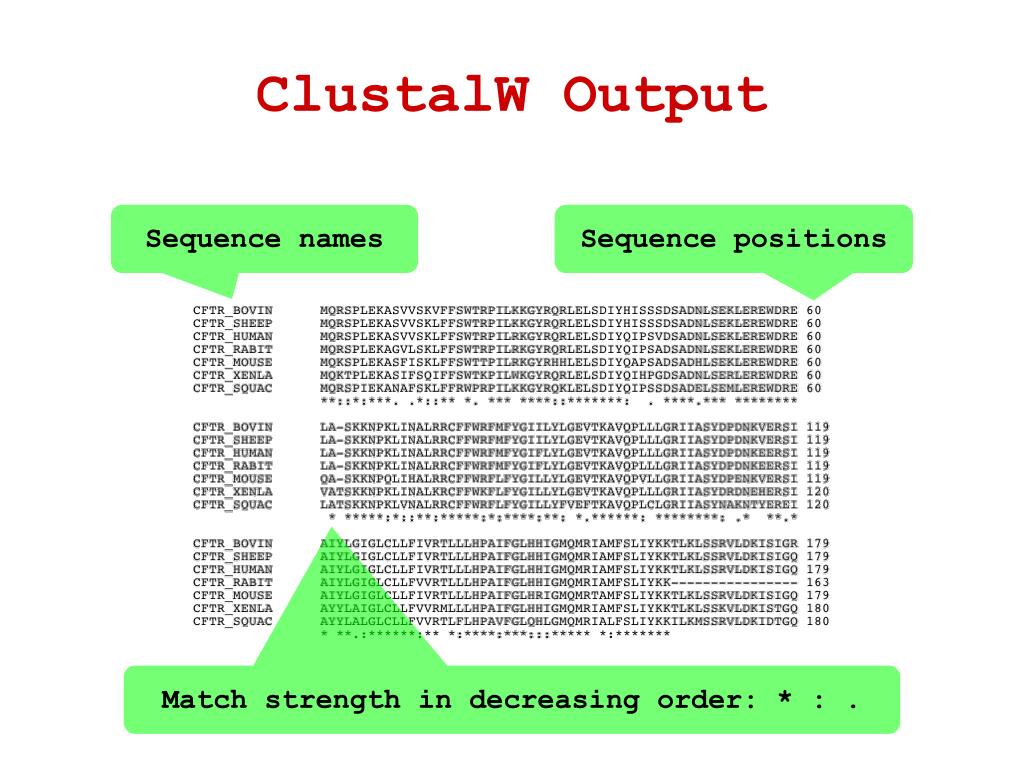

  11. ClustalW Output Sequence names Sequence positions Match strength in decreasing order: * : .

  12. http://http://www.megasoftware.net/

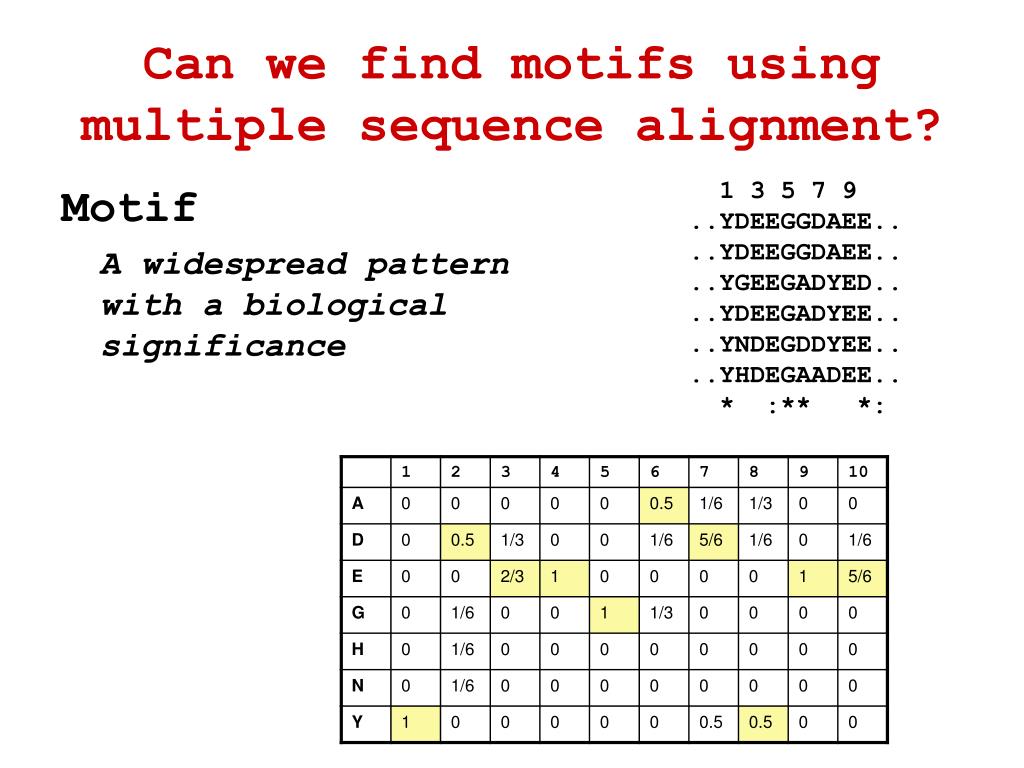

  13. Can we find motifs using multiple sequence alignment? 1 3 5 7 9 ..YDEEGGDAEE.. ..YDEEGGDAEE.. ..YGEEGADYED.. ..YDEEGADYEE.. ..YNDEGDDYEE.. ..YHDEGAADEE.. * :** *: Motif A widespread pattern with a biological significance

  14. Can we find motifs using multiple sequence alignment? YES! NO

  15. MEME – Multiple EM for Motif finding • http://meme.sdsc.edu/ • Motif discovery from unaligned sequences • Genomic or protein sequences • Flexible model of motif presence (Motif can be absent in some sequences or appear several times in one sequence)

  16. MEME - Input Email address Multiple input sequences Range of motif lengths How many motifs? How many times in each sequence? How many sites?

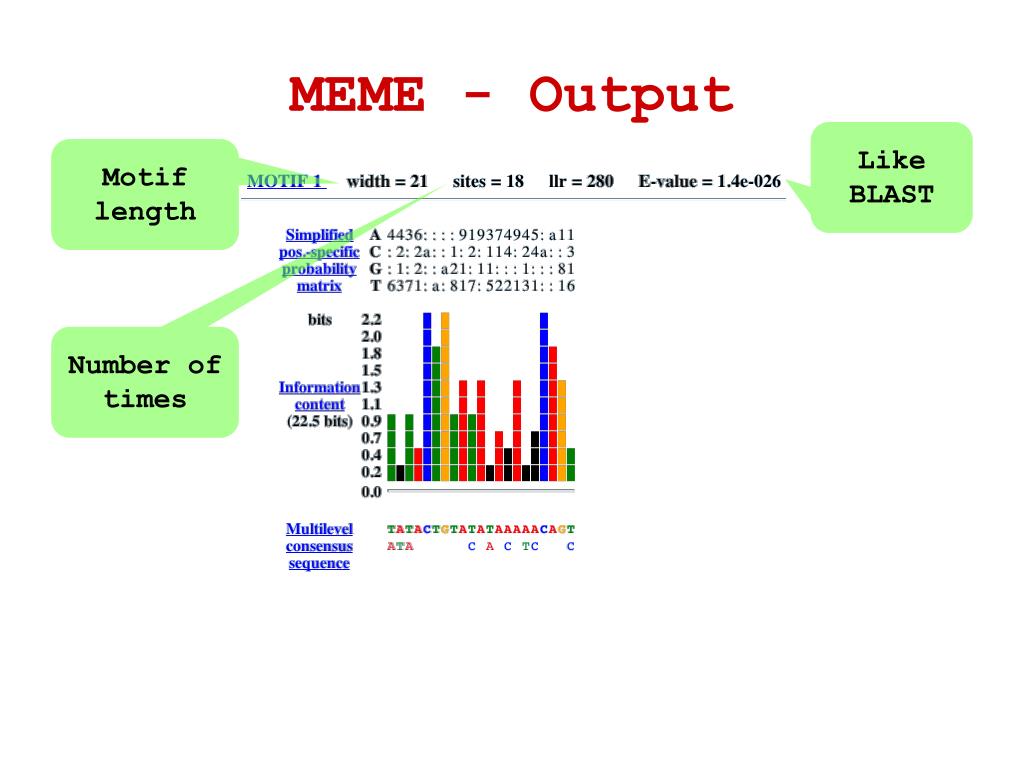

  17. MEME - Output Like BLAST Motif length Number of times

  18. MEME - Output Probability * 10 ‘a’=10, ‘:’=0

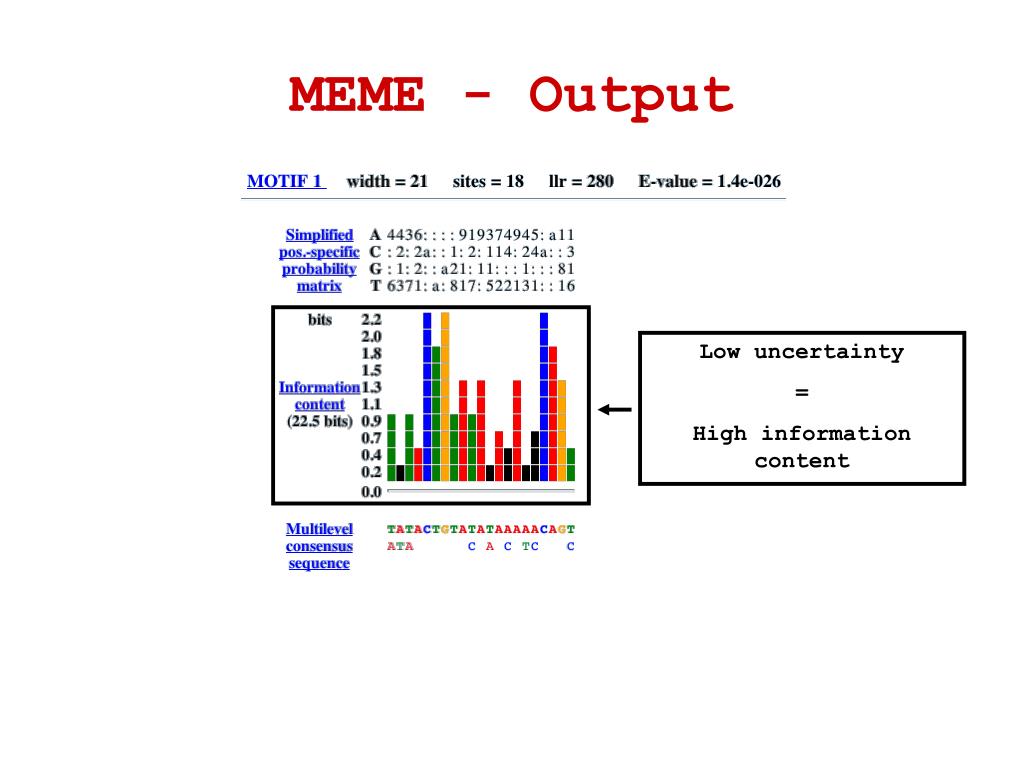

  19. MEME - Output Low uncertainty = High information content

  20. MEME - Output Multilevel Consensus

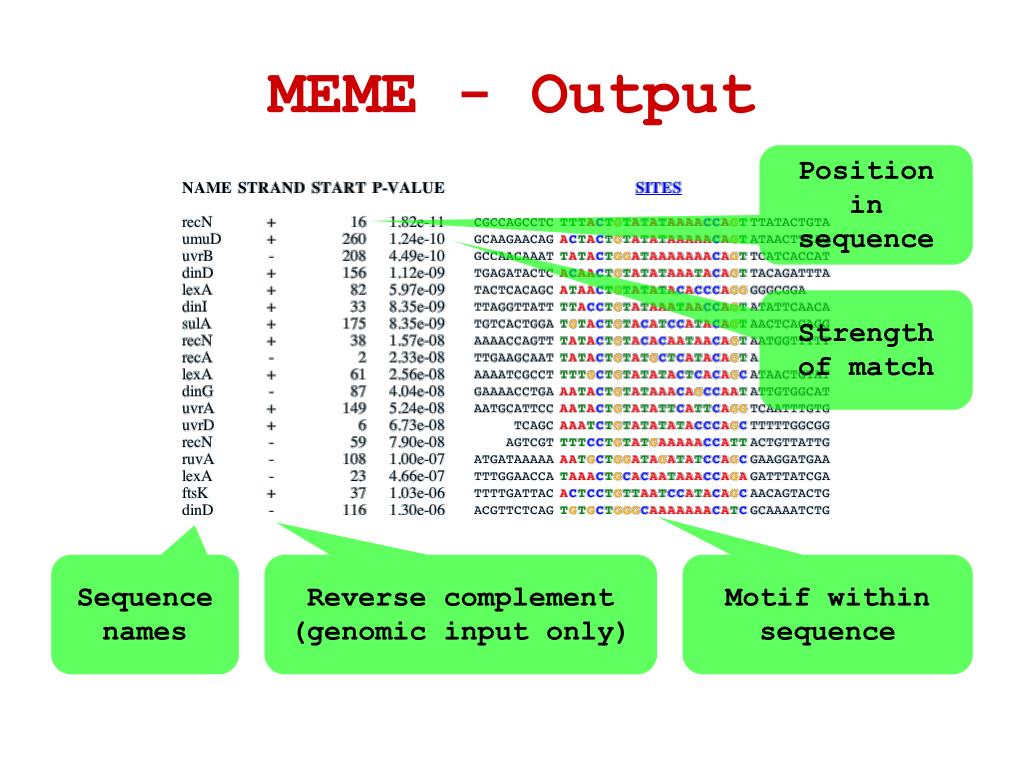

  21. MEME - Output Position in sequence Strength of match Sequence names Reverse complement (genomic input only) Motif within sequence

  22. MEME - Output Motif instance ‘-’=Other strand sequence lengths Overall strength of motif matches

  23. MAST • Searches for motifs (one or more) in sequence databases: • Like BLAST but motifs for input • Similar to iterations of PSI-BLAST • Profile defines strength of match • Multiple motif matches per sequence • Combined E value for all motifs • MEME uses MAST to summarize results: • Each MEME result is accompanied by the MAST result for searching the discovered motifs on the given sequences.

  24. JASPAR • Profiles • Transcription factor binding sites • Multicellular eukaryotes • Derived from published collections of experiments • Open data accesss

  25. JASPAR • profiles • Modeled as matrices. • can be converted into PSSM for scanning genomic sequences.

  26. Search profile http://jaspar.cgb.ki.se/

  27. http://jaspar.cgb.ki.se/
