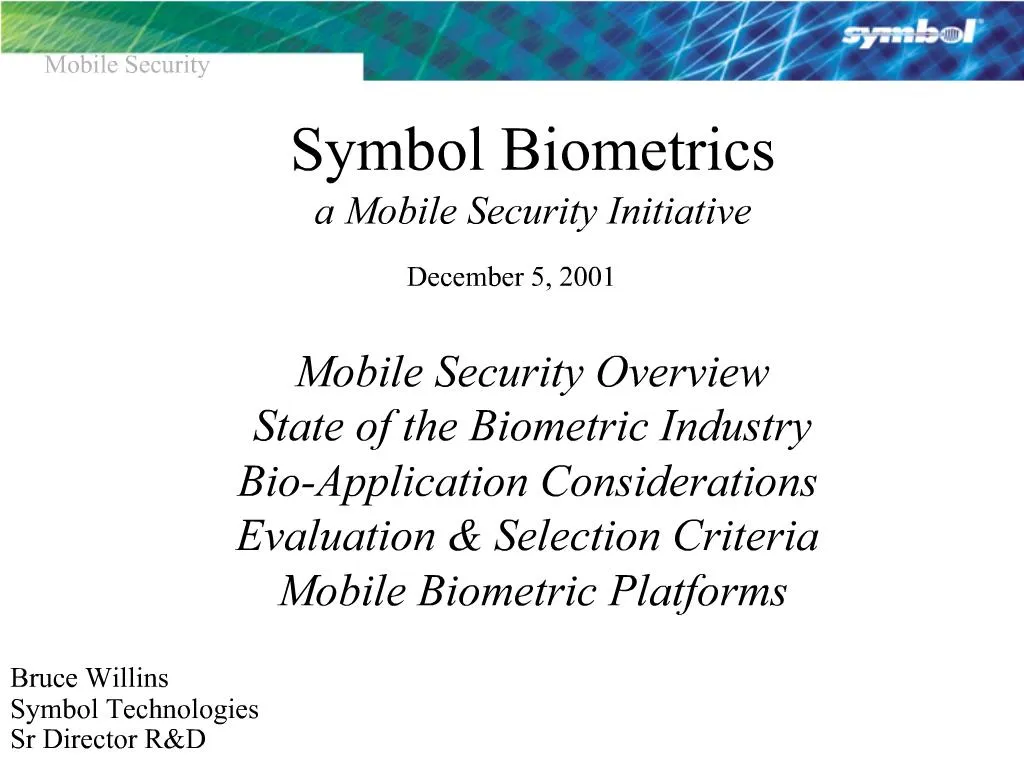

Bruce Willins Symbol Technologies Sr Director RD

1. Bruce WillinsSymbol TechnologiesSr Director R&D How many are piloting or considering biometrics. How many are piloting or considering biometrics.

4. Mobile Security FIPS, HIPPA, Finance, TCPA, CRYSIS� Terminal Firewall, Secure Policy Mgmt, 802.11 Black program Describe Red/black interface of terminal NY times article. Mobile Security Architecture Document FIPS, HIPPA, Finance, TCPA, CRYSIS� Terminal Firewall, Secure Policy Mgmt, 802.11 Black program Describe Red/black interface of terminal NY times article. Mobile Security Architecture Document

5. Security Encompasses Many Layers

6. Enterprise Synergy Is Critical Issue Is that Standard Radius Was not designed to meet the three necessary requirements for 802.11: - Mutual Authentication - Secure Key Generation & Distribution - Facilitate Roaming What is standard enterprise security ? LEAP?Issue Is that Standard Radius Was not designed to meet the three necessary requirements for 802.11: - Mutual Authentication - Secure Key Generation & Distribution - Facilitate Roaming What is standard enterprise security ? LEAP?

8. State of The Biometric Industry ~ 150 Biometric Companies Veridicom dismantled in August 2001: 60%+ growth (post 9/11/01) Harris Interactive (consulting) +9/11 �eighty-two percent of Americans are willing to have  their fingerprints scanned for increased airport security� �86 percent favor facial-recognition technology to scan for suspected terrorists� (CNBC 9/19/01: Alan Dershowitz: �facial recognition is better than racial profiling�) Number of people surveyed? Veridicom: spinoff from Lucent/Bell Labs in 1997, 1st commercial finger print sensor, Number of people surveyed? Veridicom: spinoff from Lucent/Bell Labs in 1997, 1st commercial finger print sensor,

9. Biometrics Makes Famous Quotes List Wall Street Journal 11/13/01 �The Airport of The Future��A special scanner scrapped in Charlotte, N.C., identified people by their iris but couldn�t detect guns.�

11. IBG-BioPrivacy25 Best Practices Protection of bio-data: storage, transmission� Protection of Post Match Decisions Explicit definition & disclosure of scope Destruction of Dated Bio-Data No Surreptitious Collection of Biometrics Destruction of Raw bio-data (retention only of templates) Right to unenroll Active Matching Disclosure Full Disclosure of Independent Audits Disclosure of biometric alternatives Dollar Rental Dollar Rental

13. Bio-App Questionnaire Cooperative or Non-Cooperative ? Overt or Covert ? Habituated or Non-Habituated ? Static or Dynamic Environment ? Identification or Verification ? Responsiveness (seconds) ? Target Population ? Enrollment Source ? Attended or Unattended ? Cost of FAR / FRR ? Temporal Limits (template aging) Describe Cooperative or non-cooperativeDescribe Cooperative or non-cooperative

14. Obvious Applications For Biometrics-80/20 Rule To Expedite Airport Clearance

15. Change The Process � Expedited Passenger Processing System (EPPS)� By Brian Glancy, � The Government of Canada (GOC) portion of EPPS, is an automated primary inspection process at airports for pre-approved air travelers using automated kiosks and biometrics to confirm identity and verify admissibility. EPPS provides an alternative inspection process to �known risk� travelers allowing customs inspectors to concentrate their efforts on unknown travelers. � EPPS is a joint initiative between the GOC, namely the Canada Customs & Revenue Agency (CCRA), Citizenship & Immigration Canada (CIC), the Canadian Passport Office, and the Canadian Airports Council. The EPPS vision is to provide international air travelers with a host of ramp-to-curbside convenience services such as expedited luggage delivered to their hotel room, internet or other communications access, rental and valet services waiting at the curbside, and pre-arrival hotel check-in etc. The Government of Canada automated primary inspection process, is the first service being offered to EPPS participants. � EPPS is aimed at the frequent international business/frequent traveler. Initially, all citizens and permanent residents of Canada and the U.S. can participate in EPPS unless deemed inadmissible to Canada. Each participant will be security vetted using risk rating based on the results of background checks. Any applicant having previous criminal or border contravention history will not be accepted into the EPPS program. In subsequent phases, citizens of other countries will be offered membership based on visa requirements. � EPPS participants will enter Canada by accessing an automated kiosk located in the Customs primary area of the airport. During each passage, the participant�s biometrics will be verified using iris recognition technology in order to confirm identity, the participant will then make their Customs declaration electronically, and the individual�s risk rating will be taken into consideration in the referral determination. � Implementation of Phase I of EPPS, the automated primary inspection process is anticipated to begin by the beginning of next year at Vancouver, Calgary, Toronto, and Montreal International Airports. During the Fall of next year, phase II will expanded to include Edmonton, Winnipeg, Ottawa and Halifax airports. � Each airport of Phase I and II have a representative on the EPPS Regional Coordinators Committee consisting of CCRA and CIC officers. Meetings are being held on a regular basis with Phase I airports in order to document the requirements for design, development, and implementation. � Editors note: Brian Glancy is a Senior Project Advisor for the Major Project Design & Development Directorate (MPDDD), Expedited Passenger Processing Systems Project, Canada Customs and Revenue Agency (CCRA) based in Ottawa, Canada. Please refer any questions you have about this project to Brian Glancy, telephone: (613) 957-1209 or fax: (613) 954-7558. � Expedited Passenger Processing System (EPPS)� By Brian Glancy, � The Government of Canada (GOC) portion of EPPS, is an automated primary inspection process at airports for pre-approved air travelers using automated kiosks and biometrics to confirm identity and verify admissibility. EPPS provides an alternative inspection process to �known risk� travelers allowing customs inspectors to concentrate their efforts on unknown travelers. � EPPS is a joint initiative between the GOC, namely the Canada Customs & Revenue Agency (CCRA), Citizenship & Immigration Canada (CIC), the Canadian Passport Office, and the Canadian Airports Council. The EPPS vision is to provide international air travelers with a host of ramp-to-curbside convenience services such as expedited luggage delivered to their hotel room, internet or other communications access, rental and valet services waiting at the curbside, and pre-arrival hotel check-in etc. The Government of Canada automated primary inspection process, is the first service being offered to EPPS participants. � EPPS is aimed at the frequent international business/frequent traveler. Initially, all citizens and permanent residents of Canada and the U.S. can participate in EPPS unless deemed inadmissible to Canada. Each participant will be security vetted using risk rating based on the results of background checks. Any applicant having previous criminal or border contravention history will not be accepted into the EPPS program. In subsequent phases, citizens of other countries will be offered membership based on visa requirements. � EPPS participants will enter Canada by accessing an automated kiosk located in the Customs primary area of the airport. During each passage, the participant�s biometrics will be verified using iris recognition technology in order to confirm identity, the participant will then make their Customs declaration electronically, and the individual�s risk rating will be taken into consideration in the referral determination. � Implementation of Phase I of EPPS, the automated primary inspection process is anticipated to begin by the beginning of next year at Vancouver, Calgary, Toronto, and Montreal International Airports. During the Fall of next year, phase II will expanded to include Edmonton, Winnipeg, Ottawa and Halifax airports. � Each airport of Phase I and II have a representative on the EPPS Regional Coordinators Committee consisting of CCRA and CIC officers. Meetings are being held on a regular basis with Phase I airports in order to document the requirements for design, development, and implementation. � Editors note: Brian Glancy is a Senior Project Advisor for the Major Project Design & Development Directorate (MPDDD), Expedited Passenger Processing Systems Project, Canada Customs and Revenue Agency (CCRA) based in Ottawa, Canada.

17. Anatomy of a Secure Boarding Pass RSA verification is about 10x faster than verification than DSS RSA verification is about 10x faster than verification than DSS

18. Picture PDF � Simple Tokens JPEG 2000 � byte counts w/file headers stripped Requires Human Intervention Subversion Error prone Time consuming

19. Creating Biometric Secure Paper Tokens

20. Symbol Secure PDF Is A Temporal Paper Token That: - Is Highly Difficult To Counterfeit - Assures Issuer Authenticity Via Digital Signature - Bound To The Individual Person via Biometrics - Easily Generated: Mobile or Fixed Platforms - Easily Verified: Mobile or Fixed Platforms

21. Authenticated Human Tracking System in place using phone over 1M calls/day.System in place using phone over 1M calls/day.

22. Taliban & Foreign National Prisoner Registration

23. Stability birth-to-slaughter Scarring RFID tagsStability birth-to-slaughter Scarring RFID tags

24. Tenets of User Authentication What You Know (i.e. Knowledge based)

25. Hand not much different between left & right very little change Finger significant difference but can change dramatically So we want is something with significant entropy and is little changed - irisHand not much different between left & right very little change Finger significant difference but can change dramatically So we want is something with significant entropy and is little changed - iris

27. Independent Bio-TestingCentre for Mathematics and Scientific Computing National Physical LaboratoryMiddlesex, UK Iris did not have a programmable threshold. Iris had zero false matches ( Samples�? Includes failure to acquire 200 subjects, 3 months of testing Iris did not have a programmable threshold. Iris had zero false matches ( Samples�? Includes failure to acquire 200 subjects, 3 months of testing

28. AFIS 4 AFIS algorithms against standard database

29. "Everything should be made as simple as possible, but not simpler.� � Albert Einstein  Some of the parameter are more temporal than others. For example, cost is probably the most temporal and depends On the biometrics ability to leverage other applications. Accuracy on the other hand is probably the least with some technologies Inherently only containing some degree of entropy. Finally, performance is a function of so many other things; population, Controls� so be careful Some of the parameter are more temporal than others. For example, cost is probably the most temporal and depends On the biometrics ability to leverage other applications. Accuracy on the other hand is probably the least with some technologies Inherently only containing some degree of entropy. Finally, performance is a function of so many other things; population, Controls� so be careful

30. �Statistical Significance� How many samples must I take for my trial? Binomial Approximation Chose a confidence level, e.g. 95% Determine the relationship of N & P such that the 95% of the time one or more failures, or more simply that 5% of the time 0 failures 150 samples 0 errors � 95% confident better than pe= .031 1 error - 95% confident better than pe = .02 Doddington�s �Rule of 30� (see [7]): To be 90 percent confident that the true error rate is within +/- 30 percent of the observed error rate, there must be at least 30 errors. 150 samples 0 errors � 95% confident better than pe= .031 1 error - 95% confident better than pe = .02 Doddington�s �Rule of 30� (see [7]): To be 90 percent confident that the true error rate is within +/- 30 percent of the observed error rate, there must be at least 30 errors.

31. Hybrid Systems: Knowledge based, Token, Physiology Multipurpose Sensors For Biometrics

32. Multipurpose Biometric Terminal

33. Biometric Optical Issues Illumination Filter ambient, Dominant source, Correct Wavelengthsreduce specula reflections Issue: mobile device size, power constraints Aperture Open aperture to allow more light Issue: large aperture reduces depth of focus Pixel Density (pixels/inch) Adequate Resolution To Extract Features: 150-200 Iris, 20 Face, 100 (10mil PDF) Issue: narrow FoV for higher pixel density, but more difficult to acquire object Focus Short for Iris, long for face FoV Describe eyeglass experience and virtue of mobility in this case, e.g. eugene could not see dotDescribe eyeglass experience and virtue of mobility in this case, e.g. eugene could not see dot

34. The Iris: Rich in Features

35. Iris Issues Small target (~1 cm) to acquire from a distance (1 m) Moving target within head, within moving target in eye socket Jitter/Blur In 2 Non-Stationery Platforms Located behind a curved, wet, reflecting surface (specular) Obscured by eyelashes, lenses, reflections Partially occluded by eyelids, often drooping Deforms non-elastically as pupil changes size Visible light dilation Orwellian connotations Aiming Mechanisms Perceived Sensitivity Of Eye Intrusion Drug Related Changes (e.g. Latanoprost 12% darkened iris) *Single Company External Factors - voice person out of breath, background noise, sickness� - Iris: lighting poor, person just came out of dark (pupils dilated) - Finger: fingers wet, cold, sweaty, misalignmentExternal Factors - voice person out of breath, background noise, sickness� - Iris: lighting poor, person just came out of dark (pupils dilated) - Finger: fingers wet, cold, sweaty, misalignment

36. �Liveness� & Challenge Considerations

37. Fingerprint Oldest Biometric Latent Extraction Capability AFIS Database (automated fingerprint identification systems) Every State Has AFIS FBI IAFIS � 227 Million+ Started in 1934 Issues: Swipe vs full scan Societal Connotation Protection of solid state sensors (ESD, impact, grit, grime, de-naturing�) Hygiene Ethnic dependency � Asian women Target variance: small cut can destroy 50% of minutia Oil, dry, wet, cut, abrasions� Sensor Types: Thermal, Optical, Capacitive, Pressure, Ultrasonic

38. Facial Biometrics

39. FRVT 2000 Test Overview Test Metrics Compression - Media Expression - Distance Illumination - Temporal Pose - Resolution Important point of ROC, not obvious that EER is best, need to determine operating point and then use ROC curveImportant point of ROC, not obvious that EER is best, need to determine operating point and then use ROC curve

40. Facial-In-A-CrowdProcessing False Accepts

41. Security Issues if going over wireless. May want to load flight profile from wired.Security Issues if going over wireless. May want to load flight profile from wired.

42. Define User Feedback For The Specific Application

43. Speech Recognition - Acoustic Processing: front-end filtering, noise cancellation, echo cancellation, gating- VAD - Parametric representation of the sampled audio - This diagram represents the Client Based recognition engine - Most popular Feature Extraction is Mel-Frequency Capstral Coefficient - Most popular Comparison is HMM - Acoustic Processing: front-end filtering, noise cancellation, echo cancellation, gating- VAD - Parametric representation of the sampled audio - This diagram represents the Client Based recognition engine - Most popular Feature Extraction is Mel-Frequency Capstral Coefficient - Most popular Comparison is HMM

44. Futures Biometric Proliferation - Mobility PDF Smart Tokens -> Smart Cards Biometric Protection; platform, storage� �Liveness� Faster Less Obtrusive Biometrics: 3D Facial Long Range Iris Scanning Biometric Affinity Programs �Unified� Standardization: Feature Extraction,  file formats, API (BAPI), multi-bio databases BAPI � bio API to BAPI � bio API to
