slide1
VPNs
  • Virtual Private Networks
    • Use the Internet for transmission instead of a PSDN
    • Sometimes called VPNs if use Frame Relay or ATM with added security

Internet

slide2
VPNs

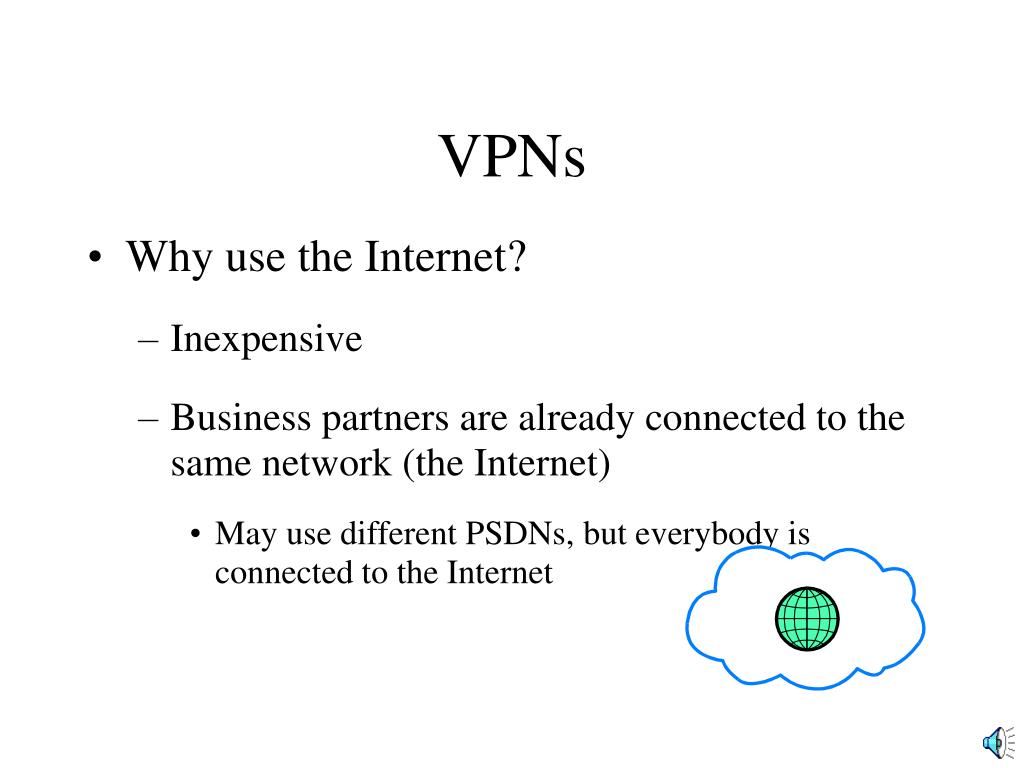

  • Why use the Internet?
    • Inexpensive
    • Business partners are already connected to the same network (the Internet)
      • May use different PSDNs, but everybody is connected to the Internet
slide3
VPNs
  • Problems with the Internet
    • Congestion: slows transmissions
    • Reliability: cannot always connect, sometimes fails during transmissions
    • Lack of security
slide4
VPNs
  • IETF developing IPsec security standards
    • IP security
    • At the internet layer
    • Protects all messages at the transport and application layers

E-Mail, WWW, Database, etc.

TCP

UDP

IPsec

slide5
VPNs

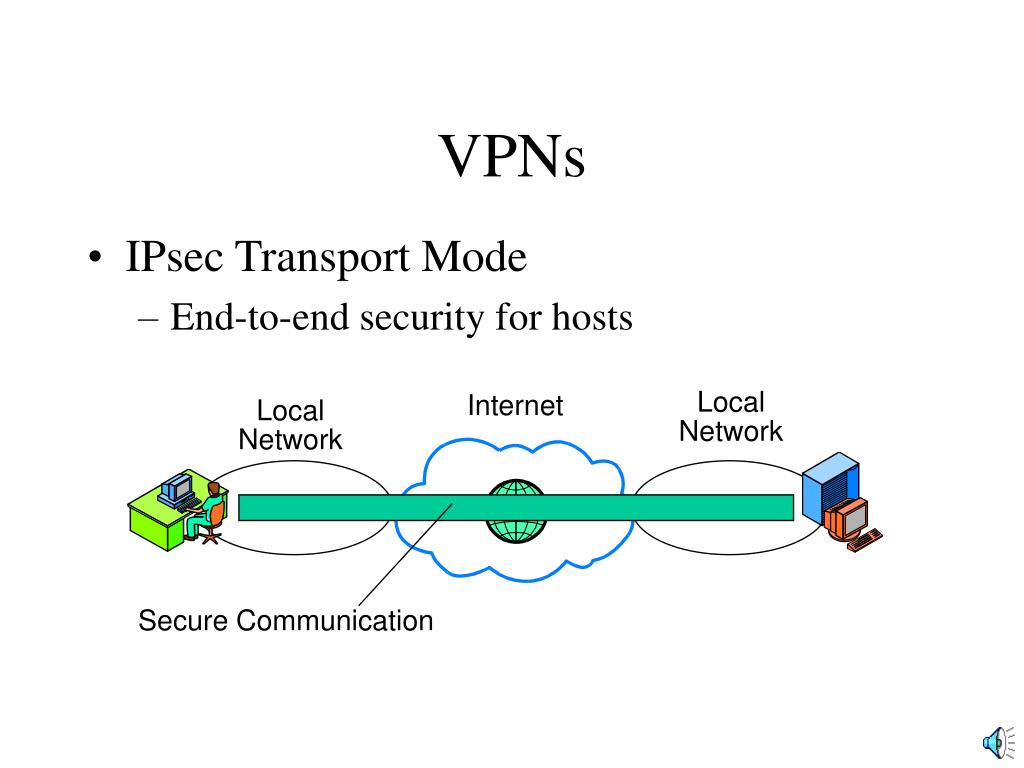

  • IPsec Transport Mode
    • End-to-end security for hosts

Local

Network

Internet

Local

Network

Secure Communication

slide6
VPNs
  • IPsec Tunnel Mode
    • IPsec server at each site
    • Secure communication between sites

Local

Network

Internet

Local

Network

IPsec

Server

Secure Communication

slide7
VPNs
  • IPsec Modes Can be Combined
    • End-to-end transport mode connection
    • Within site-to-site tunnel connection

Local

Network

Internet

Local

Network

Tunnel Mode

Transport Mode

slide8
VPNs
  • Another Security System for VPNs is the Point-to-Point Tunneling Protocol (PPTP)
    • For dial-up connections, based on PPP
    • Connects user with securely to a remote access server at a site

Dial-Up

Connection

Local

Network

Internet

PPTP Connection

Remote Access Server

virtual private networks
Virtual Private Networks
  • Other Problems Remain
  • Internet Congestion is Still a Problem
    • Internet throughput tends to be low
  • Internet Reliability is Low
    • Cannot get connections
    • Backbone fails occasionally
virtual private networks10
Virtual Private Networks
  • Alternative
    • Avoid the congested and unreliable backbone!
    • Use one ISP that serves all sites
    • Should offer QoS service level agreement (SLAs) for latency and reliability

Site 1

ISP

Site 2

virtual private networks11
Virtual Private Networks

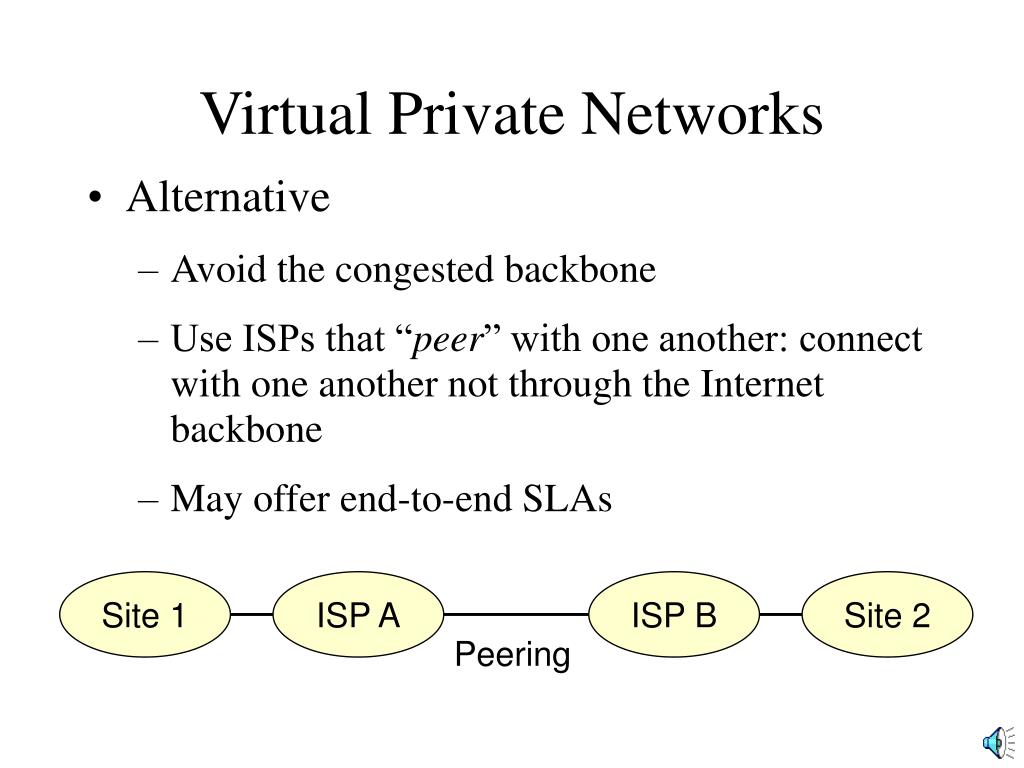

  • Alternative
    • Avoid the congested backbone
    • Use ISPs that “peer” with one another: connect with one another not through the Internet backbone
    • May offer end-to-end SLAs

Site 1

ISP A

ISP B

Site 2

Peering

wans in perspective
WANs in Perspective
  • Both Leased Line Networks and PSDNs are widely used and will be for several years to come
  • Leased Line Networking is shrinking while PSDN networking is growing rapidly
  • VPN technology and standards are still immature and use will be very low for several years to come
