Presentation Transcript
Pencil sketching l.jpg
PENCIL SKETCHING

Presentation

by

Dennis L. Law, ASLA

Professor and Dean

College of Architecture, Planning and Design

Kansas State University

Conte Crayon sketch by Dennis Law


Pencil sketching2 l.jpg
PENCIL SKETCHING

  • Equipment

  • Technique

  • Composition

  • Examples

Pencil sketch by Dennis Law


Pencil sketching3 l.jpg
PENCIL SKETCHING

  • Equipment

    • Pencils

    • Sharpening

    • Paper

    • Stump

    • Erasers

Pencil sketch by Dennis Law


Equipment l.jpg
Equipment

  • Pencils

    • Hardness/softness

      • Hard: 2H, H, & HB

      • Soft: B, 2B, 3B, 4B, 5B, & 6B

    • Tone varies with paper, atmosphere, brand & subject.


Equipment5 l.jpg
Equipment

  • Sharpening the Pencil

    • Never use a point, but rather use a wedge.

    • Fuzzy wines are the best wines

Pencil Sketch by Dennis Law


Equipment6 l.jpg
Equipment

  • Paper

    • Aquabee Drawing 812 and Strathmore Alexis - rough and gives grained appearance to middle to light tones

Pencil Sketch by Dennis Law


Equipment7 l.jpg
Equipment

  • Paper

    • Aquabee Satin Finish - smooth - surfaced paper for great tones.

    • Video - Expensive but the best

Pencil Sketch by Dennis Law


Equipment8 l.jpg
Equipment

  • Stump

    • Use very seldom

    • Will be demonstrated in class


Equipment9 l.jpg
Equipment

  • Erasers

    • Prefer kneaded eraser

    • A drawing that needs a lot of correction by eraser is not going to be successful.


Pencil sketching10 l.jpg
PENCIL SKETCHING

  • Technique

    • Preventing smudges

    • Portrait versus Landscape

    • Hard to soft

    • Drawing smaller than you see

    • Draw only shadows

    • Composition

Pencil sketch by Dennis Law


Technique l.jpg
TECHNIQUE

  • Preventing Smudges

    • Build a Bridge

    • Start by laying out drawing with harder leads

    • Start upper left-hand corner (right-handed people

    • Upper right if left-handed

Pencil sketch by Dennis Law


Technique12 l.jpg
TECHNIQUE

  • Portrait versus Landscape

    • Understand principles of composition

    • Portrait is for vertical subjects

    • Landscape is for horizontal subjects

Sketch by Dennis Law


Technique13 l.jpg
TECHNIQUE

  • Pointers

    • Start with hard leads and move to softer as drawing develops

    • Use no more than 3 leads weights

    • Draw smaller than you see

    • Draw only shadows and let white of the paper work

    • Leave white around the drawing for composition


Pencil sketching14 l.jpg
PENCIL SKETCHING

  • Examples

    • Materials

    • Openings

    • Windows

    • Roof

    • Shadows

    • Plant materials

    • Water

Sketch by Dennis Law


Composition l.jpg
COMPOSITION

  • Examples

    • Materials

    • Openings

    • Windows

    • Roof

    • Shadows

    • Plant materials

    • Water

Sketch by Dennis Law


Examples l.jpg
EXAMPLES

  • Wood Boards:

    • First, lay in the black tones with soft lead

    • Keep strokes broad and firm. Bear down

    • Sharp strokes to suggest shadows on edge of board

    • A few diagonal strokes to relieve monotony of vertical boards


Examples17 l.jpg
EXAMPLES

  • Openings:

    • Break up dark area with pencil strokes that have a variety of direction and value

    • Leave some touches of clear white paper between some of the strokes


Examples18 l.jpg
EXAMPLES

  • Windows:

    • Always variation in reflected light on windows

    • Windows are generally black

    • Vary darkness between panes

    • Leave areas of white

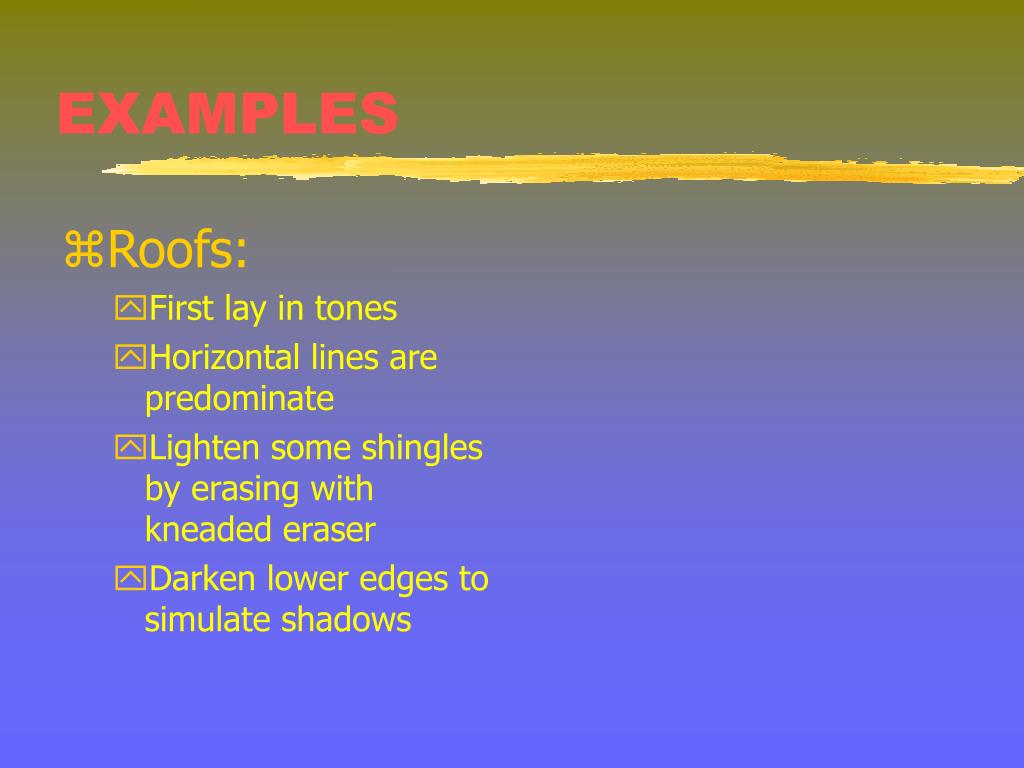

Examples19 l.jpg
EXAMPLES

  • Roofs:

    • First lay in tones

    • Horizontal lines are predominate

    • Lighten some shingles by erasing with kneaded eraser

    • Darken lower edges to simulate shadows

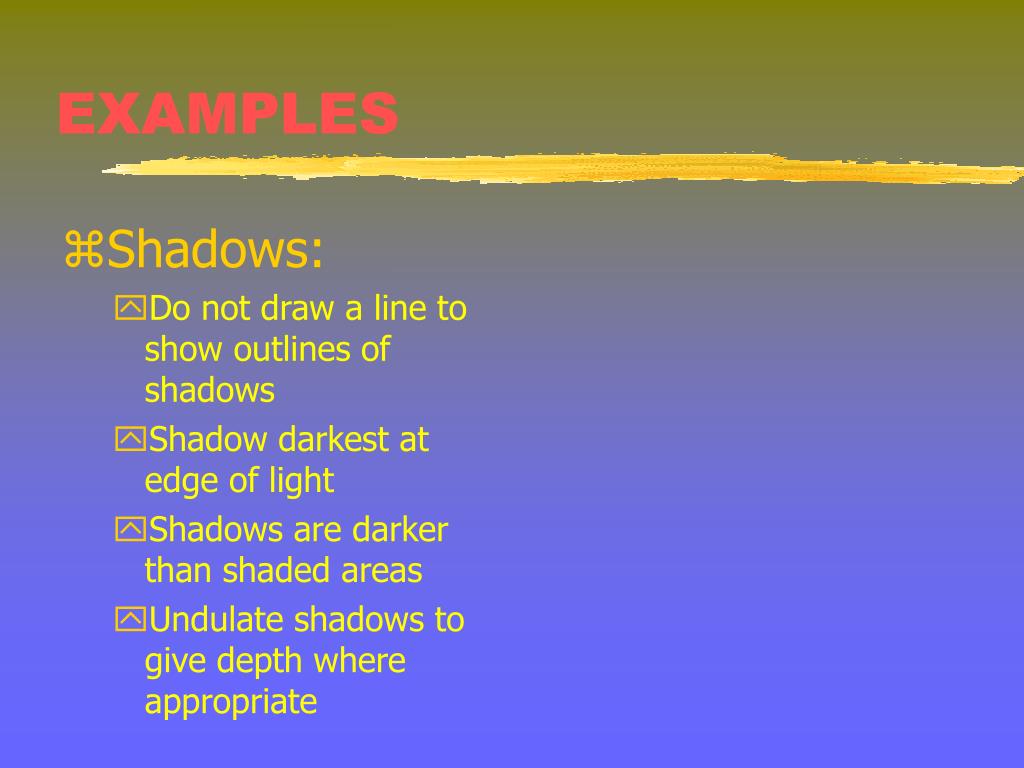

Examples20 l.jpg
EXAMPLES

  • Shadows:

    • Do not draw a line to show outlines of shadows

    • Shadow darkest at edge of light

    • Shadows are darker than shaded areas

    • Undulate shadows to give depth where appropriate


Examples21 l.jpg
EXAMPLES

  • Plant Materials:

    • Grasses

      • Start with gray lines which represent blades

      • Darken in the shadows at the bottom of the blades

      • Put in seed heads as demonstrated

      • Use sharp lines to cast shadow edge

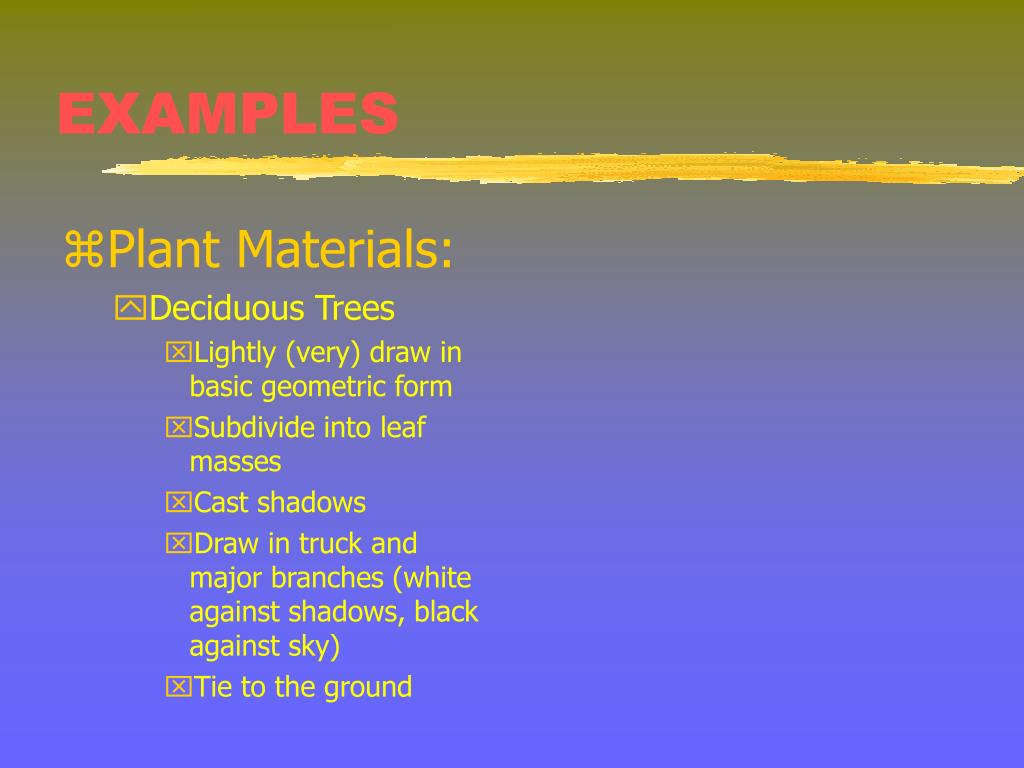

Examples22 l.jpg
EXAMPLES

  • Plant Materials:

    • Deciduous Trees

      • Lightly (very) draw in basic geometric form

      • Subdivide into leaf masses

      • Cast shadows

      • Draw in truck and major branches (white against shadows, black against sky)

      • Tie to the ground


Examples23 l.jpg
EXAMPLES

  • Plant Materials:

    • Coniferous Trees

      • Begin with light vertical trunk

      • Lightly sketch in branch patterns - steep at top and less steep at bottom

      • Draw needles and shadows

      • Fill in truck

      • Tie to the ground


Examples24 l.jpg
EXAMPLES

  • Plant Materials:

    • Specialty plants

      • Begin with light vertical trunk

      • Lightly sketch in branch patterns - steep at top and less steep at bottom

      • Draw needles and shadows

      • Fill in truck

      • Tie to the ground


Examples25 l.jpg
EXAMPLES

  • Water

    • Start with horizontal strokes, darkest nearest to shoreline

    • Leave white or light areas below object to be reflected.

    • Finish with series of vertical lines, darkest nearest to shore and lighten as you move away

Pencil Sketch by Dennis Law


Exercises l.jpg
EXERCISES

  • Exercise one:


Exercises27 l.jpg
EXERCISES

  • Exercise two:


Exercises28 l.jpg
EXERCISES

  • Exercise three:
