Presentation Transcript
a problem with lists
A problem with lists
  • In Lisp, a list may “contain” another list
    • For example, (A (B C)) contains (B C)
  • So, how much storage do we need to allocate for a list?
    • If any list can contain any other list, there is no limit to the size of storage block we may need
    • This is impractical; we need another solution
pointers

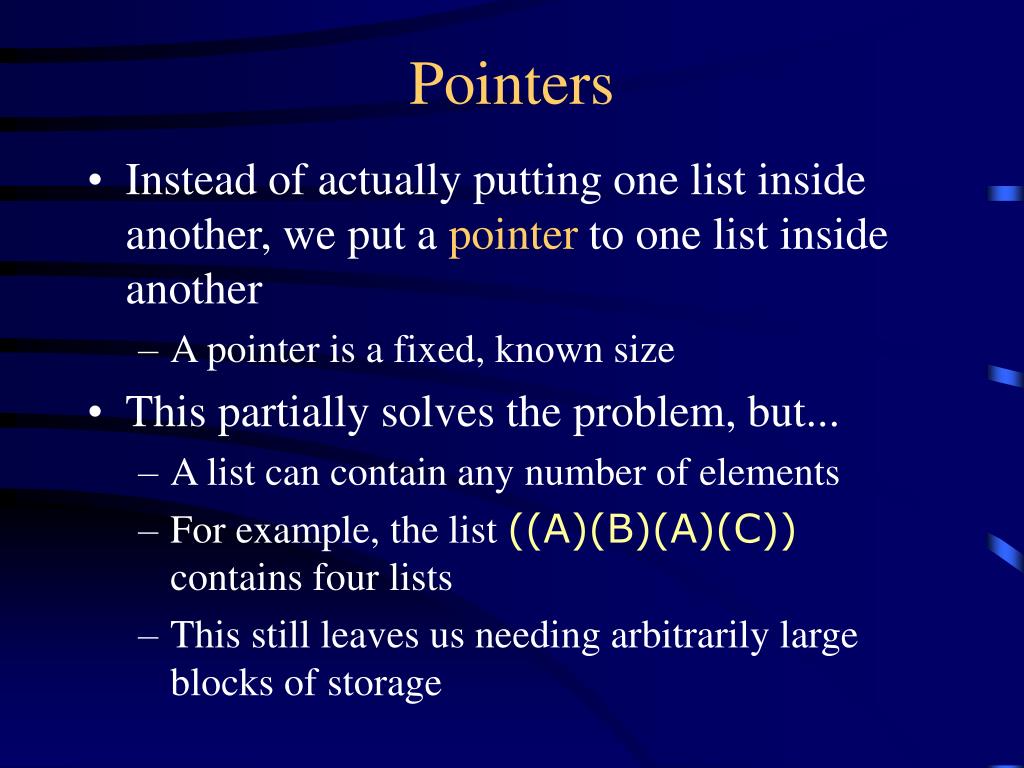

Pointers
  • Instead of actually putting one list inside another, we put a pointer to one list inside another
    • A pointer is a fixed, known size
  • This partially solves the problem, but...
    • A list can contain any number of elements
    • For example, the list ((A)(B)(A)(C)) contains four lists
    • This still leaves us needing arbitrarily large blocks of storage
car and cdr
CAR and CDR
  • We can describe any list as the sum of two parts: its “head” (CAR) and its “tail” (CDR)
    • The head is the first thing in the list
    • The head could itself be an arbitrary list
    • The tail of a list is another (but shorter) list
  • Thus, any list can be described with just two pointers
  • This provides a complete solution to our problem of arbitrarily large storage blocks
s expressions
S-expressions
  • In Lisp, everything is an S-expression
  • An S-expression is an atom or a list
  • You can think of these as using two different kinds of storage locations--one kind for atoms, another kind for the parts of a list
    • This is an oversimplification, but it will do for now
atoms
An atom is a simple thing, and we draw it in a simple way:

Sometimes we don’t bother with the boxes:

Atoms

HELLO

ABC

NIL

HELLO

ABC

NIL

lists
A list has two parts: a CAR and a CDR

We draw this as a box , called a cons cell, with two compartments, called the car field and the cdr field

In each of these compartments we put an arrow pointing to its respective value:

car field

car field

cdr field

value of car

value of cdr

Lists
example i

A

NIL

A

NIL

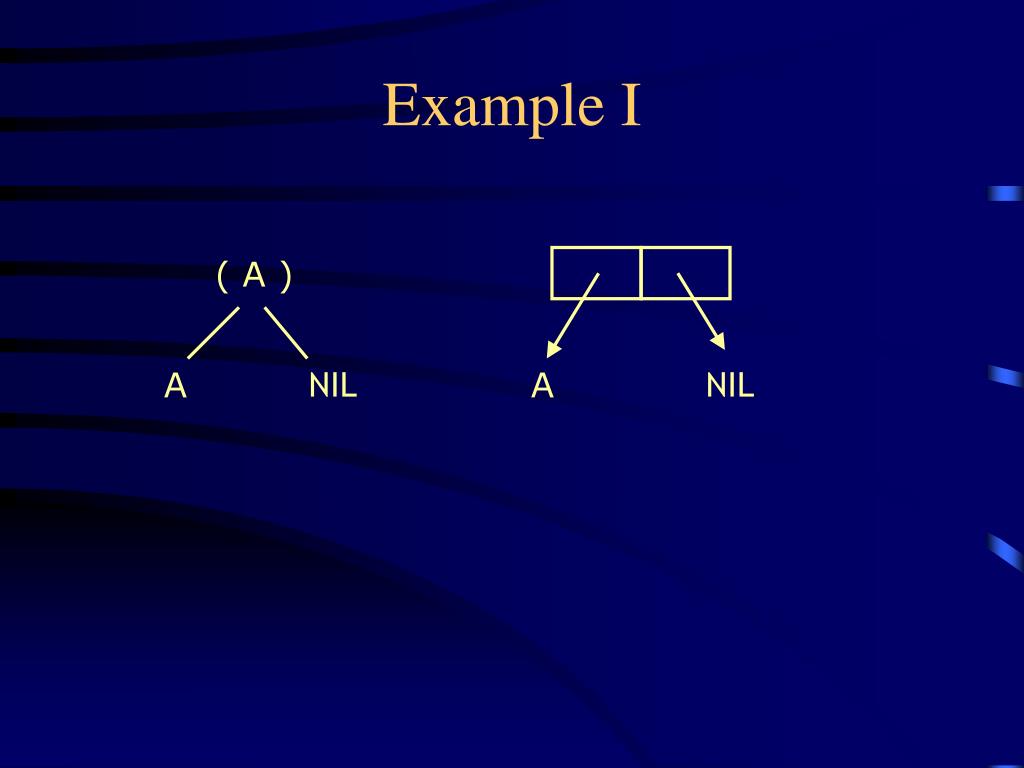

Example I

( A )

example ii

A

B

C

(B C)

(C)

NIL

A

B

C

NIL

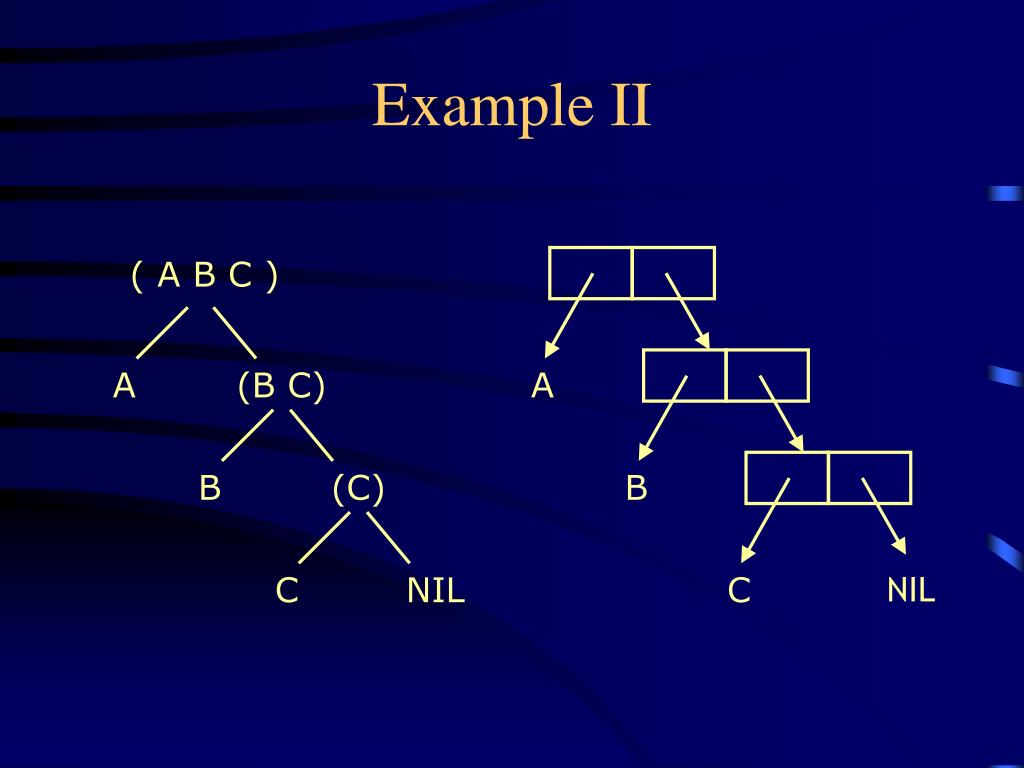

Example II

( A B C )

example iii

A

NIL

B

NIL

Example III

((A) B)

example iv

A

NIL

B

NIL

C

D

NIL

Example IV

((A B) (C D))

dotted pairs

A

B

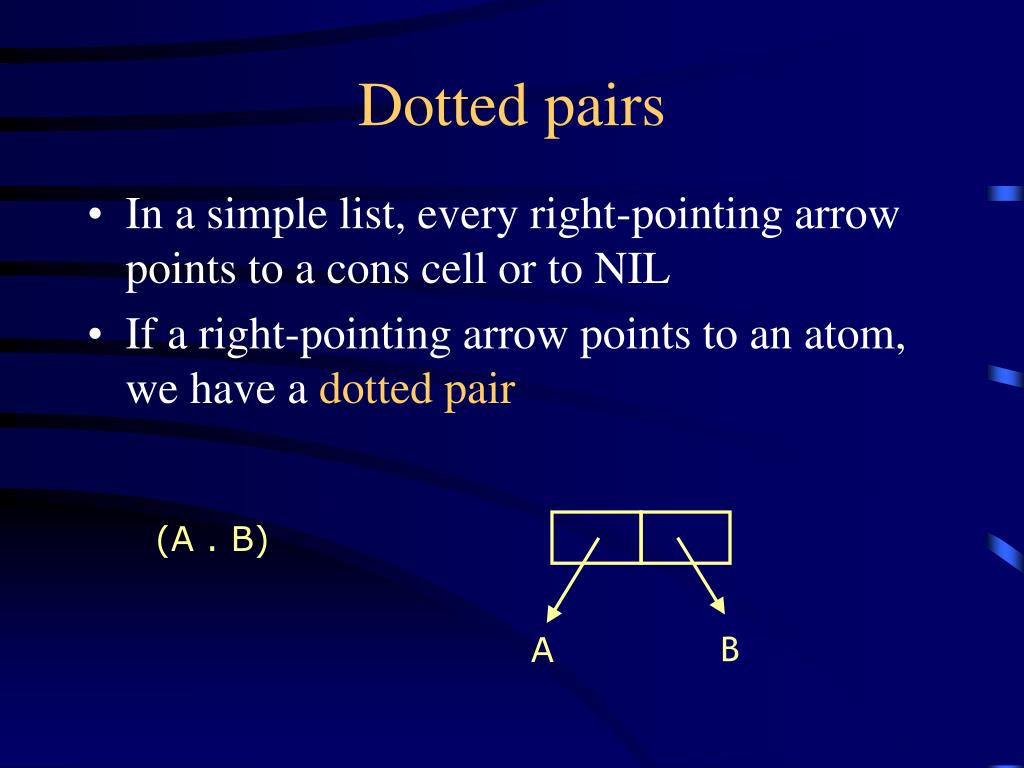

Dotted pairs
  • In a simple list, every right-pointing arrow points to a cons cell or to NIL
  • If a right-pointing arrow points to an atom, we have a dotted pair

(A . B)

lisp lists are implemented with dotted pairs

A

NIL

Lisp lists are implemented with dotted pairs
  • Therefore, (A) = (A . NIL)
  • All structures in Lisp can be created from atoms and dotted pairs

( A ) =

= (A . NIL)

example v

A

B

C

D

Example V

((A . B) . (C . D))

printing dotted pairs
Printing dotted pairs
  • A dotted pair is usually printed using parentheses and a dot: (A . B)
  • If the CDR of a dotted pair is NIL, the dot and the NIL are omitted:(A . NIL) = (A)
  • If the CDR is another cons cell, Lisp doesn’t print the dot or the parentheses
    • (A . (B . (C . NIL))) = (A B C)
    • (A . (B . (C . D))) = (A B C . D)
efficiency of cdr

(CDR L)

L

A

(B C D E)

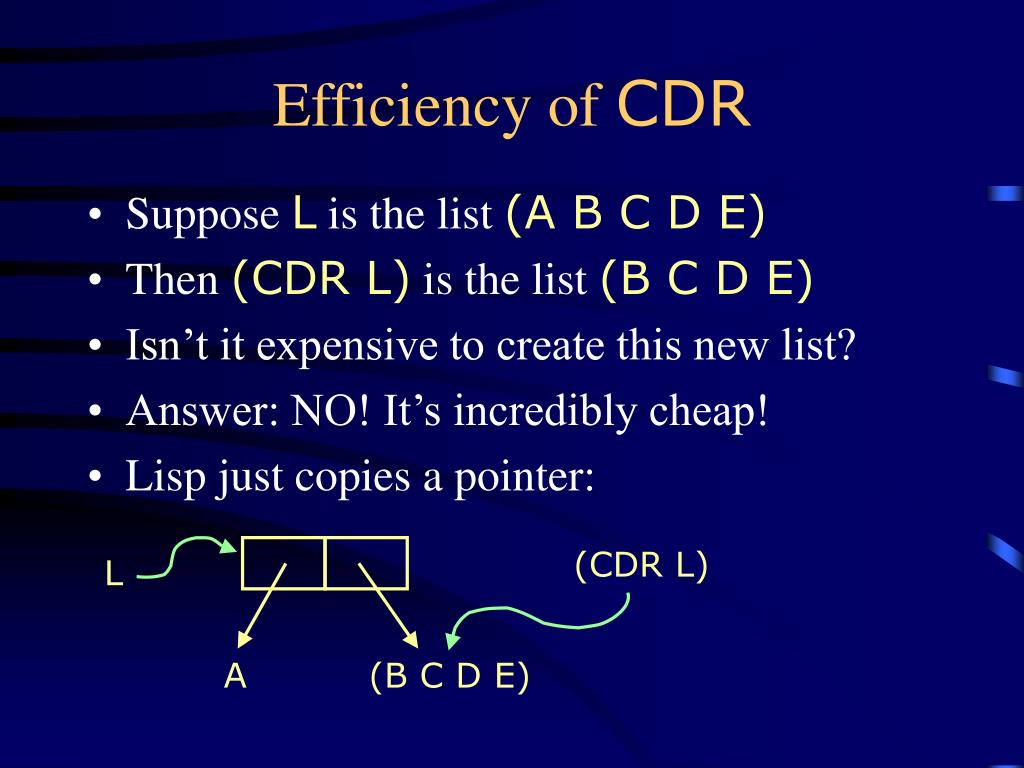

Efficiency of CDR
  • Suppose L is the list (A B C D E)
  • Then (CDR L) is the list (B C D E)
  • Isn’t it expensive to create this new list?
  • Answer: NO! It’s incredibly cheap!
  • Lisp just copies a pointer:
efficiency of car and cons

Here’s the cons cell we add to create the list (A B)

A

Here’s the list (B)

Here’s the atom A

B

NIL

Efficiency of CAR and CONS
  • CAR is just like CDR; you just copy a pointer
  • CONS takes more work; you have to allocate and fill one cons cell
sharing structure
Sharing structure
  • List L and list (CDR L) are said to share structure
  • But if L = (A B C D E) and M = (CDR L), then when you change L, won’t M be changed?
  • Yes, but...
    • this is where the real genius of Lisp comes in...
  • You never changeL !
  • None of the basic functions ever change anything that’s already there
  • Only CONS adds anything
  • The result is an extraordinarily efficient language!
memory

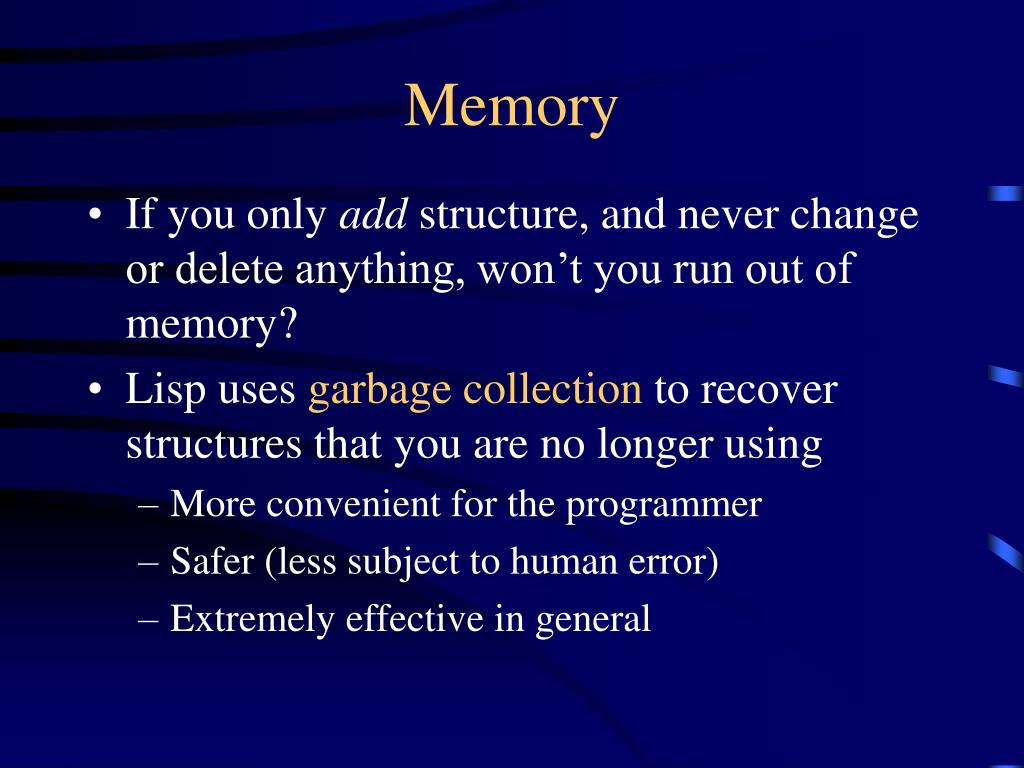

Memory
  • If you only add structure, and never change or delete anything, won’t you run out of memory?
  • Lisp uses garbage collection to recover structures that you are no longer using
    • More convenient for the programmer
    • Safer (less subject to human error)
    • Extremely effective in general
java isn t lisp
Java isn’t Lisp
  • Although Lisp’s way of handling lists is elegant and efficient, it’s not the only way
    • Modifying the middle or end of a list is expensive
  • There are many ways we might implement lists in Java
  • Lisp’s implementation of lists is a great example, but not necessarily the final word
a possible java implementation
A possible Java implementation
  • class Cell { }
  • class Atom extends Cell { String value; Atom(String value) { // constructor this.value = value; }}
  • class ConsCell extends Cell { Cell car; Cell cdr; ConsCell(Cell car, Cell cdr) { // constructor this.car = car; this.cdr = cdr; }}
another possible implementation
Another possible implementation
  • class Cell { boolean isAtom; String value; Cell car, cdr;
  • Cell(String value) { // constructor isAtom = true; this.value = value; }
  • Cell(Cell car, Cell cdr) { // constructor isAtom = false; this.car = car; this.cdr = cdr; }}
implementing the functions i
Implementing the functions I
  • class Lisp {
    • static Cell car(Cell c) { return c.car;}
    • static Cell cdr(Cell c) { return c.cdr;}
    • static Cell cons(Cell c1, Cell c2) { return new Cell(c1, c2);}
implementing the functions ii
Implementing the functions II
    • static boolean atom(Cell c) { return c.isAtom;}
    • static boolean eq(Cell c1, Cell c2) { return c1.value.equals(c2.value);}
  • }
