LISP

1. LISP COMP 205 – Week 11 Dr. Chunbo Chu

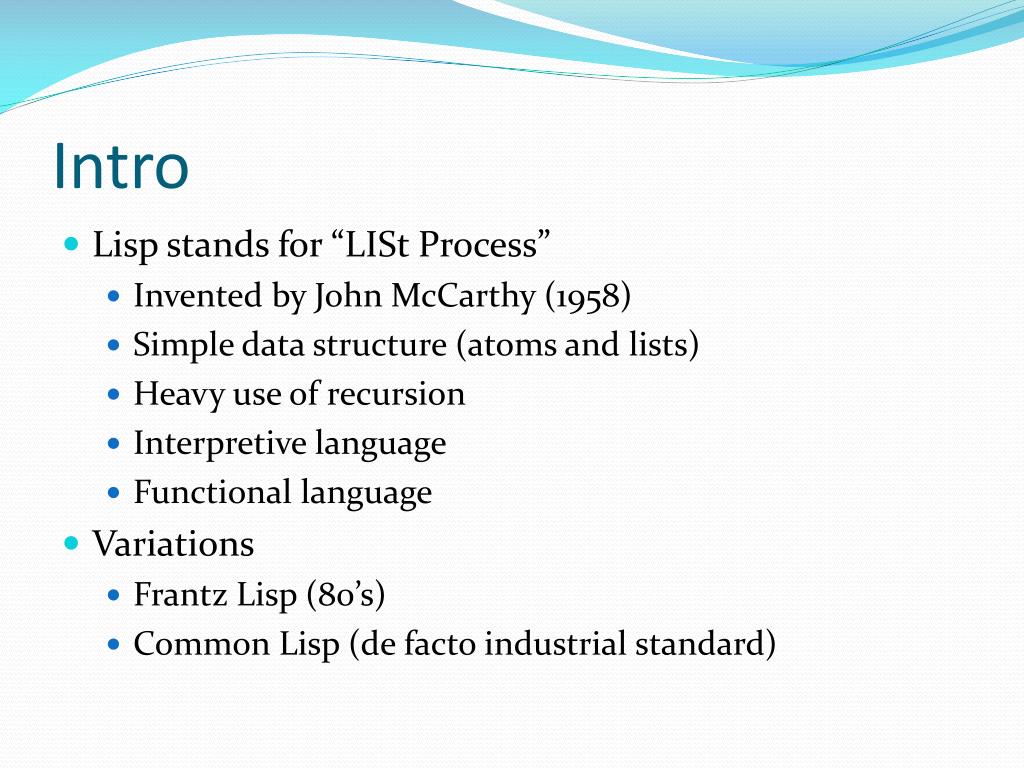

2. Intro • Lisp stands for “LISt Process” • Invented by John McCarthy (1958) • Simple data structure (atoms and lists) • Heavy use of recursion • Interpretive language • Functional language • Variations • Frantz Lisp (80’s) • Common Lisp (de facto industrial standard)

3. Why Lisp? • Because it’s the most widely used AI programming language • Because AI researchers and theoreticians like using it • Because it’s good for writing production software (Graham article) • Because it’s got lots of features other languages don’t • Because you can write new programs and extend old programs really, really quickly in Lisp

4. The IDE • Install Lisp in a Box • loop • read in an expression from the console; • evaluate the expression; • print the result of evaluation to the console; end loop. • REPL

5. Valid objects (S-expressions) • Atoms: • numbers: (real 1.0, integer 1) • symbols: a consecutive sequence of characters (no space) • e.g., a, x, price-of-beef. • two special symbols: T and NIL for logical true and false. • strings: a sequence of characters bounded by double quotes • e.g., "this is red". • (Note: LISP is case insensitive) • Lists: a list of atoms and/or lists, bounded by "(" and ")“, • e.g., (a b c), (a (b c)) • top elements of a list • example: top elements of list (a b c) are a, b, and c • top elements of list (a (b c)) are a and (b c) • nil: empty list, same as ().

6. 2. Function calls • also a list • use prefix notation: (function-name arg1 ... argn) • returns function value for the given list of arguments • functions are either provided by Lisp function library or defined by the user. • Examples: • >(+ 1 3 5) • 9 • >(/ 3 5) • 3/5 • >(/ 3.0 5) • 0.59999999999999998 • >(sqrt 4) • 2

7. Sqrt • + • *

8. First Lisp program ( defun hello () (format t “Hello World!”)) • Use Emacs to create a new file (C-x f)containing the above code. • Save the file (C-x C-s) under name hello.lisp • Switch back the SLIME buffer and load the program by: (load “hello.lisp) • Run your program: (hello)

9. exit • quote = `

10. load

11. Atoms • numeric • fractions • floating point • literal atoms • Boolean values • other symbols • strings

12. Lists • NIL = ()

13. Function calls • evaluation of functions

14. setf more general than setq • binding

15. 3. Evaluation of S-expression • 1) Evaluate an atom. • numerical and string atoms evaluate to themselves; • symbols evaluate to their values if they are assigned values, • return Error, otherwise; • the values of T and NIL are themselves. • 2) Evaluate a list - evaluate every top element of the list as follows, • unless explicitly forbidden: • the first element is always a function name; • evaluating it means to call the function body; • each of the rest elements will then be evaluated, and their values • returned as the arguments for the function. • Examples >(sqrt x) Error: The variable X is unbound. >(+ (/ 3 5) 4) 23/5 >(+ (sqrt 4) 4.0) 6.0

16. 3) To assign a value to a symbol (setq, set, setf) • setq is a special form of function (with two arguments); • the first argument is a symbol which will not be evaluated; • the second argument is a S-expression, which will be evaluated; • the value of the second argument is assigned to be the value of • the first argument • to forbid evaluation of a symbol (quote or ‘) >(setq x 3.0) 3.0 >x 3.0 >(setq y x) 3.0 ; the value of x is assigned as the value of y >y 3.0 >(+ x y) 6.0

17. >(quote x) x >'x x >(setq z 'x) x • to force an evaluation, using function "eval" • Two more assignment functions: • (set x y) ; assign the value of y to the value of x. x is evaluated • ; first and whose value must be a symbol • ; "setq" is a combination of "set" and "quote" • (setf x y) ; similar to but more general than "setq" in that x can be • ; something other than a symbol. >(+ x z) Error: X is not of type NUMBER ... >(+ x (eval z)) 6.0 eval

18. first • rest • function nesting

19. car • cdr • cadr • caddr • nthcdr • butlast • cons • append

20. Compositions of car and cdr

21. length • reverse • last • list

22. Activity • Construct a list of four birds by evaluating several expressions with cons. Find out what happens when you cons a list onto itself. Replace the first element of the list of four birds with a fish. Replace the rest of that list with a list of other fish.

23. Basic expression evaluation

24. 2) Predicates (a special function which returns NIL if the predicate is false, T or anything other than NIL, otherwise) =, >, <, >=, <= for numerical values; equal, eq, for others (symbols, lists, etc.) tests if x is a atom tests if x is a list also numberp, symbolp, null predicates >(equal ‘a (car L)) T >(< x y) NIL >(= x y) T >(equal ‘x ‘y) NIL >(atom x) T >(atom L) NIL >(atom (car L)) T >(listp x) NIL >(listp L) T >(numberp ‘x) NIL >(numberpx) T >(symbolp ‘x) T >(symbolpx) NIL

25. Basic storage handling

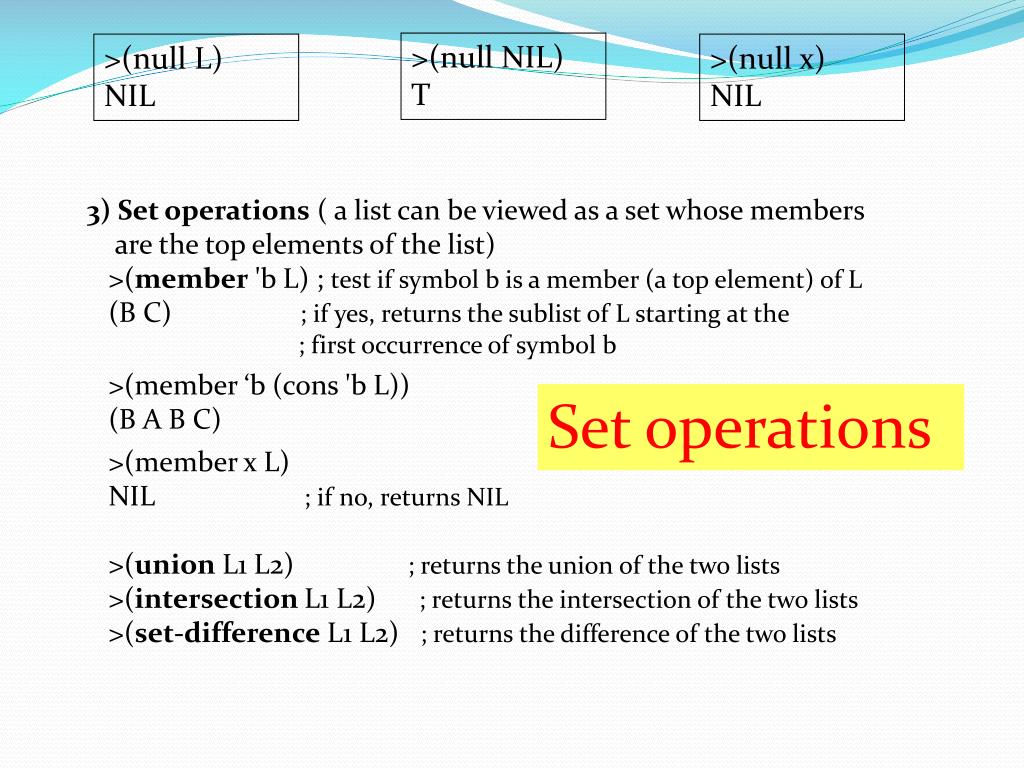

26. >(null NIL) T >(null L) NIL >(null x) NIL 3) Set operations ( a list can be viewed as a set whose members are the top elements of the list) >(member 'b L) ; test if symbol b is a member (a top element) of L (B C) ; if yes, returns the sublist of L starting at the ; first occurrence of symbol b >(member ‘b (cons 'b L)) (B A B C) >(member x L) NIL ; if no, returns NIL >(union L1 L2) ; returns the union of the two lists >(intersection L1 L2) ; returns the intersection of the two lists >(set-difference L1 L2) ; returns the difference of the two lists Set operations

27. defun

28. Defining New Functions (defun name (parameter*) "Optional documentation string." body) • Convention: you construct compound names with hyphens rather than underscores or inner caps. • Thus, frob-widget is better Lisp style than either frob_widget or frobWidget. • When a parameter list is a simple list of variable names, the parameters are called required parameters

29. Optional Parameters • Place the symbol &optional followed by the names of the optional parameters. (defunfoo (a b &optional c d) (list a b c d)) • When the function is called, arguments are first bound to the required parameters. (foo 1 2) (1 2 NIL NIL) (foo 1 2 3)  (1 2 3 NIL) (foo 1 2 3 4)  (1 2 3 4)

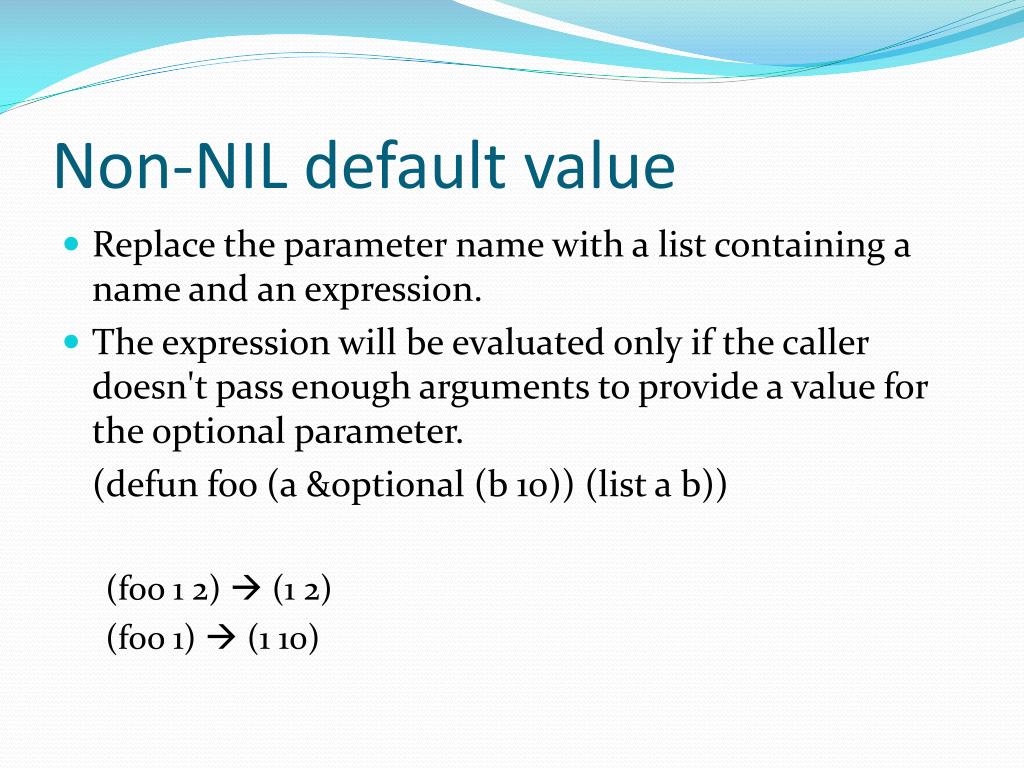

30. Non-NIL default value • Replace the parameter name with a list containing a name and an expression. • The expression will be evaluated only if the caller doesn't pass enough arguments to provide a value for the optional parameter. (defunfoo (a &optional (b 10)) (list a b)) (foo 1 2)  (1 2) (foo 1)  (1 10)

31. More flexibility: • (defun make-rectangle (width &optional (height width)) ...)

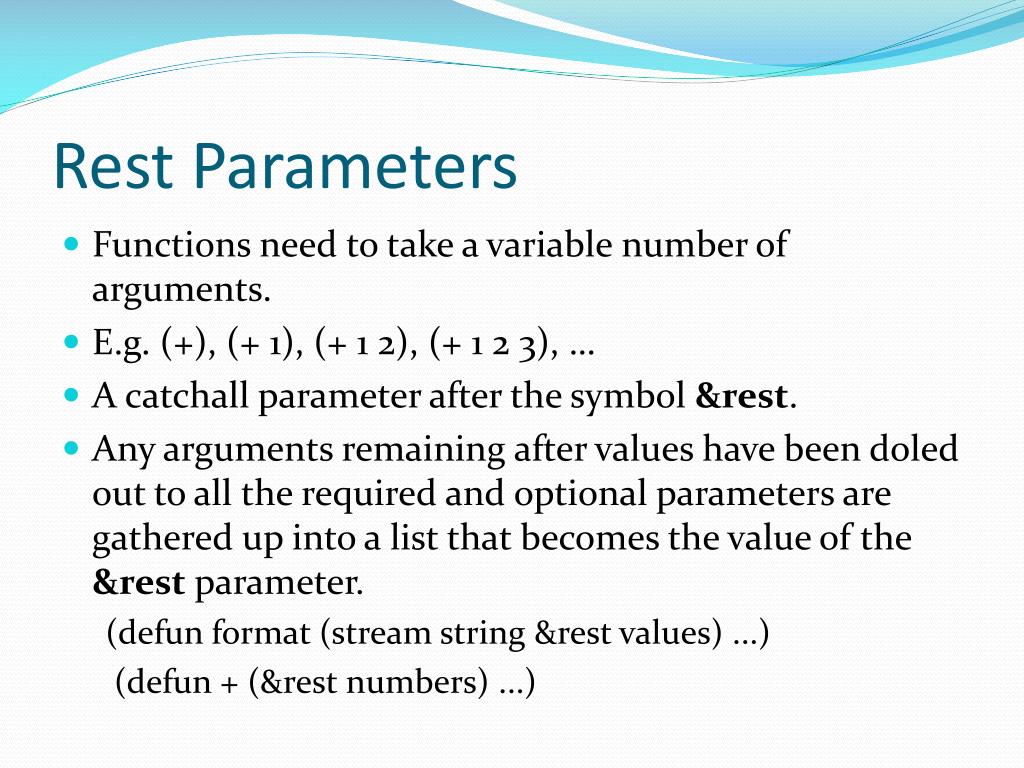

32. Rest Parameters • Functions need to take a variable number of arguments. • E.g. (+), (+ 1), (+ 1 2), (+ 1 2 3), … • A catchall parameter after the symbol &rest. • Any arguments remaining after values have been doled out to all the required and optional parameters are gathered up into a list that becomes the value of the &rest parameter. (defun format (stream string &rest values) ...) (defun + (&rest numbers) ...)

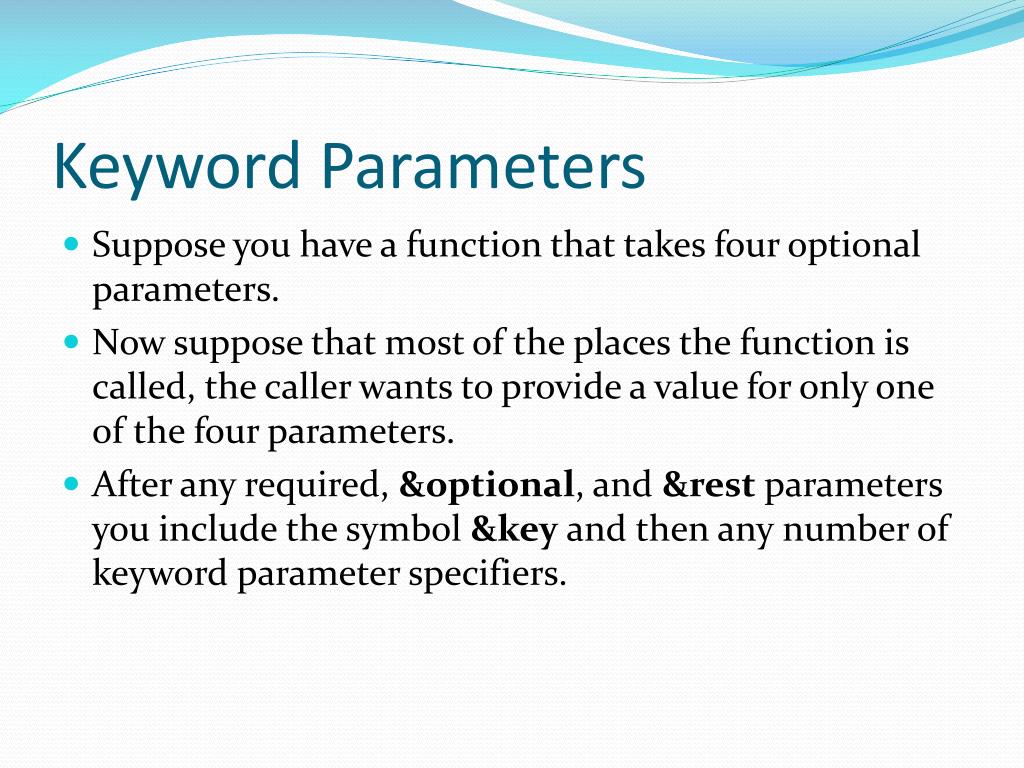

33. Keyword Parameters • Suppose you have a function that takes four optional parameters. • Now suppose that most of the places the function is called, the caller wants to provide a value for only one of the four parameters. • After any required, &optional, and &rest parameters you include the symbol &key and then any number of keyword parameter specifiers.

34. (defunfoo (&key a b c) (list a b c)) • (foo) (NIL NILNIL) • (foo :a 1)  (1 NIL NIL) • (foo :b 1)  (NIL 1 NIL) • (foo :c 1)  (NIL NIL 1) • (foo :a 1 :c 3) (1 NIL 3) • (foo :a 1 :b 2 :c 3)  (1 2 3) • (foo :a 1 :c 3 :b 2)  (1 2 3)

35. (defunfoo (&key (a 0) (b 0 b-supplied-p) (c (+ a b))) • Mixing Different Parameter Types • Whenever more than one flavor of parameter is used, they must be declared in order : first the names of the required parameters, then the optional parameters, then the rest parameter, and finally the keyword parameters.

36. Function Return Values • The default behavior: return the value of the last expression evaluated as the function’s own return value. • The RETURN-FROM special operator to immediately return any value from the function • The first "argument" is the name of the block from which to return. (defunfoo (n) (dotimes (i 10) (dotimes (j 10) (when (> (* i j) n) (return-from foo (list i j))))))

37. Data structures • assoc

38. make-array • aref • defstruct

39. Dotted pairs

40. Dotted pairs

44. 4) Conditional • >(cond (<test-1> <action-1>) • . • . • . • (<test-k> <action-k>)) • each (<test-i> <action-i>) is called a clause; • if test-i (start with i=1) returns T (or anything other than NIL), • this function returns the value of action-i; • else, go to the next clause; • usually, the last test is T, which always holds, meaning otherwise. • cond can be nested (action-i may contain (cond ...)) conditional

45. Now, having basic functions, defun and cond we can define any Lisp function. Examples. 5. Define functions (heavy use of recursive definitions) (defun func-name (arg-1 ... Arg-n) func-body) examples: (defun member (x L) (cond ((null L) nil) ; base case 1: L is empty ((equal x (car L)) L) ; base case 2: x=first(L) (t (member x (cdr L))) ; recursion: test if x is in rest(L) )) (defun intersection (L1 L2) (cond ((null L1) nil) ((null L2) nil) ((member (car L1) L2) (cons (car L1) (intersection (cdr L1) L2))) (t (intersection (cdr L1) L2)) )) Example: (intersection '(a b c) '(b a b c)) returns (a b c) (intersection '(b a b c) '(a b c)) returns (b a b c) member intersection

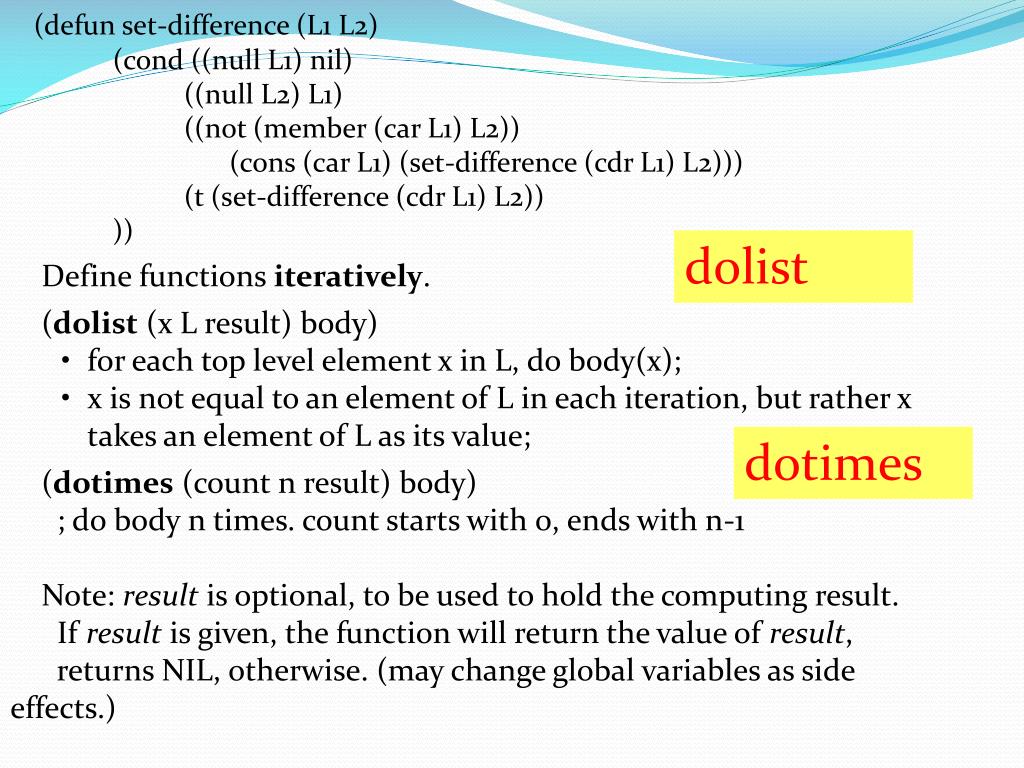

46. (defun set-difference (L1 L2) • (cond ((null L1) nil) • ((null L2) L1) • ((not (member (car L1) L2)) • (cons (car L1) (set-difference (cdr L1) L2))) • (t (set-difference (cdr L1) L2)) • )) • Define functions iteratively. • (dolist (x L result) body) • for each top level element x in L, do body(x); • x is not equal to an element of L in each iteration, but rather x takes an element of L as its value; • (dotimes (count n result) body) • ; do body n times. count starts with 0, ends with n-1 • Note: result is optional, to be used to hold the computing result. • If result is given, the function will return the value of result, • returns NIL, otherwise. (may change global variables as side effects.) dolist dotimes

47. Activity • Write a function sum to calculate the sum of all numbers in a list

48. Various definitions of SUM dolist (defun sum1 (L) (setq y 0) (dolist (x L y) (setq y (+ y x)))) (defun sum2 (L) (setq y 0) (dolist (x L y) (setq y (+ y (eval x))))) (defun sum3 (L) (setq y 0) (dotimes (count (length L) y) (setq y (+ y (nth count L))) )) defun sum4 (L) (setq y 0) (dotimes (count (length L) y) (setq y (+ y (eval (nth count L)))) )) >(setq L1 '(1 2 3)) (1 2 3) dotimes >(sum1 L1) 6

49. >(setq L1 '(1 2 3)) (1 2 3) >(setq L2 '(a b c)) (A B C) >(dotimes (count 3) (set (nth count L2) (nth count L1))) NIL >a 1 >(sum1 L1) 6 >(sum1 L2) Error: … >(sum2 L2) 6 >(sum3 L1) 6 >(sum3 L2) Error: … >(sum4 L2) 6
