automatic image annotation and retrieval using cross media relevance models

Automatic Image Annotation and Retrieval using Cross-Media Relevance Models

J. Jeon, V. Lavrenko and R. Manmathat

Computer Science Department

University of Massachusetts – Amherst

Presenter: Carlos Diuk

introduction
Introduction
  • The Problem:
    • Automatically annotate and retrieve images from large collections.

Retrieval example: answer query “Tigers in grass” with

introduction1
Introduction
  • Manual annotation being done in libraries.
  • Different approaches to automatic image annotation:
    • Co-occurence Model
    • Translation Model
    • Cross-media relevance model
introduction related work
Introduction – related work
  • Co-occurence Model

Looks at co-occurence of words with image regions created using a regular grid.

  • Translation Model

Image annotation viewed as task of translating from vocabulary of blobs to vocabulary of words.

introduction cmrm

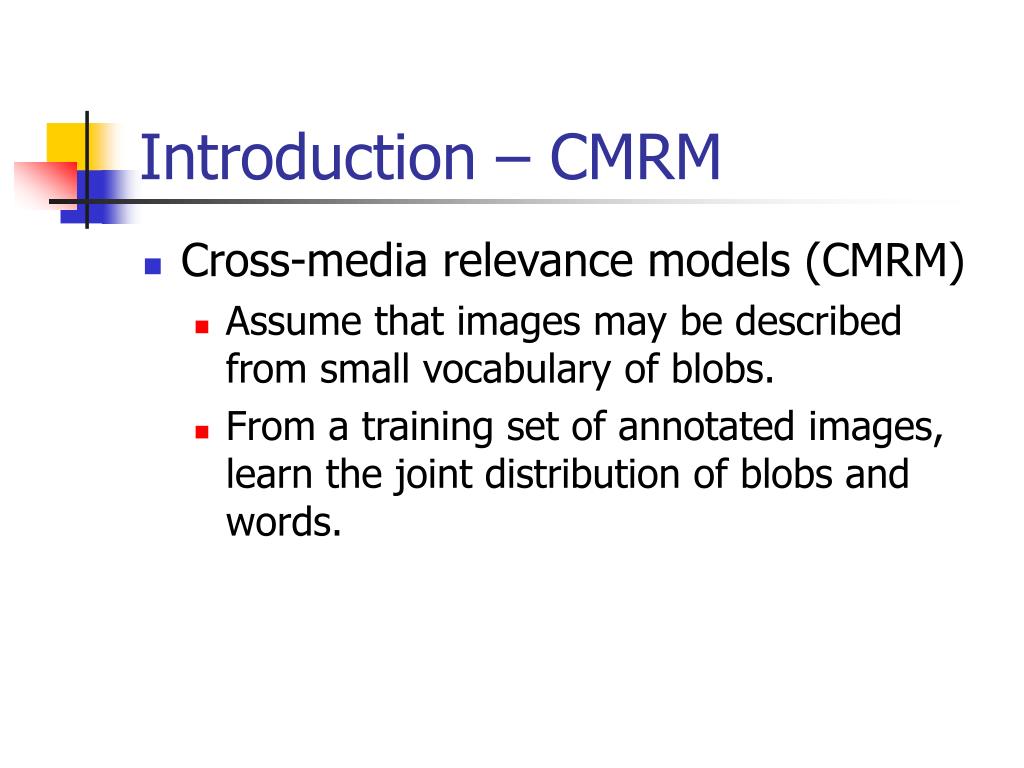

Introduction – CMRM
  • Cross-media relevance models (CMRM)
    • Assume that images may be described from small vocabulary of blobs.
    • From a training set of annotated images, learn the joint distribution of blobs and words.
introduction cmrm1
Introduction – CMRM
  • Cross-media relevance models (CMRM)
    • Allow query expansion:
      • Standard technique for reducing ambiguity in information retrieval.
      • Perform initial query and expand by using terms from the top relevant documents.

Example in image context: tigers more often associated with grass, water, trees than with cars or computers.

introduction cmrm2

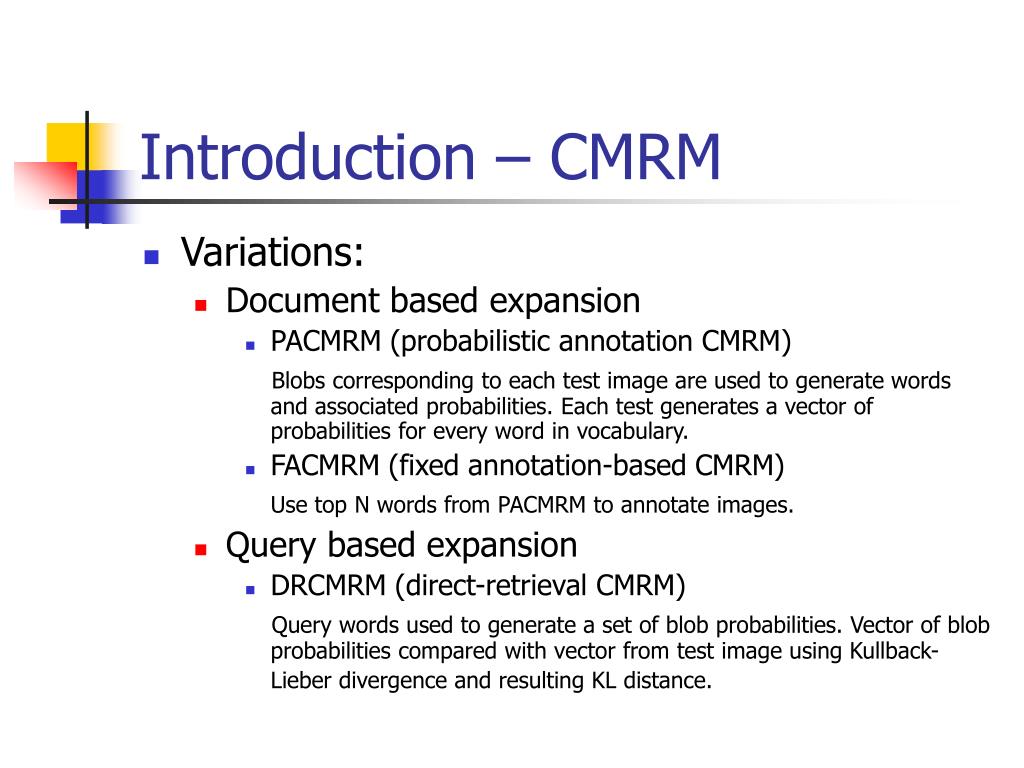

Introduction – CMRM
  • Variations:
    • Document based expansion
      • PACMRM (probabilistic annotation CMRM)

Blobs corresponding to each test image are used to generate words and associated probabilities. Each test generates a vector of probabilities for every word in vocabulary.

      • FACMRM (fixed annotation-based CMRM)

Use top N words from PACMRM to annotate images.

    • Query based expansion
      • DRCMRM (direct-retrieval CMRM)

Query words used to generate a set of blob probabilities. Vector of blob probabilities compared with vector from test image using Kullback-Lieber divergence and resulting KL distance.

discrete features in images
Discrete features in images
  • Segmentation of images into regions yields fragile and erroneous results.
  • Normalized-cuts are used instead (Duygulu et al):
    • 33 features extracted from images.
    • K (=500) clustering algorithm used to cluster regions based on features. Vocabulary of 500 blobs.
cmrm algorithms

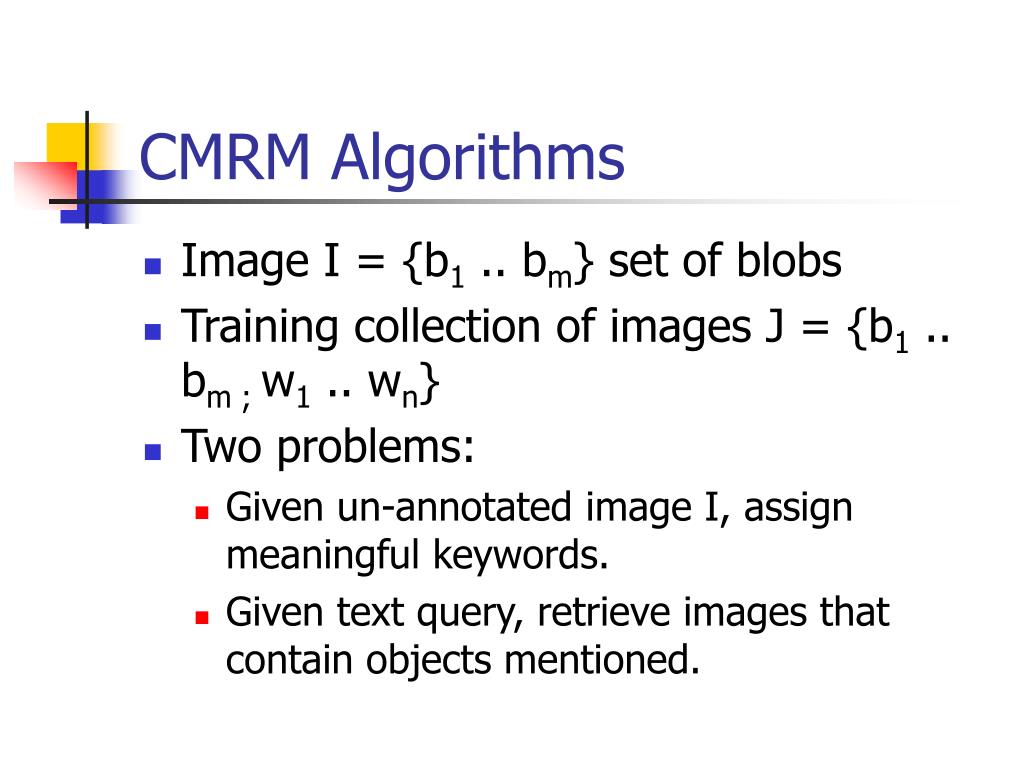

CMRM Algorithms
  • Image I = {b1 .. bm} set of blobs
  • Training collection of images J = {b1 .. bm ; w1 .. wn}
  • Two problems:
    • Given un-annotated image I, assign meaningful keywords.
    • Given text query, retrieve images that contain objects mentioned.
cmrm algorithms1

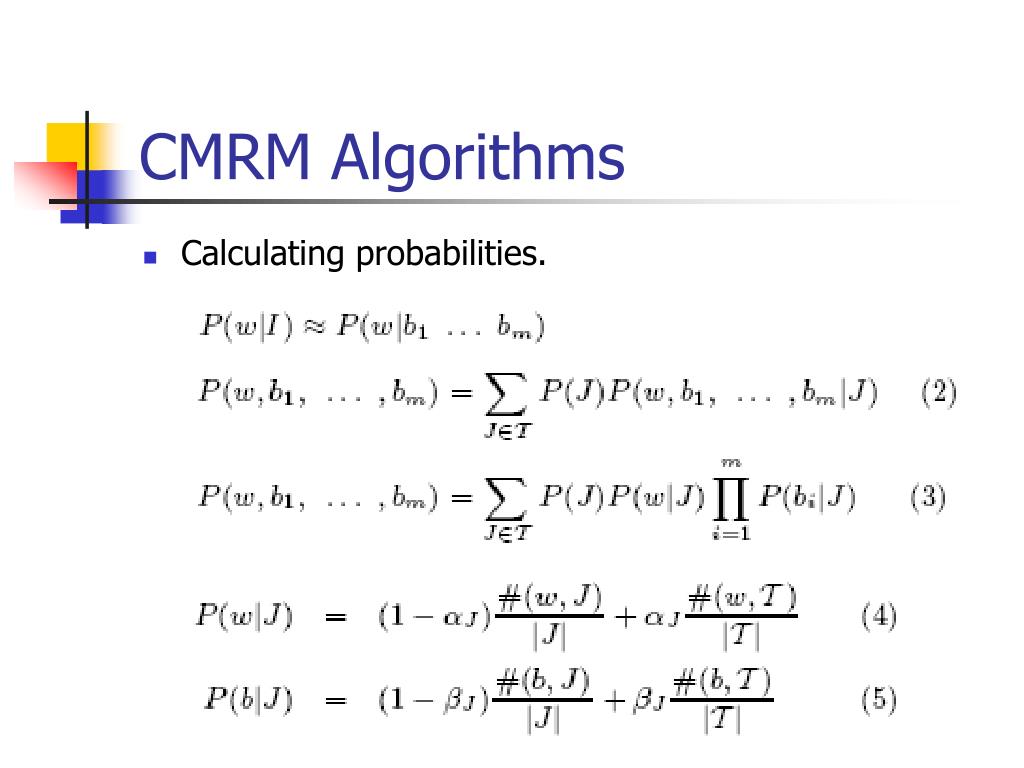

CMRM Algorithms
  • Calculating probabilities.
cmrm algorithms2

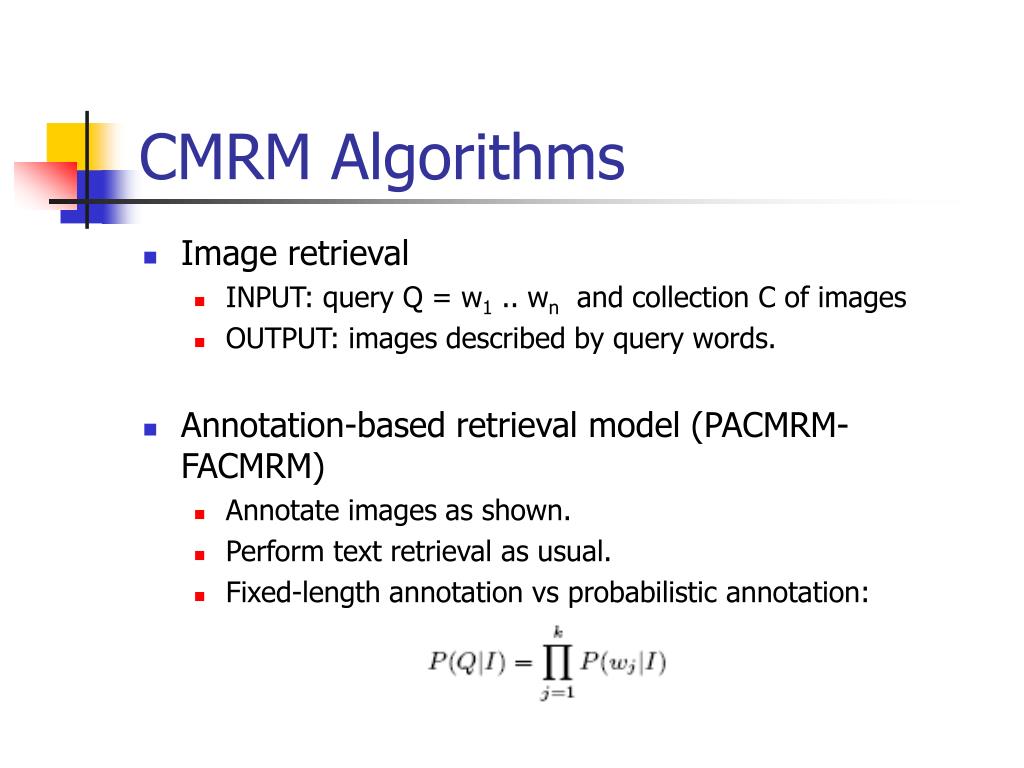

CMRM Algorithms
  • Image retrieval
    • INPUT: query Q = w1 .. wn and collection C of images
    • OUTPUT: images described by query words.
  • Annotation-based retrieval model (PACMRM-FACMRM)
    • Annotate images as shown.
    • Perform text retrieval as usual.
    • Fixed-length annotation vs probabilistic annotation:
cmrm algorithms3

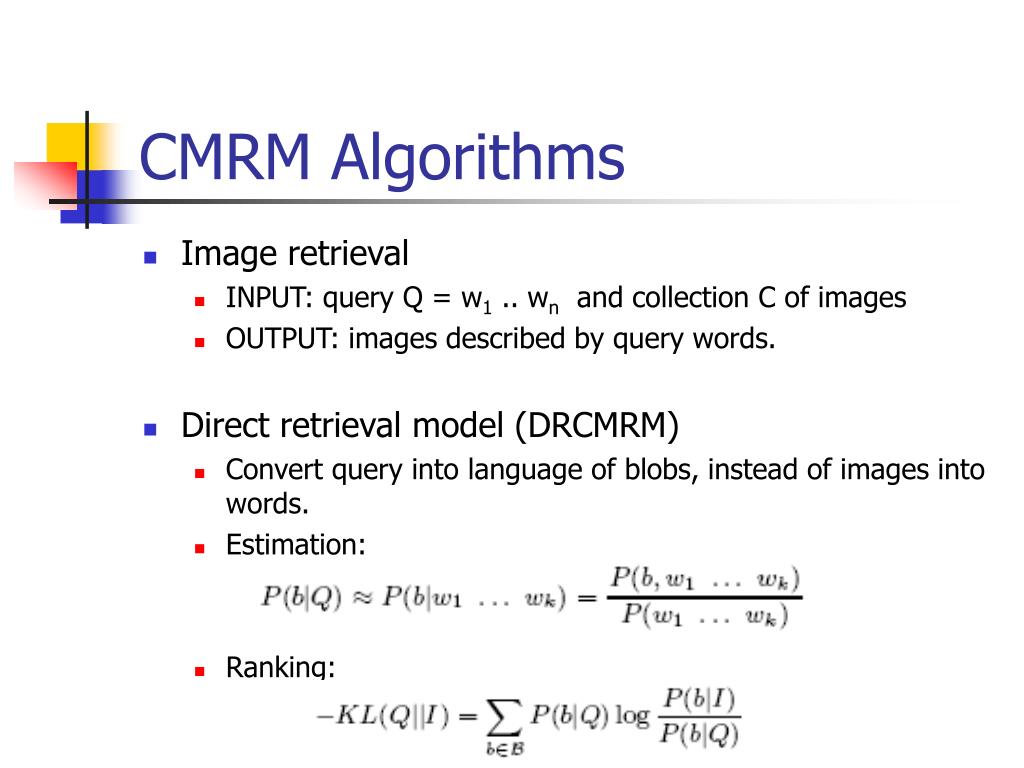

CMRM Algorithms
  • Image retrieval
    • INPUT: query Q = w1 .. wn and collection C of images
    • OUTPUT: images described by query words.
  • Direct retrieval model (DRCMRM)
    • Convert query into language of blobs, instead of images into words.
    • Estimation:
    • Ranking:
results

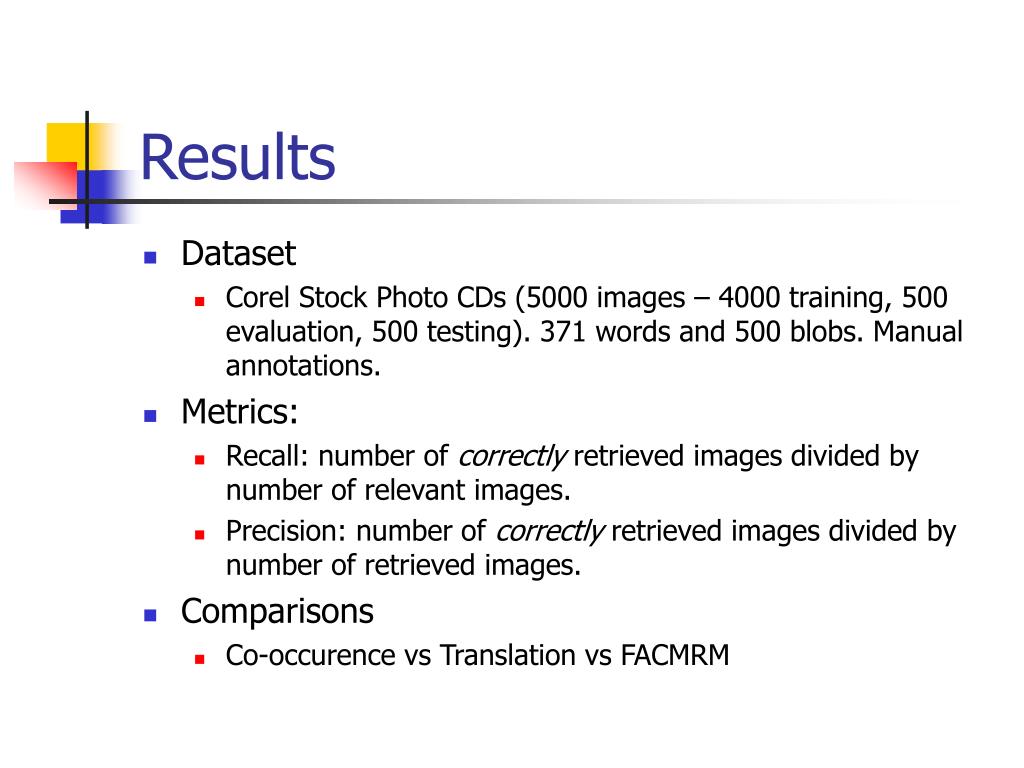

Results
  • Dataset
    • Corel Stock Photo CDs (5000 images – 4000 training, 500 evaluation, 500 testing). 371 words and 500 blobs. Manual annotations.
  • Metrics:
    • Recall: number of correctly retrieved images divided by number of relevant images.
    • Precision: number of correctly retrieved images divided by number of retrieved images.
  • Comparisons
    • Co-occurence vs Translation vs FACMRM
results1
Results
  • Dataset
    • Corel Stock Photo CDs (5000 images – 4000 training, 500 evaluation, 500 testing). 371 words and 500 blobs. Manual annotations.
  • Metrics:
    • Recall: number of correctly retrieved images divided by number of relevant images.
    • Precision: number of correctly retrieved images divided by number of retrieved images.
  • Comparisons
    • Co-occurence vs Translation vs FACMRM
results2

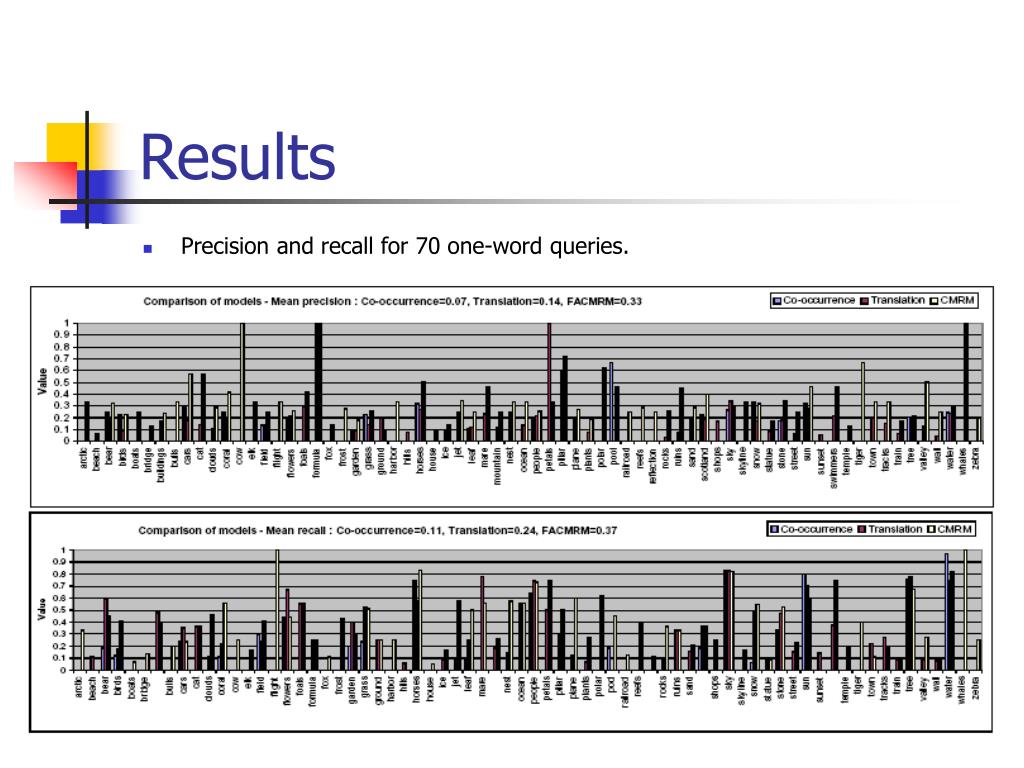

Results
  • Precision and recall for 70 one-word queries.
results3

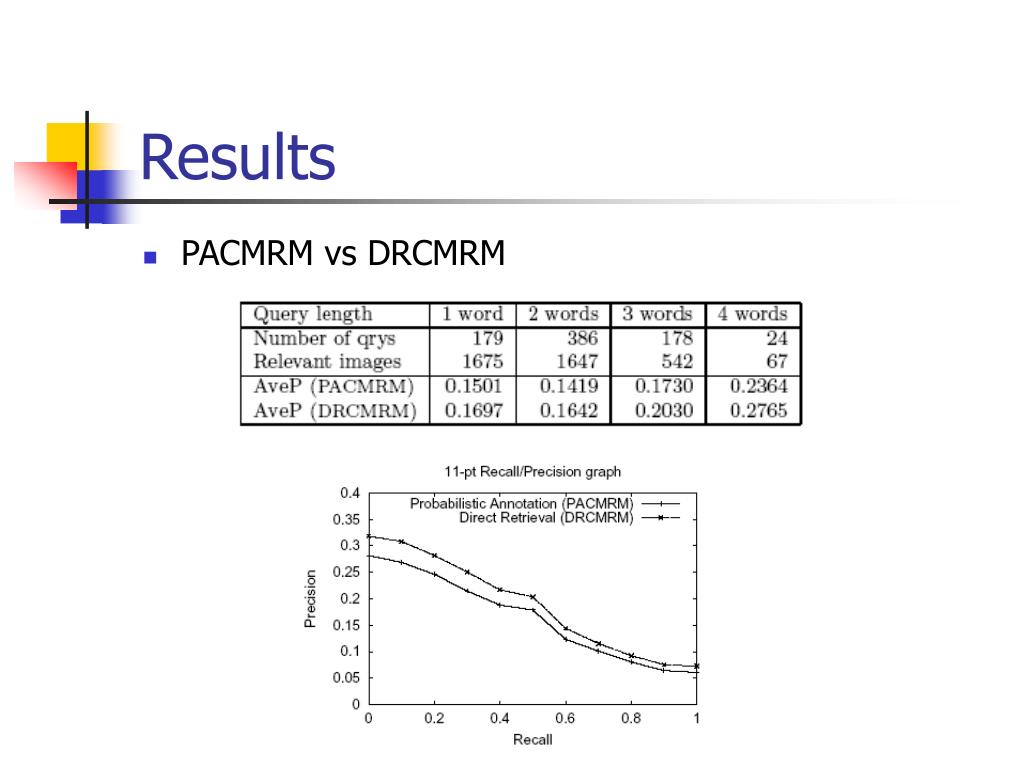

Results
  • PACMRM vs DRCMRM
some nice examples
Some nice examples

Automatically annotated as sunset, but not manually

some nice examples1
Some nice examples

Response to query “tiger”

Response to query “pillar”

questions discussion

Google: cooperative annotation?

    • Google search for “tiger”:
    • Google search for “Kennedy”:
Questions - Discussion
  • No semantic representation (just color, texture, shape).
  • How could we annotate a newspaper’s collection? (“Kennedy”, not just “people”)
