Cell Membrane Structure

Cell Membrane Structure. two layers of phospholipid molecules (lipid containing a glycerol and two chains of fatty acids) proteins embedded throughout the phospholipid bilayer See page 52 fig. 2.24 responsible for maintaining homeostasis inside the cell

osric
Download Presentation

Cell Membrane Structure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

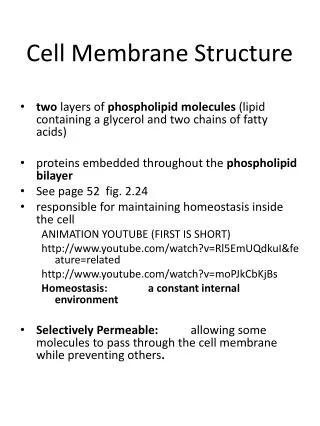

  1. Cell Membrane Structure • two layers of phospholipid molecules (lipid containing a glycerol and two chains of fatty acids) • proteins embedded throughout the phospholipidbilayer • See page 52 fig. 2.24 • responsible for maintaining homeostasis inside the cell ANIMATION YOUTUBE (FIRST IS SHORT) http://www.youtube.com/watch?v=Rl5EmUQdkuI&feature=related http://www.youtube.com/watch?v=moPJkCbKjBs Homeostasis: a constant internal environment • Selectively Permeable: allowing some molecules to pass through the cell membrane while preventing others.

  2. Methods of Transport • Passive Transport: no energy required to move materials. • Diffusion: is the movement of molecules from a region of high concentration to a lower concentration. Pg. 53 fig. 2.25 • When there is a difference in concentrations a concentration gradient results. • ANIMATION: http://highered.mcgraw-hill.com/sites/0072495855/student_view0/chapter2/animation__how_diffusion_works.html

  3. Methods of Transport • Osmosis: diffusion of water across a semi-permeable membrane from a region of higher water concentration to a region of lower concentration. (with the concentration gradient) • Direction of osmosis depends on the concentration of water molecules on either side of the membrane. Three possible scenarios:

  4. Osmosis (Passive) A. Isotonic: the water concentration is equal on both sides of the cell membrane. As a result, equal amounts of water move in and out of the cell. B. Hypotonic: the water concentration outside the cell is greater than that inside the cell. As a result, water moves into the cell. C. Hypertonic: the water concentration inside the cell is greater than that outside the cell. As a result, water moves out of the cell. Draw fig. 2.26 pg. 55 http://www.youtube.com/watch?v=7-QJ-UUX0iY

  5. Methods of Transport (passive) • Facilitated Diffusion: movement of molecules in or out of the cell along a concentration gradient through a transport protein molecule. • A transport protein will recognize and help to move only one type of dissolved molecule or ion based on its shape, size, and electrical charge. • Fig. 2.27 pg. 57 • http://highered.mcgraw-hill.com/sites/0072495855/student_view0/chapter2/animation__how_facilitated_diffusion_works.html

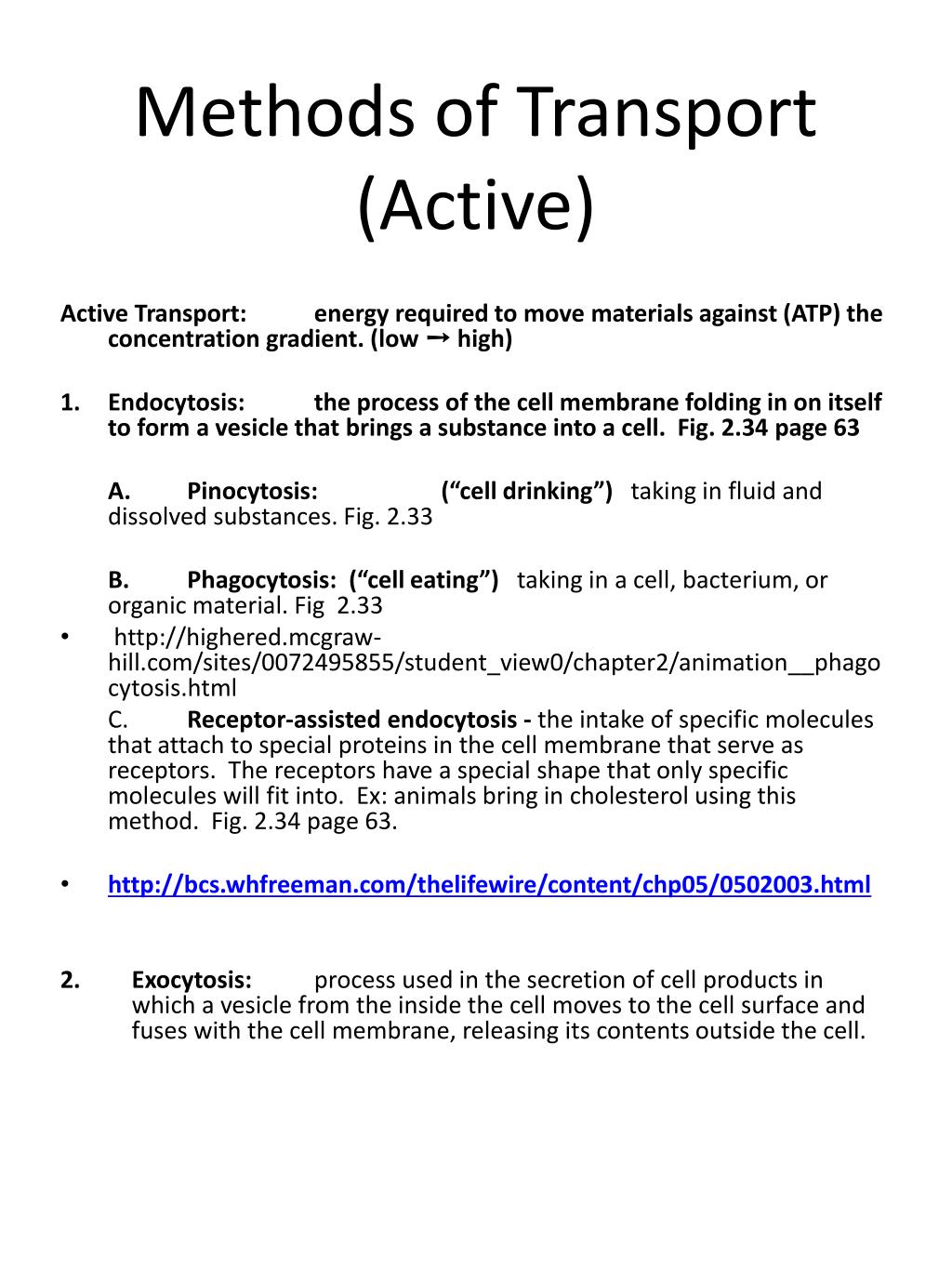

  6. Methods of Transport (Active) Active Transport: energy required to move materials against (ATP) the concentration gradient. (low ➙ high) 1. Endocytosis: the process of the cell membrane folding in on itself to form a vesicle that brings a substance into a cell. Fig. 2.34 page 63 A. Pinocytosis: (“cell drinking”) taking in fluid and dissolved substances. Fig. 2.33 B. Phagocytosis: (“cell eating”)taking in a cell, bacterium, or organic material. Fig 2.33 • http://highered.mcgraw-hill.com/sites/0072495855/student_view0/chapter2/animation__phagocytosis.html C. Receptor-assisted endocytosis - the intake of specific molecules that attach to special proteins in the cell membrane that serve as receptors. The receptors have a special shape that only specific molecules will fit into. Ex: animals bring in cholesterol using this method. Fig. 2.34 page 63. • http://bcs.whfreeman.com/thelifewire/content/chp05/0502003.html • Exocytosis: process used in the secretion of cell products in which a vesicle from the inside the cell moves to the cell surface and fuses with the cell membrane, releasing its contents outside the cell.
