  1. Servo Packages

  2. Solder 1.5K resistor brown green red(only applicable if you have the 5V Reg)

  3. Solder A 3x4 header

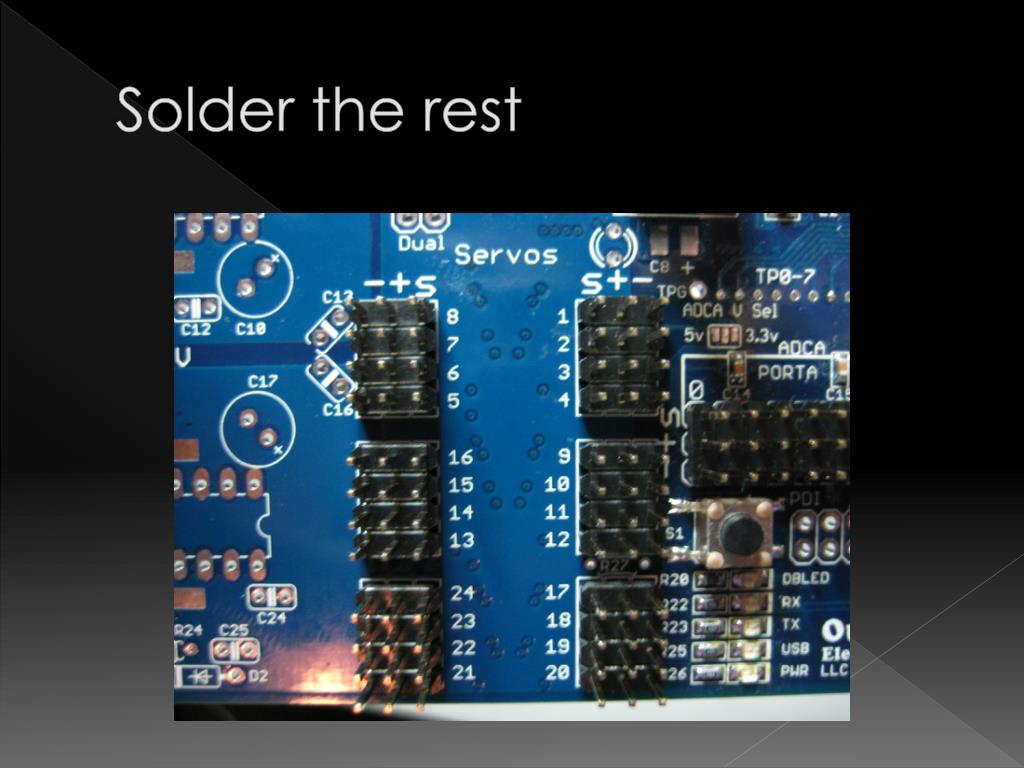

  4. Solder the rest

  5. Solder 1K Resistor (R27)

  6. Solder Led Long Lead Toward +

  7. Solder 1K Resistor To (R17)

  8. Solder .1uf (104) To (C7)

  9. Solder 15pf (150) to (C3,C4)

  10. Solder 12MHz crystal to (Q1)

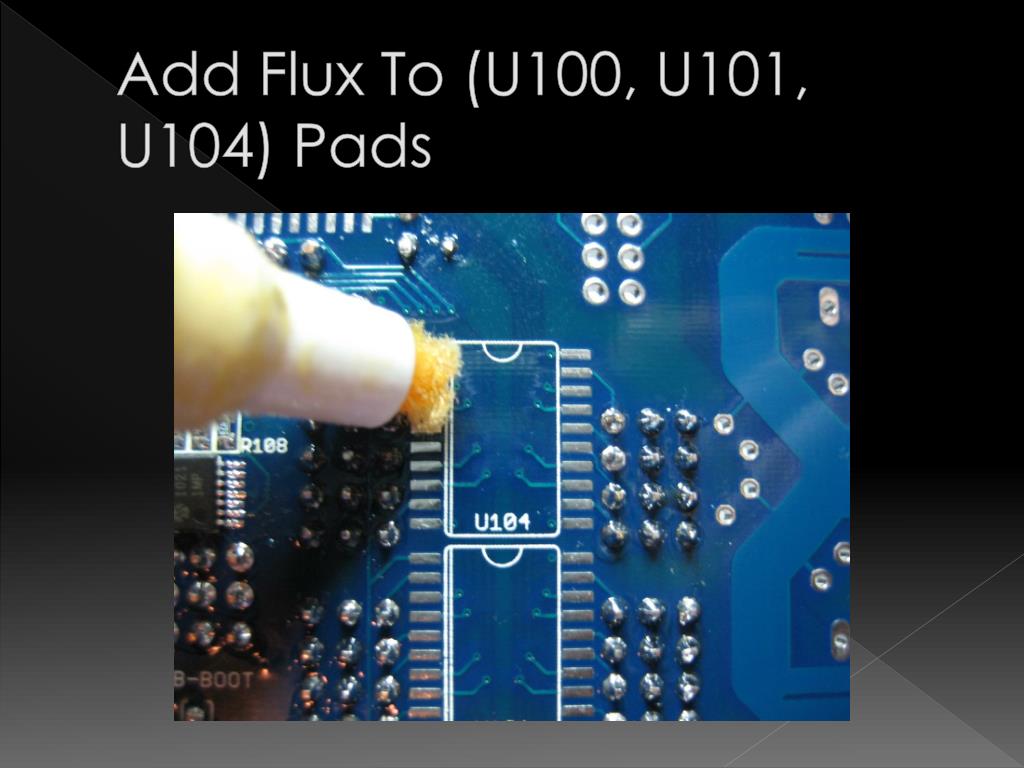

  11. Add Flux To (U100, U101, U104) Pads

  12. Solder LV273s

  13. Flux And Solder ATtiny4313

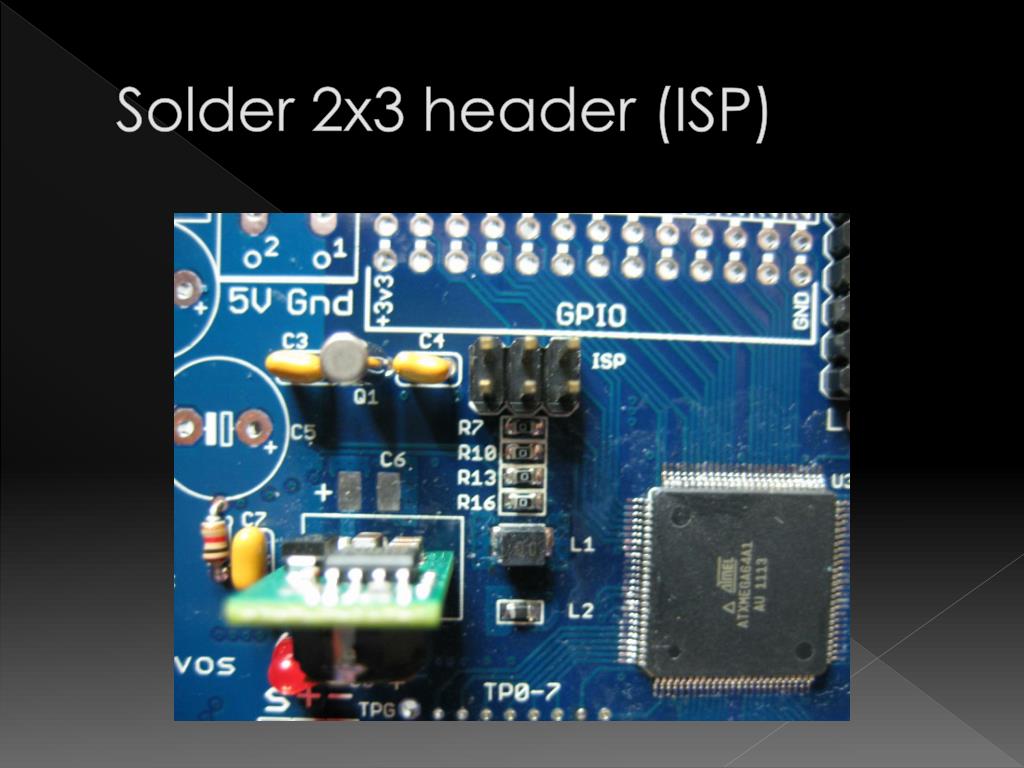

  14. Solder 2x3 header (ISP)

  15. Solder 2 pin terminal

  16. Solder 5v reg

  17. Finished…Now
