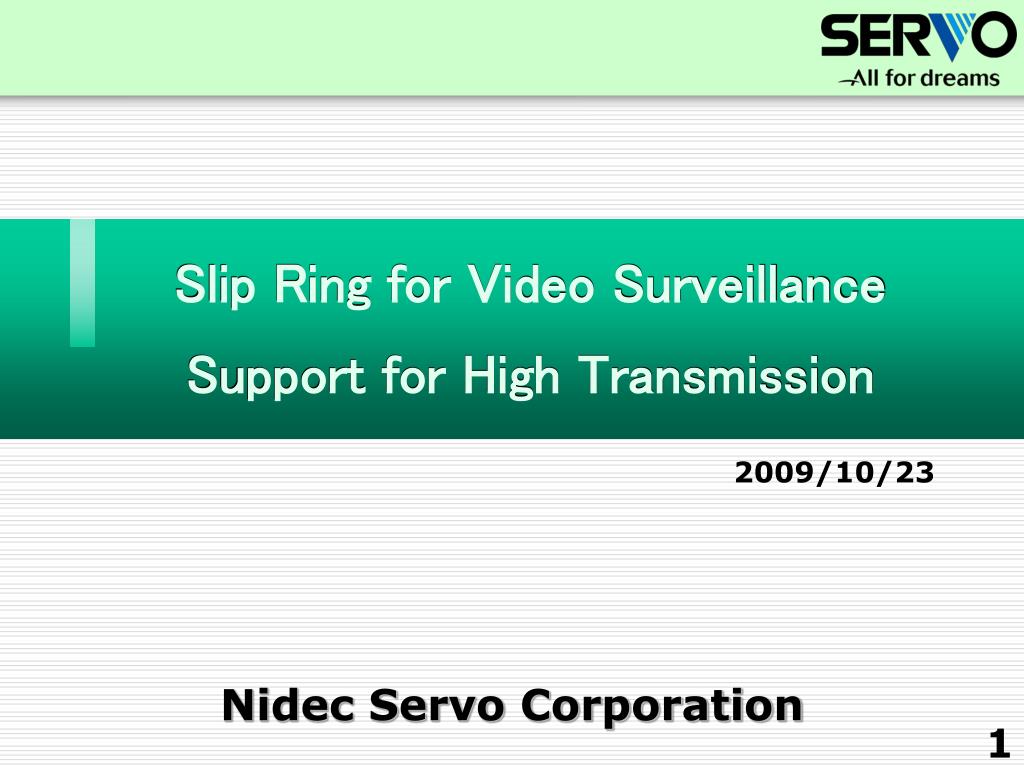

  1. Nidec Servo Corporation Slip Ring for Video Surveillance Support for High Transmission 2009/10/23 1

  2. Surveillance Camera Type Standard Type (Fixed) Surveillance Camera Fixed Less than 360 Deg. Dome Swivel Speed Dome and Endless Type use Slip Rings 2

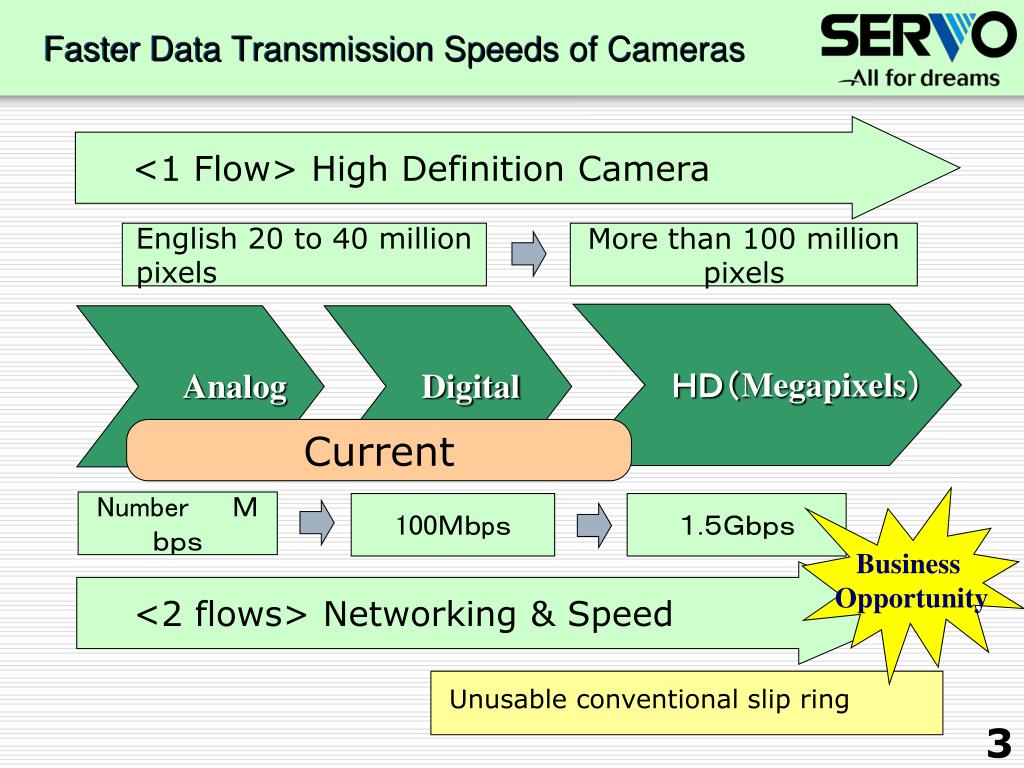

  3. Faster Data Transmission Speeds of Cameras     HD(Megapixels)   Analog Digital <1 Flow> High Definition Camera English 20 to 40 million pixels More than 100 million pixels Current Business Opportunity Number Mbps 100Mbps 1.5Gbps <2 flows> Networking & Speed Unusable conventional slip ring 3

  4. Our high-speed transmission characteristics of slip ring (1) Through slip rings1Gbps Direct (no slip rings)1Gbps Coaxial Cable (50Ω) Machine Oscillation Machine oscillation Oscilloscope Oscilloscope Slip Rings oscilloscope Coaxial Cable (50Ω) Oscilloscope waveform (eye pattern) Oscilloscope waveform (eye pattern) (Note) Please measured as a 50Ω transmission line wiring diagram. If not can not get the same high-speed transmission characteristics. 4

  5. Our high-speed transmission characteristics of slip ring (2) Coaxial Cable (50Ω) Machine Ossilation Oscilliscope Slip Ring 3Gbps 1Gbps 2Gbps ■Error rates up to 3Gbps <10-11 see 5 (Note) Please measured as a 50Ω transmission line wiring diagram. If not can not get the same high-speed transmission characteristics.

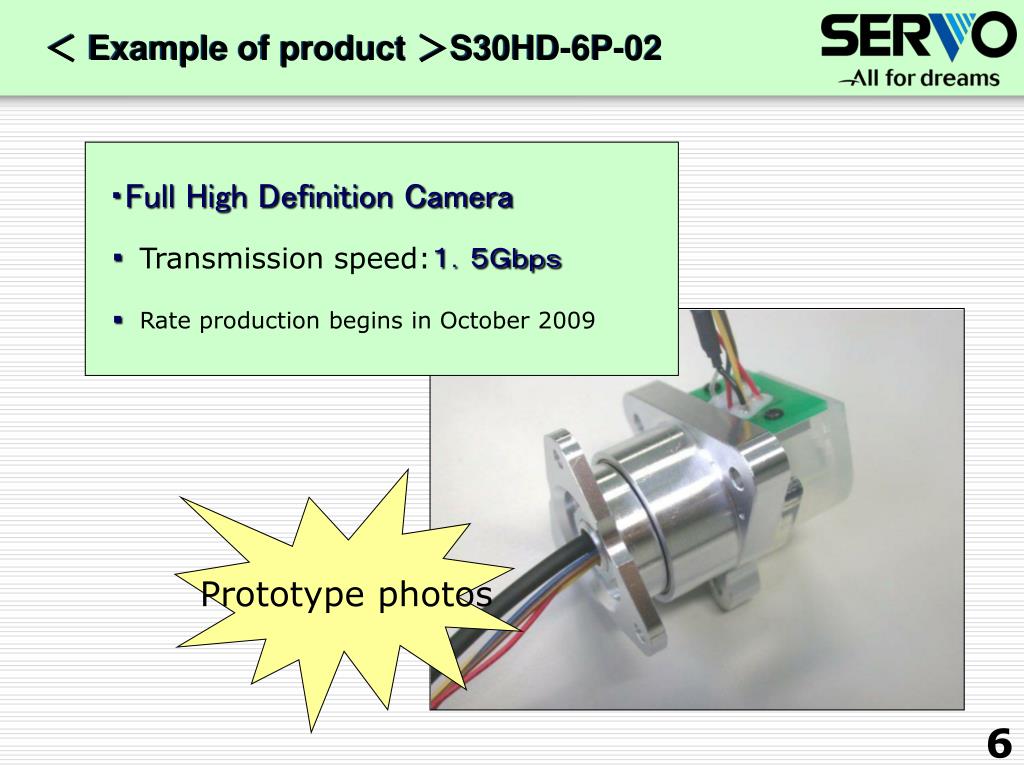

  6.  < Example of product >S30HD-6P-02 ・Full High Definition Camera ・ Transmission speed:1.5Gbps ・ Rate production begins in October 2009 Prototype photos 6
