slide1

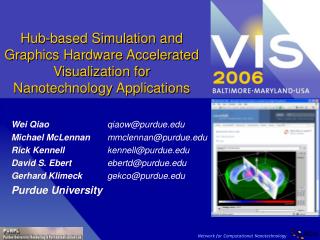

Hub-based Simulation and Graphics Hardware Accelerated Visualization for Nanotechnology Applications

Wei Qiao qiaow@purdue.edu

Michael McLennan mmclennan@purdue.edu

Rick Kennell kennell@purdue.edu

David S. Ebert ebertd@purdue.edu

Gerhard Klimeck gekco@purdue.edu

Purdue University

our goals
Our Goals
  • Provide advanced interactive visualization of scientific simulations to users worldwide without the user needing special graphics capabilities
  • Approach - integrate hardware-accelerated remote visualization into nanoHUB.org
outline
Outline
  • nanoHUB.org
  • Challenges and requirements
  • Related work
  • Our system design
  • Performance and optimization
  • Case studies
  • Summary and future work
nanohub org
nanoHUB.org
  • A nano-science gateway for nanotechnology education and research
  • Created by the Network for Computational Nanotechnology (NCN)
  • Educational material
    • Animations
    • Courses
    • Seminars
  • Simulation tools accessible from a web browser
user community and usage
User Community and Usage
  • Nanoelectronics Community
    • Researchers
    • Educators
    • Students
  • Usage (last year)
    • More than 10,000 users viewed online materials
    • 1,800 users ran more than 54,000 simulation jobs consuming over 28,500 hours of CPU time
nanohub simulation architecture
nanoHUB Simulation Architecture

Open Science Grid

and

NSF TeraGrid

Simulation Cluster

Web Server

Gig Net

Internet

Gig Net

Virtual Machine

system requirements
System Requirements
  • Transparency in service delivery
  • Scalability to increased workload
  • Responsiveness to user command
  • Flexibility in handling simulation data
  • Extensibility in software and hardware
visualization challenges
Visualization Challenges
  • Architecture
    • Lack state of the art visualization systems
    • Mismatch between CPU and GPU resources
  • Users
    • Predominantly remote
    • Vast diversity of computing platforms and capabilities
related work
Related Work
  • Molecular Dynamics Visualization
    • Surface rendering
    • Structure rendering
    • Volume visualization
      • Electron potential fields
      • Electronic wave function
      • Electro-magnetic fields
related work cont
Related Work (Cont.)
  • Flow Visualization
    • Texture synthesis
      • CPU ([Wijk 91] and [Cabral and Leedom 93])
      • GPU ([Heidrich et al. 99], [Jobard et al. 00], [Weiskopf et al. 2003] and [Telea and Wijk 03])
    • Particle tracing
      • CPU ([Sadarjoen et al. 94])
      • GPU ([Kolb et al. 04] and [Krüger et al. 05])
  • Remote Visualization
    • Data is too large to transfer over network
    • Local workstation cannot handle the data
    • Distance collaboration
practical obstacles to nanohub
Practical Obstacles to nanoHUB
  • VNC session run on cluster nodes with no graphics hardware acceleration
  • Cluster nodes are rack mounted machines with neither AGP nor PCI Express interfaces
  • nanoHUB’s virtual machine layer cannot directly access graphics hardware
our system design
Our System Design
  • Client-server architecture
    • nanoVIS render server
      • Visualization engine library
      • Vector flows
      • Multivariate scalar fields
    • Rappture GUI client
      • User front end
    • nanoSCALE service daemon
      • Monitors render loads
      • Track GPU memory usage
      • Starts nanoVIS servers
schematic view

Gig Net

Client-Server

Hardware-accelerated Render Farm

Schematic View

Open Science Grid

and

NSF TeraGrid

Simulation Cluster

Web Server

Gig Net

Internet

Gig Net

Virtual Machine

hardware
Hardware
  • Linux cluster render farm
    • 1.6GHz Pentium 4
    • 512MB of RAM
    • nVIDIA Geforce 7800GT graphics hardware
  • Advantages
    • Extremely cost effective
    • Flexible to upgrade and expand
    • Integrates tightly into the nanoHUB architecture
rappture toolkit
Rappture Toolkit
  • Rapid Application Infrastructure Toolkit
    • Accelerate development of basic infrastructure
    • Declare simulator input / output using XML
    • Automatic generation of GUI
nanovis
nanoVIS
  • Fully accelerated by graphics hardware
  • Visualize a variety of nanotechnology simulations
    • Volumetric and multivariate scalar fields
      • Texture-based volume visualization
      • FFC volume (zinc-blende) [Qiao et al. 2005]
    • Vector fields
      • GPU particle tracing
      • 2D texture synthesis
    • Geometric drawing to illustrate simulation geometry
      • GL primitive drawing
vector field visualization cont

Particle Data

Vector Field

Pixel Shader

GPU

FBO

Texture

Vector Field Visualization (Cont.)
  • Particle Implementation
    • [Kolb et al. 2004] [Krüger et al. 2005]
    • Framebuffer Object (FBO)
    • Vertex Buffer Object (VBO)
    • Particles stay in GPU memory
  • 2D texture synthesis
    • Complement particles

Vertex Data

VBO

Particle Render

client server interaction

Simulation Cluster

Render Farm

Rappture

nanoSCALE

Connect

Data

Connect

Select

Spawn

Client-Server

nanoVIS

Client-Server Interaction
performance and optimization
Performance and Optimization
  • Work load consideration
    • GPU heavy
      • Rendering
    • CPU light
      • Network communication
  • GPU-oriented optimization
    • GPU load estimation scheme
    • Node selection scheme based on estimated GPU load
gpu load estimation

Volume visualization

Particle system

GPU Load Estimation
  • Fragment processing cost
    • Number of rasterized fragments
    • Computation per fragment
  • Unified measurement for particle system and volume
    • Hard to compare cost of particle rendering to advection
    • Experimental data allows a unified measurement
      • Render cost is factor of 0.2 to advection
  • Estimation equation
    • Primary cost of the shader execution is texture access
performance
Performance
  • Measure turn around time (from issue command to image received)
  • 128 x 128 x 128 scalar field
  • 512x512 render window
  • Simulated user interaction
    • Transfer function modification, rotation, zoom, cutting plane, etc.
case studies
Case Studies
  • Successfully developed several nanotechnology tools
    • SQUALID-2D
    • Quantum Dot Lab
    • BioMOCA
    • nanoWire
2 d electron gas simulator
2-D Electron Gas Simulator
  • Goal
    • Study the effects of impurity in a nanowire
  • Device composition
    • Electrodes are positioned on the top
    • GaAs and AlGaAs semiconductor layers
    • A narrow channel constraining the electrons in the middle
  • Experiments
    • Vary magnetic field
    • Electron flows
    • Electron potential fields
2 d electron gas simulator26
2-D Electron Gas Simulator

Flow and Electron Potential

Particle Tracing and LIC

biomoca
BioMOCA
  • Goal
    • Study the flow of ions through a pore in a cell membrane
  • Method
    • Compute random walks of ions through a channel with a fixed geometry within a cell membrane.

Cell Wall

Cell Wall

quantum dot lab
Quantum Dot Lab
  • Goal
    • Study the wave functions (orbitals) of electrons trapped in a quantum dot device
  • Method
    • Configure incidental light source, shape and size of the quantum dot

s and p orbitals

s orbital

p orbital

conclusions
Conclusions
  • Hub-based remote visualization is a powerful, flexible solution
    • Seamlessly delivers hardware-accelerated visualization to remote scientists with minimal requirements on their computing environments
  • Intuitive interface and ease of use are key for wide-usage
    • Enables rapid development and deployment of new simulation tools
  • Tight integration into the simulation and interactive performance can speed scientific discovery and change science work flow
  • nanoVis tools is huge success
future work
Future Work
  • Expand to generic scientific hub-based visualization engine
    • Our system can be adopted to economically deliver accelerated graphics to other hub-based multi-user environments
  • Expand to large data support
  • GPGPU nano-electronics simulations and integrated visualization
  • More accurate GPU load estimation using nVidia newly released NVPerfKit 2.1 for Linux
acknowledgement
Acknowledgement
  • Martin Kraus, Nikolai Svakhine, Ross Maciejewski, Xiaoyu Li
  • Anonymous reviewers for many helpful discussions and comments
  • nVIDIA
  • National Science Foundation under Grant No. EEC-0228390
