outline
Outline
  • Architectural Overview of JDF
  • Experience with JDF 1.1
  • Outline of JDF 1.2 Activities
    • Areas of activity (Who and What)
    • Cooperation with other standards
    • Timeline for JDF 1.2
  • JDF Interoperability Status
jdf on one slide
JDF on One Slide
  • JDF is a Graphic Arts Job TicketData Interchange Format Specification- JDF is not an Application or System
  • JDF is encoded in XML
  • Content is referenced, not embedded
  • JDF is extensible
  • JDF is based on semantic structures defined by:
    • Adobe PJTF
    • CIP3 PPF
  • JDF Job Definition + JMF Messaging define the JDF Framework
the building blocks of the jdf framework
The Building Blocks of the JDF Framework
  • JDF Node
    • Description of a Process, Process Group or Product
  • JDF Resource
    • Description of a parameter set or physical entity
  • JDF ResourceLink
    • Link between JDF Nodes (processes) and Resources
  • JDF Capabilities Descriptions
    • Limitation of a JDF interface
  • JMF Messages
    • Real time data interchange format
the jdf node
The JDF Node
  • Description of a generic Process
    • The “Verb” in JDF
    • Do something at a given time
    • Structured container for Scheduling and Auditing
  • One JDF node type for Products and Processes
  • Less Precise Product Intent at the Job Root Node
  • Workflow Group nodes “ProcessGroup” in between
  • Detailed individual or combined Processes in the Leaf Nodes
product intent vs process modeling

Book

Contents

Cover

Reader

Pages

End

Sheets

Product Intent vs. Process Modeling
  • Goal of Product Intent Description
    • Customers view of the “thing” that he wants to have manufactured
    • Contract Negotiation
    • Process Independent
  • Goal of Process Modeling
    • Interface between production and management information systems
    • Process interdependencies
    • Manufacturing Instruction Details
jdf resources
JDF Resources
  • Specification of Parameters of
    • Product Intent description
    • Logical Entities, e.g RIP Parameters, Imposition setup
    • Physical Entities, e.g. Media, Devices, Plates
  • Based on Adobe PJTF and CIP3 PPF
    • Intent Resources for product intent nodes
    • Prepress : Adobe PJTF
    • Press, Finishing: CIP3 PPF
  • Internal to JDF or External Links to well-defined Formats
    • Thumbnails
    • Preview Files
    • ICC Profiles
    • Content Data
resourcelink

Parent Node

Resource 1

Child Node 1

Child Node 2

Link

ResourceLink
  • Bind a Resource to a Node
  • Define Resource Usage (input or output)
  • Link to a Subset / Part of a Resource
    • E.g. Cyan Plate of the Front of Sheet #1
    • Define the Amount
  • Allow reuse of Resources by multiple processes
    • One resource may be linked by multiple ResourceLinks
  • Defines a process network
conventionalprinting jdf node example
ConventionalPrinting JDF Node Example

ExposedMedia

(Plate)

ConventionalPrinting

  • NodeInfo
  • Planned StartTime
  • Planned EndTime

Media

AuditPool

Actual Resource Usage

Actual Time Summary

Ink

InkZoneProfile

Resource

Links

Component

(including

amount)

Parameters

Layout

(Control Marks)

node executability

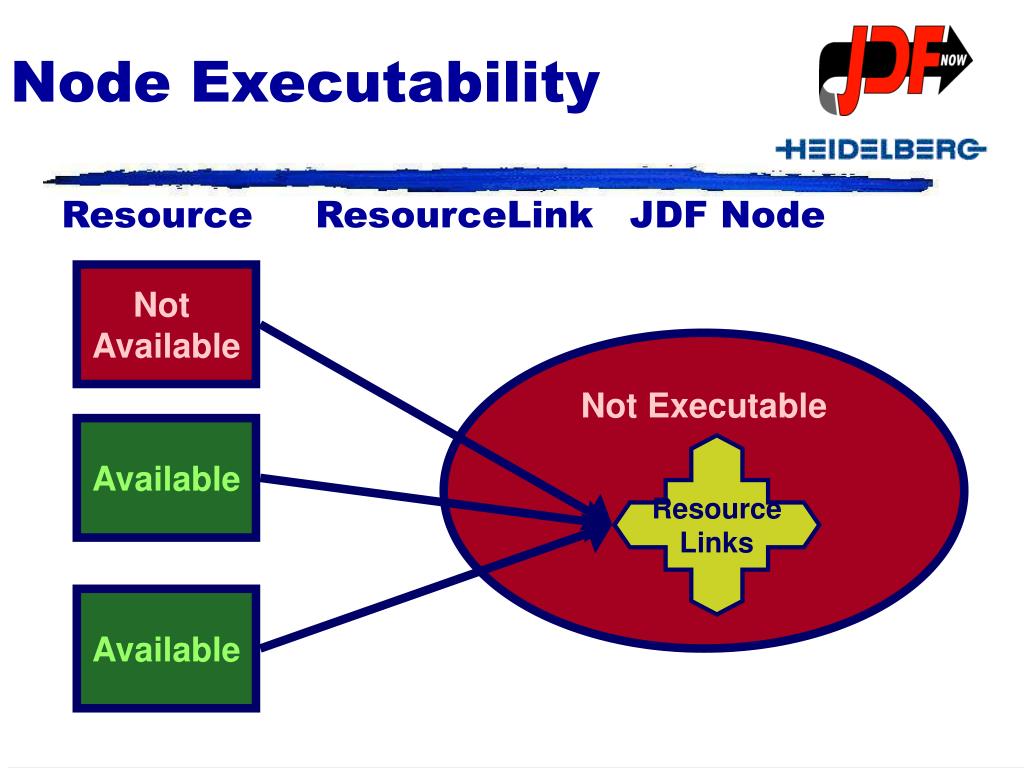

Node Executability

Resource ResourceLink JDF Node

Not

Available

NotExecutable

Available

Resource

Links

Available

node executability11

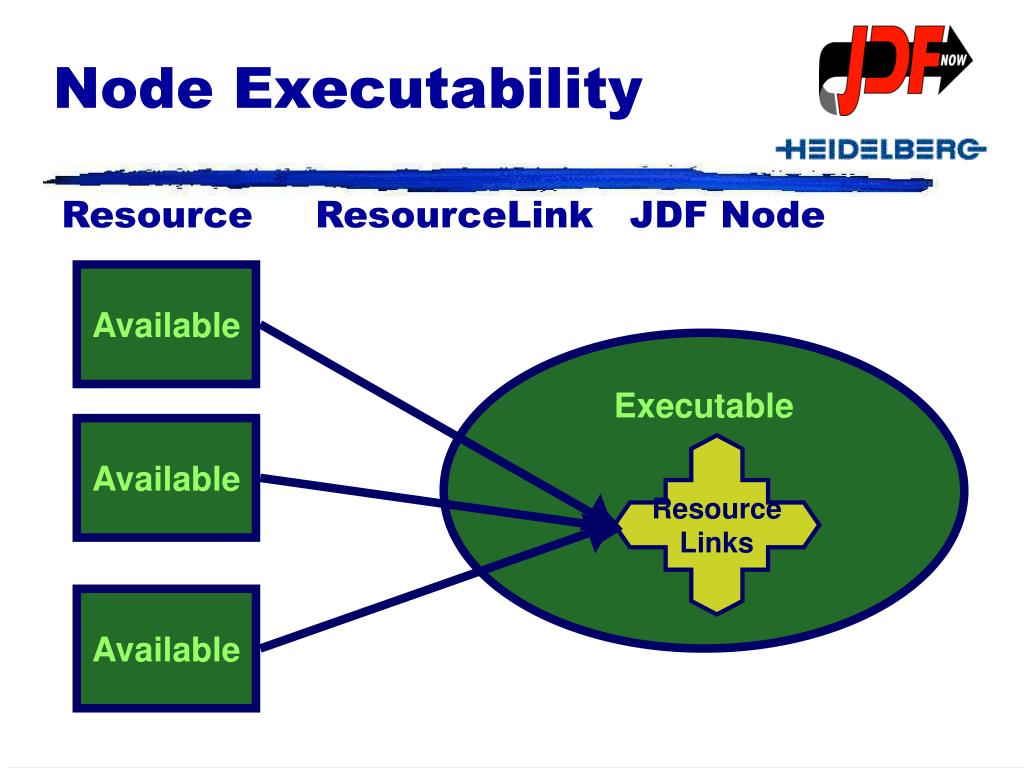

Node Executability

Resource ResourceLink JDF Node

Available

Executable

Available

Resource

Links

Available

node executability and networks

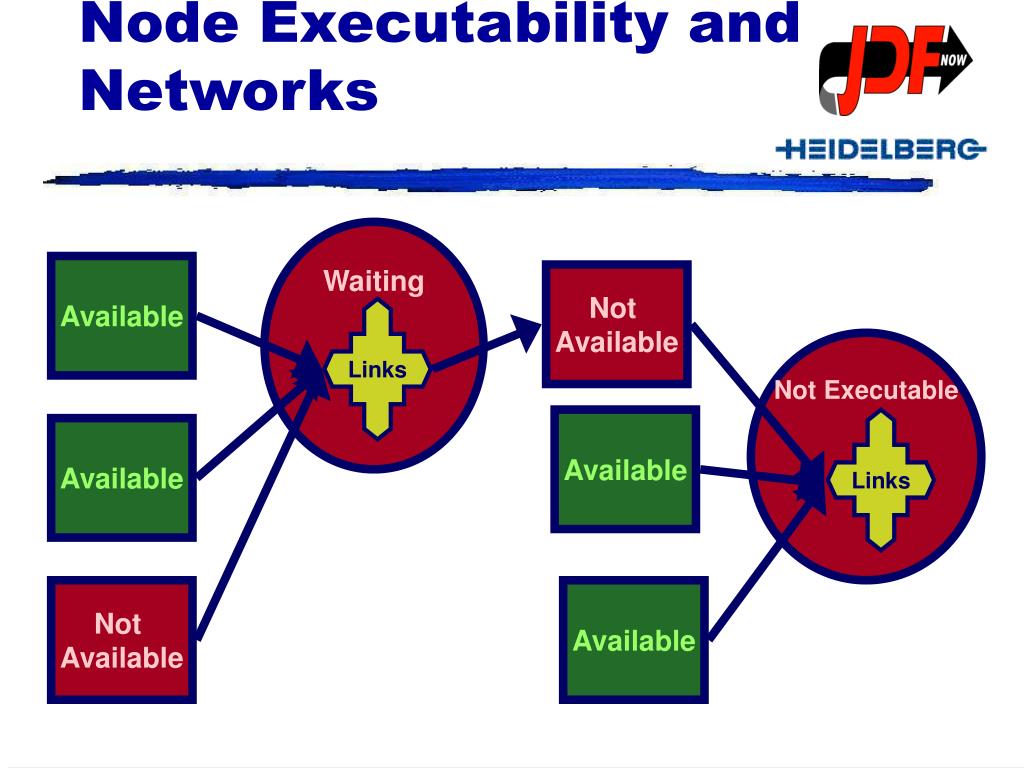

Node Executability and Networks

Waiting

Available

Not

Available

Links

Not Executable

Available

Links

Available

Not

Available

Available

node executability and networks13
Node Executability and Networks

Running

Available

Not

Available

Links

Not Executable

Links

Available

Available

Available

Available

node executability and networks14
Node Executability and Networks

Completed

Available

Available

Links

Executable

Available

Links

Available

Available

Available

capabilities descriptions
Capabilities Descriptions
  • Mapping from Product Intent to Process Networks
  • Set up Communication between Controllers and Devices
  • Define User Interface Constraints
  • Allow planning systems to automatically schedule jobs to the optimal available device.
    • Enable load balancing between devices.
  • JMF messages for Capabilities Integration (Plug&Play)
messaging with jmf
Messaging with JMF
  • Small XML Structures
  • Synchronized with JDF
  • Used for:
    • Plug + Play Bootstrapping
    • Snapshots of Job / Device Status
    • Dynamic Job update
    • Queue Support
    • Capabilities interchange
experience with jdf

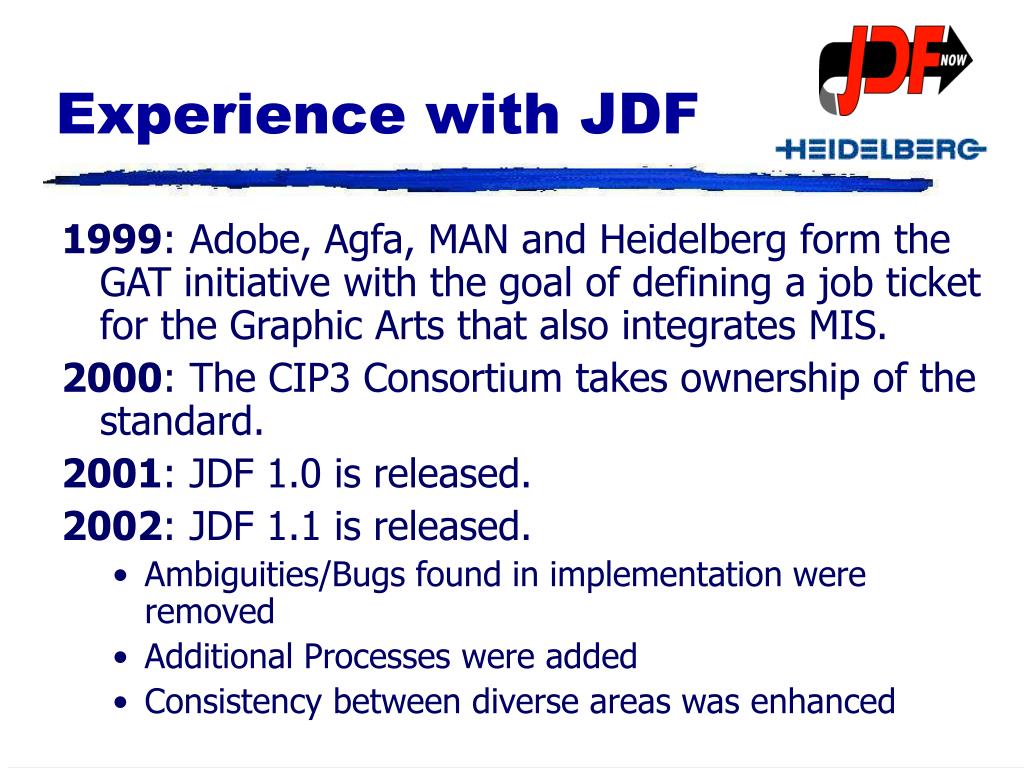

Experience with JDF

1999: Adobe, Agfa, MAN and Heidelberg form the GAT initiative with the goal of defining a job ticket for the Graphic Arts that also integrates MIS.

2000: The CIP3 Consortium takes ownership of the standard.

2001: JDF 1.0 is released.

2002: JDF 1.1 is released.

  • Ambiguities/Bugs found in implementation were removed
  • Additional Processes were added
  • Consistency between diverse areas was enhanced
experience with jdf advantages
Experience with JDF - Advantages
  • Single grammar for specifying job data in the graphic arts industry
  • Integration of Production, Customer and MIS
  • Definition of production networks
  • Combined Processes
  • Defined communication protocol, not only data structures
  • Extensible Model
  • Interaction with other Standards in GA
experience with jdf challenges obstacles

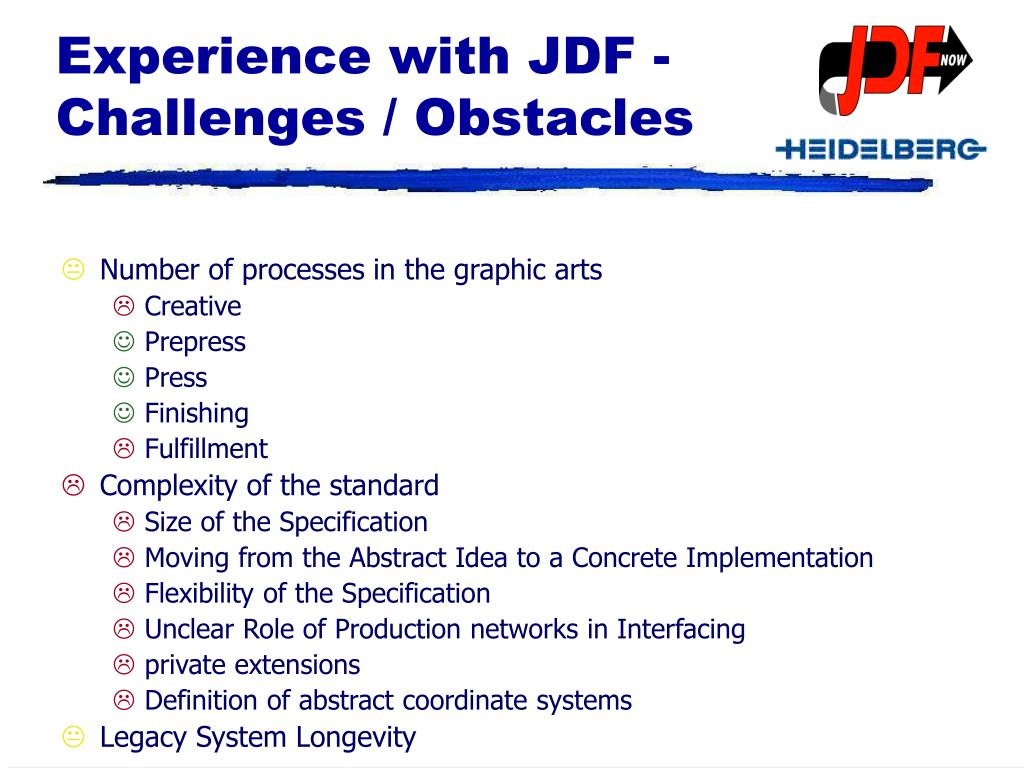

Experience with JDF - Challenges / Obstacles
  • Number of processes in the graphic arts
    • Creative
    • Prepress
    • Press
    • Finishing
    • Fulfillment
  • Complexity of the standard
    • Size of the Specification
    • Moving from the Abstract Idea to a Concrete Implementation
    • Flexibility of the Specification
    • Unclear Role of Production networks in Interfacing
    • private extensions
    • Definition of abstract coordinate systems
  • Legacy System Longevity
interface areas in jdf jdf 1 2 enhancements
Interface Areas in JDF - JDF 1.2 enhancements
  • Backwards Compatible Extensions of JDF 1.1a
  • Customer  Print (Graphic Arts) Shop
  • MIS  Production
  • Prepress
  • Press
  • Postpress
  • Communication / JMF Messaging
  • Capabilities
  • Interoperability Conformance Specification definitions
customer print graphic arts shop
Customer  Print (Graphic Arts) Shop
  • Product Intent Definition
    • Minor Cleanup / Clarifications
  • Add a “generalized” CustomerMessage element
    • Add Channel definitions for
      • Instant Messaging
      • SMS
    • Add extensible reason and message content definitions
mis production

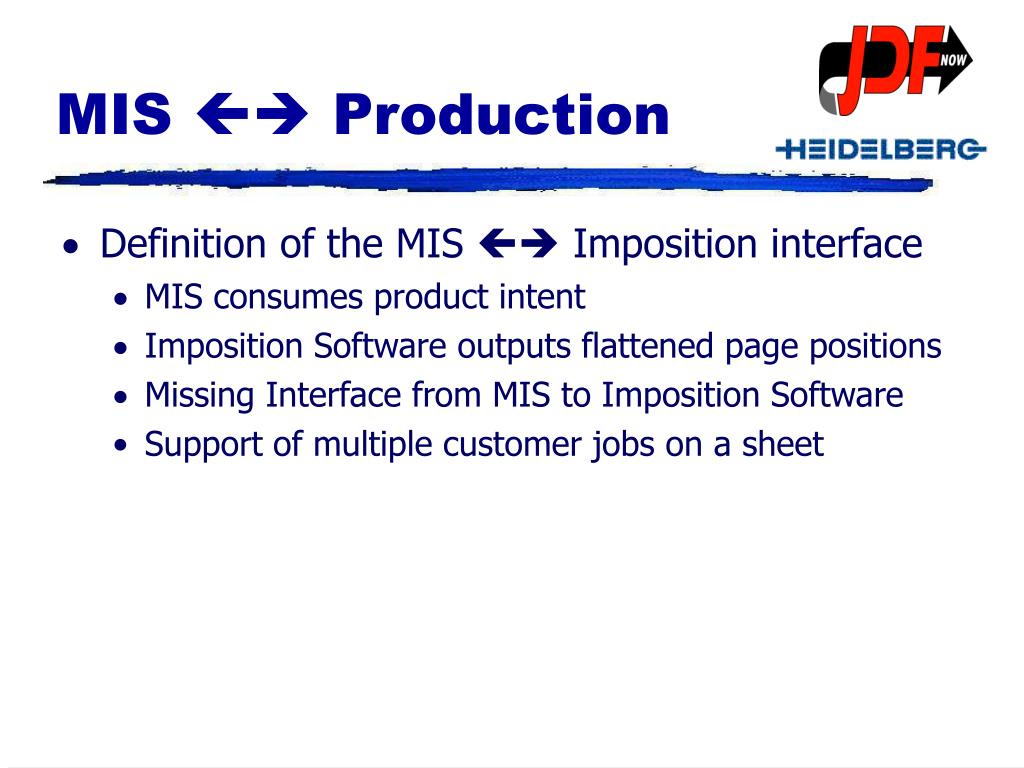

MIS  Production
  • Definition of the MIS  Imposition interface
    • MIS consumes product intent
    • Imposition Software outputs flattened page positions
    • Missing Interface from MIS to Imposition Software
    • Support of multiple customer jobs on a sheet
prepress
Prepress
  • Preflight
    • Define extensible JDF definition of
      • Preflight Profiles
      • Preflight Reports
  • Asset Transfer
    • Define a Process for Digital Artwork Delivery
  • Proofing
    • Define an integrated combined proofing process
press
Press
  • Digital Printing Interface Conformance Specifications
    • 3 Levels of ICS
      • Desktop Printers
      • Department Printers
      • Graphic Arts Digital Presses
  • Conventional Printing
    • Additional Previews for Quality Control
postpress
Postpress
  • Additional Postpress processes added:
    • Bundling
    • PrintRoll
  • Detailed Waste Definitions
    • WhiteWaste, ObliqueSheets, Process Specific
  • Complex Feeder Definitions
jmf messaging
JMF Messaging
  • Added Additional Device  MIS messages
  • Added JMF File Protocol for exchange between very dumb devices/controllers
capabilities
Capabilities
  • Abstract User Interface Definitions
  • Localization
  • Constraints definitions
    • Full Boolean logic for device constraints
standards bodies that cooperate with cip4

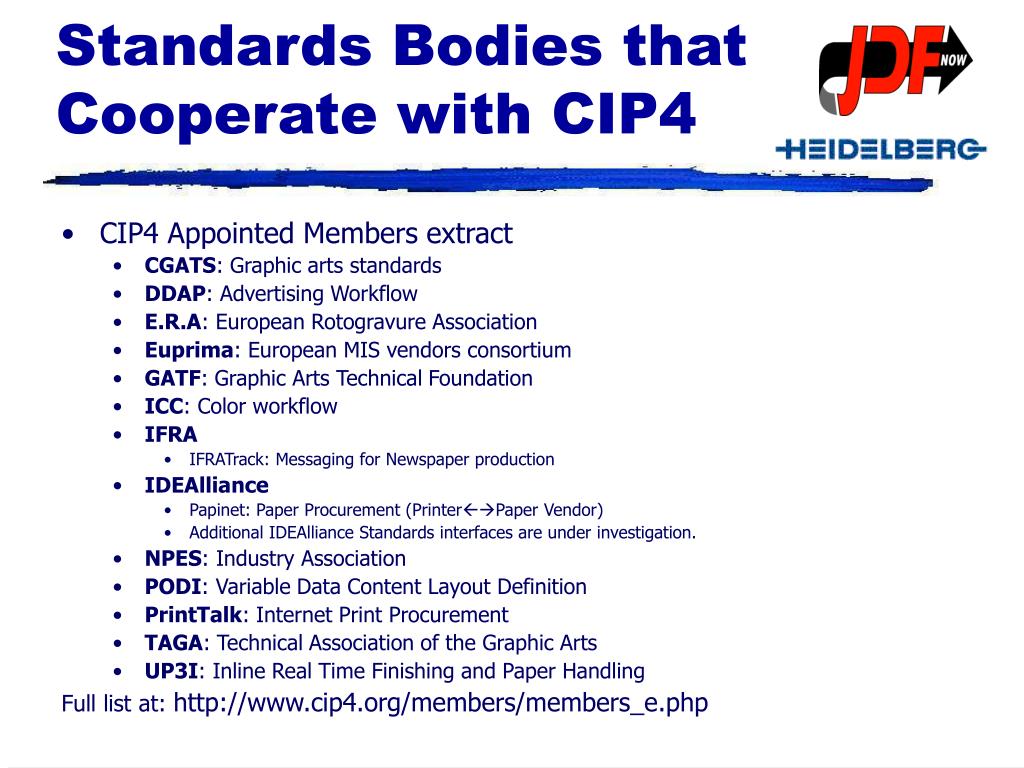

Standards Bodies that Cooperate with CIP4
  • CIP4 Appointed Members extract
    • CGATS: Graphic arts standards
    • DDAP: Advertising Workflow
    • E.R.A: European Rotogravure Association
    • Euprima: European MIS vendors consortium
    • GATF: Graphic Arts Technical Foundation
    • ICC: Color workflow
    • IFRA
      • IFRATrack: Messaging for Newspaper production
    • IDEAlliance
      • Papinet: Paper Procurement (PrinterPaper Vendor)
      • Additional IDEAlliance Standards interfaces are under investigation.
    • NPES: Industry Association
    • PODI: Variable Data Content Layout Definition
    • PrintTalk: Internet Print Procurement
    • TAGA: Technical Association of the Graphic Arts
    • UP3I: Inline Real Time Finishing and Paper Handling

Full list at: http://www.cip4.org/members/members_e.php

preliminary jdf 1 2 time line
Preliminary JDF 1.2 Time Line
  • Consolidation of miscellaneous Changes
    • Definition + Discussion 09/03
    • Tech Writing : Q3/03
    • Integration of Preflight Q3/03
    • Internal CIP4 publication
    • 3 Month intellectual property due diligence period
  • Official Publication Date
interoperability status
Interoperability Status
  • CIP4 hosted an Interoperability test event in May
    • Goals were:
      • Proof of concept of the event
      • Integration of products from various vendors
      • Pinpoint ambiguous areas
      • Engineering team building
  • 3 Further events are scheduled this and early next year
    • Next One is next week in Darmstadt, Germany
  • Events are closed door
    • Goal is to enhance the standard and enable interoperability
    • NOT to find scapegoats / heros
slide31

JDF- Experience and Challenge

Thank you very much for your attention!

Rainer.Prosi@Heidelberg.com

the last slide contact information
The Last Slide – Contact Information
  • Speaker: Rainer Prosi+49-431-386-4620Rainer.Prosi@Heidelberg.com
  • Moderator: Stephan Jaeggi+41-61-4220442 sjaeggi@prepress.ch
  • More Information at:
    • WWW.CIP4.ORG WWW.HEIDELBERG.COM/hq/eng//prinect/
    • WWW.SEYBOLD365.COM
