Presentation Transcript

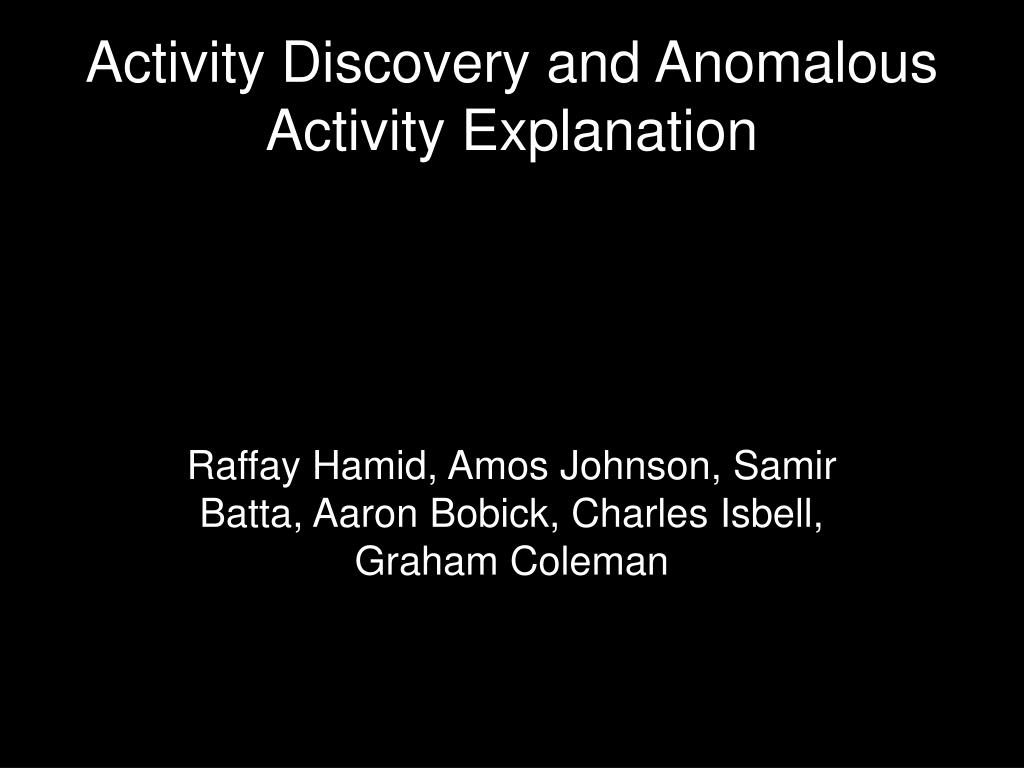

Raffay hamid amos johnson samir batta aaron bobick charles isbell graham coleman l.jpg

Activity Discovery and Anomalous Activity Explanation

Raffay Hamid, Amos Johnson, Samir Batta, Aaron Bobick, Charles Isbell, Graham Coleman



Activity discovery and anomalous activity explanation3 l.jpg
Activity Discovery and Anomalous Activity Explanation

  • Anomaly - “deviation” from the “common” or “regular”


Activity discovery and anomalous activity explanation4 l.jpg
Activity Discovery and Anomalous Activity Explanation

  • Anomaly - “deviation” from the “common” or “regular”

  • Key Questions:

    • ‘representation’ of activities

    • ‘regular’ activities

    • ‘different’ from regular

    • ‘explain’an anomaly

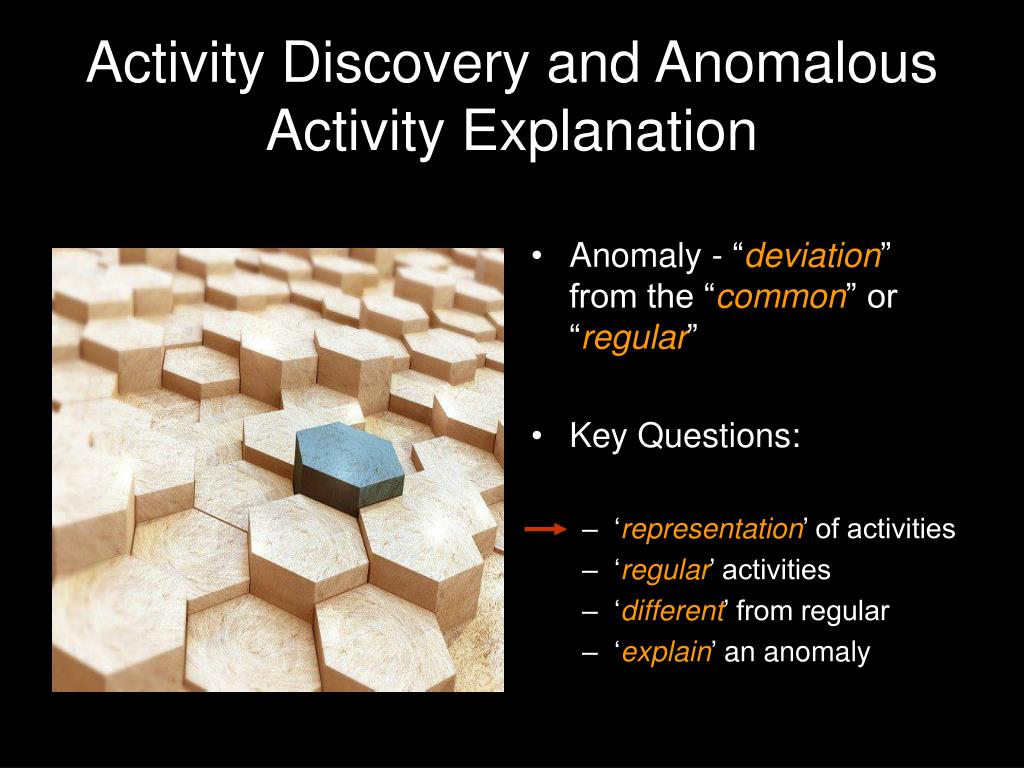

Activity discovery and anomalous activity explanation5 l.jpg
Activity Discovery and Anomalous Activity Explanation

  • Anomaly - “deviation” from the “common” or “regular”

  • Key Questions:

    • ‘representation’ of activities

    • ‘regular’ activities

    • ‘different’ from regular

    • ‘explain’an anomaly


Activity representation l.jpg
Activity Representation

  • Previous representations include:

    • Stochastic Context Free Grammars

    • Expectation Grammars

    • …..

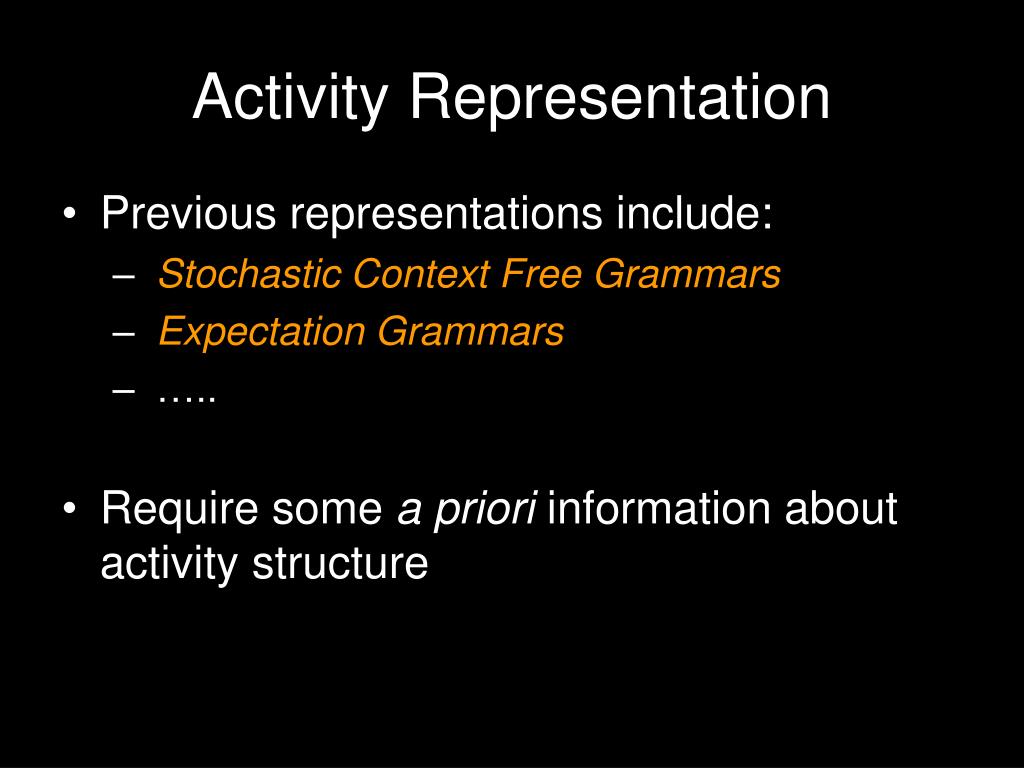

Activity representation7 l.jpg
Activity Representation

  • Previous representations include:

    • Stochastic Context Free Grammars

    • Expectation Grammars

    • …..

  • Require some a priori information about activity structure

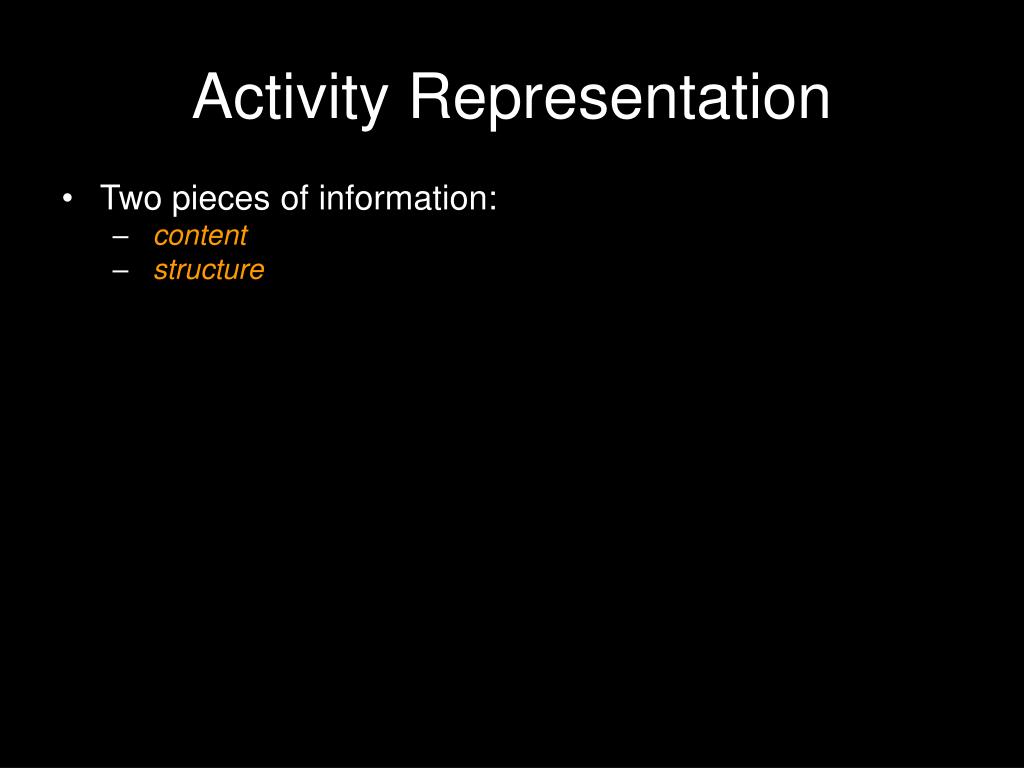

Activity representation8 l.jpg
Activity Representation

  • Two pieces of information:

    • content

    • structure

  • Drawing from Natural Language Processing – treating documents as bags of words

  • Treat Activities as bags of event n-grams

  • Extraction of global structural information using local event statistics


Activity representation9 l.jpg
Activity Representation

  • Two pieces of information:

    • content

    • structure

  • Drawing from Natural Language Processing – treating documents as bags of words –captures content well

  • Treat Activities as bags of event n-grams

  • Extraction of global structural information using local event statistics


Activity representation10 l.jpg
Activity Representation

  • Two pieces of information:

    • content

    • structure

  • Drawing from Natural Language Processing – treating documents as bags of words –captures content well

  • Treat Activities as bags of event n-grams –captures activity structure

  • Extraction of global structural information using local event statistics


Activity representation11 l.jpg
Activity Representation

  • Two pieces of information:

    • content

    • structure

  • Drawing from Natural Language Processing – treating documents as bags of words –captures content well

  • Treat Activities as bags of event n-grams –captures activity structure

  • Extraction of global structural information using local event statistics


Activity discovery and anomalous activity explanation14 l.jpg
Activity Discovery and Anomalous Activity Explanation

  • Anomaly - “deviation” from the “common” or “regular”

  • Key Questions:

    • ‘representation’ of activities

    • ‘regular’ activities

    • ‘different’ from regular

    • ‘explain’an anomaly


Activity discovery and anomalous activity explanation15 l.jpg
Activity Discovery and Anomalous Activity Explanation

  • Anomaly - “deviation” from the “common” or “regular”

  • Key Questions:

    • ‘representation’ of activities

    • ‘regular’ activities

    • ‘different’ from regular

    • ‘explain’an anomaly

- Occur frequently

- Are similar to each other


Activity discovery and anomalous activity explanation16 l.jpg
Activity Discovery and Anomalous Activity Explanation

  • Anomaly - “deviation” from the “common” or “regular”

  • Key Questions:

    • ‘representation’ of activities

    • ‘regular’ activities

    • ‘different’ from regular

    • ‘explain’an anomaly

- Activity similarity

- Activity discovery


Activity similarity l.jpg
Activity Similarity

  • Two types of differences

    • core structural differences (csd)

    • event frequency differences (efd)

  • Sim (A,B) = w1*CSD(A,B) + w2*EFD(A,B)

  • Properties:

    • Identity

    • Commutative

    • Positive semi-definite


Activity similarity18 l.jpg
Activity Similarity

  • Two types of differences

    • core structural differences (csd)

    • event frequency differences (efd)

  • Properties:

    • Identity

    • Commutative

    • Positive semi-definite


Activity similarity19 l.jpg
Activity Similarity

  • Two types of differences

    • core structural differences (csd)

    • event frequency differences (efd)

  • Properties:

    • Identity

    • Commutative

    • Positive semi-definite


Activity discovery and anomalous activity explanation20 l.jpg
Activity Discovery and Anomalous Activity Explanation

  • Anomaly - “deviation” from the “common” or “regular”

  • Key Questions:

    • ‘representation’ of activities

    • ‘regular’ activities

    • ‘different’ from regular

    • ‘explain’an anomaly

Activity similarity

- Activity discovery


Activity sub class discovery l.jpg
Activity Sub-Class Discovery

  • Recall: regular activities occur frequently and are similar to each other

  • Activity Sub-Class Discovery - a Graphic Theoretic problem of finding maximal cliques in edge-weighted graphs

  • Maximal Cliques: overall similarity between clique nodes greater than some value, addition of any other node would reduce the overall clique similarity


Activity sub class discovery22 l.jpg
Activity Sub-Class Discovery

  • Recall: regular activities occur frequently and are similar to each other

  • Activity Sub-Class Discovery - a Graphic Theoretic problem of finding maximal cliques in edge-weighted graphs

  • Maximal Cliques: overall similarity between clique nodes greater than some value, addition of any other node would reduce the overall clique similarity


Activity sub class discovery23 l.jpg
Activity Sub-Class Discovery

  • Recall: regular activities occur frequently and are similar to each other

  • Activity Sub-Class Discovery - a Graphic Theoretic problem of finding maximal cliques in edge-weighted graphs

  • Maximal Cliques: overall similarity between clique nodes greater than some value, addition of any other node would reduce the overall clique similarity


Activity sub class discovery24 l.jpg
Activity Sub-Class Discovery

  • Sequentially find maximal cliques in edge weighted graph of activities

  • Activities different enough from all the regular activities are anomalies


Activity sub class discovery25 l.jpg
Activity Sub-Class Discovery

  • Sequentially find maximal cliques in edge weighted graph of activities

  • Activities different enough from all the regular activities are anomalies


Activity sub class discovery26 l.jpg
Activity Sub-Class Discovery

  • Sequentially find maximal cliques in edge weighted graph of activities

  • Activities different enough from all the regular activities are anomalies


Activity discovery and anomalous activity explanation27 l.jpg
Activity Discovery and Anomalous Activity Explanation

  • Anomaly - “deviation” from the “common” or “regular”

  • Key Questions:

    • ‘representation’ of activities

    • ‘regular’ activities

    • ‘different’ from regular

    • ‘explain’an anomaly


Activity discovery and anomalous activity explanation28 l.jpg
Activity Discovery and Anomalous Activity Explanation

  • Anomaly - “deviation” from the “common” or “regular”

  • Key Questions:

    • ‘representation’ of activities

    • ‘regular’ activities

    • ‘different’ from regular

    • ‘explain’an anomaly

Activity classification

- Anomaly detection


Activity classification l.jpg
Activity Classification

  • Compute weighted similarity between a new activity T and previous class members as:

  • Select membership sub-class as:


Activity classification30 l.jpg
Activity Classification

  • Compute weighted similarity between a new activity T and previous class members as:

  • Select membership sub-class as:


Activity discovery and anomalous activity explanation31 l.jpg
Activity Discovery and Anomalous Activity Explanation

  • Anomaly - “deviation” from the “common” or “regular”

  • Key Questions:

    • ‘representation’ of activities

    • ‘regular’ activities

    • ‘different’ from regular

    • ‘explain’an anomaly

Activity classification

- Anomaly detection


Anomaly detection l.jpg
Anomaly Detection

  • Define function

  • Learn the detection threshold from training data


Anomaly detection33 l.jpg
Anomaly Detection

  • Define function

  • Represents the within-Class difference of the test activity w.r.t. previous class members

  • Pick a particular threshold to detect anomalies


Anomaly detection34 l.jpg
Anomaly Detection

  • Define function

  • Represents the within-Class difference of the test activity w.r.t. previous class members

  • Pick (learn) a particular threshold to detect anomalies


Activity discovery and anomalous activity explanation35 l.jpg
Activity Discovery and Anomalous Activity Explanation

  • Anomaly - “deviation” from the “common” or “regular”

  • Key Questions:

    • ‘representation’ of activities

    • ‘regular’ activities

    • ‘different’ from regular

    • ‘explain’an anomaly


Anomaly explanation l.jpg
Anomaly Explanation

  • Explanatory features:

    • Consistent

    • Frequent

  • Explanation based on features that were:

    • Deficientfrom an anomaly but were frequently and consistentlypresent in regular members

    • Extraneous in an anomaly but consistently absentfrom the regular members


Anomaly explanation37 l.jpg
Anomaly Explanation

  • Explanatory features:

    • Consistent

    • Frequent

  • Explanation based on features that were:

    • Deficientfrom an anomaly but were frequently and consistentlypresent in regular members

    • Extraneous in an anomaly but consistently absentfrom the regular members


Anomaly explanation38 l.jpg
Anomaly Explanation

  • Explanatory features:

    • Consistent

    • Frequent

  • Explanation based on features that were:

    • Deficientfrom an anomaly but were frequently and consistentlypresent in regular members

    • Extraneous in an anomaly but consistently absentfrom the regular members



Slide40 l.jpg

Experimental Setup – Loading Dock

  • Barns & Nobel Loading Dock Area

  • One month worth of data:

    • 5 days a week – 9 a.m. till 5 p.m.

  • Event Vocabulary – 61 events

  • 195 activities:

    • 150 train activities + 45 test activities

Bird’s Eye View of

Experimental Setup


Slide41 l.jpg

Results

General Characteristics of

Discovered Activity Classes

  • UPS Delivery Vehicles

  • Fed Ex Delivery Vehicles

  • Delivery Trucks – multiple packages delivered

  • Cars and vans, only 1 or 2 packages delivered

  • Motorized cart used to pick and drop packages

  • Van deliveries – no use of motorized cart

  • Delivery trucks – multiple people


Slide42 l.jpg

Results

General Characteristics of

Discovered Activity Classes

Few of the detected Anomalies

  • UPS Delivery Vehicles

  • Fed Ex Delivery Vehicles

  • Delivery Trucks – multiple packages delivered

  • Cars and vans, only 1 or 2 packages delivered

  • Motorized cart used to pick and drop packages

  • Van deliveries – no use of motorized cart

  • Delivery trucks – multiple people

  • Back door of delivery not closed

  • (b) More than usual number of people

  • involved in unloading

  • (c) Very few vocabulary events performed


Slide43 l.jpg

Results

  • Are the detected anomalous activities ‘interesting’ from human view-point?

    Anecdotal Validation:

    • Studied 7 users

    • Showed each user 8 regular activities selected randomly

    • Showed each user 10 test activities, 5 regular and 5 detected anomalous activities

    • 8 out of 10 activity-labels of the users matched the labels of our system

    • Probability of this match happening by chance is 4.4%


Slide44 l.jpg

Experimental Setup – House Environment

  • House environment – Commercially available strain gages

  • Five month worth of daily data (151 days):

  • Event Vocabulary – 16 events

  • 151 activities

Top View of

Experimental Setup



Activity discovery and anomalous activity explanation recap l.jpg
Activity Discovery and Anomalous Activity Explanation - Recap

  • Anomaly - “deviation” from the “common” or “regular”

  • Key Questions:

    • ‘representation’ of activities

    • ‘regular’ activities

    • ‘different’ from regular

    • ‘explain’an anomaly


Hard question s l.jpg
Hard Question(s)

  • Importance of semantically meaningful activity-classes?

  • If not – can we construct a rules to translate computer-discovered classes to something human interpretable?


ad
