  1. Proactivity in BizTalk? Tord Glad Nordahl Proactivity - All environments are unique

  2. Who am I? • BizTalk Administrator Expert • Training • Health Checking • Debugger • Speaker • Active contributor at TechNet • Active blogger www.biztalkadmin.com Profile Profile Proactivity - All environments are unique

  3. Proactivity in BizTalk • What is meant by proactivity • How can you know • Where do you look • And how do you prevent it? Proactivity - All environments are unique

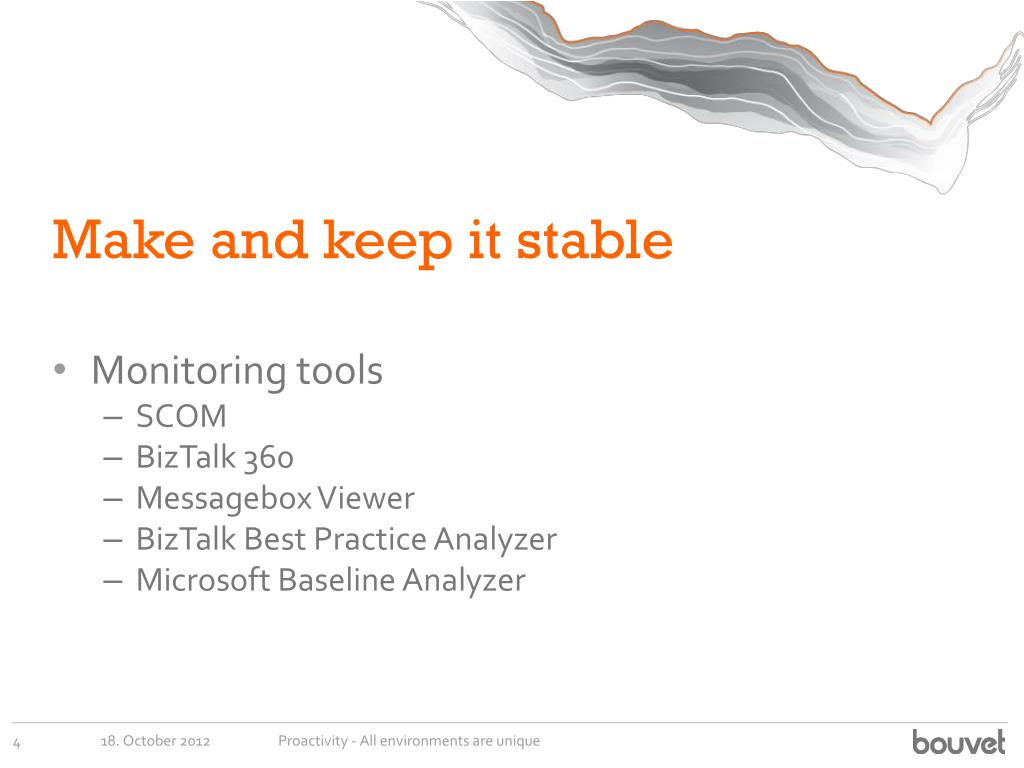

  4. Make and keep it stable • Monitoring tools • SCOM • BizTalk 360 • Messagebox Viewer • BizTalk Best Practice Analyzer • Microsoft Baseline Analyzer Proactivity - All environments are unique

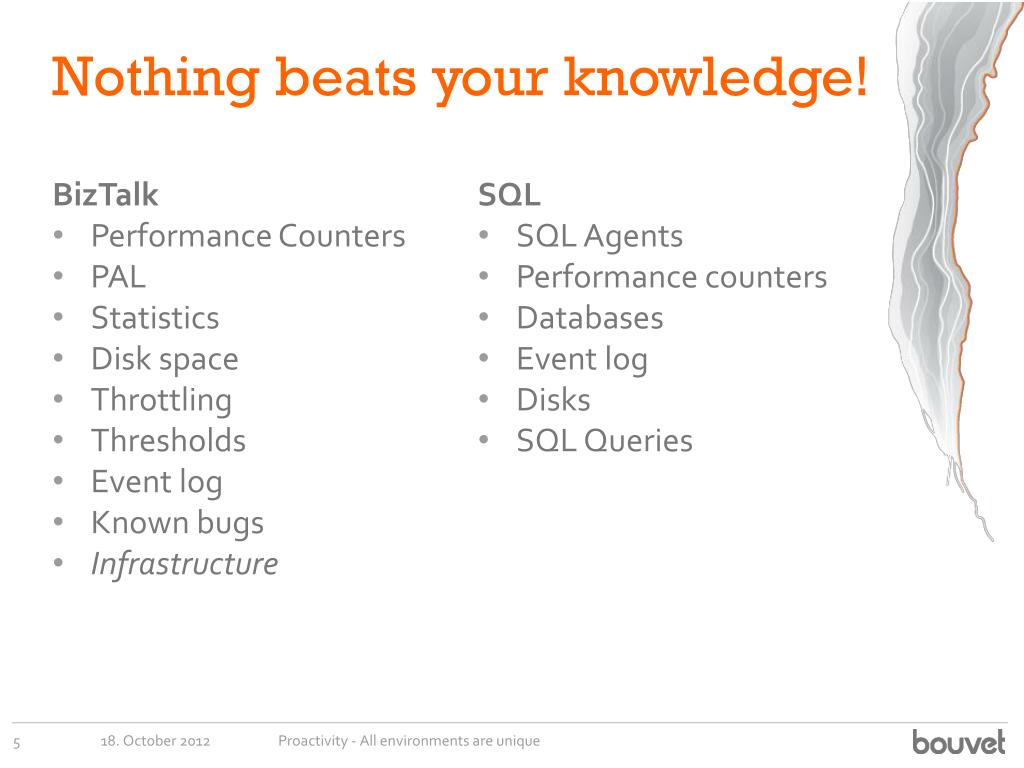

  5. Nothing beats your knowledge! BizTalk SQL SQL Agents Performance counters Databases Event log Disks SQL Queries • Performance Counters • PAL • Statistics • Disk space • Throttling • Thresholds • Event log • Known bugs • Infrastructure Proactivity - All environments are unique

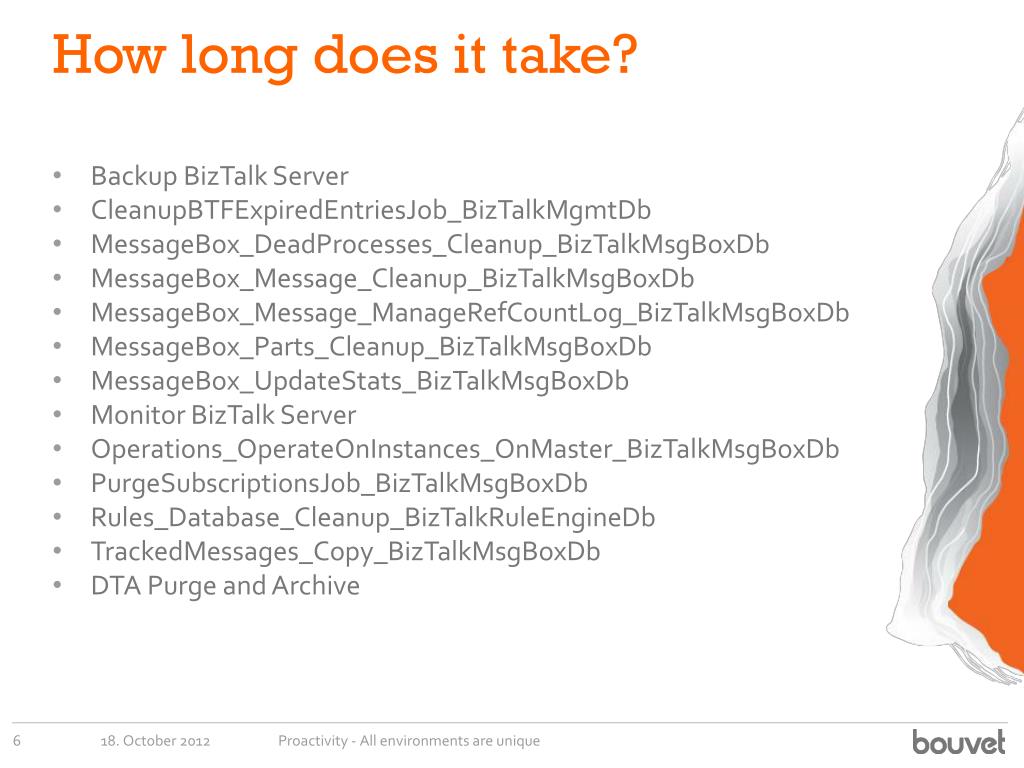

  6. How long does it take? • Backup BizTalk Server • CleanupBTFExpiredEntriesJob_BizTalkMgmtDb • MessageBox_DeadProcesses_Cleanup_BizTalkMsgBoxDb • MessageBox_Message_Cleanup_BizTalkMsgBoxDb • MessageBox_Message_ManageRefCountLog_BizTalkMsgBoxDb • MessageBox_Parts_Cleanup_BizTalkMsgBoxDb • MessageBox_UpdateStats_BizTalkMsgBoxDb • Monitor BizTalk Server • Operations_OperateOnInstances_OnMaster_BizTalkMsgBoxDb • PurgeSubscriptionsJob_BizTalkMsgBoxDb • Rules_Database_Cleanup_BizTalkRuleEngineDb • TrackedMessages_Copy_BizTalkMsgBoxDb • DTA Purge and Archive Proactivity - All environments are unique

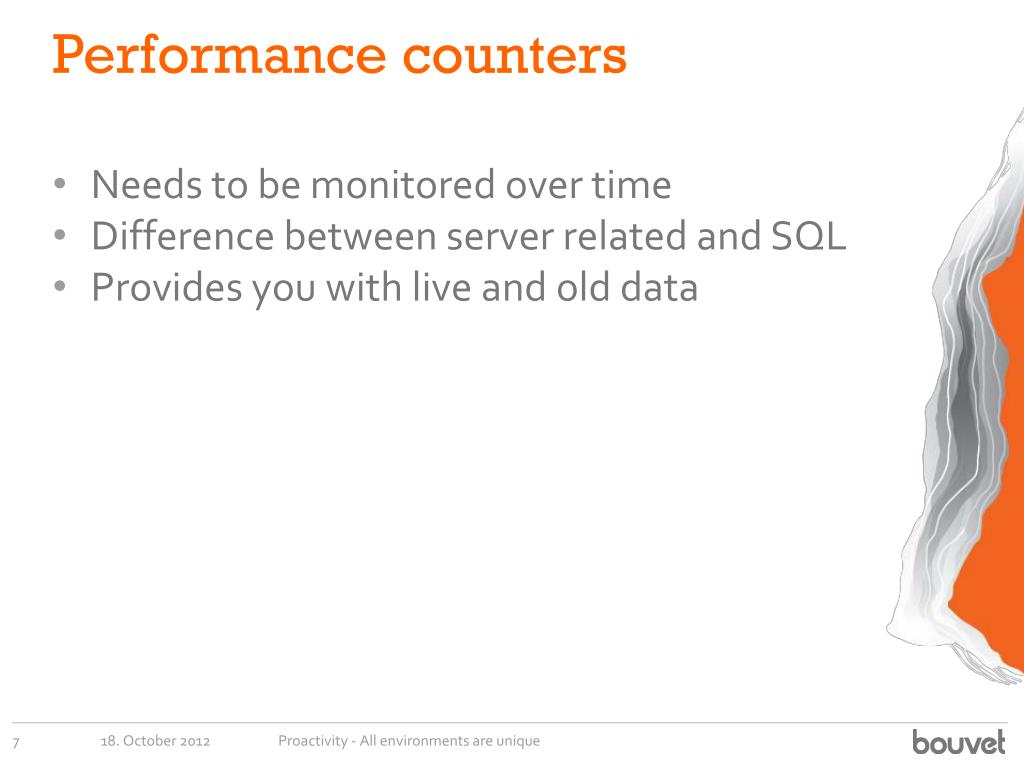

  7. Performance counters • Needs to be monitored over time • Difference between server related and SQL • Provides you with live and old data Proactivity - All environments are unique

  8. Most important databases • BizTalkMsgBoxDb • BizTalkDTADb • BizTalkMgmtDb • SSODB Proactivity - All environments are unique

  9. BizTalkMsgBoxDb • Spool • TrackingData_x_x • Instances • Marklog • X-RefcountLog Proactivity - All environments are unique

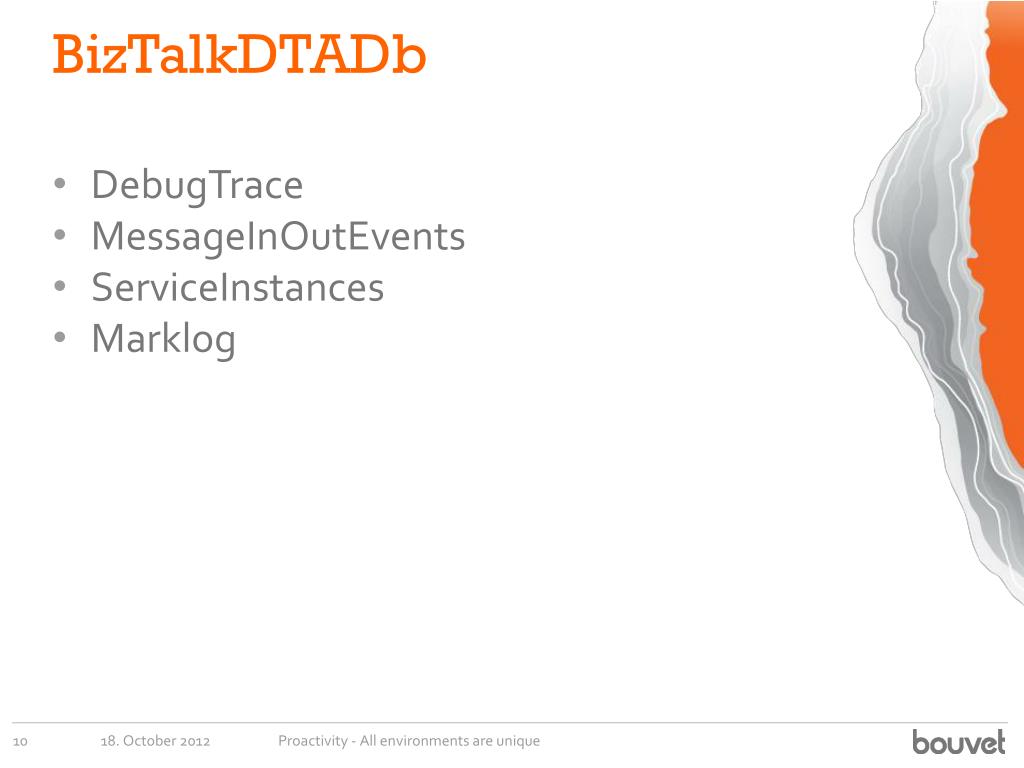

  10. BizTalkDTADb • DebugTrace • MessageInOutEvents • ServiceInstances • Marklog Proactivity - All environments are unique

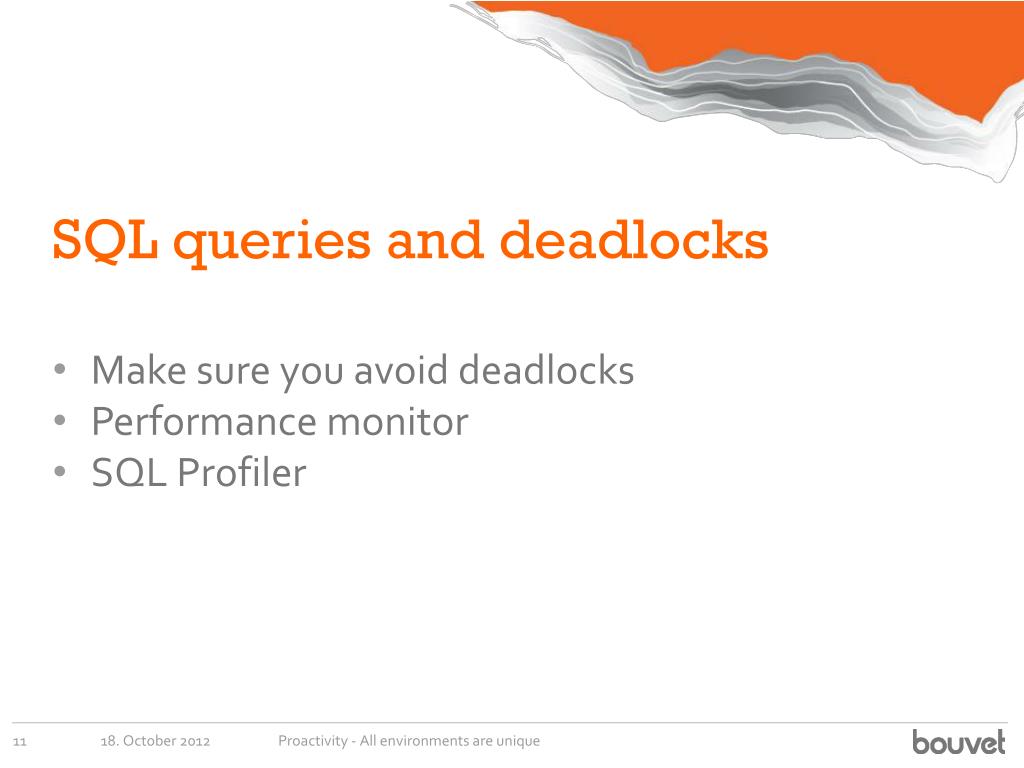

  11. SQL queries and deadlocks • Make sure you avoid deadlocks • Performance monitor • SQL Profiler Proactivity - All environments are unique

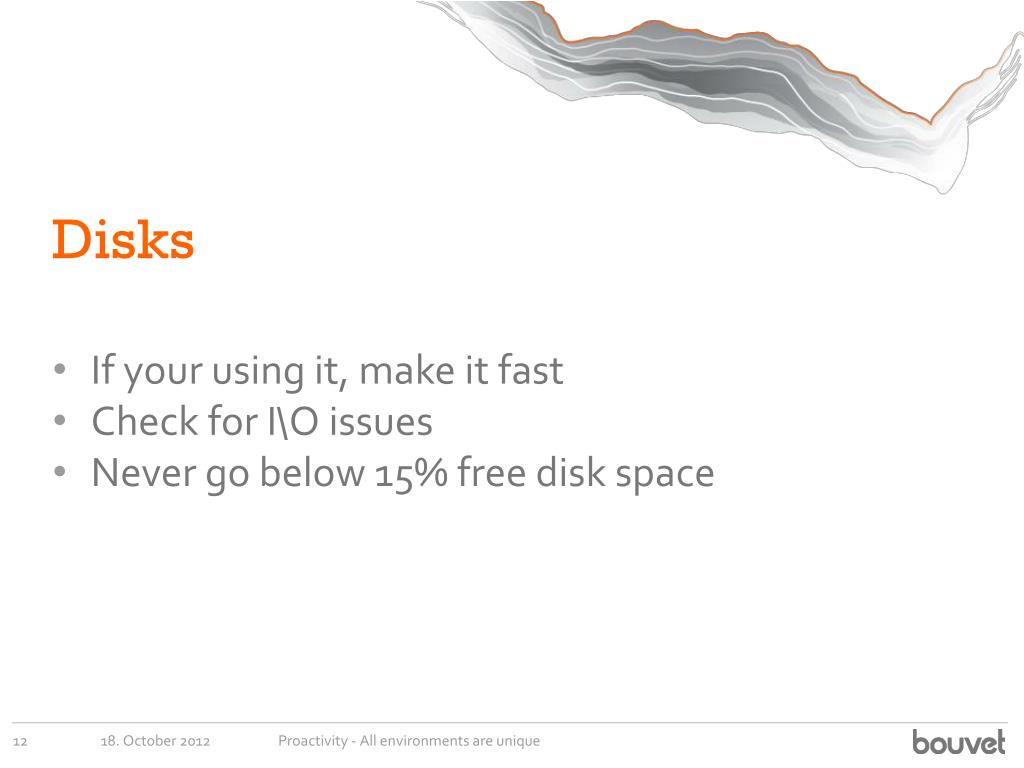

  12. Disks • If your using it, make it fast • Check for I\O issues • Never go below 15% free disk space Proactivity - All environments are unique

  13. Tip: To see all counters at least one host must be running! BizTalk Performance counters Proactivity - All environments are unique

  14. Performance Counter • BizTalk: Message Agent • Active Instance Count • Database sessions • Database session threshold • Database size • High database session • High database size • High in-process message count • High message delivery rate • High message publishing rate • High Process memory • High System memory • High thread count • In-process message count • In-process message count threshold • Message delivery delay (ms)

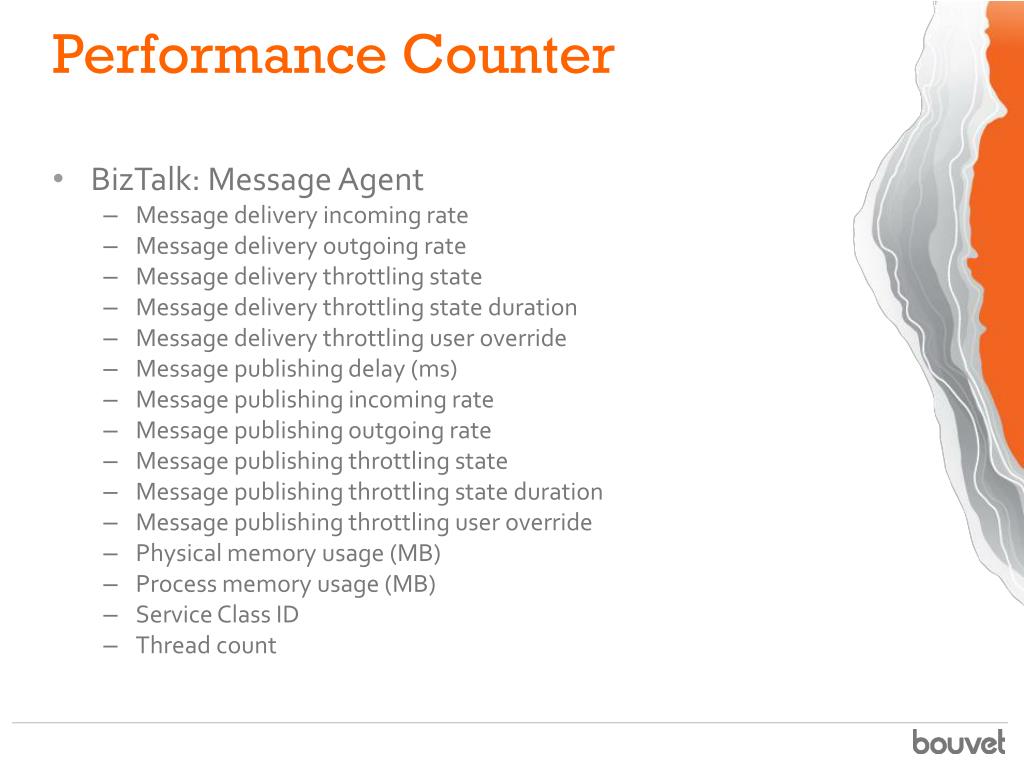

  15. Performance Counter • BizTalk: Message Agent • Message delivery incoming rate • Message delivery outgoing rate • Message delivery throttling state • Message delivery throttling state duration • Message delivery throttling user override • Message publishing delay (ms) • Message publishing incoming rate • Message publishing outgoing rate • Message publishing throttling state • Message publishing throttling state duration • Message publishing throttling user override • Physical memory usage (MB) • Process memory usage (MB) • Service Class ID • Thread count

  16. Performance Counter • BizTalk: Message Agent • Thread count threshold • Total batches omitted • Total message delivered • Total messages published

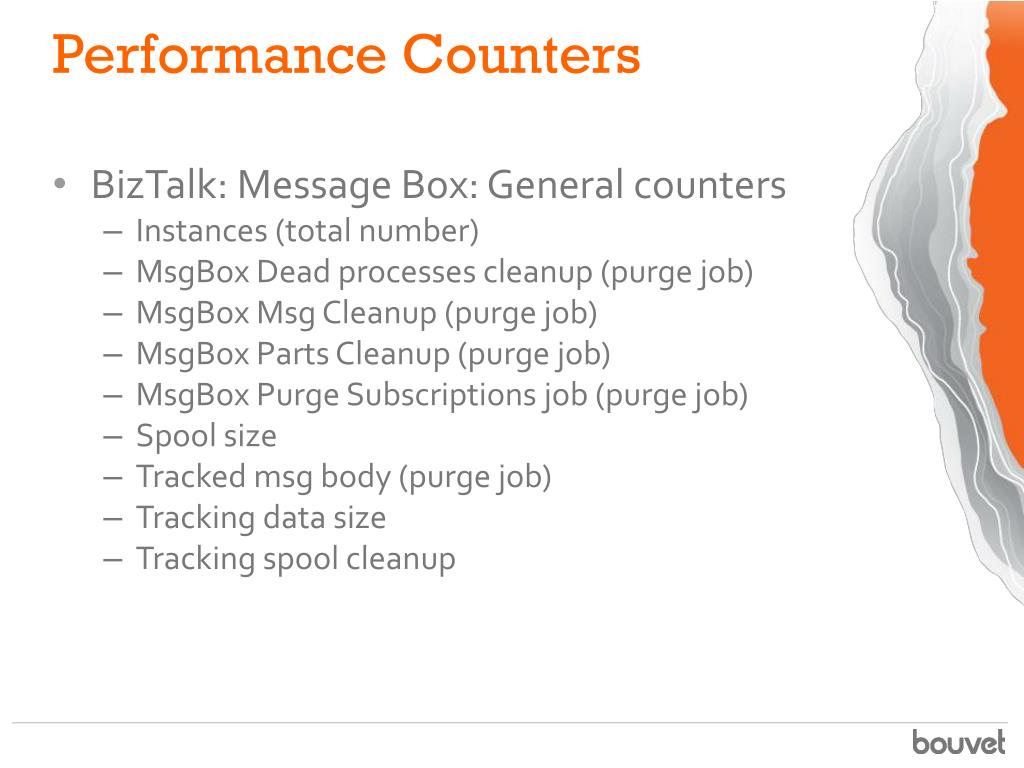

  17. Performance Counters • BizTalk: Message Box: General counters • Instances (total number) • MsgBox Dead processes cleanup (purge job) • MsgBoxMsg Cleanup (purge job) • MsgBox Parts Cleanup (purge job) • MsgBox Purge Subscriptions job (purge job) • Spool size • Tracked msg body (purge job) • Tracking data size • Tracking spool cleanup

  18. Performance Counters • BizTalk: Message Box: Host counters • Host queue – Instance state msg refs – length • Host queue – length • Host queue – number of instances • Host queue – suspended messages - lengthr

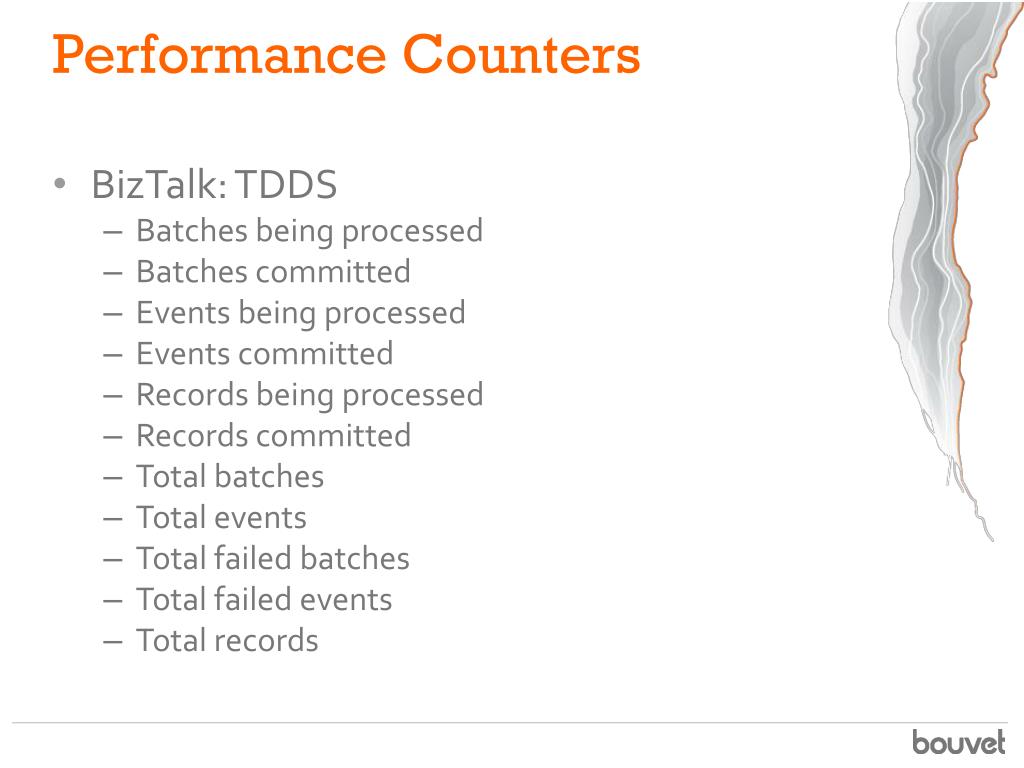

  19. Performance Counters • BizTalk: TDDS • Batches being processed • Batches committed • Events being processed • Events committed • Records being processed • Records committed • Total batches • Total events • Total failed batches • Total failed events • Total records

  20. Performance counters • BizTalk:Messaging • Active Receive Location • Active Receive Threads • Active Send Messages • Active Send Threads • Documents processed (per second) • Documents received (per second) • Documents resubmitted (per second) • Documents suspended • Documents transmitted/batch • ID Process • Pending Receive Batches • Pending transmitted messages • Request/response timeouts • Throttled receive batches

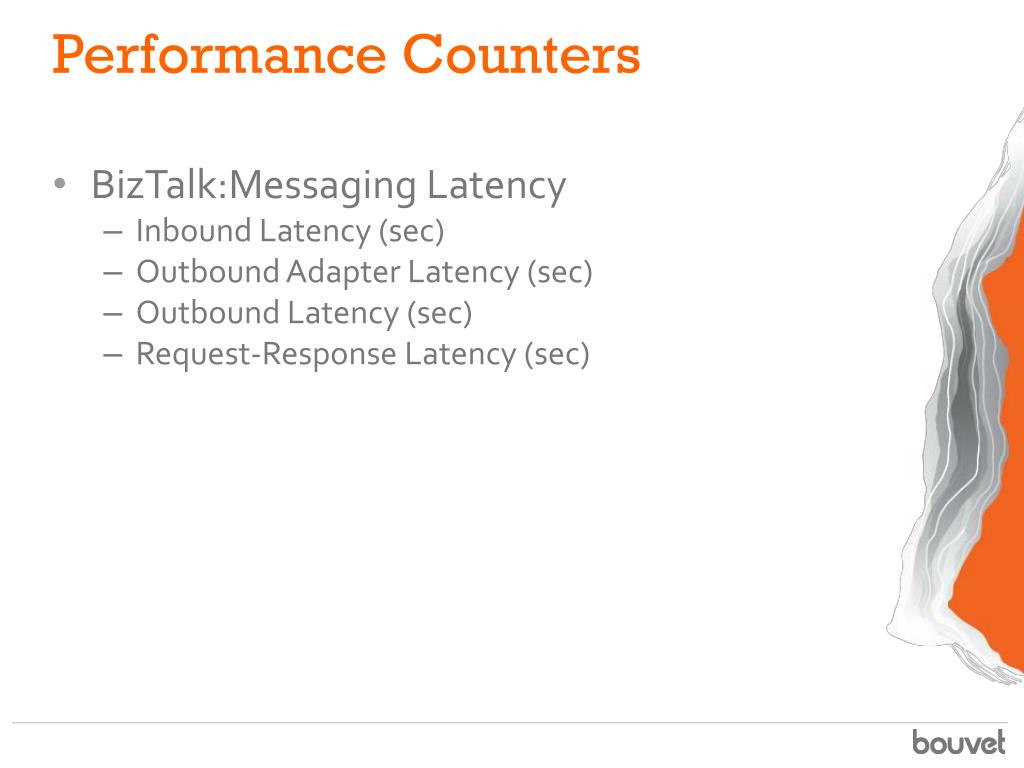

  21. Performance Counters • BizTalk:Messaging Latency • Inbound Latency (sec) • Outbound Adapter Latency (sec) • Outbound Latency (sec) • Request-Response Latency (sec)

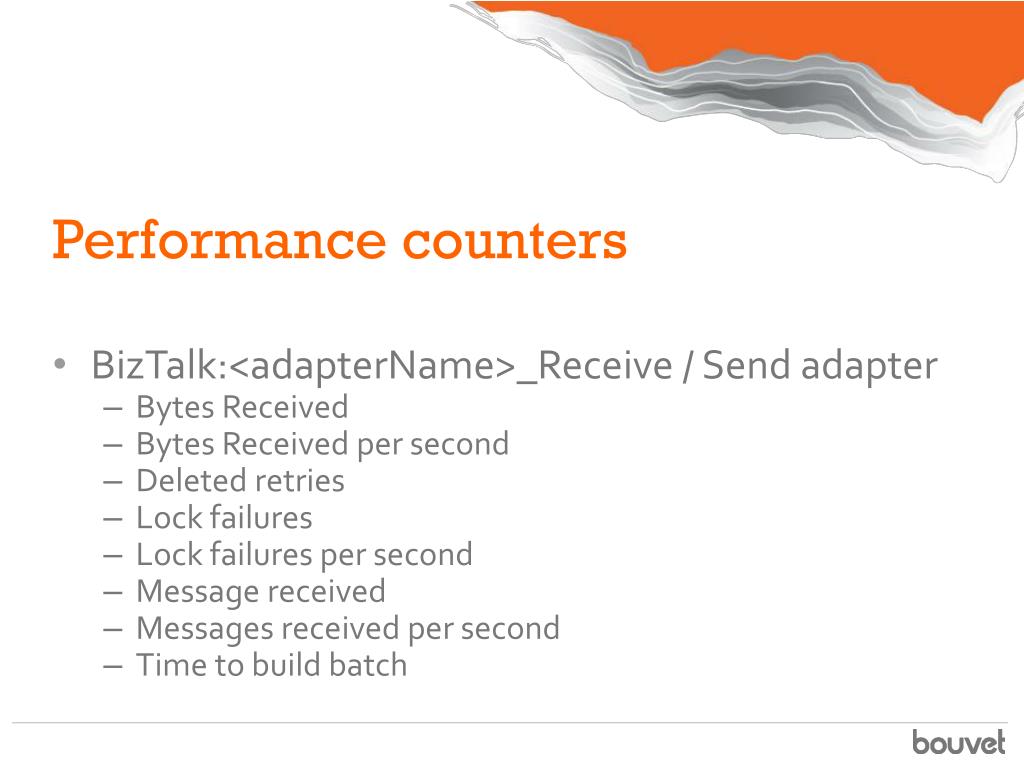

  22. Performance counters • BizTalk:<adapterName>_Receive / Send adapter • Bytes Received • Bytes Received per second • Deleted retries • Lock failures • Lock failures per second • Message received • Messages received per second • Time to build batch

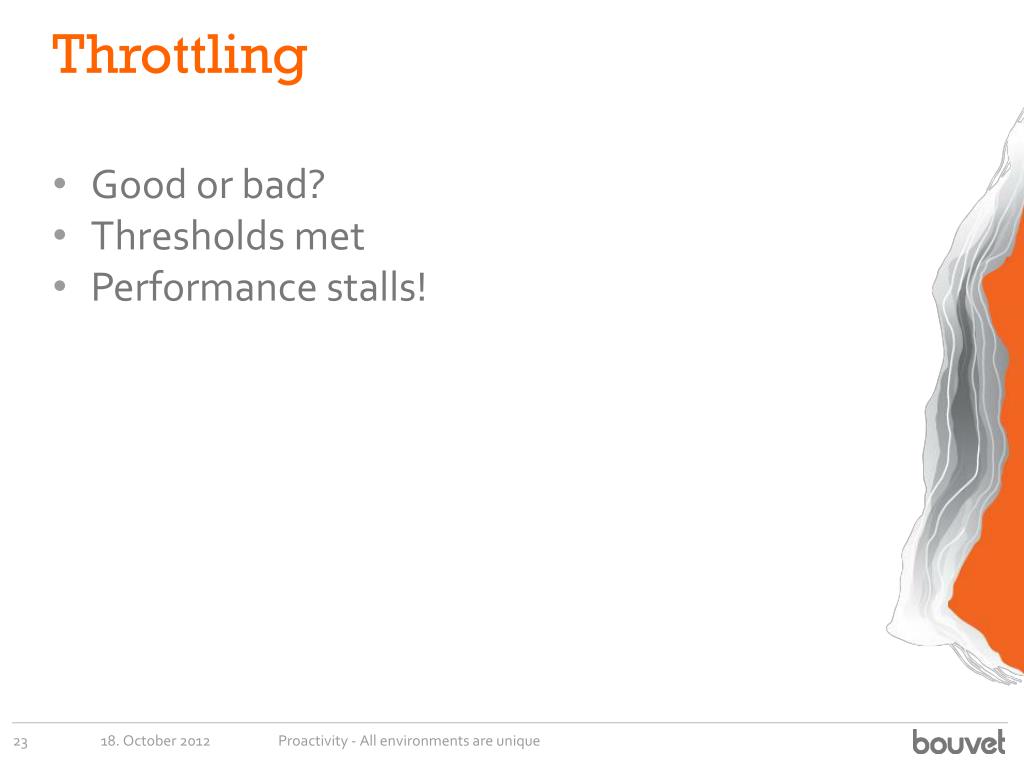

  23. Throttling • Good or bad? • Thresholds met • Performance stalls! Proactivity - All environments are unique

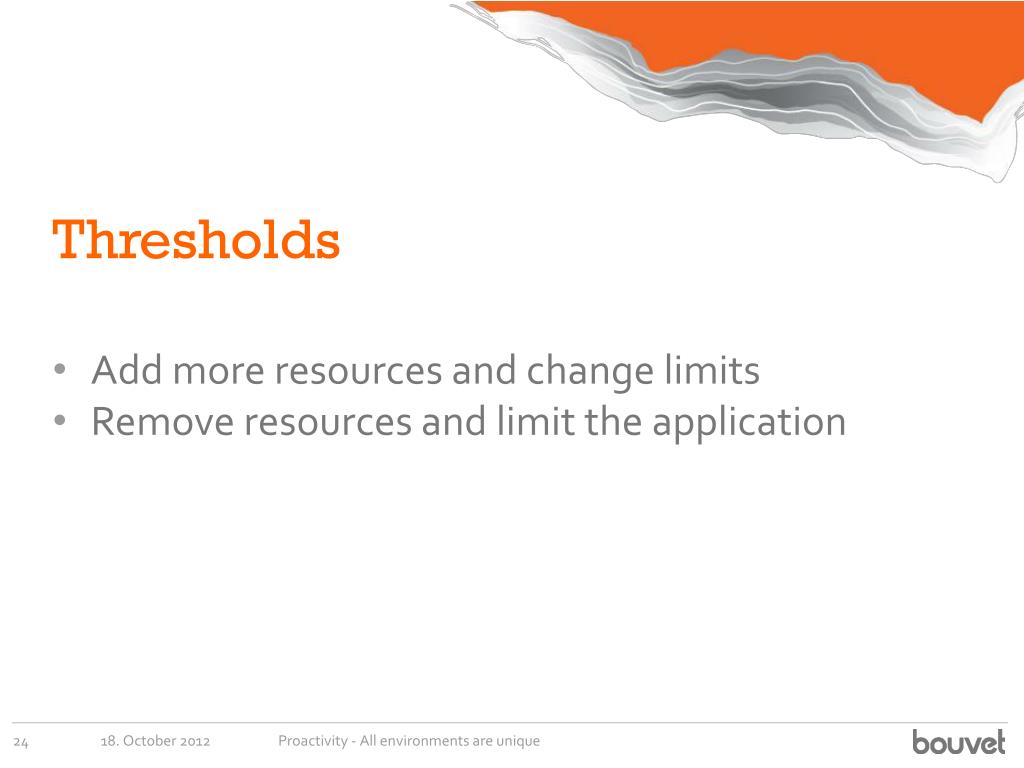

  24. Thresholds • Add more resources and change limits • Remove resources and limit the application Proactivity - All environments are unique

  25. Event log • Look for errors • Monitor and trigger on errors • Keep it clean Proactivity - All environments are unique

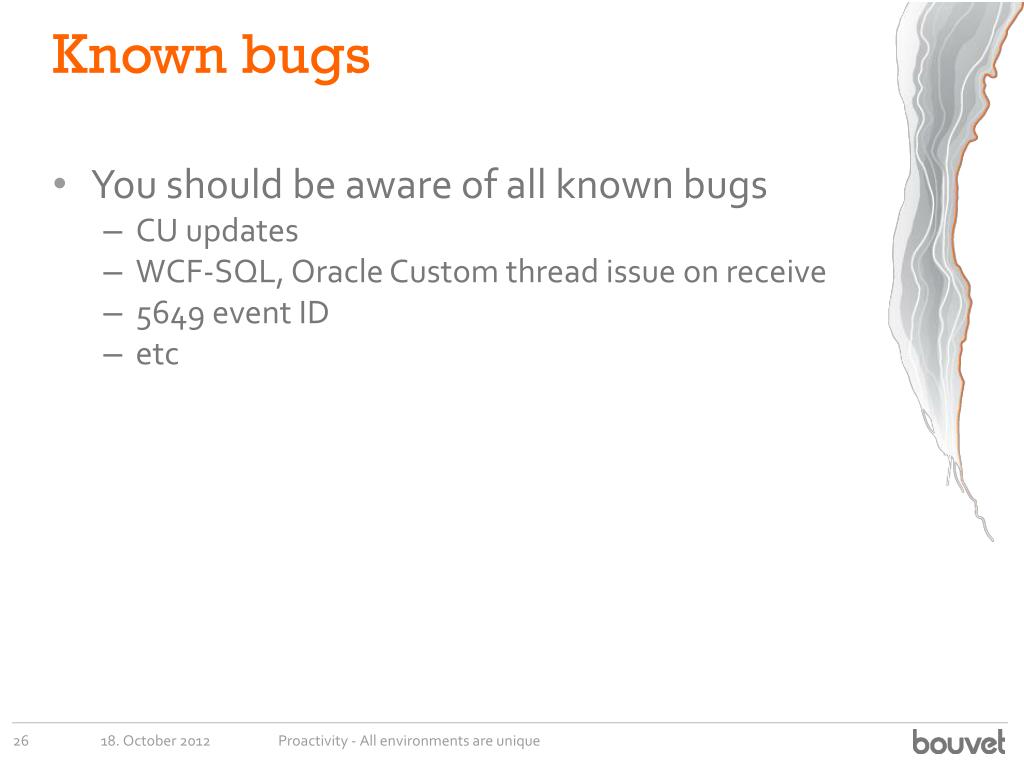

  26. Known bugs • You should be aware of all known bugs • CU updates • WCF-SQL, Oracle Custom thread issue on receive • 5649 event ID • etc Proactivity - All environments are unique

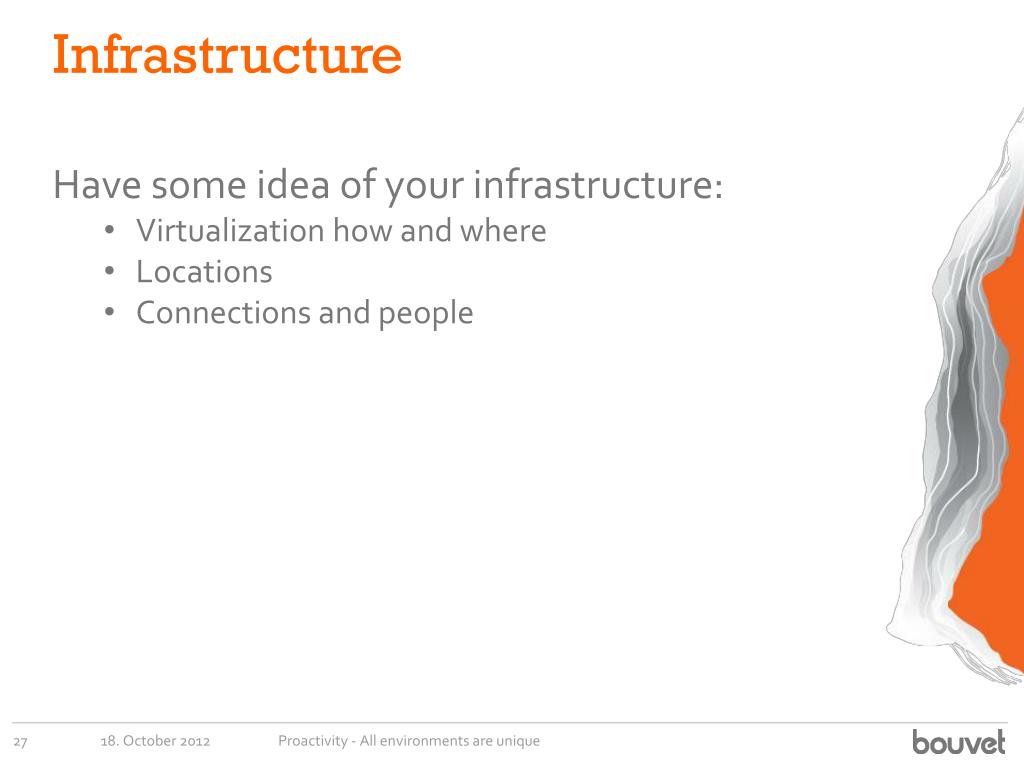

  27. Infrastructure Have some idea of your infrastructure: • Virtualization how and where • Locations • Connections and people Proactivity - All environments are unique

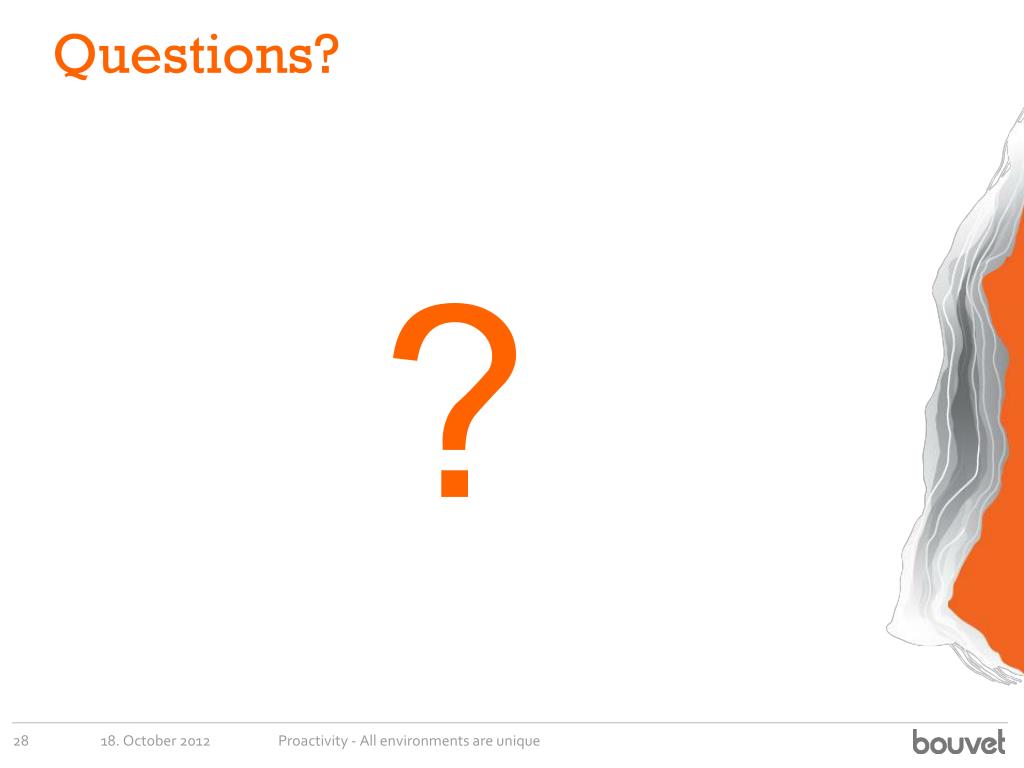

  28. Questions? ? Proactivity - All environments are unique
