  1. Measuring the strength of a Magnetic Field © David Hoult 2009

  2. When current flows through a conductor which is in a magnetic field, it experiences a force, except when the conductor is © David Hoult 2009

  3. When current flows through a conductor which is in a magnetic field, it experiences a force, except when the conductor is parallel to the flux lines © David Hoult 2009

  4. When current flows through a conductor which is in a magnetic field, it experiences a force, except when the conductor is parallel to the flux lines The direction of the force is at 90° to both the current and the flux lines © David Hoult 2009

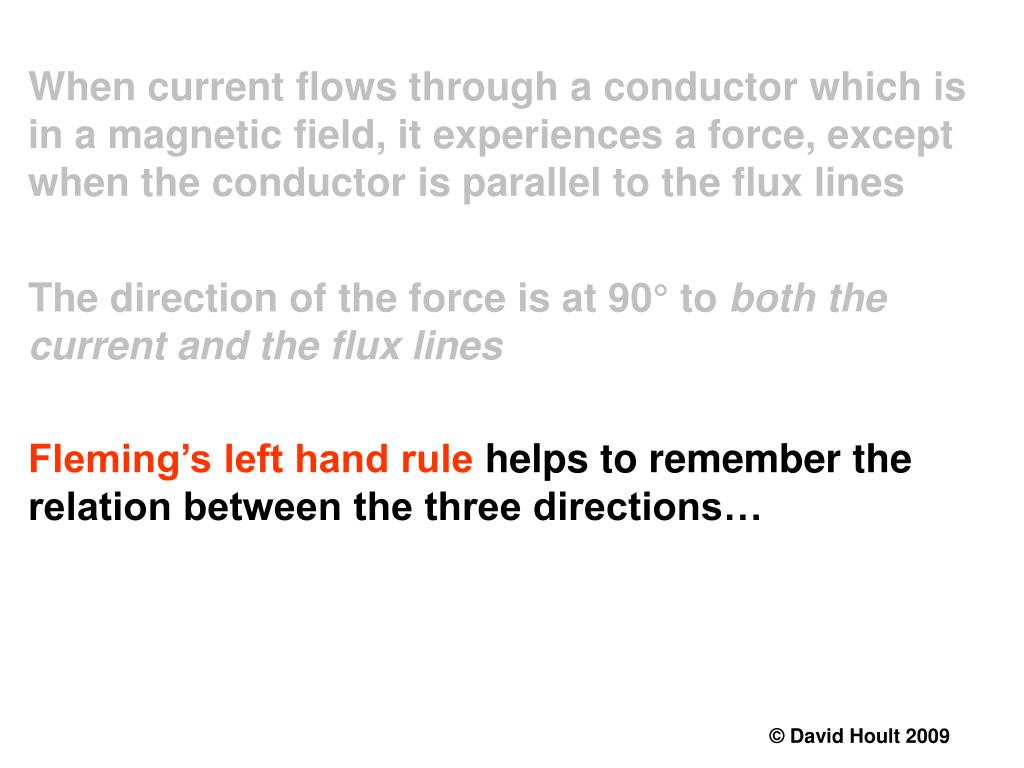

  5. When current flows through a conductor which is in a magnetic field, it experiences a force, except when the conductor is parallel to the flux lines The direction of the force is at 90° to both the current and the flux lines Fleming’s left hand rule helps to remember the relation between the three directions… © David Hoult 2009

  6. © David Hoult 2009

  7. © David Hoult 2009

  8. Thumb First finger Second finger © David Hoult 2009

  9. ThuMb Motion First finger Second finger © David Hoult 2009

  10. ThuMb Motion First finger Field Second finger © David Hoult 2009

  11. ThuMb Motion First finger Field SeCond finger Current © David Hoult 2009

  12. © David Hoult 2009

  13. © David Hoult 2009

  14. © David Hoult 2009

  15. © David Hoult 2009

  16. Factors affecting the Magnitude of the Force The force depends on © David Hoult 2009

  17. The force depends on - the current flowing through the conductor, I © David Hoult 2009

  18. The force depends on - the current flowing through the conductor - the length of conductor in the field © David Hoult 2009

  19. The force depends on - the current flowing through the conductor - the length of conductor in the field Experiments show that © David Hoult 2009

  20. The force depends on - the current flowing through the conductor - the length of conductor in the field Experiments show that F acurrent, I © David Hoult 2009

  21. The force depends on - the current flowing through the conductor - the length of conductor in the field Experiments show that F acurrent, I F alength of conductor, L © David Hoult 2009

  22. The force depends on - the current flowing through the conductor - the length of conductor in the field Experiments show that F a current, I F a length of conductor, L F = I L × a constant © David Hoult 2009

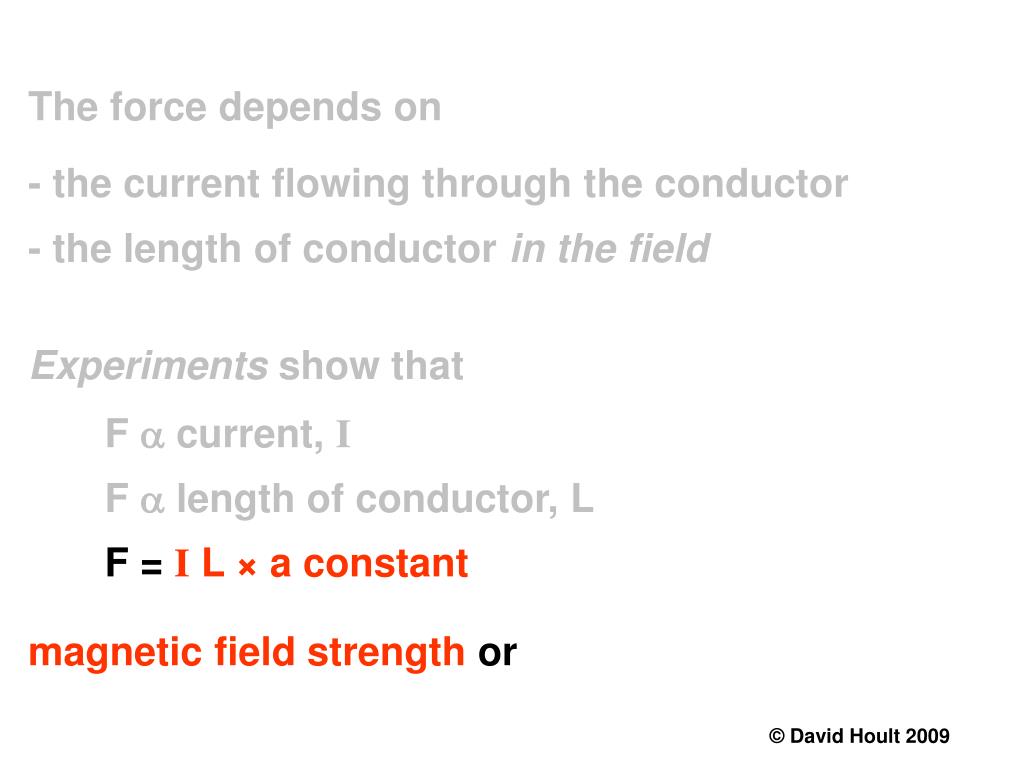

  23. The force depends on - the current flowing through the conductor - the length of conductor in the field Experiments show that F a current, I F a length of conductor, L F = I L × a constant magnetic field strength or © David Hoult 2009

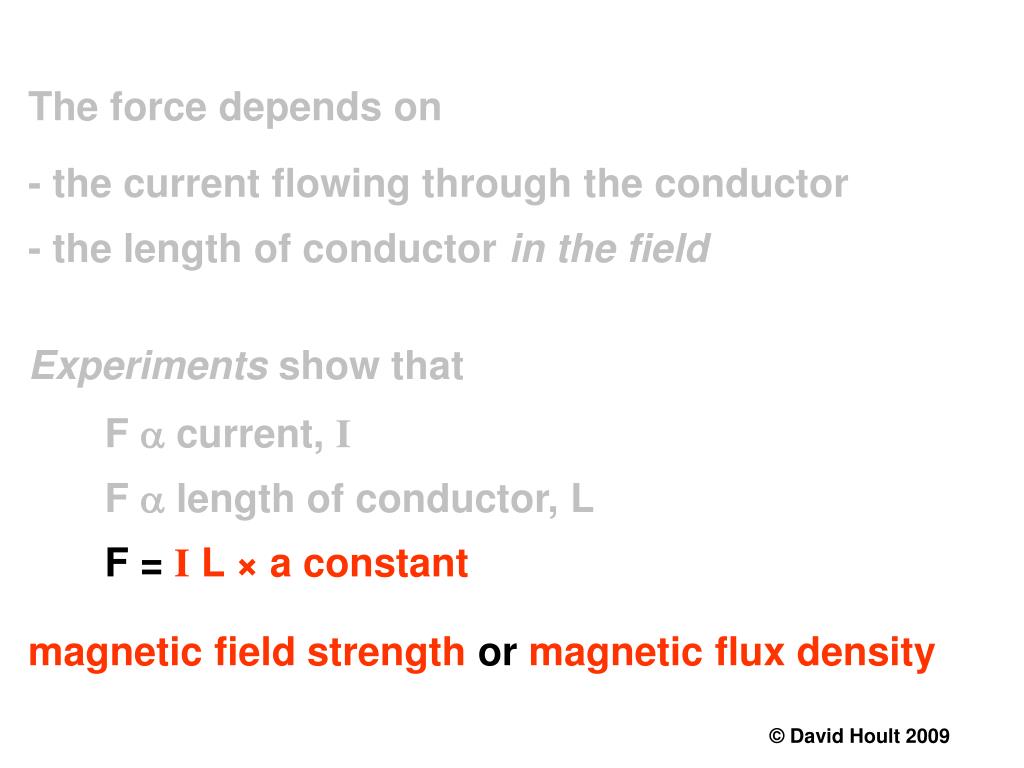

  24. The force depends on - the current flowing through the conductor - the length of conductor in the field Experiments show that F a current, I F a length of conductor, L F = I L × a constant magnetic field strength or magnetic flux density © David Hoult 2009

  25. F = ILB © David Hoult 2009

  26. F = ILB units of B Newtons per Amp per meter, NA-1m-1 © David Hoult 2009

  27. F = ILB units of B Newtons per Amp per meter, NA-1m-1 1NA-1m-1is called 1 Tesla (1T) © David Hoult 2009

  28. F = ILB units of B Newtons per Amp per meter NA-1m-1 1NA-1m-1 is called 1 Tesla (1T) The flux density of a magnetic field is © David Hoult 2009

  29. F = ILB units of B Newtons per Amp per meter NA-1m-1 1NA-1m-1 is called 1 Tesla (1T) The flux density of a magnetic field is the force per unit current per unit length acting on a conductor placed at 90° to the field © David Hoult 2009

  30. F = ILB units of B Newtons per Amp per meter NA-1m-1 1NA-1m-1 is called 1 Tesla (1T) The flux density of a magnetic field is the force per unit current per unit length acting on a conductor placed at 90° to the field F = ILBsinq © David Hoult 2009

  31. Force acting on a charged particle moving through a magnetic field © David Hoult 2009

  32. © David Hoult 2009

  33. Consider a conductor of length L, having n free electrons per unit volume. A current, I, is flowing through it © David Hoult 2009

  34. Consider a conductor of length L, having n free electrons per unit volume. A current, I, is flowing through it © David Hoult 2009

  35. In this piece of conductor there are © David Hoult 2009

  36. In this piece of conductor there are NAL free electrons © David Hoult 2009

  37. In this piece of conductor there are NAL free electrons If all these electrons pass through end x in time t then the current, I is given by © David Hoult 2009

  38. In this piece of conductor there are NAL free electrons If all these electrons pass through end x in time t then the current, I is given by nALe t © David Hoult 2009

  39. If there is a magnetic field of flux density B at 90° to the current, the conductor will experience a force of magnitude © David Hoult 2009

  40. If there is a magnetic field of flux density B at 90° to the current, the conductor will experience a force of magnitude ILB © David Hoult 2009

  41. If there is a magnetic field of flux density B at 90° to the current, the conductor will experience a force of magnitude ILB This is the sum of the forces on all the electrons, so the force F acting on each electron is given by © David Hoult 2009

  42. If there is a magnetic field of flux density B at 90° to the current, the conductor will experience a force of magnitude ILB This is the sum of the forces on all the electrons, so the force F acting on each electron is given by ILB IB F = = nA nAL © David Hoult 2009

  43. Substituting for I gives F = © David Hoult 2009

  44. Substituting for I gives nALeB F = = tnA © David Hoult 2009

  45. Substituting for I gives nALeB LeB F = = tnA t © David Hoult 2009

  46. Substituting for I gives nALeB LeB F = = tnA t © David Hoult 2009

  47. but L/t is © David Hoult 2009

  48. but L/t is the (drift) velocity of the electrons © David Hoult 2009

  49. but L/t is the (drift) velocity of the electrons therefore © David Hoult 2009

  50. but L/t is the (drift) velocity of the electrons therefore F = e v B © David Hoult 2009
