ABB MIG/MAG torches – Changes & Benefits

Robot Collision detect replaces Mechanical Collision Sensor

Fixed Position Bracket Assembly

‘Quick Release’ Hose Bundle at torch body

New Hose Bundle Outer Cover

Extensive Range of ‘Quick Release’ Torch Necks

slide3

ABB MIG/MAG torches – Changes & Benefits

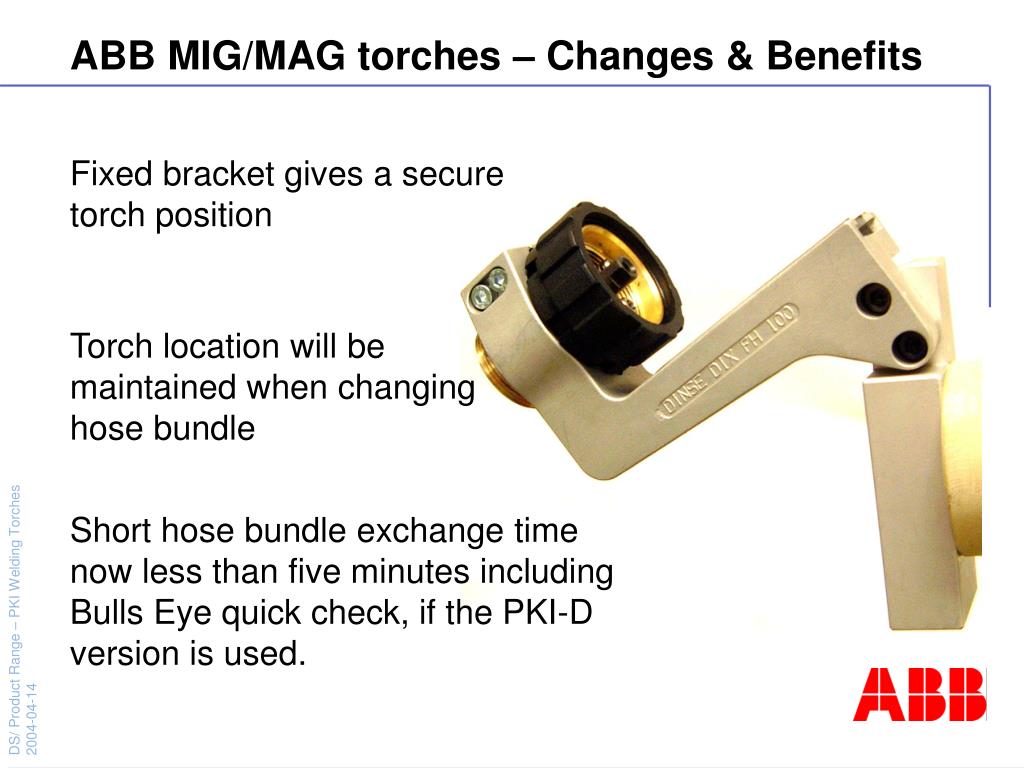

Fixed bracket gives a secure torch position

Torch location will be maintained when changing hose bundle

Short hose bundle exchange time now less than five minutes including Bulls Eye quick check, if the PKI-D version is used.

slide4

Limited Movement Swivels

ABB MIG/MAG torches – Changes & Benefits

The new Hose Bundle outer cover with swivels at torch body and wire feeder connections

Improved MTBF:

Current Hose Bundle: 17,000 Cycles

New Hose Bundle: 65,000 Cycles

slide5

TCP with 0 mmElectrode Extension

96 mm

343 mm

ABB MIG/MAG torches – TCP Dim. “Old” version

“Old” Standard PKI version

“Old” Standard PKI version

72 mm

slide6

TCP with 0 mmElectrode Extension

114 mm

382 mm

ABB MIG/MAG torches – TCP Dim. “New” version

“New” Standard PKI-S version

72 mm

slide7

This bracket can be quoted onrequest

TCP with 0 mmElectrode Extension

88 mm

72 mm

Giving almost the same TCP

as “old” version

346 mm

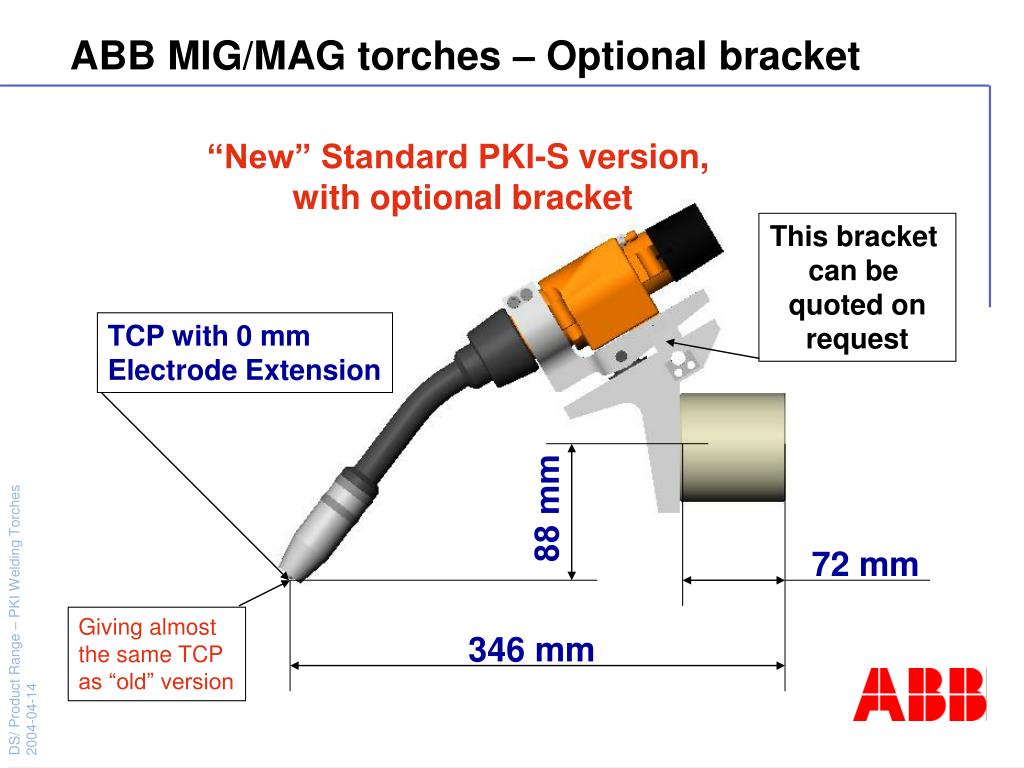

ABB MIG/MAG torches – Optional bracket

“New” Standard PKI-S version, with optional bracket

slide8

Hose bundle for the PKI-S Version

1400 mm

Hose bundle for the PKI-D Version

1400 mm

ABB MIG/MAG torches – Hose bundle versions
