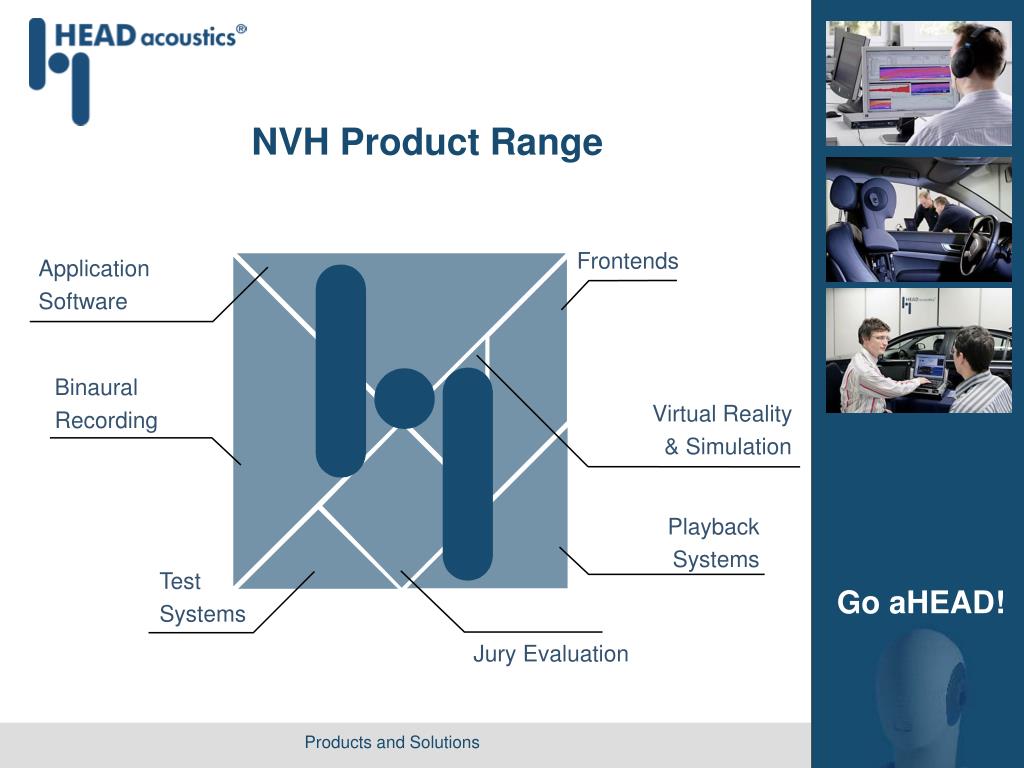

  1. Frontends Application Software Binaural Recording Virtual Reality & Simulation Playback Systems Test Systems Jury Evaluation NVH Product Range

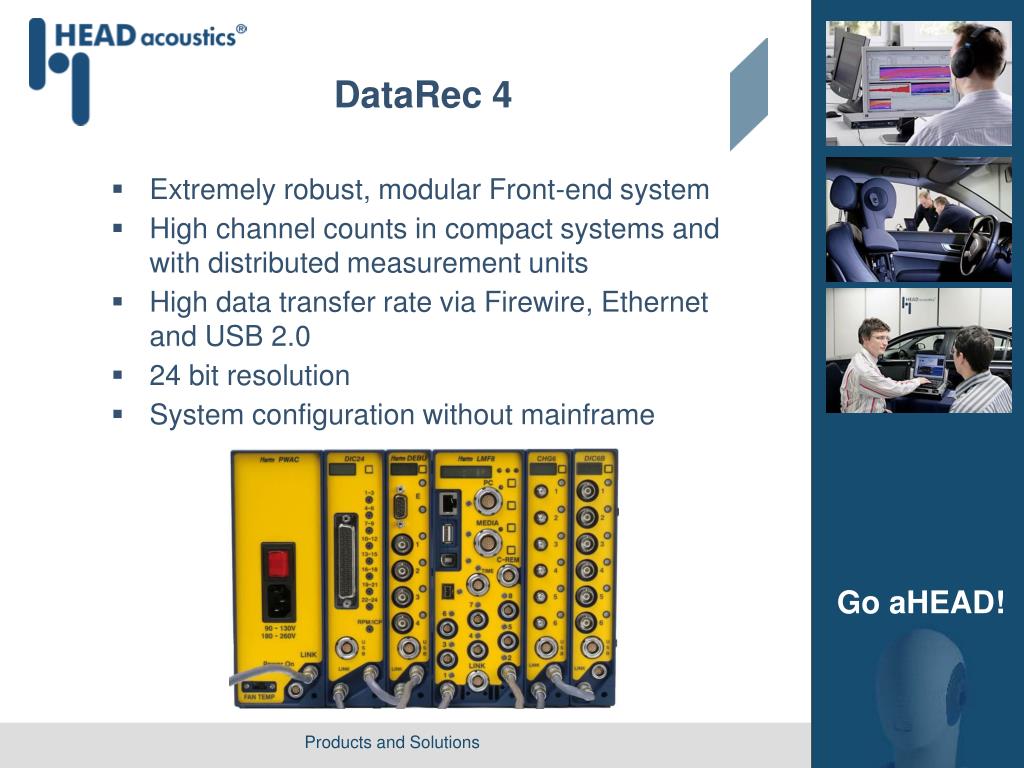

  2. DataRec 4 • Extremely robust, modular Front-end system • High channel counts in compact systems and with distributed measurement units • High data transfer rate via Firewire, Ethernet and USB 2.0 • 24 bit resolution • System configuration without mainframe

  3. Setup Examples • Single signal module configuration with low channel count • Compact system with higher channel count

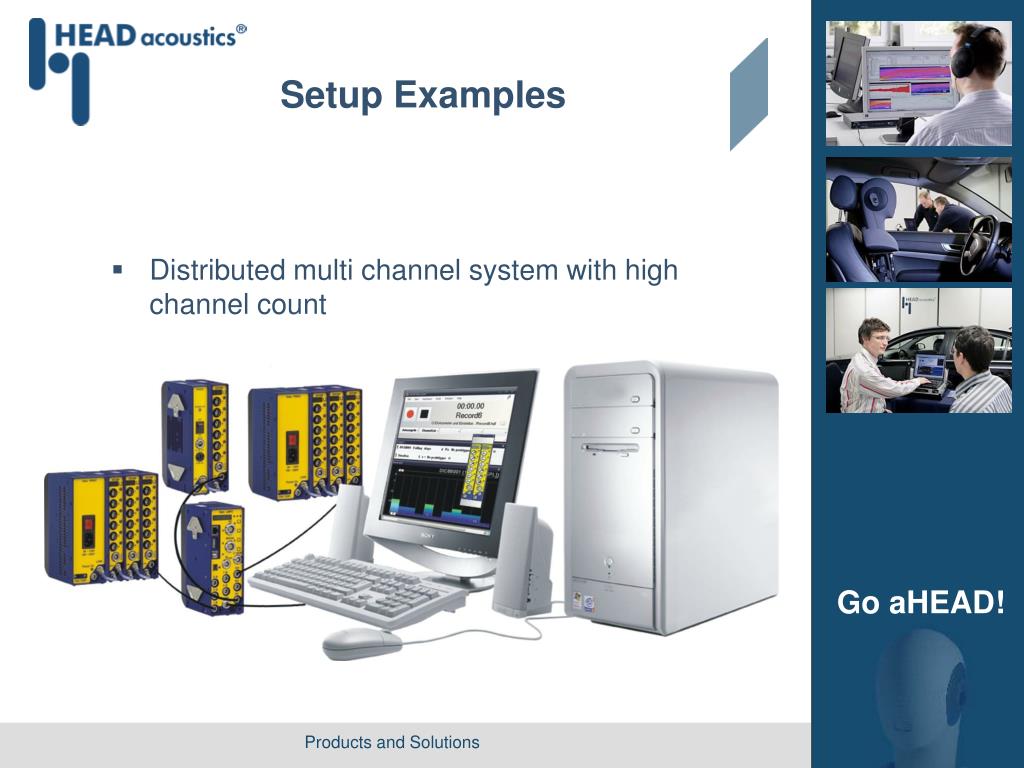

  4. Setup Examples • Distributed multi channel system with high channel count
