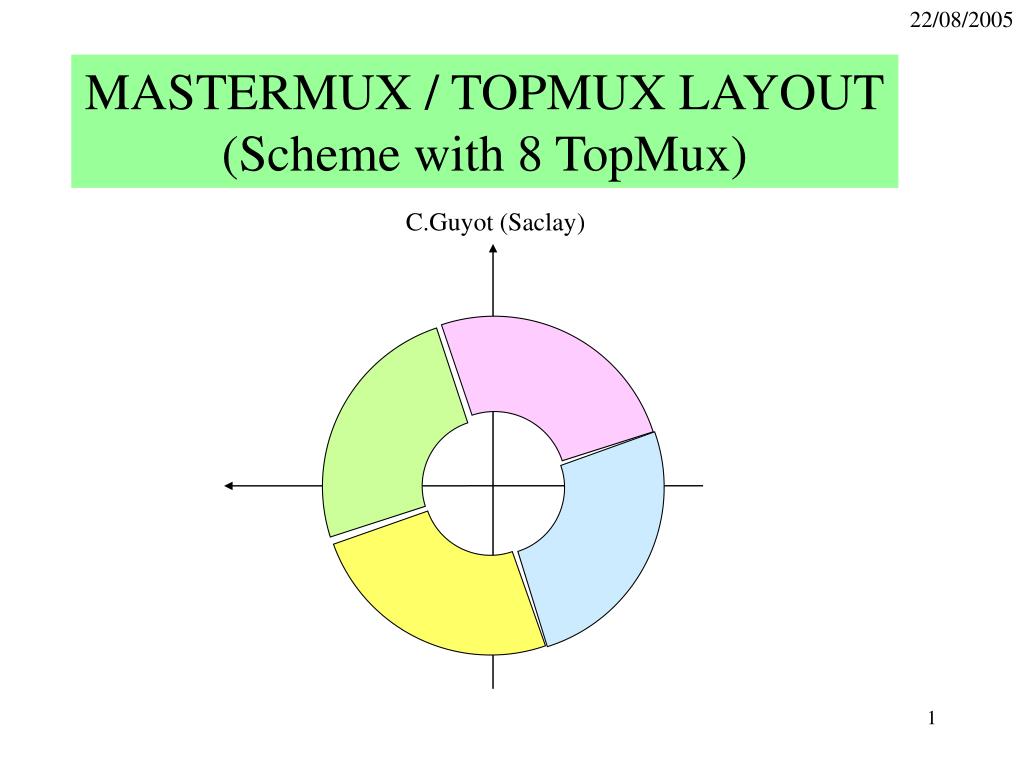

  1. MASTERMUX / TOPMUX LAYOUT (Scheme with 8 TopMux) C.Guyot (Saclay)

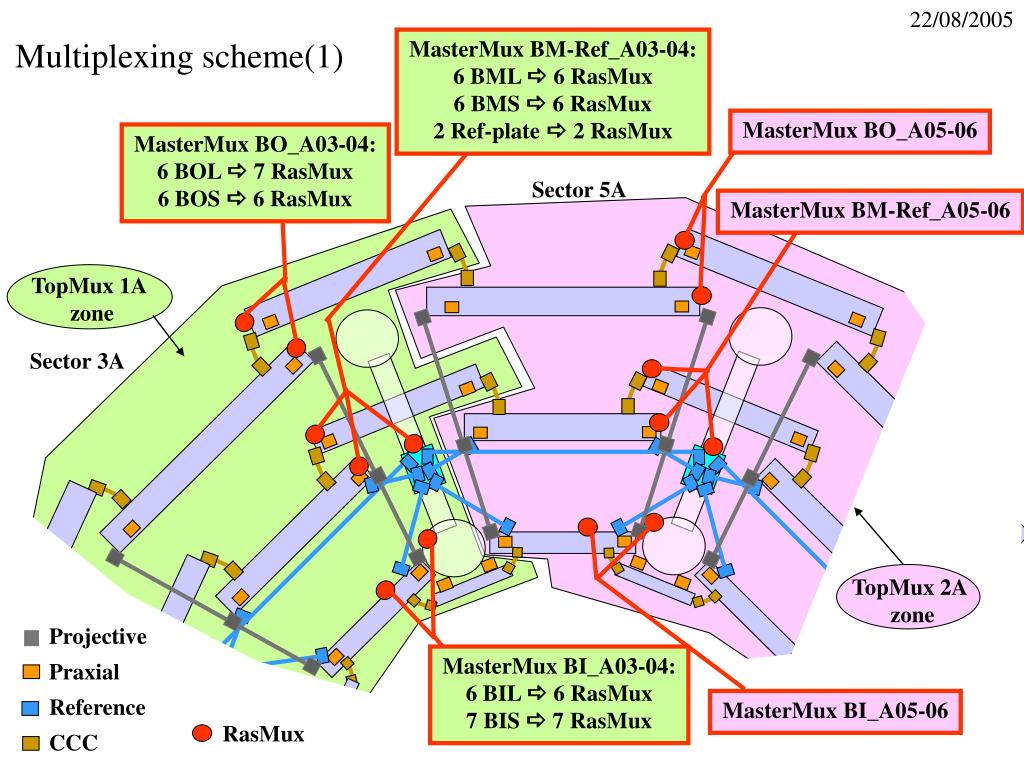

  2. Multiplexing scheme(1) MasterMux BM-Ref_A03-04: 6 BML a 6 RasMux 6 BMS a 6 RasMux 2 Ref-plate a 2 RasMux MasterMux BO_A05-06 MasterMux BO_A03-04: 6 BOL a 7 RasMux 6 BOS a 6 RasMux Sector 5A MasterMux BM-Ref_A05-06 TopMux 1A zone Sector 3A TopMux 2A zone Projective Praxial Reference CCC MasterMux BI_A03-04: 6 BIL a 6 RasMux 7 BIS a 7 RasMux MasterMux BI_A05-06 RasMux

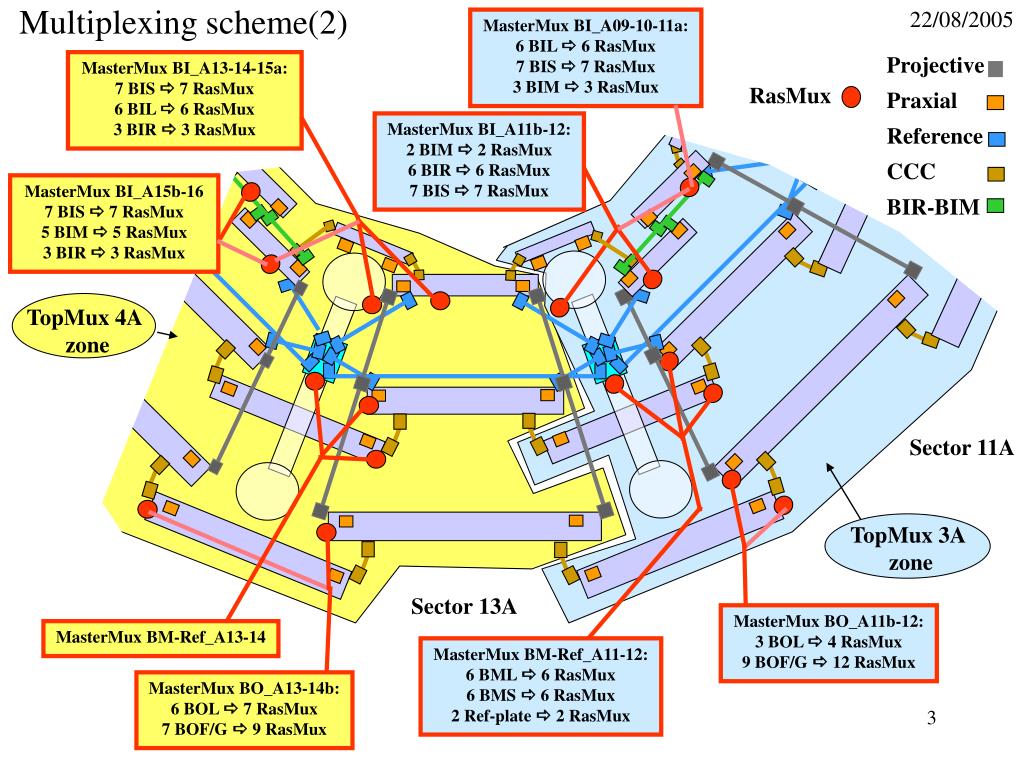

  3. Multiplexing scheme(2) Projective Praxial Reference CCC BIR-BIM RasMux MasterMux BI_A09-10-11a: 6 BIL a 6 RasMux 7 BIS a 7 RasMux 3 BIM a 3 RasMux MasterMux BI_A13-14-15a: 7 BIS a 7 RasMux 6 BIL a 6 RasMux 3 BIR a 3 RasMux MasterMux BI_A11b-12: 2 BIM a 2 RasMux 6 BIR a 6 RasMux 7 BIS a 7 RasMux MasterMux BI_A15b-16 7 BIS a 7 RasMux 5 BIM a 5 RasMux 3 BIR a 3 RasMux TopMux 4A zone Sector 11A TopMux 3A zone Sector 13A MasterMux BO_A11b-12: 3 BOL a 4 RasMux 9 BOF/G a 12 RasMux MasterMux BM-Ref_A13-14 MasterMux BM-Ref_A11-12: 6 BML a 6 RasMux 6 BMS a 6 RasMux 2 Ref-plate a 2 RasMux MasterMux BO_A13-14b: 6 BOL a 7 RasMux 7 BOF/G a 9 RasMux

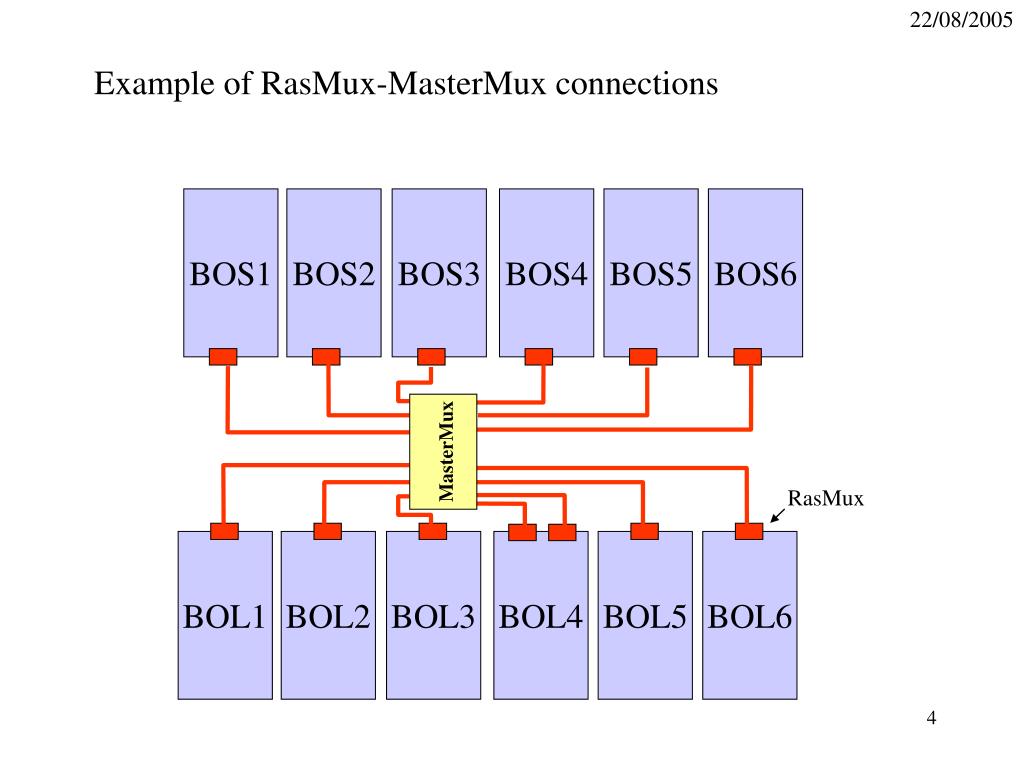

  4. BOL1 BOL2 BOL3 BOL5 BOL6 Example of RasMux-MasterMux connections BOS1 BOS2 BOS3 BOS4 BOS5 BOS6 MasterMux RasMux BOL4

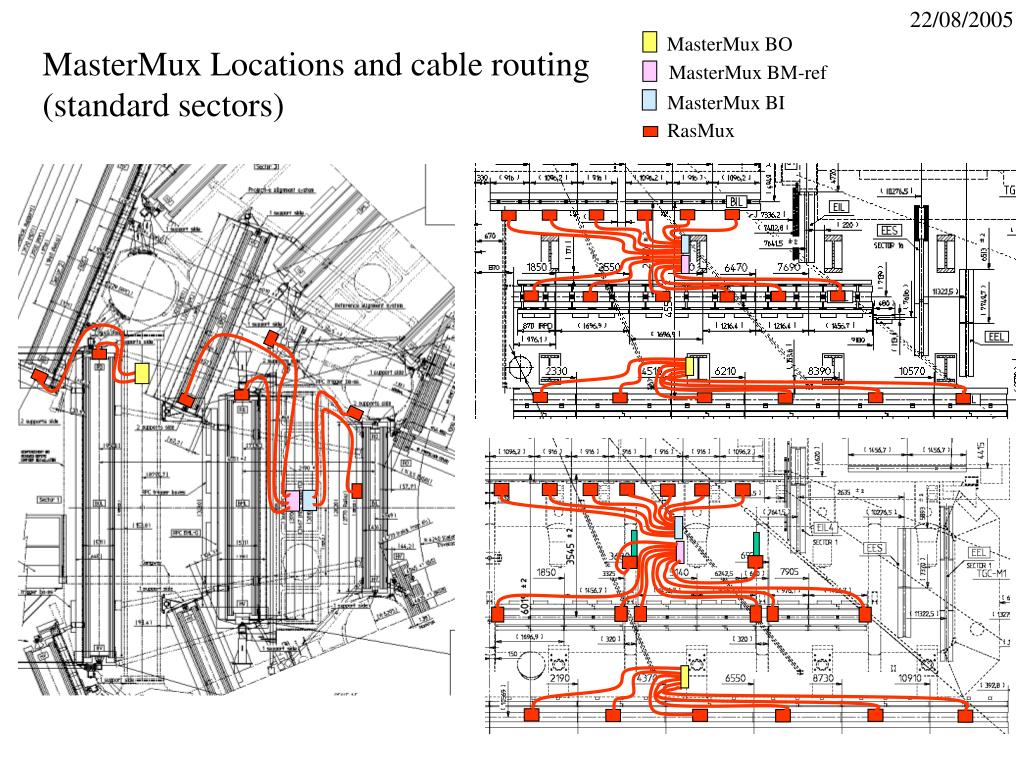

  5. MasterMux BO MasterMux Locations and cable routing (standard sectors) MasterMux BM-ref MasterMux BI RasMux

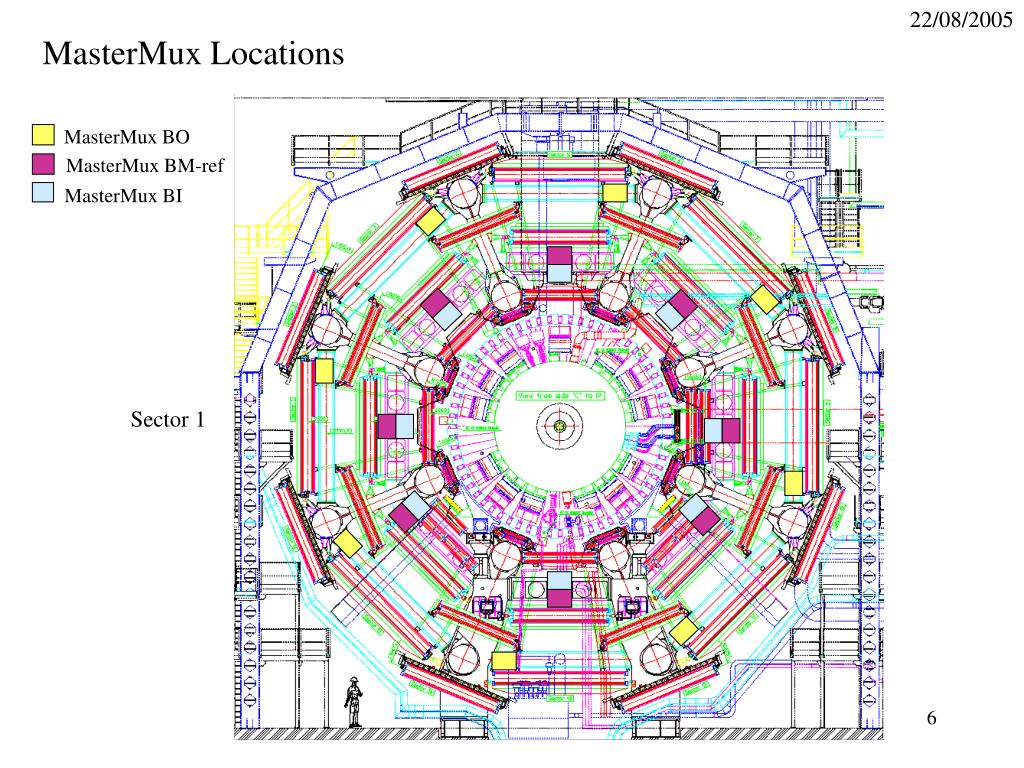

  6. MasterMux Locations MasterMux BO MasterMux BM-ref MasterMux BI Sector 1

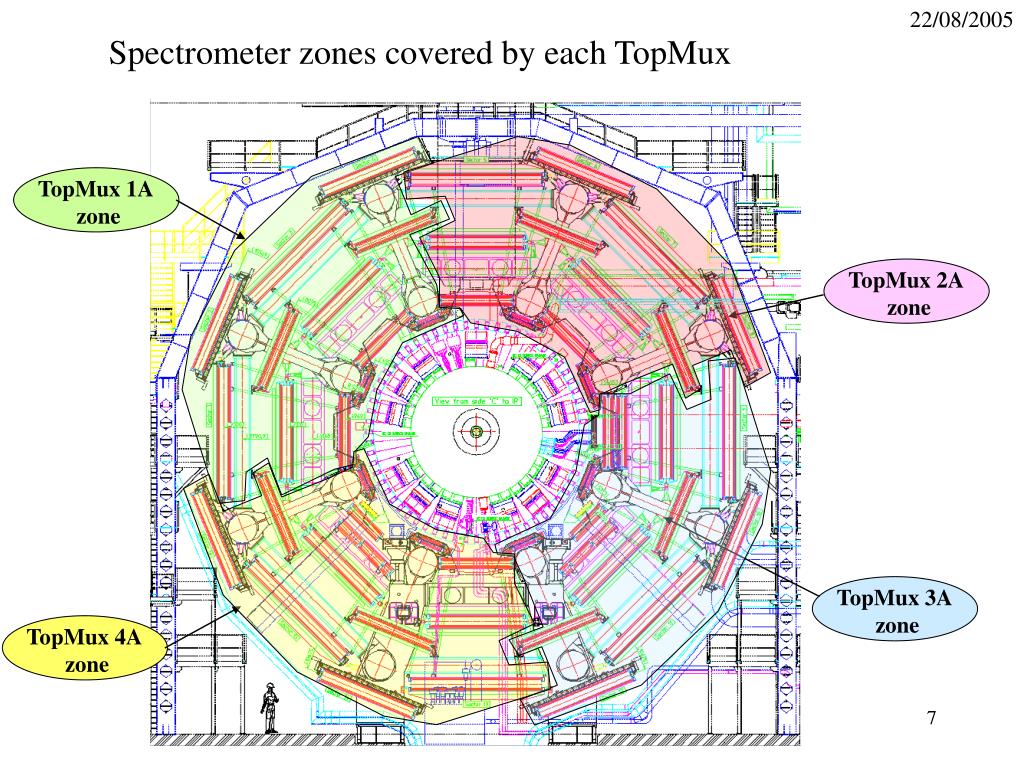

  7. Spectrometer zones covered by each TopMux TopMux 1A zone TopMux 2A zone TopMux 3A zone TopMux 4A zone

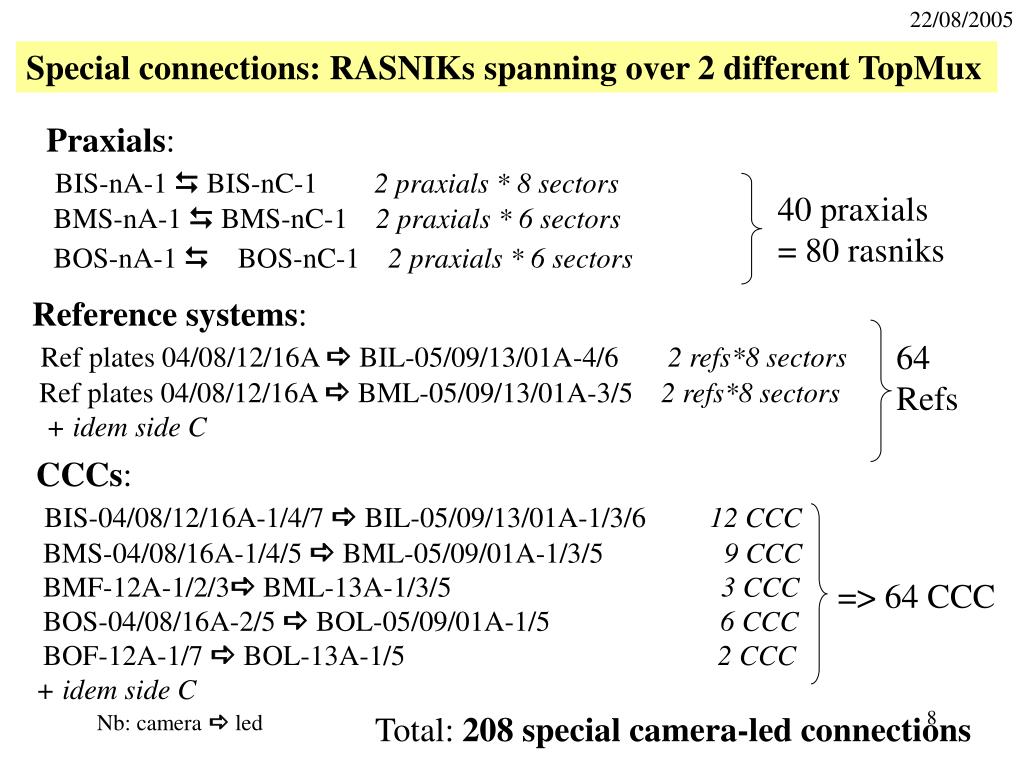

  8. Special connections: RASNIKs spanning over 2 different TopMux Praxials: BIS-nA-1 D BIS-nC-1 2 praxials * 8 sectors BMS-nA-1 D BMS-nC-1 2 praxials * 6 sectors BOS-nA-1 D BOS-nC-1 2 praxials * 6 sectors 40 praxials = 80 rasniks Reference systems: Ref plates 04/08/12/16A a BIL-05/09/13/01A-4/6 2 refs*8 sectors Ref plates 04/08/12/16A a BML-05/09/13/01A-3/5 2 refs*8 sectors + idem side C 64 Refs CCCs: BIS-04/08/12/16A-1/4/7 a BIL-05/09/13/01A-1/3/6 12 CCC BMS-04/08/16A-1/4/5 a BML-05/09/01A-1/3/5 9 CCC BMF-12A-1/2/3a BML-13A-1/3/5 3 CCC BOS-04/08/16A-2/5 a BOL-05/09/01A-1/5 6 CCC BOF-12A-1/7 a BOL-13A-1/5 2 CCC + idem side C => 64 CCC Nb: camera a led Total: 208 special camera-led connections

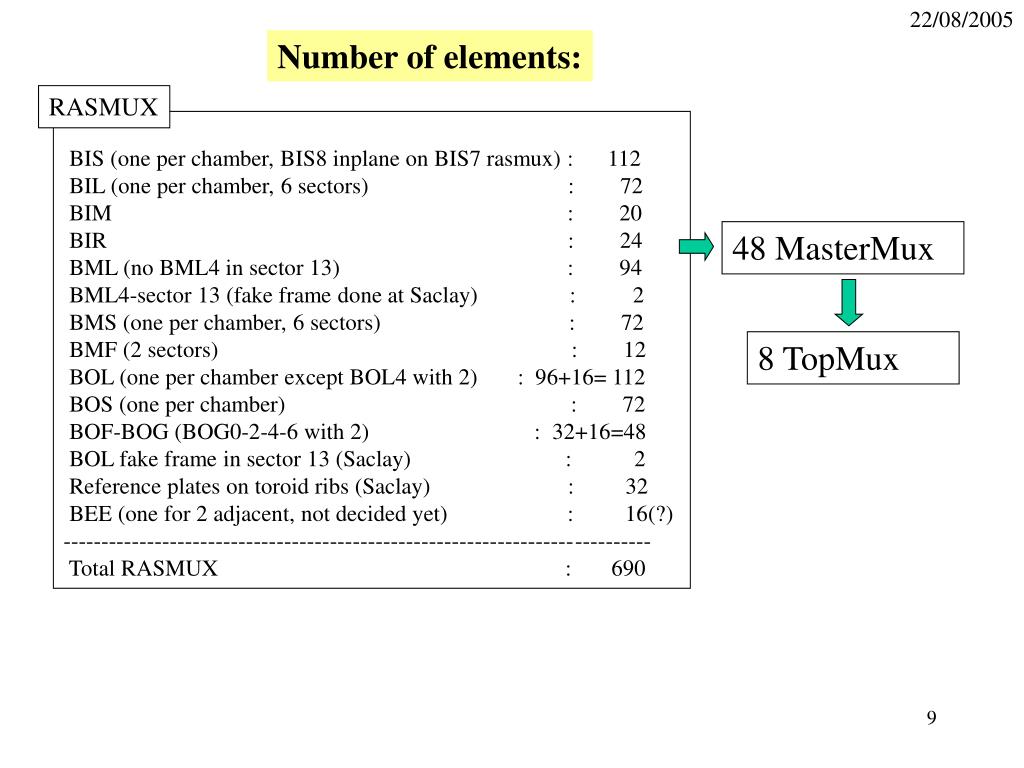

  9. Number of elements: RASMUX  BIS (one per chamber, BIS8 inplane on BIS7 rasmux):      112  BIL (one per chamber, 6 sectors)           :        72  BIM                            :        20  BIR                            :        24  BML (no BML4 in sector 13)                        :        94  BML4-sector 13 (fake frame done at Saclay)       :         2  BMS (one per chamber, 6 sectors)                  :        72  BMF (2 sectors)                                   :        12  BOL (one per chamber except BOL4 with 2)       :96+16= 112  BOS (one per chamber)                             :        72  BOF-BOG (BOG0-2-4-6 with 2)  :32+16=48 BOL fake frame in sector 13 (Saclay)               :     2  Reference plates on toroid ribs (Saclay)              :    32  BEE (one for 2 adjacent, not decided yet)                     :    16(?) ----------------------------------------------------------------------------- Total RASMUX :       690 48 MasterMux 8 TopMux
