  1. Gene Linkage and Crossing Over

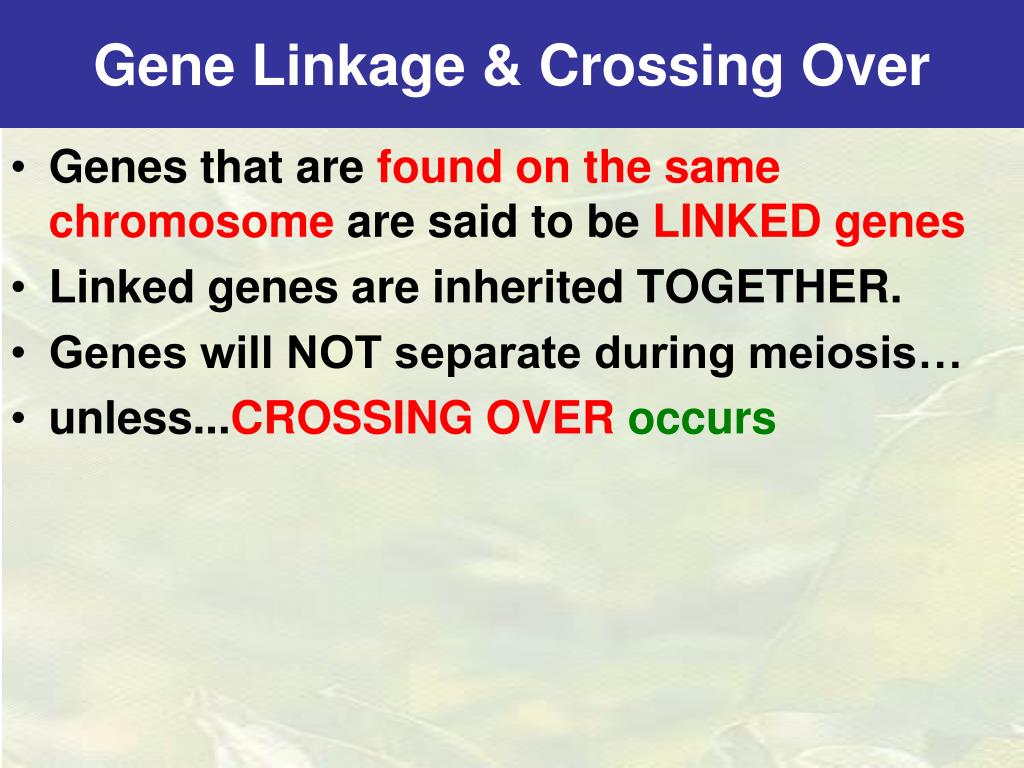

  2. Gene Linkage & Crossing Over • Genes that are found on the same chromosome are said to be LINKED genes • Linked genes are inherited TOGETHER. • Genes will NOT separate during meiosis… • unless...CROSSING OVER occurs

  3. Linked Genes from the two homologues • Chromosome “13” (first copy): ------a----b-------------c------------d • Chromosome “13” (second copy): ------A----B------------C------------D • When separated during meiosis: • One cell gets a,b,c,d • One cell gets A,B,C,D • What happens if cross over occurs between B and C? • One cell gets a,b,C,D (recombinant) • One cell gets A,B,c,d (recombinant) • Finding freq of recombinants indicates amount of crossing over during Anaphase 1

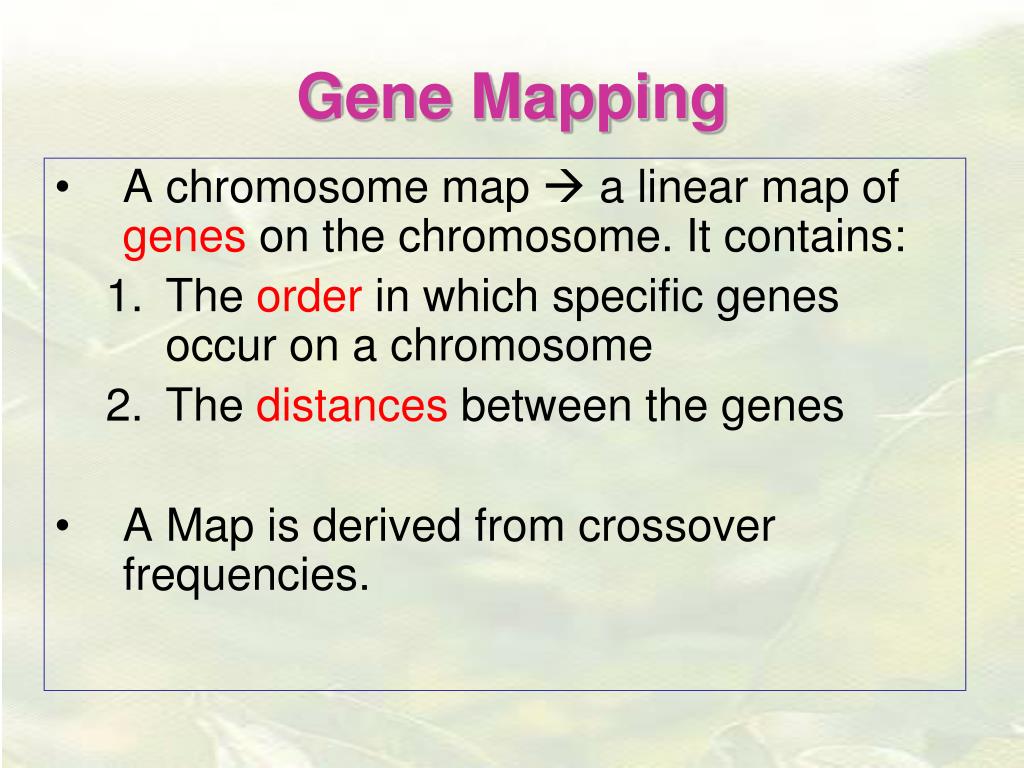

  4. Gene Mapping • A chromosome map  a linear map of genes on the chromosome. It contains: • The order in which specific genes occur on a chromosome • The distances between the genes • A Map is derived from crossover frequencies.

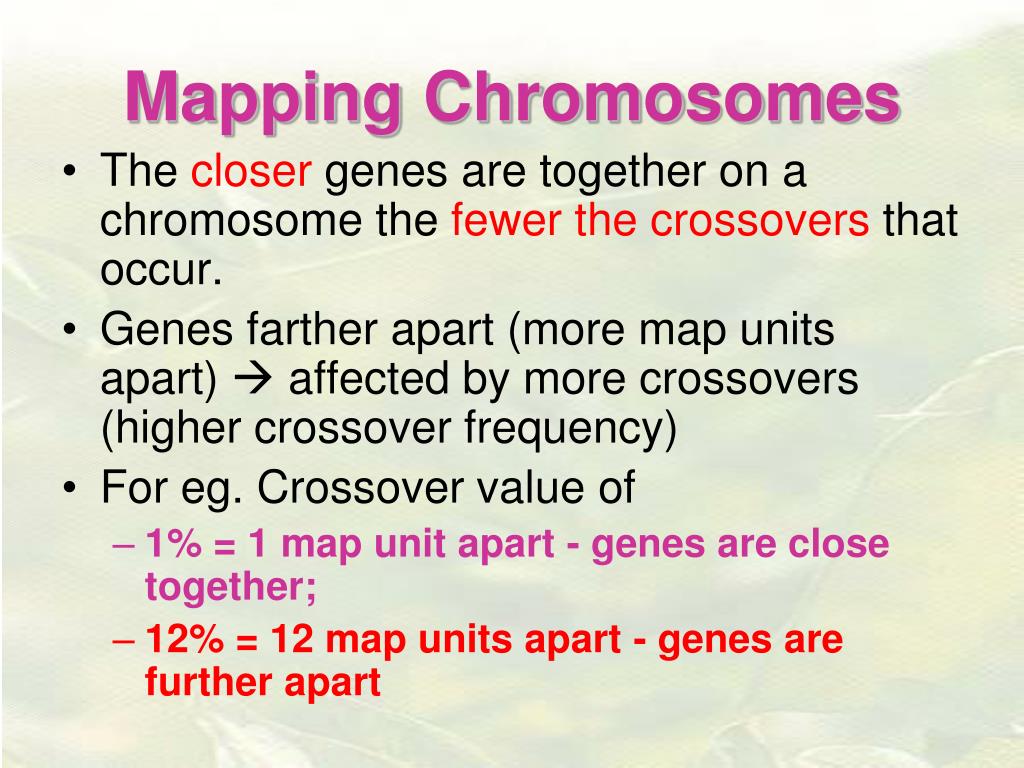

  5. Mapping Chromosomes • The closer genes are together on a chromosome the fewer the crossovers that occur. • Genes farther apart (more map units apart)  affected by more crossovers (higher crossover frequency) • For eg. Crossover value of • 1% = 1 map unit apart - genes are close together; • 12% = 12 map units apart - genes are further apart

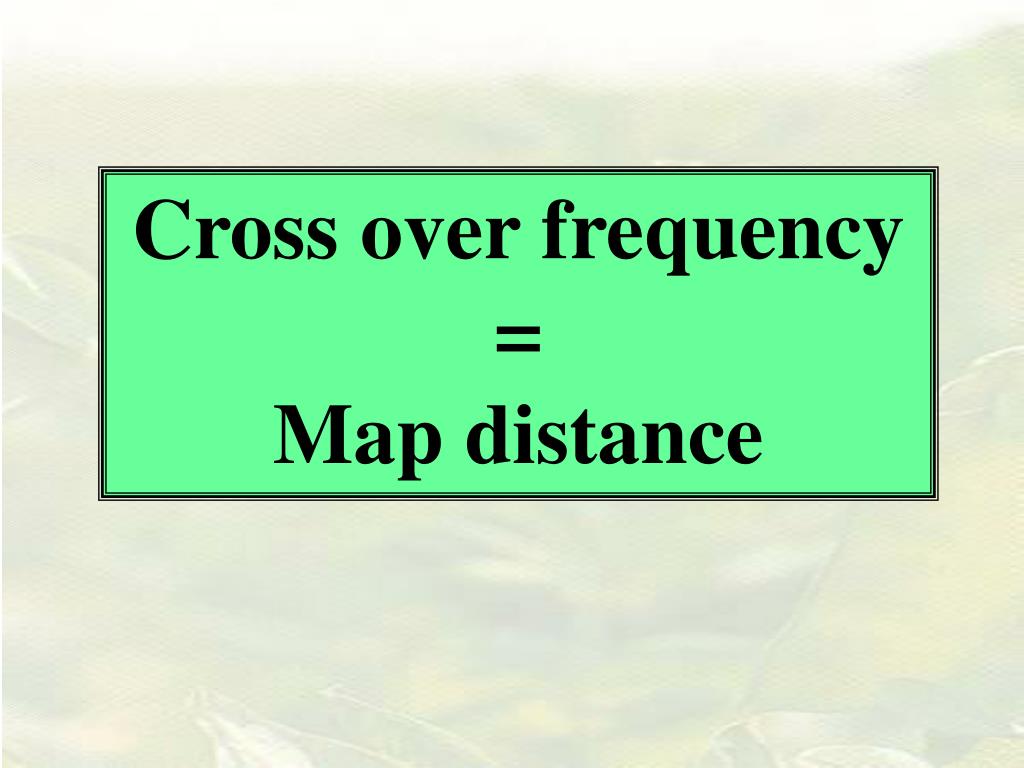

  6. Cross over frequency = Map distance

  7. Chromosome Map 96

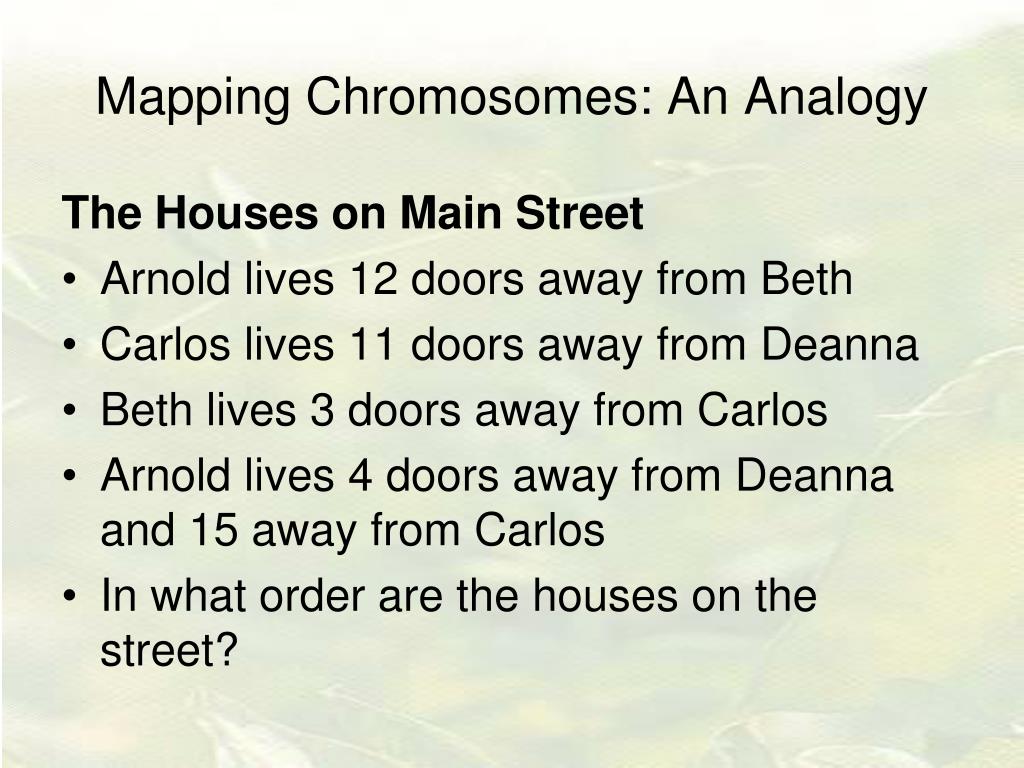

  8. Mapping Chromosomes: An Analogy The Houses on Main Street • Arnold lives 12 doors away from Beth • Carlos lives 11 doors away from Deanna • Beth lives 3 doors away from Carlos • Arnold lives 4 doors away from Deanna and 15 away from Carlos • In what order are the houses on the street?

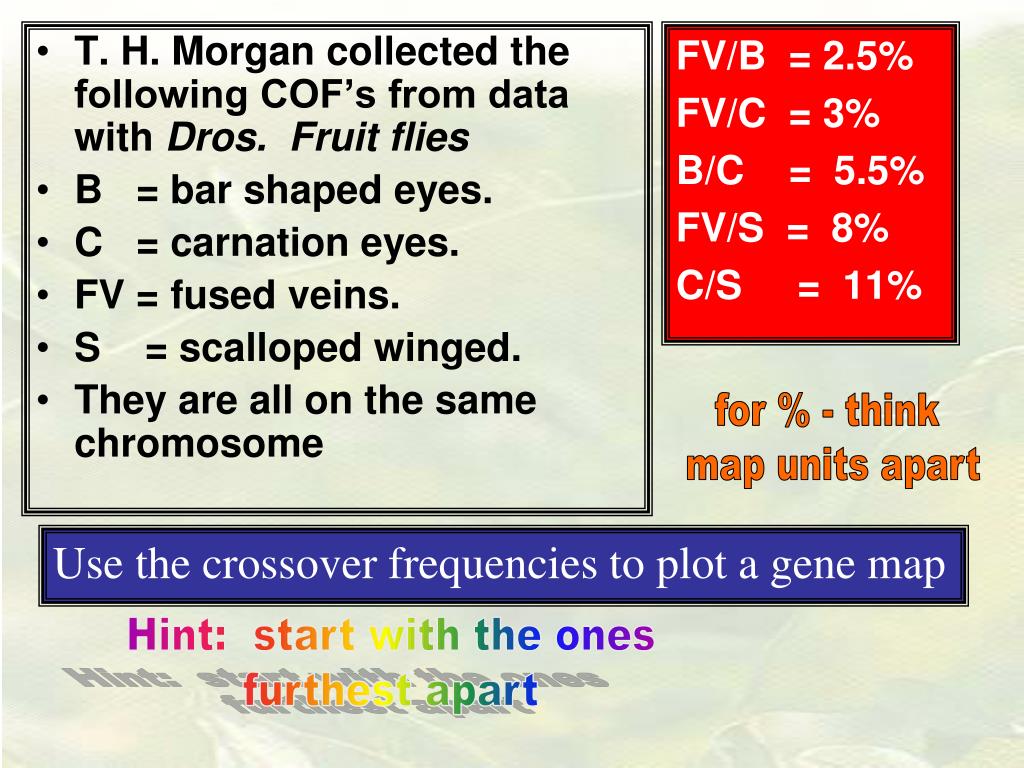

  9. T. H. Morgan collected the following COF’s from data with Dros. Fruit flies B = bar shaped eyes. C = carnation eyes. FV = fused veins. S = scalloped winged. They are all on the same chromosome FV/B = 2.5% FV/C = 3% B/C = 5.5% FV/S = 8% C/S = 11% for % - think map units apart Use the crossover frequencies to plot a gene map Hint: start with the ones furthest apart

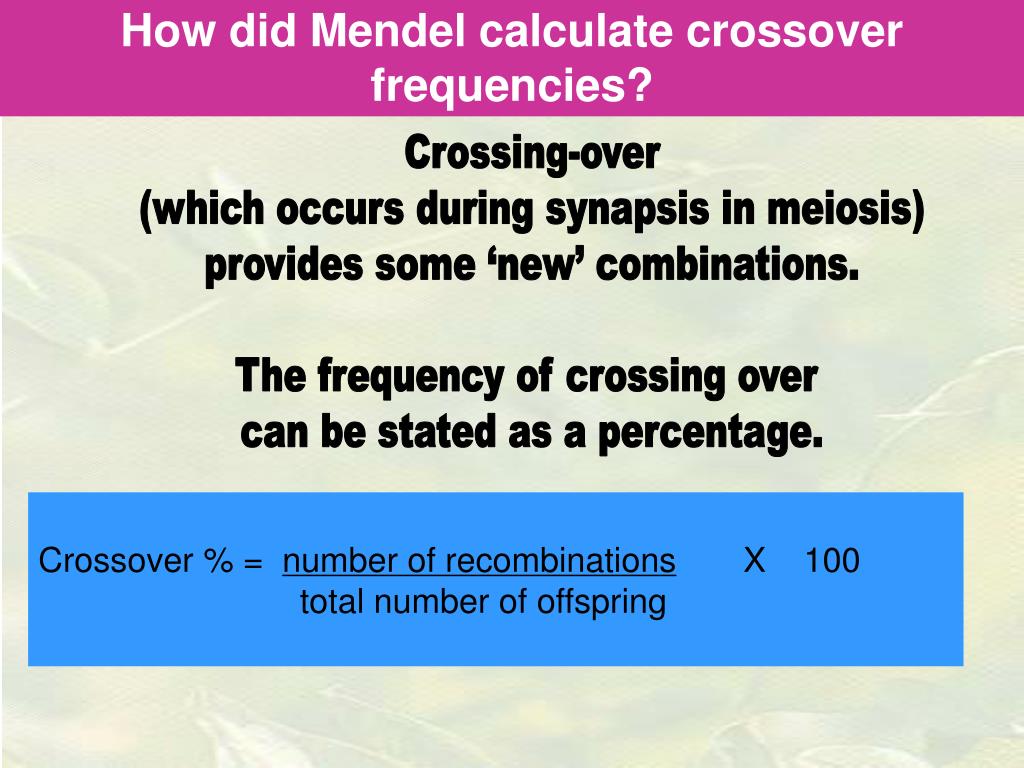

  10. How did Mendel calculate crossover frequencies? Crossing-over (which occurs during synapsis in meiosis) provides some ‘new’ combinations. The frequency of crossing over can be stated as a percentage. Crossover % = number of recombinations X 100 total number of offspring

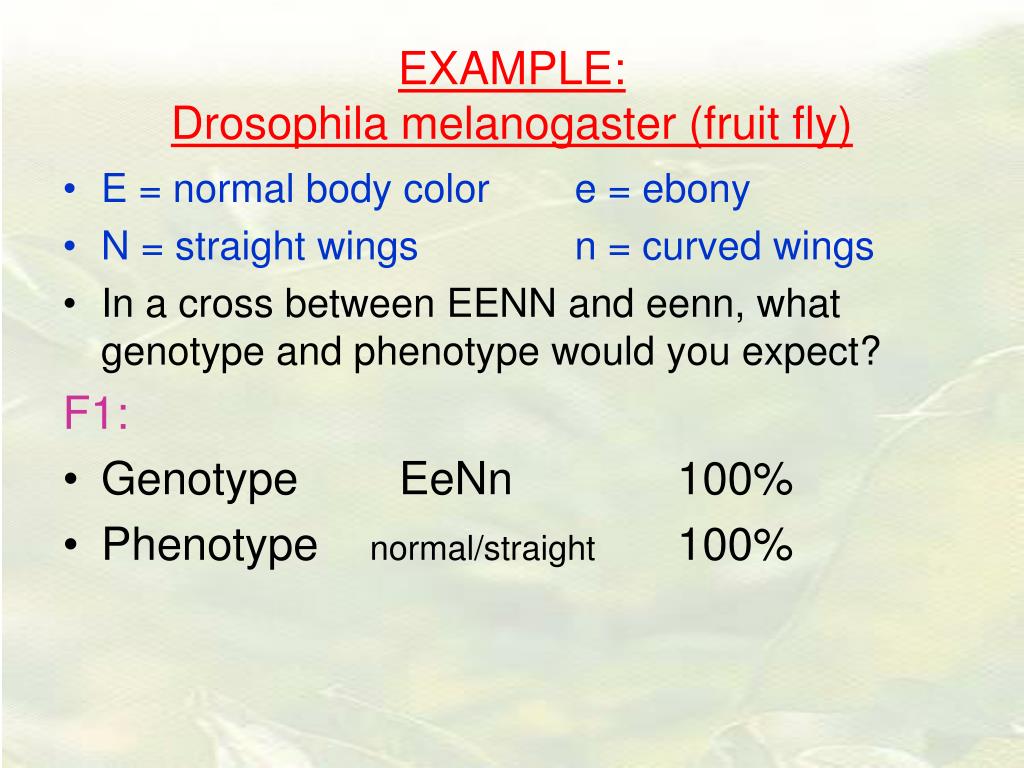

  11. EXAMPLE:Drosophila melanogaster (fruit fly) • E = normal body color e = ebony • N = straight wings n = curved wings • In a cross between EENN and eenn, what genotype and phenotype would you expect? F1: • Genotype EeNn 100% • Phenotype normal/straight 100%

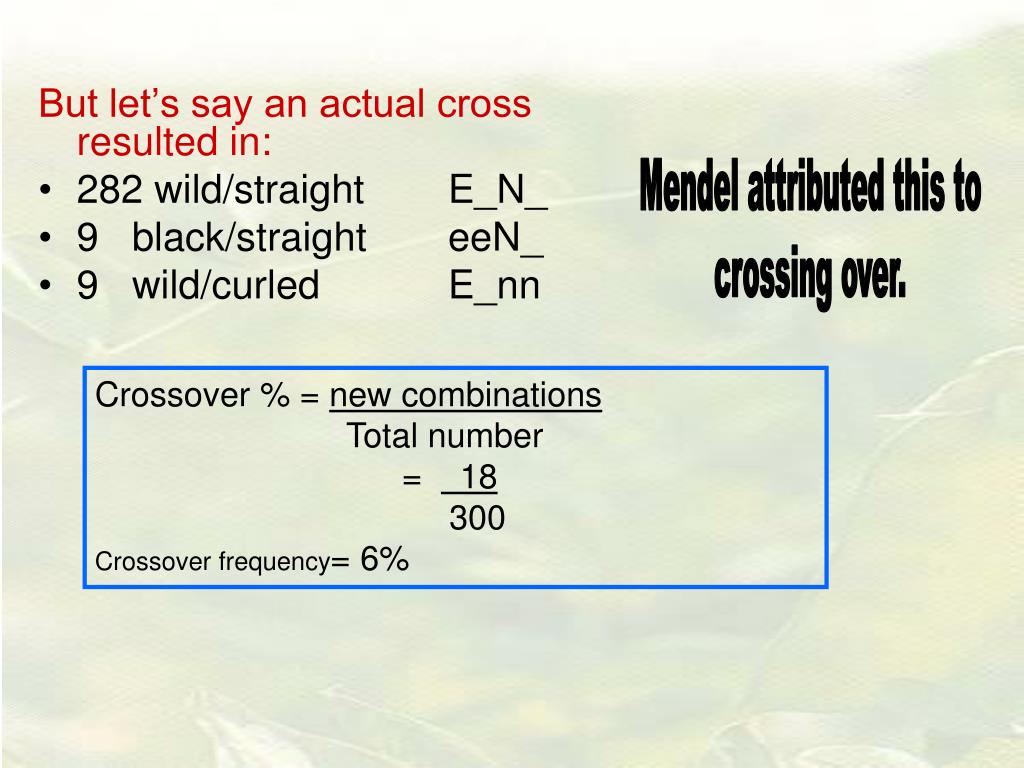

  12. Mendel attributed this to crossing over. But let’s say an actual cross resulted in: • 282 wild/straight E_N_ • 9 black/straight eeN_ • 9 wild/curled E_nn Crossover % = new combinations Total number = 18 300 Crossover frequency= 6%

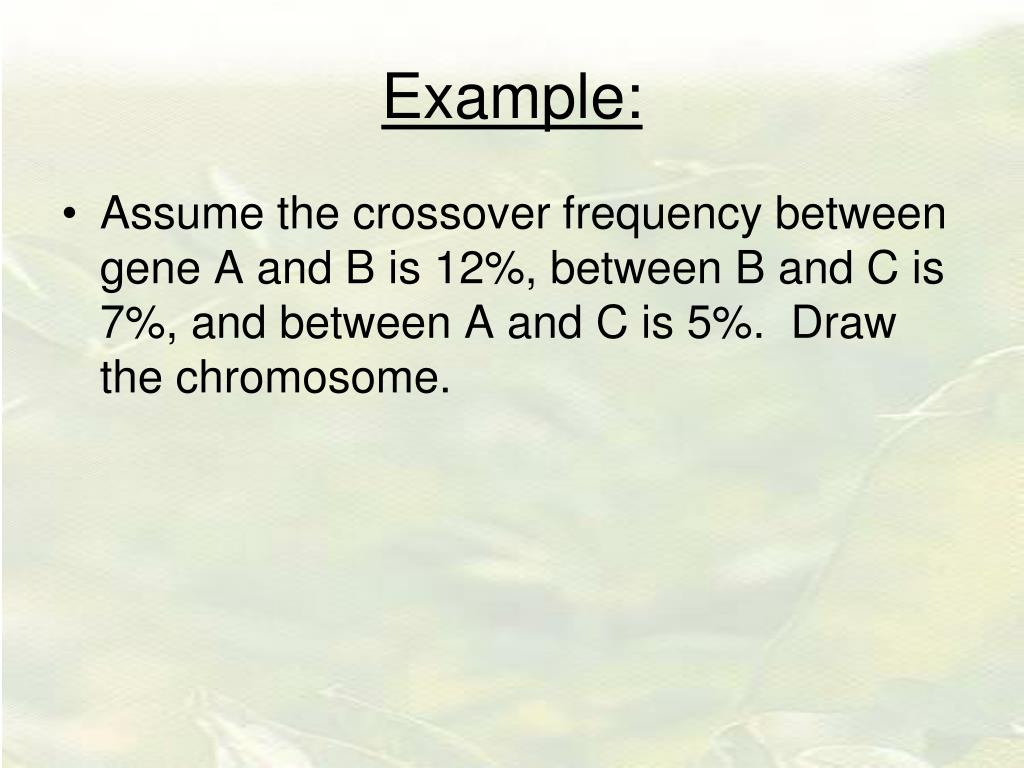

  13. Example: • Assume the crossover frequency between gene A and B is 12%, between B and C is 7%, and between A and C is 5%. Draw the chromosome.
