Presentation Transcript
slide4

■ A multi-pivot static balance system

■ Stainless steel arm base & carbon fiber arm tube

■ 230mm (9″) effective length

■ 16mm overhang & 23.5°offset

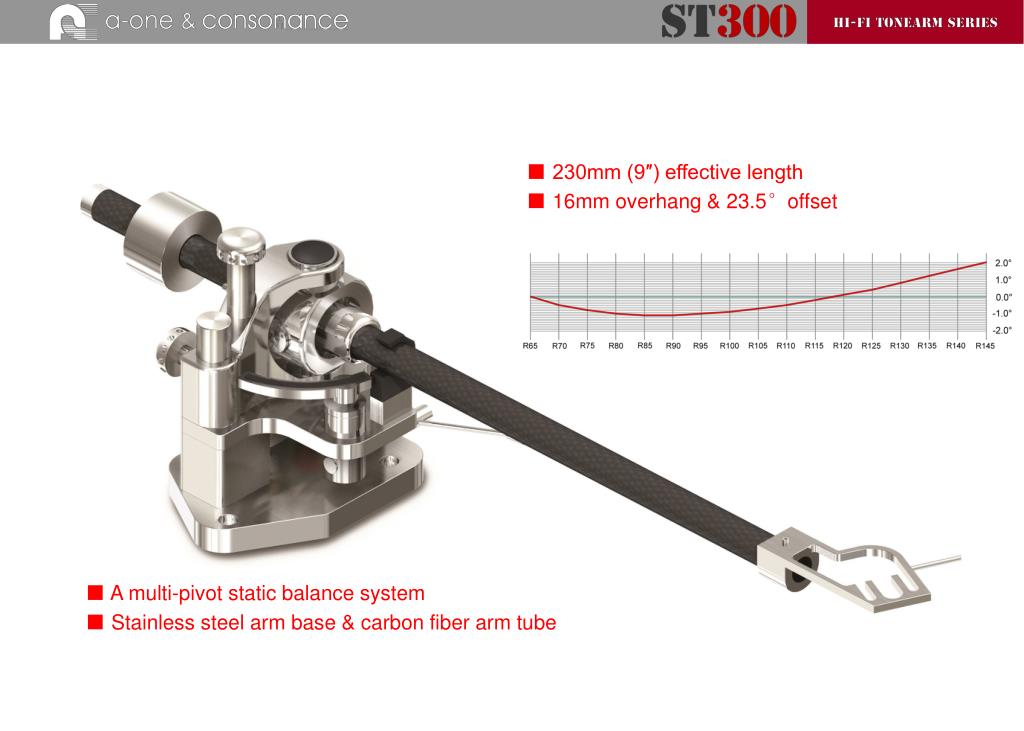

slide6

■ 230mm (9″) effective length

■ 16mm overhang & 23.5°offset

■ A multi-pivot static balance system

■ Stainless steel arm base & carbon fiber arm tube

slide7

High precision lateral arm bearing

and vertical arm bearing

12mm V.T.A. adjustable while listening

slide9

■ 267/300mm (10.5″/ 12″) effective length

■ 15-16mm overhang & 20°offset

12″

10.5″

■ An oil damping unipivot static balance system

■ Stainless steel arm base & carbon fiber arm tube

slide10

High precision syntheticdiamond upper pivot

and high rigidly industrial ceramic mat

Silicone damping oil

20mm V.T.A. adjustable while listening

slide12

■ An oil damping unipivot static balance system

■ Stainless steel arm base & carbon fiber arm tube

■ 267 -300mm (10.5″-12″) effective length

■ 15-16mm overhang & 20°offset

12″

10.5″

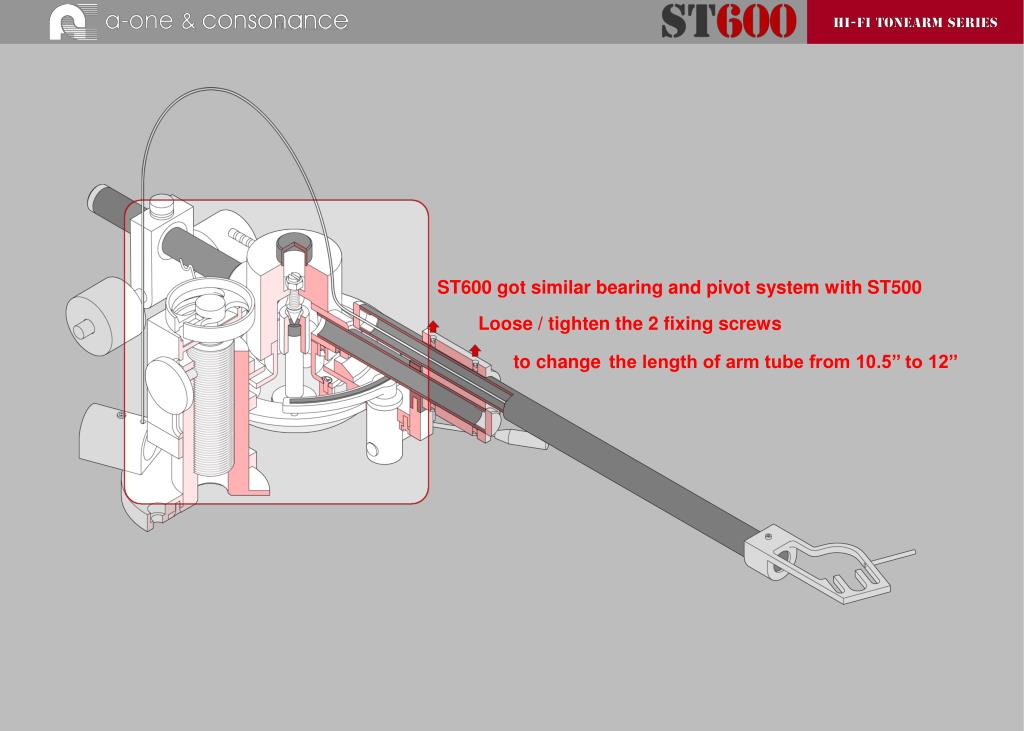

slide13

ST600 got similar bearing and pivot system with ST500

Loose / tighten the 2 fixing screws

to changethe length of arm tube from 10.5’’ to 12’’

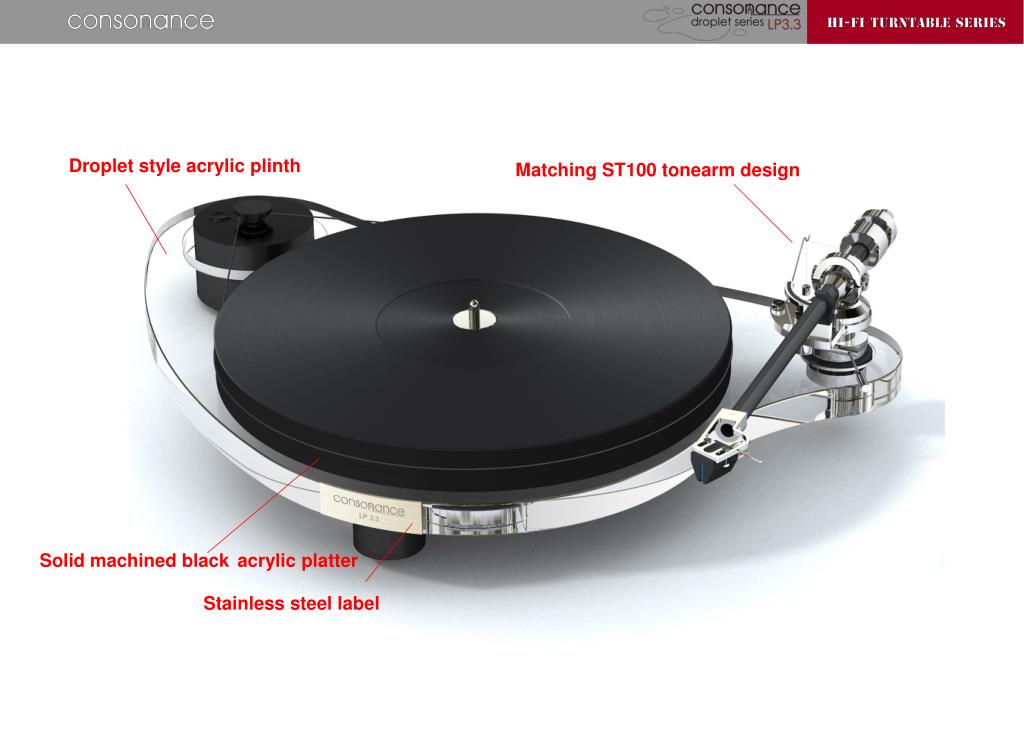

slide16

Droplet style acrylic plinth

Matching ST100 tonearm design

Solid machined blackacrylic platter

Stainless steel label

slide17

High rigidly industrial ceramic ball and mat

Stainless steel spindle and brass spindle bushing

Double layers graphite spindle holder working as a sandwich hard damping system

This graphitesandwich hard damping system has also been applied to ST tonearms spindle fixing

slide19

Using the same spindle and graphitesandwich hard damping system as Droplet LP3.3

Equipped dust cover for platter and tonearm

Forbidden City style sandwich plinth design

Double layers graphite arm holder working as sandwich hard damping system

Mirror label for convenient adjustment of cartridge
