  1. New Products From September 2010

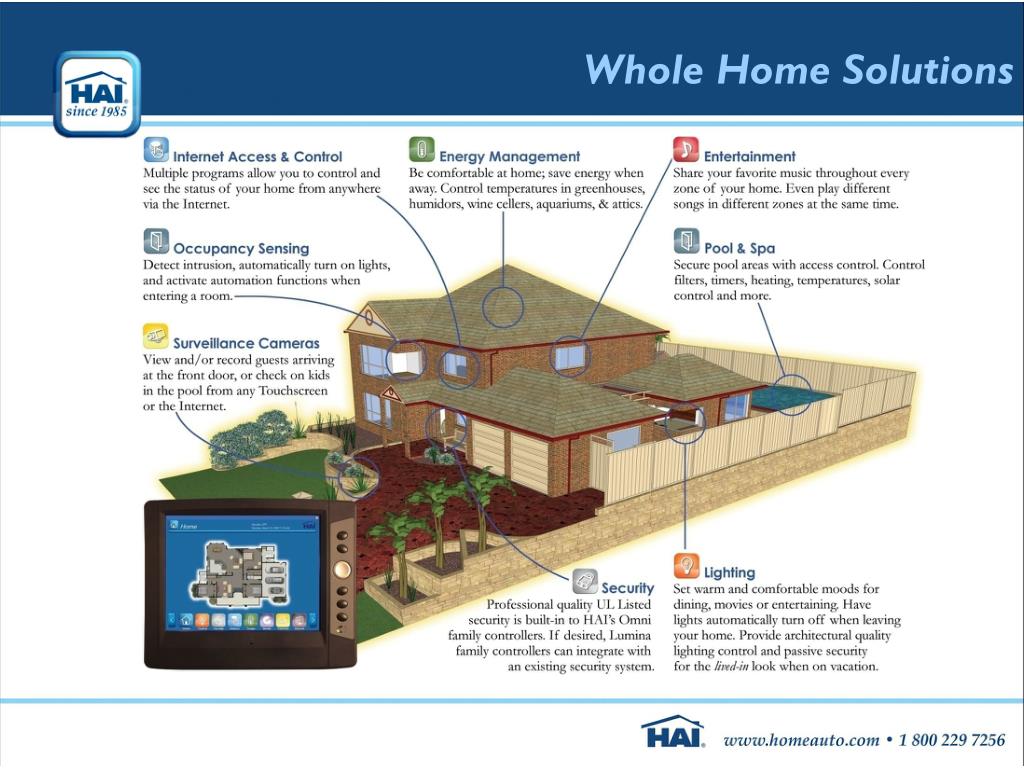

  2. Whole Home Solutions

  3. Our Company and Market • Our mission: Coordinating security, temperature, and lighting for comfort, convenience and safety • We offer the best price/performance ratio in the industry • HAI has more home automation systems in use than any other company- over 100,000 homes.

  4. Wireless Driveway Sensor • Senses vehicle movement using Earth’s magnetic field • Requires an HAI 64-Zone Wireless Receiver (45A00-1)

  5. Light Switches HLC 500W CFL Dimmers are designed specifically for dimmable CFL bulbs.

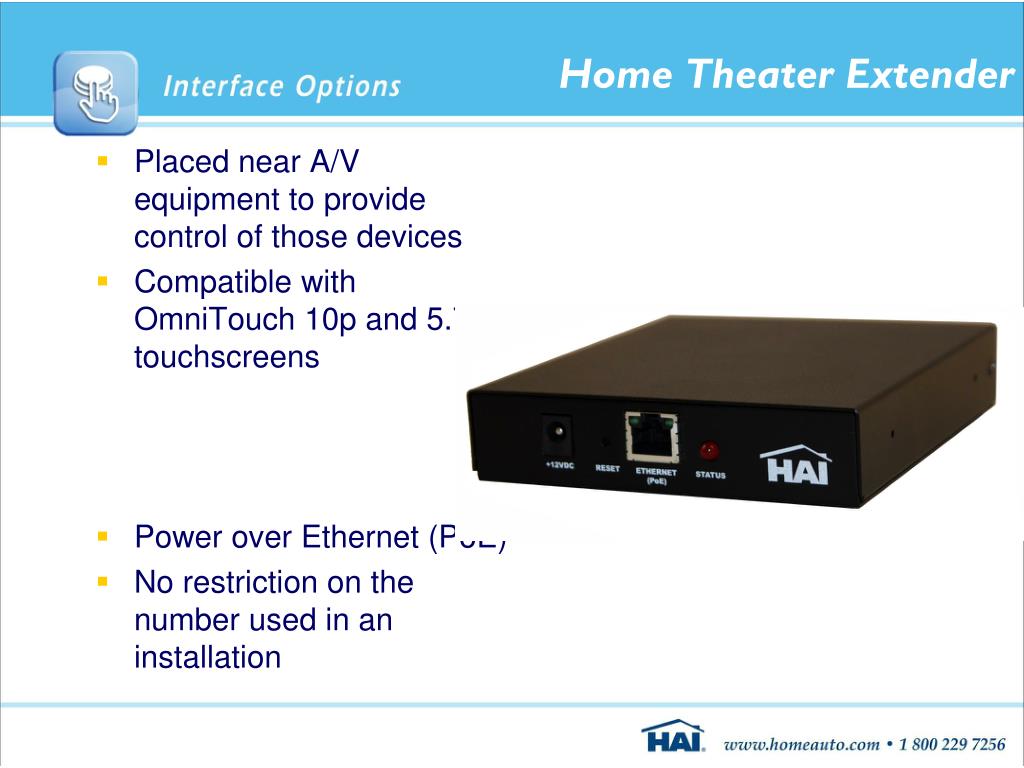

  6. Home Theater Extender • Placed near A/V equipment to provide control of those devices • Compatible with OmniTouch 10p and 5.7e touchscreens • Power over Ethernet (PoE) • No restriction on the number used in an installation

  7. Home Theater Extender • 4 IR Emitter Ports • 3.5mm • 1 IR Learner port • 1RS232 port • 300-115200 Baud • ASCII or Hex • 2 internal relays • 2A @ 30VDC • 2 Input/Output • Digital or Analog

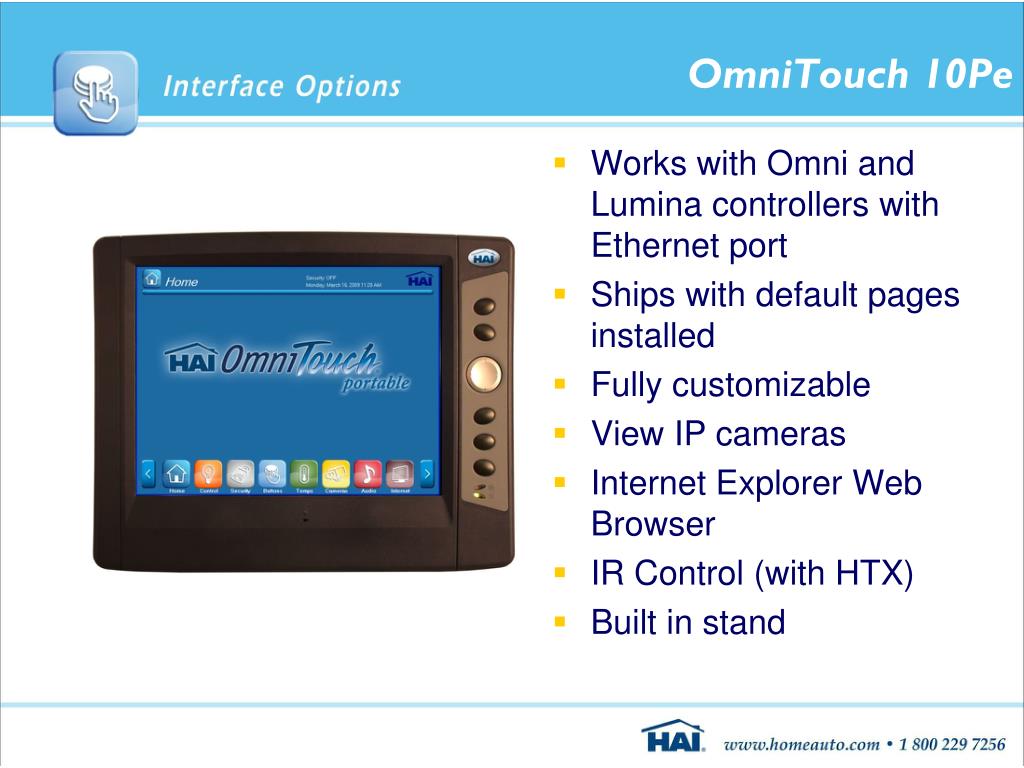

  8. OmniTouch 10Pe • Works with Omni and Lumina controllers with Ethernet port • Ships with default pages installed • Fully customizable • View IP cameras • Internet Explorer Web Browser • IR Control (with HTX) • Built in stand

  9. OmniTouch 5.7e • Station to Station intercom • SIP Compatible • Power over Ethernet (PoE) • Come to the booth and check out the new faceplates.

  10. 8 Port PoE Switch • Complies with IEEE 802.3af • Powers up to 7 OmniTouch 5.7e • 15.4 watts per port for devices such as HTX, PoE IP cameras, and PoE access points

  11. Automation Studio • Automation Studio is the program that is used to set up Ethernet based OmniTouch touchscreens

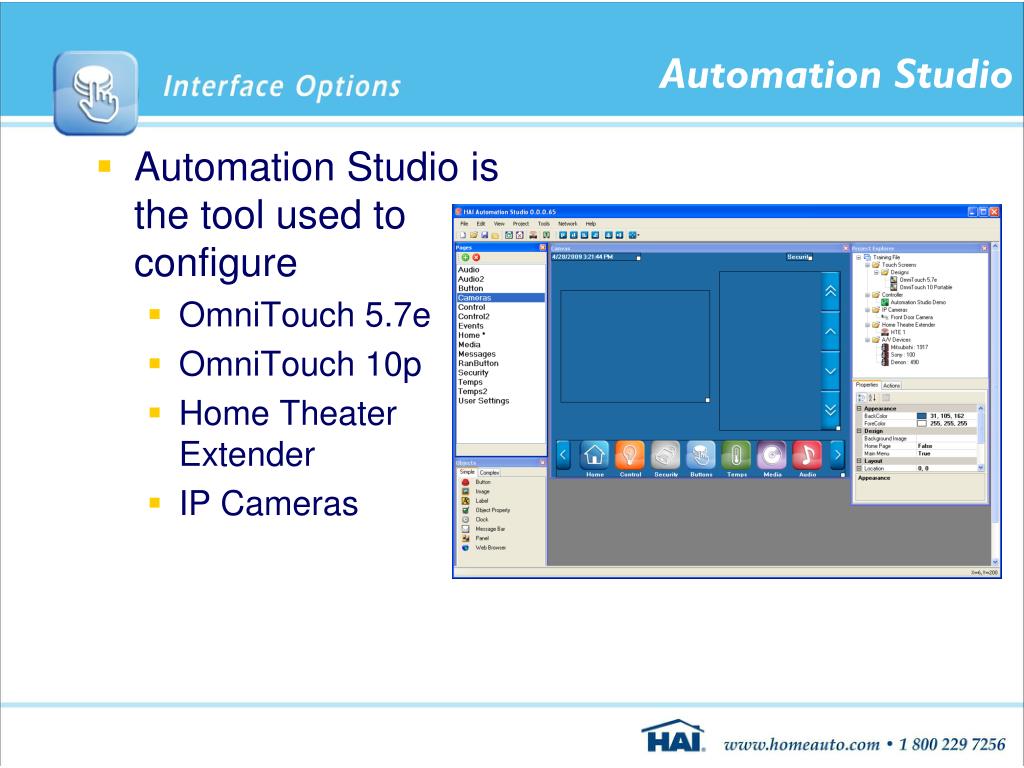

  12. Automation Studio • Automation Studio is the tool used to configure • OmniTouch 5.7e • OmniTouch 10p • Home Theater Extender • IP Cameras

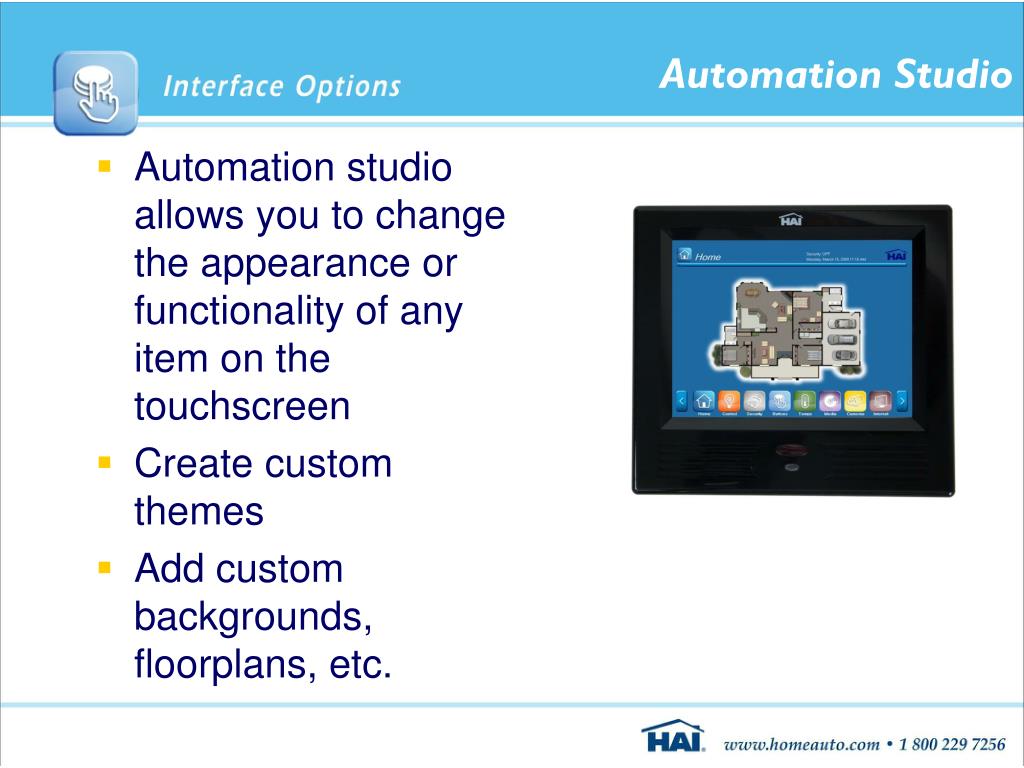

  13. Automation Studio • Automation studio allows you to change the appearance or functionality of any item on the touchscreen • Create custom themes • Add custom backgrounds, floorplans, etc.

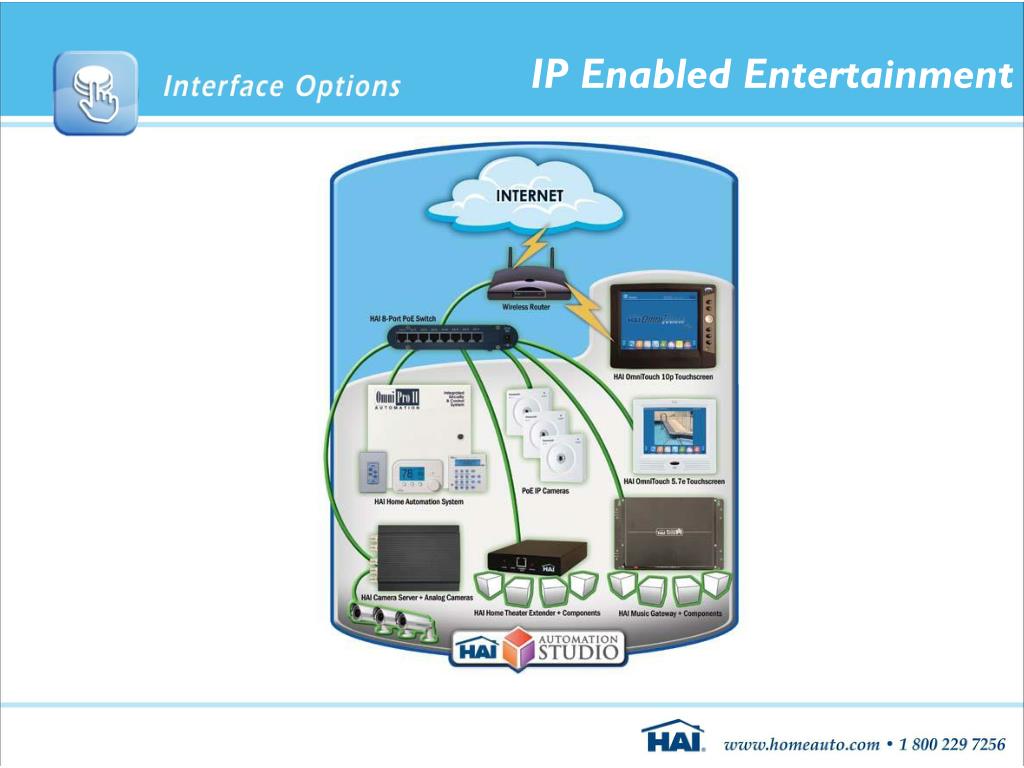

  14. IP Enabled Entertainment

  15. Control Music with Touchscreens

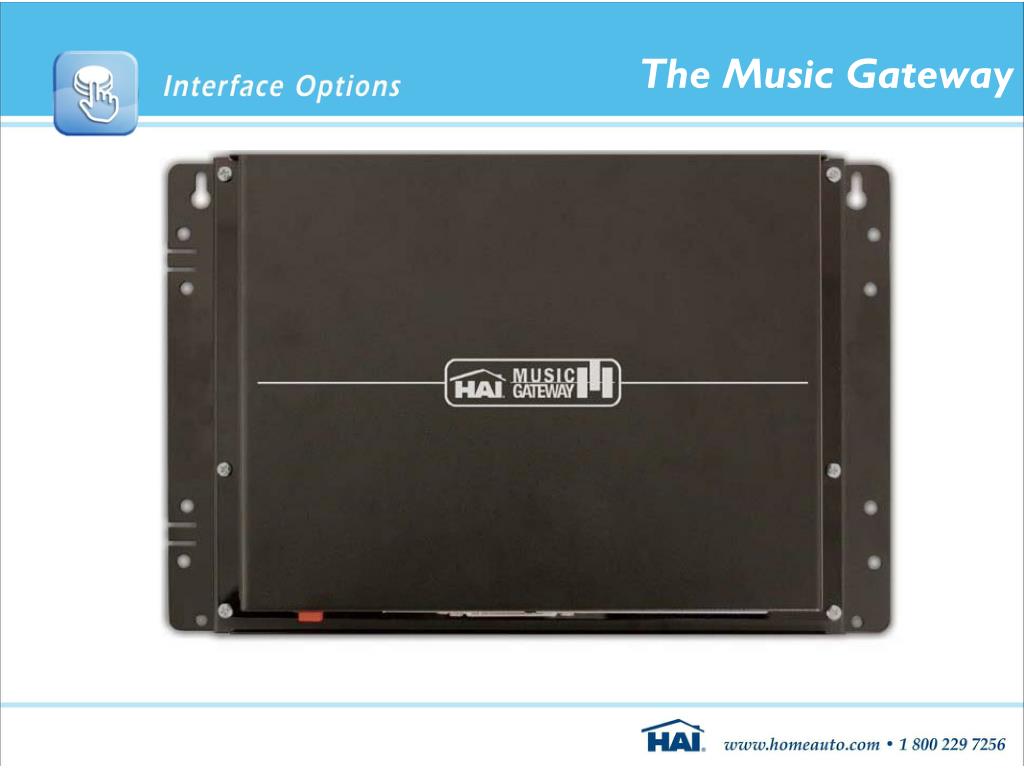

  16. The Music Gateway

  17. Music Gateway Features • Features three independent stereo channels. • Connects to any Whole Home Audio system including the HiFi by HAI • Plays music from local hard drive or from shared drive on the Local Area Network • Designed to be installed in a structured wiring enclosure. • Utilizes IP-based Touchscreens (OmniTouch 5.7e and 10p) • Plays audio off the built-in hard drive. • Includes HAI’s WL3 software which allows remote access via Internet or mobile device such as an iPhone. • USB port for expanded hard drive capabilities

  18. Connections

  19. Part Numbers

  20. Music Gateway Channel 2 Music Gateway Channel 1 Music Gateway Channel 3

  21. Browse the Media Library Press the Browse button to display the available media services…

  22. Select the desired method to browse the media. For example, if Album was selected, a list of albums will be displayed. At any time, you can press the back button to return to the previous menu.

  23. Selecting a new Music Source Press the Source button to display the available music sources…

  24. Selecting a New Audio Zone Press the Zone button to display the available music sources …

  25. Refer to PDF for Hi-Fi 2

  26. The HAI C3 (Cellular Communications Center) is a wireless cellular communicator that allows phone calls to be made over the GSM cellular network using the existing telephones in your home. The HAI C3 can be used when there is no land line in your home or if the land line is temporarily unavailable. C3

  27. IP DevicesLocal or Remote Access Smart Phone Snaplink Mobile for iPhone • HAI simply lets you or the home owner install an App on the iPhone that offers control over your Omni or Lumina home control system with Ethernet Support. • Available for download at the App Store for all iPhone models(including iPhone 4), iTouch, and iPad. • HAI will also be shipping an iPad specific App later this year

  28. Search the App Store Type in: snaplink mobile for iphone

  29. Start Screen

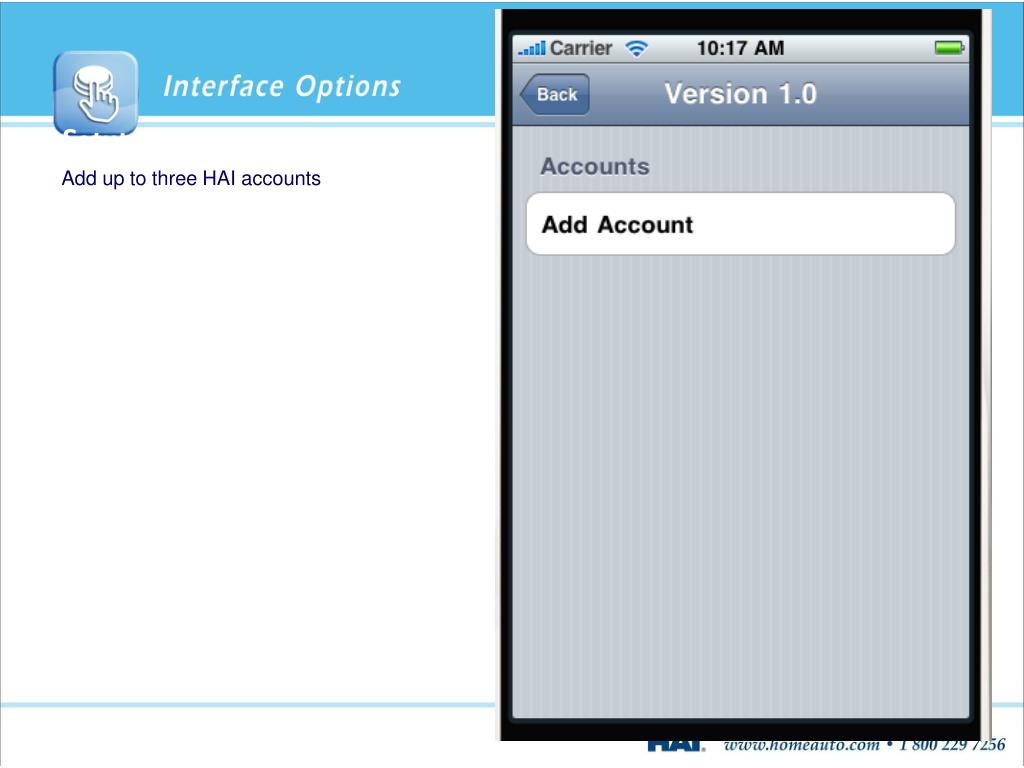

  30. Setup Add up to three HAI accounts

  31. Setup Be sure that your router is setup to allow remote access before you start.

  32. Setup Double check to make sure all settings are correct.

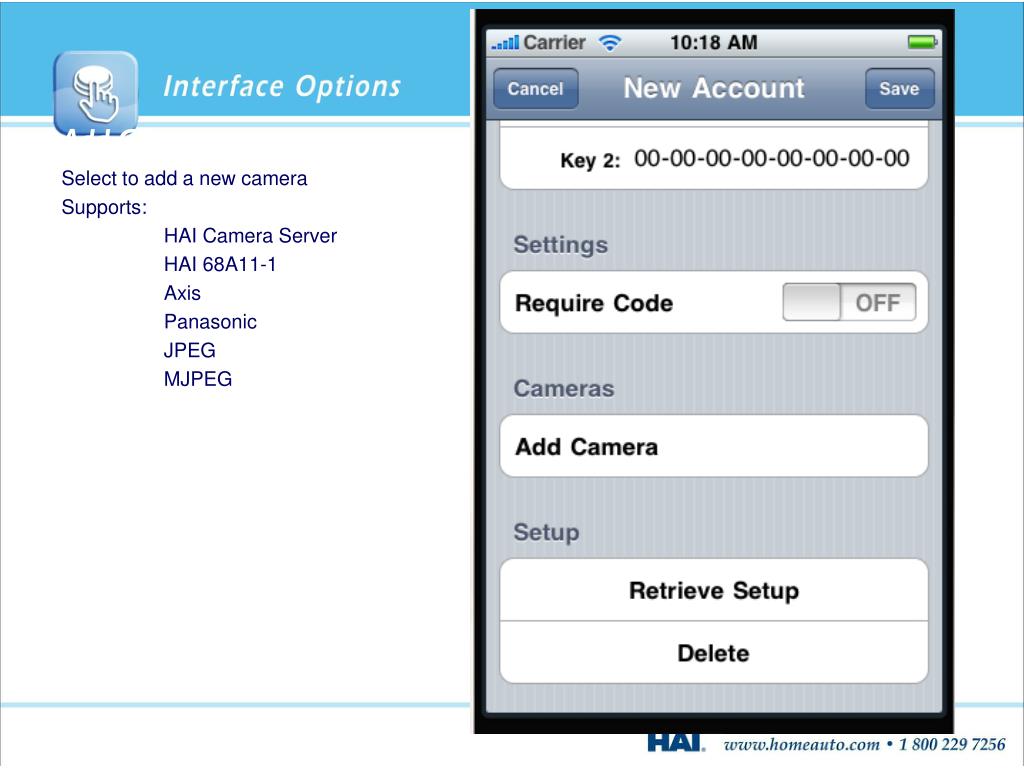

  33. Add Cameras Select to add a new camera Supports: HAI Camera Server HAI 68A11-1 Axis Panasonic JPEG MJPEG

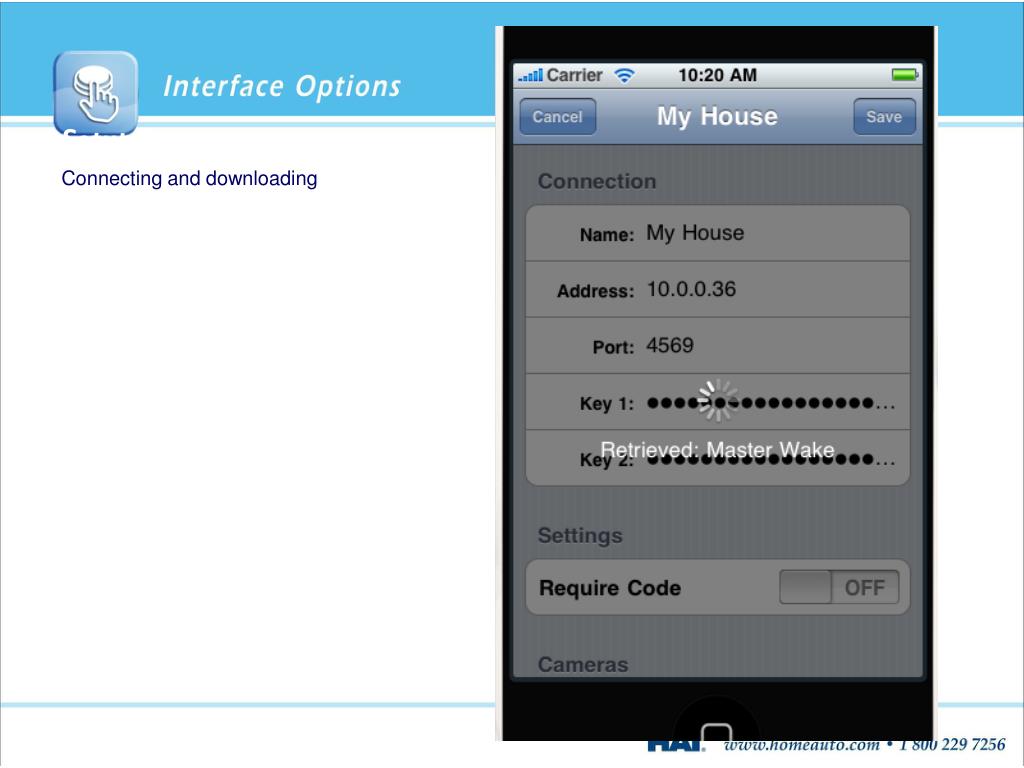

  34. Setup Connecting and downloading

  35. Setup Complete Select the account you want to connect to

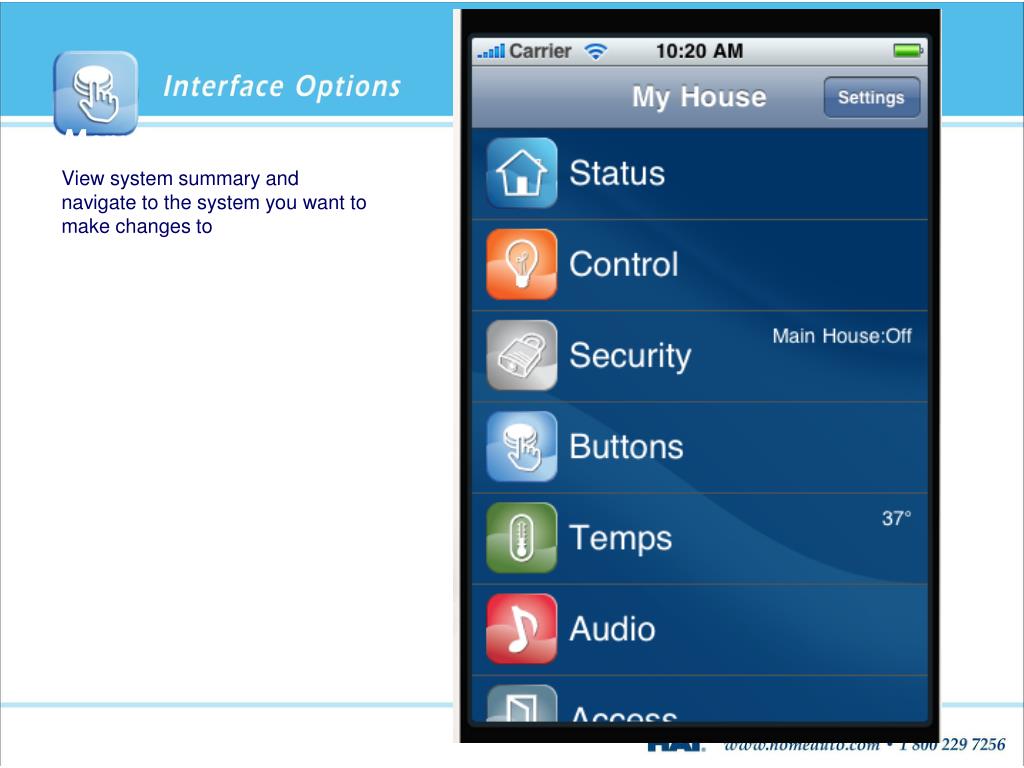

  36. Menu Screen View system summary and navigate to the system you want to make changes to

  37. Status Page View overall system status

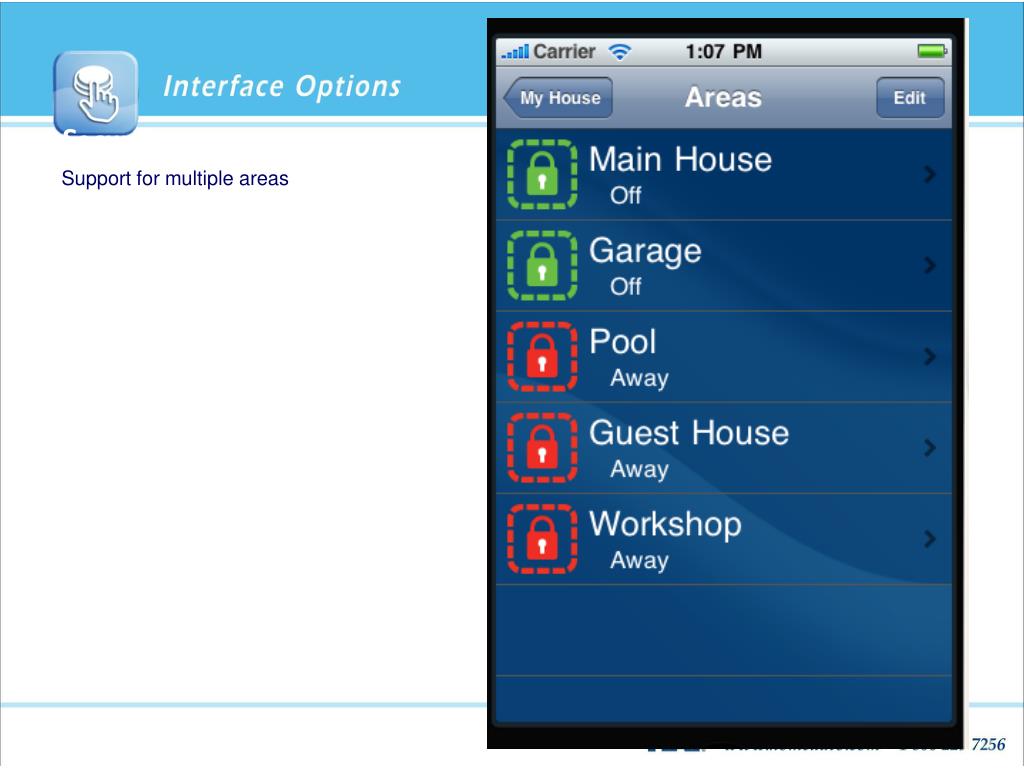

  38. Security Support for multiple areas

  39. Lighting Room Level Control

  40. Control Select a room or individual unit from the list Use the edit button to hide devices you don’t want on the list.

  41. Lighting Set Scenes

  42. Lighting Individual control of loads

  43. Security View Zone Status

  44. Security Bypass and restore zones

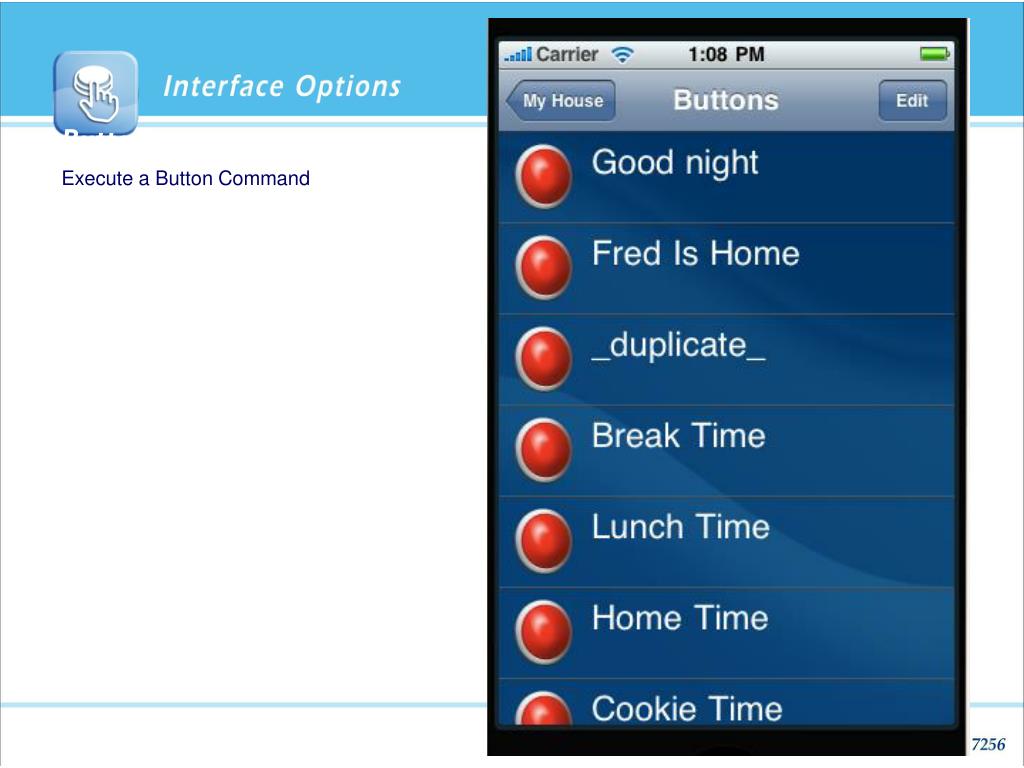

  45. Buttons Execute a Button Command

  46. Temperature View temperature and humidity sensors as well as thermostats
