Rod-like molecules. Lecture Thursday, 2:00pm This lecture: http://www.staff.uni-mainz.de/gruhn/rods.ppt Some Literature: The physics of Liquid Crystals, 2 nd ed. De Gennes P G, Prost J (New York: Oxford Univ. Press, 1993) ‏

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

Rod-like molecules


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
rod like molecules

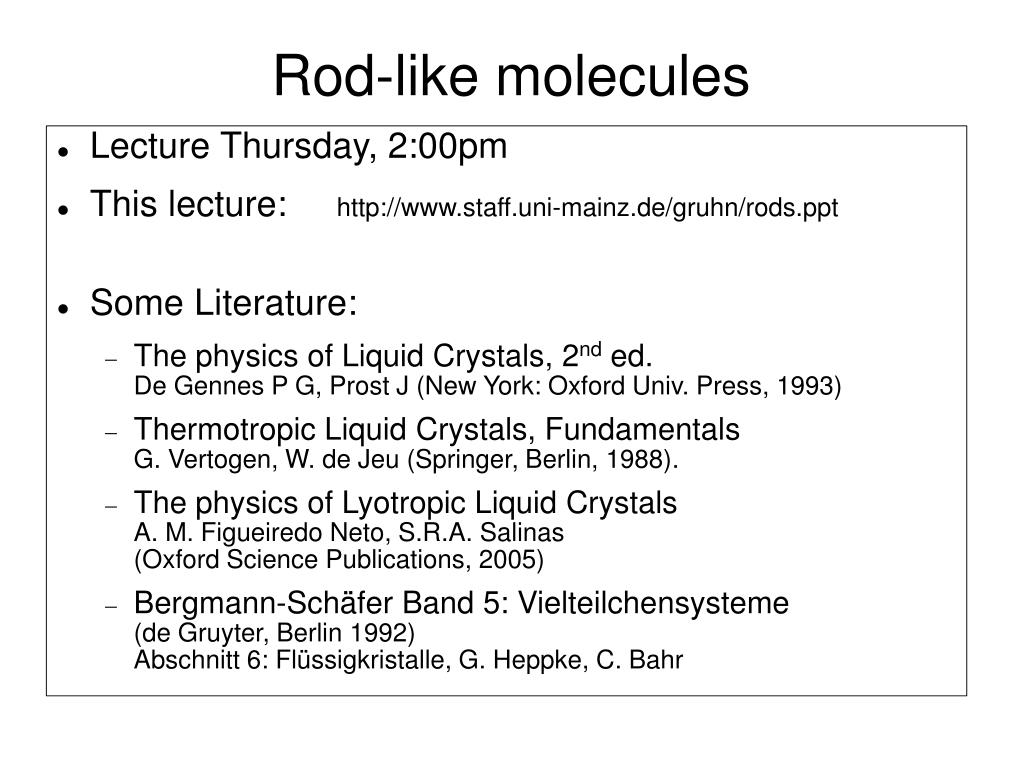

Rod-like molecules
  • Lecture Thursday, 2:00pm
  • This lecture: http://www.staff.uni-mainz.de/gruhn/rods.ppt
  • Some Literature:
    • The physics of Liquid Crystals, 2nd ed.De Gennes P G, Prost J (New York: Oxford Univ. Press, 1993)‏
    • Thermotropic Liquid Crystals, Fundamentals G. Vertogen, W. de Jeu (Springer, Berlin, 1988).
    • The physics of Lyotropic Liquid CrystalsA. M. Figueiredo Neto, S.R.A. Salinas (Oxford Science Publications, 2005)‏
    • Bergmann-Schäfer Band 5: Vielteilchensysteme(de Gruyter, Berlin 1992)Abschnitt 6: Flüssigkristalle, G. Heppke, C. Bahr
rod like molecules2

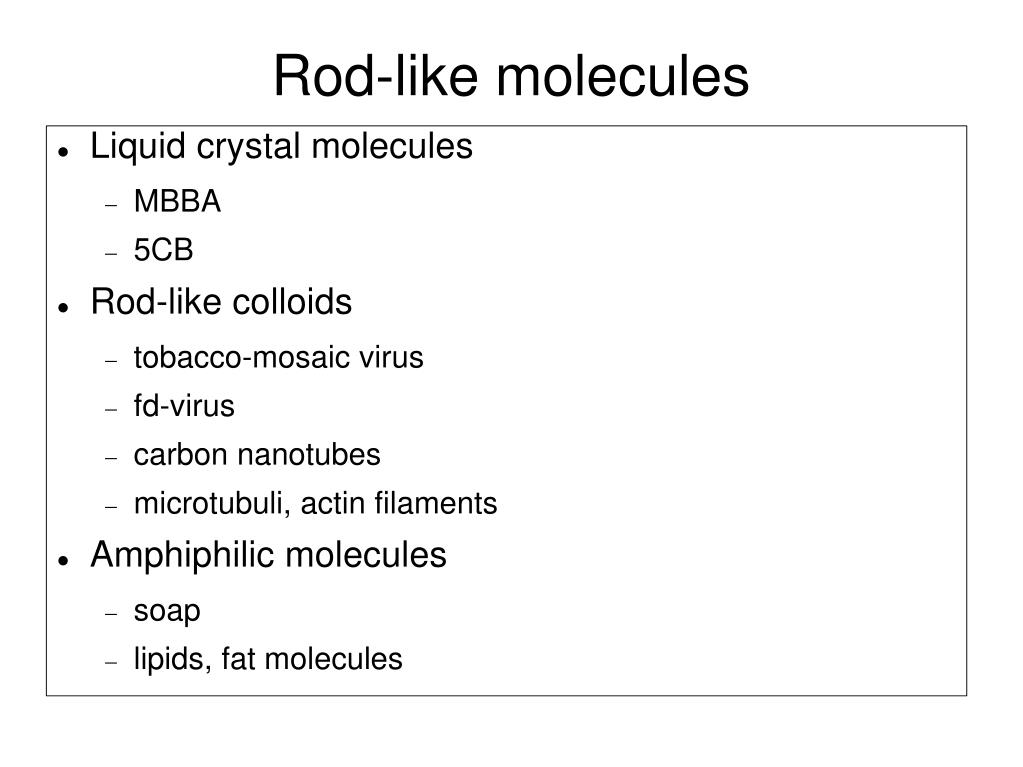

Rod-like molecules
  • Liquid crystal molecules
    • MBBA
    • 5CB
  • Rod-like colloids
    • tobacco-mosaic virus
    • fd-virus
    • carbon nanotubes
    • microtubuli, actin filaments
  • Amphiphilic molecules
    • soap
    • lipids, fat molecules
rod like molecules3

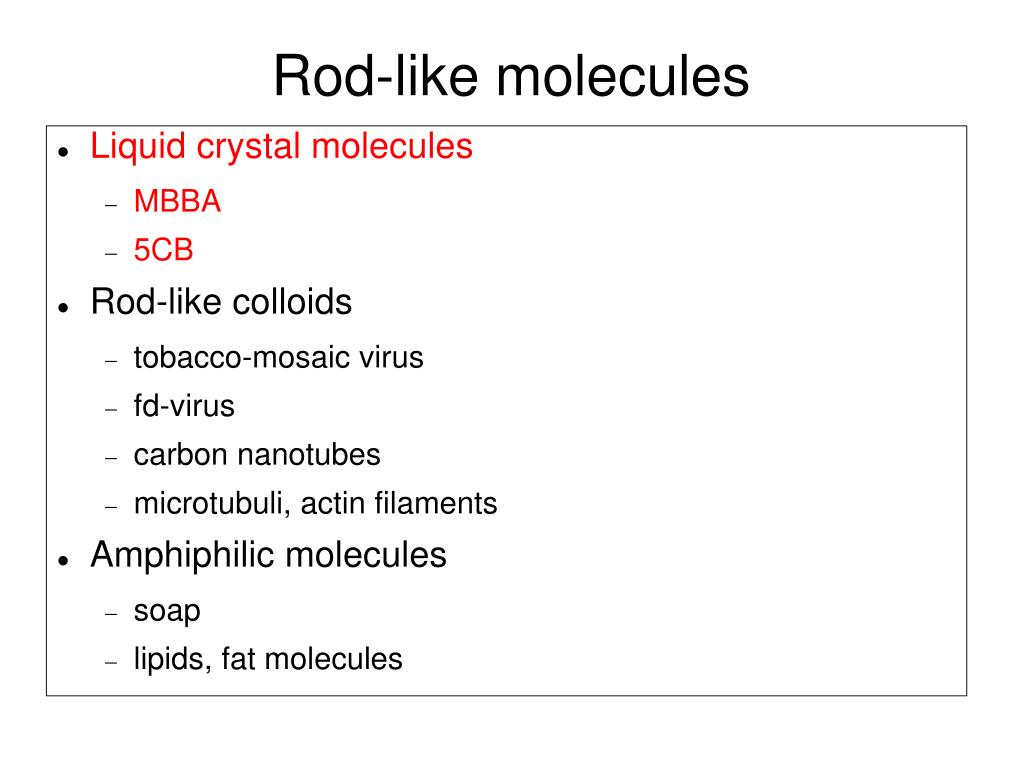

Rod-like molecules
  • Liquid crystal molecules
    • MBBA
    • 5CB
  • Rod-like colloids
    • tobacco-mosaic virus
    • fd-virus
    • carbon nanotubes
    • microtubuli, actin filaments
  • Amphiphilic molecules
    • soap
    • lipids, fat molecules
rod like molecules4
Rod-like molecules

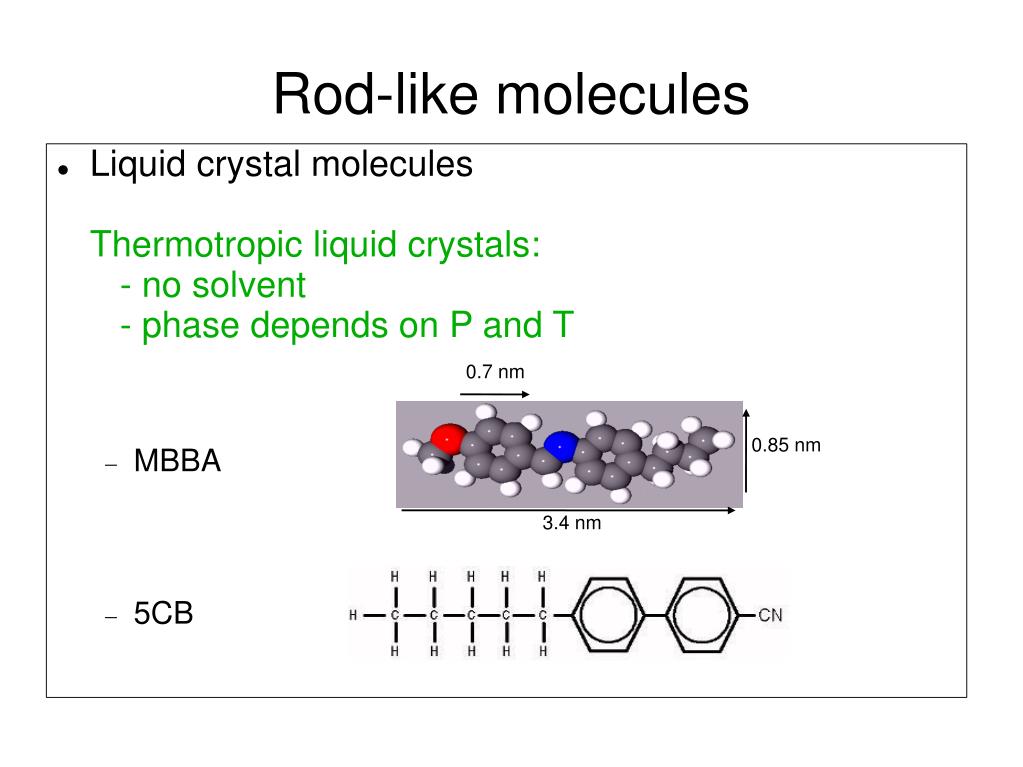

  • Liquid crystal moleculesThermotropic liquid crystals: - no solvent - phase depends on P and T
    • MBBA
    • 5CB

0.7 nm

0.85 nm

3.4 nm

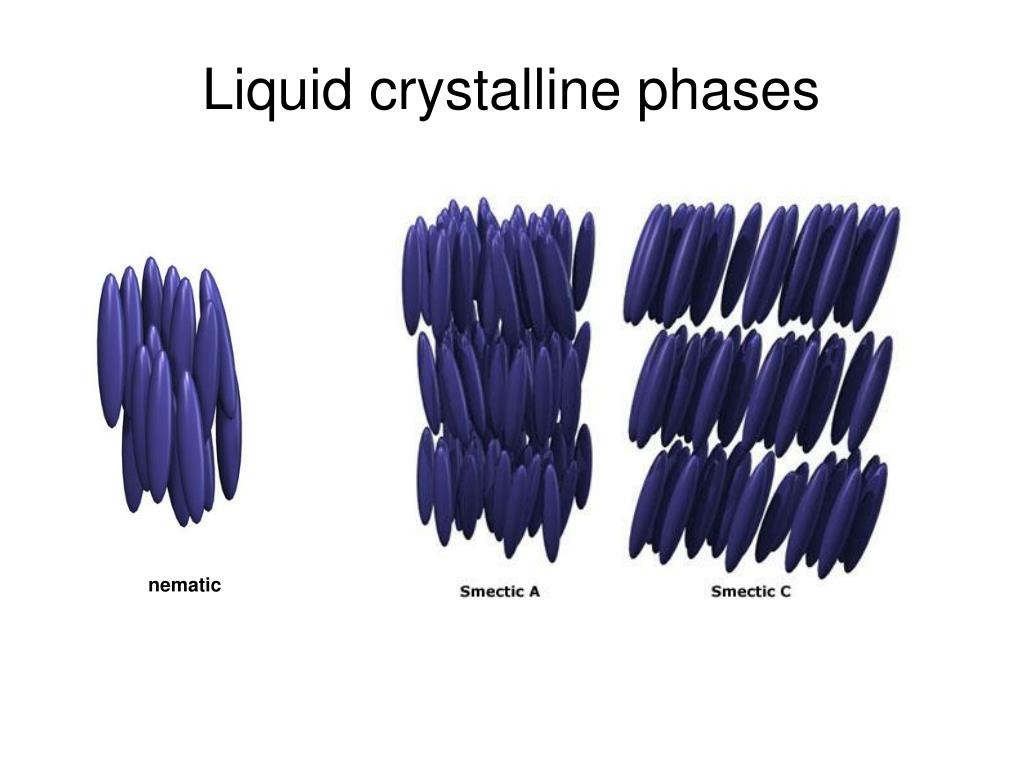

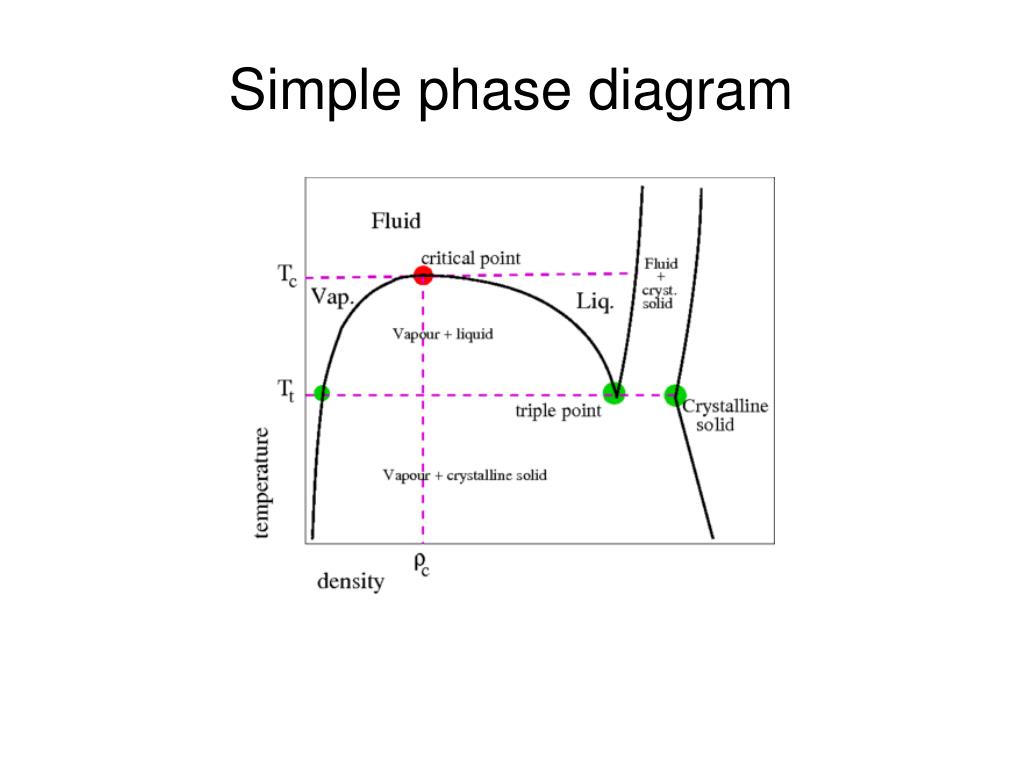

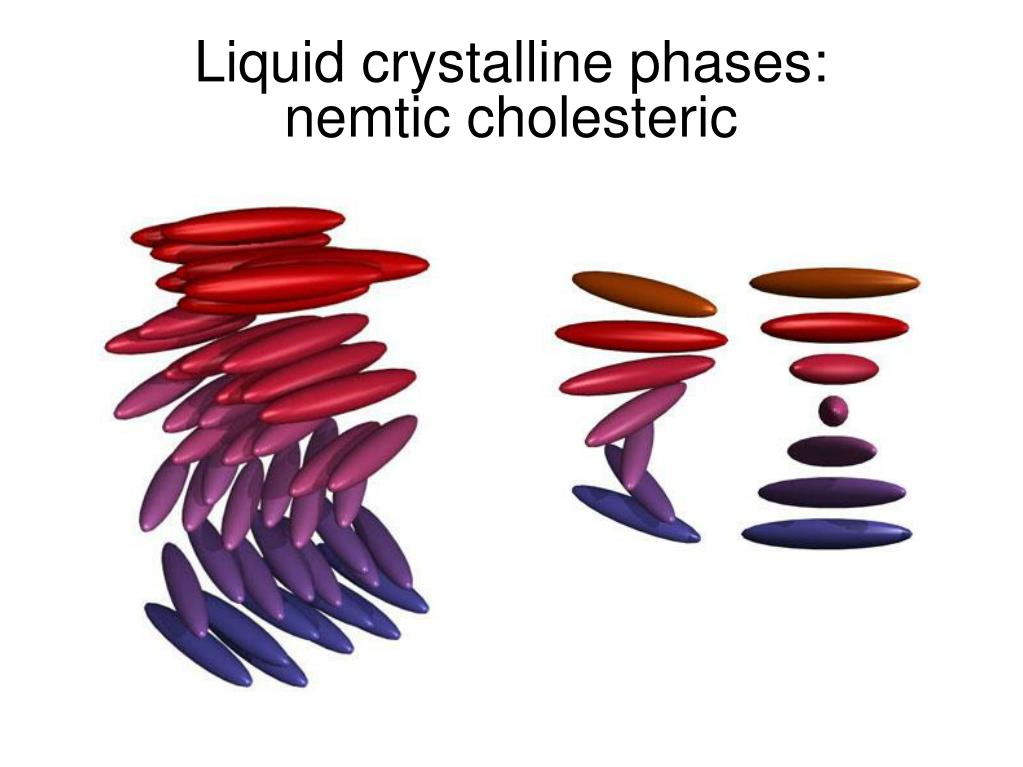

liquid crystal phase diagram
Liquid crystal phase diagram

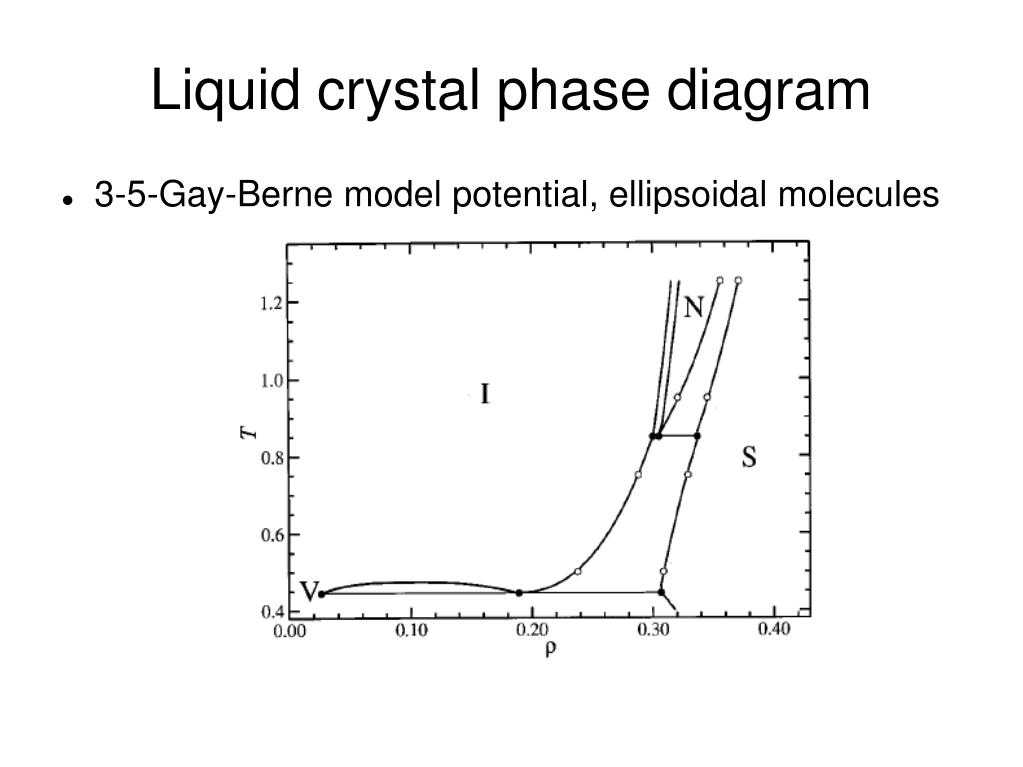

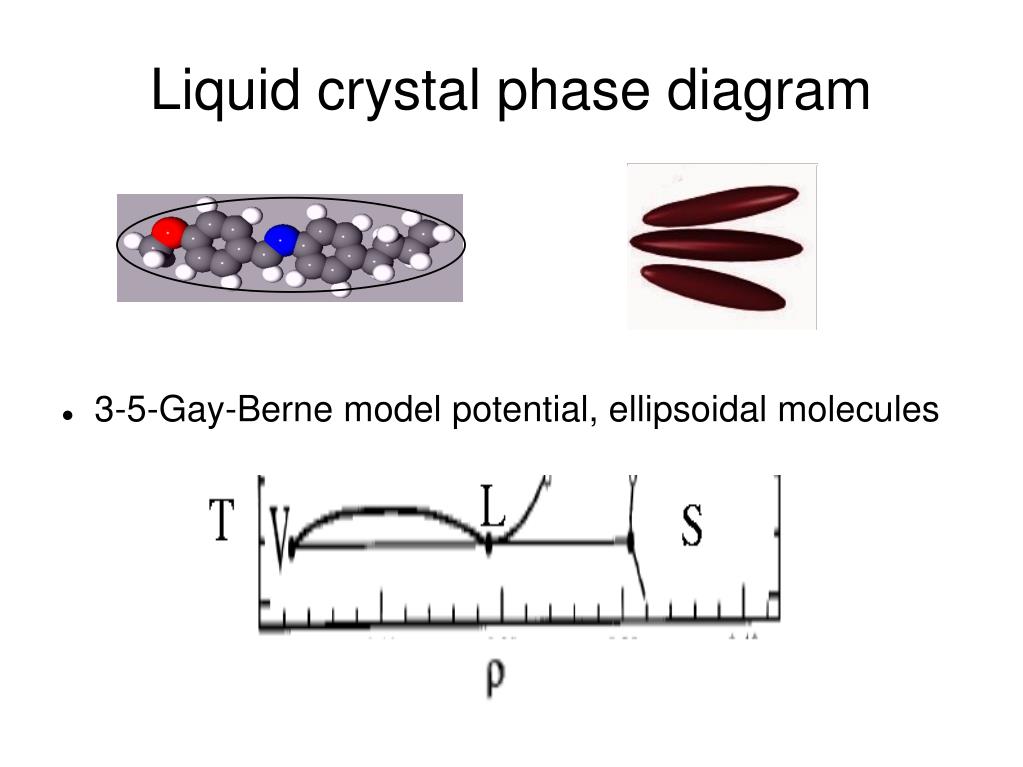

  • 3-5-Gay-Berne model potential, ellipsoidal molecules
liquid crystal phase diagram7
Liquid crystal phase diagram
  • 3-5-Gay-Berne model potential, ellipsoidal molecules

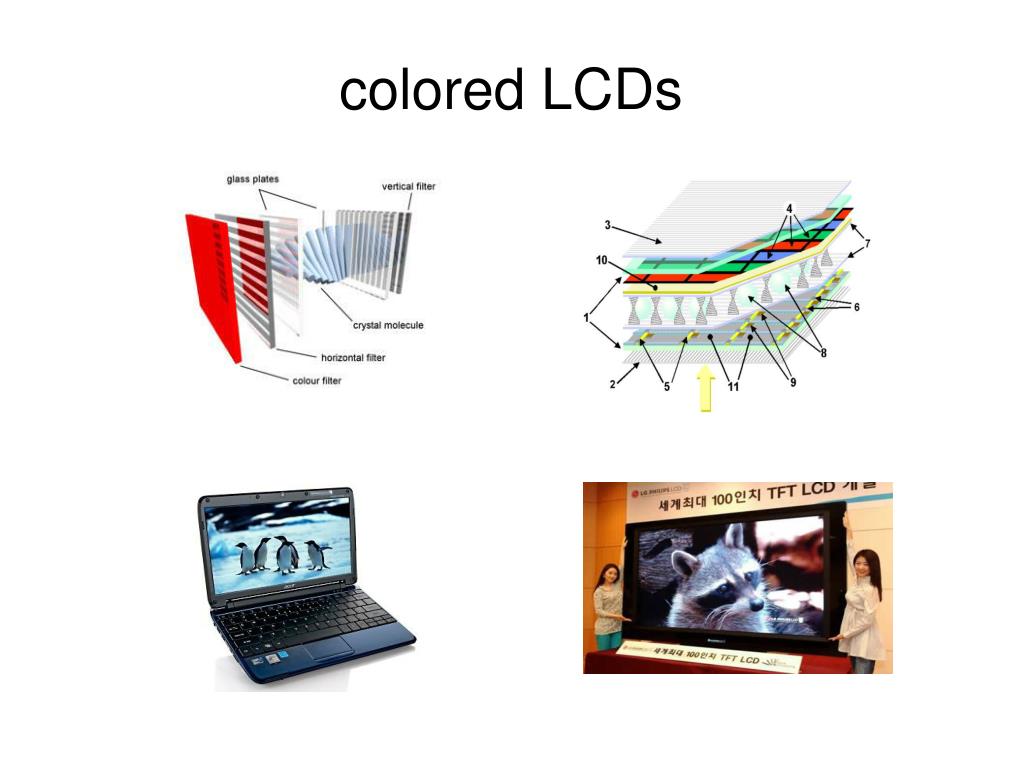

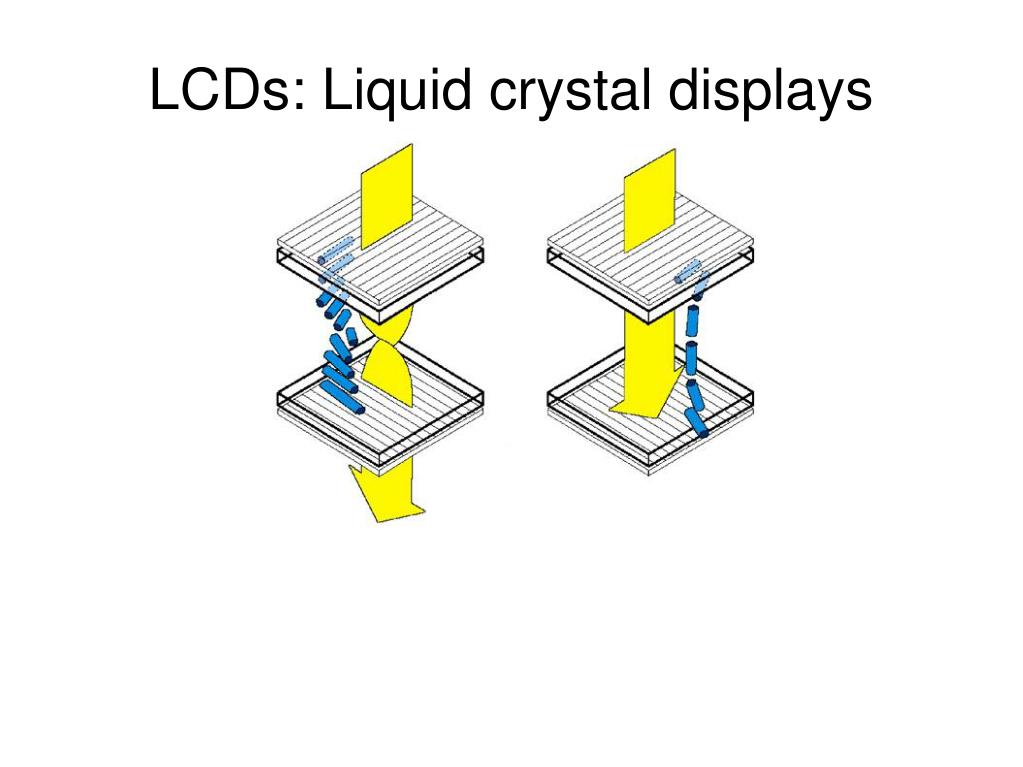

optical activity
Optical Activity

polarizer

polarizer

isotropic fluid

nematic fluid

polarizer

polarizer

optical activity12
Optical Activity

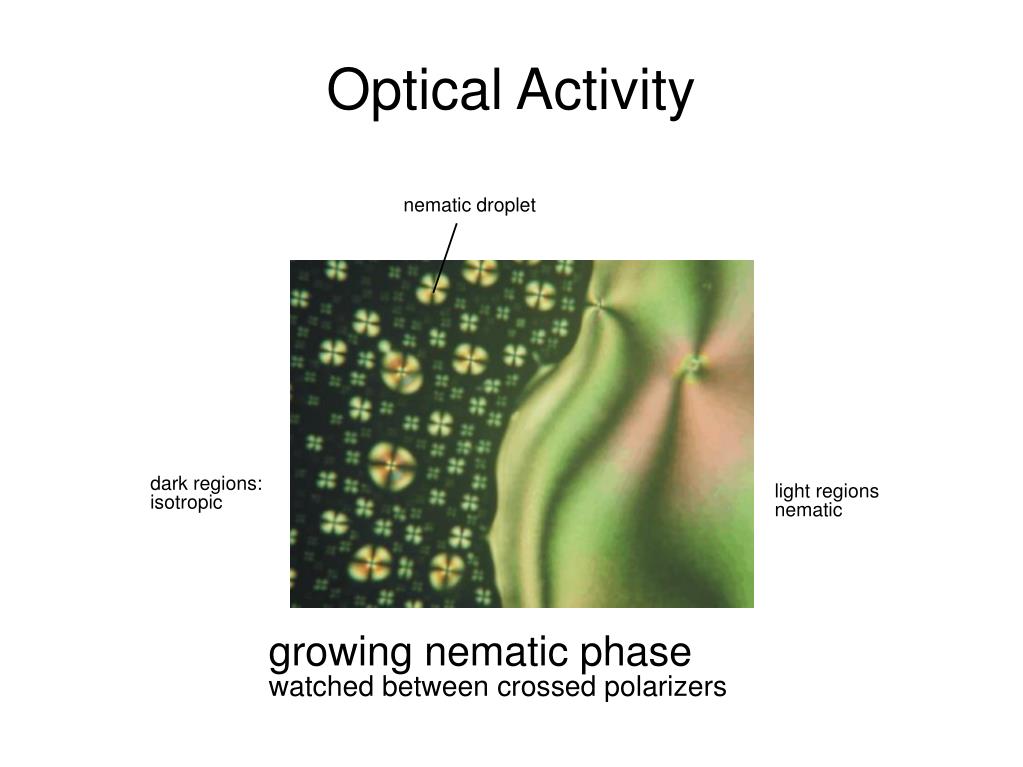

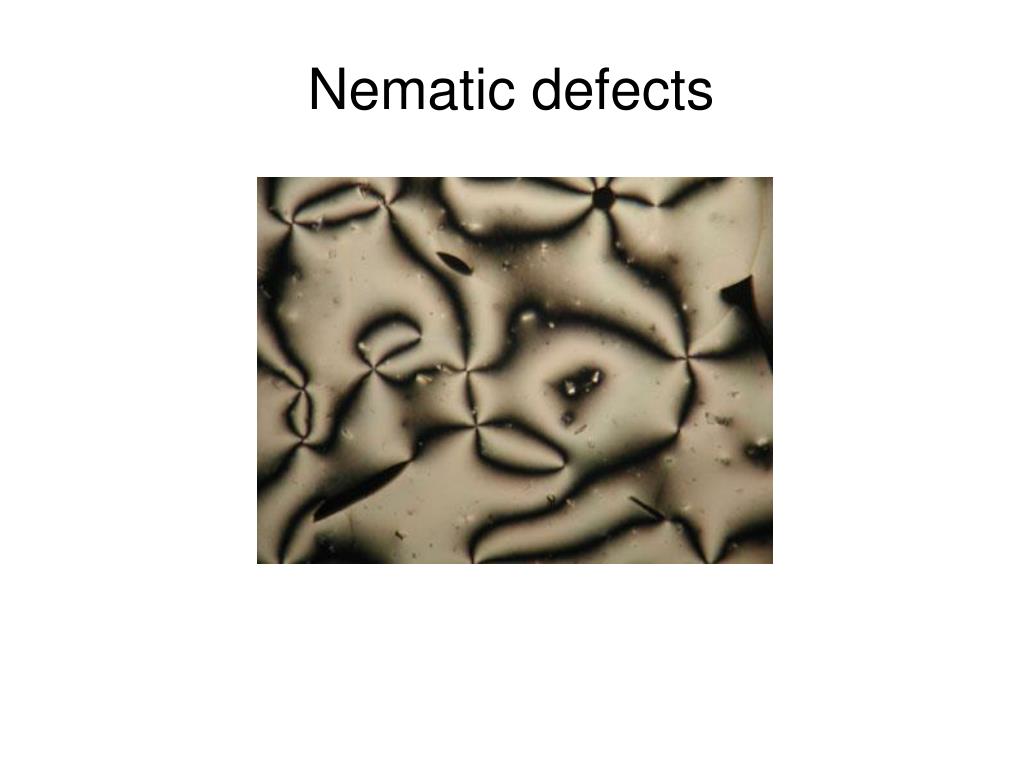

nematic droplet

dark regions:

isotropic

light regions

nematic

growing nematic phase

watched between crossed polarizers

rod like molecules16
Rod-like molecules
  • Liquid crystal molecules
    • MBBA
    • 5CB
  • Rod-like colloids
    • tobacco-mosaic virus
    • fd-virus
    • carbon nanotubes
    • microtubuli, actin filaments
  • Amphiphilic molecules
    • soap
    • lipids, fat molecules
rod like molecules17
Rod-like molecules

D : diameter

L : length

LP : persistence length

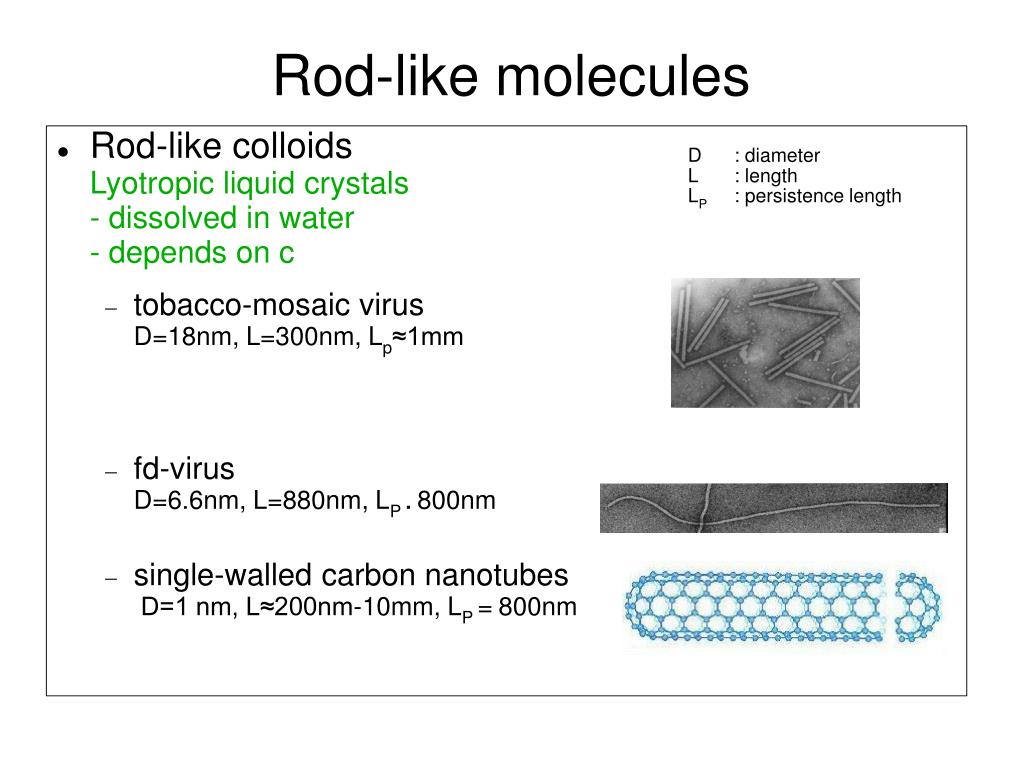

  • Rod-like colloidsLyotropic liquid crystals- dissolved in water- depends on c
    • tobacco-mosaic virusD=18nm, L=300nm, Lp≈1mm

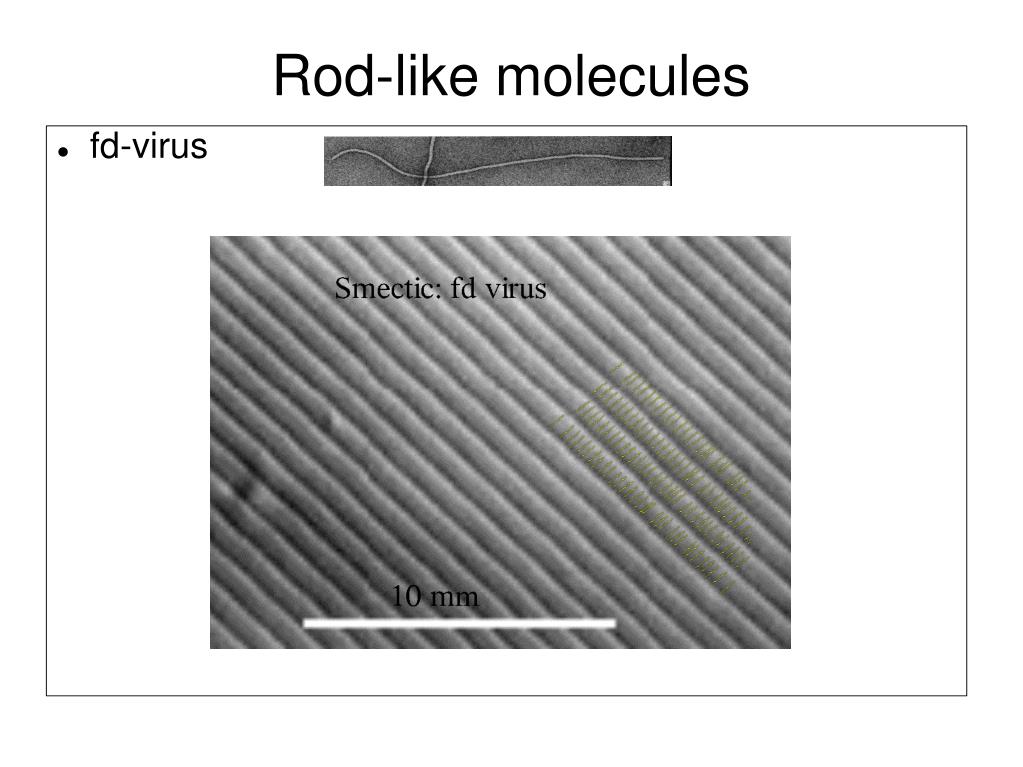

    • fd-virusD=6.6nm, L=880nm, LP . 800nm
    • single-walled carbon nanotubes D=1 nm, L≈200nm-10mm, LP =800nm
rod like molecules18

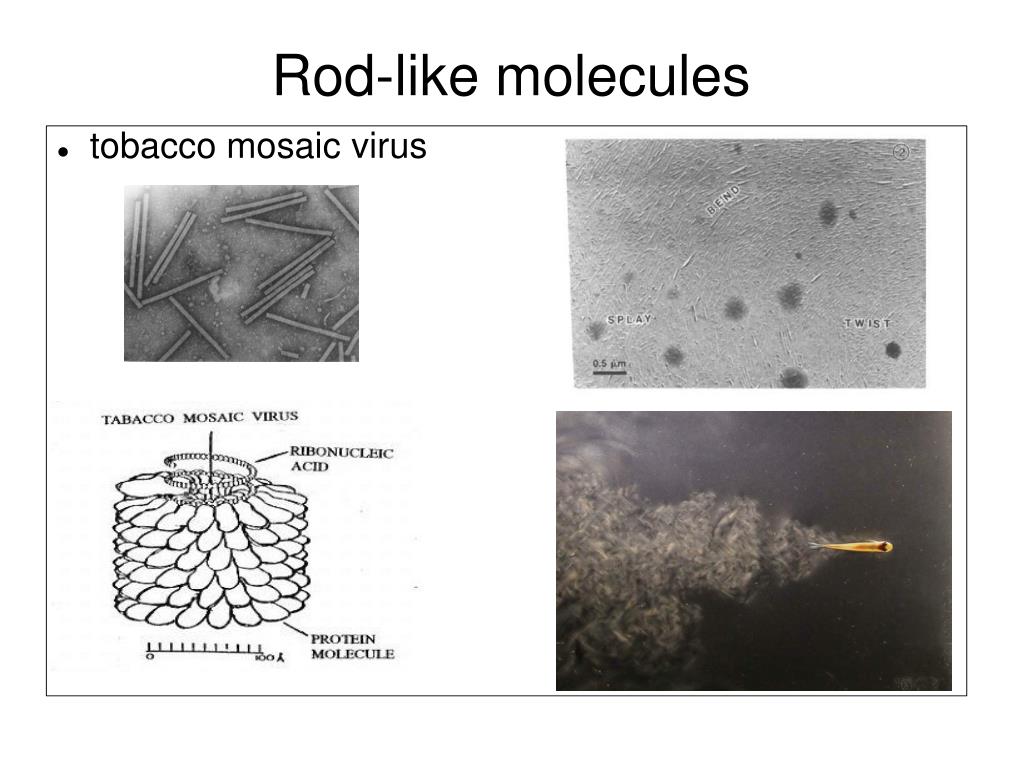

Rod-like molecules
  • tobacco mosaic virus
rod like molecules20
Rod-like molecules

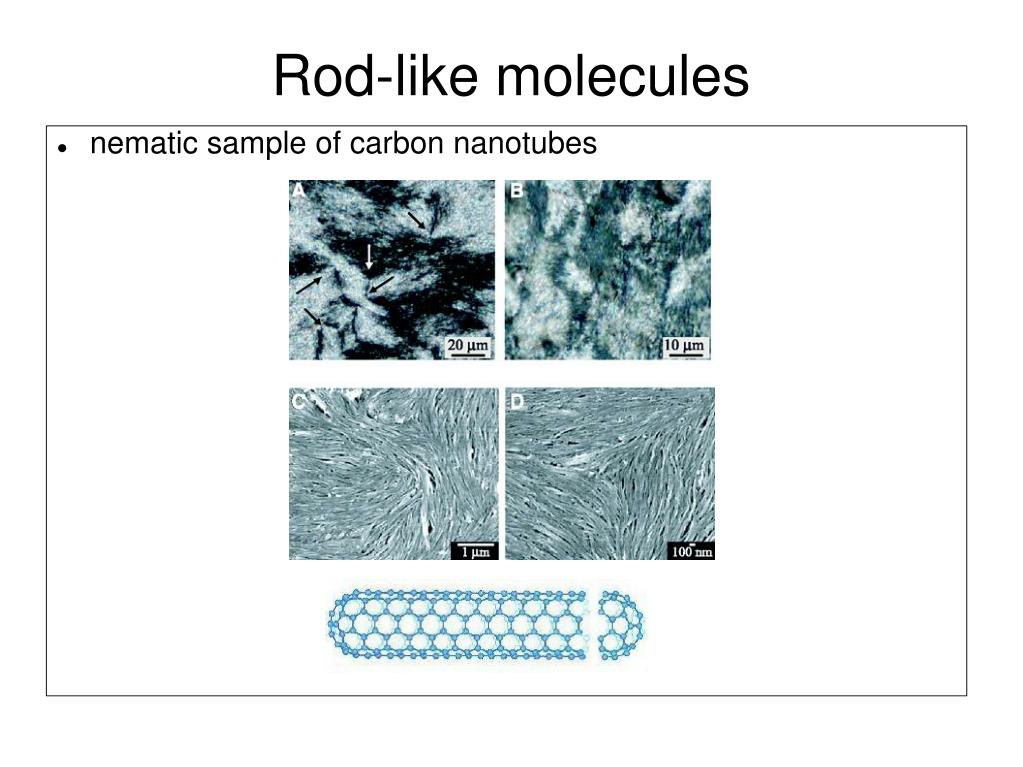

  • nematic sample of carbon nanotubes
rod like molecules21
Rod-like molecules

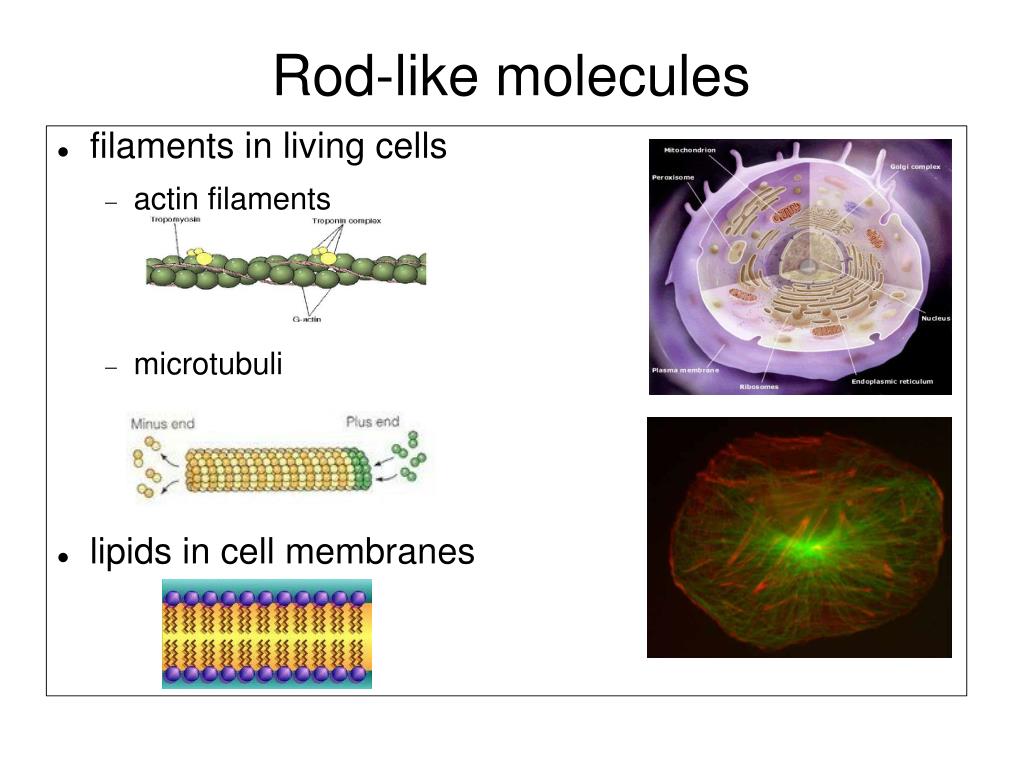

  • filaments in living cells
    • actin filaments
    • microtubuli
  • lipids in cell membranes
rod like molecules22
Rod-like molecules

D : diameter

L : length

LP : persistence length

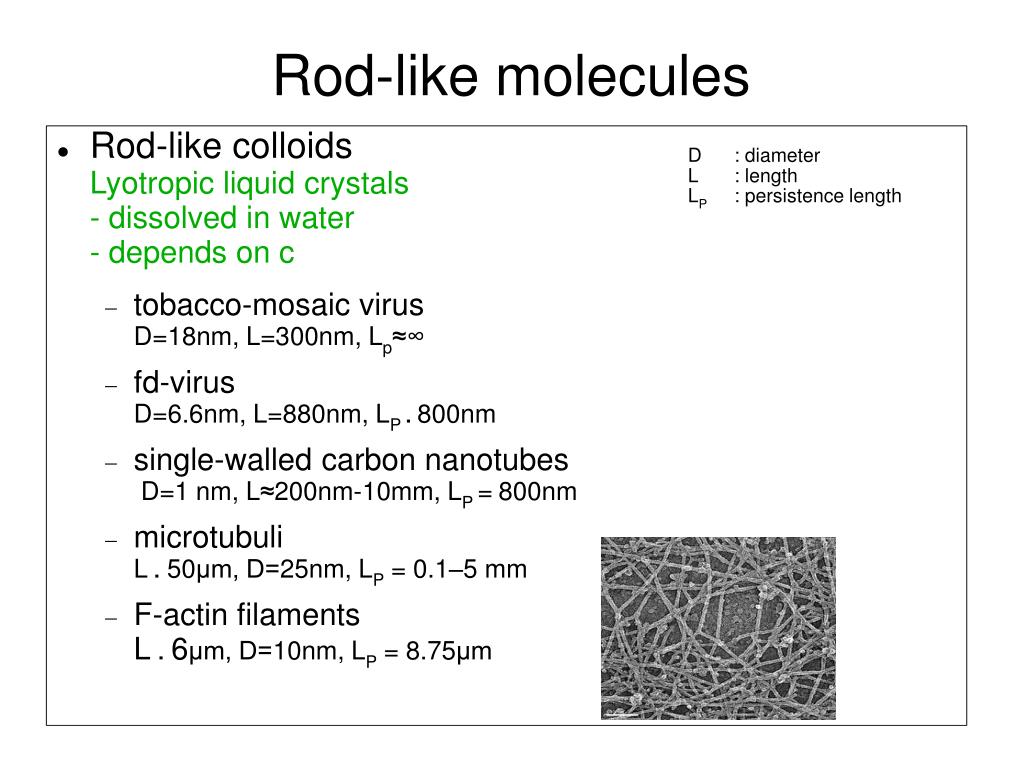

  • Rod-like colloidsLyotropic liquid crystals- dissolved in water- depends on c
    • tobacco-mosaic virusD=18nm, L=300nm, Lp≈∞
    • fd-virusD=6.6nm, L=880nm, LP . 800nm
    • single-walled carbon nanotubes D=1 nm, L≈200nm-10mm, LP =800nm
    • microtubuliL . 50μm, D=25nm, LP = 0.1–5 mm
    • F-actin filamentsL .6μm, D=10nm, LP = 8.75μm
rod like molecules23
Rod-like molecules
  • Liquid crystal molecules
    • MBBA
    • 5CB
  • Rod-like colloids
    • tobacco-mosaic virus
    • fd-virus
    • carbon nanotubes
    • microtubuli, actin filaments
  • Amphiphilic molecules
    • soap
    • lipids, fat molecules
soap lipids fats

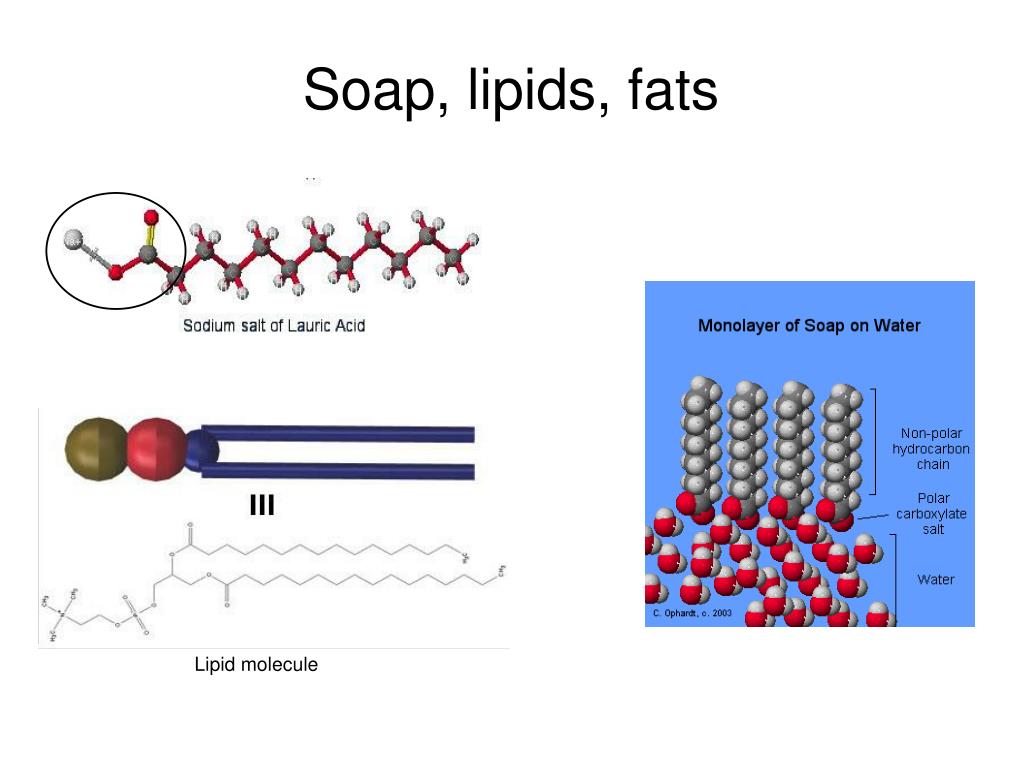

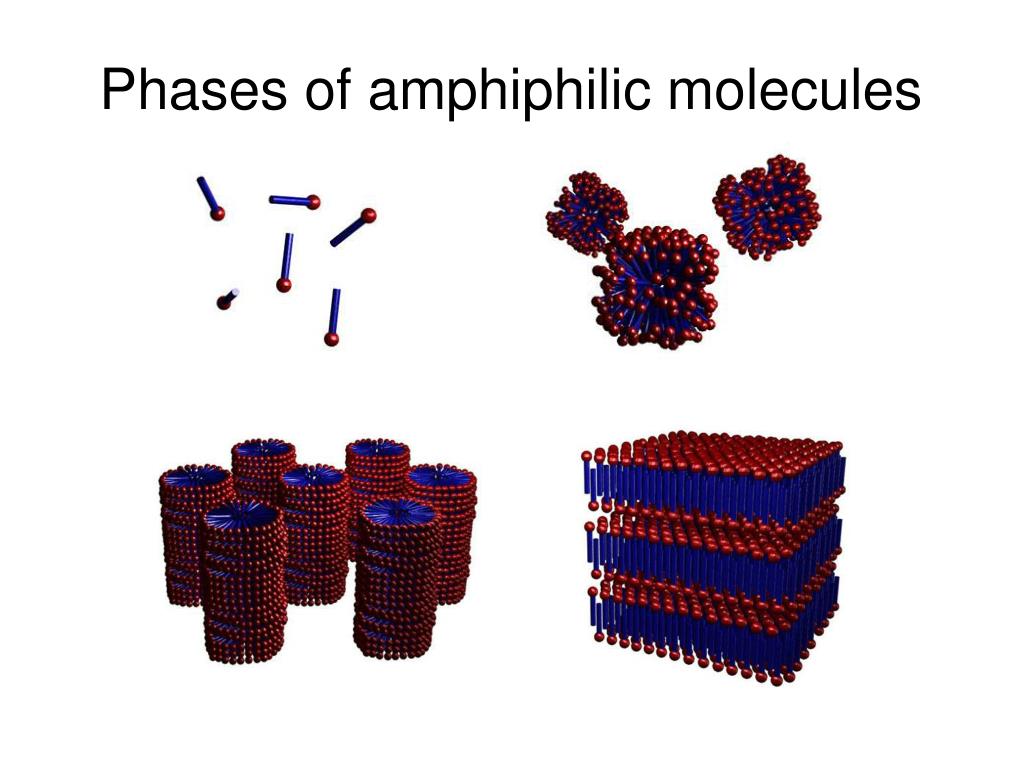

Soap, lipids, fats

Lipid molecule

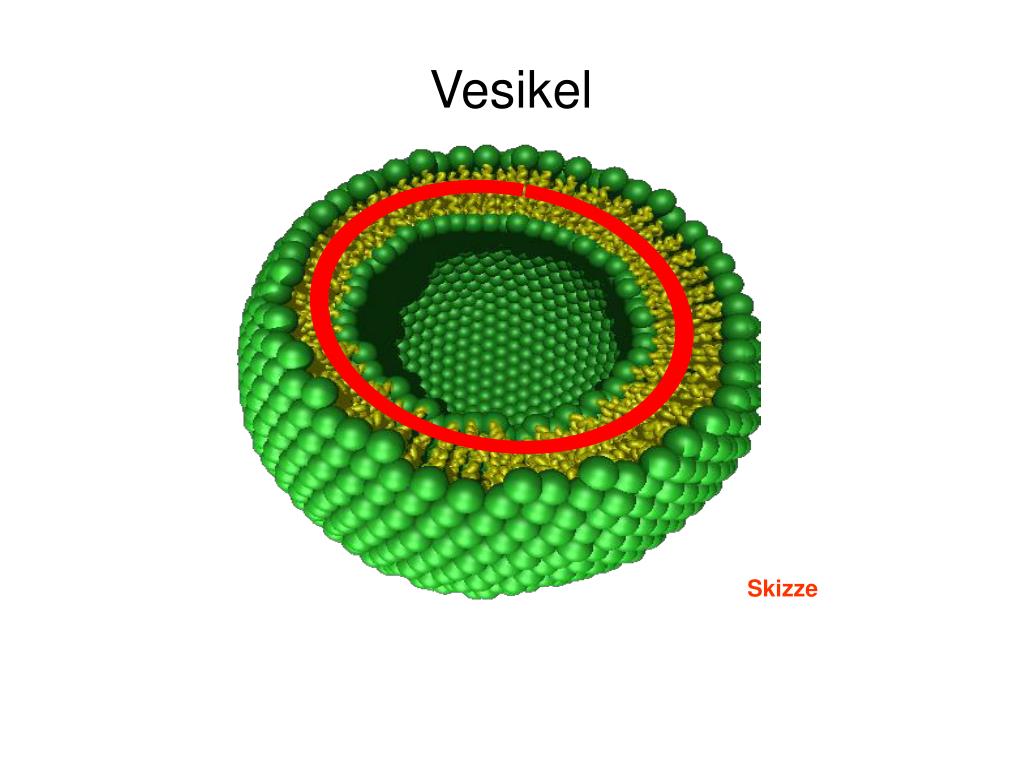

vesikel
Vesikel

Skizze

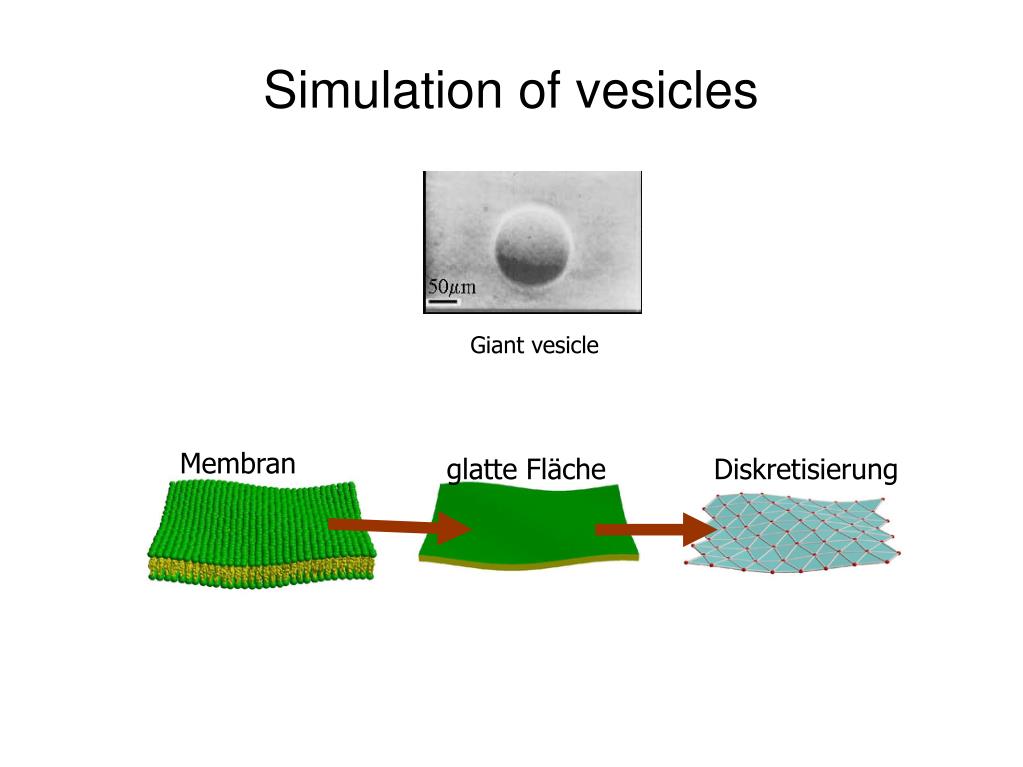

simulation of vesicles

Membran

glatte Fläche

Diskretisierung

Simulation of vesicles

Giant vesicle
