  1. Seth Willis Jason Cho John Kwak EF this!

  2. The Device

  3. Conservation of Energy The Process Trajectory Torque Center of Mass Conservation of Momentum Torque

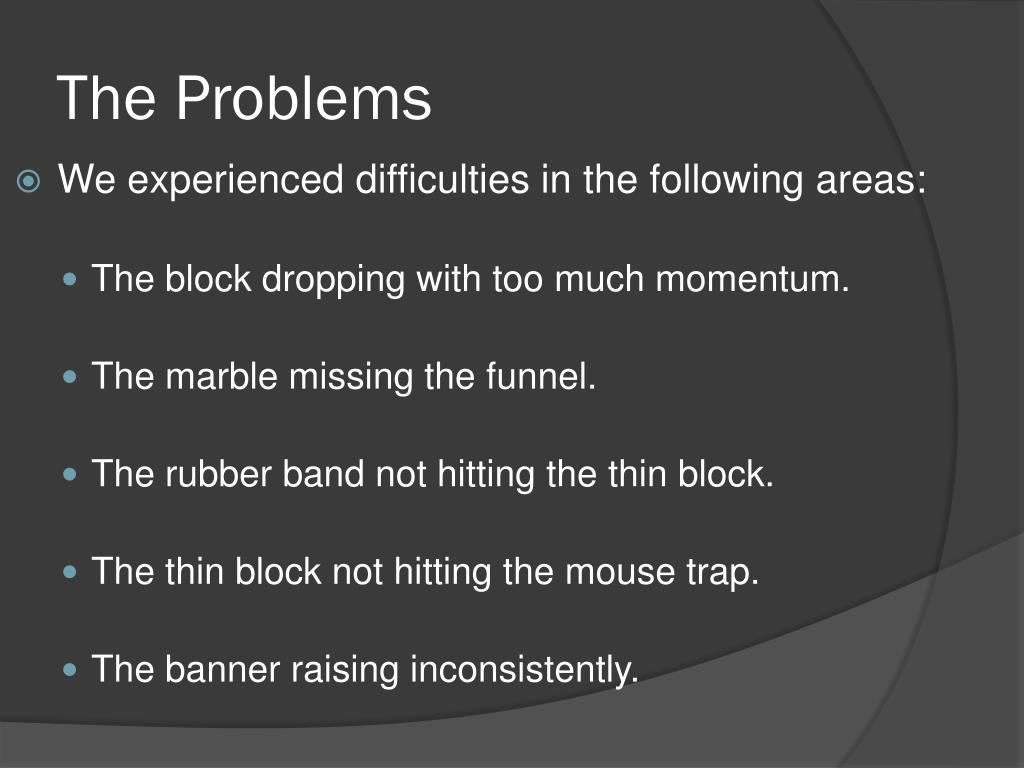

  4. The Problems • We experienced difficulties in the following areas: • The block dropping with too much momentum. • The marble missing the funnel. • The rubber band not hitting the thin block. • The thin block not hitting the mouse trap. • The banner raising inconsistently.

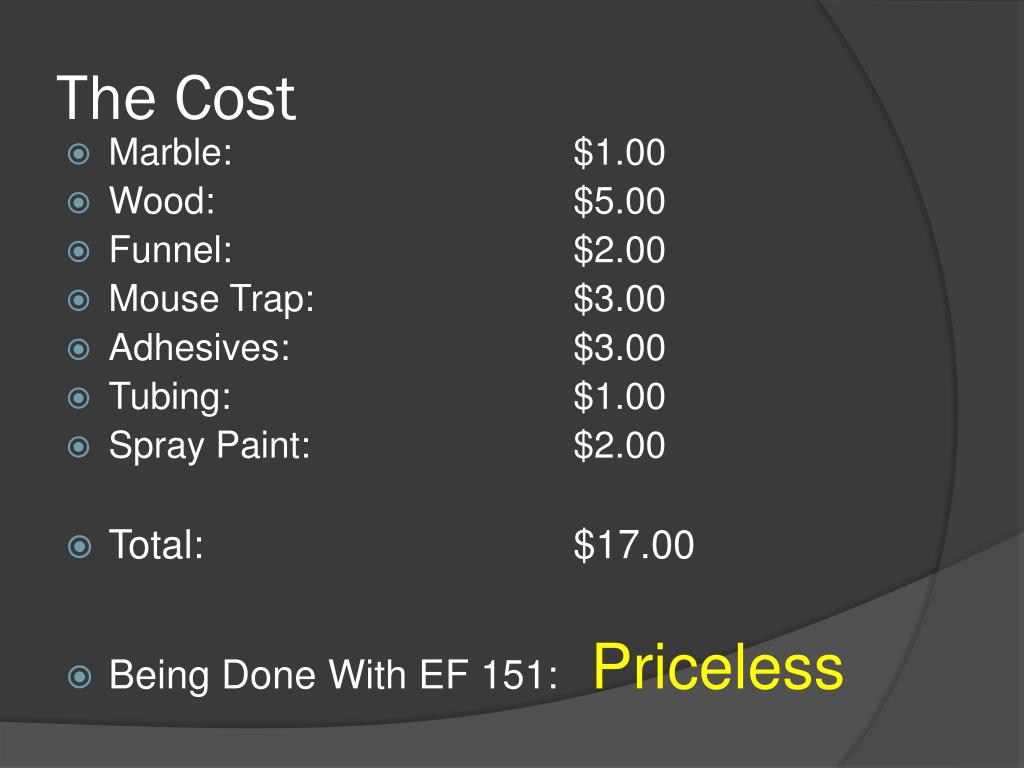

  5. The Cost • Marble: $1.00 • Wood: $5.00 • Funnel: $2.00 • Mouse Trap: $3.00 • Adhesives: $3.00 • Tubing: $1.00 • Spray Paint: $2.00 • Total: $17.00 • Being Done With EF 151: Priceless

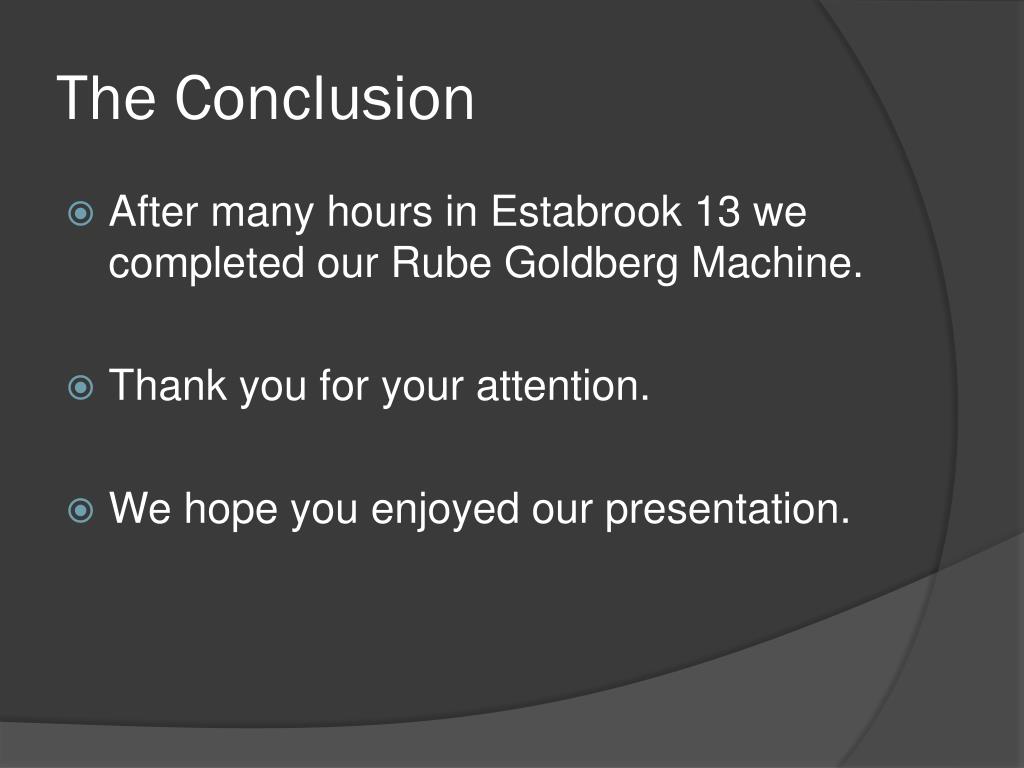

  6. The Conclusion • After many hours in Estabrook 13 we completed our Rube Goldberg Machine. • Thank you for your attention. • We hope you enjoyed our presentation.
