1 / 10

The Roget Illusion and the Persistence of Vision

The Roget Illusion and the Persistence of Vision. by J. L. Hunt Dept. of Physics Univ. of Guelph. Peter Mark Roget (1779-1869) the author of the famous Thesarus noticed an unusual illusion. When a carriage wheel rolls behind A picket fence (palisade) it does NOT look like this .

oralee
Download Presentation

The Roget Illusion and the Persistence of Vision

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The Roget Illusion and the Persistence of Vision by J. L. Hunt Dept. of Physics Univ. of Guelph

  2. Peter Mark Roget (1779-1869)the author of the famous Thesarusnoticed an unusual illusion

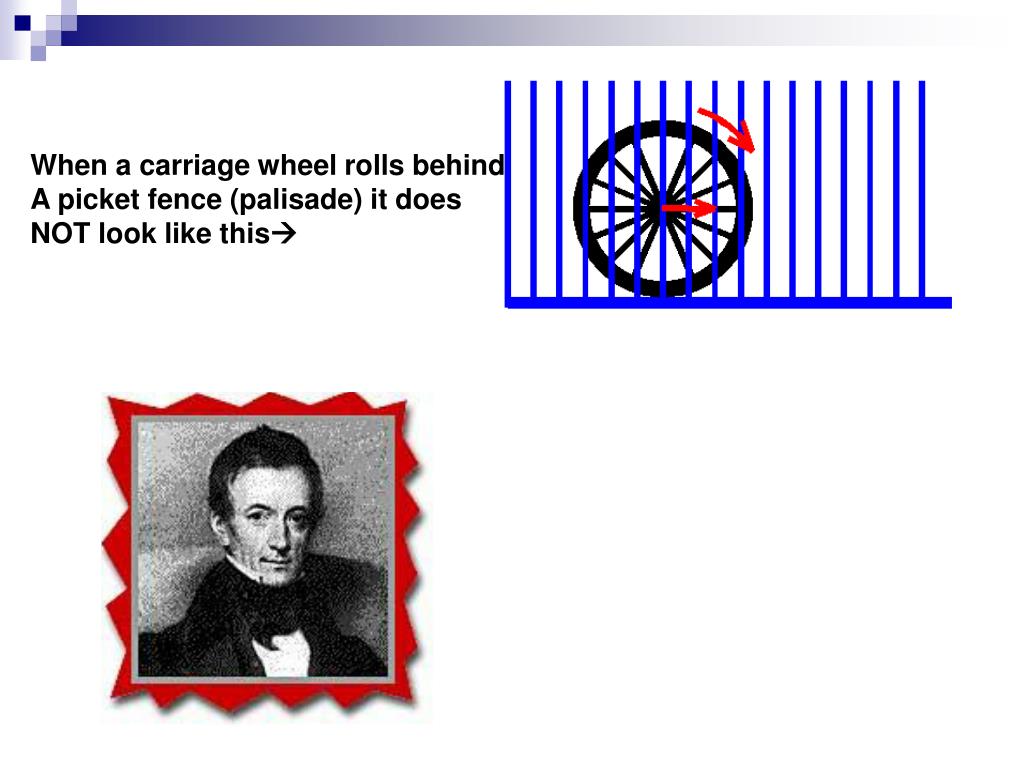

  3. When a carriage wheel rolls behind A picket fence (palisade) it does NOT look like this

  4. It looks like……..

  5. THIS!!! Which is known as The Roget (Palisade) Illusion

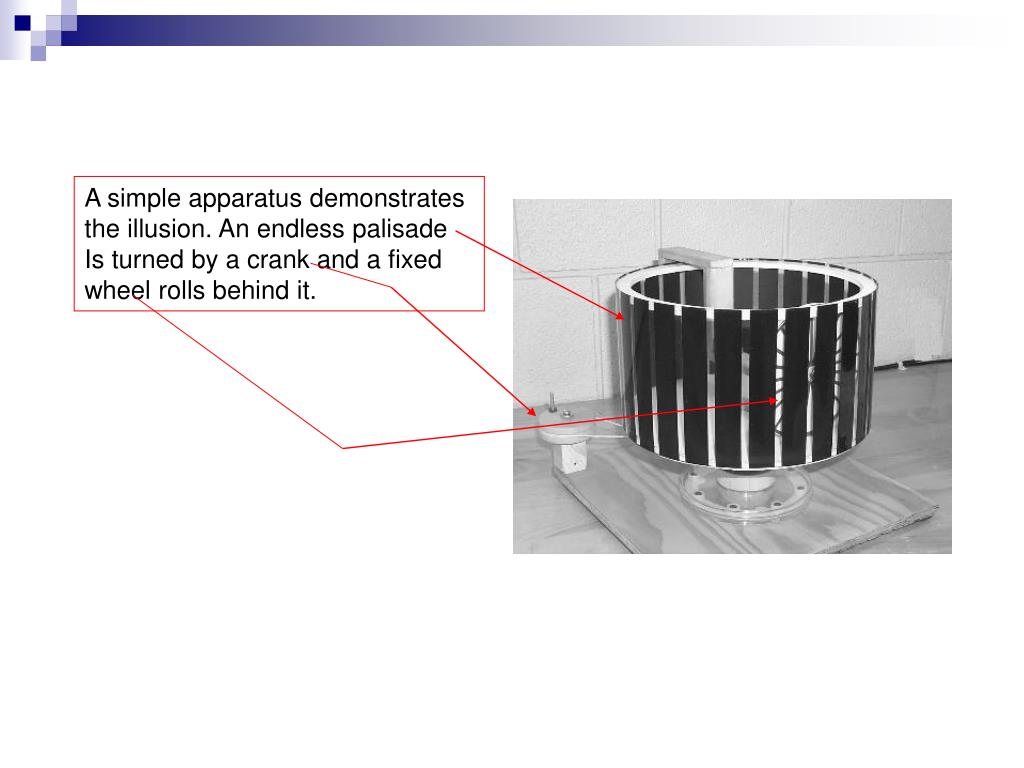

  6. A simple apparatus demonstrates the illusion. An endless palisade Is turned by a crank and a fixed wheel rolls behind it.

  7. Here’s what you see looking at the rolling wheel through the palisade

  8. Let’s follow the intersection of a spoke and a slitas the wheel rotates and the array of slits moves across.

  9. This is one of the few illusions that can be analyzed mathematically. The x and y coordinates of the spoke and slit intersection are: x = rt y = x tan [2n /N + x/r] Where r = radius of the wheel  = angular velocity of the wheel N = number of spokes in the wheel n = 0……(N-1) is an index of a particular spoke.

More Related
