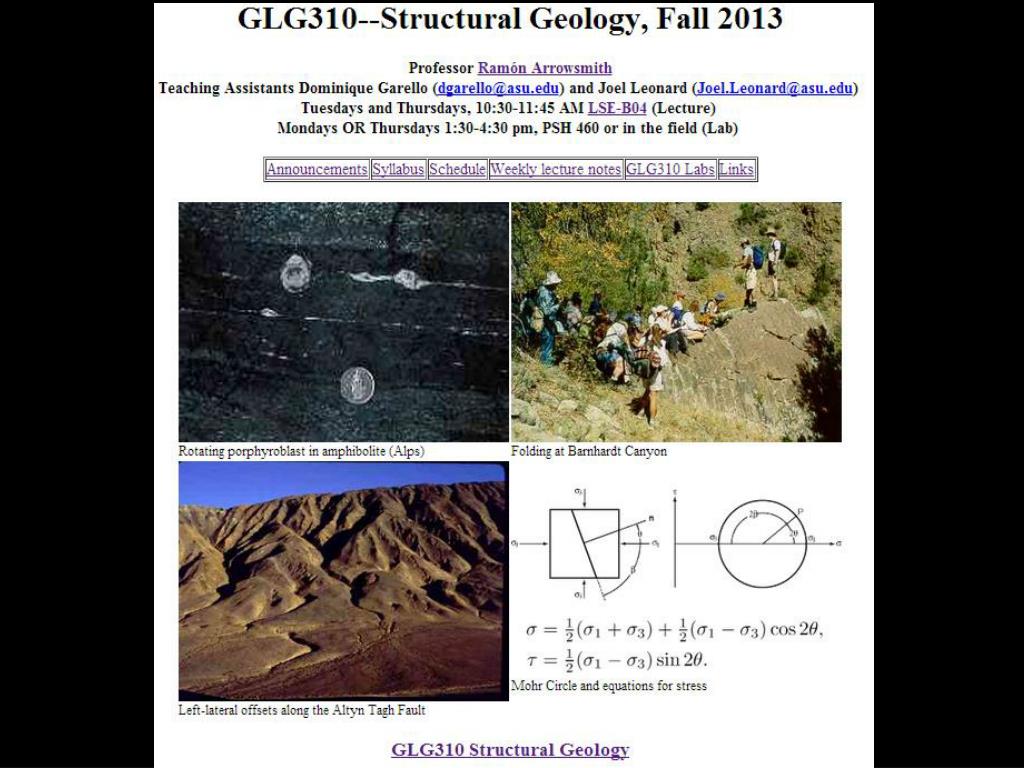

  1. GLG310 Structural Geology

  2. Physical character of faults http://www.photoree.com/photos/permalink/891384-19756080@N00 http://www.gm.univ-montp2.fr/spip/spip.php?article761 GLG310 Structural Geology http://geolmag.geoscienceworld.org/content/145/3/435/F3.expansion

  3. Fault surfaces GLG310 Structural Geology

  4. http://homepage.usask.ca/~mjr347/prog/geoe118/geoe118.052.htmlhttp://homepage.usask.ca/~mjr347/prog/geoe118/geoe118.052.html

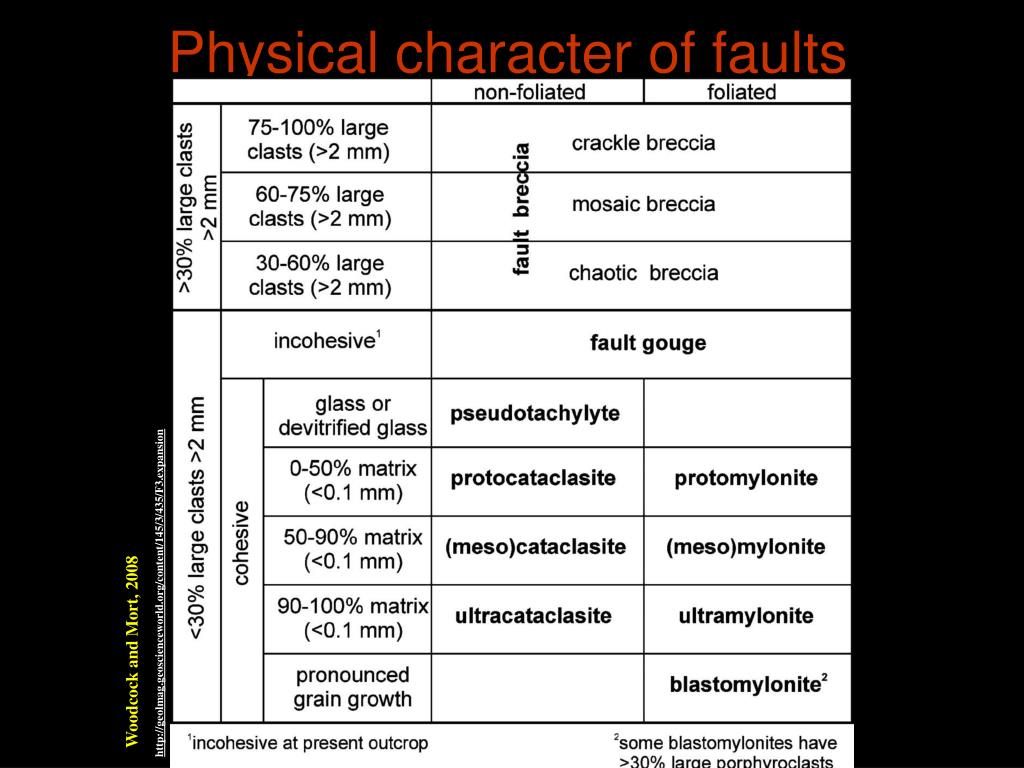

  5. Physical character of faults http://geolmag.geoscienceworld.org/content/145/3/435/F3.expansion Woodcock and Mort, 2008

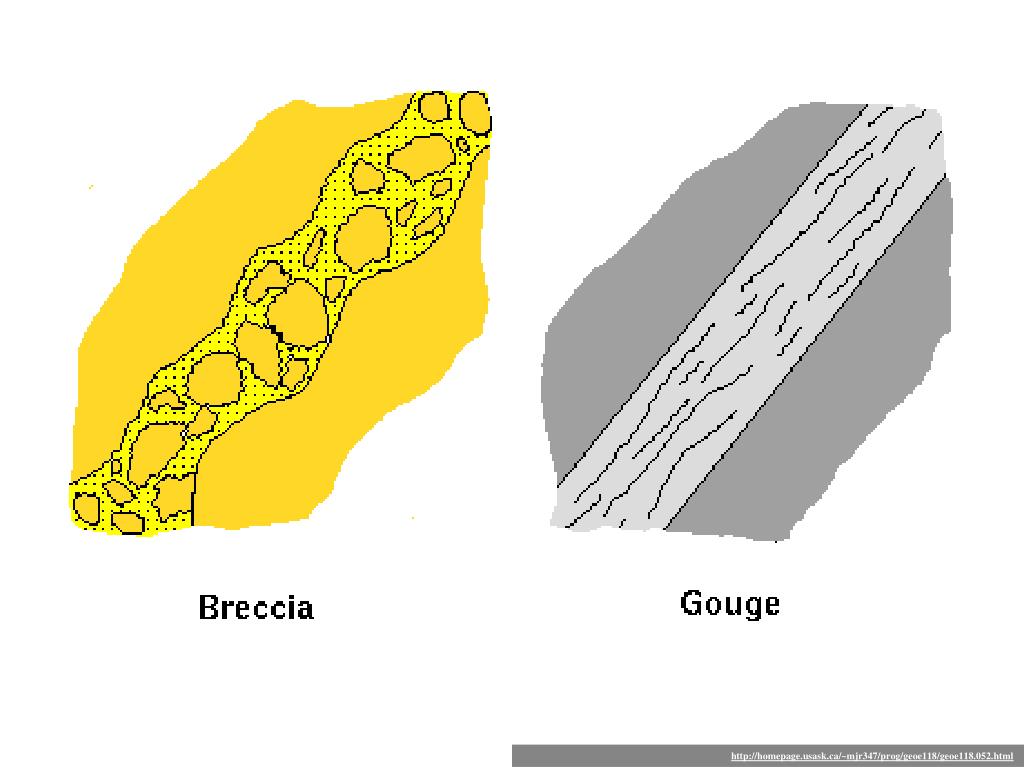

  6. http://homepage.usask.ca/~mjr347/prog/geoe118/geoe118.052.htmlhttp://homepage.usask.ca/~mjr347/prog/geoe118/geoe118.052.html

  7. Breccia http://web.wm.edu/geology/virginia/provinces/Blueridge/fault_zone_lithology.html Photomicrograph of fault breccia in the Antietam Formation, Blue Ridge province. Breccias form when rocks are extensively fractured in fault zones and are cemented together when minerals precipitate in the cracks and fractures. Note the angular fragments (fr) of quartz sandstone in a matrix of fine-grained iron oxide cement (ic). Field of View 4 x 2.7 mm, Cross Polarized Light.

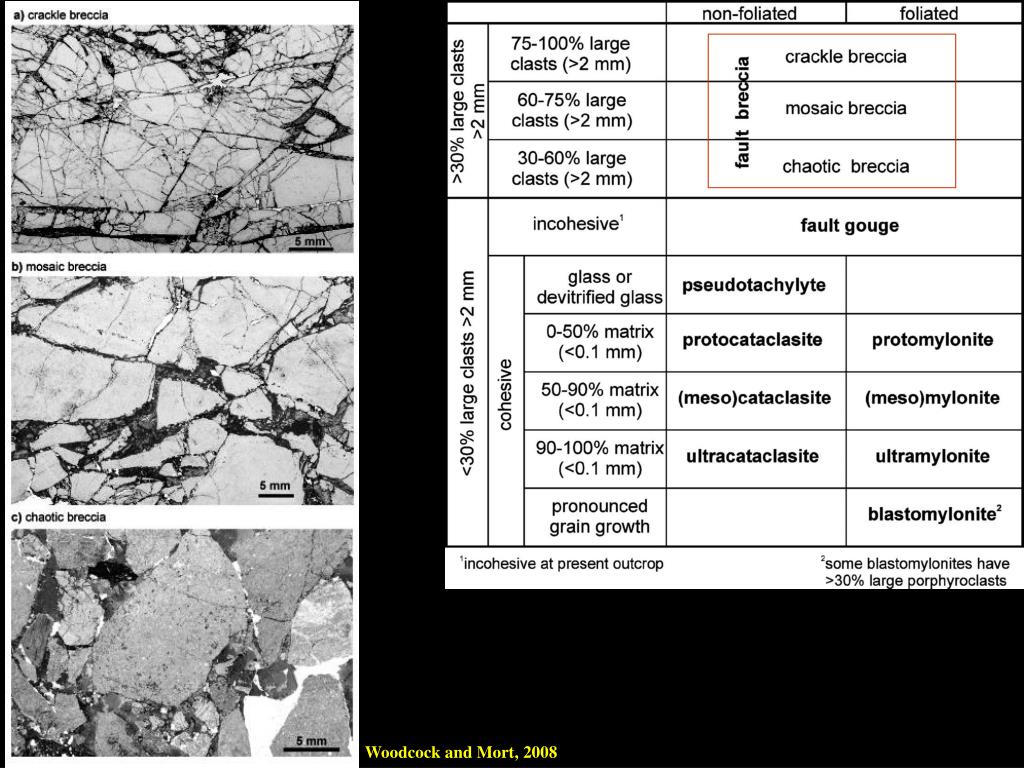

  8. Woodcock and Mort, 2008

  9. http://www.webpages.uidaho.edu/~simkat/geol345_files/2012lecture9.htmlhttp://www.webpages.uidaho.edu/~simkat/geol345_files/2012lecture9.html

  10. Gouge along fault zone is more easily eroded GLG310 Structural Geology http://www.carmeliet.arch.ethz.ch/People/Ferdowsi

  11. GLG310 Structural Geology

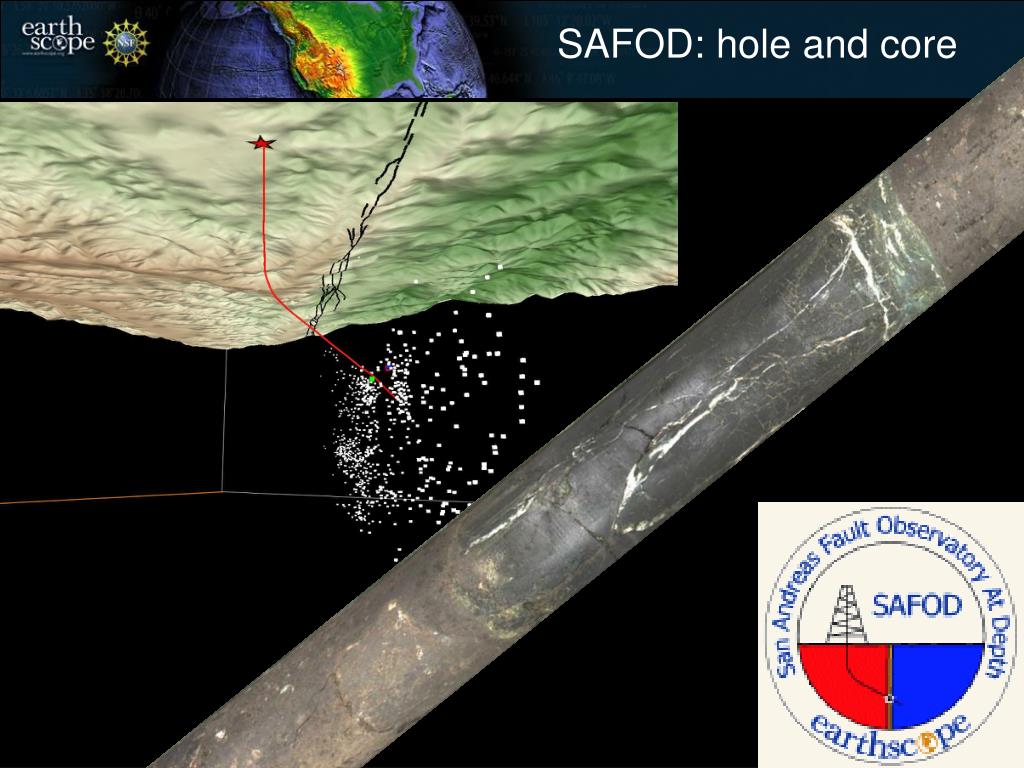

  12. SAFOD: hole and core

  13. The word "pseudotachylite" was coined early in the 1900s to name a peculiar glassy rock that looks sort of like tachylite but isn't. Tachylite ("TAK-a-lite") is a basaltic glass A psuedotachylite is a frictionally generated melt rock http://www.gm.univ-montp2.fr/spip/spip.php?article761 GLG310 Structural Geology

  14. http://www4.nau.edu/meteorite/meteorite/book-glossaryp.html A psuedotachylite is a frictionally generated melt rock --formed by fault slip, but also impacts GLG310 Structural Geology

  15. Mylonite is a rock formed during shear with ductile mineral behavior (quartz), grainsize reduction (feldspar), and some grain growth GLG310 Structural Geology http://maps.unomaha.edu/maher/GEOL3300/week10/dsz.html

  16. http://en.wikipedia.org/wiki/Mylonite http://upload.wikimedia.org/wikipedia/commons/1/1e/Mylonite_Strona.jpg GLG310 Structural Geology http://upload.wikimedia.org/wikipedia/commons/c/cd/Ska%C5%82a_zmyllonityzowana.jpg
