Presentation Transcript

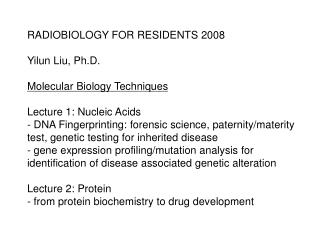

Slide1 l.jpg

RADIOBIOLOGY FOR RESIDENTS 2008

Yilun Liu, Ph.D.

Molecular Biology Techniques

Lecture 1: Nucleic Acids

- DNA Fingerprinting: forensic science, paternity/materity

test, genetic testing for inherited disease

- gene expression profiling/mutation analysis for identification of disease associated genetic alteration

Lecture 2: Protein

- from protein biochemistry to drug development


Slide2 l.jpg

Molecular Biology Techniques: Lecture 1 - Nucleic Acids

Introduction to DNA

(1) chemical structure

(2) chromsome structure

(3) genetic information - species/individual diversity

(4) transcription/translation - from DNA -> RNA -> protein

B. DNA Fingerprinting/Gene Expression Profiling

(1) basis/rationale

(2) Methods

- Restriction Endonuclease

- Agarose Gel Electrophoresis

- Southern Blotting

- Polymerase Chain Reaction (PCR)

- DNA Sequencing

- Northern Blotting

- Microarray


Slide3 l.jpg

DNA

  • Deoxyribonucleic acid

  • composed of a chain of nucleotides

  • Each nucleotide contains:

  • (1) phosphate group

  • (2) five carbon sugar (blue)

  • (3) flat aromatic ring (base, orange)

  • There are 4 bases:

    • adenine (A),

  • thymine (T),

  • cytosine (C),

  • guanine (G)

  • A & G are purine (double-ringed)

  • T & C are pyrimidine (single-ringed)

  • http://www.nvo.com/jin/nss-folder/scrapbookcell/4%20nucleotide.jpg


    Slide4 l.jpg

    DNA

    • DNA = nuleotide chain

    • linked by phosphodiester bond

    • between 5’ phosphate group

    • of one nucleotide to 3’ hydroxyl

    • group of the adjacent nucleotide

    • in cells, DNA exist as

    • double stranded helix.

    • Watson-Crick Base Pairing:

    • A - T

    • G - C

    http://www.mcat45.com/images/Nucleotide-bases-mcat.png


    Slide5 l.jpg

    Why packing?

    -nucleus ~6um (6x10-6m)

    in diameter

    -total length of DNA in human

    genome ~1.8m (6 ft long!)


    Slide6 l.jpg

    DNA stores genetic information essential for

    the development of an organism

    “Central Dogma” (Francis Crick, 1956):

    transcription

    protein

    DNA

    RNA

    translation

    replication


    Slide7 l.jpg

    DNA stores genetic information essential for

    the development of an organism

    Phylogenetic tree



    Slide9 l.jpg

    Homer DNA = Marge DNA

    Genetic Polymorphisms


    Slide10 l.jpg

    • DNA polymorphism

    • “alternative form of chromosome content”

    • Coding region:

    • (1) nucleotide sequence difference without changing

    • amino acid sequence



    Slide12 l.jpg

    • DNA polymorphism

    • “alternative form of chromosome content”

    • Coding region:

    • (1) difference in the nucleotide sequence without

    • changing the amino acid sequence

    • (2) difference in the nucleotide sequence with a

    • change in the amino acid sequence

    • (Genetic polymorphism could lead to disease

    • predisposition)

    • Noncoding region:

      • (1) difference in the nucleotide sequence

      • (2) difference in number of nucleotide repeat units


    Slide13 l.jpg

    VNTR = Variable Number Tandem Repeats

    • small nucleotide repeats

    • ~20-100 base pairs per

    • repeat

    • number of repeats varies

    • among unrelated individuals


    Slide14 l.jpg

    Forensic DNA analysis/DNA Fingerprinting/DNA Profiling

    • - finding the criminal by

    • placing a suspect at a

    • crime scene

    • paternity/maternity test

    • genetic testing for

    • inherited disease


    Slide15 l.jpg

    DNA Fingerprinting Methods

    RFLP Analysis

    PCR Analysis


    Slide16 l.jpg

    RFLP Analysis

    = Restriction Fragment Length Polymophism

    Techniques involved:

    Restriction Enzyme Digestion

    Agarose Gel Electrophoresis

    Southern hybridization


    Slide17 l.jpg

    Digestion of DNA

    Restriction enzyme = DNA nuclease that cuts double stranded DNA

    at a specific sequence (4-10bp)


    Slide19 l.jpg

    Restriction Mapping

    • - a piece of DNA may have multiple cutting sites by a

    • particular restriction enzyme

    • by analyzing the sizes of the digested DNA fragments,

    • one can create a restriction map

    • useful to confirm/identify the identity of a piece of DNA


    Agarose gel electrophoresis l.jpg

    Agarose Gel Electrophoresis

    How to analyze DNA restriction fragments?


    Slide21 l.jpg

    Principles of Electrophoresis

    DNA is highly negatively charged



    Slide23 l.jpg

    DNA polymorphism may result in different restriction digest

    patterns among different individuals at certain gene locus:

    Individual 1

    Individual 2



    Slide25 l.jpg

    DNA profiling for inherited disease

    visualization of the

    digested genomic DNA

    on agarose gel

    - Too many bands!





    Slide29 l.jpg

    DNA Fingerprinting Methods

    RFLP Analysis

    Polymerase Chiain Reaction (PCR) Analysis

    Advantage: requires much less DNA materials


    Slide30 l.jpg

    25 cycle -> up to 1.7x107 amplification


    Slide32 l.jpg

    DNA profiling for criminal investigation

    1 2 3 4 5 6

    DNA obtained from

    the crime scene

    DNA obtained from 6 individual suspects

    http://en.wikipedia.org/wiki/Image:D1S80Demo.gif



    Slide34 l.jpg

    Mutation analysis

    If you know what gene to analyze…

    If you have no idea what gene

    to go after….

    PCR amplified your gene of interest

    from genomic DNA isolated from

    normal individual and disease carrier

    Comparative Genome

    Hybridization

    (detect genome wide gain/loss of

    DNA content)

    DNA sequencing

    single-stranded

    conformation polymorphism


    Slide35 l.jpg

    • DNA sequencing

    • Maxim-Gilbert method

    • (old method, very toxic)

    • -dideoxynucleotide method



    Slide37 l.jpg

    Dideoxynucleotide

    sequencing

    DNA synthesis requires 3’ OH group


    Slide38 l.jpg

    Single-stranded conformation polymorphism (SSCP)

    • single-stranded DNA forms

    • secondary structure

    • secondary structure may be

    • altered by a single base

    • substitution

    • -mutation(s) can be detected at

    • 50-100% rate within <200bp

    • PCR fragment

    Gasser et al., 2007


    Slide39 l.jpg

    Comparative Genome Hybridization

    array based

    metaphase chromosomes


    Slide40 l.jpg

    Transcription and Splicing

    DNA

    Exon 3

    Exon 1

    Exon 2

    intron

    intron

    intron

    intron

    hRNA

    mRNA


    To analyze rna transcript northern blot l.jpg
    To analyze RNA transcript- Northern Blot

    • RNA, rather than DNA is blotted

    • Same techniques as Southern blot

    • Can determine levels of RNA expression in tissues, cell types etc.

    • Allows detection of any abnormal size of the transcript


    Slide42 l.jpg

    Northern Blot

    occawlonline.pearsoned.com/bookbind/pubbooks/bc_mcampbell_genomics_1/medialib/method/Northernblot.html


    Slide43 l.jpg

    Microarray - global gene expression profiling

    Each spot on the array chip

    represents one gene



    Slide45 l.jpg

    To confirm or reproduce a disease-associated phenotype

    due to the loss of expression of the gene of interest:

    Gene knockout

    (2) RNA interference


    Slide46 l.jpg

    Gene Knockout

    http://www.blackwellpublishing.com/korfgenetics/jpg/300_96dpi/Fig4-16.jpg


    Slide47 l.jpg

    RNA interference

    Dicer = RNAse III

    RISC = RNA - inducing

    silencing complex


    Slide48 l.jpg

    Protein

    “Central Dogma” (Francis Crick, 1956):

    transcription

    protein

    DNA

    RNA

    translation

    replication


    Slide49 l.jpg

    Protein Synthesis Overview

    Catalyzed by Ribosome

    tRNA Met initiates at P site

    Correct tRNA binds at A site


    Recombinant protein production l.jpg

    To study the biochemical activity of the protein of interest…

    Recombinant Protein Production


    Slide51 l.jpg


    Slide52 l.jpg

    Step 2: cloning of bacterial expression plasmid interest…

    A typical bacterial plasmid contains:

    an origin for replication (ORI)

    Drug resistance gene (i.e. AmpR)



    Slide54 l.jpg

    Step 3: protein production interest…

    E. coli expression system

    IPTG induction

    target gene

    lac promoter

    pET-16b

    lac

    repressor


    Slide55 l.jpg

    Step 4: Protein expression analysis interest…

    SDS Polyacrylamide gel


    Slide56 l.jpg

    Unlike DNA, not all proteins are negatively charged interest…

    Unlike DNA, proteins form high ordered structure



    Slide58 l.jpg

    Western Blotting to confirm or to detect the presence interest…

    of the protein of interest


    Slide59 l.jpg

    Step 5: protein purification interest…

    commonly used chromatography methods:

    size exclusion chromatography

    Ion exchange chromatography

    affinity chromatography

    total protein

    lysate

    purified

    protein





    Slide63 l.jpg

    Analysis of the disease associated mutation on interest…

    the biochemical activity of the protein

    Example:

    WT

    nuclease

    Disease associated

    mutant

    nuclease

    mutation

    Overexpress and purified WT and mutant proteins

    assay for gain/loss of nuclease activity in vitro


    Slide64 l.jpg

    • What is the consequence of the mutation? interest…

    • Transcription

    • (1) promoter?

    • (2) splicing?

    • Alteration of protein sequence

    • (1) change in biochemical activity?

    • (2) change in protein-protein interaction?

    • (3) change in post-translational modification?


    Slide65 l.jpg

    WT interest…

    nuclease

    Disease associated

    mutant

    nuclease

    mutation

    What’s wrong with this mutant?

    Possibility 1: loss of nuclease activity

    Possibility 2: loss of crucial protein-protein interaction


    Slide66 l.jpg





    Slide70 l.jpg

    WT interest…

    nuclease

    Disease associated

    mutant

    nuclease

    mutation

    What’s wrong with this mutant?

    Possibility 1: loss of nuclease activity

    Possibility 2: loss of crucial protein-protein interaction

    Possibility 3: loss of DNA binding ability/specificity


    Slide71 l.jpg

    Electrophoretic Mobility Shift Assay (EMSA) interest…

    -

    agarose/polyacrylamide gel

    +

    Protein-DNA complex normally has slower mobility due to its larger size than

    Unbound/free DNA


    Slide72 l.jpg

    Chomatin IP (ChIP) on chips interest…

    Does the mutant protein have the same DNA binding profile

    In tumor cells comparing to the WT protein in normal cells?


    Slide73 l.jpg

    protein as drug target interest…

    Example:

    ICRF-193 =

    topoisomerase II inhibitor

    (bind and inhibit N-terminal

    ATPase domain)
