slide1

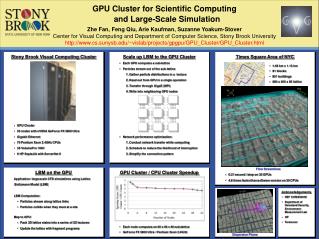

GPU Cluster for Scientific Computing

Zhe Fan,Feng Qiu, Arie Kaufman,Suzanne Yoakum-Stover

Center for Visual Computing and Department of Computer Science, Stony Brook University

http://www.cs.sunysb.edu/~vislab/projects/gpgpu/GPU_Cluster/GPU_Cluster.html

and Large-Scale Simulation

  • Stony Brook Visual Computing Cluster
      • GPU Cluster
      • 35 nodes with nVIDIA GeForce FX 5800 Ultra
      • Gigabit Ethernet
      • 70 Pentium Xeon 2.4GHz CPUs
      • 35 VolumePro 1000
      • 9 HP Sepia-2A with ServerNet II
  • Scale up LBM to the GPU Cluster
      • Each GPU computes a sub-lattice
      • Particles stream out of the sub-lattice
          • Gather particle distributions in a texture
          • Read out from GPU in a single operation
          • Transfer through GigaE (MPI)
          • Write into neighboring GPU nodes
      • Network performance optimization:
          • Conduct network transfer while computing
          • Schedule to reduce the likelihood of interruption
          • Simplify the connection pattern
  • Times Square Area of NYC

Flow Streamlines

      • 0.31 second / step on 30 GPUs
      • 4.6 times faster than software version on 30 CPUs
  • 1.66 km x 1.13 km
  • 91 blocks
  • 851 buildings
  • 480 x 400 x 80 lattice
  • LBM on the GPU

Application: large-scale CFD simulations using Lattice

Boltzmann Model (LBM)

LBM Computation:

        • Particles stream along lattice links
        • Particles collide when they meet at a site

Map to GPU:

        • Pack 3D lattice states into a series of 2D textures
        • Update the lattice with fragment programs
  • GPU Cluster / CPU Cluster Speedup
      • Each node computes an 80 x 80 x 80 sub-lattice
      • GeForce FX 5800 Ultra / Pentium Xeon 2.4GHz

Dispersion Plume

  • Acknowledgements
  • NSF CCR0306438
  • Department of Homeland Security, Environment Measurement Lab
  • HP
  • Terarecon
