gpu computing

GPU Computing

Dr. Bo Yuan

E-mail: yuanb@sz.tsinghua.edu.cn

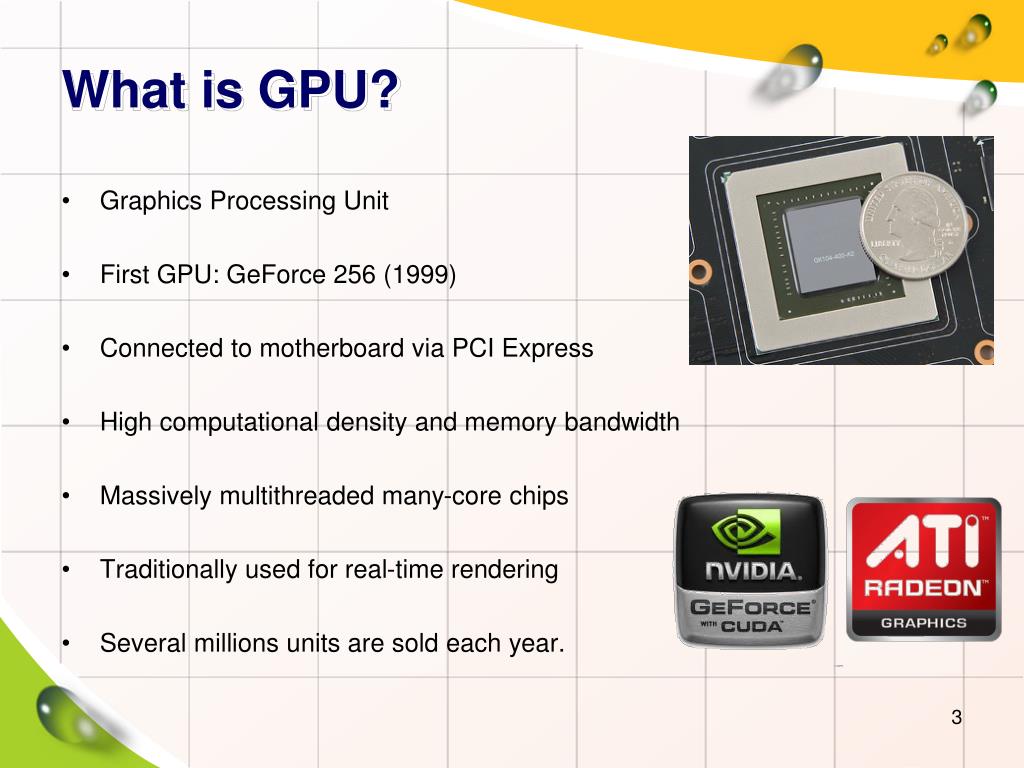

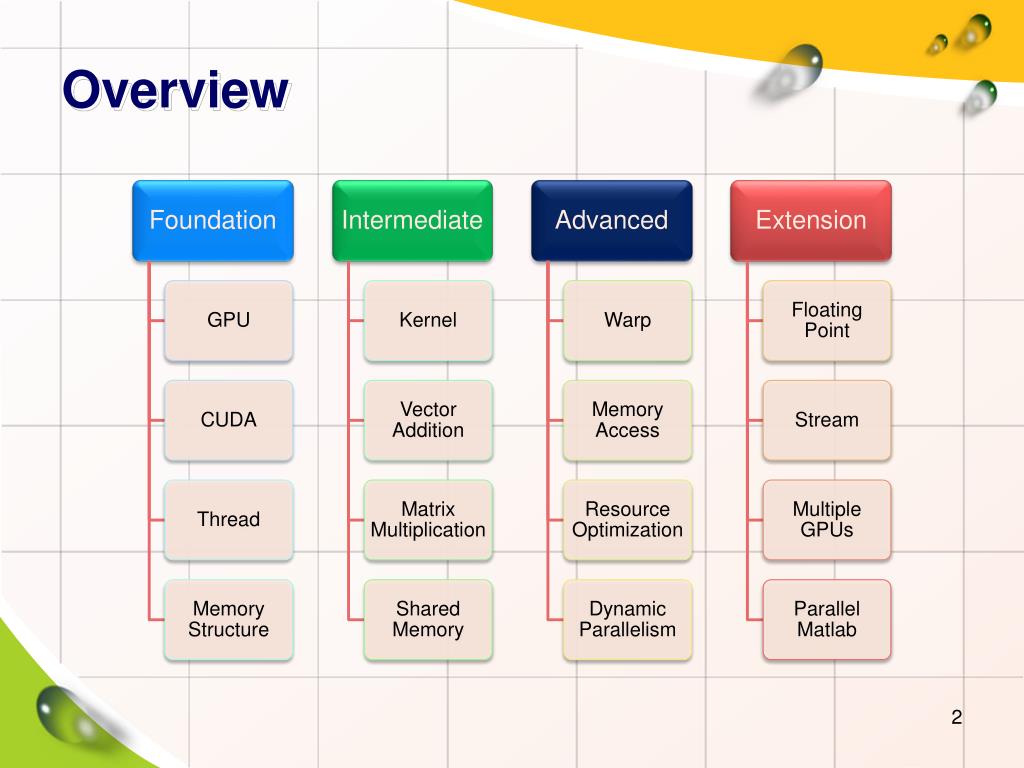

what is gpu
What is GPU?
  • Graphics Processing Unit
  • First GPU: GeForce 256 (1999)
  • Connected to motherboard via PCI Express
  • High computational density and memory bandwidth
  • Massively multithreaded many-core chips
  • Traditionally used for real-time rendering
  • Several millions units are sold each year.

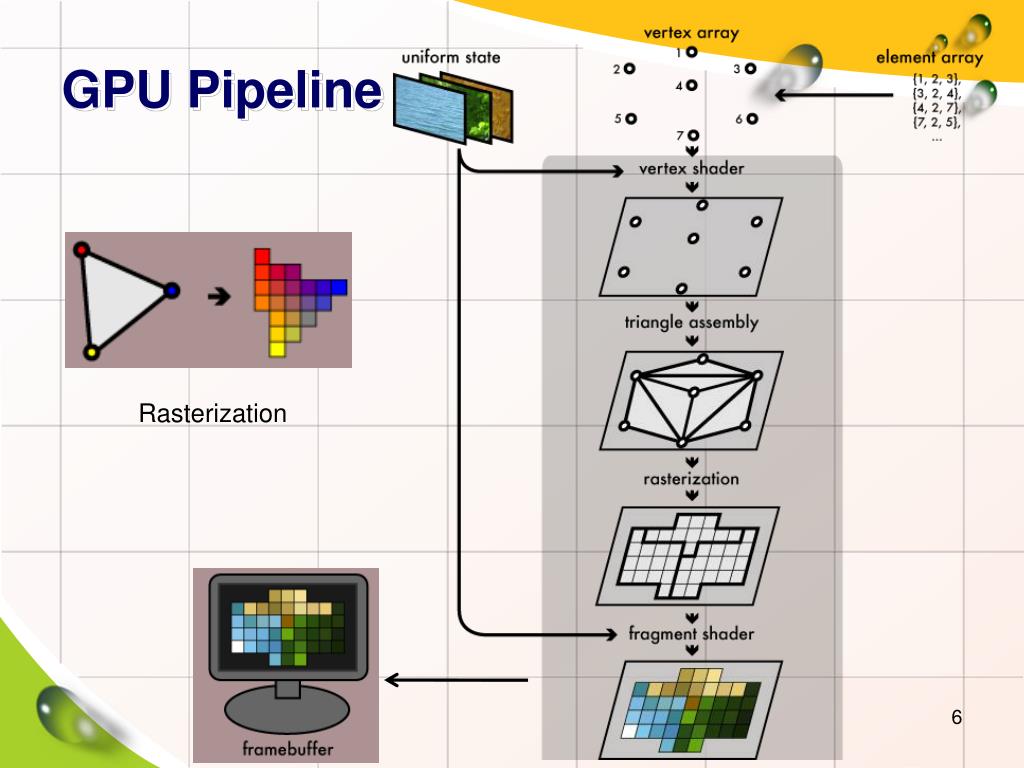

gpu pipeline1
GPU Pipeline

Rasterization

anti aliasing

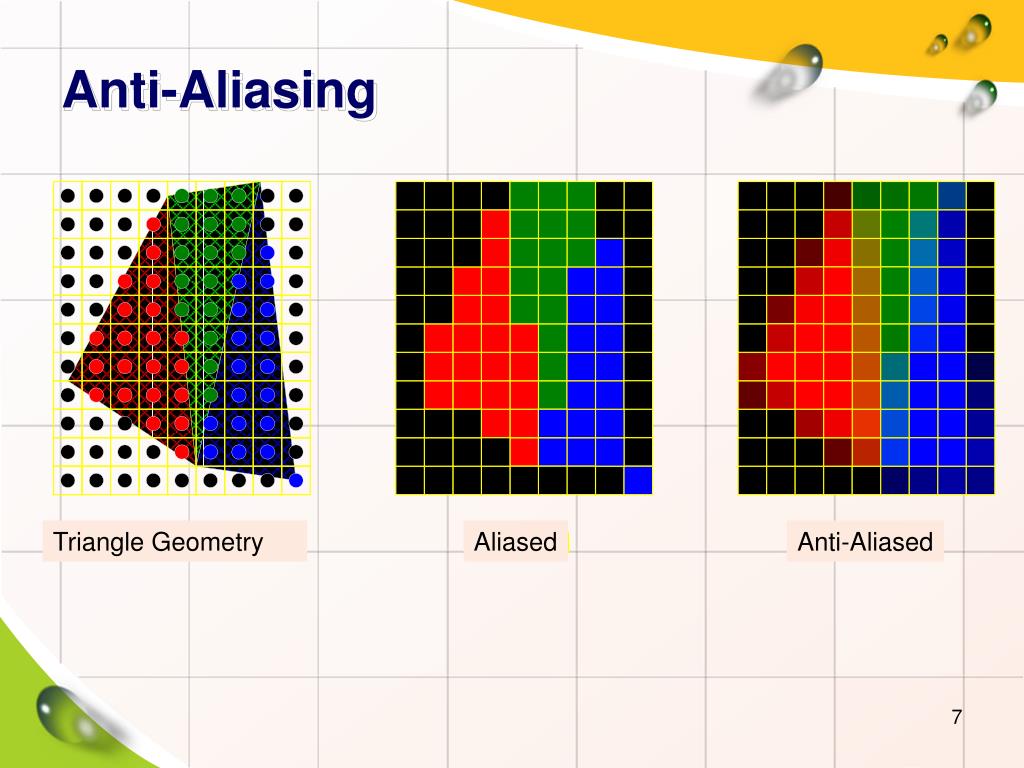

Anti-Aliasing

Triangle Geometry

Aliased

Anti-Aliased

gpgpu
GPGPU
  • General-Purpose Computing on GPUs
  • Massively Parallel, Simple Operations
  • Suitable for compute-intensive engineering problems
  • The original problem needs to be cast into native graphics operations.
  • Launched through OpenGL or DirectX API calls
  • Input data are stored in texture images and issued to the GPU by submitting triangles.
  • Highly restricted access to input/output
  • Very tedious, limited success with painstaking efforts
cpu vs gpu

Control

ALU

ALU

ALU

ALU

DRAM

Cache

DRAM

CPU vs. GPU

CPU

GPU

Multi-Core

Many-Core

Number of ALUs

Memory Bandwidth

power of the crowd
Power of the Crowd

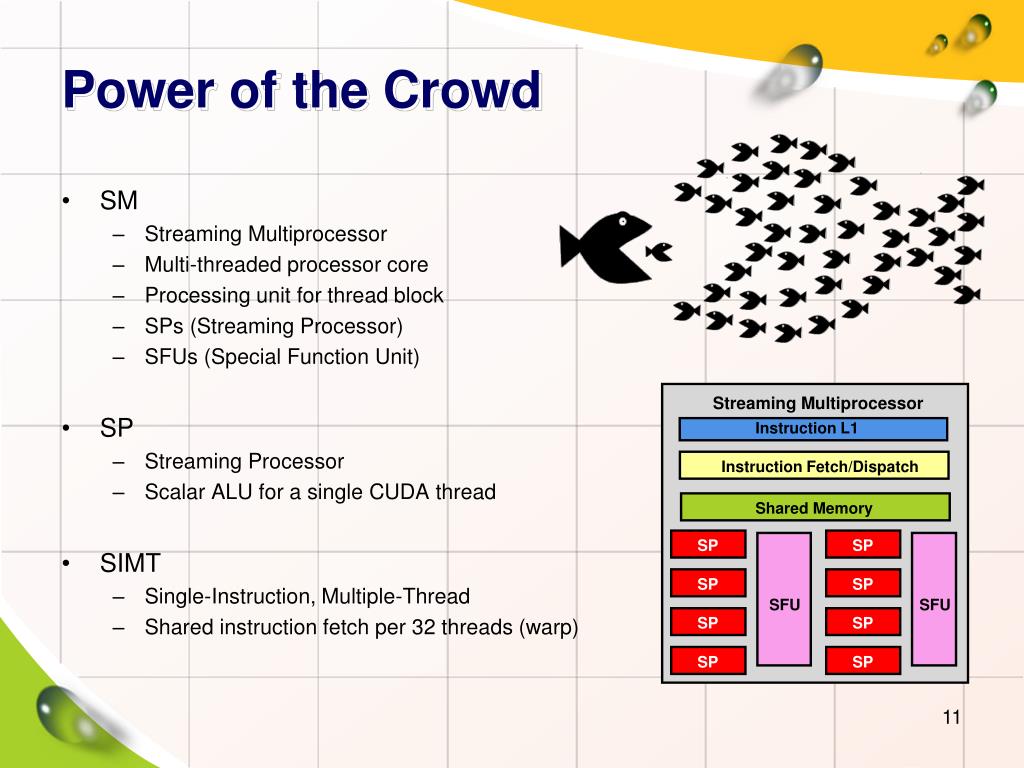

  • SM
    • Streaming Multiprocessor
    • Multi-threaded processor core
    • Processing unit for thread block
    • SPs (Streaming Processor)
    • SFUs (Special Function Unit)
  • SP
    • Streaming Processor
    • Scalar ALU for a single CUDA thread
  • SIMT
    • Single-Instruction, Multiple-Thread
    • Shared instruction fetch per 32 threads (warp)

Streaming Multiprocessor

Instruction L1

Instruction Fetch/Dispatch

Shared Memory

SP

SP

SP

SP

SFU

SFU

SP

SP

SP

SP

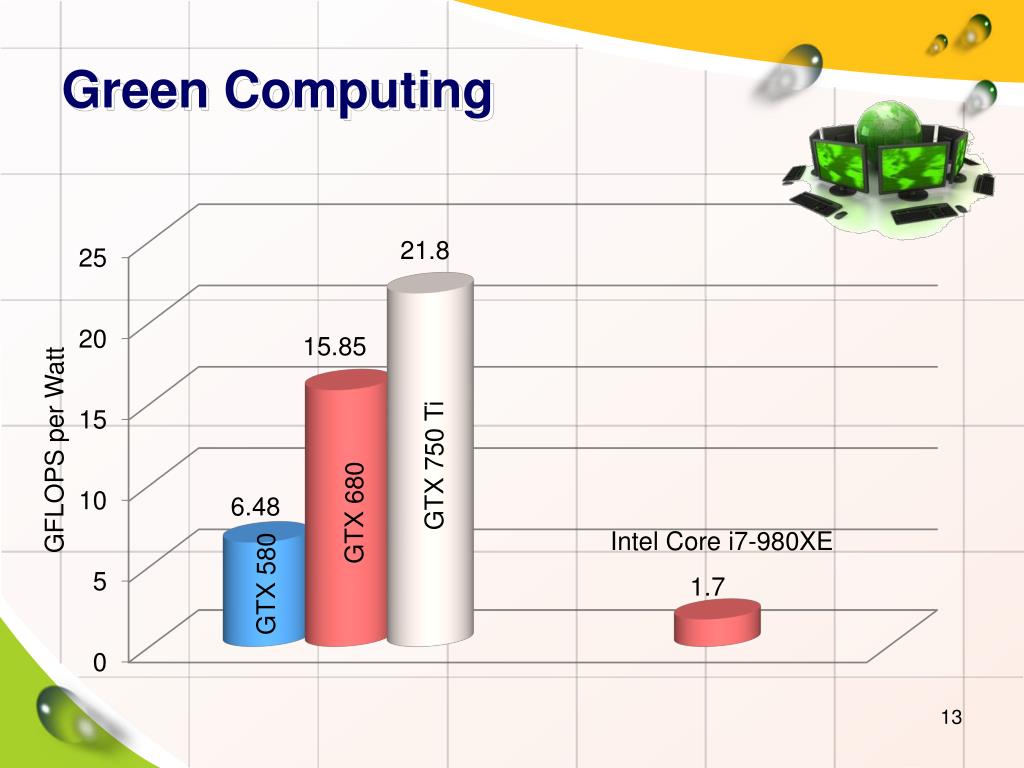

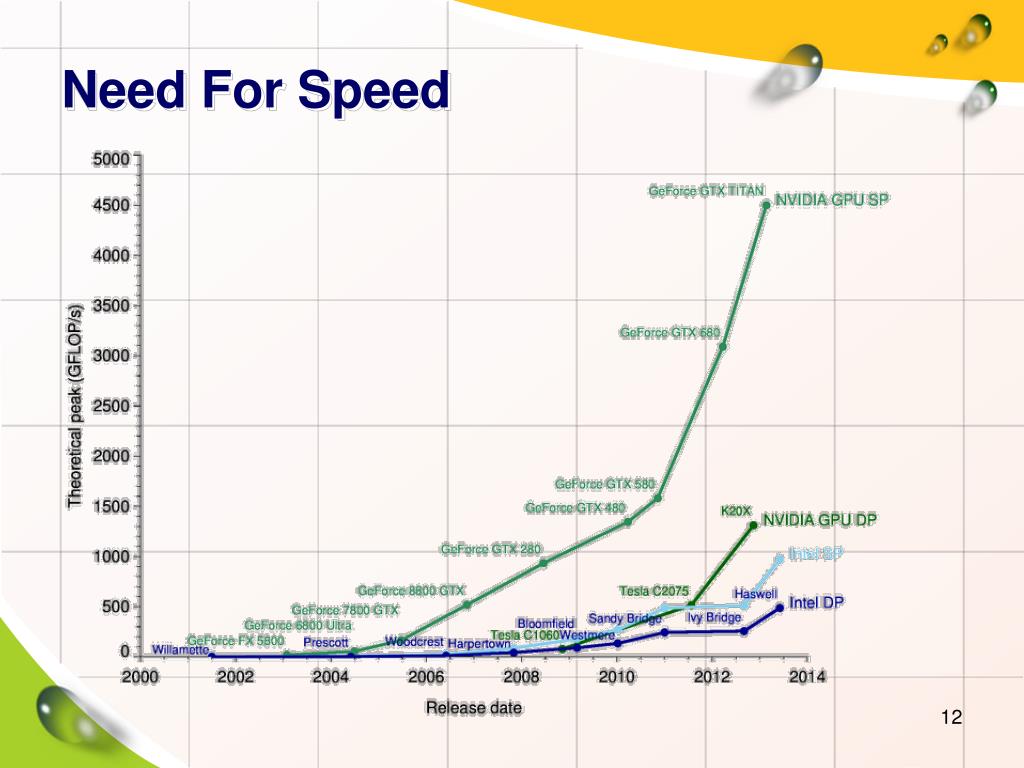

green computing
Green Computing

GFLOPS per Watt

GTX 750 Ti

GTX 680

Intel Core i7-980XE

GTX 580

supercomputing

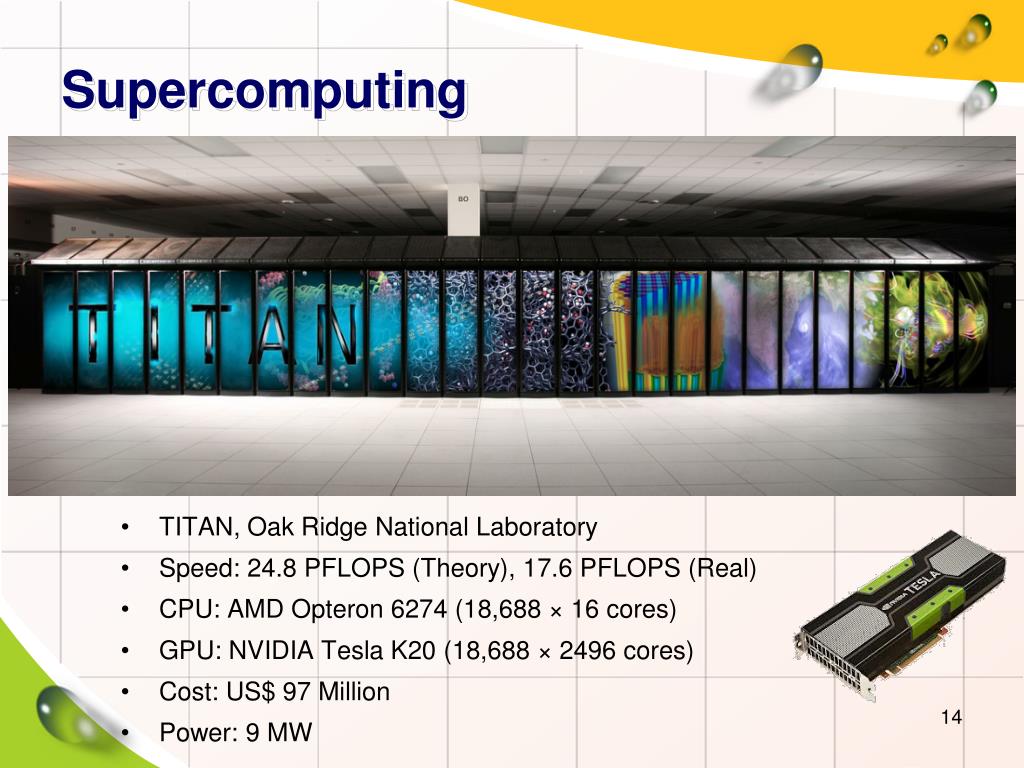

Supercomputing
  • TITAN, Oak Ridge National Laboratory
  • Speed: 24.8 PFLOPS (Theory), 17.6 PFLOPS (Real)
  • CPU: AMD Opteron 6274 (18,688 × 16 cores)
  • GPU: NVIDIA Tesla K20 (18,688 × 2496 cores)
  • Cost: US$ 97 Million
  • Power: 9 MW

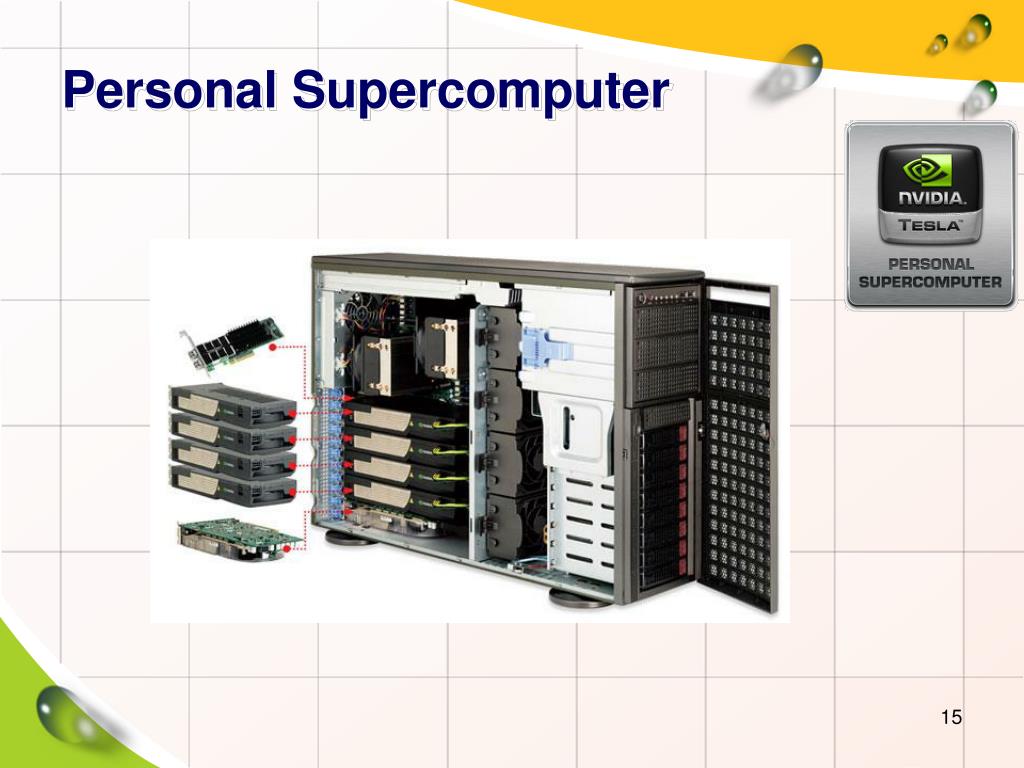

what is cuda
What is CUDA?
  • Compute Unified Device Architecture
  • Introduced by NVIDIA in 2007
  • Scalable Parallel Programming Model
  • Small extensions to standard C/C++
  • Enable general-purpose GPU computing
  • Straightforward APIs to manage devices, memory etc.
  • Only supports NVIDIA GPUs.

http://developer.nvidia.com/category/zone/cuda-zone

cuda enabled gpu

Texture

Texture

Texture

Texture

Texture

Texture

Texture

Texture

Texture

Host

Input Assembler

Thread Execution Manager

Parallel DataCache

Parallel DataCache

Parallel DataCache

Parallel DataCache

Parallel DataCache

Parallel DataCache

Parallel DataCache

Parallel DataCache

Load/store

Load/store

Load/store

Load/store

Load/store

Load/store

Global Memory

CUDA-Enabled GPU

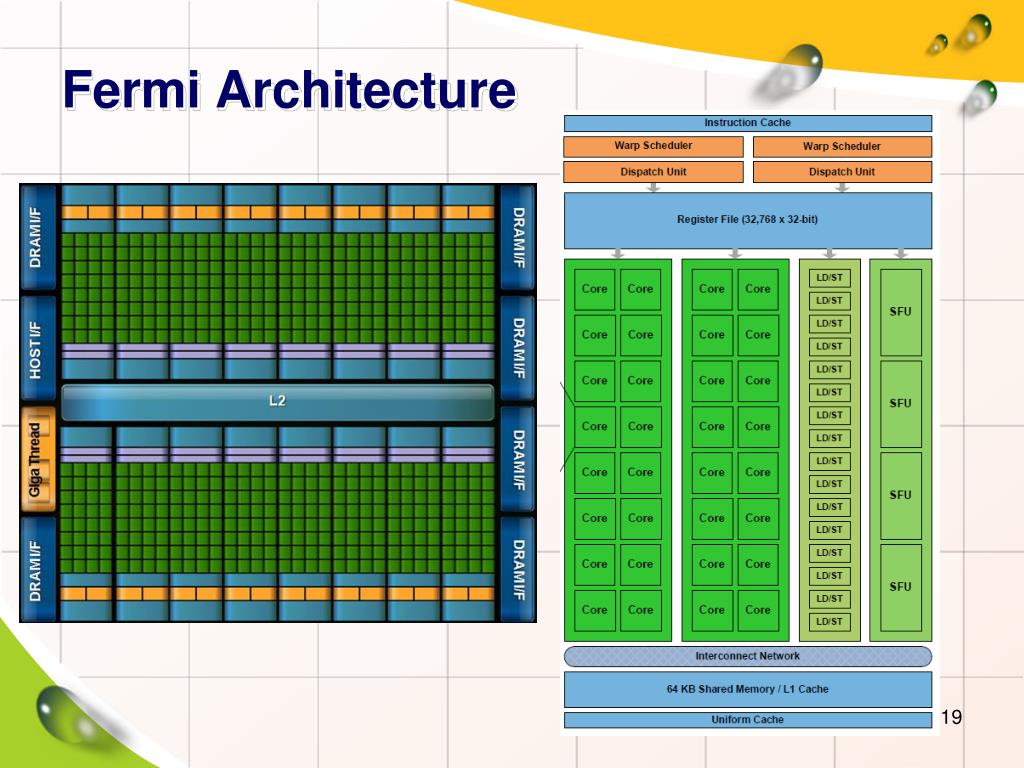

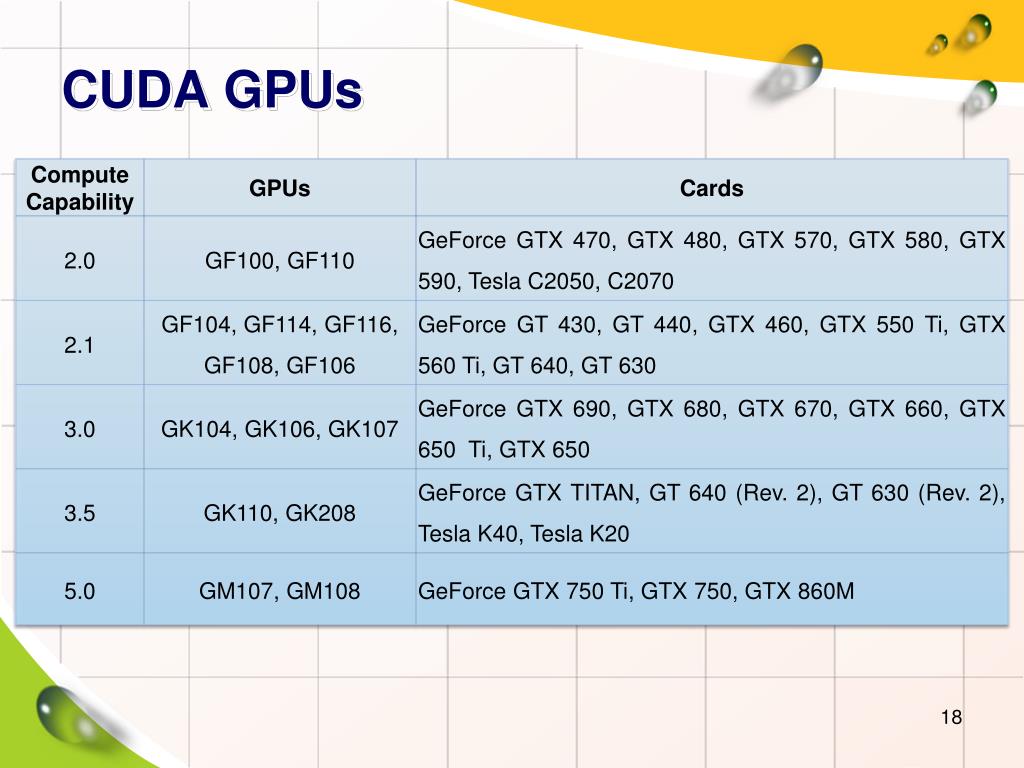

kepler architecture

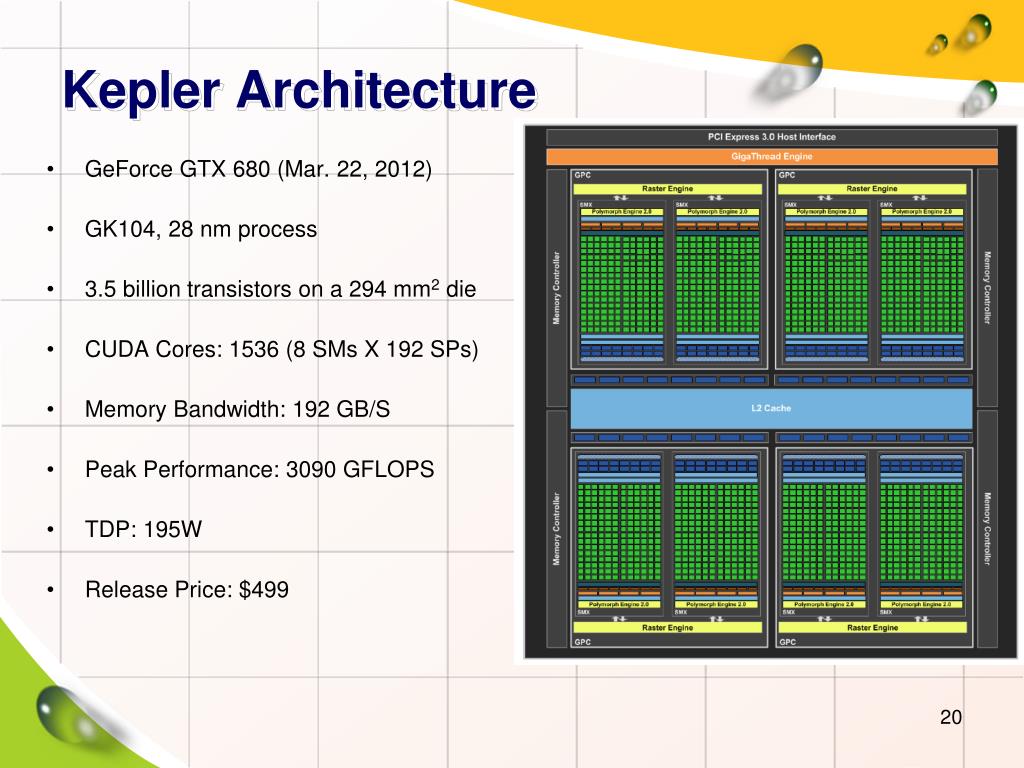

Kepler Architecture
  • GeForce GTX 680 (Mar. 22, 2012)
  • GK104, 28 nm process
  • 3.5 billion transistors on a 294 mm2 die
  • CUDA Cores: 1536 (8 SMs X 192 SPs)
  • Memory Bandwidth: 192 GB/S
  • Peak Performance: 3090 GFLOPS
  • TDP: 195W
  • Release Price: $499
maxwell architecture

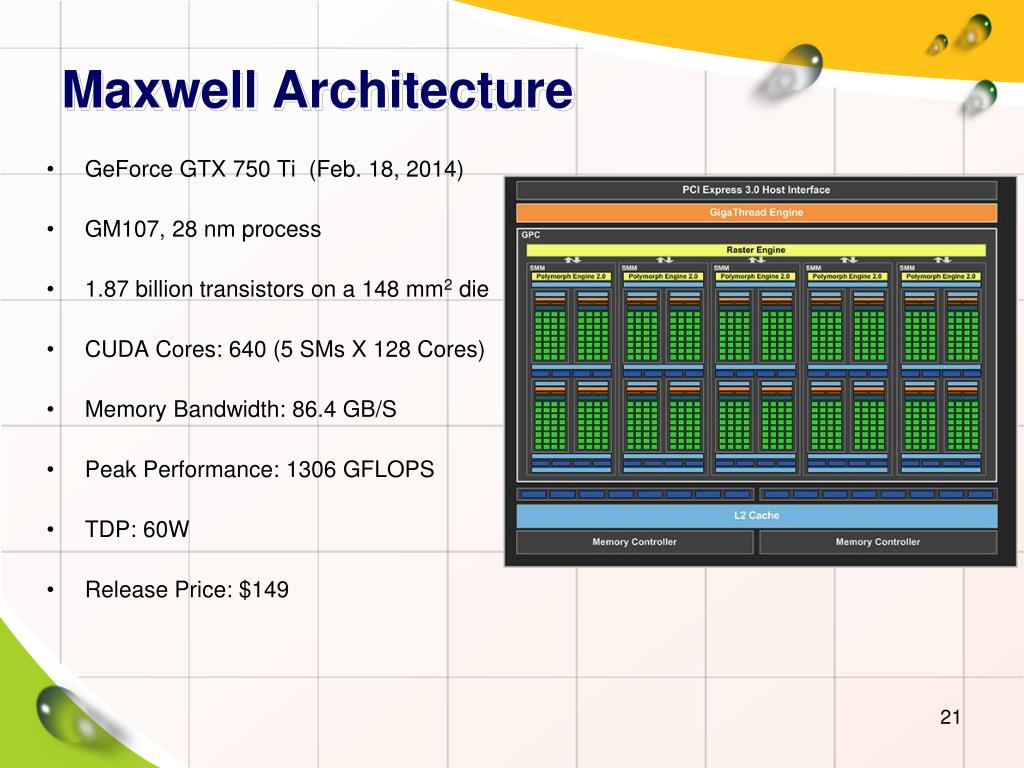

Maxwell Architecture
  • GeForce GTX 750 Ti (Feb. 18, 2014)
  • GM107, 28 nm process
  • 1.87 billion transistors on a 148 mm2 die
  • CUDA Cores: 640 (5 SMs X 128 Cores)
  • Memory Bandwidth: 86.4 GB/S
  • Peak Performance: 1306 GFLOPS
  • TDP: 60W
  • Release Price: $149
cuda teaching lab

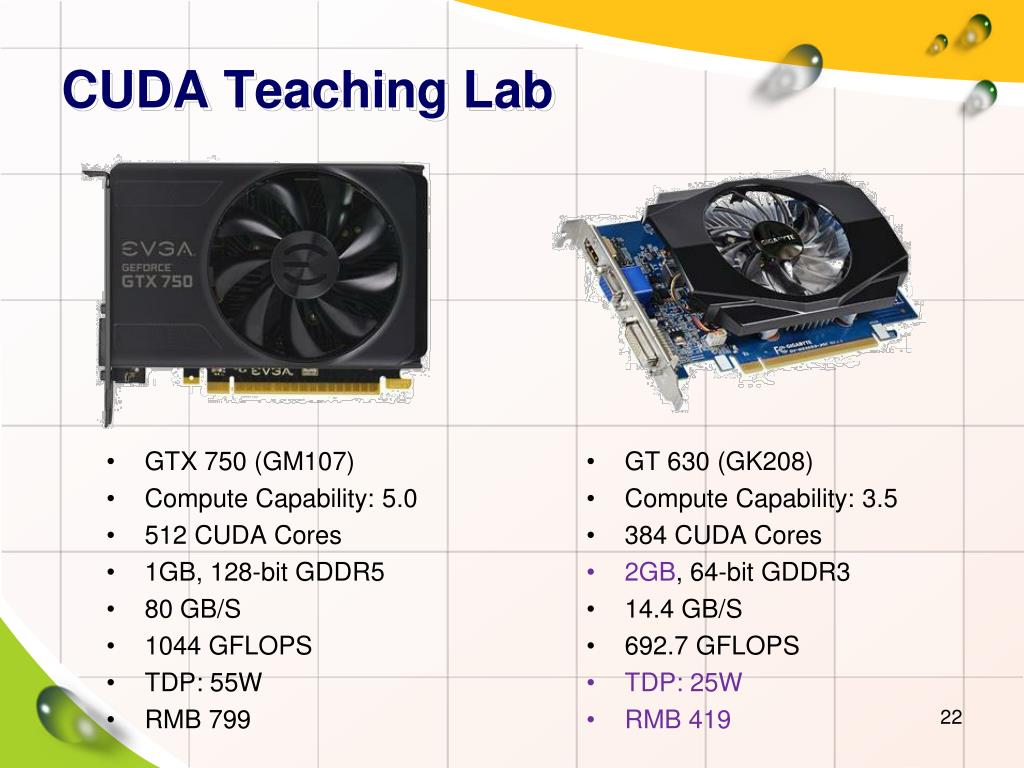

CUDA Teaching Lab
  • GTX 750 (GM107)
  • Compute Capability: 5.0
  • 512 CUDA Cores
  • 1GB, 128-bit GDDR5
  • 80 GB/S
  • 1044 GFLOPS
  • TDP: 55W
  • RMB 799
  • GT 630 (GK208)
  • Compute Capability: 3.5
  • 384 CUDA Cores
  • 2GB, 64-bit GDDR3
  • 14.4 GB/S
  • 692.7 GFLOPS
  • TDP: 25W
  • RMB 419
cuda installation
CUDA Installation

https://developer.nvidia.com/cuda-downloads

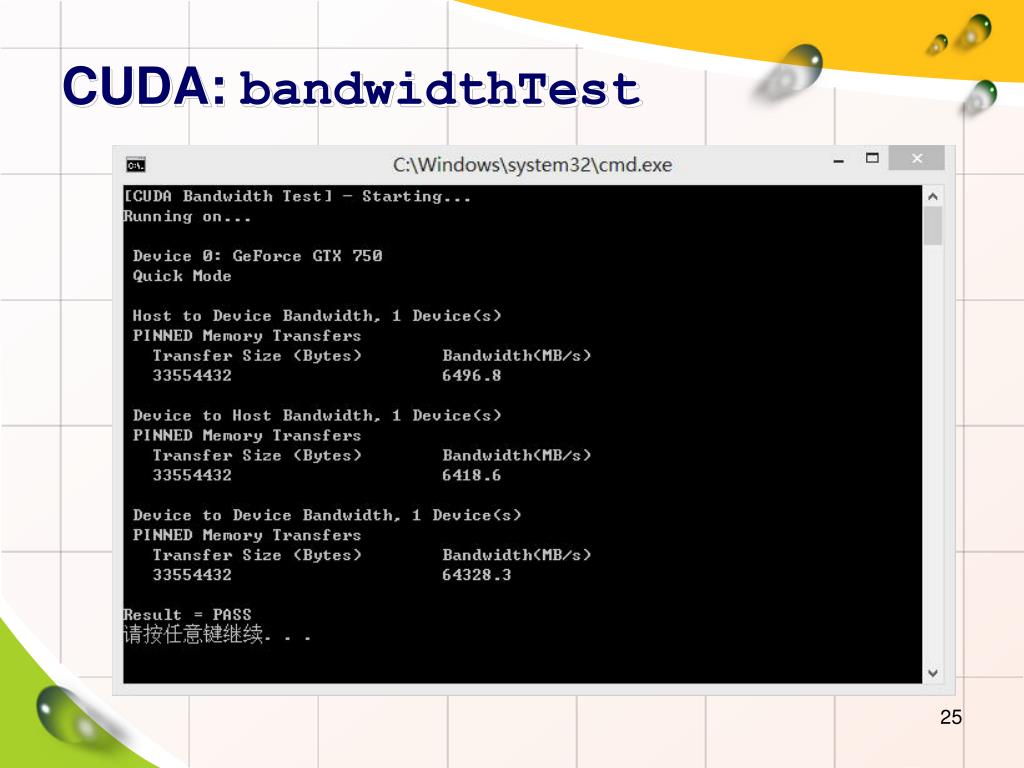

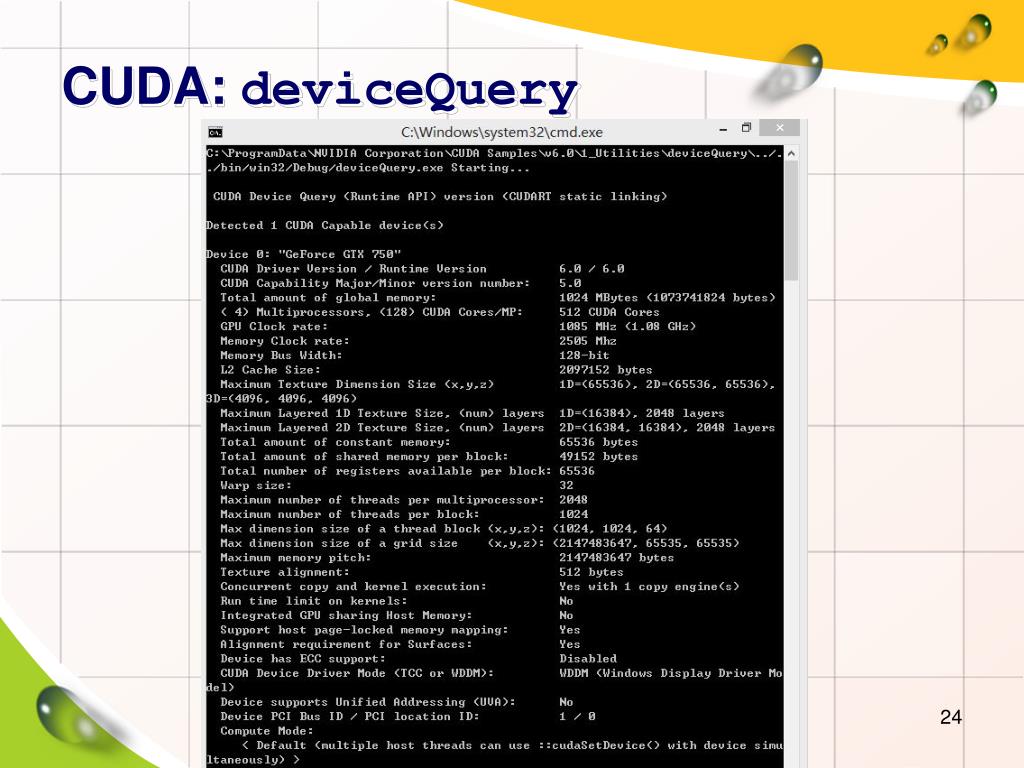

grids blocks and threads

Host

Device

Kernel 1

Kernel 2

Grid 1

Block

(0, 0)

Block

(0, 1)

Block

(1, 0)

Block

(1, 1)

Block

(2, 0)

Block

(2, 1)

Grid 2

Block (1, 1)

Thread

(0, 0)

Thread

(0, 1)

Thread

(0, 2)

Thread

(1, 1)

Thread

(1, 0)

Thread

(1, 2)

Thread

(2, 1)

Thread

(2, 0)

Thread

(2, 2)

Thread

(3, 1)

Thread

(3, 2)

Thread

(3, 0)

Thread

(4, 0)

Thread

(4, 1)

Thread

(4, 2)

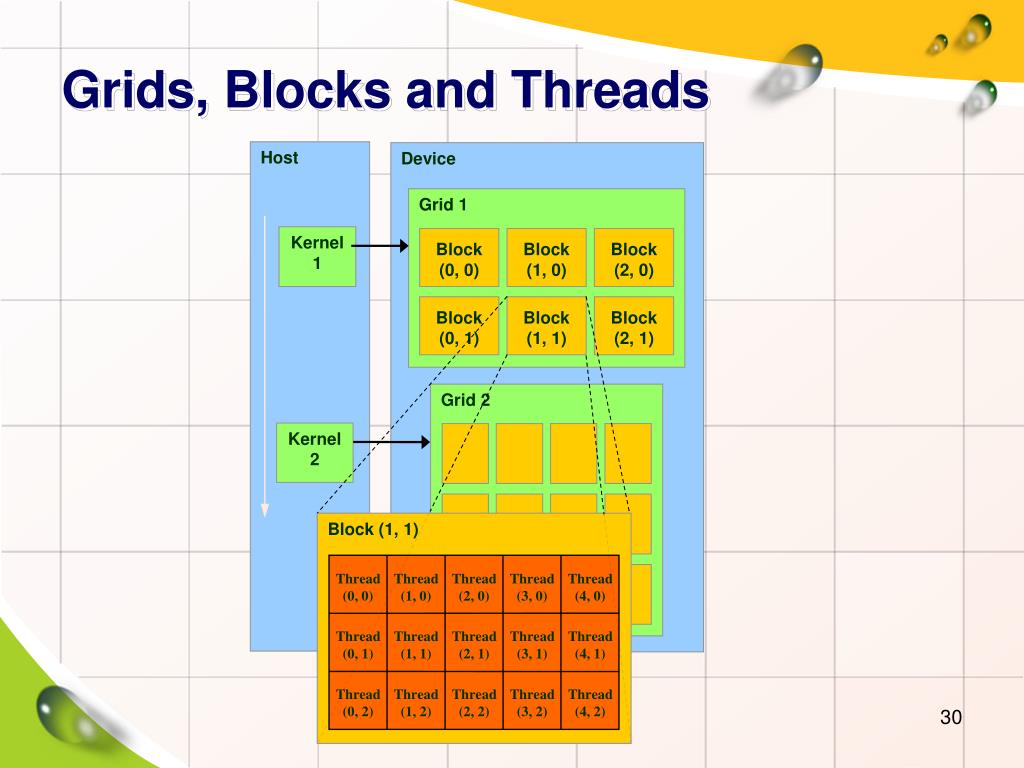

Grids, Blocks and Threads

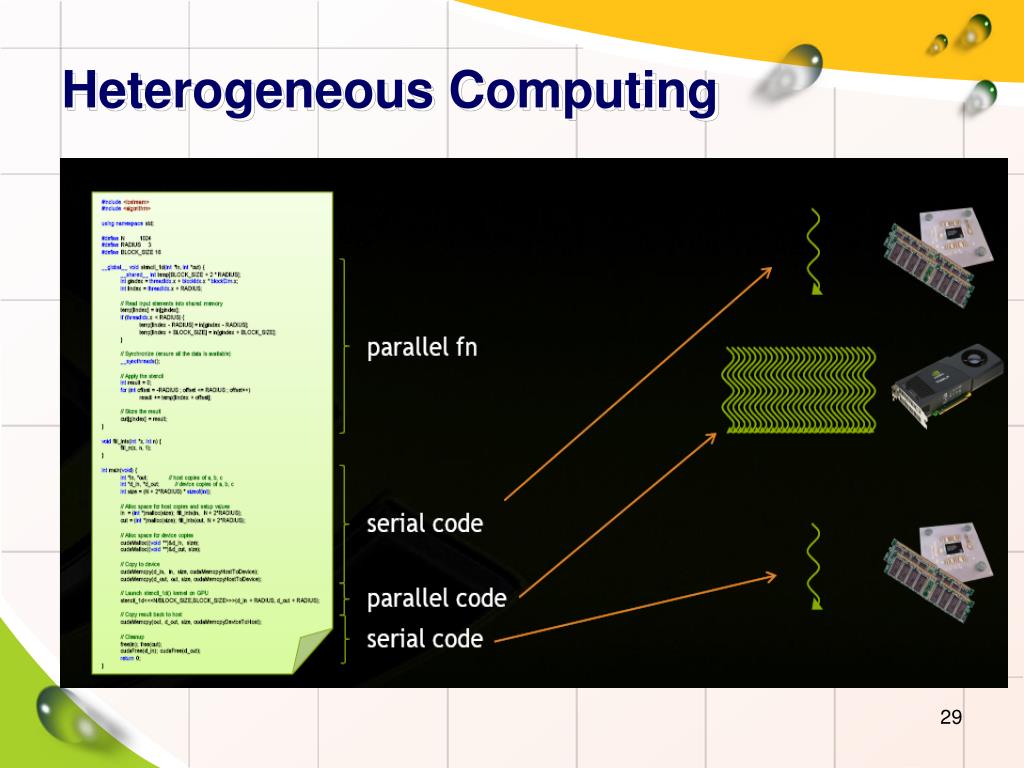

thread block
Thread Block
  • Threads have thread ID numbers within block.
  • Threads use thread ID to select work.
  • Threads are assigned to SMs in block granularity.
  • Each GT200 SM can have maximum 8 blocks.
  • Each GT200 SM can have maximum 1024 threads.
  • Threads in the same block can share data and synchronize.
  • Threads in different blocks cannot cooperate.
  • Each block can execute in any order relative to other blocks.

Thread Id #:0 1 2 3 … m

Thread program

transparent scalability

Kernel grid

Device

Block 2

Block 6

Block 0

Block 4

Block 5

Block 7

Block 3

Block 1

Device

Block 5

Block 0

Block 1

Block 2

Block 3

Block 4

Block 6

Block 3

Block 7

Block 0

Block 5

Block 4

Block 6

Block 2

Block 1

Block 7

Transparent Scalability
memory space

Grid

Block (0, 0)

Block (1, 0)

Shared Memory

Shared Memory

Registers

Registers

Registers

Registers

Thread (0, 0)

Thread (1, 0)

Thread (0, 0)

Thread (1, 0)

Host

Global Memory

Constant Memory

Memory Space
  • Each thread can:
    • Read/write per-thread registers
    • Read/write per-block shared memory
    • Read/write per-grid global memory
    • Read/only per-gridconstant memory

GeForce GTX 680

Memory Bandwidth … 192 GB/S

Single-Precision Floating Point … 4B

Peak Performance … 3090 GFLOPS

Practical Performance … 48 GFLOPS

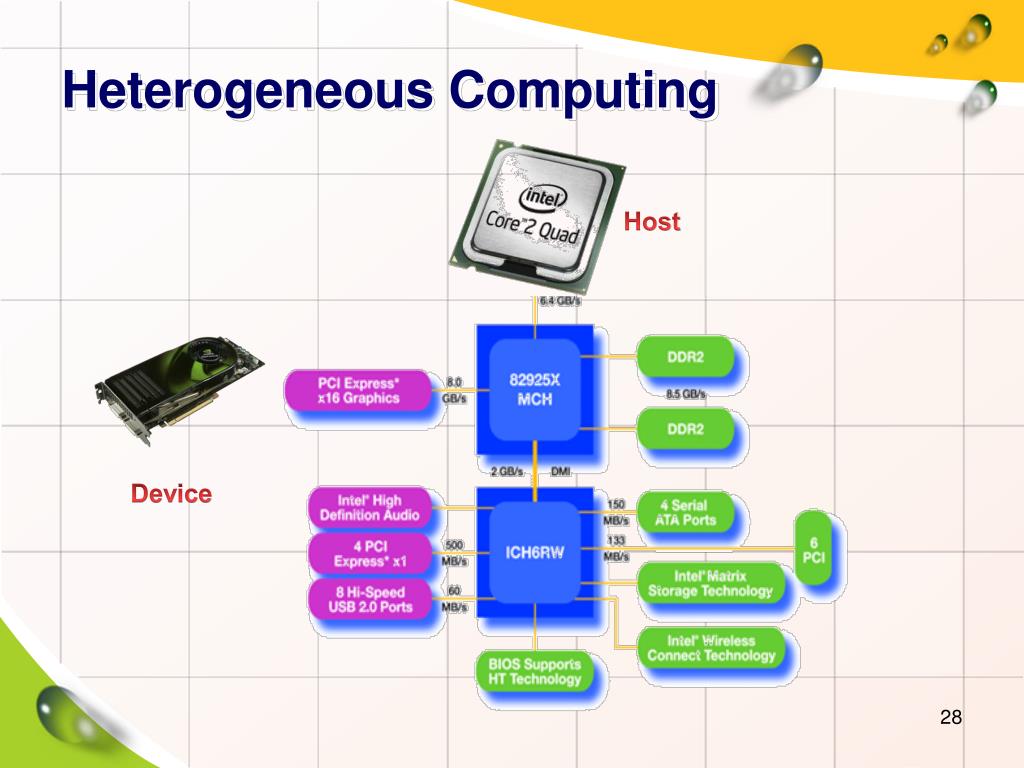

hello world
Hello World!

int main(void) {

printf(“Hello World!\n”);

return 0;

}

__global__ void mykernel(void) {

}

int main(void) {

mykernel<<<1,1>>>();

printf(“Hello World!\n”);

return 0;

}

Your first CUDA code!

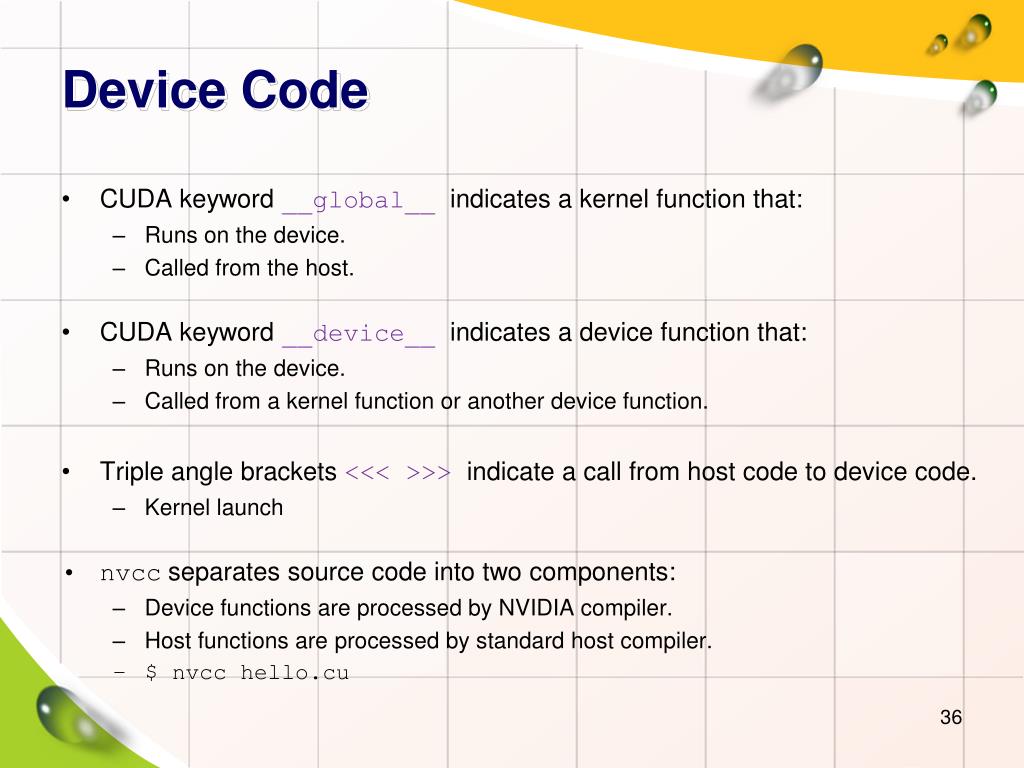

device code
Device Code
  • CUDA keyword __global__indicates a kernel function that:
    • Runs on the device.
    • Called from the host.
  • CUDA keyword __device__indicates a device function that:
    • Runs on the device.
    • Called from a kernel function or another device function.
  • Triple angle brackets <<< >>>indicate a call from host code to device code.
    • Kernel launch
  • nvcc separates source code into two components:
    • Device functions are processed by NVIDIA compiler.
    • Host functions are processed by standard host compiler.
    • $ nvcc hello.cu
addition on device
Addition on Device

__global__ void add (int *a, int *b, int *c) {

*c=*a+*b;

}

  • add () will execute on the device.
  • add () will be called from the host.
  • a, b, c must point to device memory.
  • We need to allocate memory on GPU.

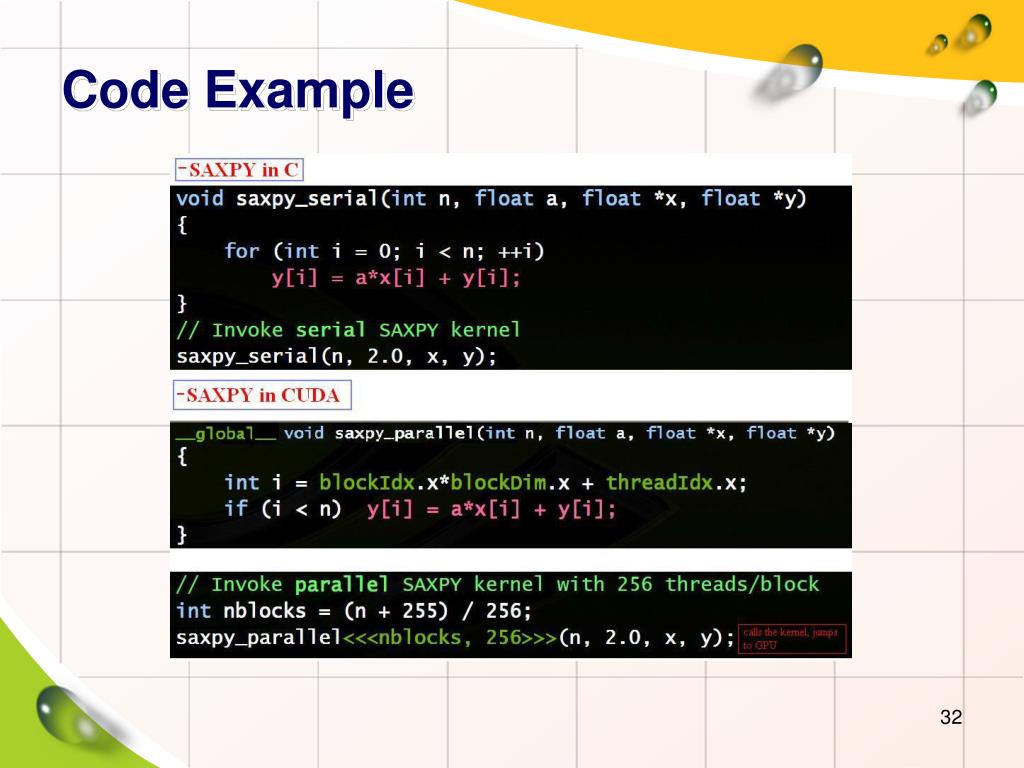

memory management
Memory Management

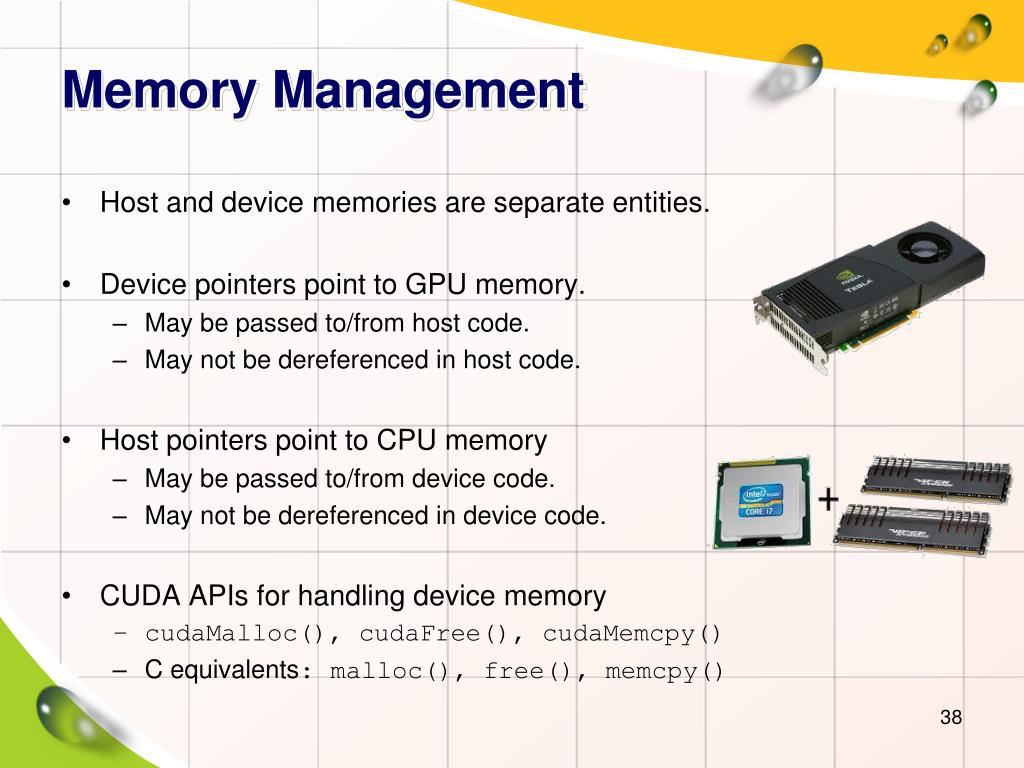

  • Host and device memories are separate entities.
  • Device pointers point to GPU memory.
    • May be passed to/from host code.
    • May not be dereferenced in host code.
  • Host pointers point to CPU memory
    • May be passed to/from device code.
    • May not be dereferenced in device code.
  • CUDA APIs for handling device memory
    • cudaMalloc(), cudaFree(), cudaMemcpy()
    • C equivalents: malloc(), free(), memcpy()
addition on device main

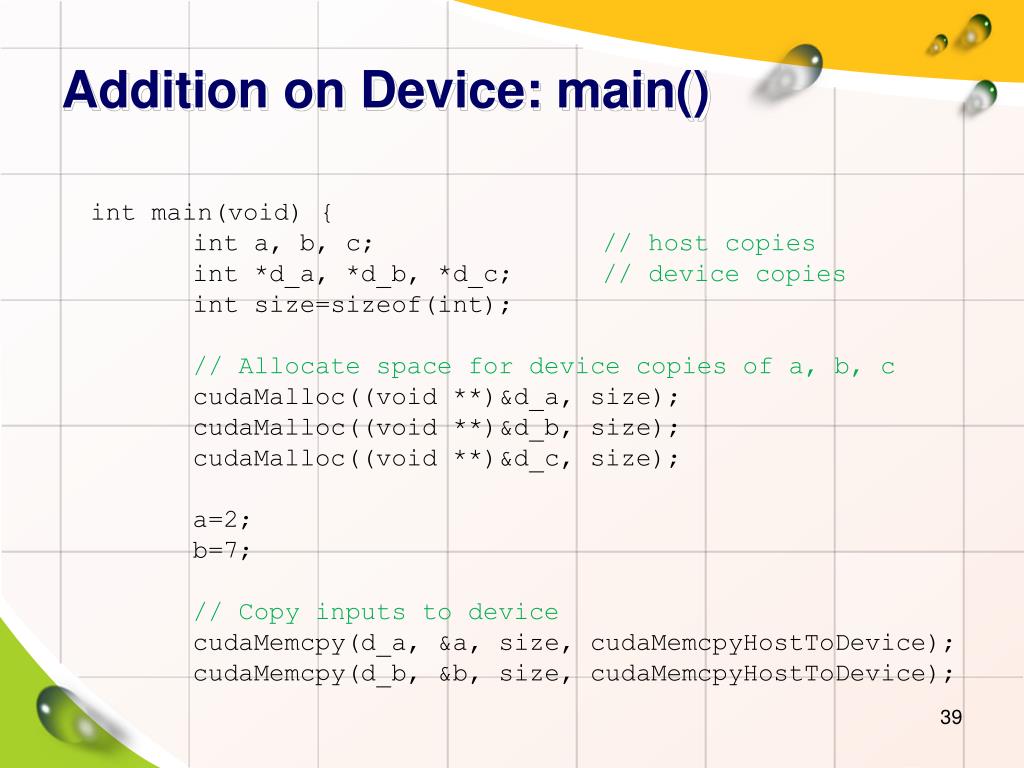

Addition on Device: main()

int main(void) {

int a, b, c; // host copies

int *d_a, *d_b, *d_c; // device copies

int size=sizeof(int);

// Allocate space for device copies of a, b, c

cudaMalloc((void **)&d_a, size);

cudaMalloc((void **)&d_b, size);

cudaMalloc((void **)&d_c, size);

a=2;

b=7;

// Copy inputs to device

cudaMemcpy(d_a, &a, size, cudaMemcpyHostToDevice);

cudaMemcpy(d_b, &b, size, cudaMemcpyHostToDevice);

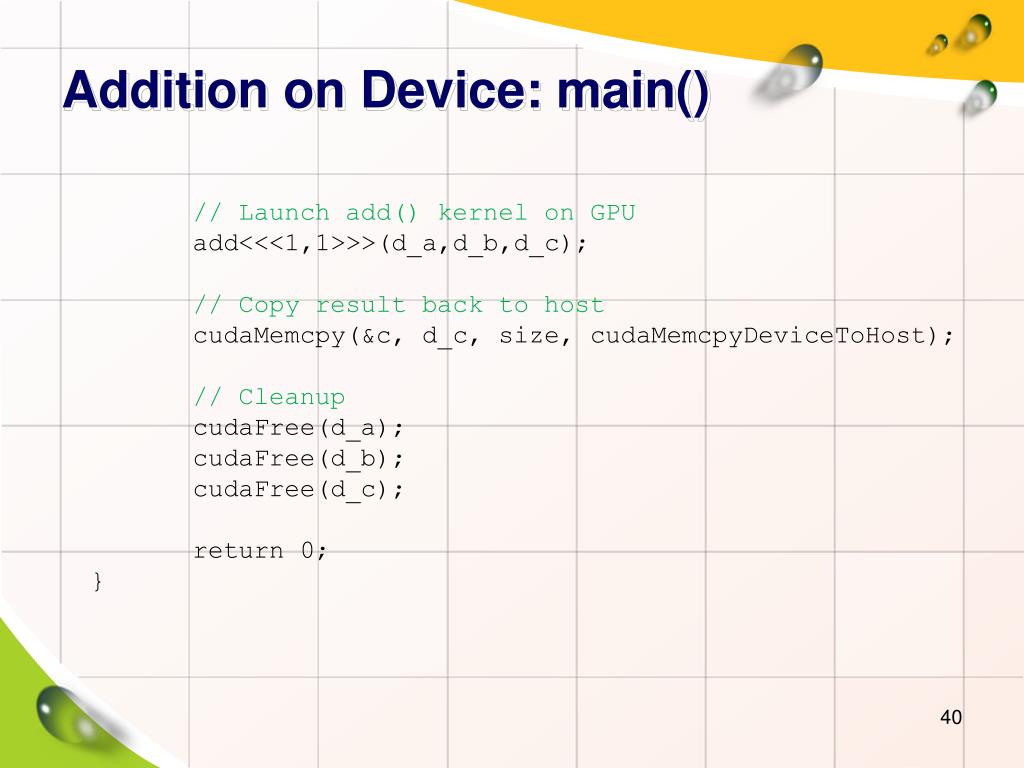

addition on device main1
Addition on Device: main()

// Launch add() kernel on GPU

add<<<1,1>>>(d_a,d_b,d_c);

// Copy result back to host

cudaMemcpy(&c, d_c, size, cudaMemcpyDeviceToHost);

// Cleanup

cudaFree(d_a);

cudaFree(d_b);

cudaFree(d_c);

return 0;

}

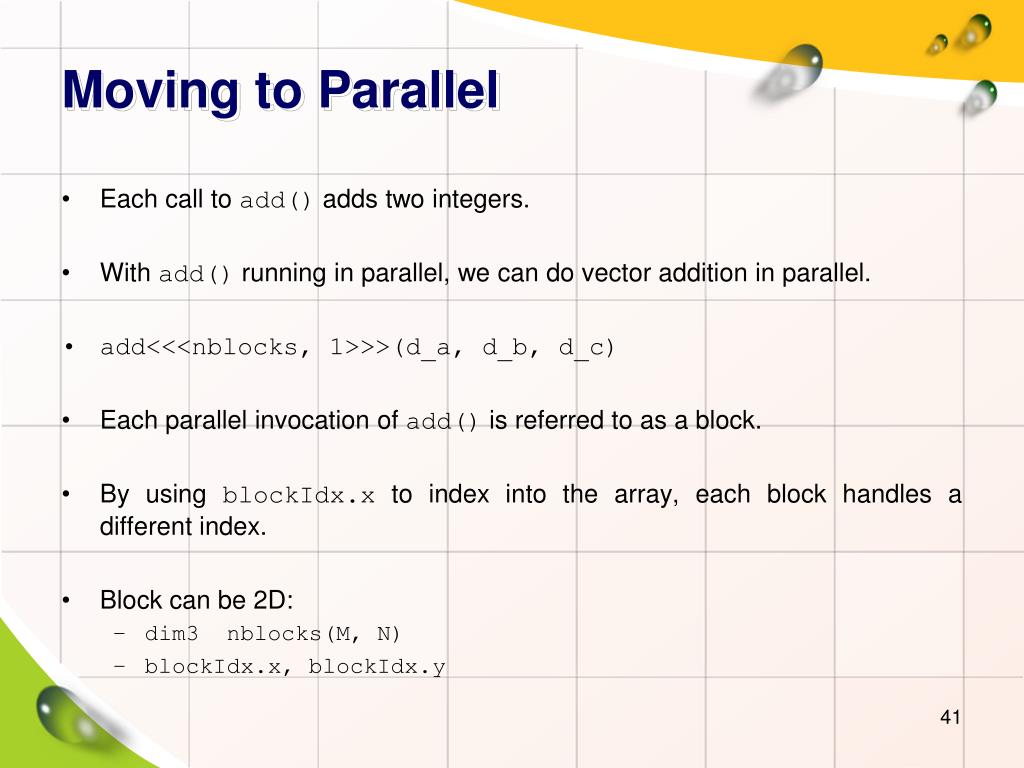

moving to parallel
Moving to Parallel
  • Each call to add() adds two integers.
  • With add() running in parallel, we can do vector addition in parallel.
  • add<<<nblocks, 1>>>(d_a, d_b, d_c)
  • Each parallel invocation of add() is referred to as a block.
  • By using blockIdx.x to index into the array, each block handles a different index.
  • Block can be 2D:
    • dim3 nblocks(M, N)
    • blockIdx.x, blockIdx.y
vector addition on device

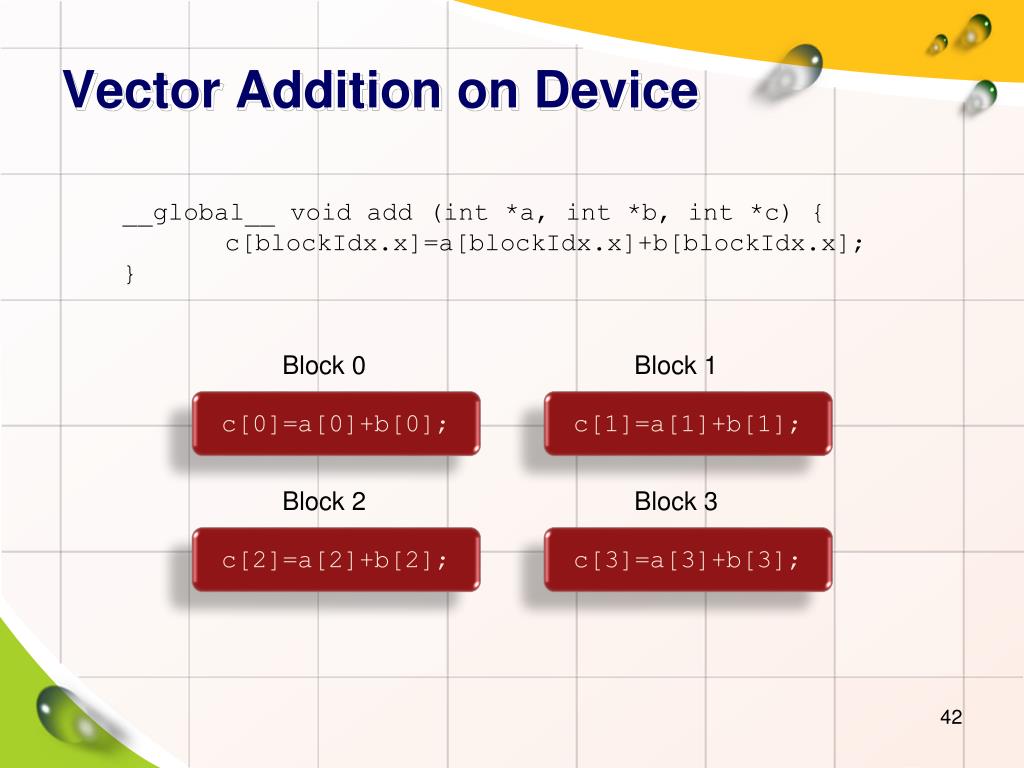

Vector Addition on Device

__global__ void add (int *a, int *b, int *c) {

c[blockIdx.x]=a[blockIdx.x]+b[blockIdx.x];

}

Block 0

Block 1

c[0]=a[0]+b[0];

c[1]=a[1]+b[1];

Block 2

Block 3

c[2]=a[2]+b[2];

c[3]=a[3]+b[3];

vector addition on device main

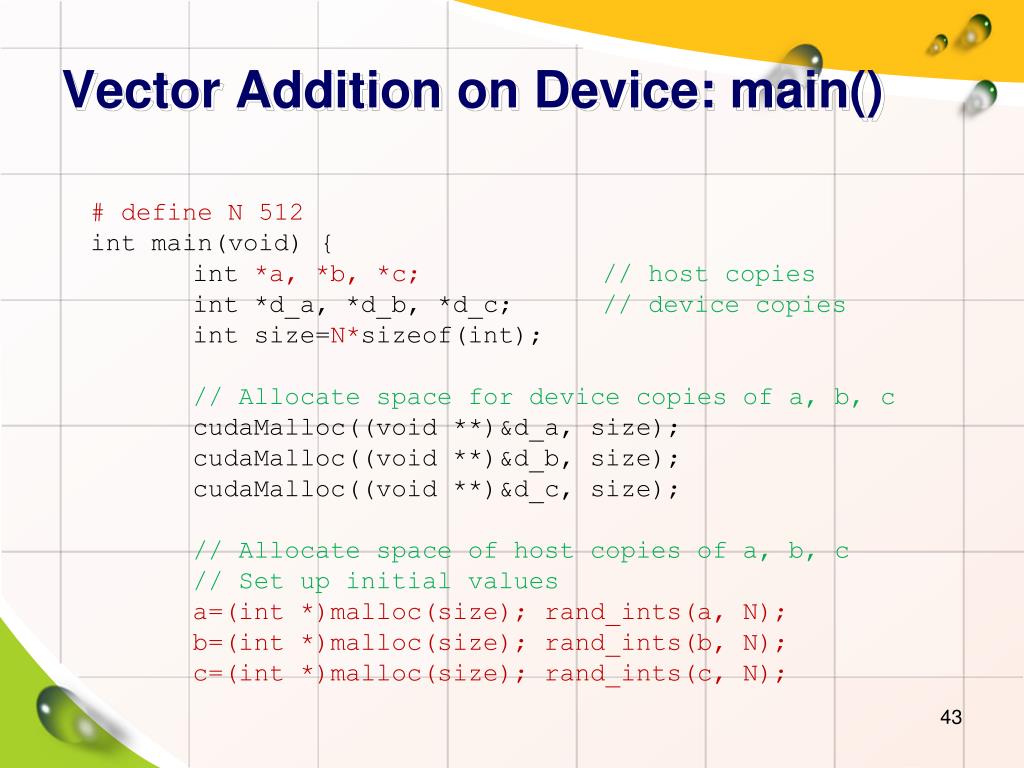

Vector Addition on Device: main()

# define N 512

int main(void) {

int*a, *b, *c;// host copies

int *d_a, *d_b, *d_c; // device copies

int size=N*sizeof(int);

// Allocate space for device copies of a, b, c

cudaMalloc((void **)&d_a, size);

cudaMalloc((void **)&d_b, size);

cudaMalloc((void **)&d_c, size);

// Allocate space of host copies of a, b, c

// Set up initial values

a=(int *)malloc(size); rand_ints(a, N);

b=(int *)malloc(size); rand_ints(b, N);

c=(int *)malloc(size); rand_ints(c, N);

vector addition on device main1
Vector Addition on Device: main()

// Copy inputs to device

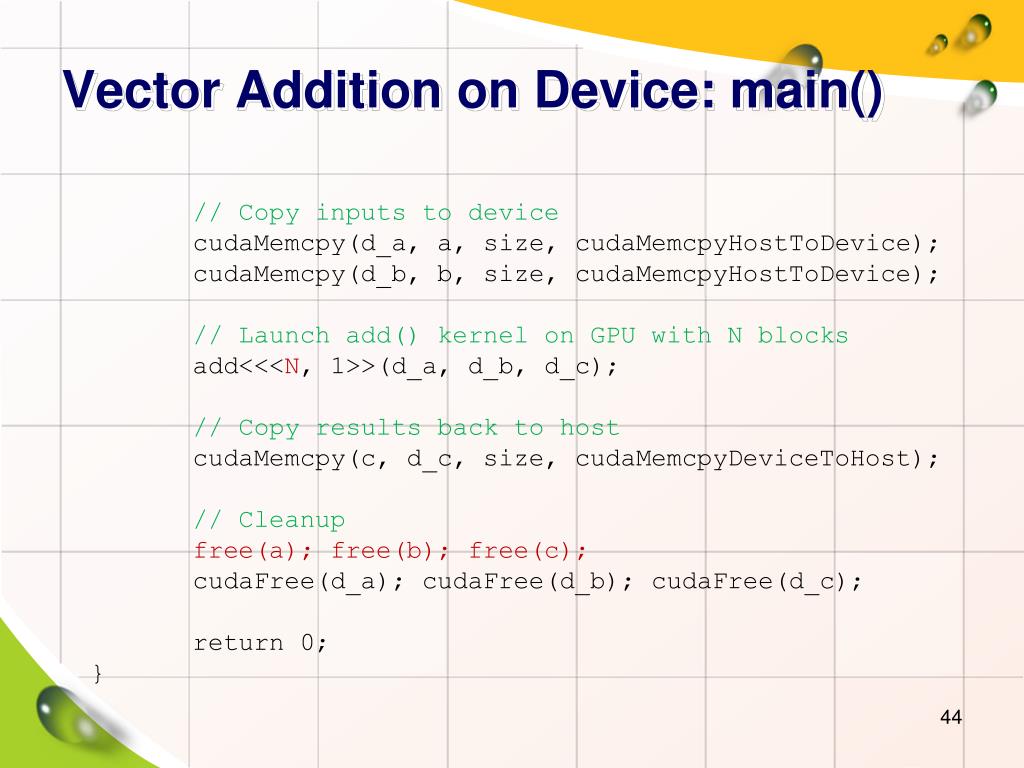

cudaMemcpy(d_a, a, size, cudaMemcpyHostToDevice);

cudaMemcpy(d_b, b, size, cudaMemcpyHostToDevice);

// Launch add() kernel on GPU with N blocks

add<<<N, 1>>(d_a, d_b, d_c);

// Copy results back to host

cudaMemcpy(c, d_c, size, cudaMemcpyDeviceToHost);

// Cleanup

free(a); free(b); free(c);

cudaFree(d_a); cudaFree(d_b); cudaFree(d_c);

return 0;

}

cuda threads
CUDA Threads
  • Each block can be split into parallel threads.
  • Threads can be up to 3D:
    • dim3 nthreads(M, N, P)
    • threadIdx.x, threadIdx.y, threadIdx.z

__global__ void add (int *a, int *b, int *c) {

c[threadIdx.x]=a[threadIdx.x]+b[threadIdx.x];

}

add<<<1, N>>>(d_a, d_b, d_c);

combining blocks and threads

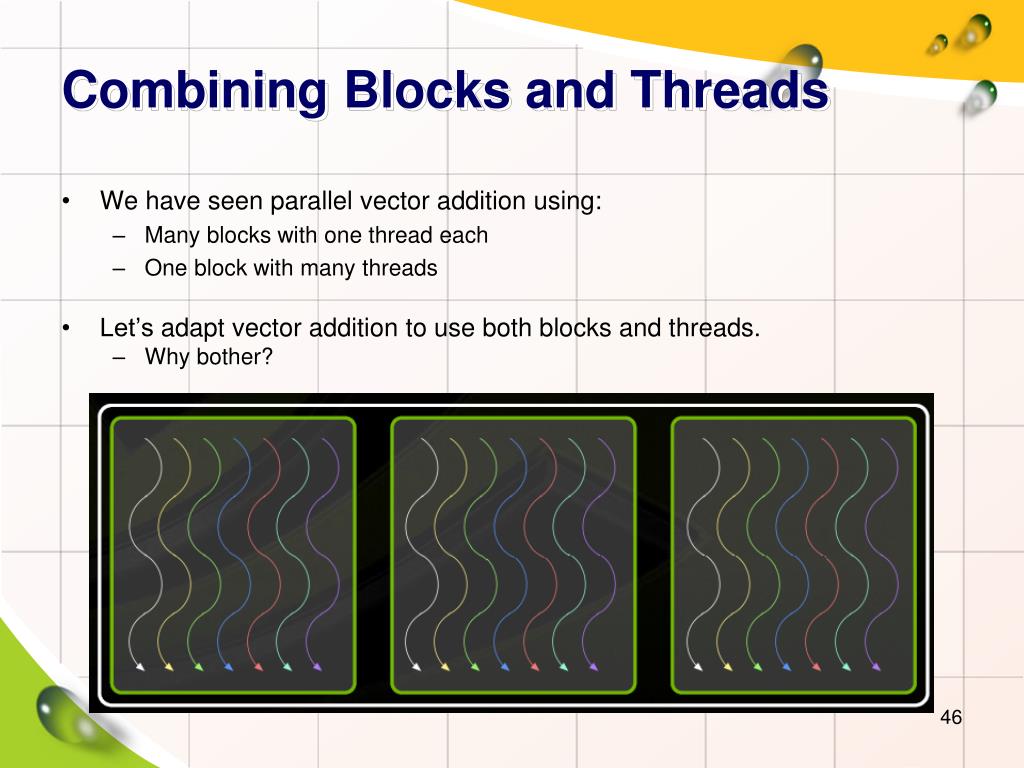

Combining Blocks and Threads
  • We have seen parallel vector addition using:
    • Many blocks with one thread each
    • One block with many threads
  • Let’s adapt vector addition to use both blocks and threads.
    • Why bother?
indexing
Indexing

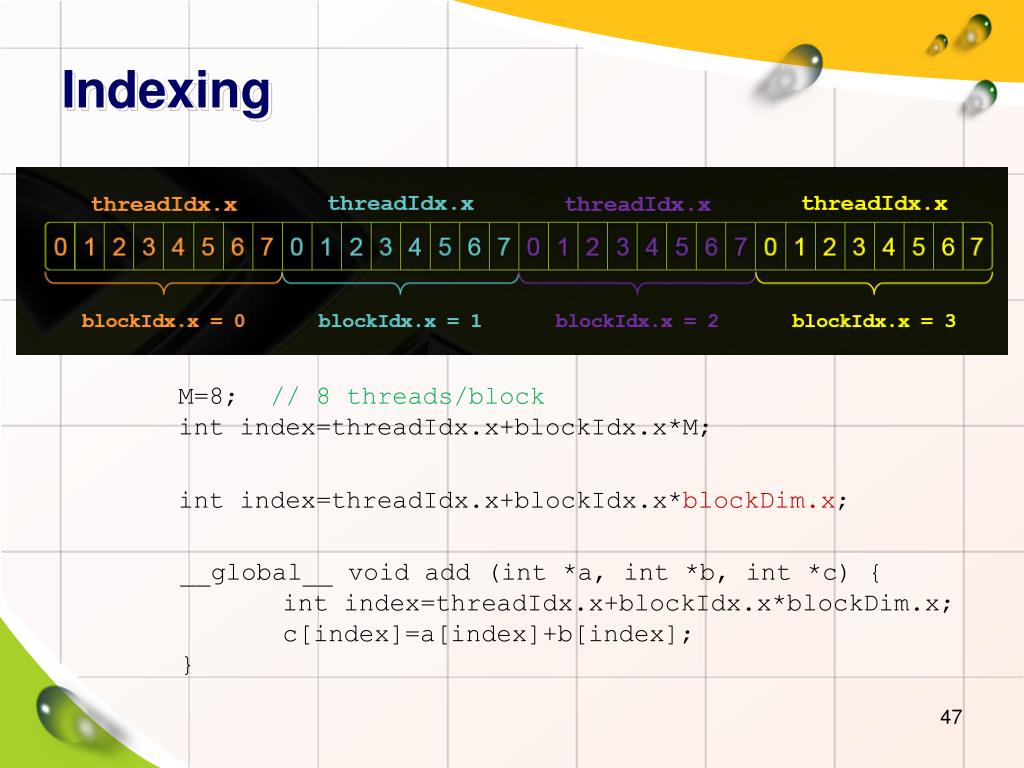

M=8; // 8 threads/block

int index=threadIdx.x+blockIdx.x*M;

int index=threadIdx.x+blockIdx.x*blockDim.x;

__global__ void add (int *a, int *b, int *c) {

int index=threadIdx.x+blockIdx.x*blockDim.x;

c[index]=a[index]+b[index];

}

indexing1
Indexing

#define N (2048*2048)

#define M 512 // THREADS_PER_BLOCK

add<<<N/M, M>>>(d_a, d_b, d_c);

__global__ void add (int *a, int *b, int *c, int n) {

int index=threadIdx.x+blockIdx.x*blockDim.x;

if (index<n)

c[index]=a[index]+b[index];

}

add<<<(N+M-1)/M, M>>>(d_a, d_b, d_c, N);

data access pattern
Data Access Pattern

radius

radius

How many times?

input

output

sharing data between threads

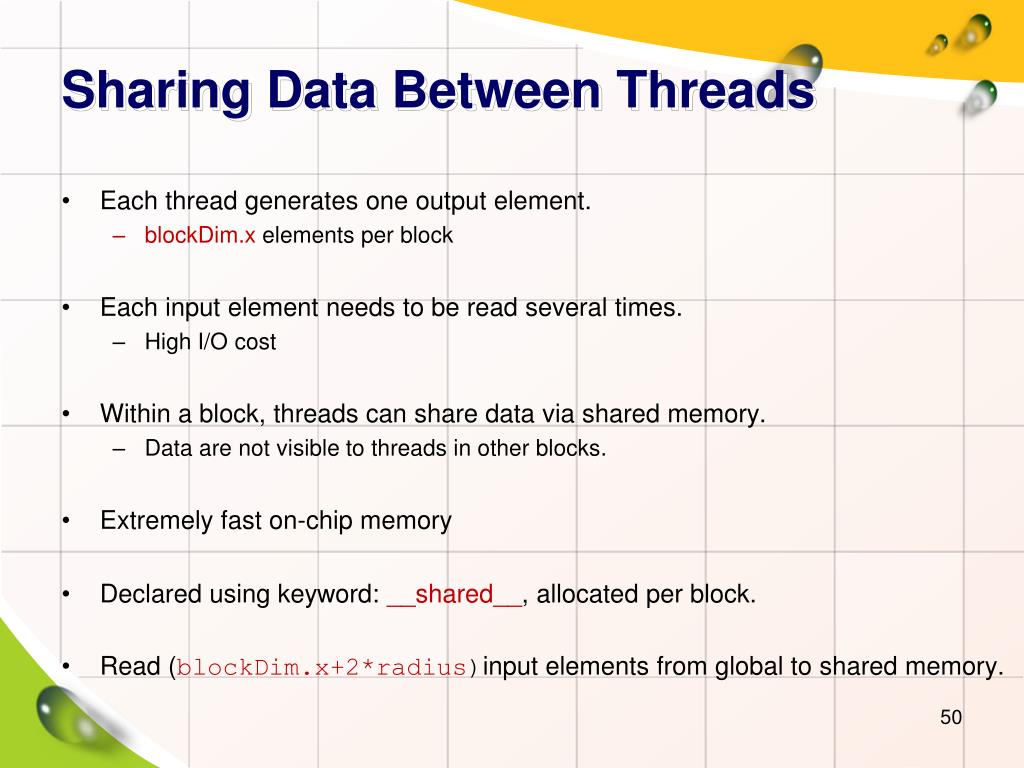

Sharing Data Between Threads
  • Each thread generates one output element.
    • blockDim.x elements per block
  • Each input element needs to be read several times.
    • High I/O cost
  • Within a block, threads can share data via shared memory.
    • Data are not visible to threads in other blocks.
  • Extremely fast on-chip memory
  • Declared using keyword: __shared__, allocated per block.
  • Read (blockDim.x+2*radius)input elements from global to shared memory.
collaborative threads
Collaborative Threads

input

T0

T0

T0

shared

0

1

2

3

4

5

6

7

8

9

Data Race!

blockDim.x output elements

Thread 0 produces the values of temp[i], i=0, 3, 13.

Thread 9 requires the values of temp[i], i=9, 10, 11, 12, 13, 14, 15.

void _syncthreads()

kernel synchronization
Kernel Synchronization

__global__ void vector_sum(int *in, int *out) {

__shared__int temp[BLOCK_SIZE+2*RADIUS];

intgindex=threadIdx.x+blockIdx.x*blockDim.x; // global index

intlindex=threadIdx.x+RADIUS; // local index

// Read input elements into shared memory

temp[lindex]=in[gindex];

if (threadIdx.x<RADIUS) { // some extra work

temp[lindex-RADIUS]=in[gindex-RADIUS];

temp[lindex+BLOCK_SIZE]=in[gindex+BLOCK_SIZE];

}

__syncthreads();

int offset, result=0;

for (offset=-RADIUS; offset<=RADIUS; offset++)

result+=temp[lindex+offset];

out[gindex]=result;

}

matrix multiplication
Matrix Multiplication

void MatrixMulOnHost(float* M, float* N, float* P, int Width)‏

{

int i, j, k;

float a, b, sum;

for (i = 0; i < Width; ++i)‏

for (j = 0; j < Width; ++j) {

sum = 0;

for (k = 0; k < Width; ++k) {

a = M[i * width + k];

b = N[k * width + j];

sum += a * b;

}

P[i * Width + j] = sum;

}

}

N

k

j

WIDTH

M

P

i

Host Code Only

WIDTH

k

WIDTH

WIDTH

single thread block
Single Thread Block

dim3 dimGrid(1,1);

dim3 dimBlock(Width, Width);

MatrixMulKernel<<<dimGrid, dimBlock>>>(Md, Nd, Pd, Width);

__global__ void MatrixMulKernel(float* Md, float* Nd, float* Pd,

int Width)‏{

int k=0;

float Pvalue = 0, Melement, Nelement;

for (k = 0; k < Width; ++k)‏ {

Melement = Md[threadIdx.y*Width+k]; // Md[threadIdx.y, k]

Nelement = Nd[k*Width+threadIdx.x]; // Nd[k, threadIdx.x]

Pvalue += Melement * Nelement;

}

// Pd[threadIdx.y, threadIdx.x]

Pd[threadIdx.y*Width+threadIdx.x] = Pvalue;

}

single thread block1
Single Thread Block

Nd

Grid 1

  • What is the maximum size of the matrix?
    • Each thread computes one element of Pd.
  • Each thread:
    • Loads a row of matrix Md.
    • Loads a column of matrix Nd.
    • Perform one multiply and addition for each pair of Md and Nd elements.
  • CGMA
    • Compute to Global Memory Access

Block 1

Thread

(2, 2)‏

48

WIDTH

Pd

Md

multiple blocks

bx

0

Multiple Blocks

TILE_WIDTH-1

0

1

2

  • Break Pd into square tiles.
  • Each block calculates one tile:
    • Each threads calculates one element.
    • Block size equals to tile size.
  • Require both block ID and thread ID.

Nd

WIDTH

Md

Pd

0

Pdsub

1

2

WIDTH

TILE_WIDTH

TILE_WIDTH-1

TILE_WIDTH

WIDTH

WIDTH

multiple blocks an example
Multiple Blocks: An Example

Nd0,0

Nd1,0

Nd0,1

Nd1,1

Block(0,0)

Block(1,0)

Nd0,2

Nd1,2

Nd0,3

Nd1,3

P0,0

P1,0

P2,0

P3,0

TILE_WIDTH = 2

P0,1

P1,1

P2,1

P3,1

Md0,0

Md1,0

Md2,0

Md3,0

Pd0,0

Pd1,0

Pd2,0

Pd3,0

P0,2

P1,2

P2,2

P3,2

Md0,1

Md1,1

Md2,1

Md3,1

Pd0,1

Pd1,1

Pd2,1

Pd3,1

P0,3

P1,3

P2,3

P3,3

Pd0,2

Pd1,2

Pd2,2

Pd3,2

Block(0,1)

Block(1,1)

Pd0,3

Pd1,3

Pd2,3

Pd3,3

multiple blocks indexing
Multiple Blocks: Indexing
  • TILE_WIDTH
  • Block: blockIdx.x, blockIdx.y
  • Thread: threadIdx.x, threadIdx.y
  • Row: blockIdx.y * TILE_WIDTH + threadIdx.y
  • Col: blockIdx.x * TILE_WIDTH + threadIdx.x

threadIdx.y

blockIdx.y

blockIdx.x

threadIdx.x

multiple blocks device code
Multiple Blocks: Device Code

__global__ void MatrixMulKernel(float* Md, float* Nd,

float* Pd, int Width)‏{

// Calculate the row index of the Pd element and Md

int Row=blockIdx.y*TILE_WIDTH+threadIdx.y;

// Calculate the col index of the Pd element and Nd

int Col=blockIdx.x*TILE_WIDTH+threadIdx.x;

int k;

float Pvalue = 0;

// Each thread computes one element of sub-matrix

for (k = 0; k < Width; ++k)‏

Pvalue += Md[Row*Width+k] * Nd[k*Width+Col];

Pd[Row*Width+Col] = Pvalue;

}

block granularity

MT IU

MT IU

SP

SP

Shared

Memory

Shared

Memory

t0 t1 t2 … tm

t0 t1 t2 … tm

Block Granularity

SM 0

SM 1

  • Each SM in GT200 can take up to 1024 threads and 8 blocks.
  • 8×8: 64 threads per block, 1024/64=12 blocks, 64×8=512 threads per SM
  • 16×16: 256 threads per block, 1024/256=4 blocks, full capacity!
  • 32×32: 1024 threads per block, exceeding the limit of 512 threads/block

Blocks

Blocks

global memory access
Global Memory Access
  • Each thread requires one row from Md and one column from Nd.
  • For a k×k thread block, each row/column will be accessed k times.
  • To reduce the global memory I/O, it is beneficial to load the required data once into the shared memory.

Nd

T0,0

T1,0

2×2 Thread Block

T0,1

T1,1

Md

splitting md
Splitting Md
  • The shared memory per SM is limited (e.g., 64KB).
  • Shared among all blocks in the same SM.
  • Luckily, not all data needs to be in the shared memory simultaneously.

Phase 2

Phase 1

shared

shared

Mds

Mds

Md

shared memory device code
Shared Memory: Device Code

__global__ void MatrixMulKernel(float* Md, float* Nd, float* Pd, int Width)

{

1. __shared__ float Mds[TILE_WIDTH][TILE_WIDTH];

2. __shared__ float Nds[TILE_WIDTH][TILE_WIDTH];

3. intbx = blockIdx.x; int by = blockIdx.y;

4. inttx = threadIdx.x; intty = threadIdx.y;

// Identify the row and column of the Pd element to work on

5. int Row = by * TILE_WIDTH + ty;

  • 6. int Col = bx * TILE_WIDTH + tx;
  • 7. float Pvalue = 0;

// Loop over the Md and Nd tiles required to compute the Pd element

  • for (int m = 0; m < Width/TILE_WIDTH; ++m) {
  • // Collaboratively load Md and Nd tiles into shared memory

9. Mds[ty][tx] = Md[Row*Width + (m*TILE_WIDTH + tx)];

  • Nds[ty][tx] = Nd[Col + (m*TILE_WIDTH + ty)*Width];
  • __syncthreads(); // Make sure the shared memory is ready
shared memory device code1
Shared Memory: Device Code
  • 12. for (int k = 0; k < TILE_WIDTH; ++k)
  • 13. Pvalue += Mds[ty][k] * Nds[k][tx];
  • // Make sure all threads have finished working on the shared memory
  • 14. __syncthreads();
  • }
  • 15. Pd[Row*Width+Col] = Pvalue;

}

  • Each SM in G80 can take up to 768 threads and 8 blocks.
  • Each SM has 16KB shared memory.
  • For a tile of size 16 × 16, each block requires 16 × 16 × 4 = 1KB for Mds.
  • Totally, 2KB are required for each block and 8 blocks can be supported.
  • However, since 768/(16 × 16) = 3, only 3 blocks and 6KB will be in use.
performance considerations
Performance Considerations
  • GPU computing is easy:
    • Host, Device, Kernel, Block, Thread
    • GPU Cards
    • Up and running in a few days
  • As long as performance is not a major concern:
    • Various performance bottlenecks
    • 10× speedup is often within your reach.
    • 100× speedup takes significant amount of tuning efforts.
thread execution
Thread Execution
  • Conceptually, threads in a block can execute in any order with respect to each other.
    • Exception: barrier synchronizations
  • Each thread block is partitioned into warps.
    • Hardware cost considerations
    • The unit of thread scheduling in SMs
    • 32 threads per warp: [0,…, 31], [32,…, 63] …
  • All threads in a warp execute the same instruction.
  • SM hardware implements zero-overhead thread scheduling.
    • Can tolerate long-latency operations with several warps around.
    • GPU does not require as much chip area for cache memories and branch prediction mechanisms as CPUs.
warp scheduling
Warp Scheduling
  • Suppose 1 global memory access is needed for every 4 instructions.
  • Instruction: 4 clock cycles
  • Memory latency: 200 clock cycles
  • At least 14 warps are required to keep the units fully utilized.
flow divergence

warp 8 instruction 11

warp 1 instruction 42

warp 3 instruction 95

warp 8 instruction 12

warp 3 instruction 96

Flow Divergence

SM multithreaded

Warp scheduler

  • SIMT can reduce the cost of fetching and processing instructions.
  • SIMT works well when all threads in a warp follow the same control flow.
  • Multiple sequential passes may be required for an if-then-else construct.

time

...

if

then

else

X

Y

flow divergence2
Flow Divergence
  • Main performance concern with branching is divergence.
    • Threads within a thread take different paths.
    • The control paths are traversed one at a time.
  • How to avoid divergence when the branch condition is a function of thread ID?
    • With divergence:
      • if (threadIdx.x>2) { }
      • Threads 0, 1, and 2 follow a different path than the rest threads in the warp.
    • Without divergence:
      • if (threadIdx.x/WARP_SIZE>=2) { }
      • Creates two different paths for threads in a block.
      • Branch granularity is a whole multiple of warp size.
      • All threads in any given warp follow the same path.
memory coalescing
Memory Coalescing
  • Dynamic Random Access Memory (DRAM)
    • Each bit is stored in a separate capacitor.
    • All storage locations have nearly identical access time.
    • In practice, many consecutive locations are accessed in parallel.
    • All threads in a warp should access continuous memory locations (coalescing) to maximize memory bandwidth utilization.

Not coalesced

Coalesced

Md

Nd

Thread 1

WIDTH

Thread 2

WIDTH

memory layout of a matrix in c
Memory Layout of a Matrix in C

M0,0

M1,0

M2,0

M3,0

M0,1

M1,1

M2,1

M3,1

Time

M0,2

M1,2

M2,2

M3,2

M0,3

M1,3

M2,3

M3,3

Time Period 1

Time Period 2

T0

T1

T2

T3

T0

T1

T2

T3

M

M0,0

M1,0

M2,0

M3,0

M0,1

M1,1

M2,1

M3,1

M0,2

M1,2

M2,2

M3,2

M0,3

M1,3

M2,3

M3,3

memory layout of a matrix in c1
Memory Layout of a Matrix in C

Time

M0,0

M1,0

M2,0

M3,0

M0,1

M1,1

M2,1

M3,1

M0,2

M1,2

M2,2

M3,2

M0,3

M1,3

M2,3

M3,3

Time Period 2

T0

T1

T2

T3

Time Period 1

T0

T1

T2

T3

M

M0,0

M1,0

M2,0

M3,0

M0,1

M1,1

M2,1

M3,1

M0,2

M1,2

M2,2

M3,2

M0,3

M1,3

M2,3

M3,3

shared memory architecture
Shared Memory Architecture
  • Many threads access memory:
    • Shared memory is divided in banks.
    • Successive 32-bit words are assigned to successive banks.
    • Each bank has a bandwidth of 32 bits per clock cycle.
    • G80 has 16 banks: bank=address % 16
    • Same as the size of half a warp
  • Each memory bank can service one address per cycle.
    • Can service as many simultaneous accesses as the number of banks.
  • Multiple simultaneous accesses to the same bank may result in a bank conflict.
    • Conflicting accesses are serialized.
    • No bank conflicts between different half warps.
bank conflicts

Bank 0

Bank 1

Bank 2

Bank 3

Bank 4

Bank 5

Bank 6

Bank 7

Bank 15

Bank Conflicts
  • Shared memory is as fast as registers if there are no bank conflicts.
  • The fast case:
    • If all threads of a half-warp access different banks, there is no bank conflict.
    • If all threads of a half-warp access the identical address, there is no bank conflict (broadcast).
  • The slow case:
    • Bank Conflict: Multiple threads in the same half-warp access the same bank.
    • Must serialize the accesses.
    • Cost = max # of simultaneous accesses to a single bank
bank addressing example

Thread 0

Bank 0

Thread 0

Bank 0

Bank 1

Thread 1

Bank 1

Thread 1

Thread 2

Bank 2

Bank 2

Thread 2

Thread 3

Bank 3

Thread 3

Bank 3

Thread 4

Bank 4

Bank 4

Thread 4

Thread 5

Thread 5

Bank 5

Bank 5

Thread 6

Bank 6

Thread 6

Bank 6

Bank 7

Thread 7

Thread 7

Bank 7

Bank 15

Bank 15

Thread 15

Thread 15

Bank Addressing Example
  • No Bank Conflicts
    • Linear addressing
  • No Bank Conflicts
    • Random 1:1 Permutation
bank addressing example1

Thread 0

Bank 0

x8

Bank 1

Thread 1

Thread 0

Bank 0

Thread 2

Bank 2

Thread 1

Bank 1

Thread 3

Bank 3

Thread 2

Bank 2

Thread 4

Bank 4

Thread 3

Thread 5

Bank 5

Thread 4

Thread 6

Bank 6

Bank 7

Bank 7

Thread 7

Bank 8

Bank 9

Thread 8

x8

Thread 9

Bank 15

Thread 15

Thread 10

Thread 11

Bank 15

Bank Addressing Example
  • 2-way Bank Conflicts
    • Linear addressing stride = 2
  • 8-way Bank Conflicts
    • Linear addressing stride = 8
partitioning of sm resources
Partitioning of SM Resources
  • Execution resources in SM
    • Registers
    • Block Slots (GT200: 8)
    • Thread Slots (GT200: 1024)
    • Number of 16×16 blocks = 1024/(16×16) = 4
    • Determine the number of threads running on a SM.
    • Subtle interactions that may cause underutilization of resources
  • Register File
    • Store automatic variables declared in a CUDA kernel.
    • G80: 32KB (8192 entries) for each SM
    • Dynamically partitioned across all blocks in the same SM.
    • Each thread can only access registers assigned to itself.
sm resources example
SM Resources Example
  • For 16×16 blocks, if each thread uses 10 registers:
    • Each block requires 16×16×10 = 2560 registers.
    • Number of blocks = 8129/2560 = 3
  • If each thread increases the use of registers by 1:
    • Each block now requires 16×16×11 = 2816 registers.
    • Number of blocks = 8129/2816 = 2
    • Only two blocks can run on a SM.
    • Number of threads drops from 768 to 512
    • 1/3 reduction of parallelism due to the single extra automatic variable!

Performance Cliff

instruction mix
Instruction Mix
  • Each processor core has limited instruction processing bandwidth.
  • Every instruction consumes processing bandwidth:
    • Floating point calculation
    • Load instruction
    • Branch instruction
  • We should try to increase the efficiency of instructions.

1 loop counter increment instruction

1 loop branch instruction

for (int k=0; k<BLOCK_SIZE; k++)

Pvalue+=Mds[ty][k]*Nds[k][tx];

2 address arithmetic instructions

2 floating point arithmetic instructions

instruction mix1
Instruction Mix
  • Express the dot-product computation as one long multiply-add expression.
  • Eliminate the loop branch instruction.
  • Eliminate the loop counter update.
  • Matrix indices are constants rather than a variable.
  • With the help of compiler, address arithmetic instructions can be also eliminated!

Loop Unrolling

Pvalue+=Mds[ty][0]*Nds[0][tx]+…

+Mds[ty][15]*Nds[15][tx];

dynamic parallelism
Dynamic Parallelism
  • A child CUDA kernel can be called from within a parent CUDA kernel, without CPU involvement.
  • Extension to flat, single-level of parallelism
  • Requires Compute Capability 3.5+
  • Benefits:
    • Simplified CPU/GPU Cooperation
    • Dynamic Load Balancing
    • Data-Dependent Execution
    • Recursive Parallel Algorithms

CPU

GPU

CPU

GPU

example
Example

__global__ ChildKernel(void* data){

//Operate on data

}

__global__ ParentKernel(void *data){

ChildKernel<<<1, 16>>>(data);

}

// In Host Code

ParentKernel<<<256, 64>>(data);

__global__ RecursiveKernel(void*data){

if(continueRecursion== true)

RecursiveKernel<<<64, 16>>>(data);

}

matrix example
Matrix Example

for (int i=0; i<N; i++){

for (int j=0; j<M; j++){

convolution_function(i, j);

}

}

matrix example1
Matrix Example

for (int i=0; i<N; i++){

for (int j=0; j<M[i]; j++){

convolution_function(i,j);

}

}

Oversubscription

matrix example2
Matrix Example

__global__ void con_kernel(int i){

convolution_function(i, threadIdx.x);

}

__global__ void dynamic_parallelism_kernel(int *M){

con_kernel<<<1, M[blockIdx.x]>>>(blockIdx.x);

}

//In Host Code

dynamic_parallelism_kernel<<<N, 1>>>(M);

synchronization
Synchronization

__global__ void Parent_Kernel() {

...

//Kernel code

if(threadIdx.x==0){

Child_Kernel<<<1, 256>>>();

// Thread will launch kernel and keep going

cudaDeviceSynchronize();

// Make thread wait for Child_Kernelto complete

}

__syncthreads();

//If all threads in the block need Child_Kernelto complete

...

//Code that needs data generated by Child_Kernel

}

timing gpu kernels
Timing GPU Kernels

float time;

cudaEvent_t start, stop;

cudaEventCreate(&start);

cudaEventCreate(&stop);

cudaEventRecord(start, 0); // Place the start event

kernel <<<..>>>(..); // Returns immediately

cudaEventRecord(stop, 0); // Place the stop event

cudaEventSynchronize(stop); // Make sure stop is reached

cudaEventElapsedTime(&time, start, stop);

cudaEventDestroy(start);

cudaEventDestroy(stop);

Stream 0

multiple kernels
Multiple Kernels

// Create two streams

cudaStream_t stream[2];

for (int i=0; i<2; ++i)

cudaStreamCreate(&stream[i]);

// Launch a Kernel from each stream

KernelOne <<<64, 512, 0, stream[0]>>>(..);

KernelTwo <<<64, 512, 0, stream[1]>>>(..);

// Destroy the streams

for (int i=0; i<2; ++i)

cudaStreamDestroy(stream[i]);

  • Synchronization is implied for events within the same stream.
  • More than one stream can be associated with a GPU.
multiple gpus
Multiple GPUs

intnDevices;

cudaGetDeviceCount(&nDevices);

cudaDeviceProp prop;

for (inti=0; i<nDevices; i++) {

cudaGetDeviceProperties(&prop, i);

printf("Device Number: %d\n", i);

printf("Device Name: %s\n", prop.name);

printf("Compute Capability: %d.", prop.major);

printf("%d\n", prop.minor);

printf("Memory Bus Width: %d\n", prop.memoryBusWidth);

}

streams and multiple gpus
Streams and Multiple GPUs
  • Streams belong to the GPU that was active when they were created.
  • Calls to a stream are invalid if the associated GPU is not active.

cudaSetDevice(0);

cudaStreamCreate(&streamA);

cudaSetDevice(1);

cudaStreamCreate(&streamB);

// Launch kernels

KernelOne <<<..., streamA>>>(..); // Invalid!

KernelTwo <<<..., streamB>>>(..); // Valid

floating point considerations
Floating Point Considerations
  • Numeric values are represented as bit patterns.
  • IEEE Floating Point Standard
    • Sign (S), Exponent (E) and Mantissa (M)
    • Each (S, E, M) pattern uniquely identifies a floating point number.
  • For each bit pattern, it numeric value is derived as:
    • Value = (-1)S× M × {2E}, where 1.0B ≤ M < 10.0B
  • The interpretation of S:
    • S=0: Positive Number
    • S=1: Negative Number
normalized representation of m
Normalized Representation of M
  • Subscripts D and B are for decimal place and binary place values respectively.
  • Specifying 1.0B ≤ M < 10.0B makes the mantissa value for each floating point number unique.
    • For example: 0.5D  = 1.0B × 2-1
    • The only valid mantissa value is M=1.0B.
    • Neither 10.0B × 2-2 (M = 10.0B) nor 0.1B × 20 (M = 0.1B) qualifies.
    • Just like 10.0D × 105, or 0.9D × 10-3 are not valid.
  • Because all mantissa values are of the form 1.XX…, we can omit the “1.” part from the representation.
    • The mantissa value of 0.5D in a 2-bit mantissa is 00, by omitting “1.” from 1.00.
    • With the IEEE format, an n-bit mantissa is effectively an (n+1)-bit mantissa.
excess encoding of e
Excess Encoding of E

Monotonically

Monotonically

In an n-bit exponent representation, 2n-1-1 is added to its two's complement to form its excess representation.

  • (-1)S× 1.M × 2(E-2^(n-1)+1)
representable numbers1
Representable Numbers
  • The exponent bits define the major intervals of representable numbers.
  • The mantissa bits define the number of representable numbers in each interval.
  • Zero is not representable in this format.
  • Representable numbers become closer to each other toward 0.
  • There is a gap in representable numbers in the vicinity of 0.

0

1

2

3

representing zero
Representing Zero
  • Abrupt Underflow
    • Treats all bit patters with E=0 as 0.
    • Takes away several representable numbers near zero and lumps them all into 0.

0

1

2

3

  • Denormalization
    • Relaxes the normalization requirement for numbers very close to 0.
    • Whenever E=0, the mantissa is assumed to be 0.xx.
    • The exponent is assumed to be the same as the previous interval.

0

1

2

3

  • 0.M × 2-2^(n-1)+2

0 00 01 (S E M)  0.01 X 20 = 2-2

accuracy and rounding
Accuracy and Rounding
  • 1.00 × 2-2 + 1.00 × 21
    • 0.001 × 21 + 1.00 × 21 = 1.001 × 21 ≈ 1.00 × 21 (Error = 0.001 × 21)
  • 1.00×20 +1.00×20 + 1.00×2-2 + 1.00×2-2
    • 1.00×21 + 1.00×2-2 + 1.00×2-2
    • 1.00×21 + 1.00×2-2
    • 1.00×21
  • [1.00×20 +1.00×20 ]+ [1.00×2-2 + 1.00×2-2]
    • 1.00×21 + 1.00×2-1
    • 1.01×21
  • Sorting data in ascending order may help achieve greater accuracy.
    • Numbers with similar numerical values are close to each other.
single vs double precision
Single vs. Double Precision
  • GPUs were traditionally not good at double precision calculation.
    • Requires compute capability 1.3 or above.
    • Around 1/8 of single precision performance.
    • Improved greatly to 1/2 with Fermi architecture.
  • Important to avoid using double precision when it is not necessary.
    • Add ‘f’ specifier on float literals:
      • Y=X*0.123; // double assumed
      • Y=X*0.123f; // float explicit
    • Use float version of standard library functions:
      • Y=sin(X); // double assumed
      • Y=sinf(X); // single precision explicit
matlab in parallel
Matlab in Parallel
  • Matlab: Numerical Computing Environment
  • Parallel Computing Toolbox (PCT)
  • Offload work from one MATLAB session (client) to other MATLAB sessions (workers).
  • Run as many as eightMATLAB workers (2011b) on your local machine in addition to your MATLAB client session.

http://www.mathworks.cn/cn/help/distcomp/index.html

parfor
Parfor
  • Parallel for-loop
  • Theparforbody is executed on the client and workers.
  • The data on which parfor operates is sent from the client to workers, and the results are sent back to the client and pieced together.
  • MATLAB workers evaluate iterations in no particular order, and independently of each other.
  • Classification of Variables
    • Loop, Sliced, Reduction, Broadcast, Temporary
classification of variables
Classification of Variables

a=0;

c=pi;

z=0;

r=rand(1,10);

parfor i=1:10

a=i;

z=z+i;

b(i)=r(i);

if i<=c

d=2*a;

end

end

temporary

loop

reduction

sliced

sliced

broadcast

parfor example
Parfor Example

X=zeros(1,N);

for i = 1:N

x(i)=sin(i/N*2*pi);

end

parallelization

X=zeros(1,N);

matlabpool open local 8 % create 8 workers

parfor i = 1:N

X(i)=sin(i/N*2*pi);

end

matlabpool close % close all workers

notes on parfor
Notes on Parfor
  • Each loop must be independent of other loops.
  • In the Windows Task Manager, there are multiple Matlab processes:
    • Higher CPU Usage
    • Higher Memory Usage
  • It incurs significant overhead: only works with long loop iterations and/or time consuming calculations.
  • Be prepared to be surprised:
    • Some Matlab functions are already optimized for multithreading.
    • The practical speedup value is generally quite moderate.
gpu accelerated matlab
GPU Accelerated Matlab
  • Matlab users can now easily enjoy the benefits of GPU computing.
  • Capabilities
    • Evaluating built-in functions on the GPU.
    • Running MATLAB code on the GPU.
  • Requirements
    • Matlab 2014a (Recommended)
    • NVIDIA CUDA-enabled devices with compute capability of 1.3 or greater
    • NVIDIA CUDA device driver 3.1 or greater
  • Check the GPU environment
    • gpuDeviceCount: number of available GPU devices
    • gpuDevice: select and query GPU device
create data on gpu
Create Data on GPU
  • Transferring data between workspace and GPU:
  • Directly creating GPU data:

G = ones(100,100,50, 'single', 'gpuArray');

size(G)

100 100 50

classUnderlying(G)

single

M = rand(6);

G = gpuArray(single(M));

N = gather(G);

GPU

Workspace

execute code on gpu
Execute Code on GPU
  • Run Built-In Functions
  • Run Element-Wise Matlab Code

X = rand(1000,'single','gpuArray');

Gfft = fft(X);

Y = gather(Gfft);

function c = myCal(rawdata, gain, offst)

c = (rawdata .* gain) + offst;

meas = ones(1000)*3; // CPU

gn = rand(1000,'gpuArray')/100; // GPU

offs = rand(1000,'gpuArray')/50; // GPU

corrected = arrayfun(@myCal,meas,gn,offs);

results = gather(corrected);

timing gpu code
Timing GPU Code

A = rand(1024,'gpuArray');

fh = @()fft(A);

gputimeit(fh);

A = rand(12000,400,'gpuArray');

B = rand(400,12000,'gpuArray');

f = @()A*B;

t = gputimeit(f);

X = rand(1000,'gpuArray');

f = @()svd(X);

t1 = gputimeit(f,1);

t3 = gputimeit(f,3) ;

gd = gpuDevice();

tic();

B = fft(A);

wait(gd);

t = toc();

testing host gpu bandwidth
Testing Host-GPU Bandwidth
  • sizeOfDouble = 8; sizes = power(2, 14:28);
  • sendTimes = inf(size(sizes)); gatherTimes = inf(size(sizes));
  • for i=1:numel(sizes)
    • numElements = sizes(i)/sizeOfDouble;
    • hostData = randi([0 9], numElements, 1);
    • gpuData = gpuArray.randi([0 9], numElements, 1);
    • sendFcn = @()gpuArray(hostData);
    • sendTimes(i) = gputimeit(sendFcn);
    • gatherFcn = @()gather(gpuData);
    • gatherTimes(i) = gputimeit(gatherFcn);
  • end
  • sendBandwidth = (sizes./sendTimes)/1e9;
  • [maxSendBandwidth, maxSendIdx] = max(sendBandwidth);
  • gatherBandwidth = (sizes./gatherTimes)/1e9;
  • [maxGatherBandwidth, maxGatherIdx] = max(gatherBandwidth);
testing cpu bandwidth
Testing CPU Bandwidth
  • sizeOfDouble = 8; sizes = power(2, 14:28);
  • memoryTimesHost= inf(size(sizes));
  • for i=1:numel(sizes)
    • numElements= sizes(i)/sizeOfDouble;
    • hostData= randi([0 9], numElements, 1);
    • plusFcn= @()plus(hostData, 1.0);
    • memoryTimesHost(i) = timeit(plusFcn);
  • end
  • memoryBandwidthHost= 2*(sizes./memoryTimesHost)/1e9;
  • [maxBWHost, maxBWIdxHost] = max(memoryBandwidthHost);
testing gpu bandwidth
Testing GPU Bandwidth
  • memoryTimesGPU = inf(size(sizes));
  • for i=1:numel(sizes)
    • numElements = sizes(i)/sizeOfDouble;
    • gpuData = gpuArray.randi([0 9], numElements, 1);
    • plusFcn = @()plus(gpuData, 1.0);
    • memoryTimesGPU(i) = gputimeit(plusFcn);
  • end
  • memoryBandwidthGPU = 2*(sizes./memoryTimesGPU)/1e9;
  • [maxBWGPU, maxBWIdxGPU] = max(memoryBandwidthGPU);
testing matrix multiplication
Testing Matrix Multiplication
  • sizes = power(2, 12:2:24); N = sqrt(sizes);
  • mmTimesHost = inf(size(sizes));
  • mmTimesGPU = inf(size(sizes));
  • for i=1:numel(sizes)
    • A = rand(N(i), N(i)); B = rand(N(i), N(i));
    • mmTimesHost(i) = timeit(@()A*B);
    • A = gpuArray(A); B = gpuArray(B);
    • mmTimesGPU(i) = gputimeit(@()A*B);
  • end
  • mmGFlopsHost = (2*N.^3 - N.^2)./mmTimesHost/1e9; [maxGFlopsHost,maxGFlopsHostIdx] = max(mmGFlopsHost);
  • mmGFlopsGPU = (2*N.^3 - N.^2)./mmTimesGPU/1e9;
  • [maxGFlopsGPU,maxGFlopsGPUIdx] = max(mmGFlopsGPU);
review
Review
  • What are the differences among MPI, OpenMP and CUDA?
  • Why is GPU suitable for high performance computing?
  • What is the general framework of CUDA programming?
  • What is a kernel function and how to call it from the host code?
  • What is the advantage of splitting a block into threads?
  • Why do we need multiple thread blocks?
  • What are the major memory types in CUDA?
  • When should we use shared memory?
  • What resource factors are critical to GPU programming?
review1
Review
  • What is a warp and why do we need it?
  • What is flow divergence and how to avoid it?
  • What is bank conflict?
  • What is instruction mix?
  • What are the benefits of Dynamic Parallelism?
  • How to measure the performance of GPU code?
  • How to run kernel functions in parallel?
  • How is a floating point number represented in the IEEE format?
  • How to execute Matlab code on GPU?
