faa satellite navigation status

FAA Satellite Navigation Status

Deborah Lawrence, SBAS Program Manager

Federal Aviation Administration (FAA)

APEC/GIT-14

overview

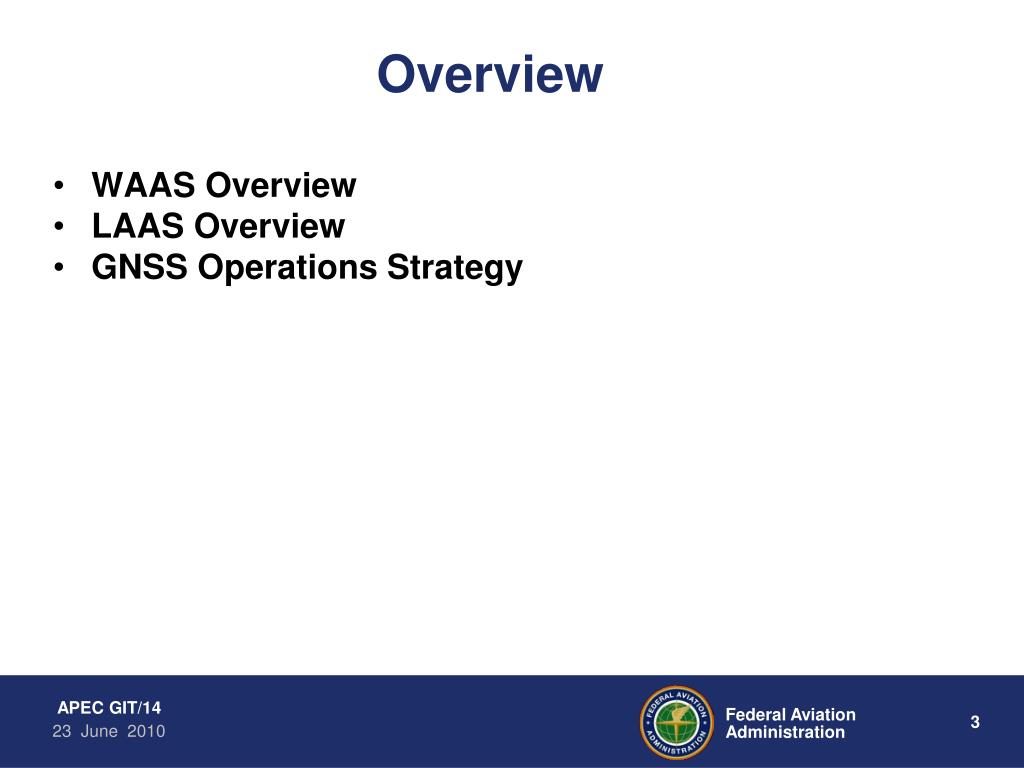

Overview
  • WAAS Overview
  • LAAS Overview
  • GNSS Operations Strategy
wide area augmentation system 2003
Wide Area Augmentation System - 2003

38 Reference

Stations

3 Master

Stations

4 Ground

Earth Stations

2 Geostationary

Satellite Links

2 Operational

Control Centers

updated waas enterprise schedule

30

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

FY

Development

Operational

Operational

Operational

Operational

Operational

Operational

Launch 9/05

UpdatedWAAS Enterprise Schedule

FLP Segment (Phase II)

LPV-200 Segment (Phase III)

Dual Frequency (Phase IV)

Phases

FOC

Technical Refresh

Operational

JRC

SLEP

Technical Refresh

Operational

JRC

GEO #3 – Intelsat

GEO #4 – TeleSat

Gap Filler GEO

GEO #5 – TBD

GEO #6 – TBD

GEO #7 - TBD

Former GEO Schedule

Operational

Launch 10/05

Operational

Launch 09/08

Launch 09/14

Launch 06/15

Launch 01/16

GEO #3 – Intelsat

GEO #4 – TeleSatGap Filler GEO

POR (Evaluation in progress)

GEO #5 – TBD

GEO #6 - TBD

Satellite Failure

Operational

New GEO Schedule !

Launch 10/05

Operational

Launch 9/05

Operational

Launch 09/08

Operational

Operational

Launch 01/16

waas current geo performance
WAAS Current GEO Performance
  • Both WAAS GEOs (CRW and CRE) Currently Operating Nominally
    • CRW Failure Expected by end of July 2010
    • Daily Monitoring of CRW Performance shows no degradation of service at present
  • Preparing for single GEO (CRE) Coverage
    • Yearly maintenance of CRE Uplink stations completed early
    • GEO Uplink station receiver updated with improved firmware

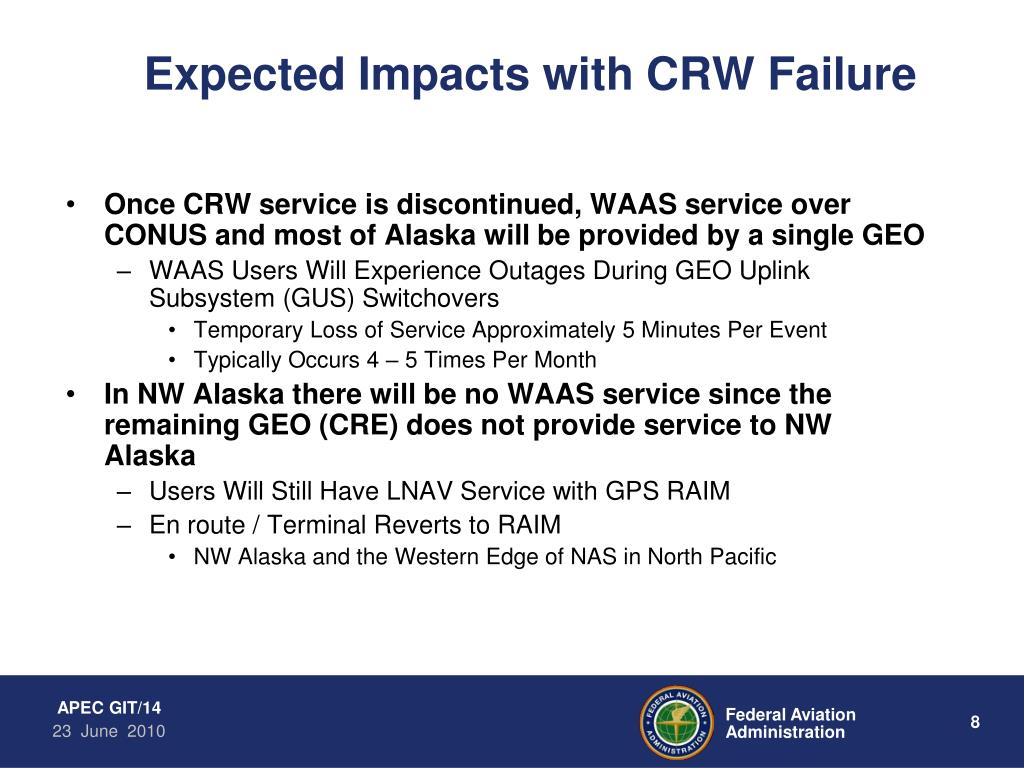

expected impacts with crw failure
Expected Impacts with CRW Failure
  • Once CRW service is discontinued, WAAS service over CONUS and most of Alaska will be provided by a single GEO
    • WAAS Users Will Experience Outages During GEO Uplink Subsystem (GUS) Switchovers
      • Temporary Loss of Service Approximately 5 Minutes Per Event
      • Typically Occurs 4 – 5 Times Per Month
  • In NW Alaska there will be no WAAS service since the remaining GEO (CRE) does not provide service to NW Alaska
    • Users Will Still Have LNAV Service with GPS RAIM
    • En route / Terminal Reverts to RAIM
      • NW Alaska and the Western Edge of NAS in North Pacific

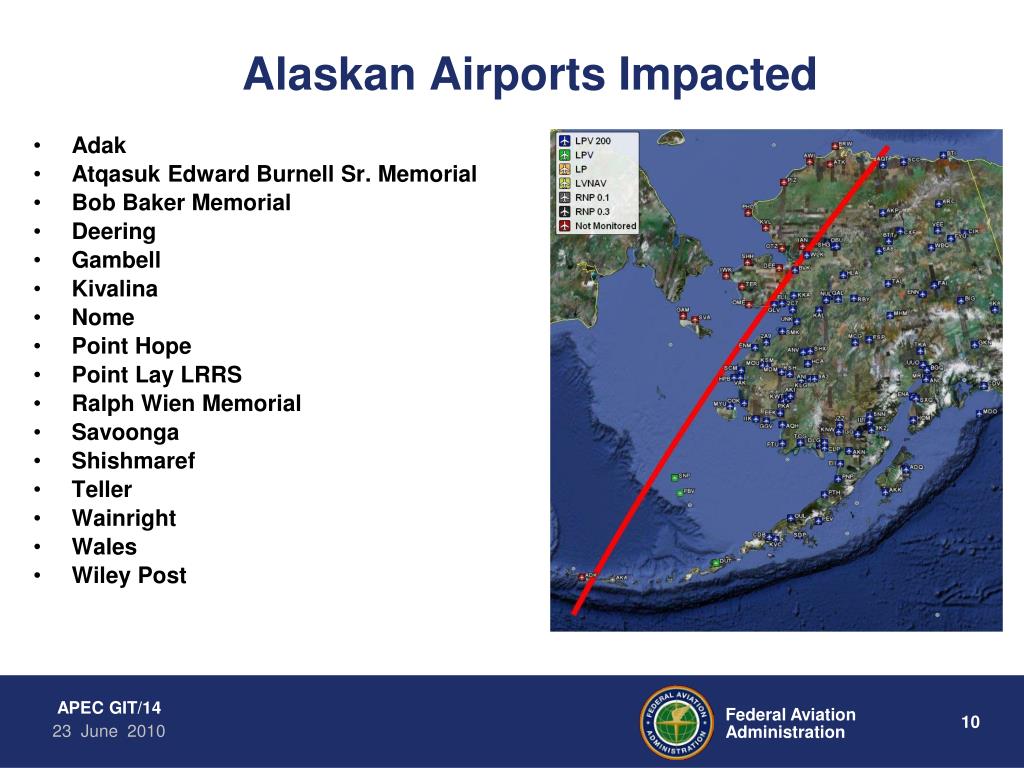

alaskan airports impacted
Alaskan Airports Impacted
  • Adak
  • Atqasuk Edward Burnell Sr. Memorial
  • Bob Baker Memorial
  • Deering
  • Gambell
  • Kivalina
  • Nome
  • Point Hope
  • Point Lay LRRS
  • Ralph Wien Memorial
  • Savoonga
  • Shishmaref
  • Teller
  • Wainright
  • Wales
  • Wiley Post
other impacts of crw failure
Other Impacts of CRW Failure
  • WAAS Program is accelerating implementation of a third GEO satellite (Gap-Filler)
    • Originally planned for operational use by Dec 2010
    • Accelerated Schedule projected to have GEO operational by Oct 2010 but will Increase Program costs by approximately 1.5 M
    • Addition of Gap-Filler GEO provides only limited coverage over Southeast Alaska
  • With a Single GEO (CRE) Operating WAAS performance more vulnerable to weak GPS constellation
    • Following example shows impact of a CRE GUS switchover at time when Critical GPS satellite (PRN 2) is unuseable
    • When a GUS Switchover occurs it takes upward of 6 hours before GEO can be used for ranging
mitigation activity status
Mitigation Activity Status
  • WAAS Program is accelerating acquisition of a Ranging capable GEO
    • Program office had completed a market survey for GEO satellites just prior to CRW failure
    • Efforts underway to establish a procurement vehicle for new GEO(s)
    • FAA is awaiting replacement solution from loss of CRW from GEO satellite provider (Lockheed Martin)
  • Former WAAS GEO (POR) has been identified as mitigation for loss of Service in Alaska
    • Program Office has started planning efforts for inclusion of this satellite back into WAAS
    • Testing being conducted to evaluate how to operate POR in the current WAAS configuration
expected coverage
Expected Coverage
  • Current Coverage
    • CRW (Intelsat) at 133° W
    • CRE (Telesat) at 107.3° W
  • Expected Coverage with Third WAAS GEO Operational October 2010
    • AMR (Inmarsat) at 98° W
  • Expected Coverage with POR
    • POR (Inmarsat at 178° E

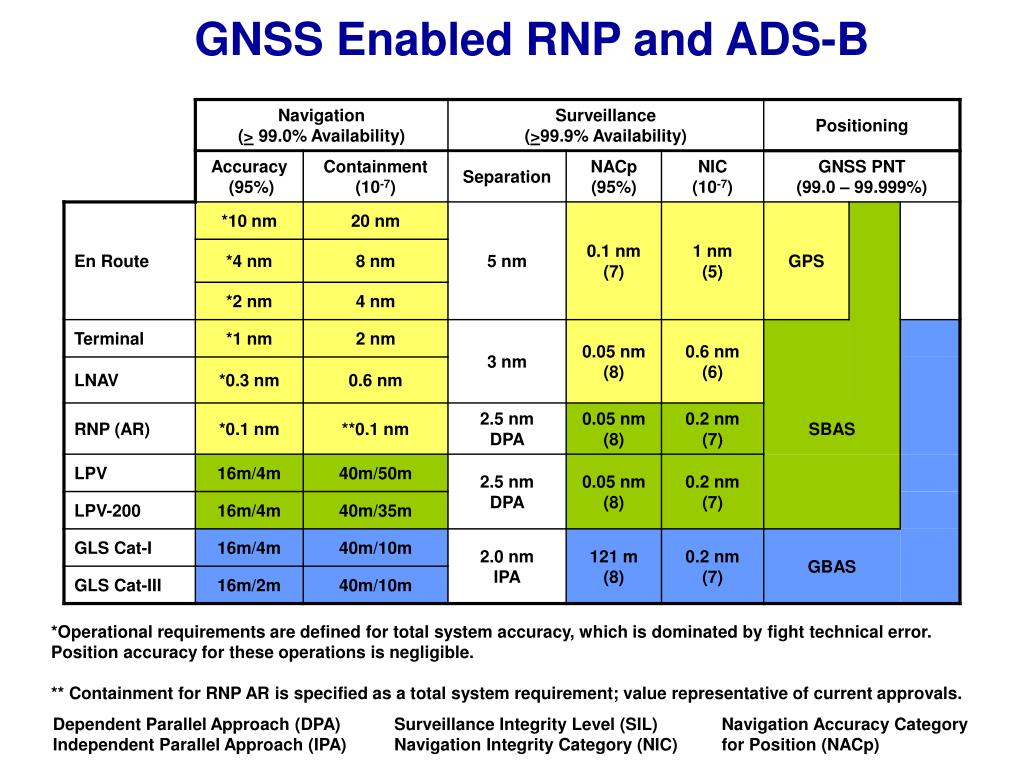

slide17

GNSS Enabled RNP and ADS-B

*Operational requirements are defined for total system accuracy, which is dominated by fight technical error. Position accuracy for these operations is negligible.

** Containment for RNP AR is specified as a total system requirement; value representative of current approvals.

Dependent Parallel Approach (DPA)

Independent Parallel Approach (IPA)

Surveillance Integrity Level (SIL)

Navigation Integrity Category (NIC)

Navigation Accuracy Category

for Position (NACp)

slide18

RNAV(GPS) Procedures

“Basic RNP”

As of June.3rd, 2010

- 2,126 LPVs serving 1126 Airports

  • 1284 LPVs to non-ILS Runways
  • 842 LPVs to ILS runways
  • LPVs at 520 Non-ILS Airports
  • 246 LPV-200
slide19
Universal Navigation Systems (UNS) 1077 WAAS/SBAS-FMS receivers sold95 different aircraft types8 helicopter types/models
honeywell cmc acft lpv stc s
Honeywell/CMC Acft LPV STC’s
  • Approved STC’s: 2 acft types
    • Gulfstream G-450
    • Gulfstream G-550
  • Pending STC’s: 11 acft types
    • Gulfstream IV, V (projected fourth quarter 2010)
    • Falcon-900 EXC
    • Challenger CL-601
    • Global-5000, Express (est. Aug 2011)
    • Hawker- 800
    • Citation X
    • Cessna Sovereign
    • Dassault EASy
    • Viking
current coverage

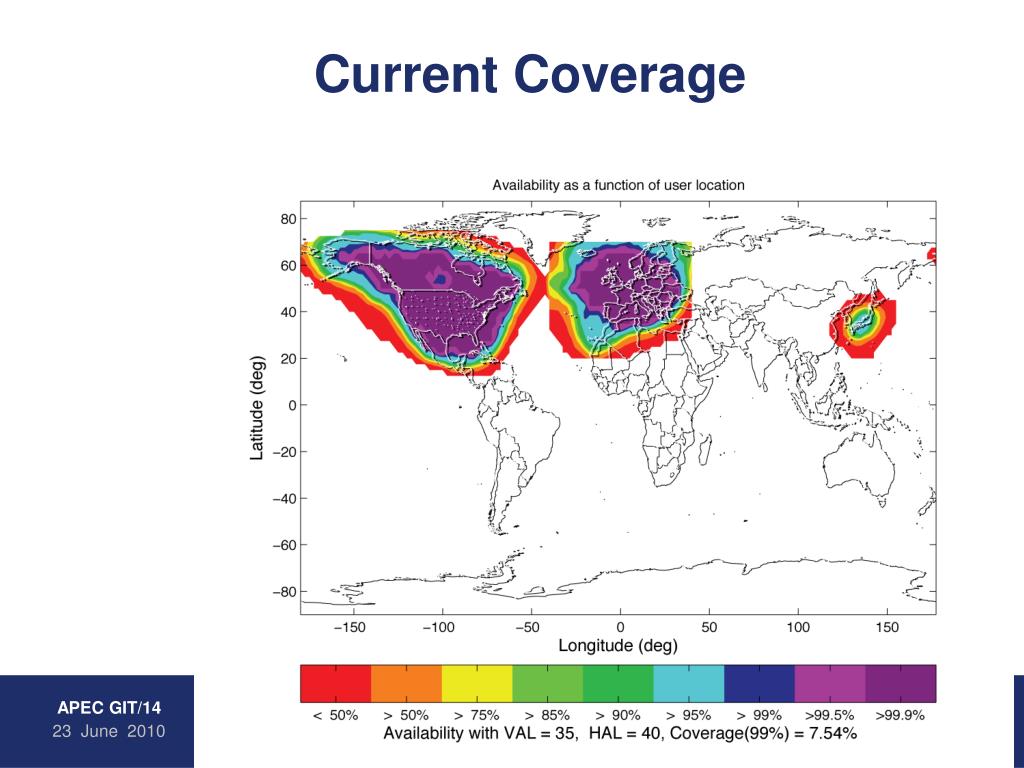

Current Coverage
  • WAAS
  • EGNOS
  • MSAS
expanded networks
Expanded Networks
  • WAAS
  • EGNOS
  • MSAS
  • GAGAN
  • SDCM

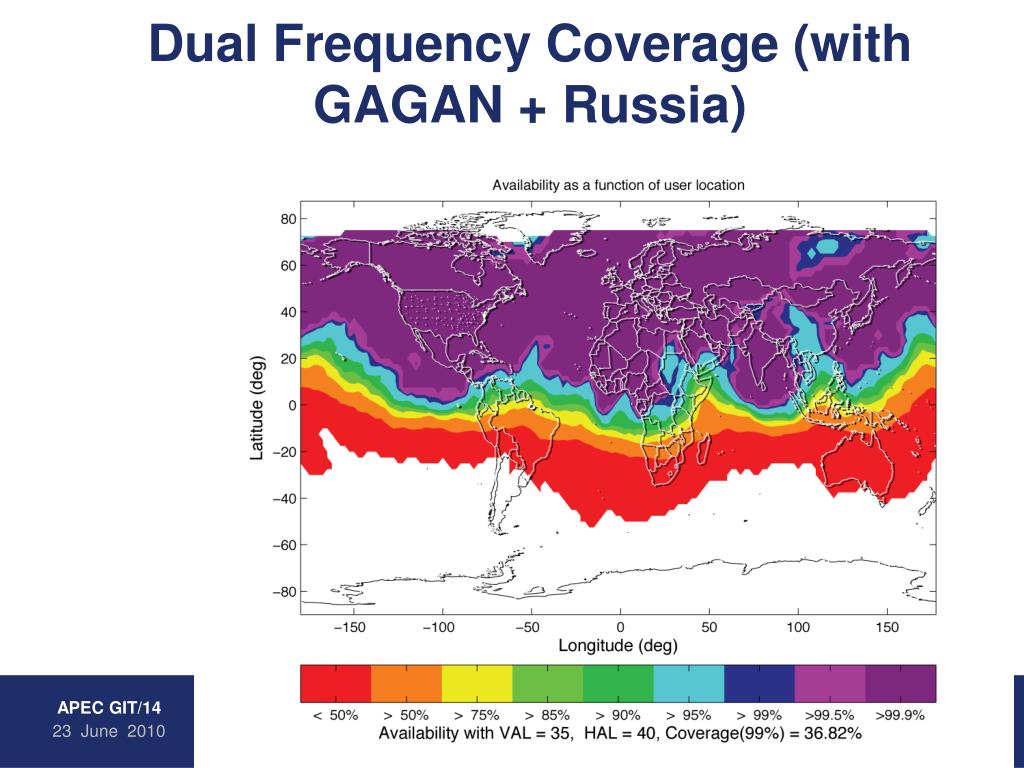

dual frequency expanded networks
Dual Frequency, Expanded Networks
  • WAAS
  • EGNOS
  • MSAS
  • GAGAN
  • SDCM
local area augmentation system laas
Local Area Augmentation System (LAAS)
  • Precision Approach For CAT- I, II, III
  • Multiple Runway Coverage At An Airport
  • 3D RNP Procedures (RTA), CDAs
  • Navigation for Closely Spaced Parallels
  • Super Density Operations

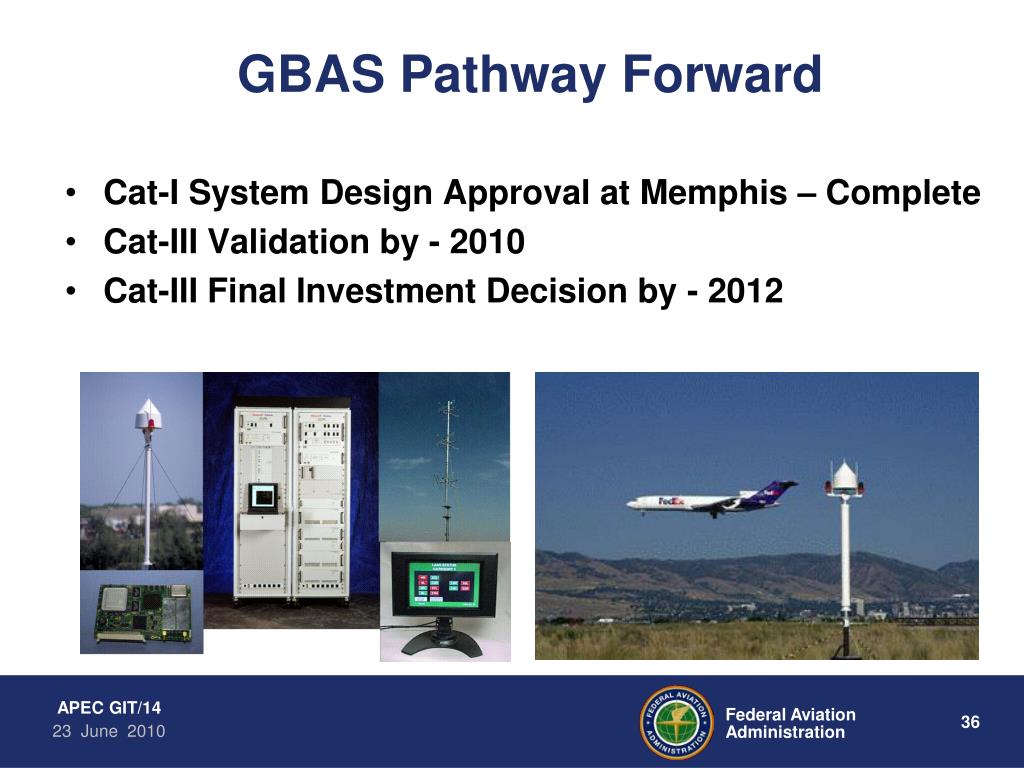

gbas pathway forward
GBAS Pathway Forward
  • Cat-I System Design Approval at Memphis – Complete
  • Cat-III Validation by - 2010
  • Cat-III Final Investment Decision by - 2012
laas gbas international efforts

Agana, Guam

LAAS/GBAS International Efforts

Rio De Janeiro, Brazil

Malaga, Spain

Sydney, Australia

Frankfurt, Germany

Bremen, Germany

slide38

10th International GBAS Working GroupWhere did we come from and where are we going

  • Today
    • First FAA approved system - Honeywell SLS4000 (Sept 2009)
    • Proliferation of GBAS worldwide
    • Common understanding of importance of Ionosphere
    • Use of common tools – Pegasus
    • Increased exchange of information between nations (MoAs)
  • 60+ Airlines have ordered GBAS

capable Boeing and Airbus aircraft

  • Current airlines GBAS equipped:
    • Continental, Delta Airlines, Qantas,

Air Berlin, TuiFly, Sonair, Air Vanatu,

Emirates

  • Over 15 countries have active GBAS

programs

Planned

S-CAT I

Installed

gbas in nextgen
GBAS in NextGen
  • GBAS is an Integral Part of NextGen
    • GBAS
      • GBAS supports the strategy to

evolve towards a

performance-based NAS by

using a satellite based navigation

system and onboard technologies.

    • CSPO
      • GBAS has the capability of providing selectable glide paths, displaced thresholds and providing the most accurate navigation to support all advancements in CSPO independent operations.
    • Wake Turbulence
      • GBAS can provide multiple approach procedures on a single runway with different glide slope angles reduction in separation by mitigating wake turbulence.
cat i operational implementation
CAT I Operational Implementation
  • Operational Implementation at Newark
  • GBAS implementation at Newark
    • Partnership with user and industry involvement
    • Continental began taking delivery of GBAS

operational 737NG for EWR operations

    • Local RFI issues – FAA Spectrum investigating
  • GBAS implementation at Memphis
    • GBAS Memphis straight in approaches completed
    • Memphis system updates completed February 2010
  • Potential for MEM system to be relocated to Houston
    • FedEx/MEM limited immediate use
      • Presently no definite GBAS equipage for B 757 fleet
      • Operations limited : only one B 727-200 and FAA flight test
    • Houston operational use
      • Additional airport to establish city pair for Continental operations
      • Houston has NextGen projects for CSPO and Wake Turbulence

GLS RWY 29

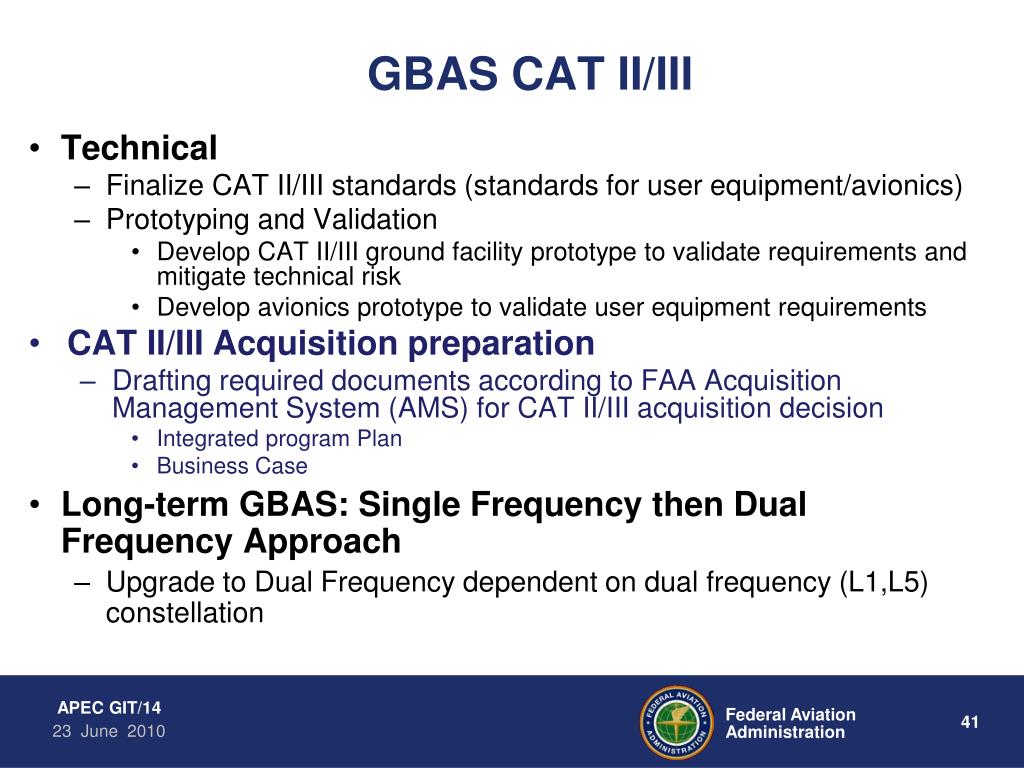

gbas cat ii iii
GBAS CAT II/III

Technical

Finalize CAT II/III standards (standards for user equipment/avionics)

Prototyping and Validation

Develop CAT II/III ground facility prototype to validate requirements and mitigate technical risk

Develop avionics prototype to validate user equipment requirements

CAT II/III Acquisition preparation

Drafting required documents according to FAA Acquisition Management System (AMS) for CAT II/III acquisition decision

Integrated program Plan

Business Case

Long-term GBAS: Single Frequency then Dual Frequency Approach

Upgrade to Dual Frequency dependent on dual frequency (L1,L5) constellation

gbas schedule
GBAS Schedule

FY09

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

CAT I Non-Fed

CAT III Standards

MOPS

RD/CONOPS

SPEC

CAT III Prototype Ground

CAT III prototype avionics

CAT III Acquisition Milestones

Development/ implementation

Dual Frequency R&D

OPS Approval MEM/EWR

MOPS

CONOPS/RD

Draft Spec

Updated Spec

GND prototype

Avionics Prototype

IID tbd

IOC

FID

Development

Implementation

Dual Frequency R&D

slide43

BOEING

B 787 / B747-8 Orders (GBAS standard)

B787 866 aircraft

B747-8 108 aircraft

Total974 aircraft

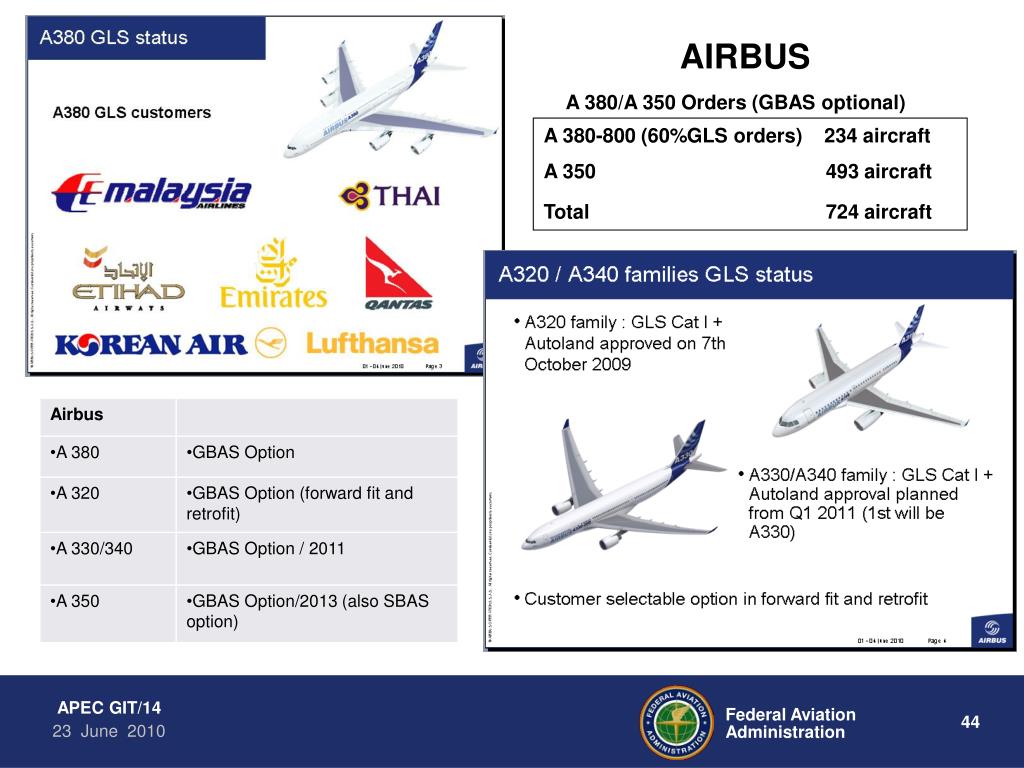

slide44

AIRBUS

A 380/A 350 Orders (GBAS optional)

A 380-800 (60%GLS orders) 234 aircraft

A 350 493 aircraft

Total 724 aircraft

summary
Summary
  • Single frequency coverage is good within the countries fielding SBAS
  • Dual frequency extends coverage outside reference networks & allows LPV operation in equatorial areas
  • Expanding networks into southern hemisphere could allow global coverage of land masses
  • Additional constellations allow even greater coverage with fewer stations
summary cont d

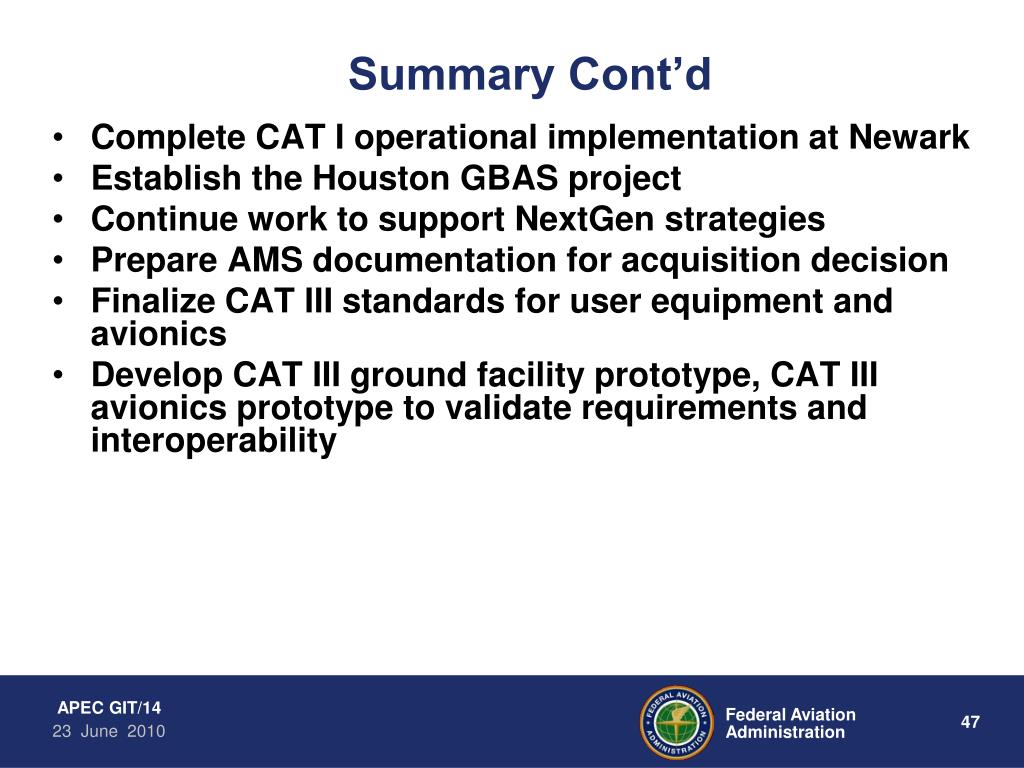

Summary Cont’d
  • Complete CAT I operational implementation at Newark
  • Establish the Houston GBAS project
  • Continue work to support NextGen strategies
  • Prepare AMS documentation for acquisition decision
  • Finalize CAT III standards for user equipment and avionics
  • Develop CAT III ground facility prototype, CAT III avionics prototype to validate requirements and interoperability
conclusions
Conclusions
  • Single frequency coverage is good within the countries fielding SBAS
  • Dual frequency extends coverage outside reference networks & allows LPV operation in equatorial areas
  • Expanding networks into southern hemisphere could allow global coverage of land masses
  • Additional constellations allow even greater coverage with fewer stations

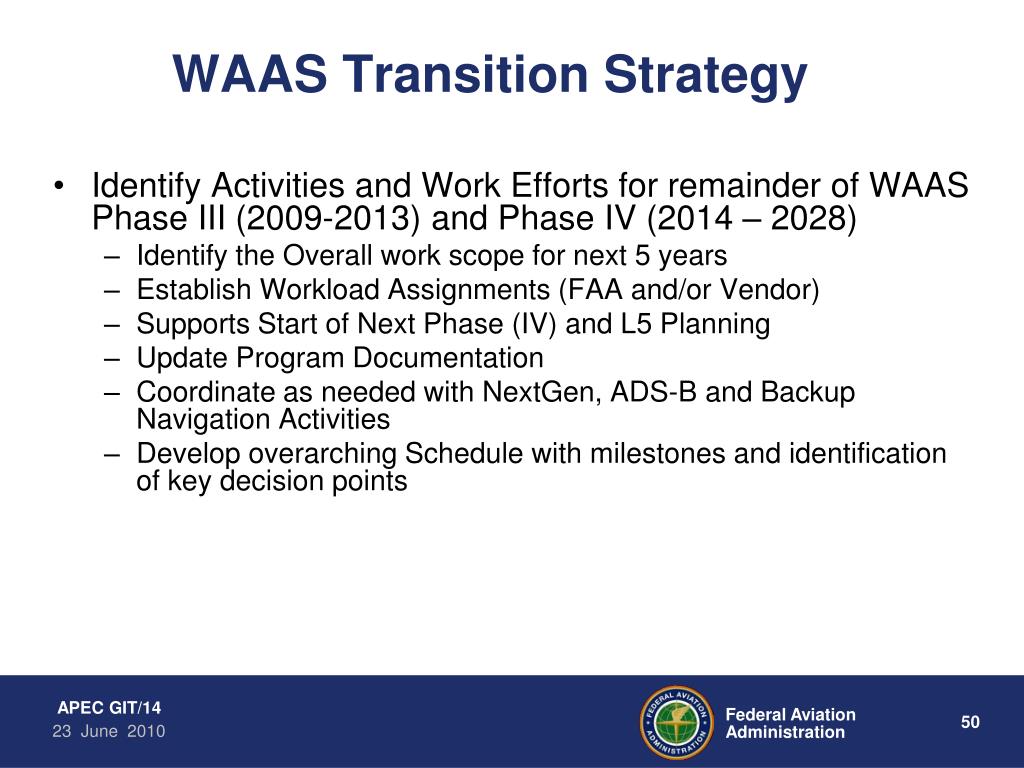

waas transition strategy
WAAS Transition Strategy

Identify Activities and Work Efforts for remainder of WAAS Phase III (2009-2013) and Phase IV (2014 – 2028)

Identify the Overall work scope for next 5 years

Establish Workload Assignments (FAA and/or Vendor)

Supports Start of Next Phase (IV) and L5 Planning

Update Program Documentation

Coordinate as needed with NextGen, ADS-B and Backup Navigation Activities

Develop overarching Schedule with milestones and identification of key decision points

benefit updates for gbas cat ii iii faa acquisition
Benefit updates for GBAS CAT II/III - FAA Acquisition
  • CAT IIIa/b Precision Approach: supports the strategy to evolve towards a performance-based NAS by using a satellite based navigation system and onboard technologies.
  • Precision Approach Access: GBAS provides precision approach capability where siting constraints have prevented ILS from being implemented or CAT III implementation is cost prohibitive.
  • Removal of ILS Critical Areas: GBAS is not limited by the operational restrictions due to ILS critical areas and can reduce ground movement delays.
  • Wake Turbulence: GBAS can provide multiple approach procedures on a single runway with different glide slope angles reduction in separation by mitigating wake turbulence.
  • Closely Spaced Parallel Operations: GBAS has the capability of providing selectable glide paths, as well as displaced thresholds and providing the most accurate navigation to support all advancements in CSPO independent operations.
benefit updates for gbas cat ii iii faa acquisition52
Benefit updates for GBAS CAT II/III - FAA Acquisition
  • DCPS: GBAS provides differentially corrected positioning services within the terminal area to enable GBAS equipped users to fly complex RNAV/RNP procedures with higher availability.
  • Surface Navigation: In conjunction with ADS-B equipment, early provision of GBAS PNT services may enable positioning service for surface movement, navigation, and virtual tower operations.
  • RNAV/RNP: GBAS systems will enable early adoption of the navigation accuracy required in high density airspace for most mid-term and advanced concepts in the terminal environment.
  • User Transition: GBAS CAT I also provides an early opportunity for operational familiarity with the procedures prior to the availability of GBAS Cat II/III systems.
