  1. Low Level Statistics and Quality Control Javier Cabrera

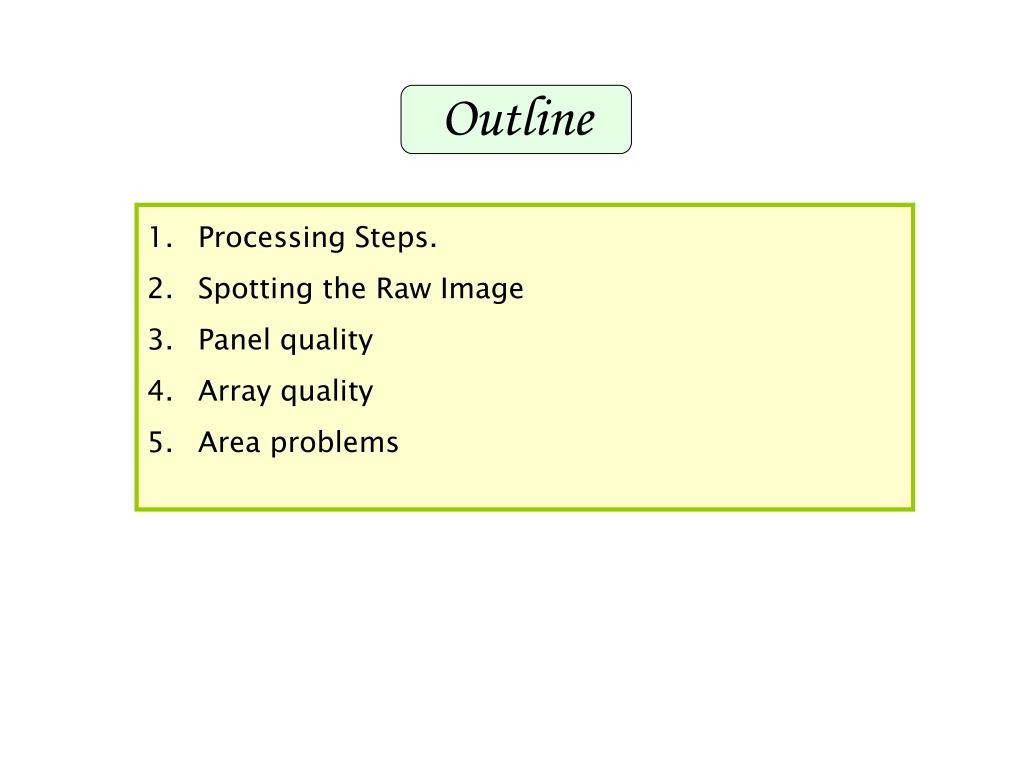

  2. Outline • Processing Steps. • Spotting the Raw Image • Panel quality • Array quality • Area problems

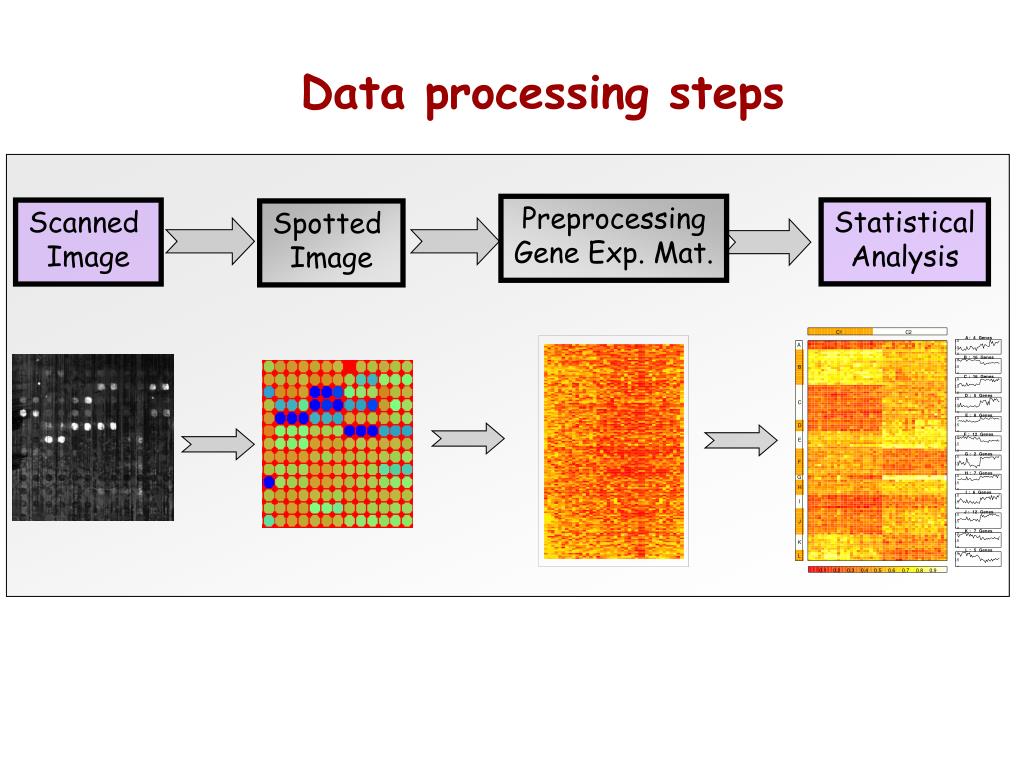

  3. Data processing steps Preprocessing Gene Exp. Mat. Statistical Analysis Scanned Image Spotted Image

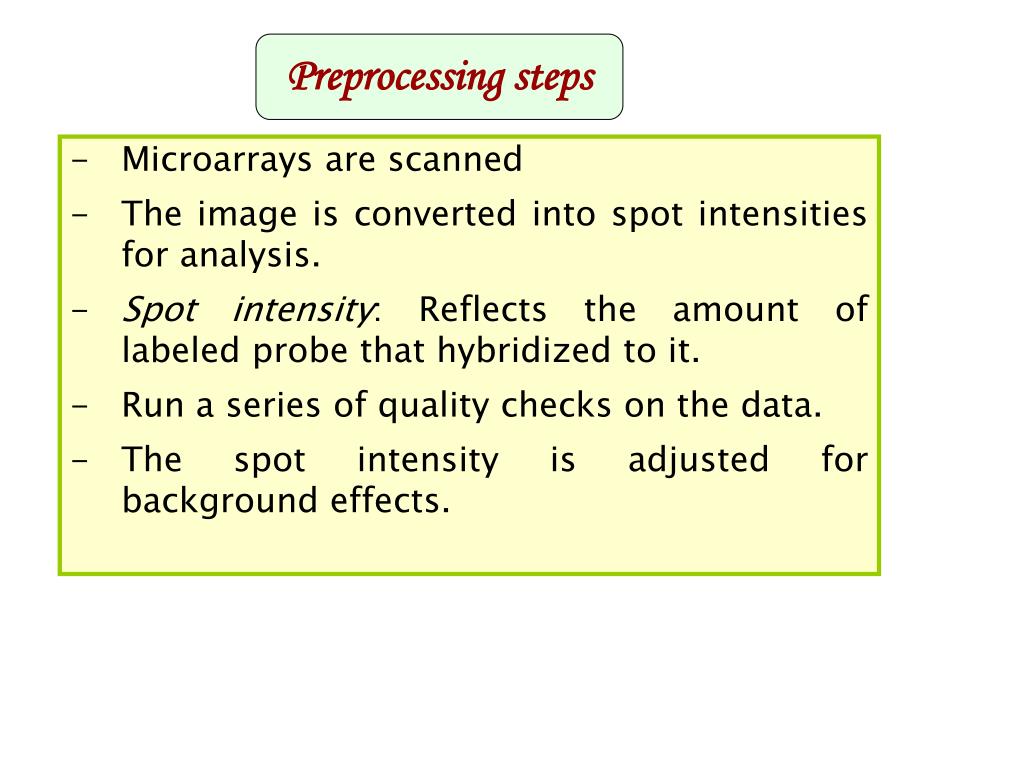

  4. Preprocessing steps • Microarrays are scanned • The image is converted into spot intensities for analysis. • Spot intensity: Reflects the amount of labeled probe that hybridized to it. • Run a series of quality checks on the data. • The spot intensity is adjusted for background effects.

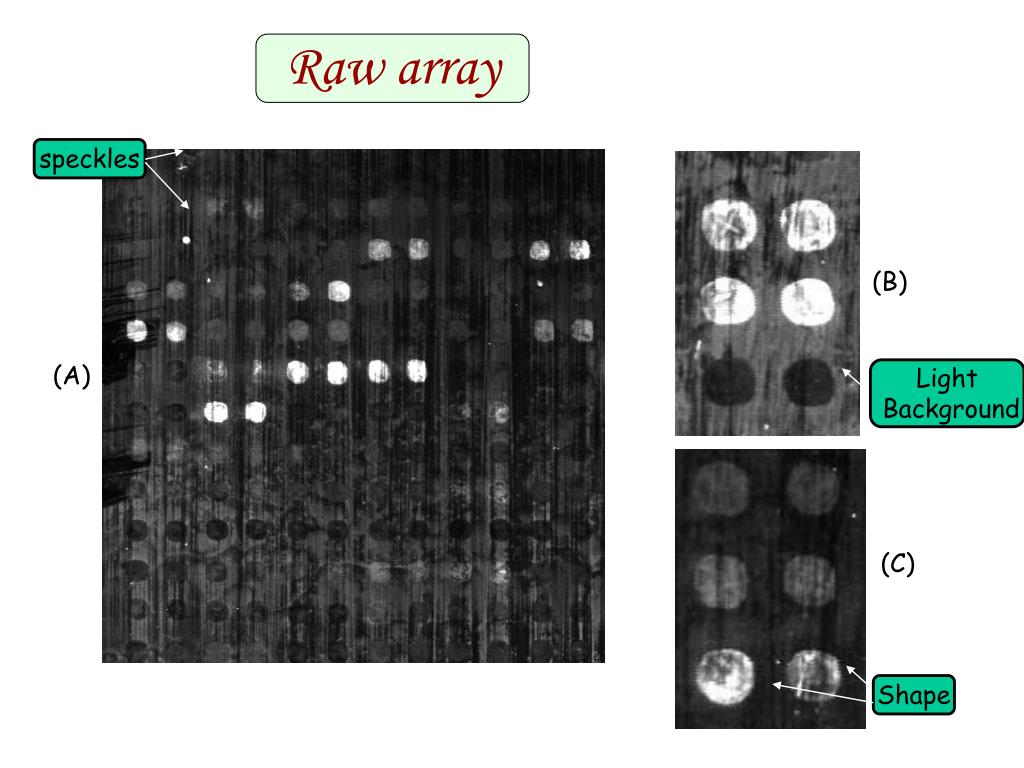

  5. speckles (B) (A) Light Background (C) Shape Raw array

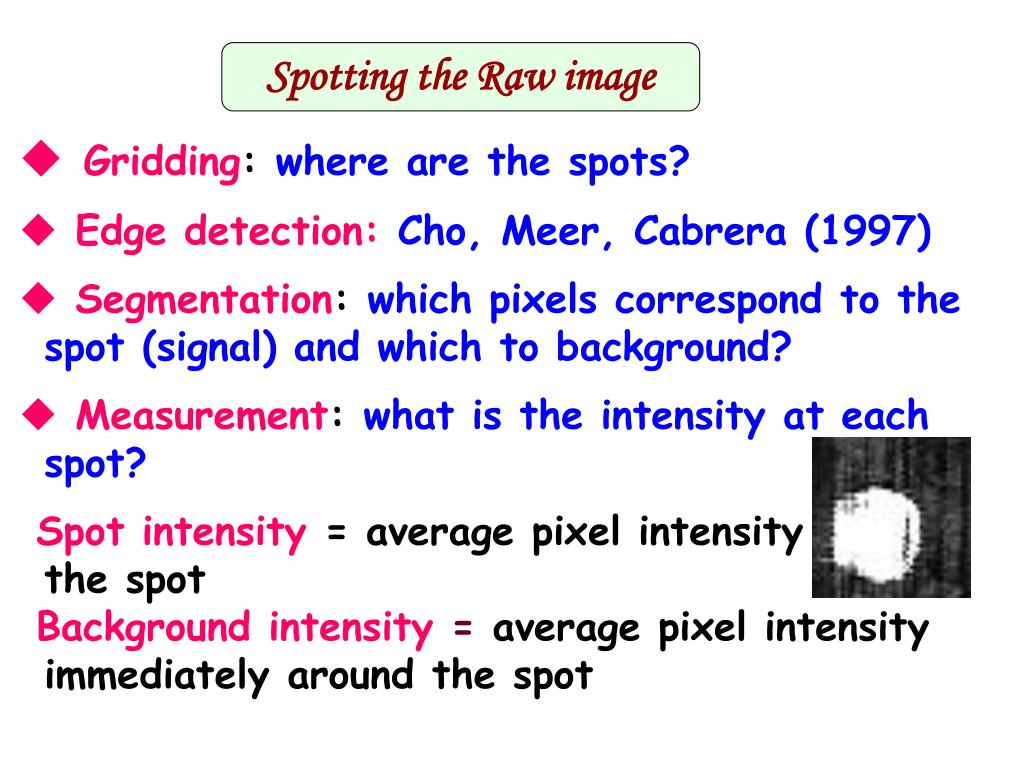

  6. Gridding: where are the spots? • Edge detection: Cho, Meer, Cabrera (1997) • Segmentation: which pixels correspond to the spot (signal) and which to background? • Measurement: what is the intensity at each spot? Spot intensity = average pixel intensity within the spot Background intensity = average pixel intensity immediately around the spot Spotting the Raw image

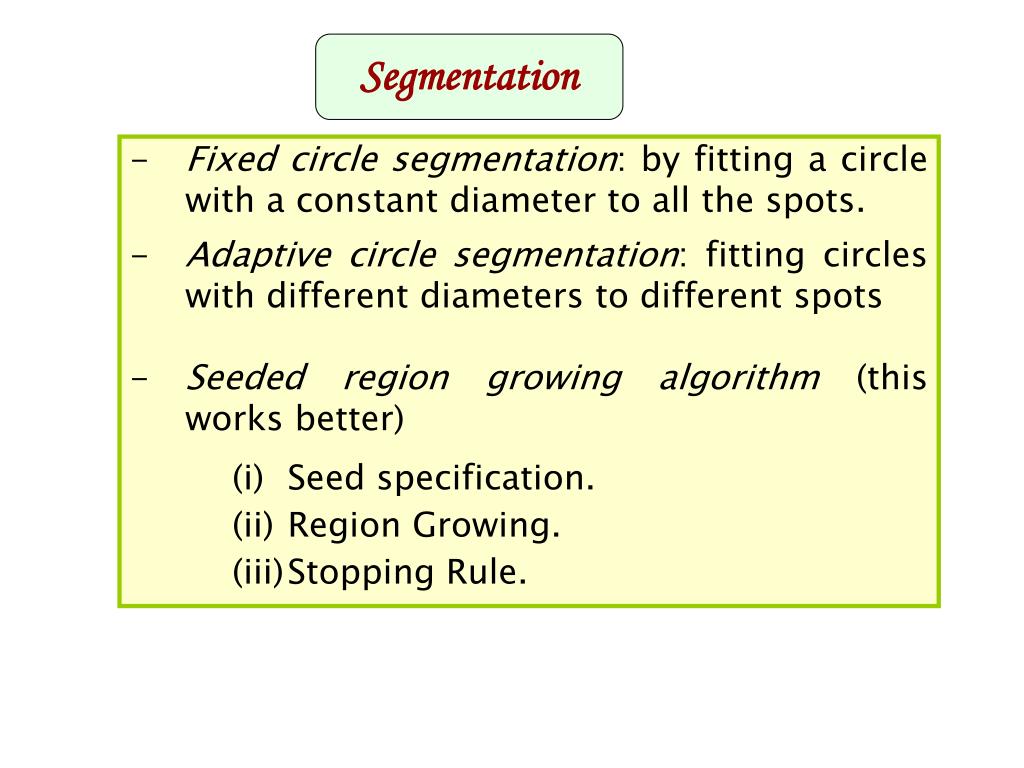

  7. Segmentation • Fixed circle segmentation: by fitting a circle with a constant diameter to all the spots. • Adaptive circle segmentation: fitting circles with different diameters to different spots • Seeded region growing algorithm (this works better) • Seed specification. • Region Growing. • Stopping Rule.

  8. Segmentation • Fixed circle segmentation: by fitting a circle with a constant diameter to all the spots. • Adaptive circle segmentation: fitting circles with different diameters to different spots • Seeded region growing algorithm (this works better) • Seed specification. • Region Growing. • Stopping Rule.

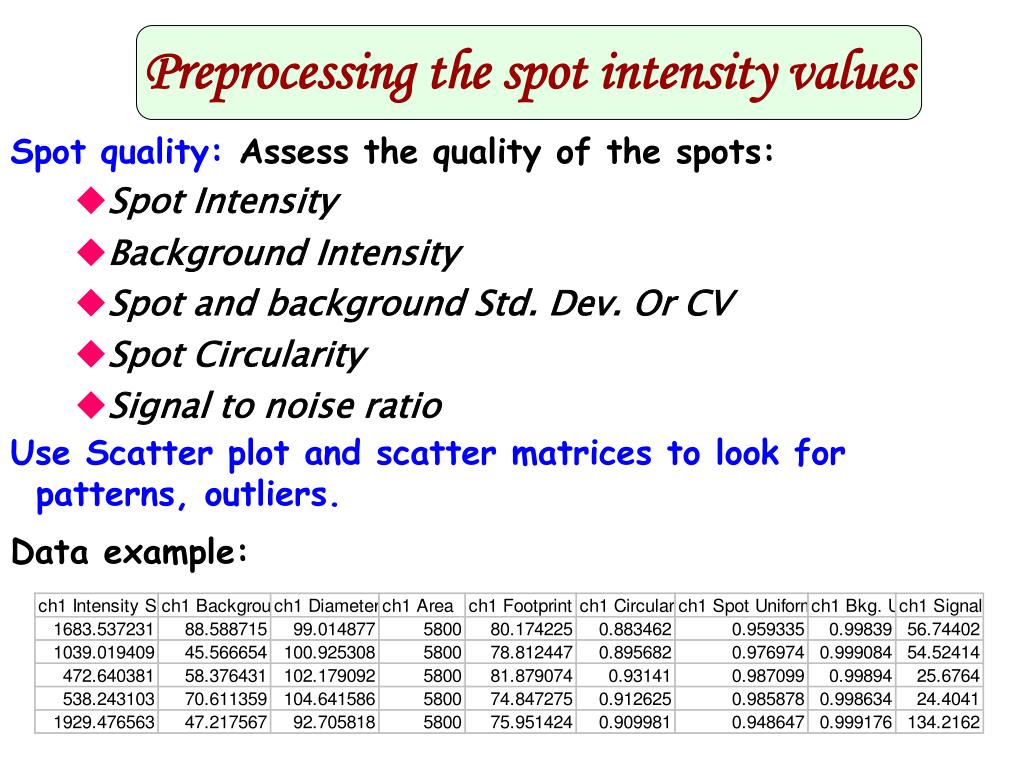

  9. Preprocessing the spot intensity values Spot quality: Assess the quality of the spots: • Spot Intensity • Background Intensity • Spot and background Std. Dev. Or CV • Spot Circularity • Signal to noise ratio Use Scatter plot and scatter matrices to look for patterns, outliers. Data example:

  10. Exploring Channel 1,2 Intensities, Background

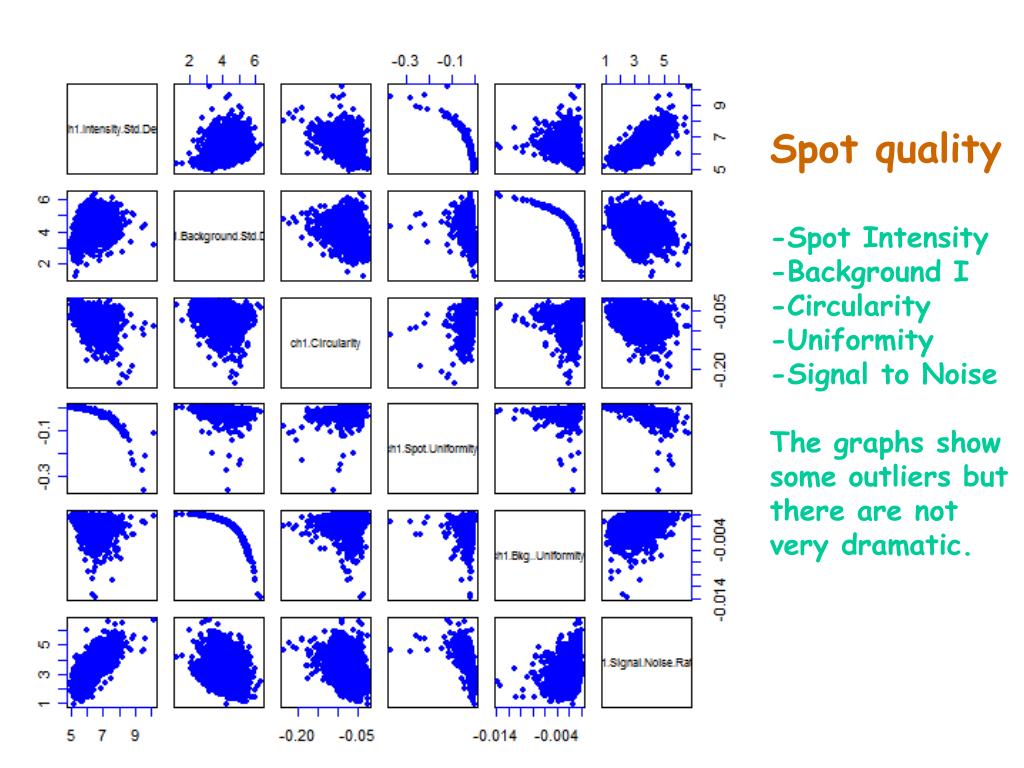

  11. Spot quality -Spot Intensity -Background I -Circularity -Uniformity -Signal to Noise The graphs show some outliers but there are not very dramatic.

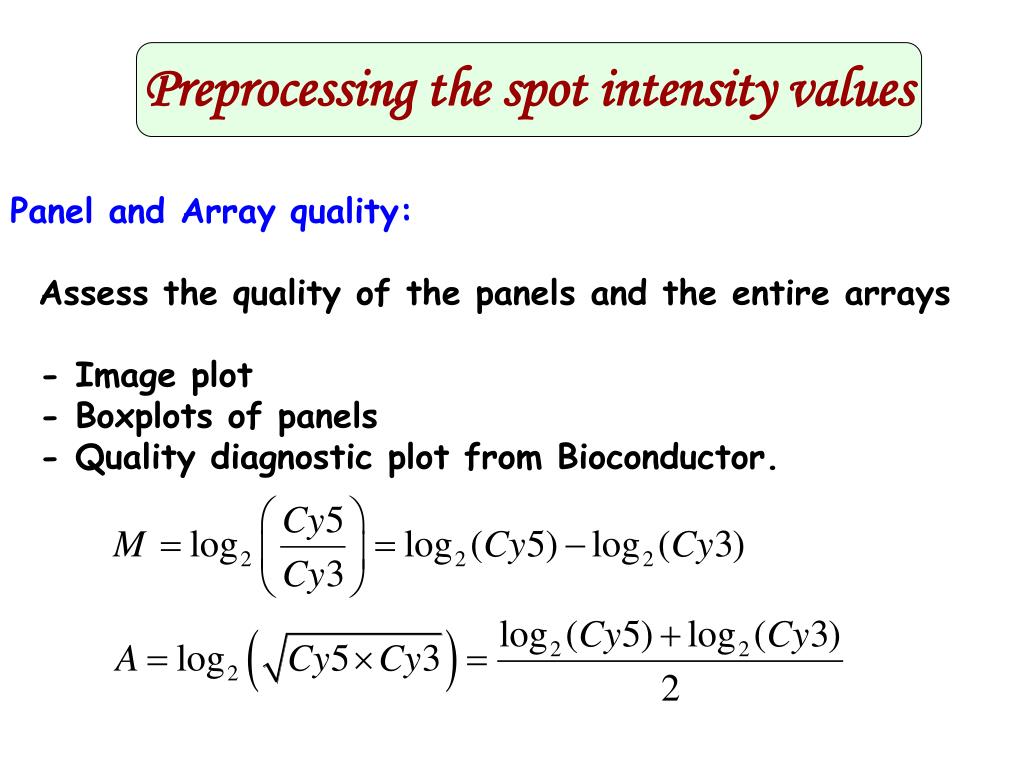

  12. Preprocessing the spot intensity values Panel and Array quality: Assess the quality of the panels and the entire arrays - Image plot - Boxplots of panels - Quality diagnostic plot from Bioconductor.

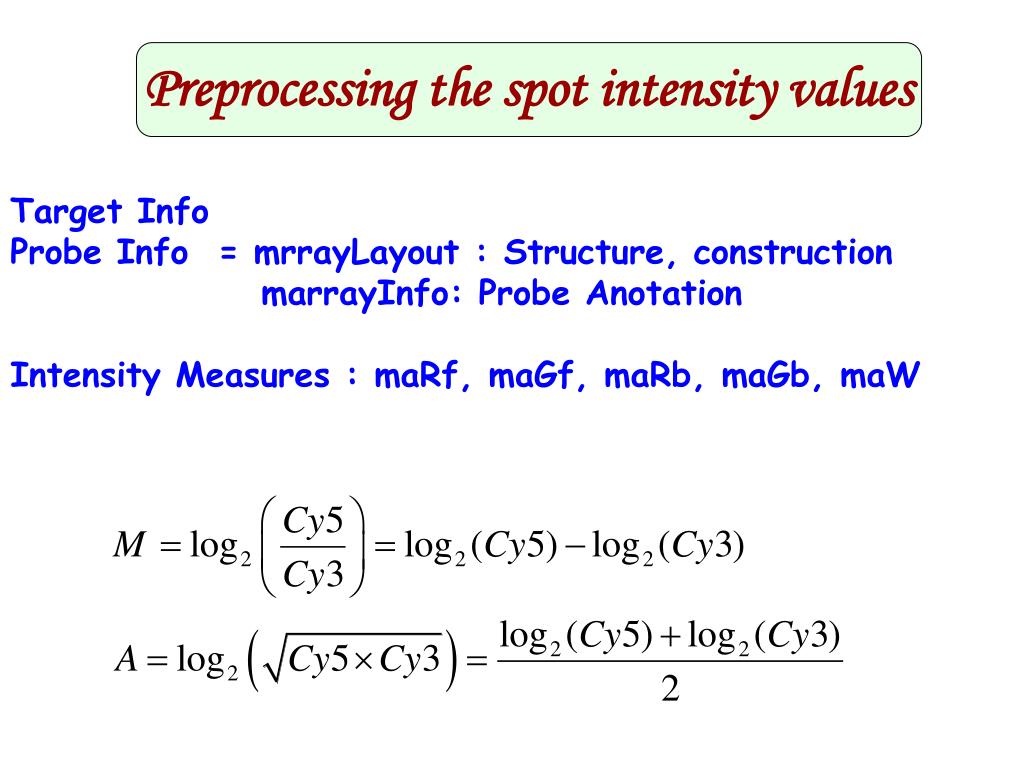

  13. Preprocessing the spot intensity values Target Info Probe Info = mrrayLayout : Structure, construction marrayInfo: Probe Anotation Intensity Measures : maRf, maGf, maRb, maGb, maW

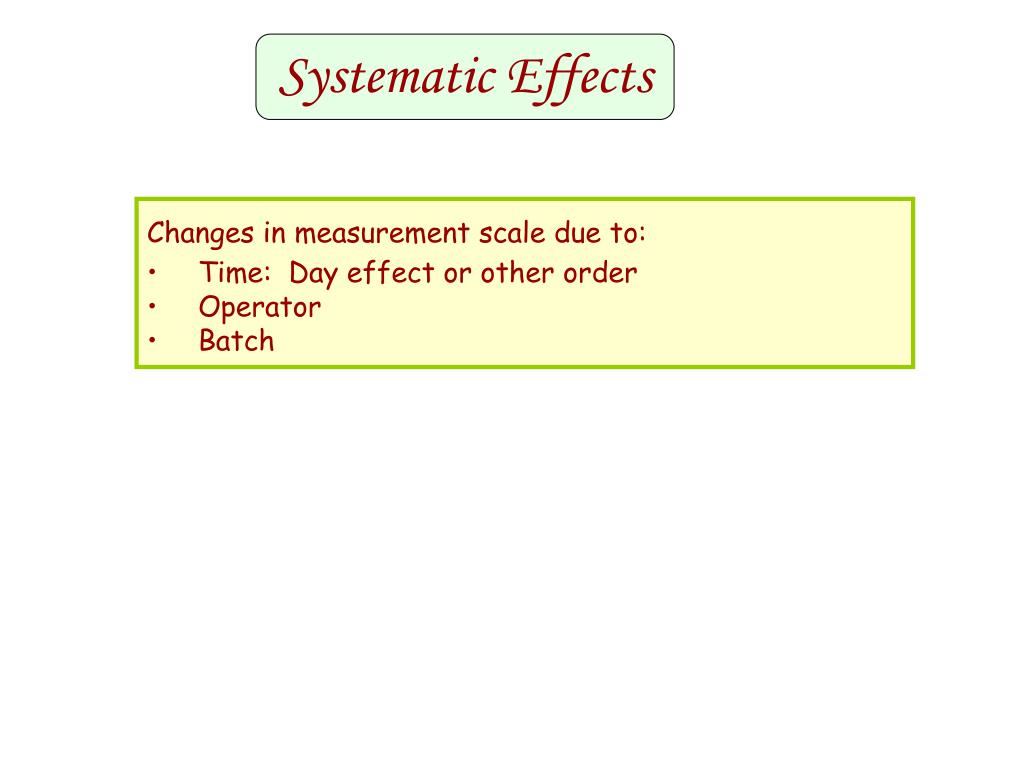

  14. Systematic Effects • Changes in measurement scale due to: • Time: Day effect or other order • Operator • Batch

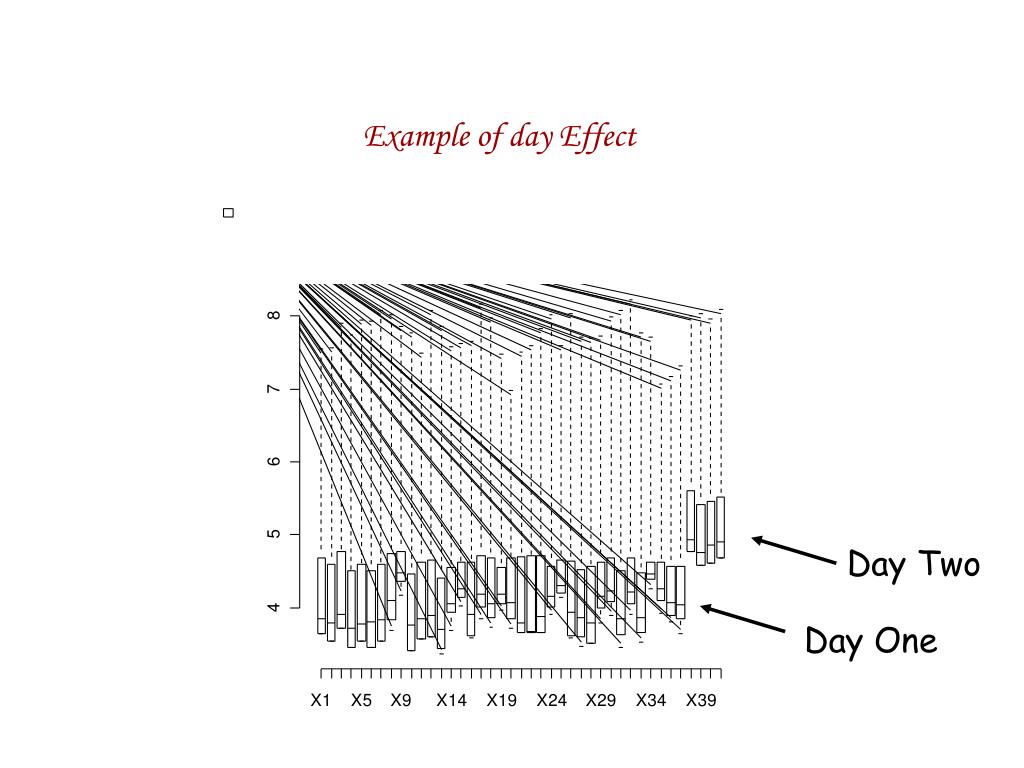

  15. Example of day Effect Day Two Day One

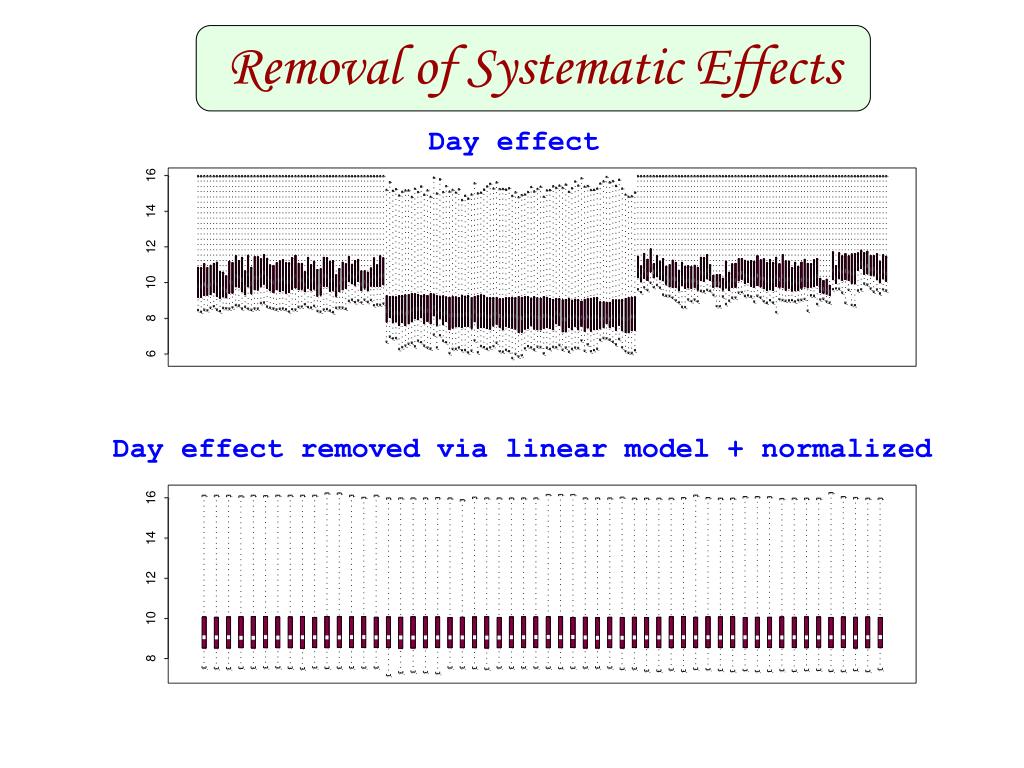

  16. Removal of Systematic Effects Day effect Day effect removed via linear model + normalized

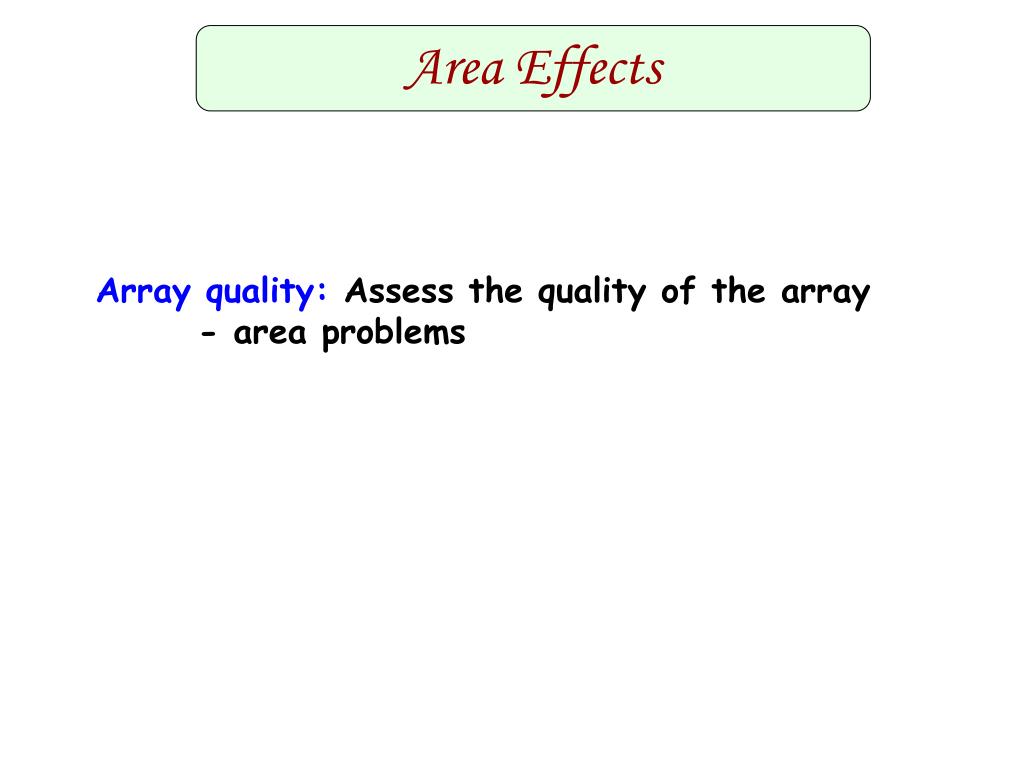

  17. Area Effects Array quality: Assess the quality of the array - area problems

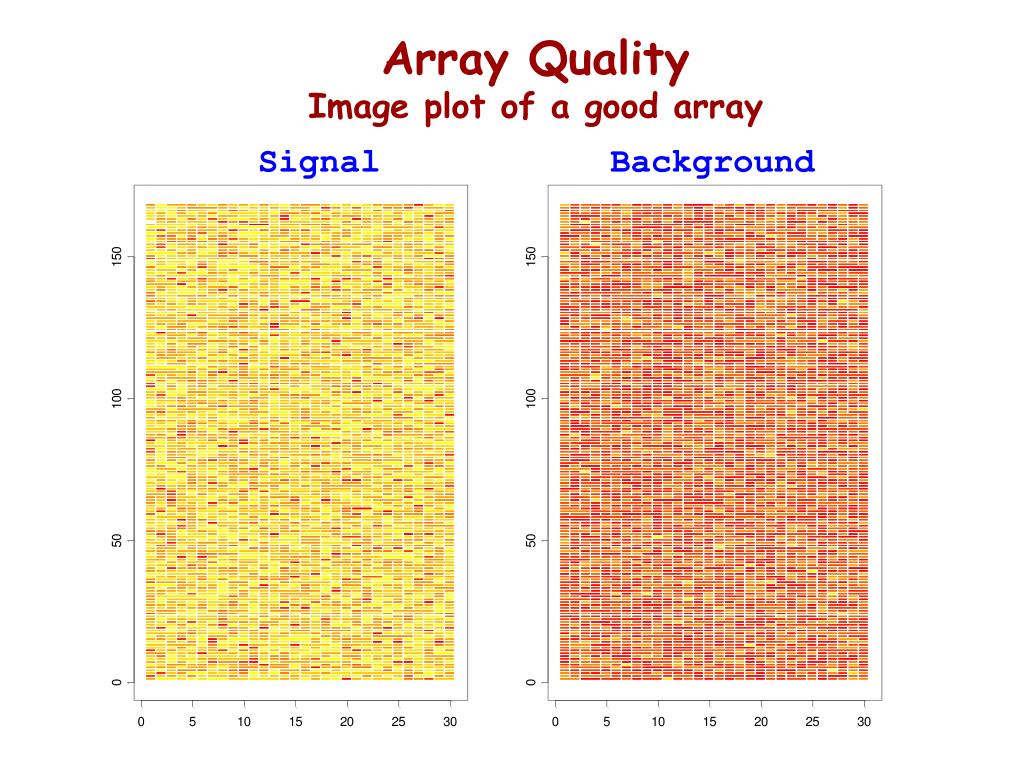

  18. Array Quality Image plot of a good array Signal Background

  19. Image plot of a defective array Signal Background

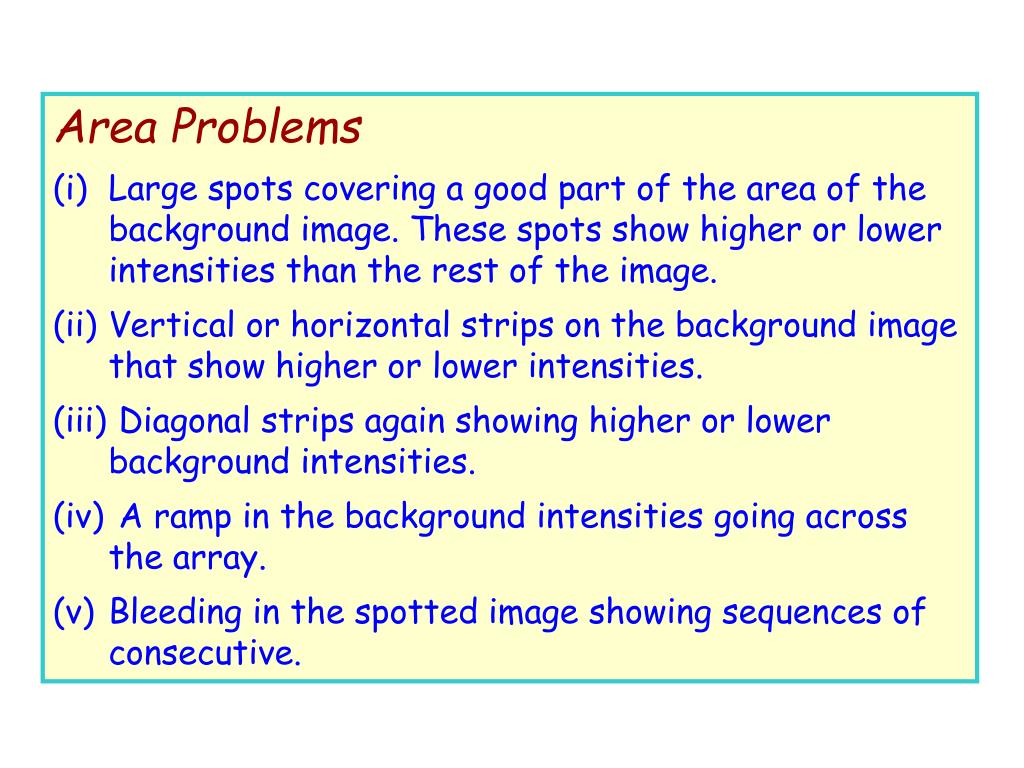

  20. Area Problems • Large spots covering a good part of the area of the background image. These spots show higher or lower intensities than the rest of the image. • Vertical or horizontal strips on the background image that show higher or lower intensities. • Diagonal strips again showing higher or lower background intensities. • A ramp in the background intensities going across the array. • Bleeding in the spotted image showing sequences of consecutive.

  21. Algorithm: Step 1. Split the image into high intensity and low intensity spots: Yrc=1 for high intensity Irc> c Yrc=0 for low intensity Irc  c c = (I0.05 + I0.95)/2 Step 2. Fit a quadratic discriminant function to the binary response Yrc using the spot coordinates (r,c) on the microarray as predictors. Step 3. Let q=proportion of correct classifications. Step 4. Generate M=300 images by randomly permute the rows and columns of {Irc} and for each image calculate the corresponding q1,…,q300. Step 5 Use prop{qi >q } as a quality measure of the array or p-value.

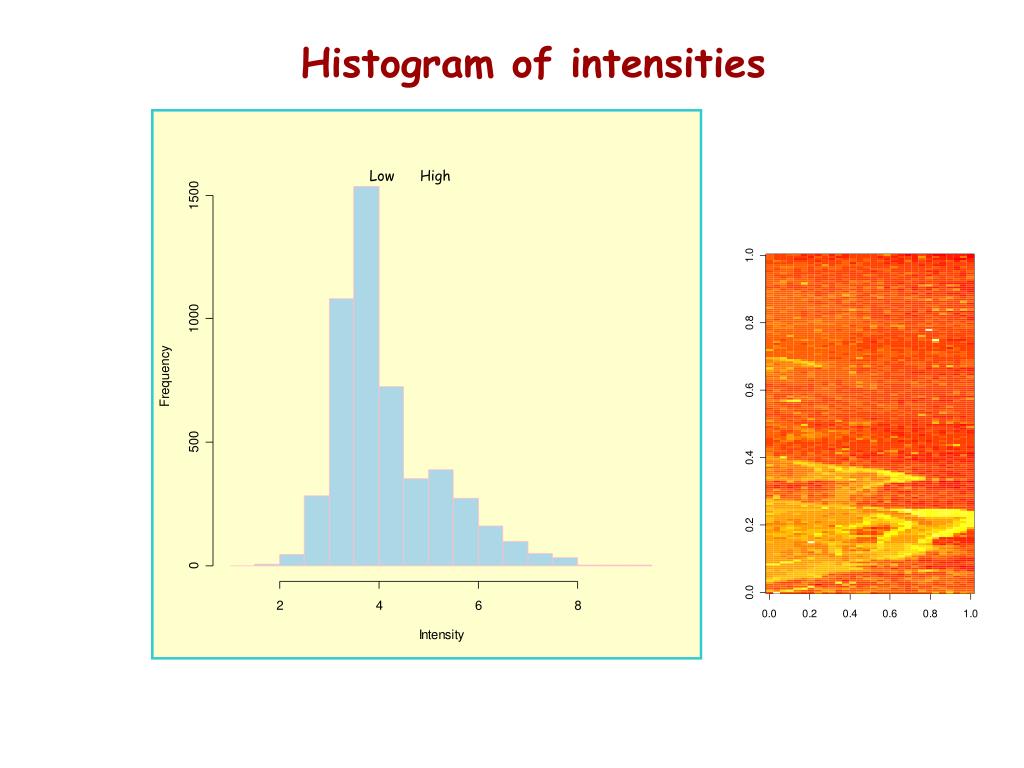

  22. Histogram of intensities Low High

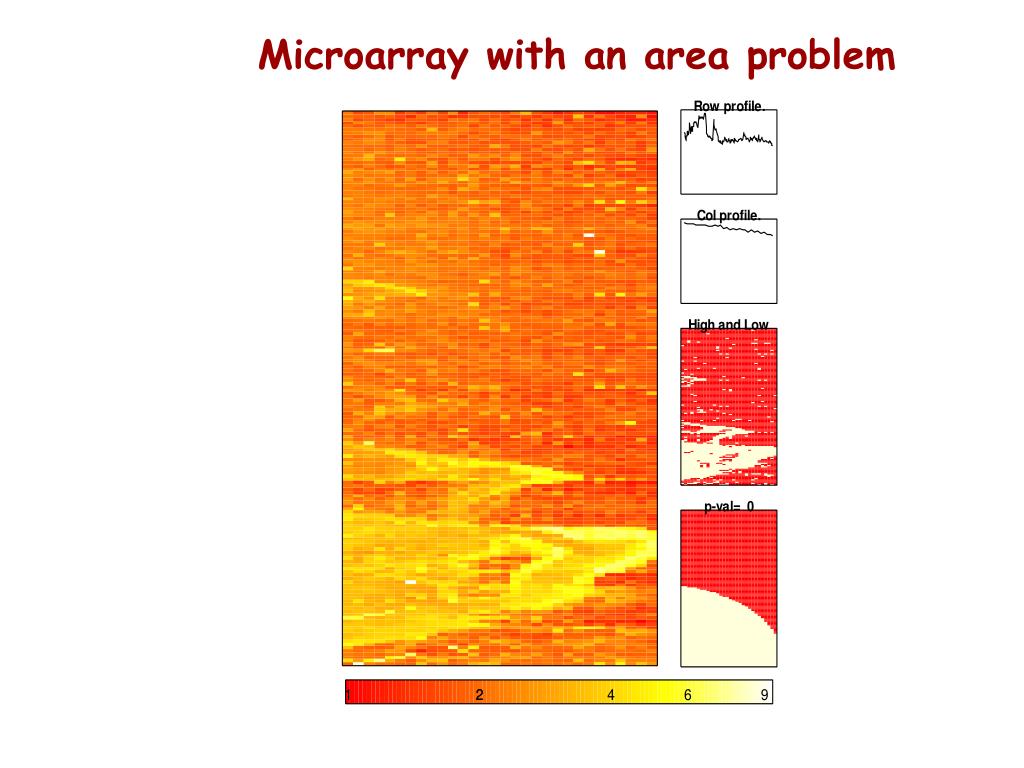

  23. Microarray with an area problem

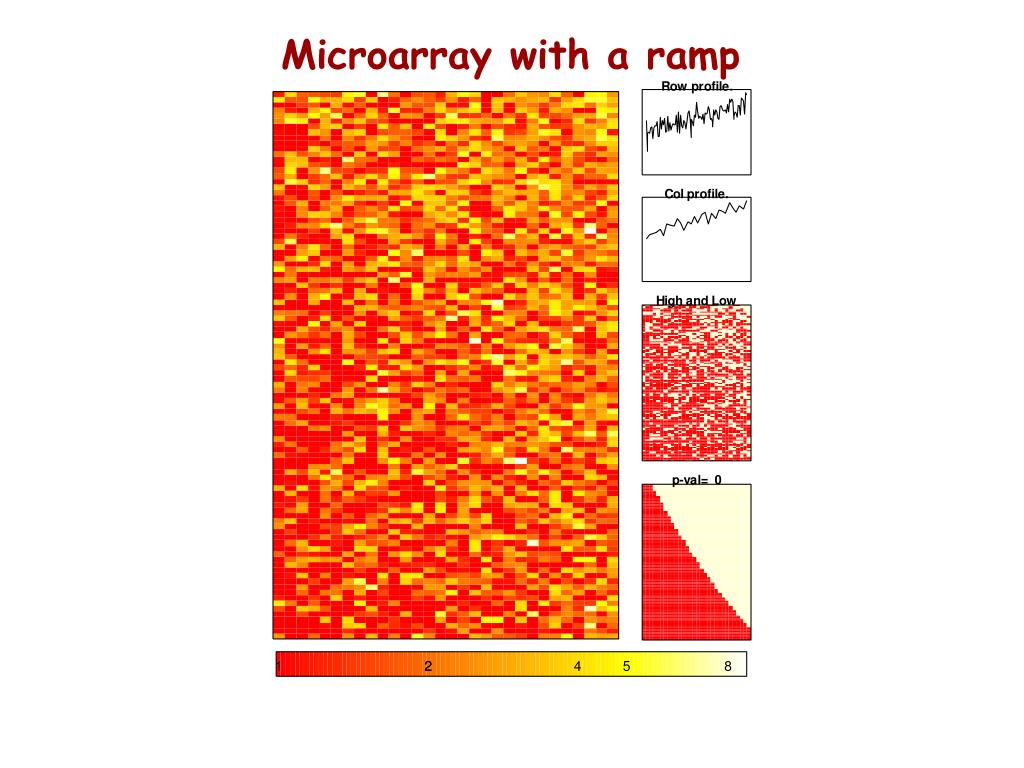

  24. Microarray with a ramp

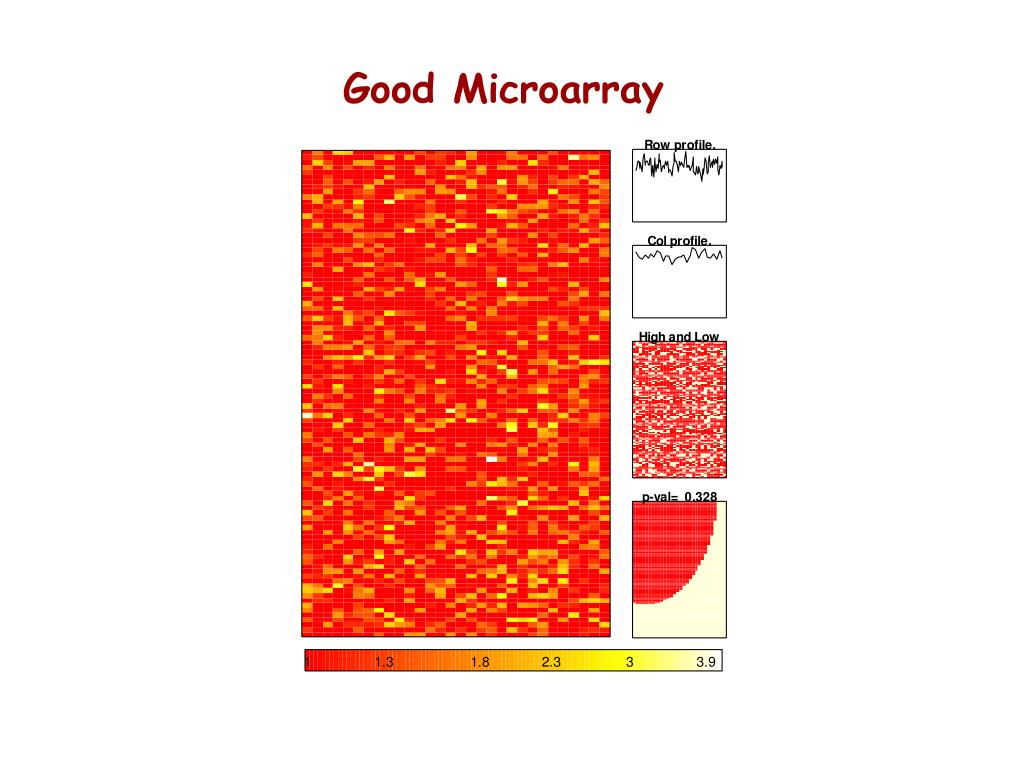

  25. Good Microarray

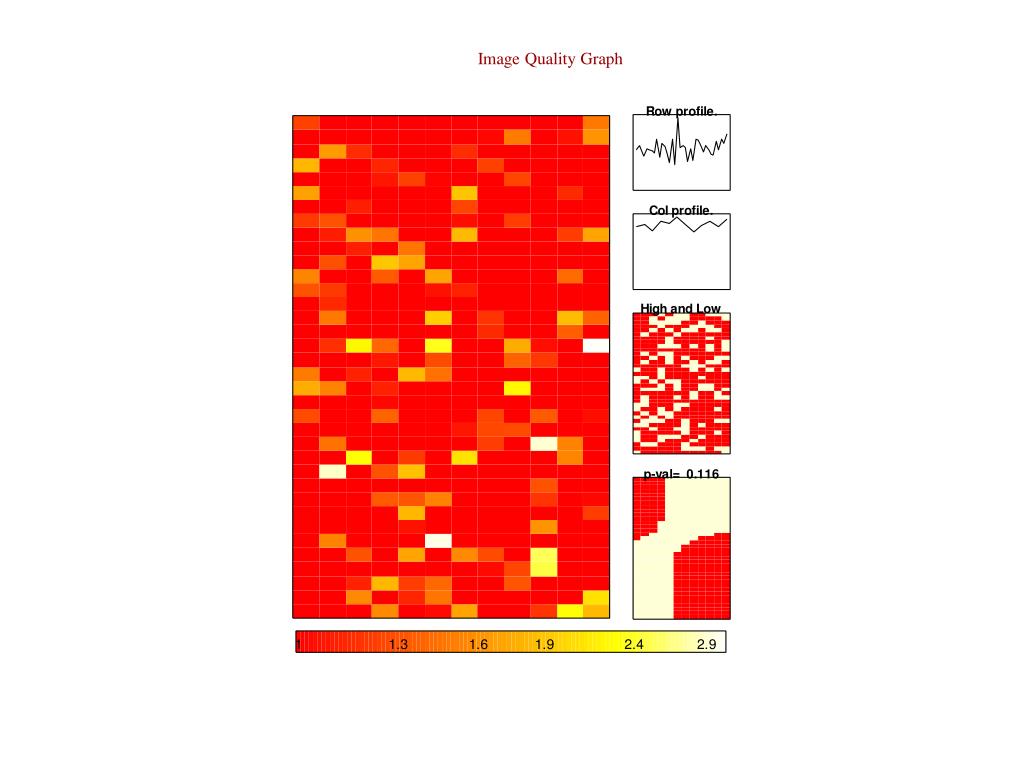

  26. Image Quality Graph

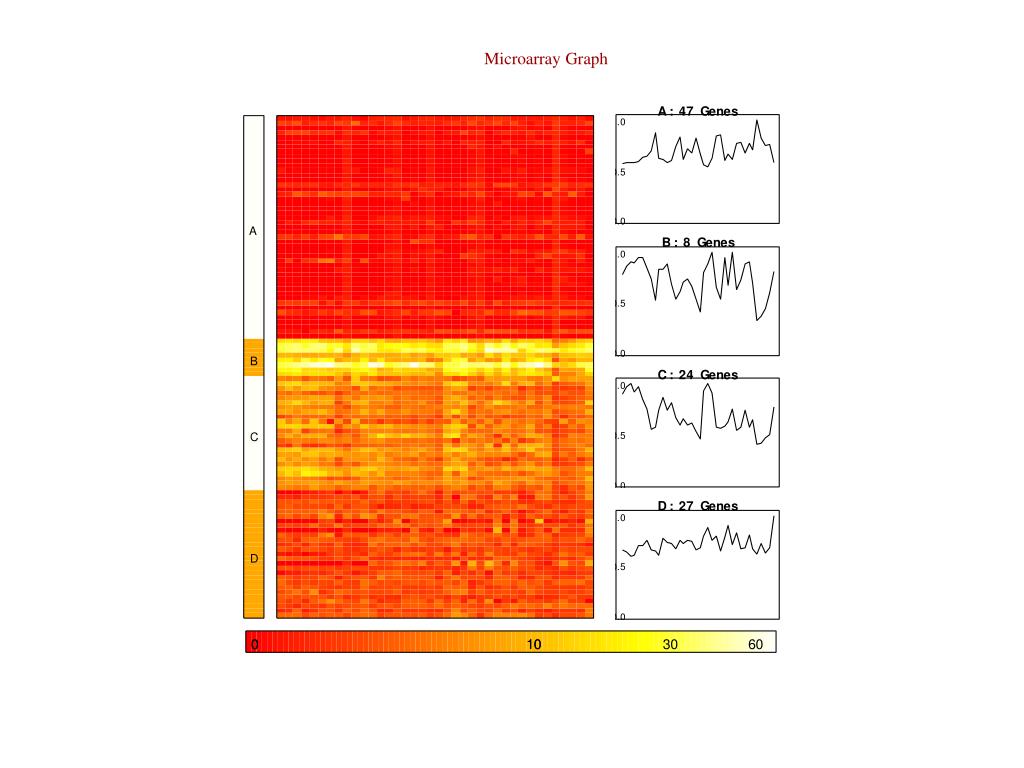

  27. Microarray Graph
