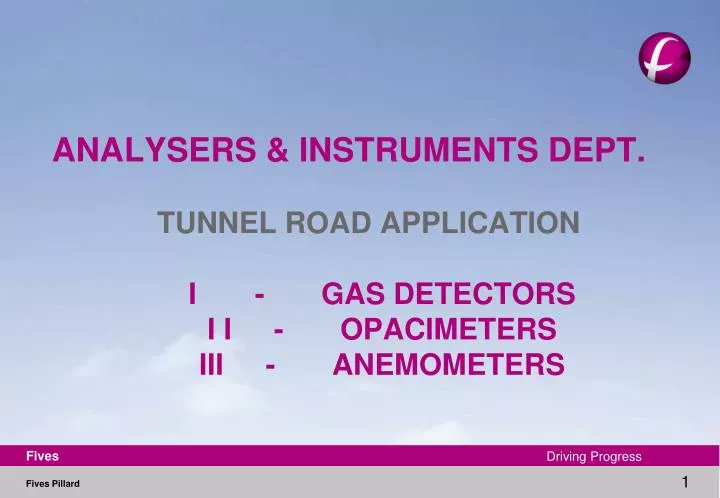

  1. ANALYSERS & INSTRUMENTS DEPT.TUNNEL ROAD APPLICATION I - GAS DETECTORS I I - OPACIMETERS III - ANEMOMETERS Driving Progress Fives Fives Pillard

  2. VIEW OF OUR SCOPE OF SUPPLY IN TUNNEL Anemometers Burner Ignitor's tube Opacimeters/ Dust monitors Gas detector Smoke detector Fives Pillard

  3. TUNNEL DEPARTMENT II - OPACIMETERS OPASTOP 3000 T OPASTOP 3000 S OPASTOP 3000 ST Driving Progress Fives 3 Fives Pillard

  4. VISUAL & VERSIONS OPACIMETER GP 3000T GP 3000S GP3000ST Fives Pillard

  5. OPERATING PRINCIPLE GP 3000T GP3000ST GP 3000S Fives Pillard

  6. TECHNICAL SPECIFICATIONS OPASTOP 6

  7. OPASTOP GP 3000ST OPASTOP GP3000ST • Measuring by reflection, in situ • Modulated light beam by high power LED • Automatic drift compensation against fouling • Stainless steel 316L • Heating system to eliminate fog (50w)

  8. GP3000 S OPASTOP GP3000S • Measuring by extraction sampling • Modulated light beam by high power LED • Automatic drift compensation against fouling • Possibility of managing two sample points • Heating system to eliminate fog (50w)

  9. OPASTOP GP3000S & GP3000 ST: presentation GP 3000S GP 3000 ST Suction inlet (with protection against water splash) Suction inlet (with protection against water splash) Measuring panel Measuring panel Main electronics board Main electronics board Sensor (measuring chamber) Sensor (measuring chamber) Air fan Discharge Discharge Filter Filter

  10. GP3000 T OPASTOP GP3000T • Measuring by reflection, in situ • Modulated light beam by high power LED • Single sensor integrated in electronic panel • Modular design

  11. OPASTOP GP3000T: définition of the system

  12. OPASTOP GP3000T: définition of the system

  13. PROTECTION & CERTIFICATION • Protection rating (as per EN60529) : IP65 Protection against water spray Water sprayed by a jet on the protection cell, from whatever direction, will have no detrimental effect. Protection against dust Hermetically sealed against dust 13

  14. VIEW OF FITTED PRODUCTS 14

  15. MAINTENANCE · The general appearance of the wiring in the cabinet, · The cleanliness of electronic circuits (de-dusting with power off) · The condition of the panel door seal, · The condition of the sensor filter · The condition of the fan . Filter replacement
