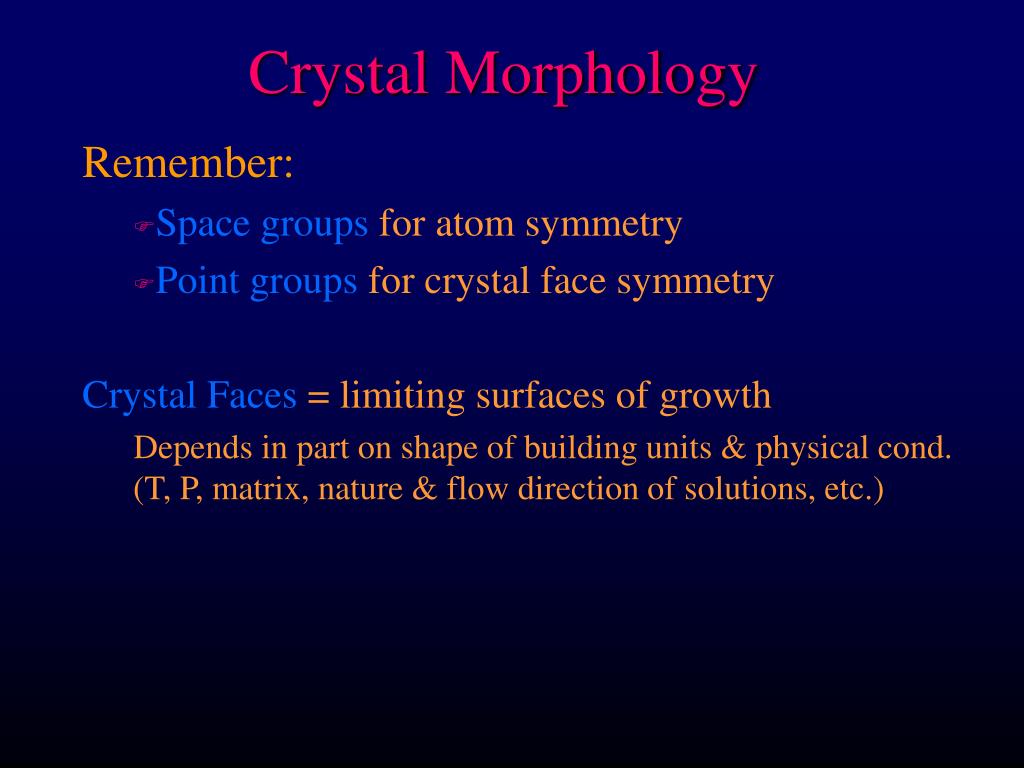

  1. Crystal Morphology Remember: Space groups for atom symmetry Point groups for crystal face symmetry Crystal Faces = limiting surfaces of growth Depends in part on shape of building units & physical cond. (T, P, matrix, nature & flow direction of solutions, etc.)

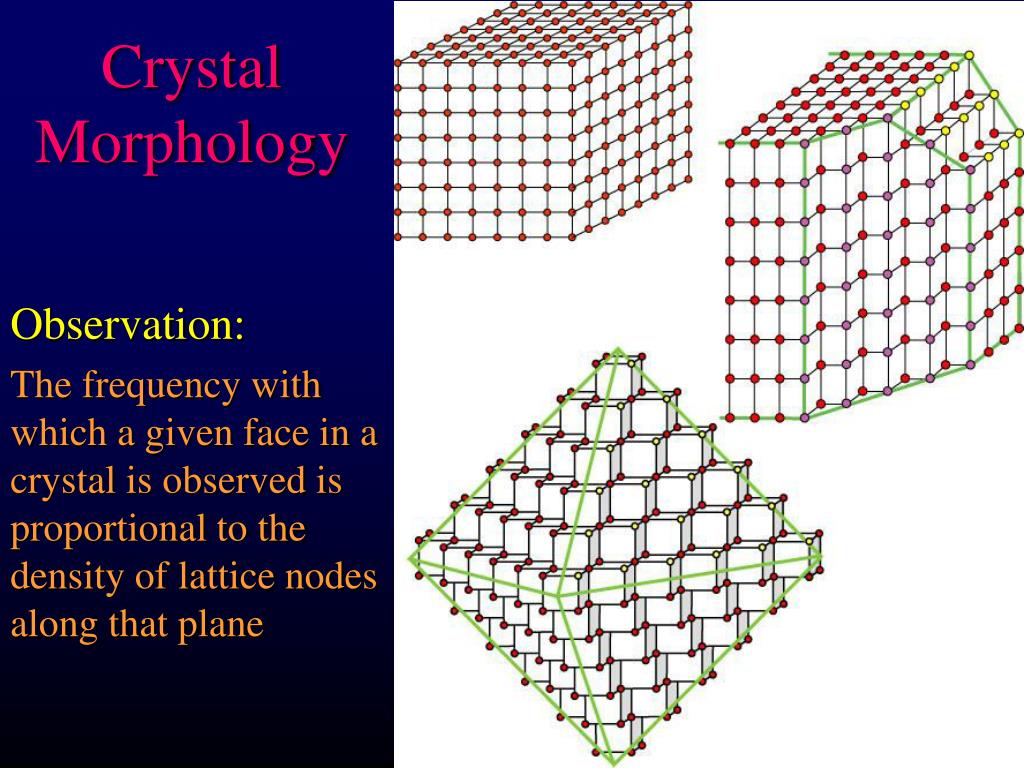

  2. Crystal Morphology Observation: The frequency with which a given face in a crystal is observed is proportional to the density of lattice nodes along that plane

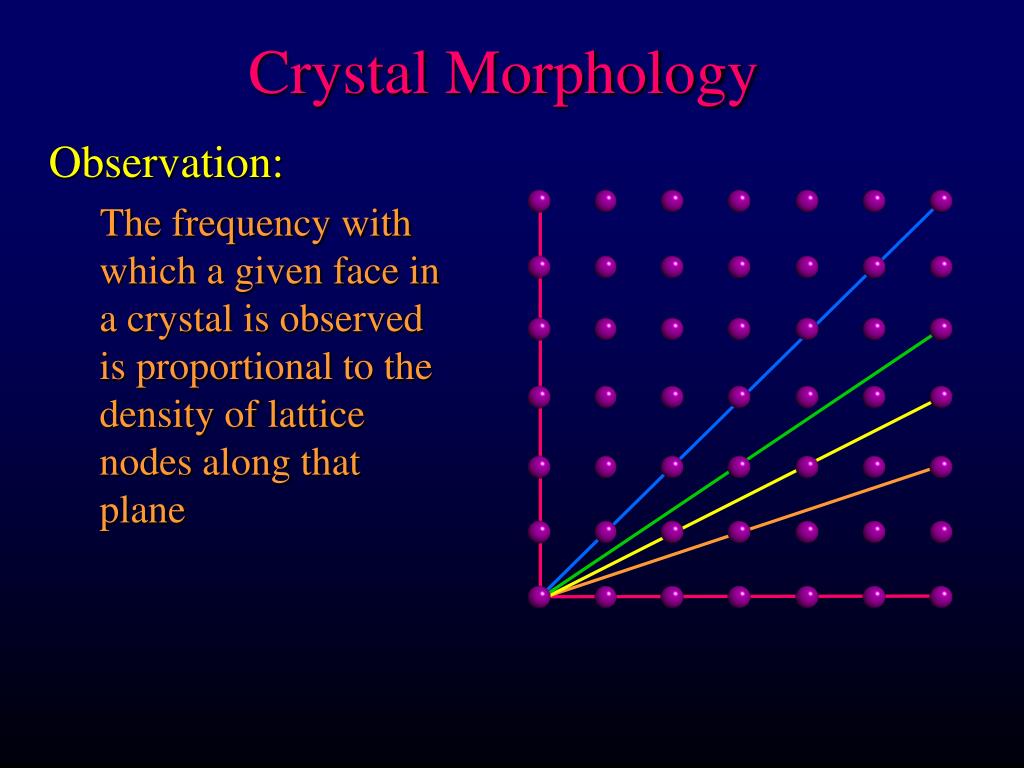

  3. Crystal Morphology Observation: The frequency with which a given face in a crystal is observed is proportional to the density of lattice nodes along that plane

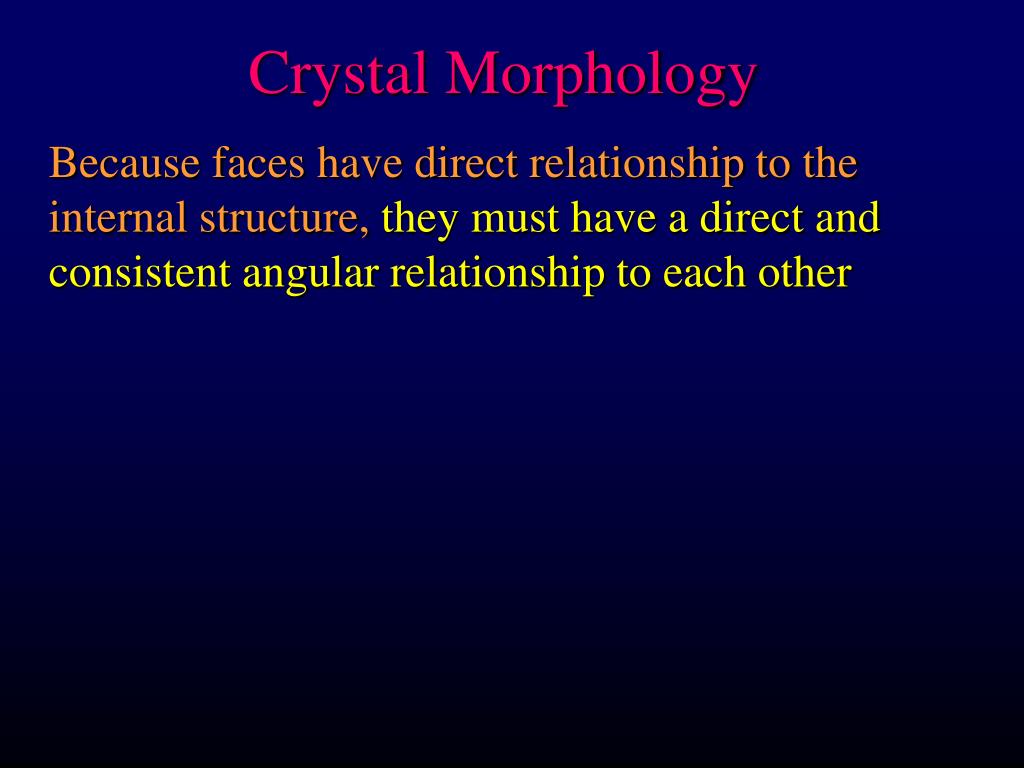

  4. Crystal Morphology Because faces have direct relationship to the internal structure, they must have a direct and consistent angular relationship to each other

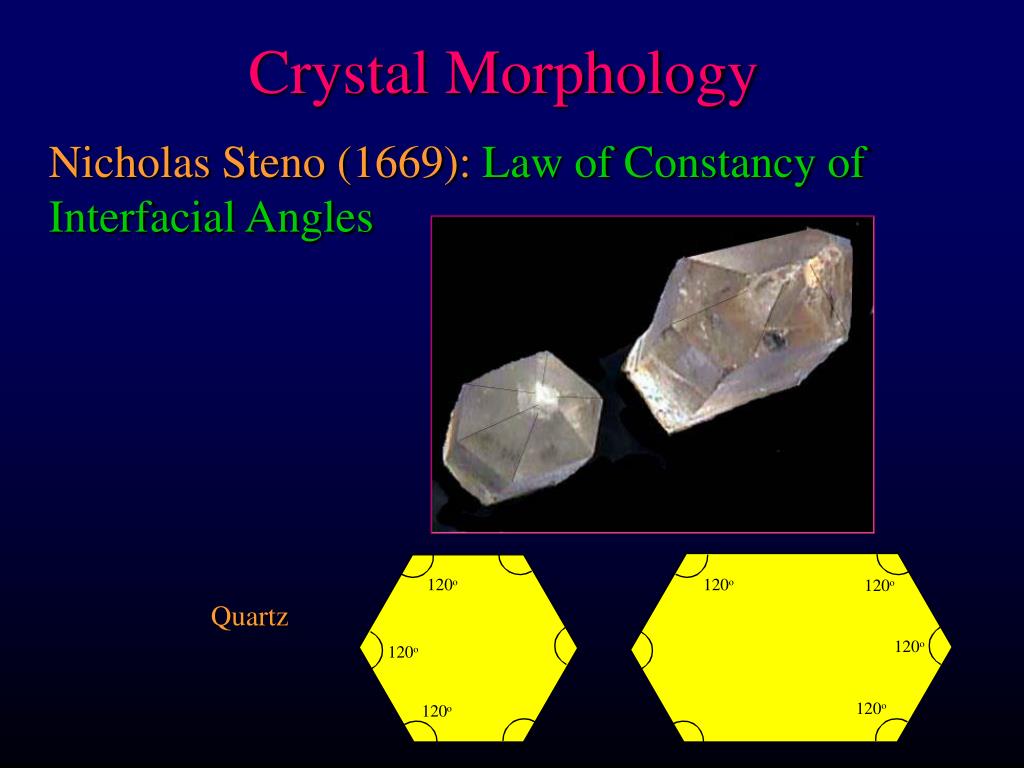

  5. Crystal Morphology Nicholas Steno (1669): Law of Constancy of Interfacial Angles Quartz

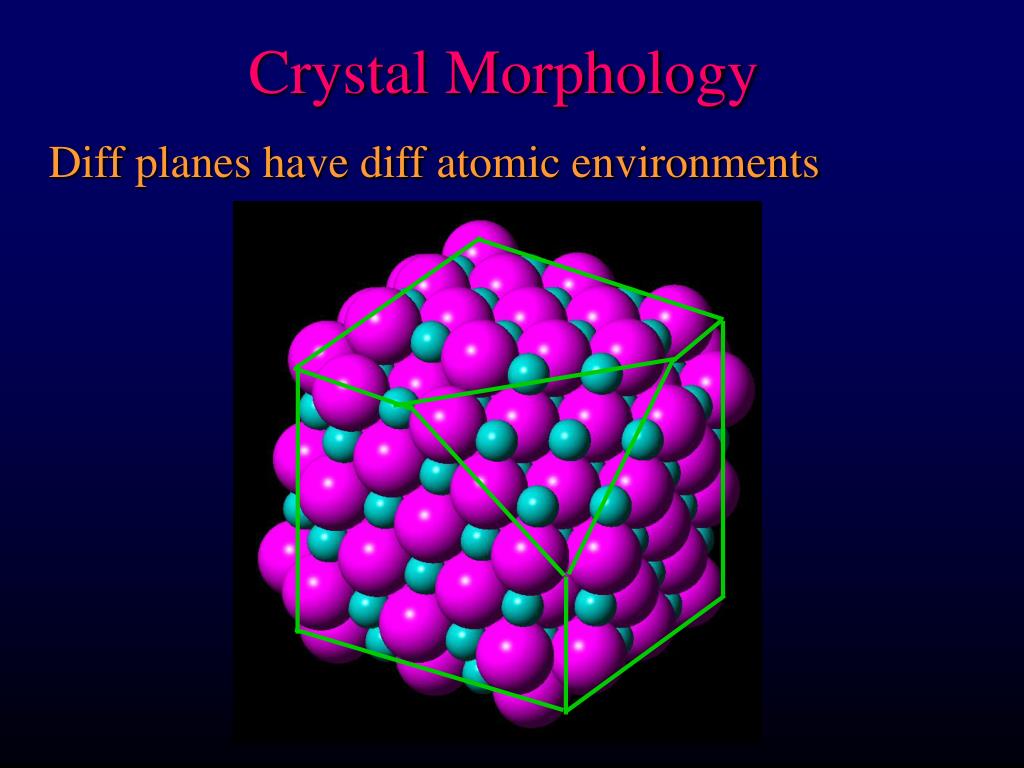

  6. Crystal Morphology Diff planes have diff atomic environments

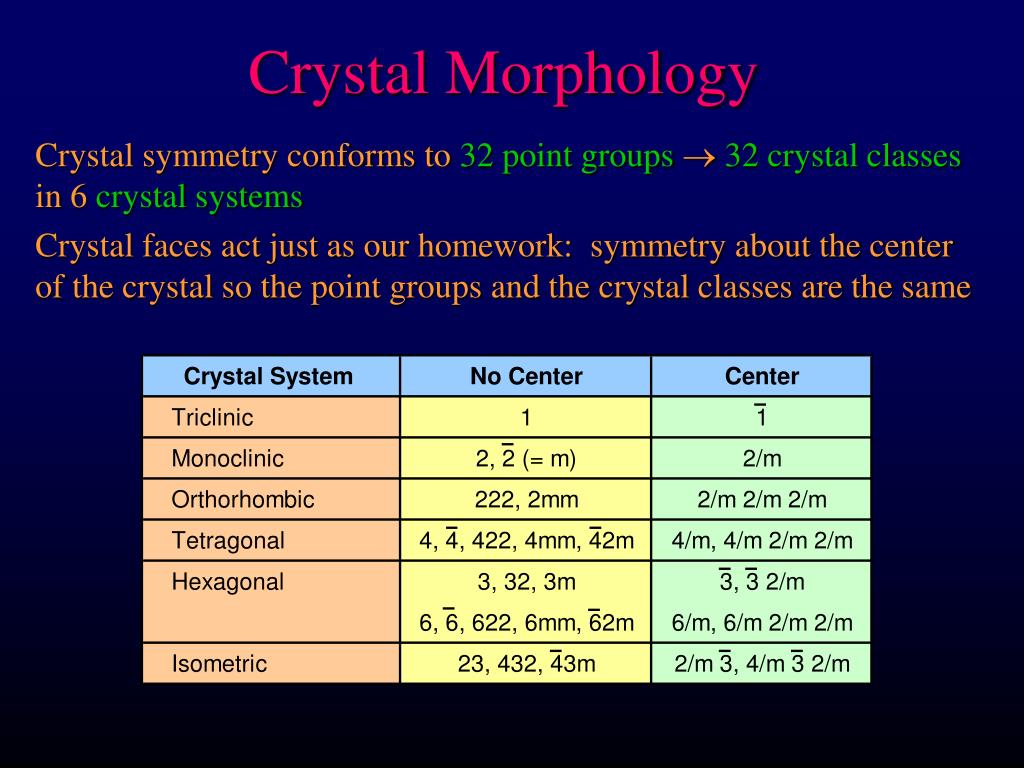

  7. Crystal Morphology Crystal symmetry conforms to 32 point groups32 crystal classes in 6 crystal systems Crystal faces act just as our homework: symmetry about the center of the crystal so the point groups and the crystal classes are the same

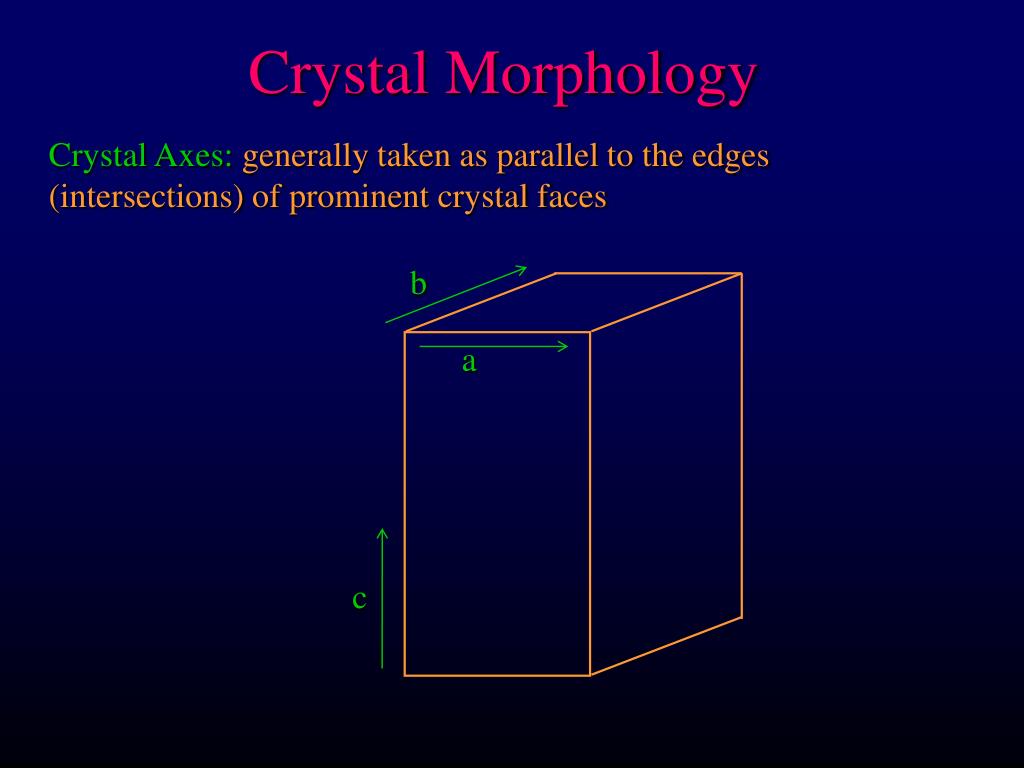

  8. b a c Crystal Morphology Crystal Axes: generally taken as parallel to the edges (intersections) of prominent crystal faces

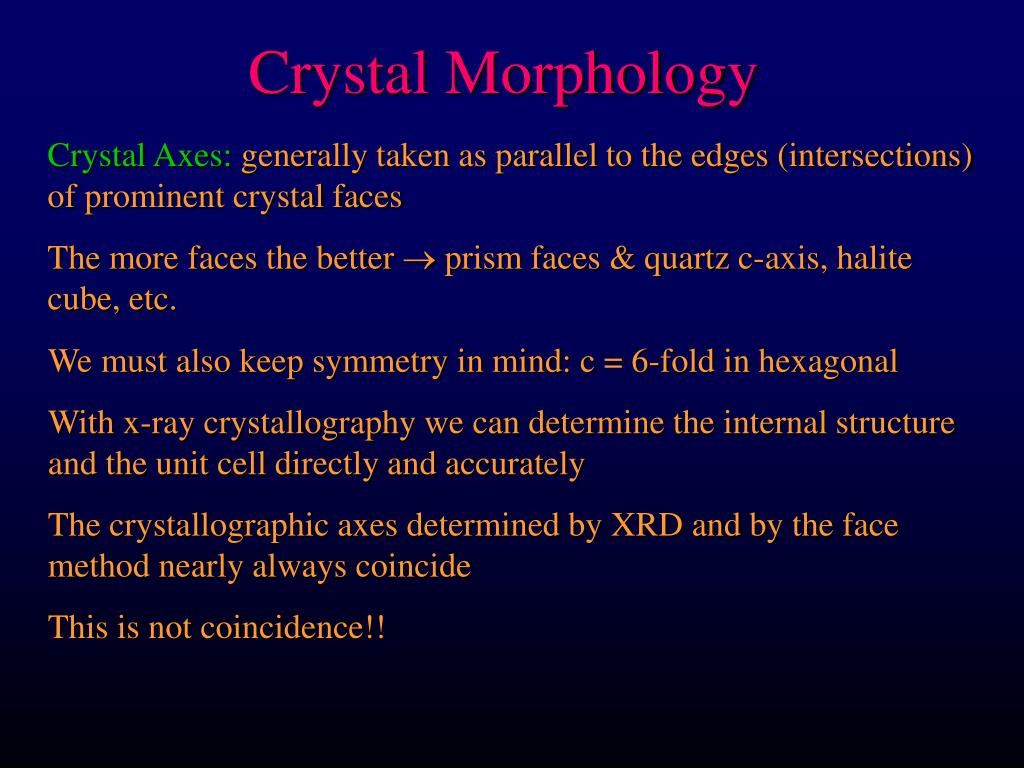

  9. Crystal Morphology We must also keep symmetry in mind: c = 6-fold in hexagonal With x-ray crystallography we can determine the internal structure and the unit cell directly and accurately The crystallographic axes determined by XRD and by the face method nearly always coincide This is not coincidence!! Crystal Axes: generally taken as parallel to the edges (intersections) of prominent crystal faces The more faces the better  prism faces & quartz c-axis, halite cube, etc.

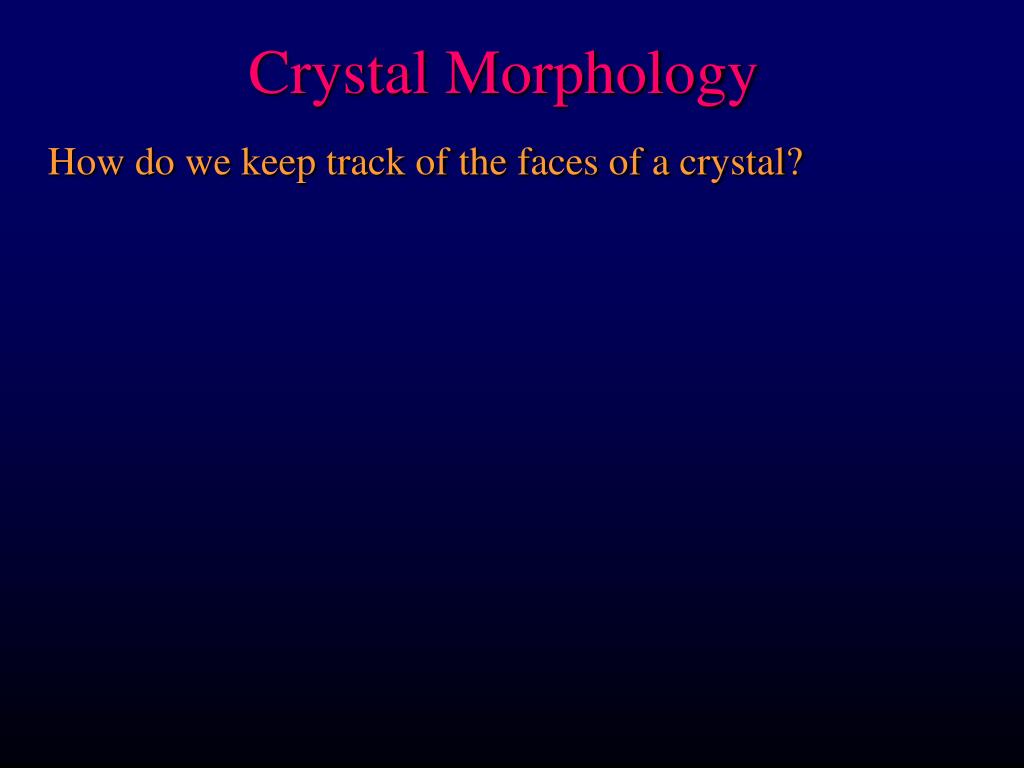

  10. Crystal Morphology How do we keep track of the faces of a crystal?

  11. Crystal Morphology How do we keep track of the faces of a crystal? Remember, face sizes may vary, but angles can't Note: “interfacial angle” = the angle between the faces measured like this

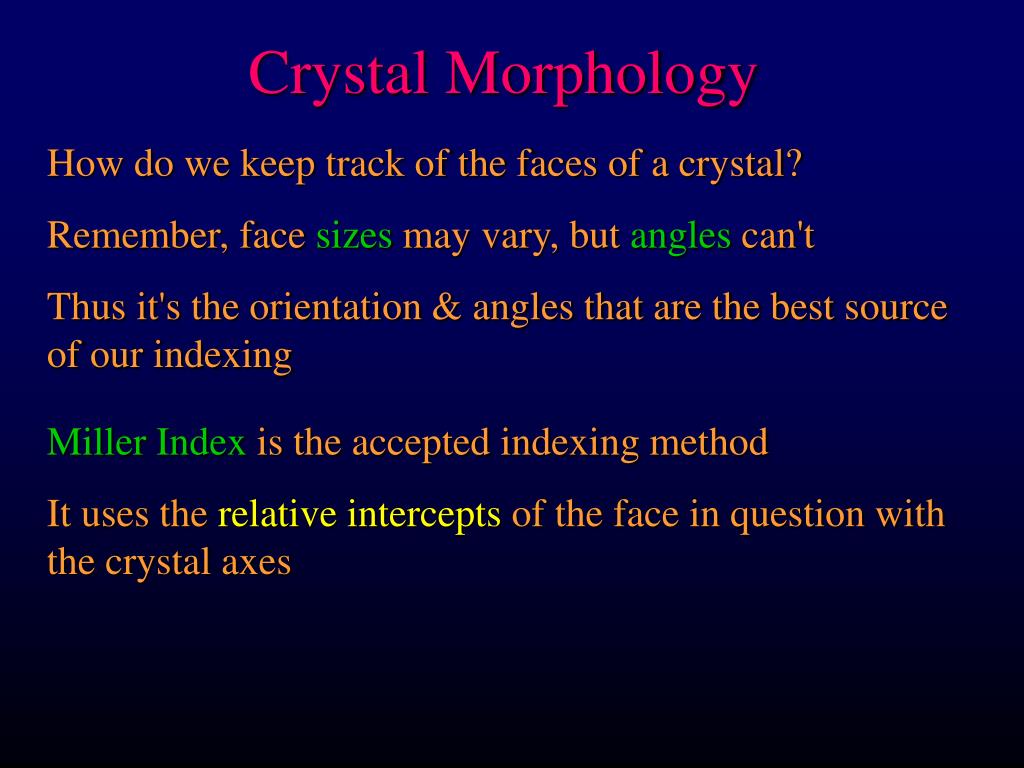

  12. Crystal Morphology How do we keep track of the faces of a crystal? Remember, face sizes may vary, but angles can't Thus it's the orientation & angles that are the best source of our indexing Miller Index is the accepted indexing method It uses the relative intercepts of the face in question with the crystal axes

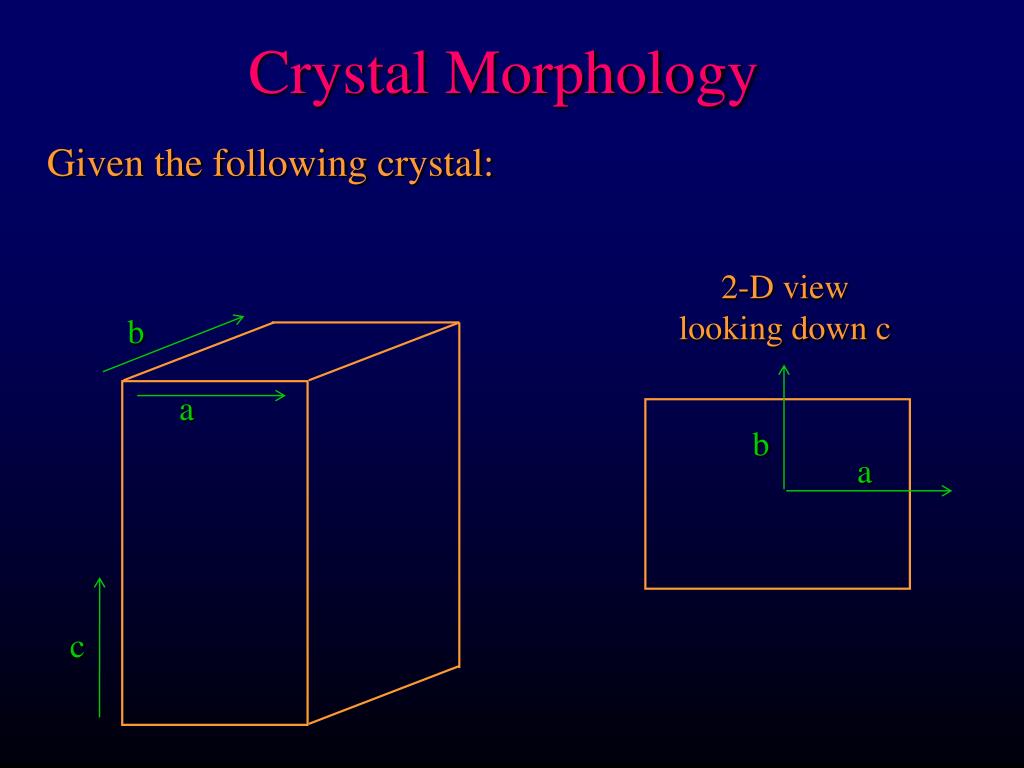

  13. Crystal Morphology 2-D view looking down c b a Given the following crystal: b a c

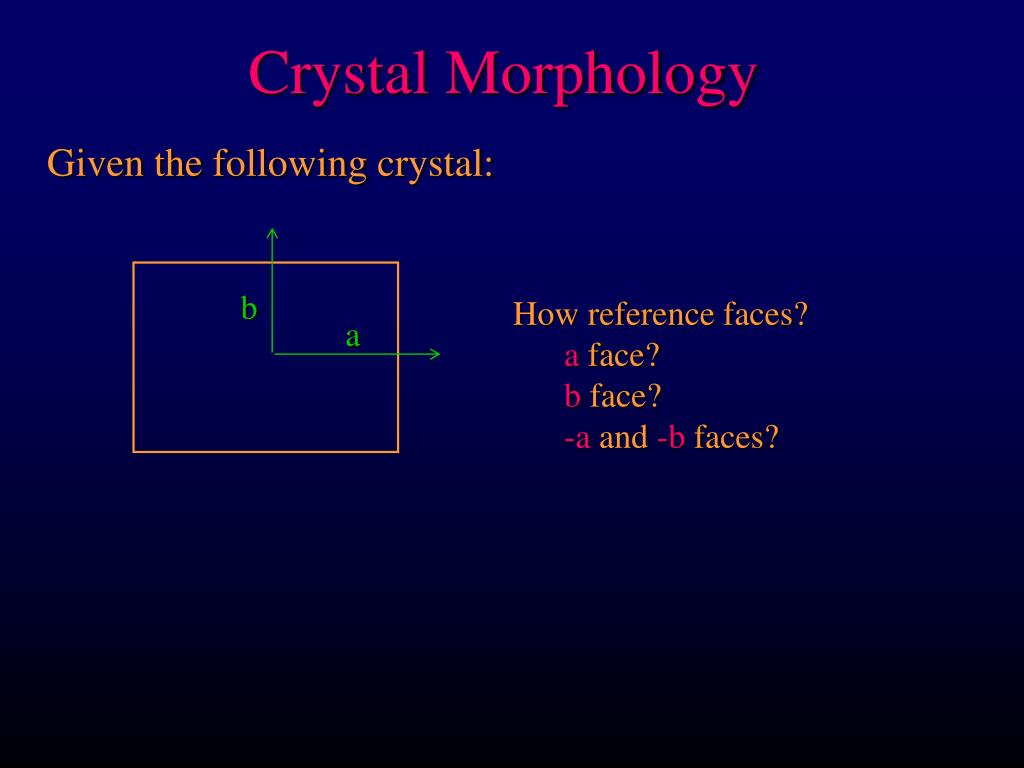

  14. b a Crystal Morphology • How reference faces? • a face? • b face? • -a and -b faces? Given the following crystal:

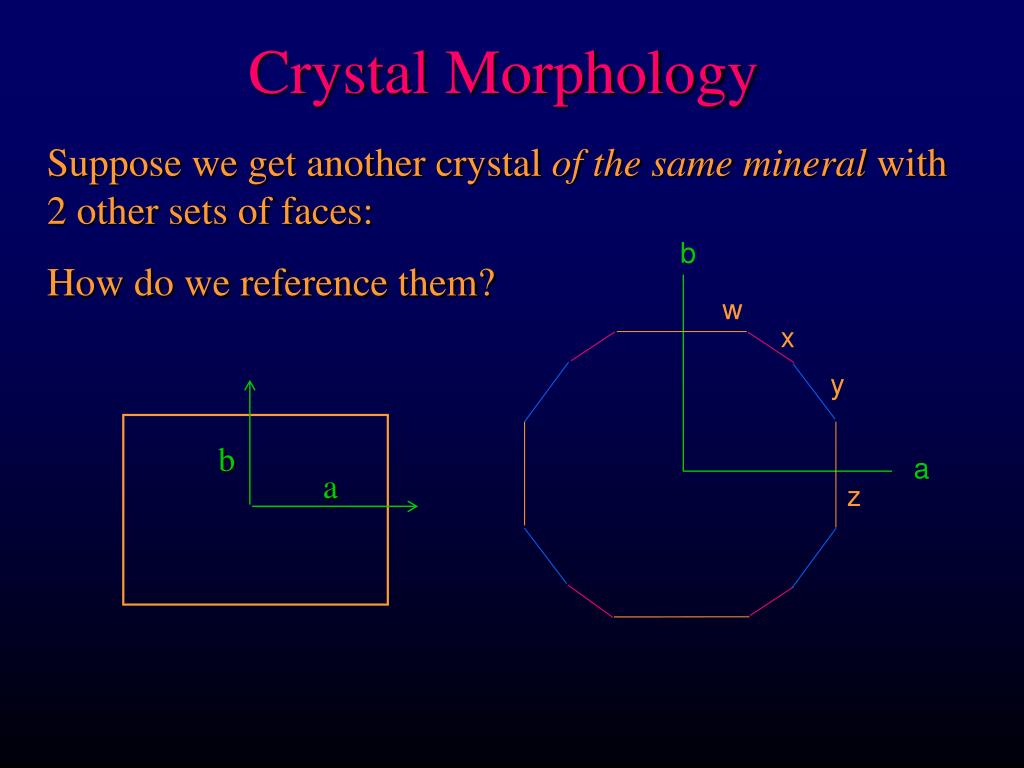

  15. Crystal Morphology b w x y Suppose we get another crystal of the same mineral with 2 other sets of faces: How do we reference them? b a a z

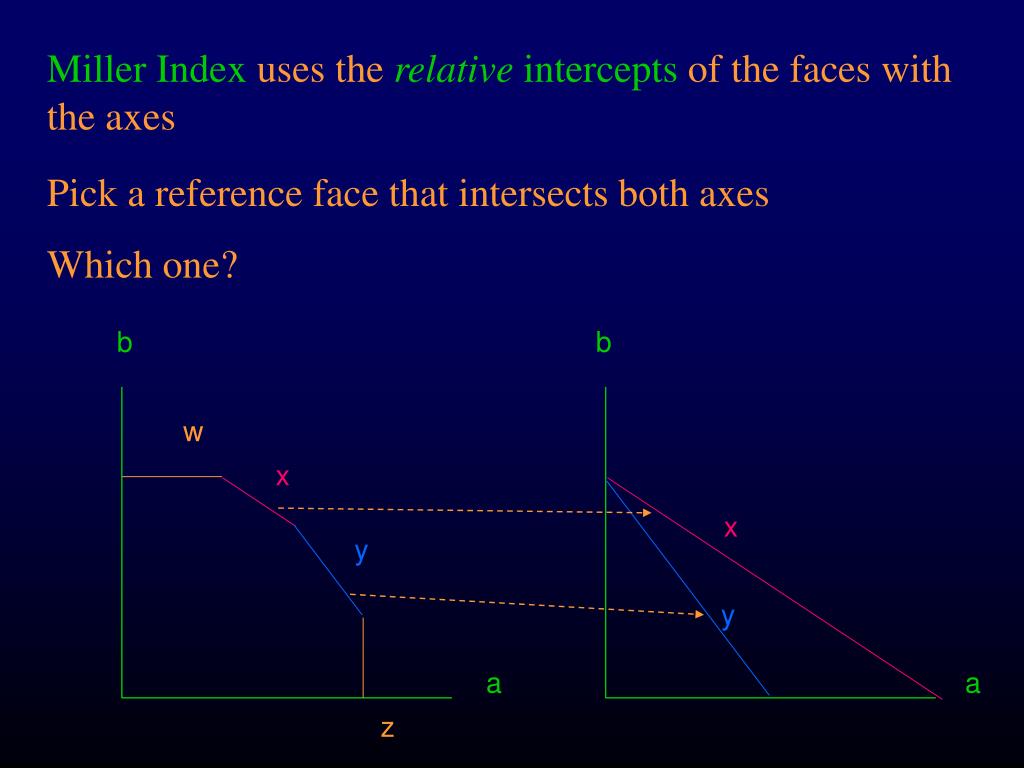

  16. Pick a reference face that intersects both axes Which one? b b Miller Index uses the relative intercepts of the faces with the axes w x x y y a a z

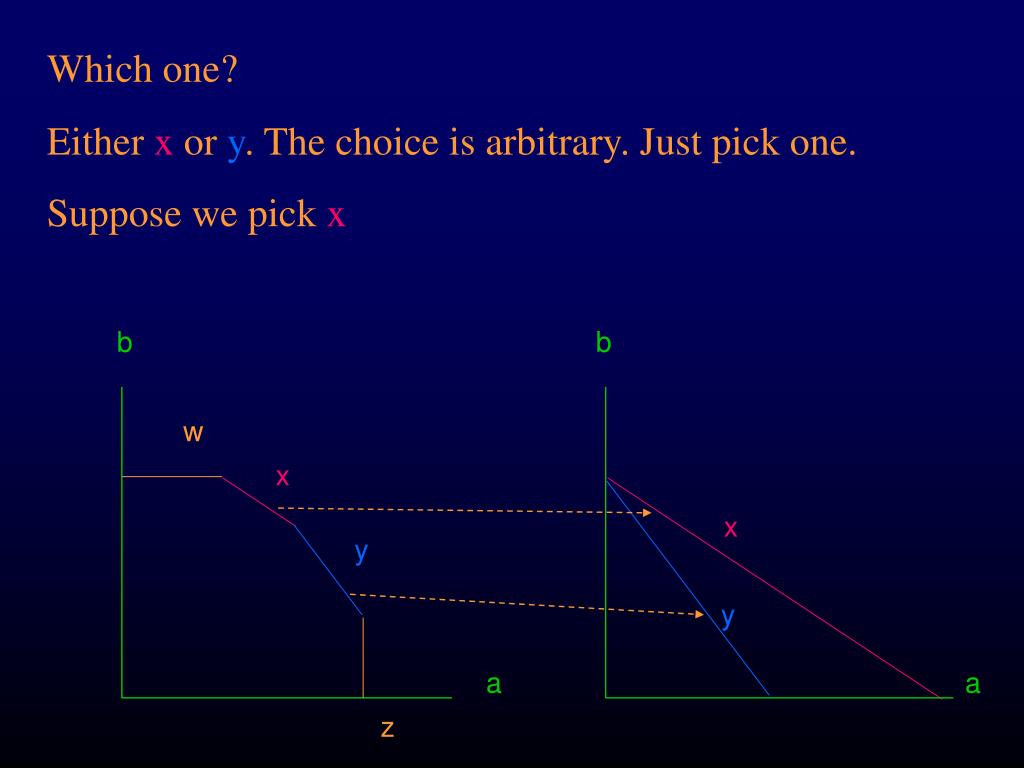

  17. b w x y a z Either x or y. The choice is arbitrary. Just pick one. Suppose we pick x b Which one? x y a

  18. 2 1 1 b invert  1 1 2 1 0 clear of fractions x Miller index of face y using x as the a-b reference face y (2 1 0) a a b c 1 1 unknown face (y)  1 reference face (x) 2 1 MI process is very structured (“cook book”)

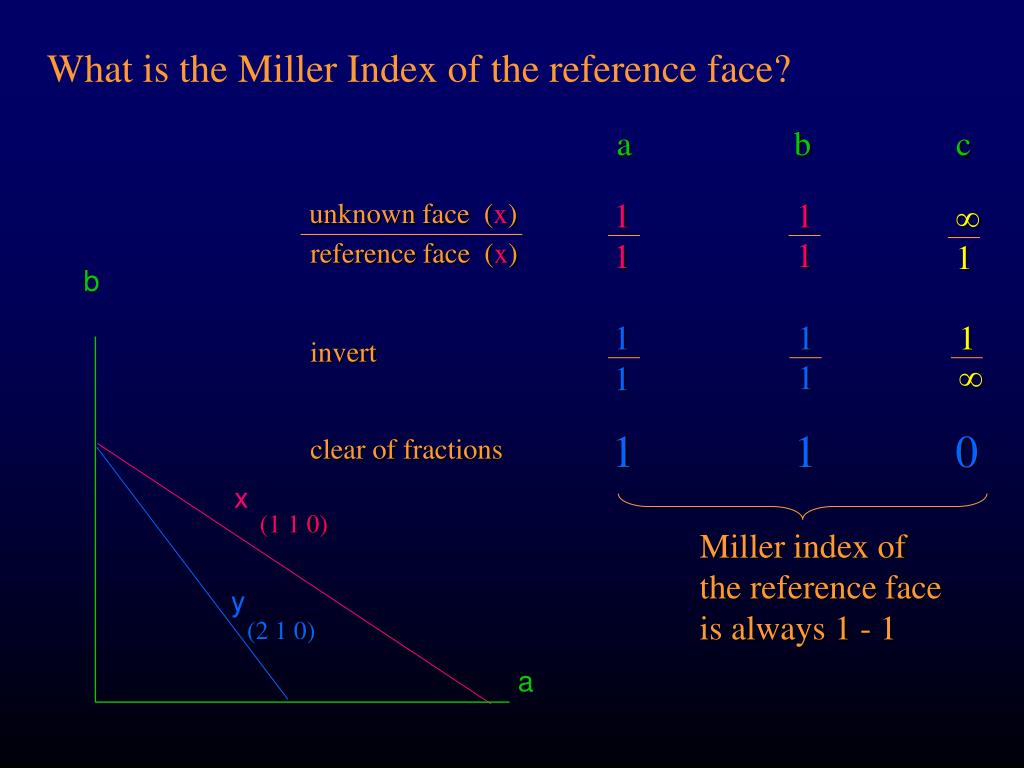

  19. 1 1 1 b invert  1 1 1 1 0 clear of fractions (1 1 0) x Miller index of the reference face is always 1 - 1 y a a b c 1 1 unknown face (x)  1 reference face (x) 1 1 What is the Miller Index of the reference face? (2 1 0)

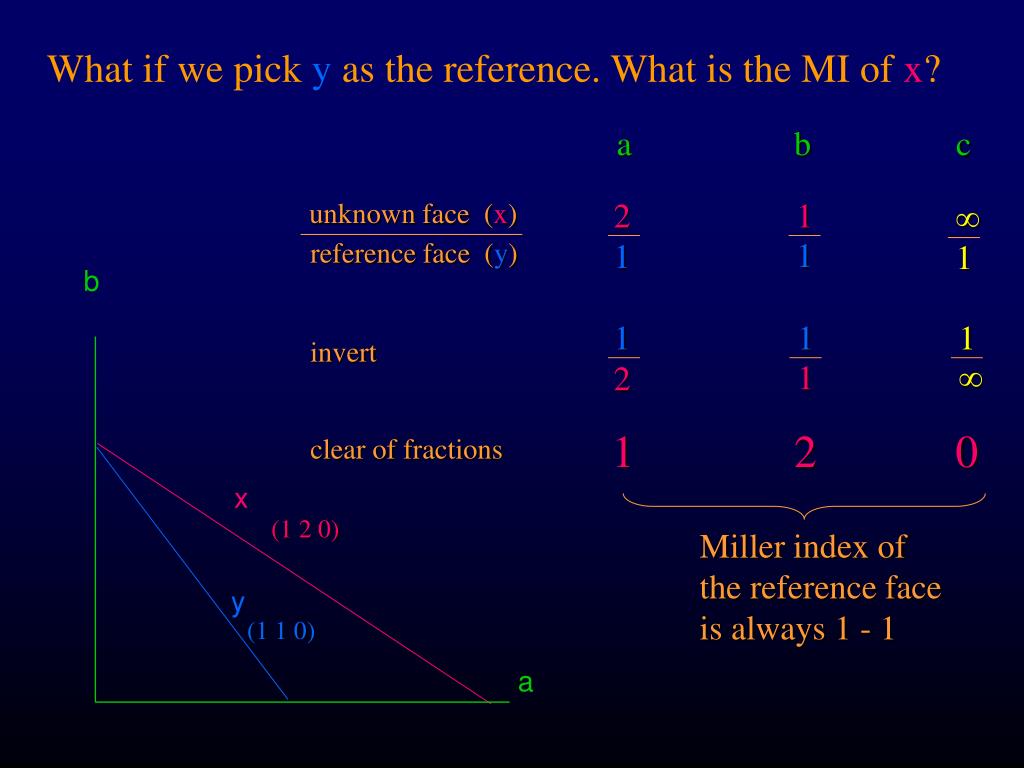

  20. 1 1 1 b invert  1 2 1 2 0 clear of fractions (1 2 0) x Miller index of the reference face is always 1 - 1 y a a b c 2 1 unknown face (x)  1 reference face (y) 1 1 What if we pick y as the reference. What is the MI of x? (1 1 0)

  21. b x y a Which choice is correct? 1) x = (1 1 0) y = (2 1 0) 2) x = (1 2 0) y = (1 1 0) The choice is arbitrary What is the difference?

  22. b x y a What is the difference? unit cell shape if y = (1 1 0) unit cell shape if x = (1 1 0) b b a a x b y a axial ratio = a/b = 0.80 axial ratio = a/b = 1.60

  23. b b w x x y y a a z The technique above requires that we graph each face A simpler (?) way is to use trigonometry Measure the interfacial angles 148o ? ? interfacial angles 141o

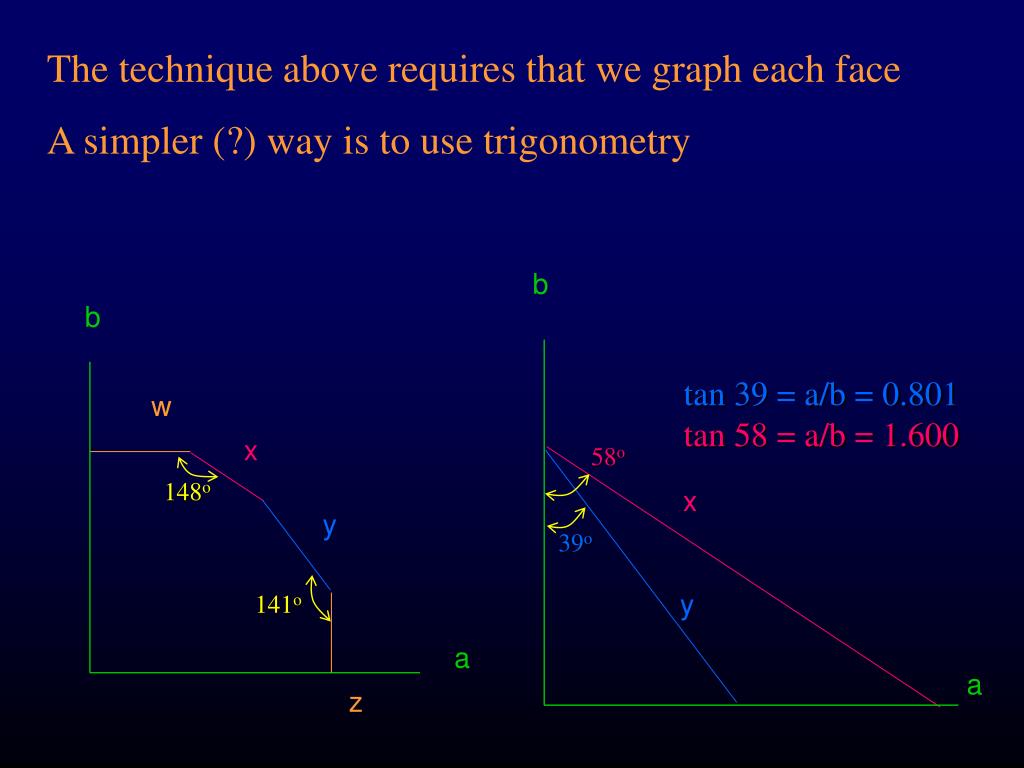

  24. b b w x x y y a a z The technique above requires that we graph each face A simpler (?) way is to use trigonometry tan 39 = a/b = 0.801 tan 58 = a/b = 1.600 58o 148o 39o 141o

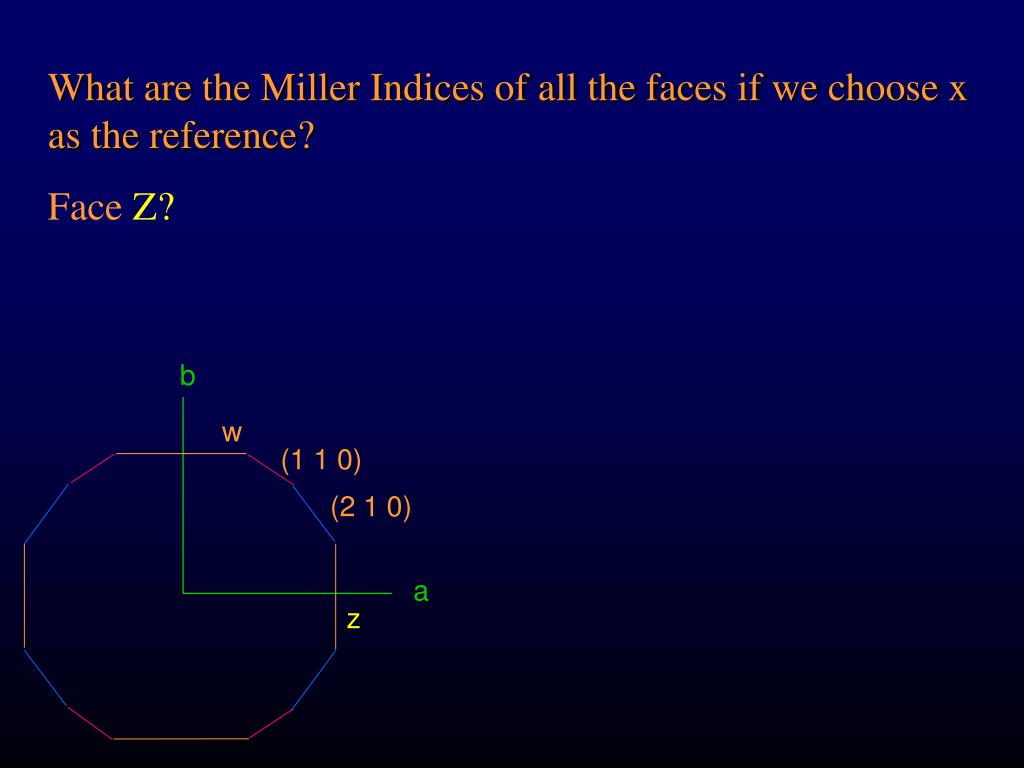

  25. b w (1 1 0) (2 1 0) a z What are the Miller Indices of all the faces if we choose x as the reference? Face Z?

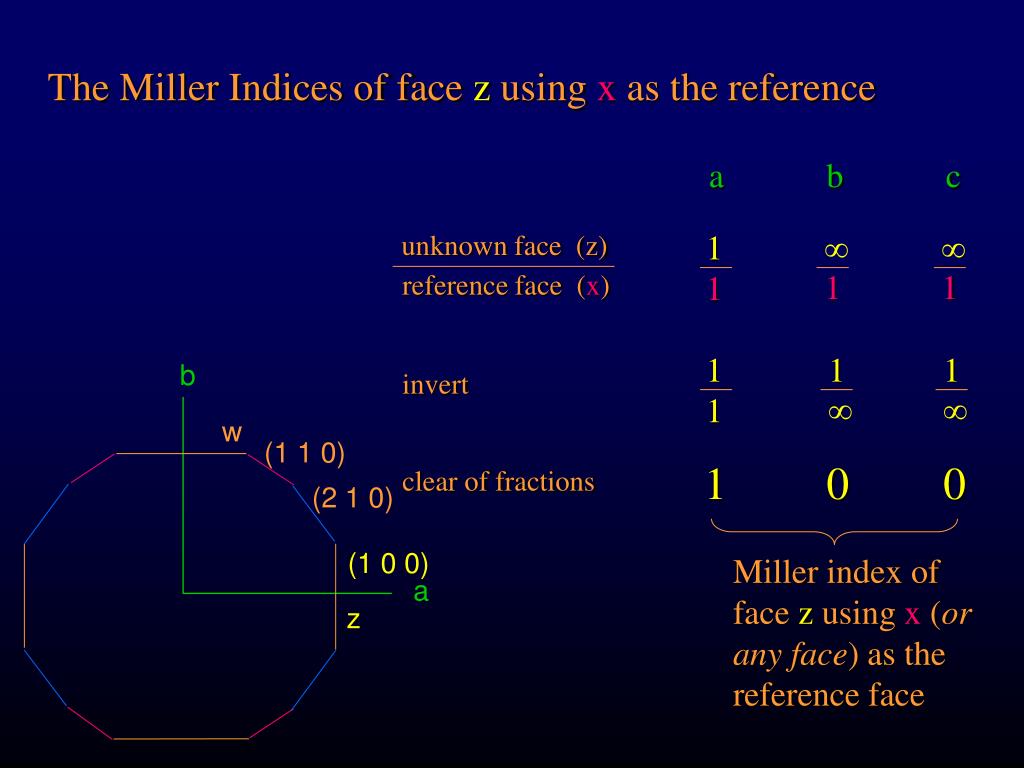

  26. 1 1 1 invert ¥ ¥ 1 1 0 0 clear of fractions Miller index of face z using x (or any face) as the reference face The Miller Indices of face z using x as the reference a b c ¥ ¥ 1 unknown face (z) 1 1 reference face (x) 1 b w (1 1 0) (2 1 0) (1 0 0) a z

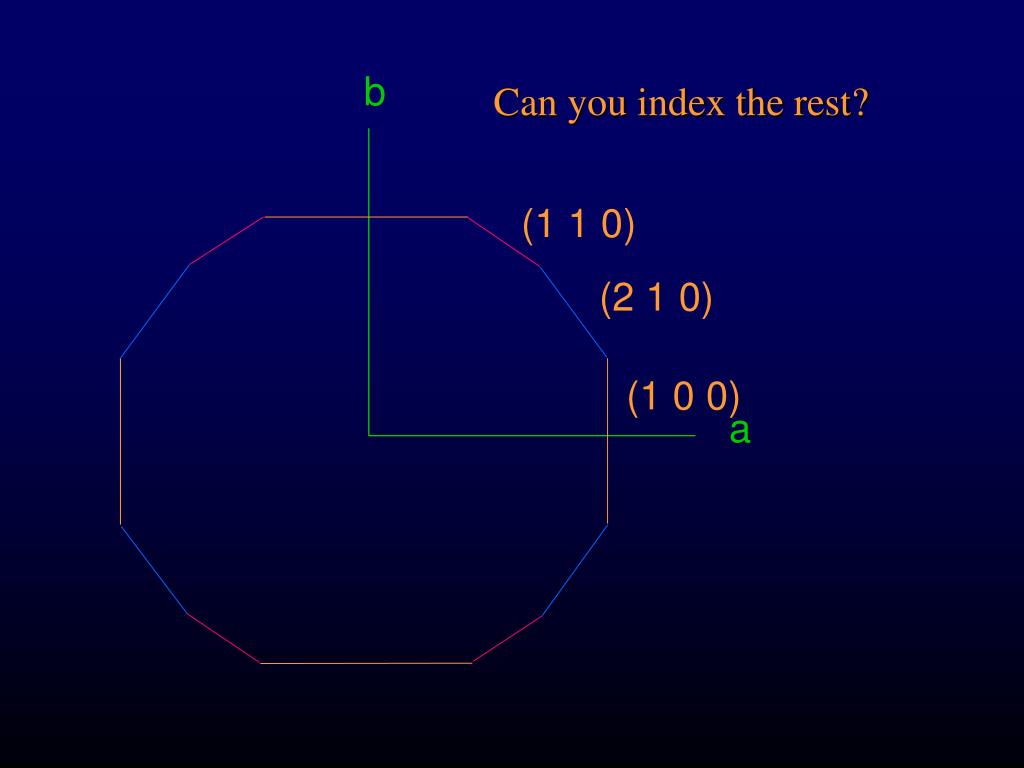

  27. b Can you index the rest? (1 1 0) (2 1 0) (1 0 0) a

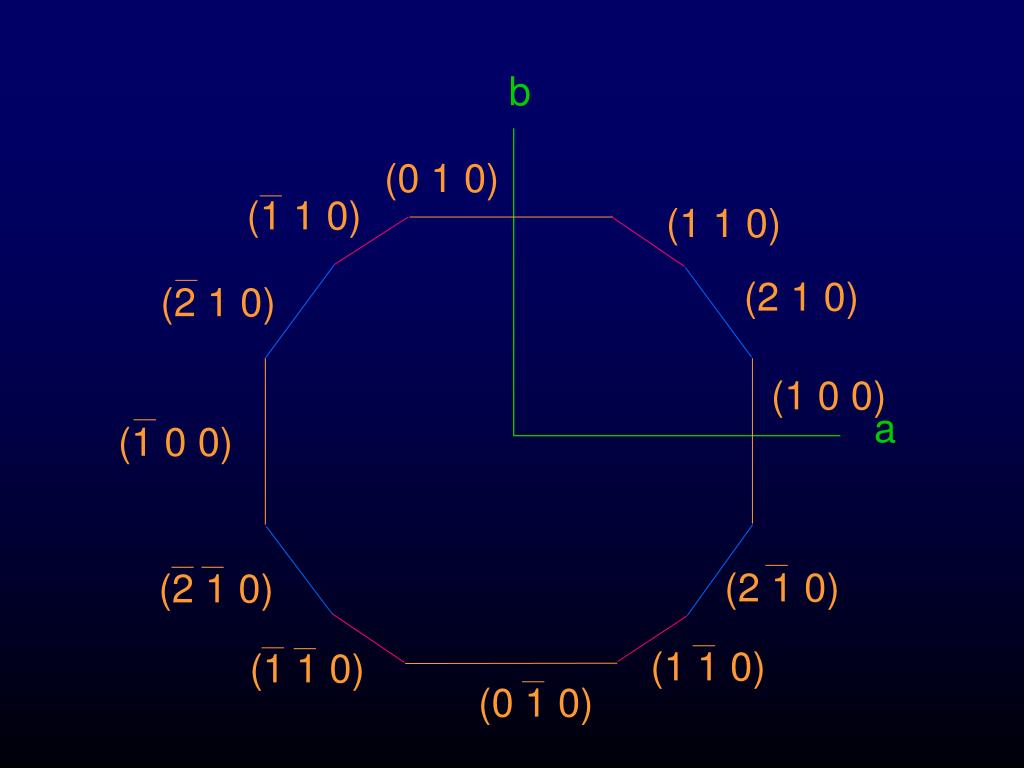

  28. b (0 1 0) (1 1 0) (1 1 0) (2 1 0) (2 1 0) (1 0 0) a (1 0 0) (2 1 0) (2 1 0) (1 1 0) (1 1 0) (0 1 0)

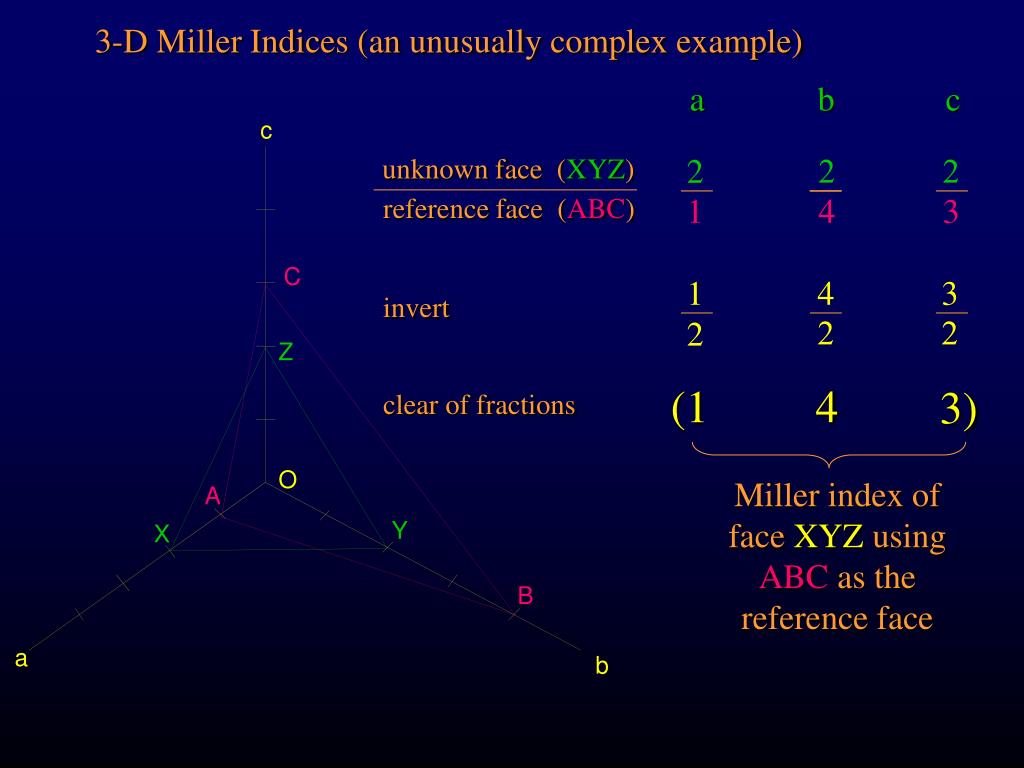

  29. 1 4 3 invert 2 2 2 (1 4 3) clear of fractions Miller index of face XYZ using ABC as the reference face 3-D Miller Indices (an unusually complex example) a b c c 2 2 2 unknown face (XYZ) 1 4 3 reference face (ABC) C Z O A Y X B a b

  30. Demonstrate MI on cardboard cube model

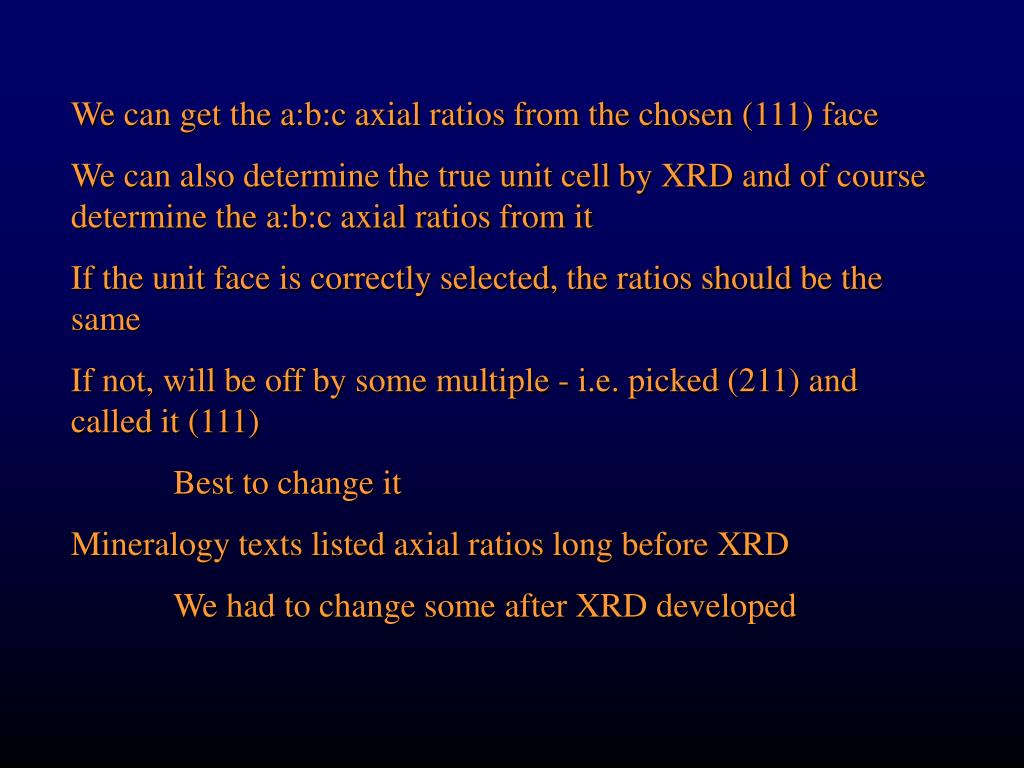

  31. We can get the a:b:c axial ratios from the chosen (111) face We can also determine the true unit cell by XRD and of course determine the a:b:c axial ratios from it If the unit face is correctly selected, the ratios should be the same If not, will be off by some multiple - i.e. picked (211) and called it (111) Best to change it Mineralogy texts listed axial ratios long before XRD We had to change some after XRD developed

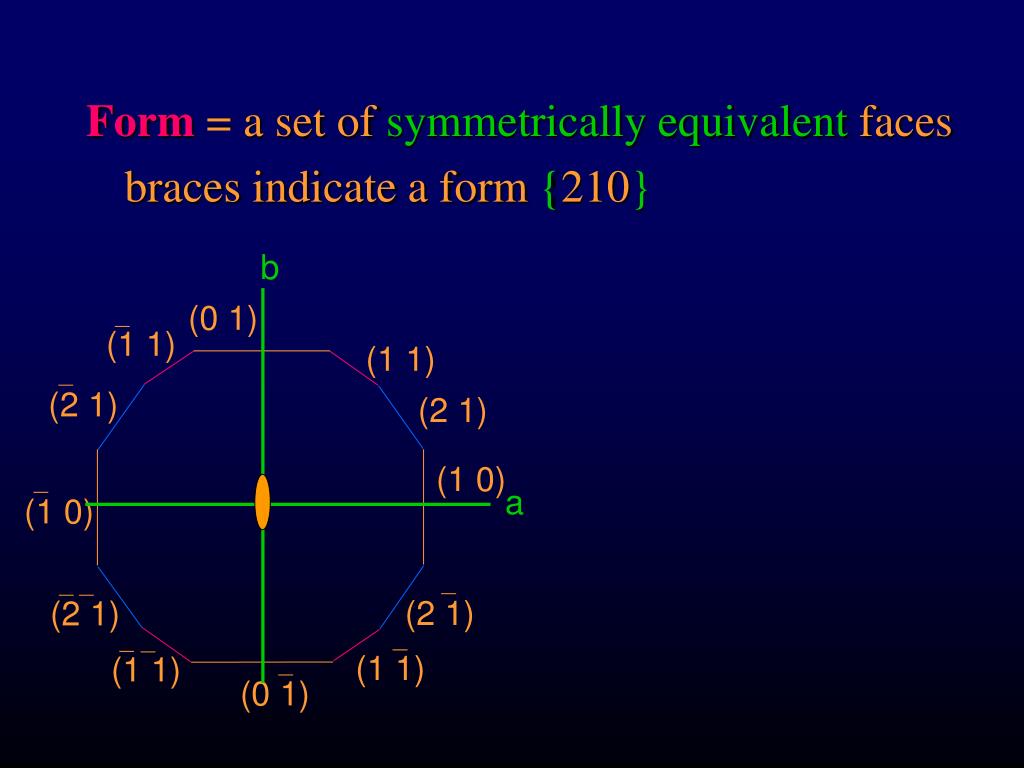

  32. Form = a set of symmetrically equivalent faces braces indicate a form {210} b (0 1) (1 1) (1 1) (2 1) (2 1) (1 0) a (1 0) (2 1) (2 1) (1 1) (1 1) (0 1)

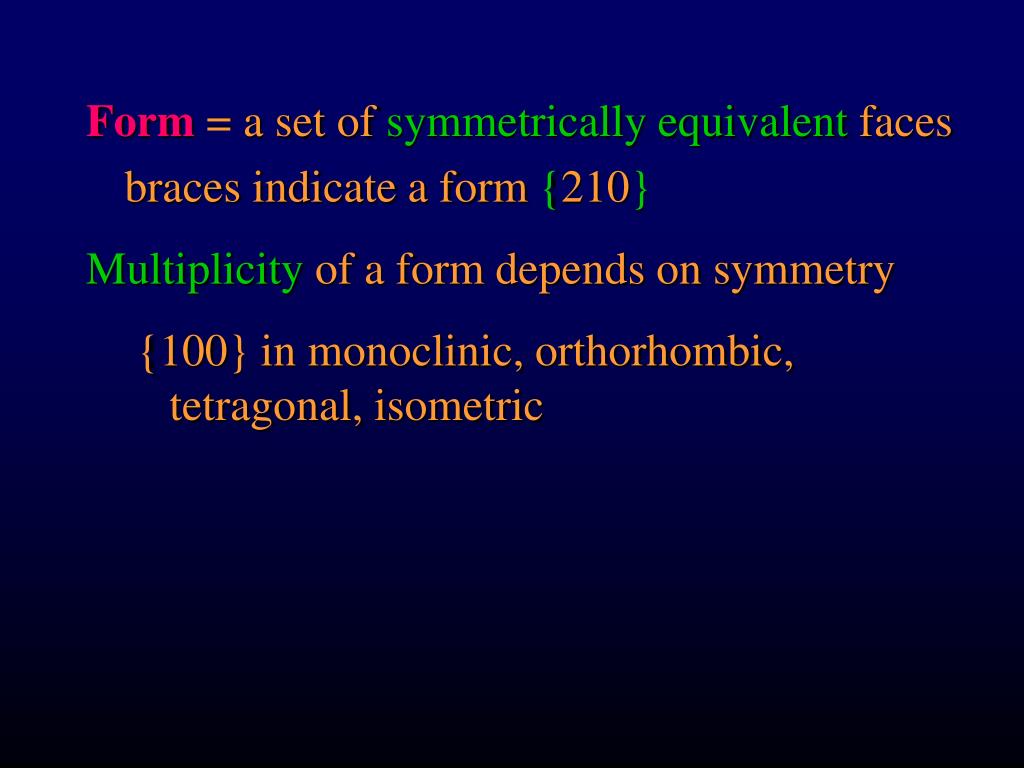

  33. Form = a set of symmetrically equivalent faces braces indicate a form {210} Multiplicity of a form depends on symmetry {100} in monoclinic, orthorhombic, tetragonal, isometric

  34. Form = a set of symmetrically equivalent faces braces indicate a form {210} F. 2.36 in your text (p. 49-52) pinacoid prism pyramid dipryamid related by a mirror or a 2-fold axis related by n-fold axis or mirrors

  35. Form = a set of symmetrically equivalent faces braces indicate a form {210} • Quartz = 2 forms: • Hexagonal prism (m = 6) • Hexagonal dipyramid (m = 12)

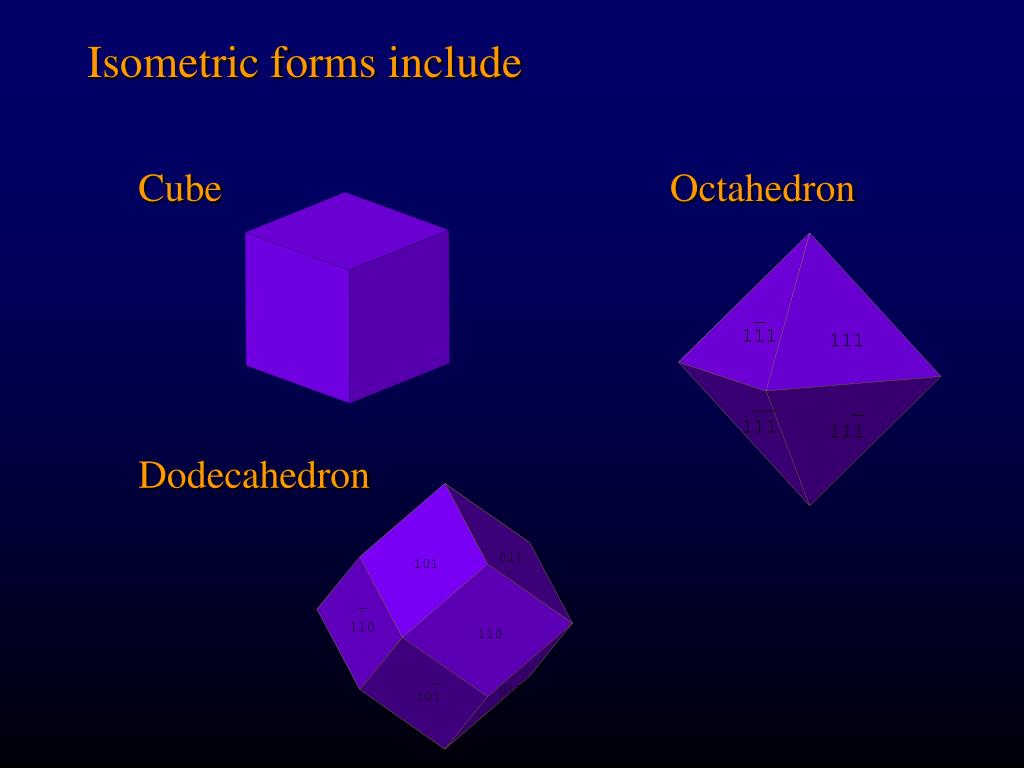

  36. _ 111 111 __ _ 111 111 011 101 _ 110 110 _ _ 011 101 Isometric forms include Cube Octahedron Dodecahedron

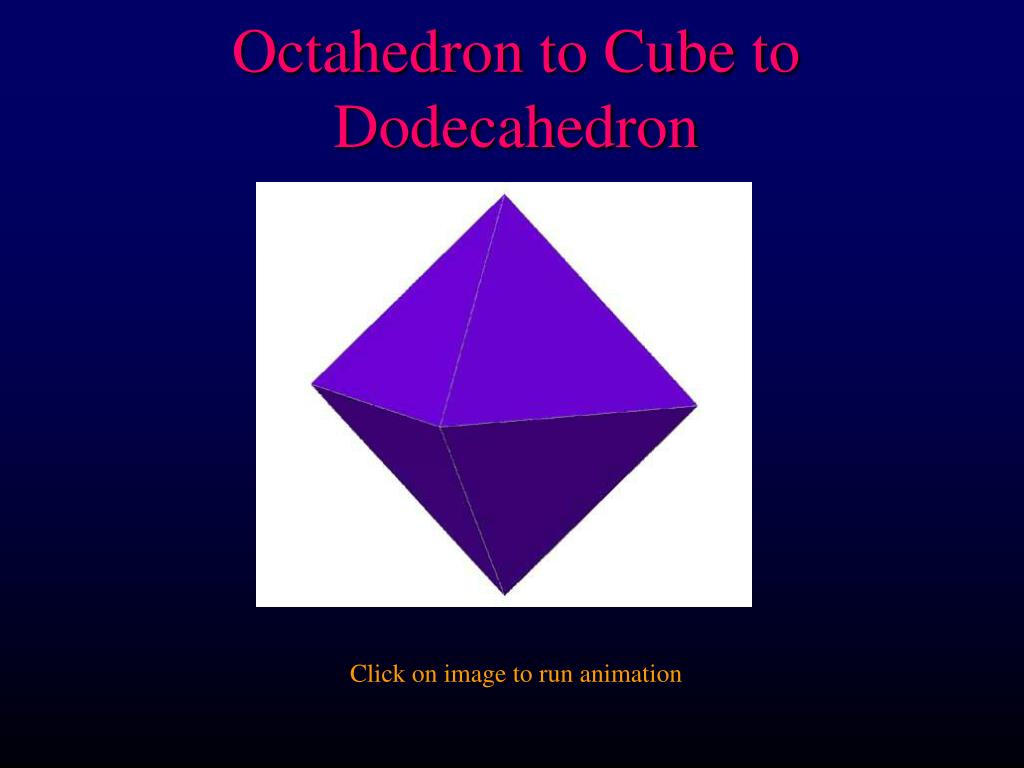

  37. Octahedron to Cube to Dodecahedron Click on image to run animation

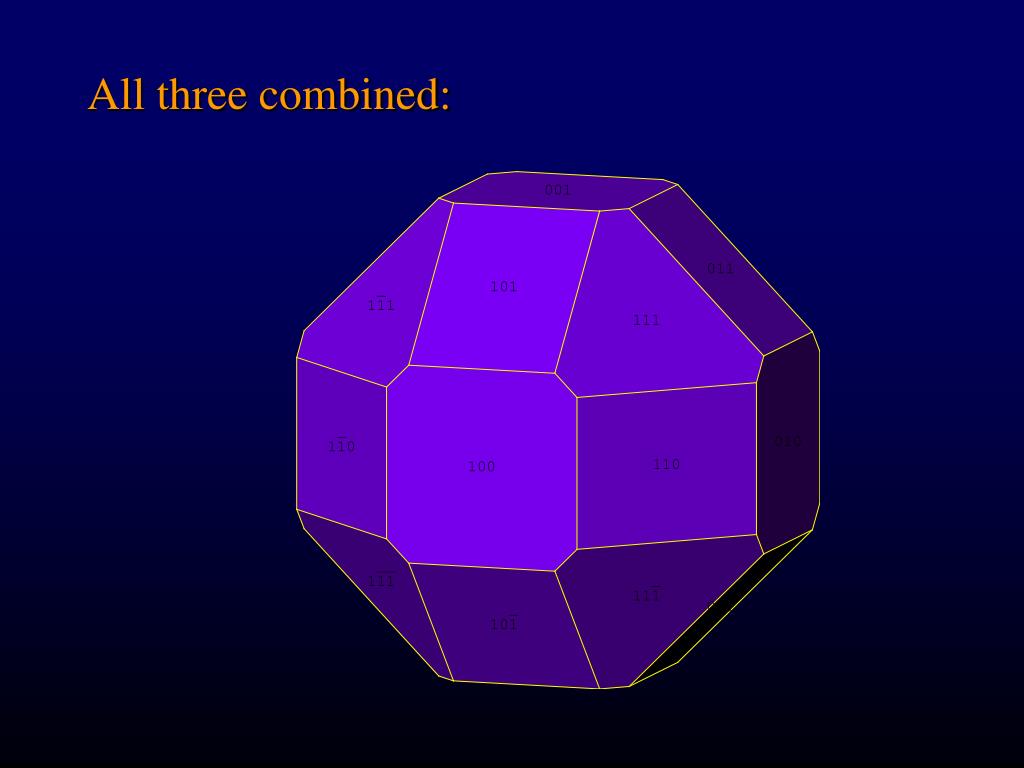

  38. All three combined:

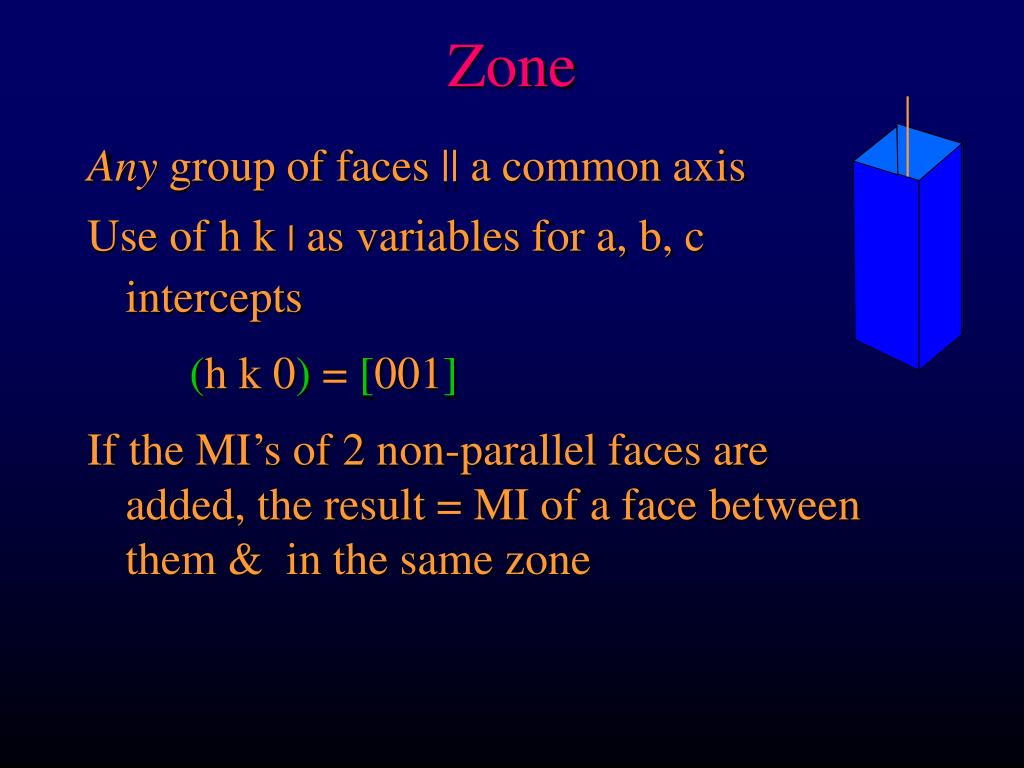

  39. Zone Any group of faces || a common axis Use of h k l as variables for a, b, c intercepts (h k 0) = [001] If the MI’s of 2 non-parallel faces are added, the result = MI of a face between them & in the same zone

  40. (010) Which?? (110)? (110)? (100) BUT doesn't say which face

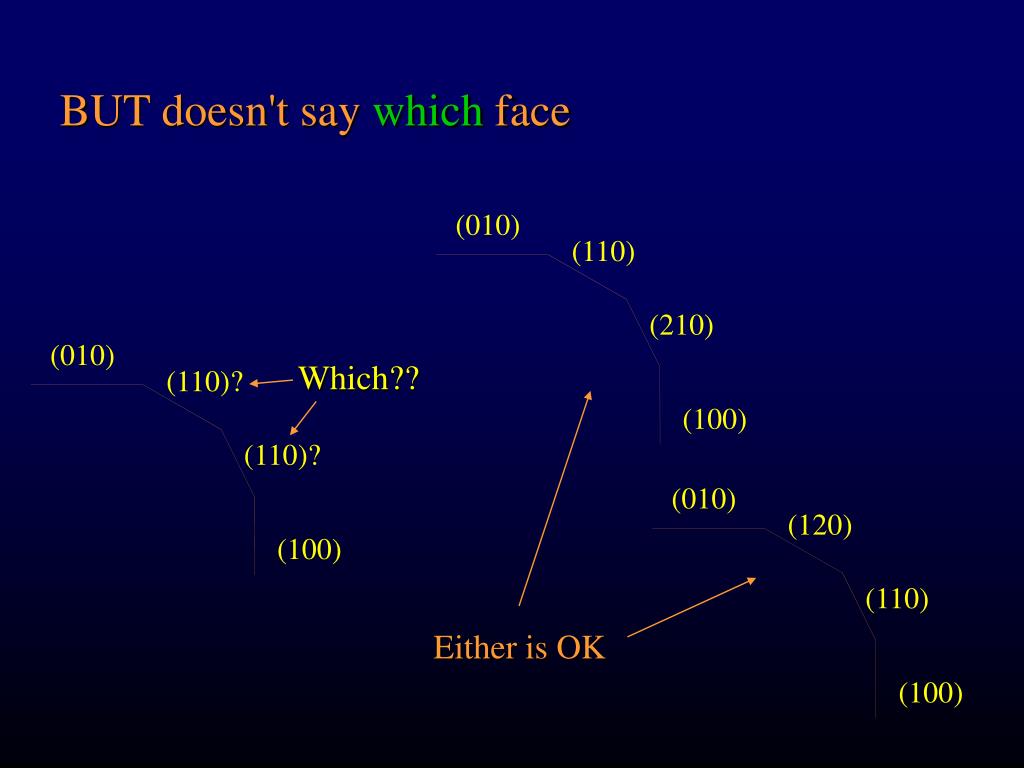

  41. (010) (110) (010) (210) Which?? (110)? (110)? (100) (010) (100) (120) (110) (100) BUT doesn't say which face Either is OK
