Chapter 17 3
Chapter 17.3

  • How do buoyancy and Archimedes’ principle relate to fluids?


Buoyancy
Buoyancy

  • measure of the upward pressure a fluid exerts on an object.

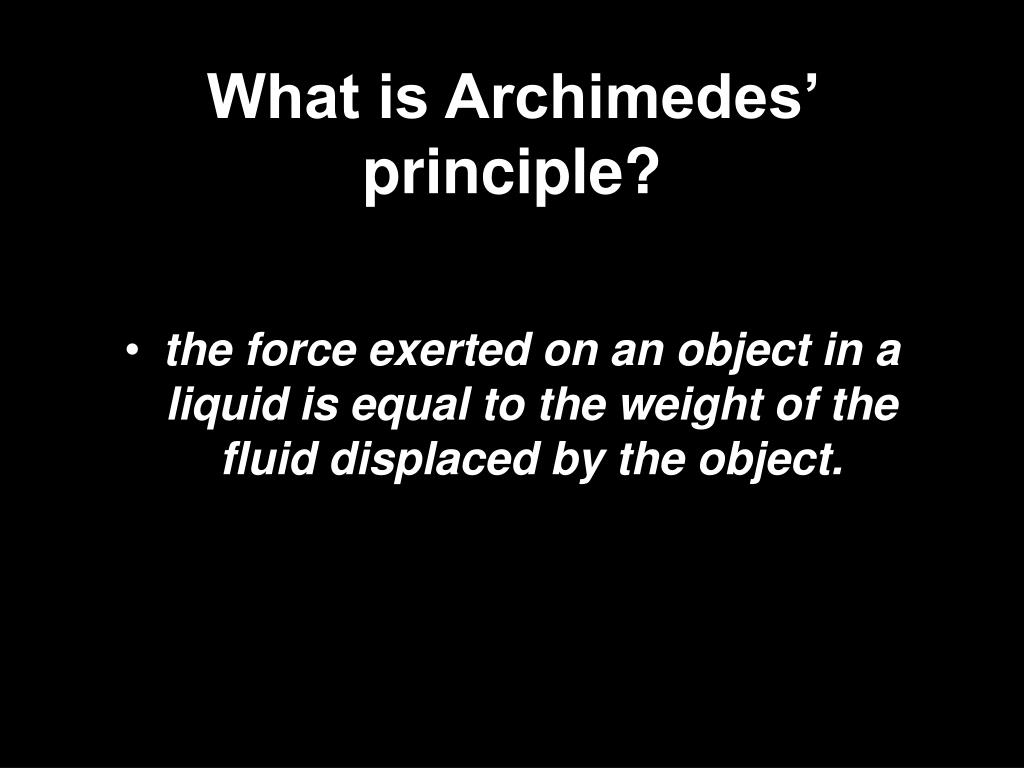

What is archimedes principle
What is Archimedes’ principle?

  • the force exerted on an object in a liquid is equal to the weight of the fluid displaced by the object.

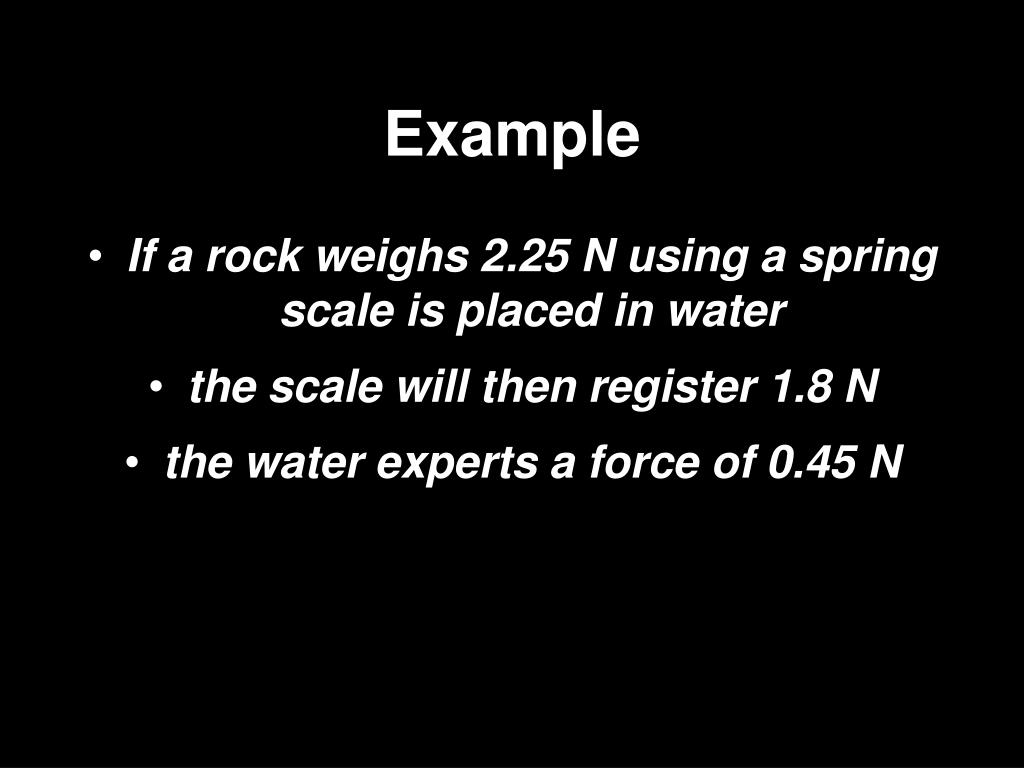

Example
Example

  • If a rock weighs 2.25 N using a spring scale is placed in water

  • the scale will then register 1.8 N

  • the water experts a force of 0.45 N

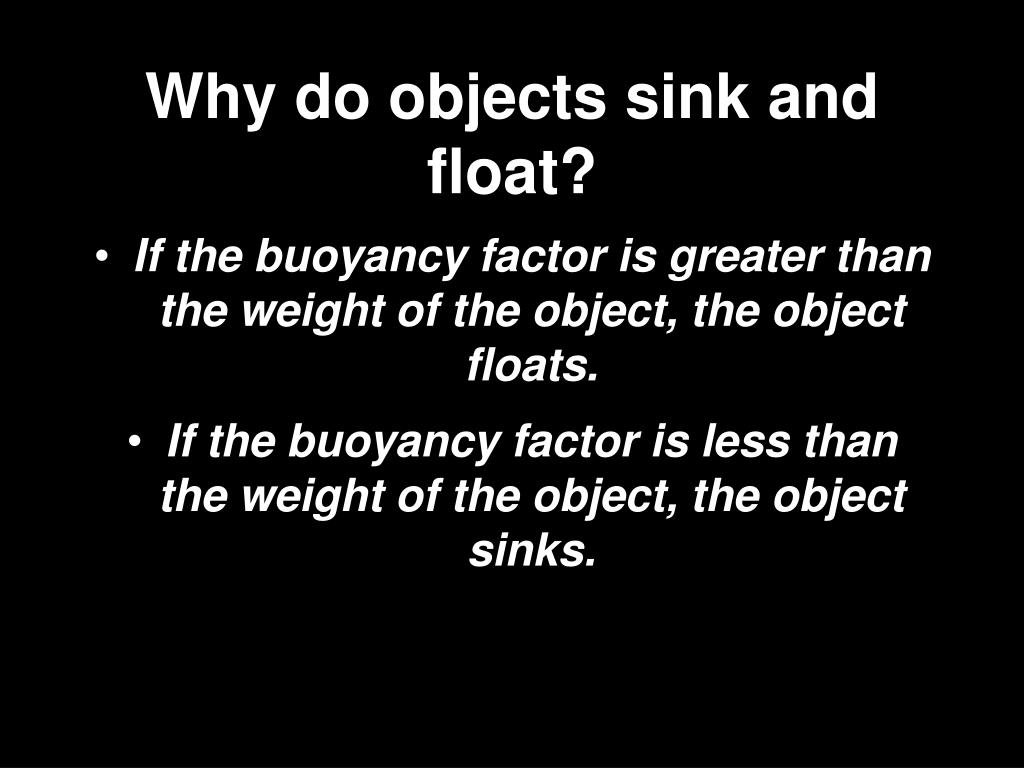

Why do objects sink and float
Why do objects sink and float? displaced was 0.45 N

  • If the buoyancy factor is greater than the weight of the object, the object floats.

  • If the buoyancy factor is less than the weight of the object, the object sinks.


Why does a block of steel sink but a steel boat float
Why does a block of steel sink, but a steel boat float? displaced was 0.45 N

  • 1 cubic meter of water = 9,800 N

  • 1 cubic meter of steel = 76,400 N

  • What happens?


The block of steel is flattened and hollowed inside to make a boat approx 10 cubic meters
The block of steel is flattened and hollowed inside to make a boat, approx. 10 cubic meters.

  • How much water is displaced?

  • 10 cubic meters of water = 98,000 N

  • 1 cubic meter of steel = 76,400 N

  • What happens?


Buoyancy and gases
Buoyancy and gases a boat, approx. 10 cubic meters.


Charles law
Charles’ law a boat, approx. 10 cubic meters.

  • The volume of a gas increases with increasing temperature.

  • The volume of a gas decreases with decreasing temperature.

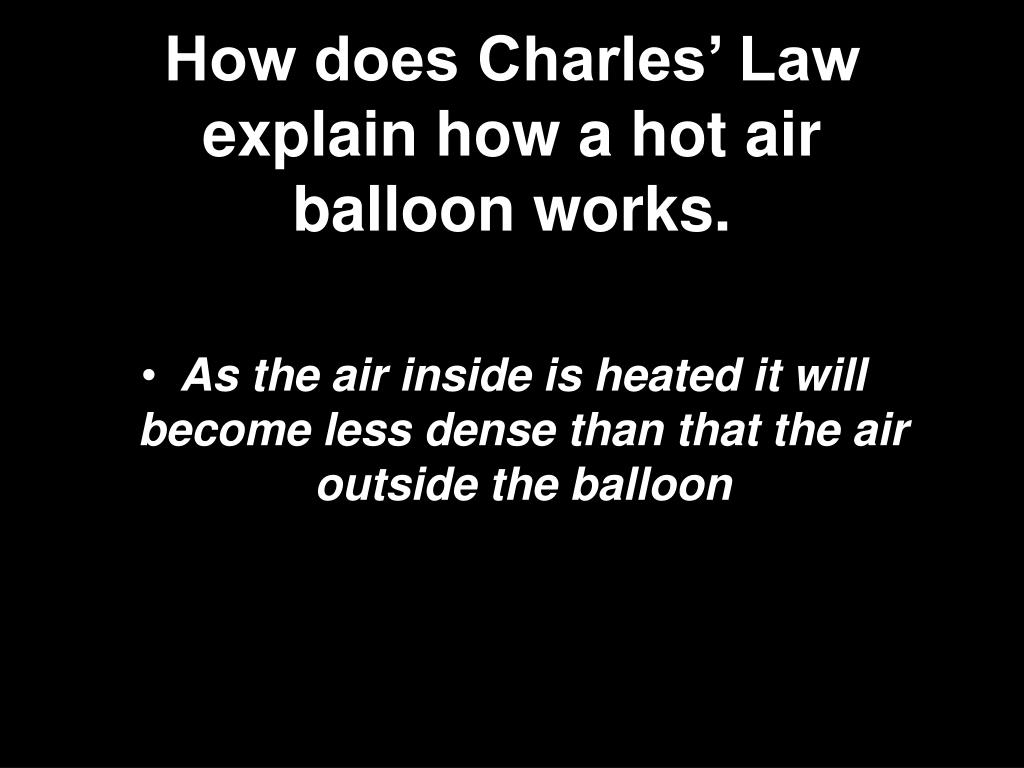

How does charles law explain how a hot air balloon works
How does Charles’ Law explain how a hot air balloon works. a boat, approx. 10 cubic meters.

  • As the air inside is heated it will become less dense than that the air outside the balloon

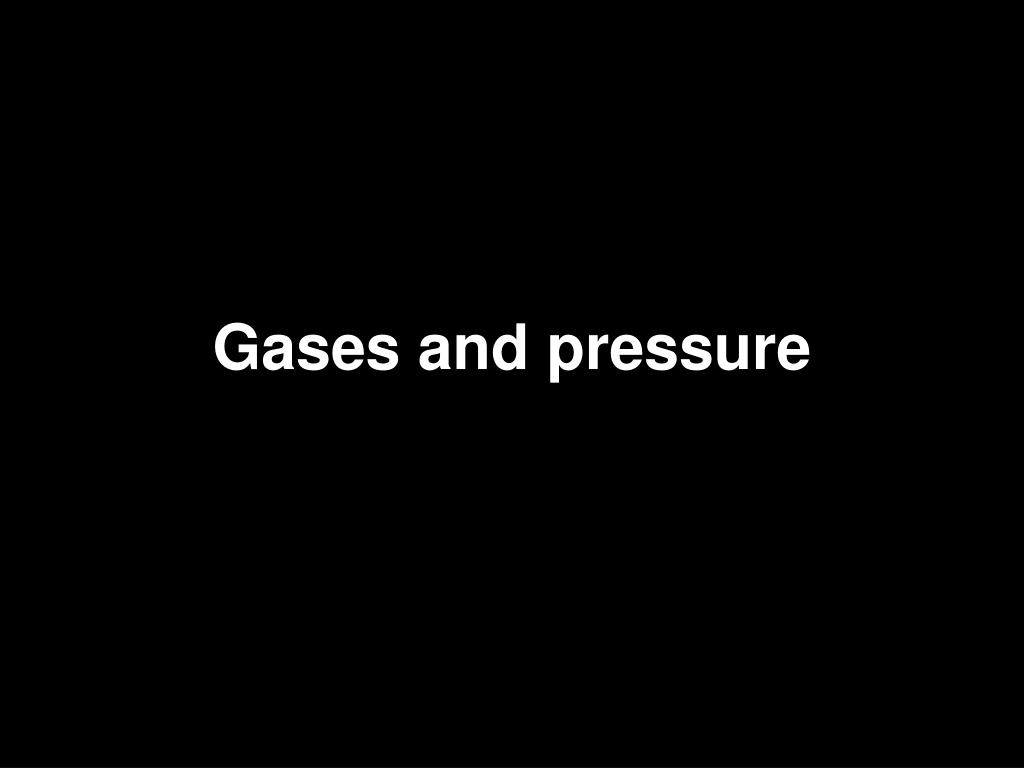

Gases and pressure
Gases and pressure a boat, approx. 10 cubic meters.


What is atmospheric pressure
What is atmospheric pressure? a boat, approx. 10 cubic meters.

  • the force required to hold the air around the earth

  • At the Earth’s surface the atmospheric pressure is 101,300 pascals or newtons.



Boyle s law states
Boyle’s Law states a boat, approx. 10 cubic meters.

  • 1. as the pressure of gas increases, its volume decreases proportionately.

  • 2. as the pressure of gas decreases, its volume increases proportionately.


Formula for boyle s law
Formula for Boyle’s law a boat, approx. 10 cubic meters.

  • P1 = initial pressure V1 = initial volume

  • P2 = new pressure V2 = new volume

  • P1 V1 = P2 V2


Example1
Example a boat, approx. 10 cubic meters.

  • Suppose 5 L of air at atmospheric pressure(101.3 Kilopascals) is compressed in a 0.5 L aerosol can. What is the pressure of the compressed air in the can?

  • Work the problem

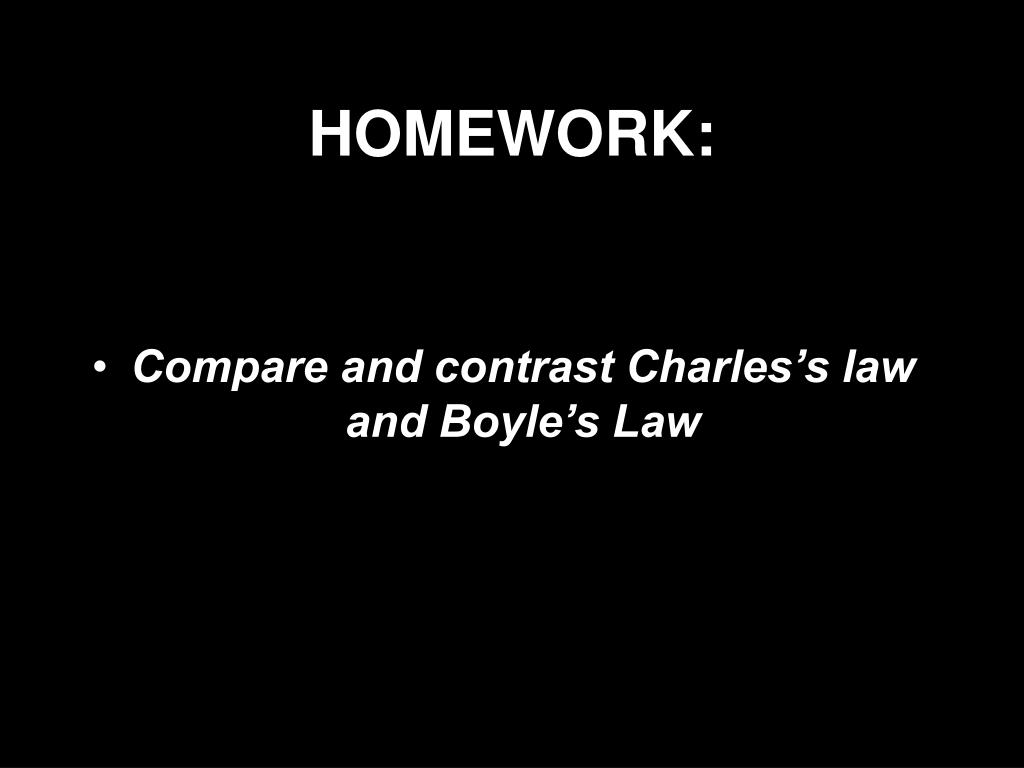

Homework
HOMEWORK: a boat, approx. 10 cubic meters.

  • Compare and contrast Charles’s law and Boyle’s Law


Viscosity of fluids
Viscosity of Fluids a boat, approx. 10 cubic meters.


Viscosity
Viscosity: a boat, approx. 10 cubic meters.

  • 1. Measure of a materials resistance to flow.

  • 2. Determined by the siae and shape of the molecules

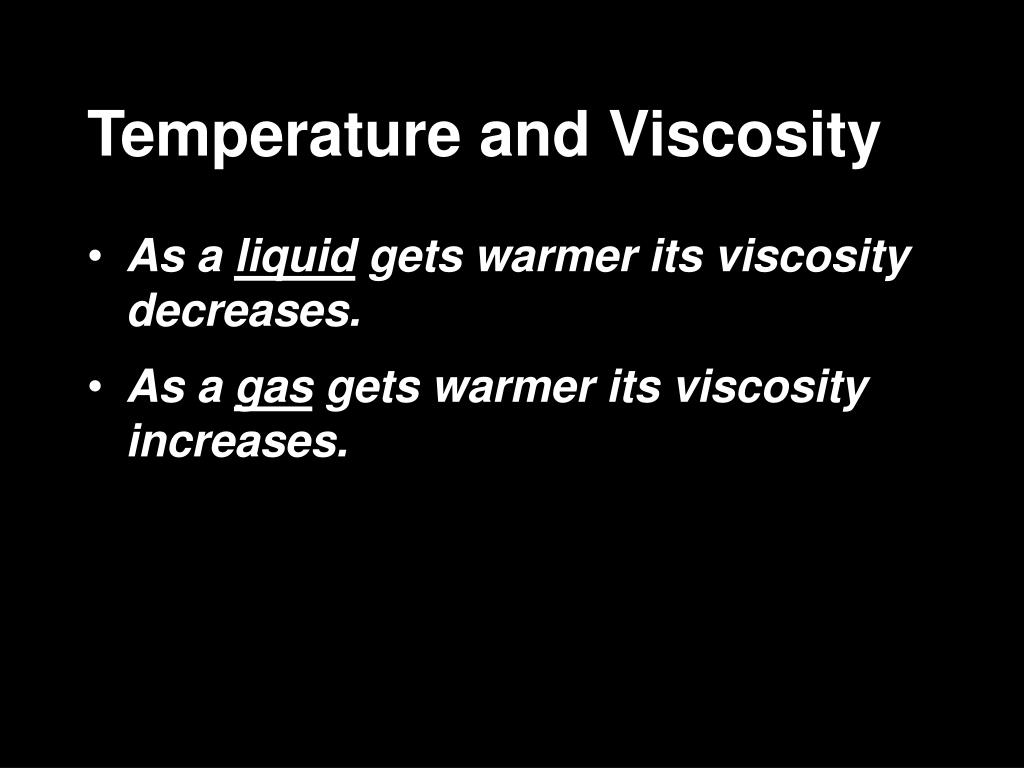

Temperature and viscosity
Temperature and Viscosity a boat, approx. 10 cubic meters.

  • As a liquid gets warmer its viscosity decreases.

  • As a gas gets warmer its viscosity increases.


Homework1
HOMEWORK: a boat, approx. 10 cubic meters.

  • P. 307 Problems 1-3

  • Honors 1-5
