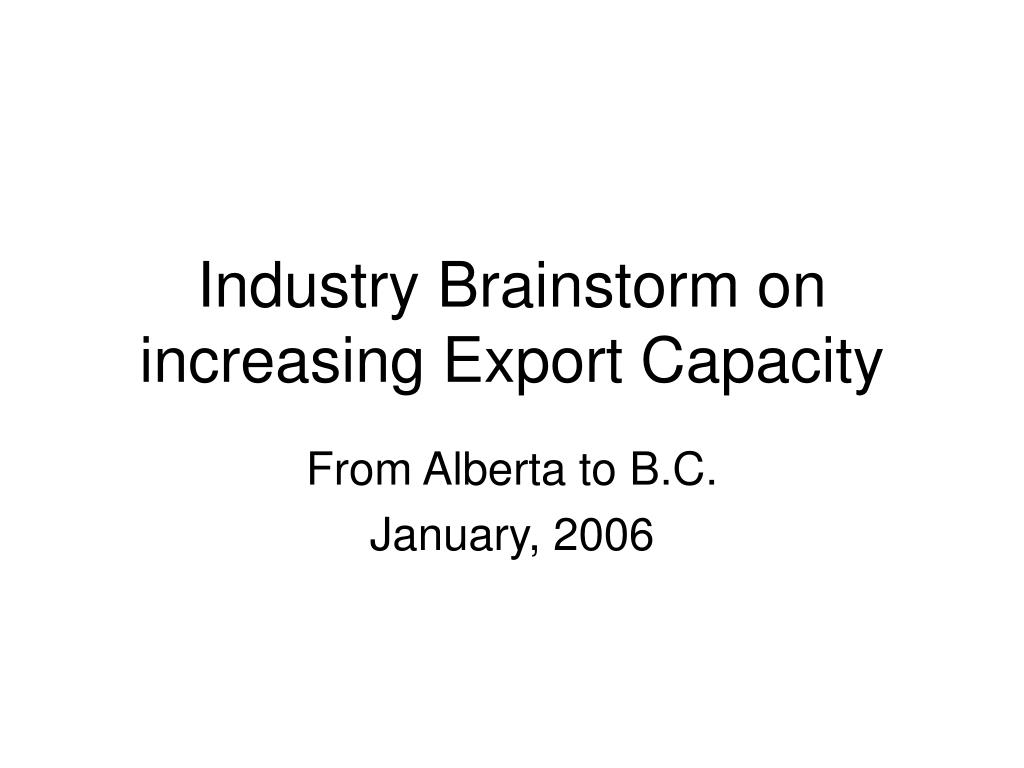

  1. Industry Brainstorm on increasing Export Capacity From Alberta to B.C. January, 2006

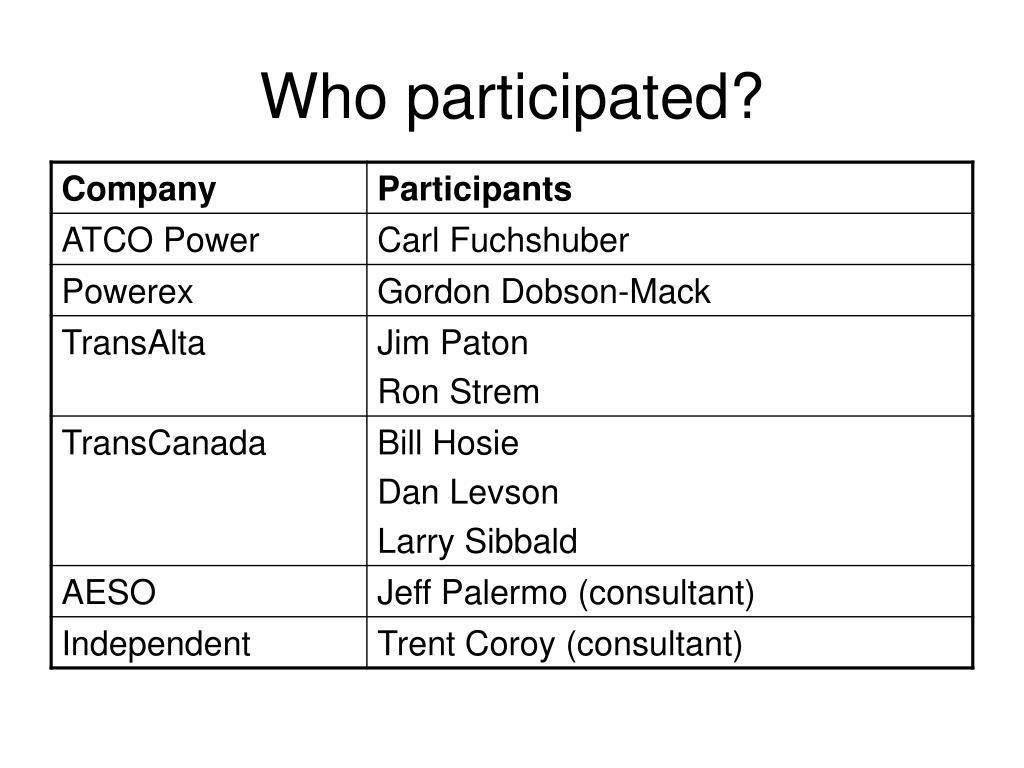

  2. Who participated?

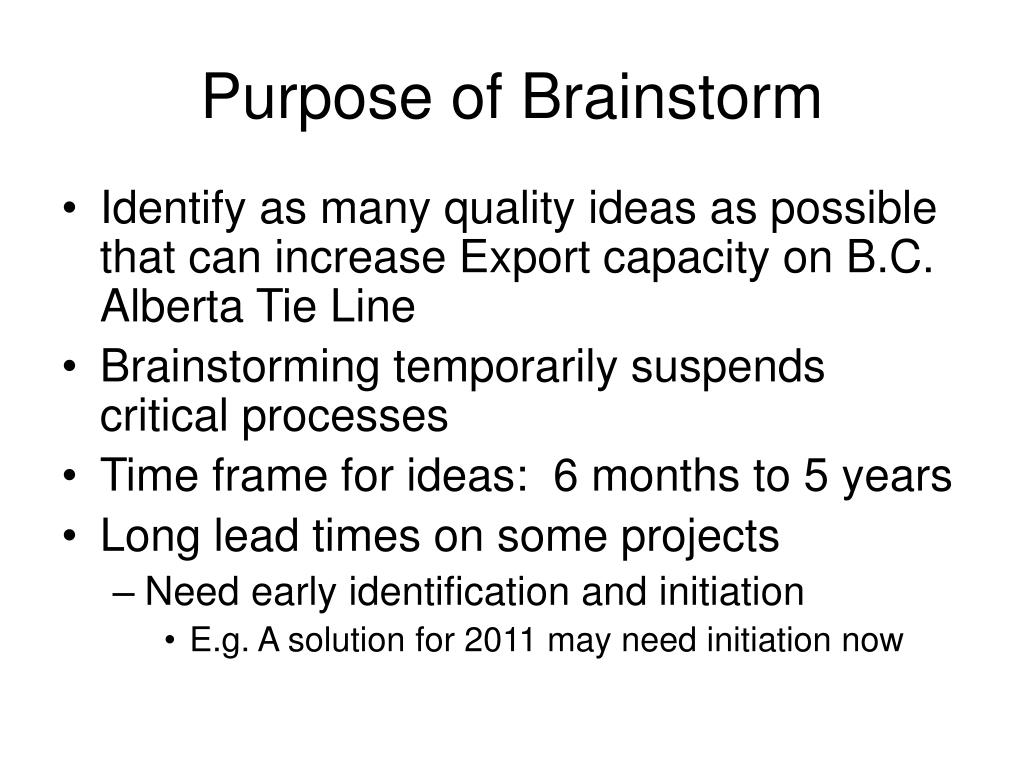

  3. Purpose of Brainstorm • Identify as many quality ideas as possible that can increase Export capacity on B.C. Alberta Tie Line • Brainstorming temporarily suspends critical processes • Time frame for ideas: 6 months to 5 years • Long lead times on some projects • Need early identification and initiation • E.g. A solution for 2011 may need initiation now

  4. Purpose of Prioritization Process • Develop consensus on prioritizing projects based on their cost and benefits in increasing export capacity • Criteria used to prioritize projects: • Time to implement • How proven is the technology • Approximate cost versus magnitude of export capacity • Issues that the technology addresses • Projects prioritized into three groups • Analysis based on Jan 06 industry knowledge of transmission limitations

  5. Summary of Results • Three “urgent and important” projects • Twelve more “important” Priority-1 projects • Consider for approval and immediate resourcing • Three – Priority-2 Projects • Need further study and evaluation • Thirteen – Priority-3 Projects • Park these ideas for review at a later date

  6. Urgent Project 1 • Thermal capacity assessment and upgrades strategy for limiting elements • Thorough inventory of each element of transmission backbone • Transmission lines (ground clearance, conductor replacement) • Breakers • Current transformers • Busses, jumpers • Identify lowest cost options to solve limits • Identify database errors, if any, that could create artificial constraints • Start work immediately as thermal constraints rather than dynamic constraints are currently limiting exports

  7. Urgent Project 1b • Create transmission limitations document • Limiting operating criteria • Limiting contingencies by facility • Consequence of each contingency • Action required to mitigate limitations • Cross references to support studies

  8. Urgent Project 2 • Expanded Remedial Action Schemes • Develop a North South GRAS (underway?) • Triggered by loss of ATC limiting double circuit or single circuit line outages • Develop a 500 kV BC Tie RAS to mitigate loss of ATC limiting double or single circuit line outages • Expand the use of undervoltage relays in a RAS to prevent voltage collapse • Develop Generator MW ramp down scheme to automatically respond to thermal line overloads (which have a longer response time)

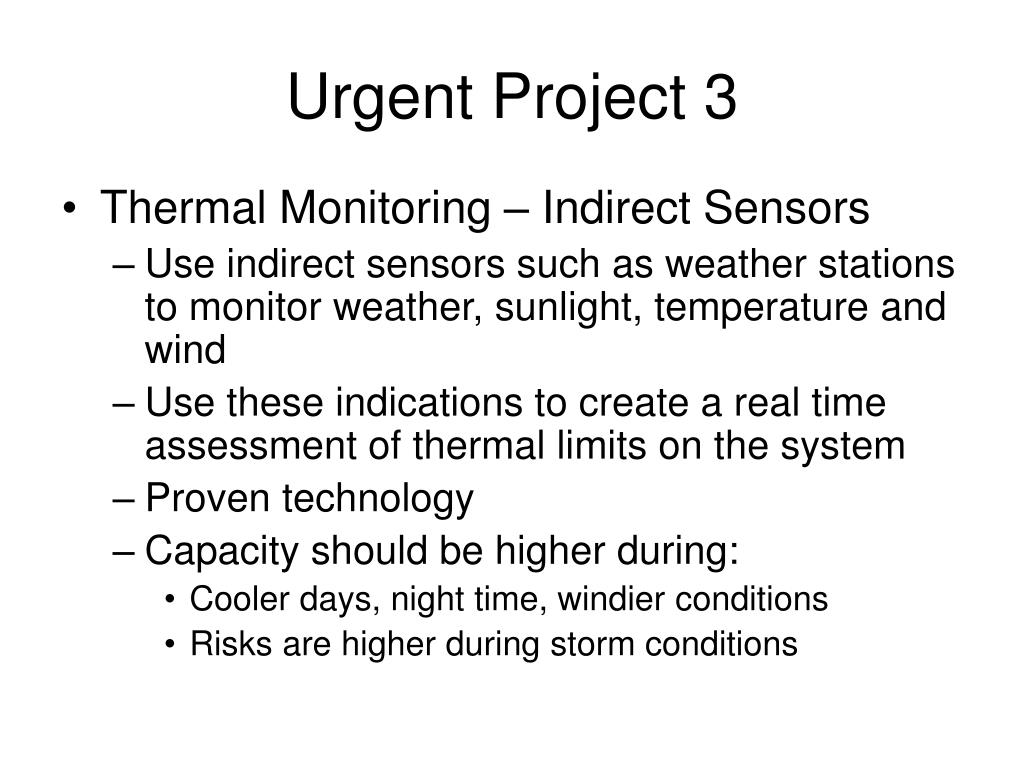

  9. Urgent Project 3 • Thermal Monitoring – Indirect Sensors • Use indirect sensors such as weather stations to monitor weather, sunlight, temperature and wind • Use these indications to create a real time assessment of thermal limits on the system • Proven technology • Capacity should be higher during: • Cooler days, night time, windier conditions • Risks are higher during storm conditions

  10. Other Priority-1 Projects • Tie tripping export shedding scheme • Automatically ramp down exports when voltages fall below predetermined levels • New 500 kV reactor breaker at Langdon • Reactors can be switched out pre and post events to support southern Alberta voltage • Encourage more north south capacity increases • Explore BC side solutions • BCTC AESO coordination

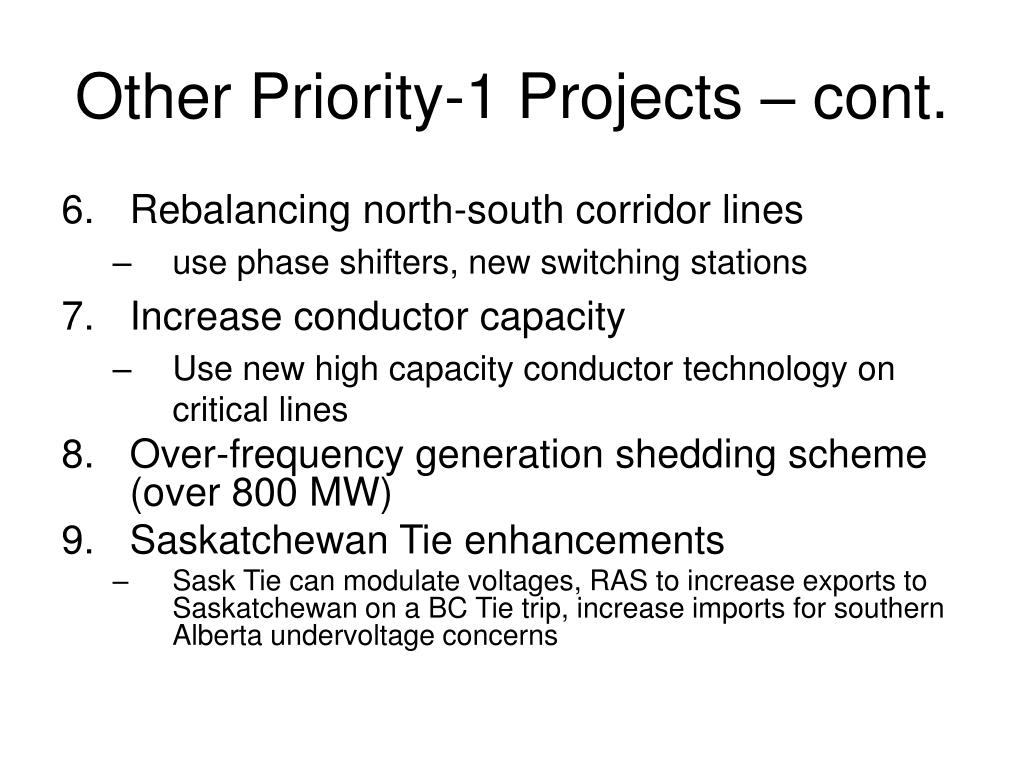

  11. Other Priority-1 Projects – cont. • Rebalancing north-south corridor lines • use phase shifters, new switching stations • Increase conductor capacity • Use new high capacity conductor technology on critical lines • Over-frequency generation shedding scheme (over 800 MW) • Saskatchewan Tie enhancements • Sask Tie can modulate voltages, RAS to increase exports to Saskatchewan on a BC Tie trip, increase imports for southern Alberta undervoltage concerns

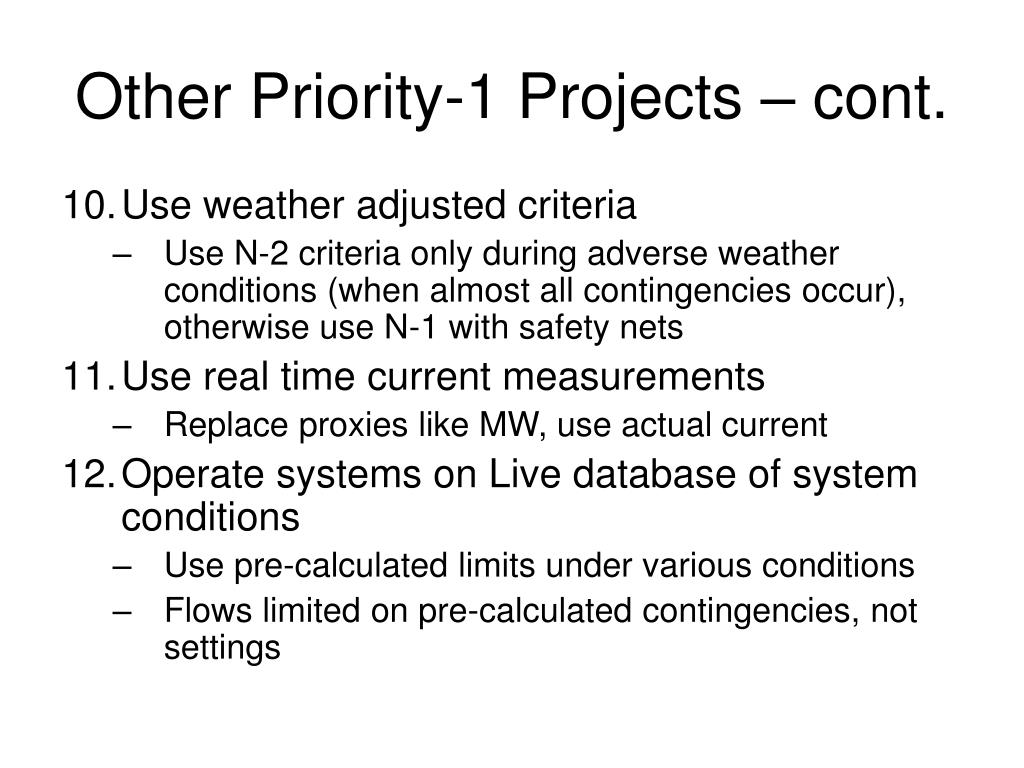

  12. Other Priority-1 Projects – cont. • Use weather adjusted criteria • Use N-2 criteria only during adverse weather conditions (when almost all contingencies occur), otherwise use N-1 with safety nets • Use real time current measurements • Replace proxies like MW, use actual current • Operate systems on Live database of system conditions • Use pre-calculated limits under various conditions • Flows limited on pre-calculated contingencies, not settings

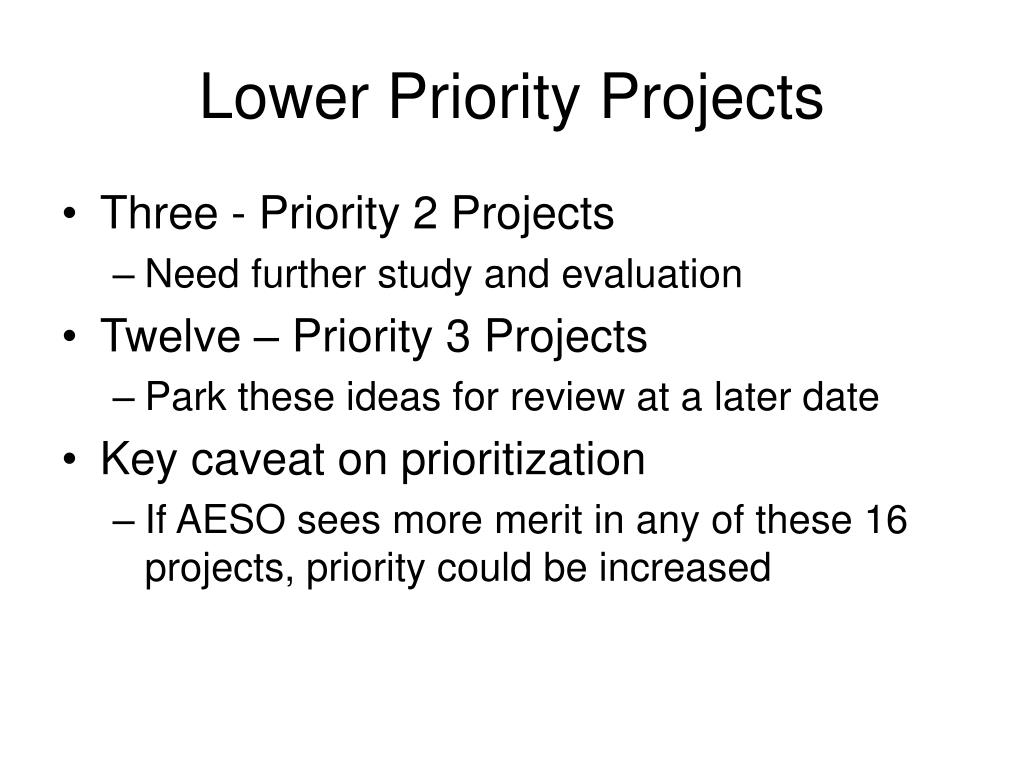

  13. Lower Priority Projects • Three - Priority 2 Projects • Need further study and evaluation • Twelve – Priority 3 Projects • Park these ideas for review at a later date • Key caveat on prioritization • If AESO sees more merit in any of these 16 projects, priority could be increased

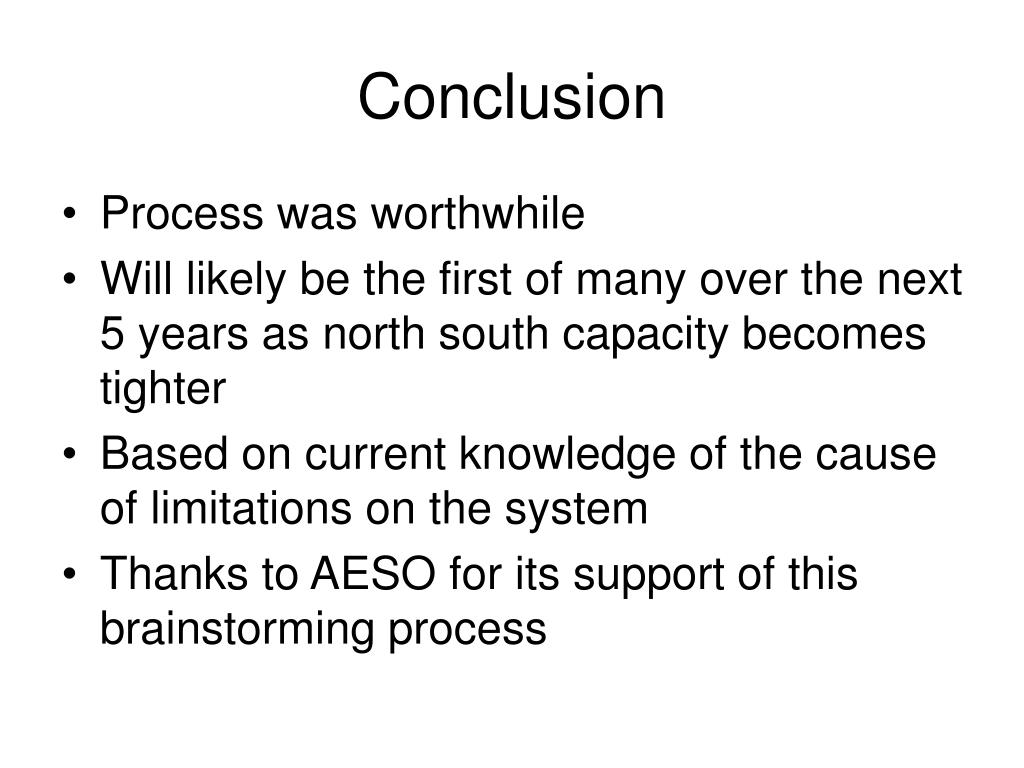

  14. Conclusion • Process was worthwhile • Will likely be the first of many over the next 5 years as north south capacity becomes tighter • Based on current knowledge of the cause of limitations on the system • Thanks to AESO for its support of this brainstorming process
