Cms zero degree calorimeters l.jpg

CMS Zero Degree Calorimeters

Laura Stiles

University of Kansas

23 August 2008


Experiment introduction cms experiment at the lhc l.jpg
Experiment IntroductionCMS Experiment at the LHC

The Compact Muon Solenoid (CMS) Experiment is one of the 4 large experiments of the Large Hadron Collider (LHC) at CERN


Experiment introduction cms coverage l.jpg
Experiment IntroductionCMS Coverage

  • Nearly complete angular coverage allows study of wide range of forward physics

  • TOTEM will measure total cross section + multiplicity detectors in front of ZDC


Experiment introduction cms zero degree calorimeter zdc l.jpg

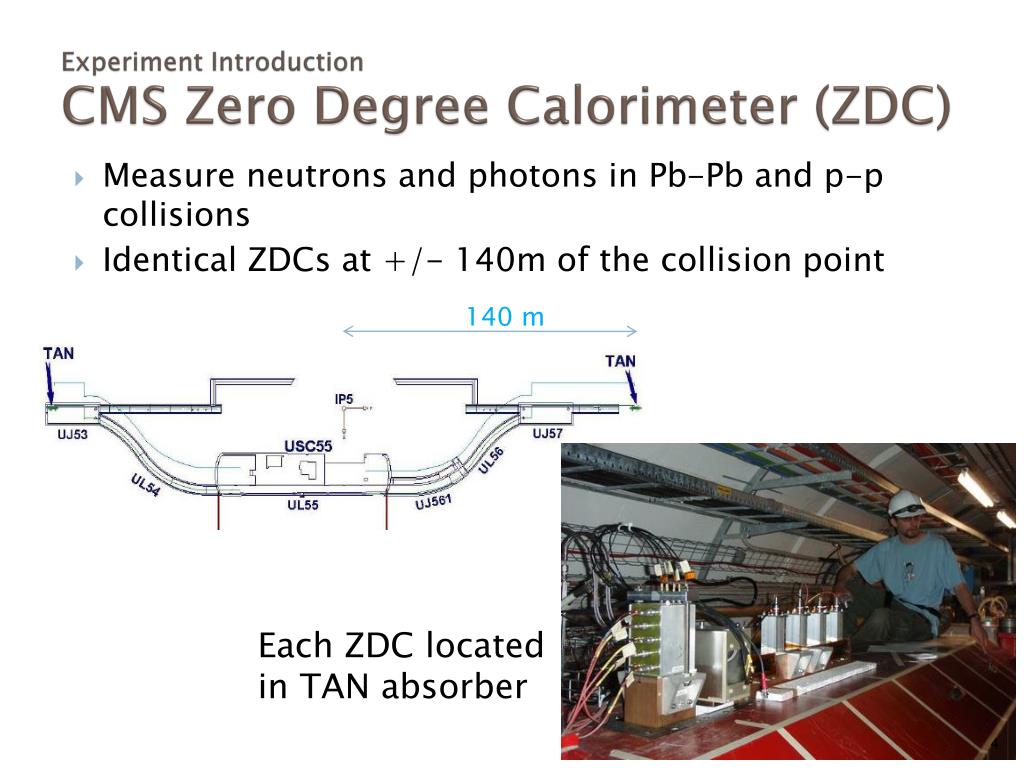

Experiment IntroductionCMS Zero Degree Calorimeter (ZDC)

  • Measure neutrons and photons in Pb-Pb and p-p collisions

  • Identical ZDCs at +/- 140m of the collision point

140 m

Each ZDC located in TAN absorber


Zdc design l.jpg

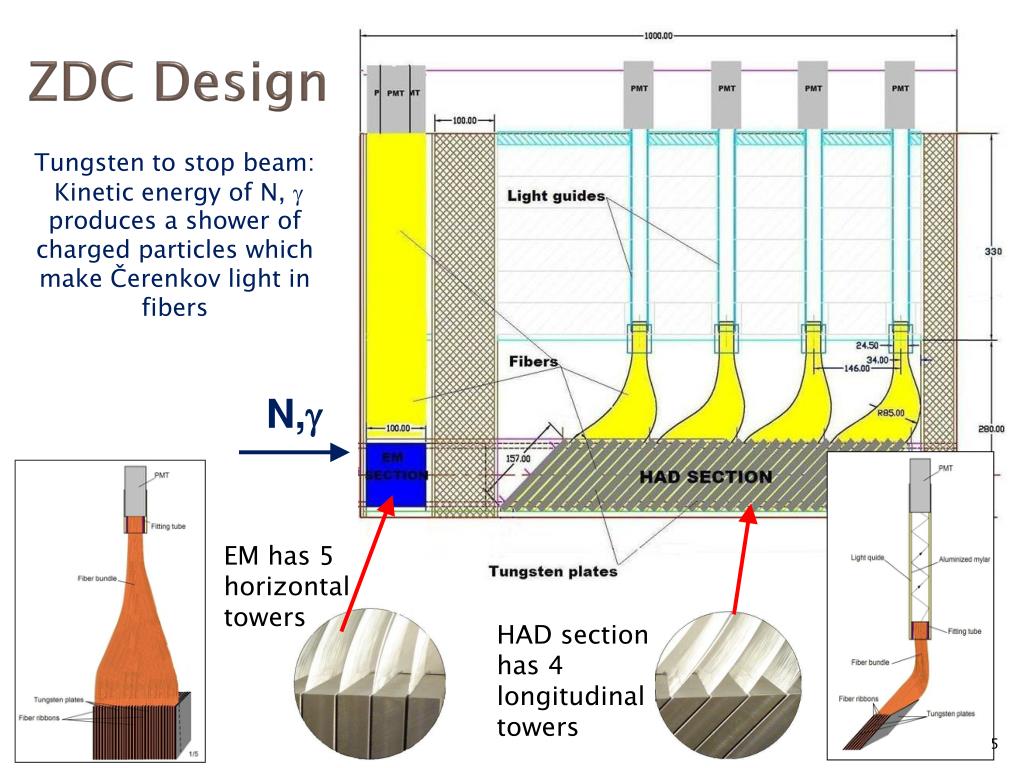

ZDC Design

Tungsten to stop beam:

Kinetic energy of N,  produces a shower of charged particles which make Čerenkovlight in fibers

N,

EM has 5 horizontal towers

HAD section has 4 longitudinal towers


Physics zdc physics goals l.jpg
PhysicsZDC Physics Goals

Measuring Reaction Centrality

  • ZDC measures spectator neutrons of

    Heavy Ions

Heavy Ion Data from RHIC


Physics zdc physics goals7 l.jpg
PhysicsZDC Physics Goals

Triggering on Ultra-peripheral Collisions (UPC)

  • UPCs are electromagnetic collisions of the heavy-ions when passing ~20 fm away from each other

When V = ~C , flux lines collapse traverse to motion

  • Interesting photon-nucleus and photon-photon studies accessible

At 90o field is 2750 times stronger

(two Pb ions passing at 20 fm → 2 x 10^20 gauss)


Physics zdc physics goals8 l.jpg
PhysicsZDC Physics Goals

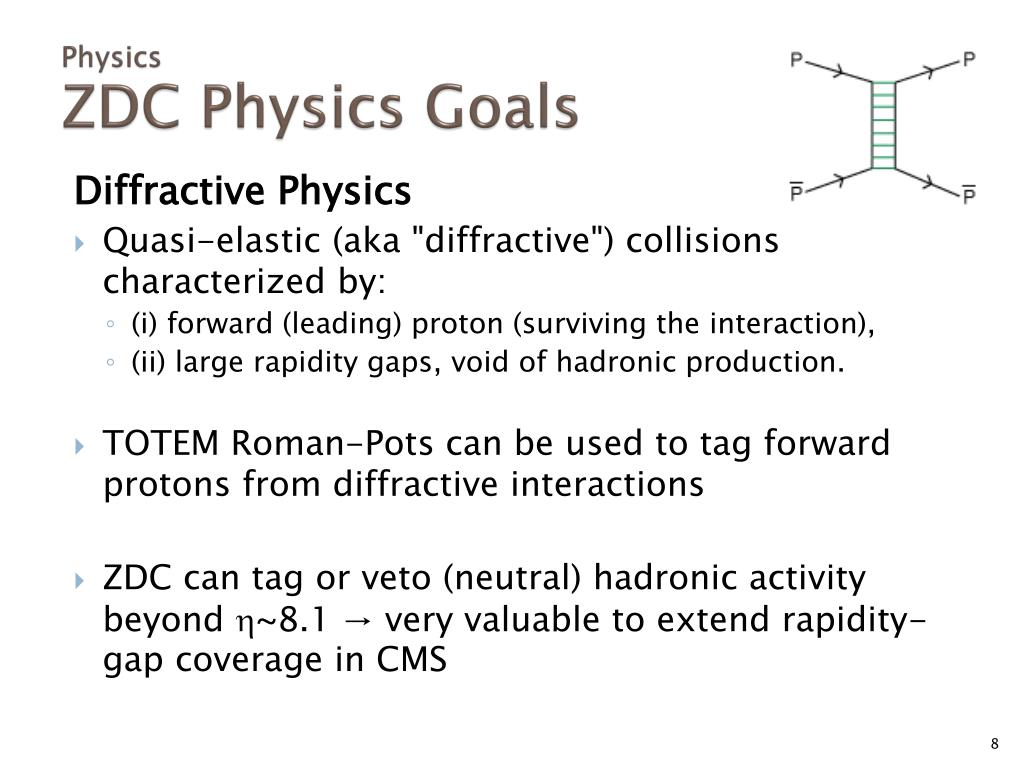

Diffractive Physics

  • Quasi-elastic (aka "diffractive") collisions characterized by:

    • (i) forward (leading) proton (surviving the interaction),

    • (ii) large rapidity gaps, void of hadronic production.

  • TOTEM Roman-Pots can be used to tag forward protons from diffractive interactions

  • ZDC can tag or veto (neutral) hadronic activity beyond ~8.1 → very valuable to extend rapidity-gap coverage in CMS


Testing zdc beam tests l.jpg
TestingZDC Beam Tests

  • No injection at LHC → no data except 2006 and 2007 beam tests

Hadronic Section

EM Section


Response to positrons l.jpg

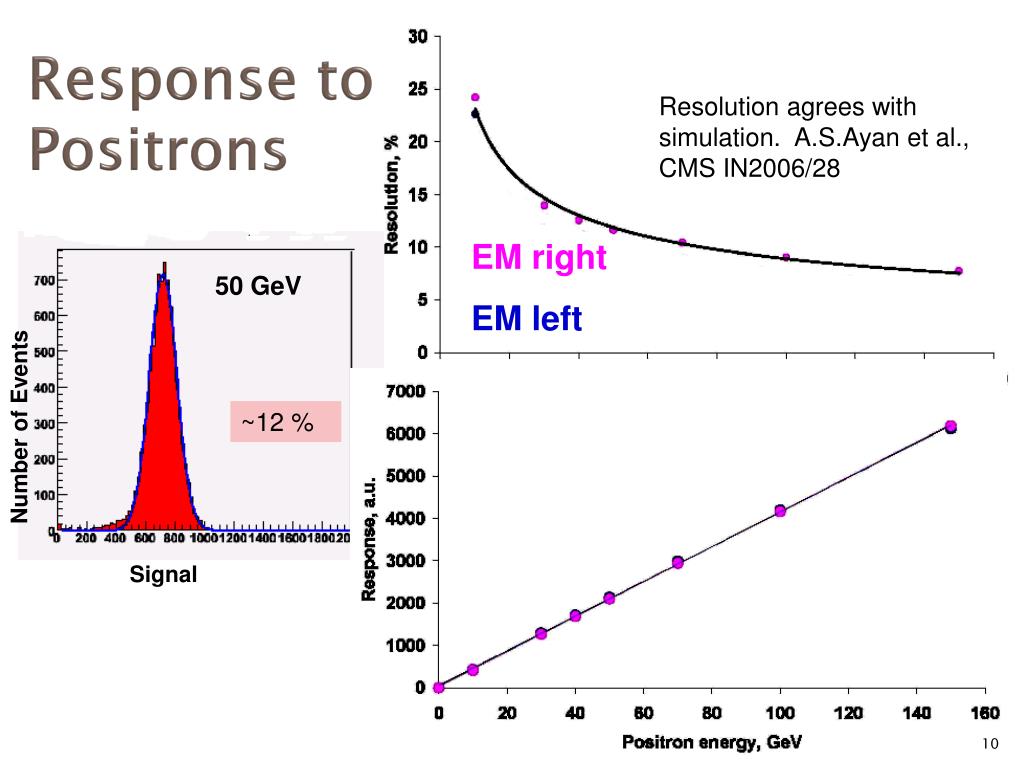

Response to Positrons

Resolution agrees with simulation. A.S.Ayan et al., CMS IN2006/28

EM right

EM left

50 GeV

Number of Events

~12 %

EM2

Signal


Response to hadrons l.jpg

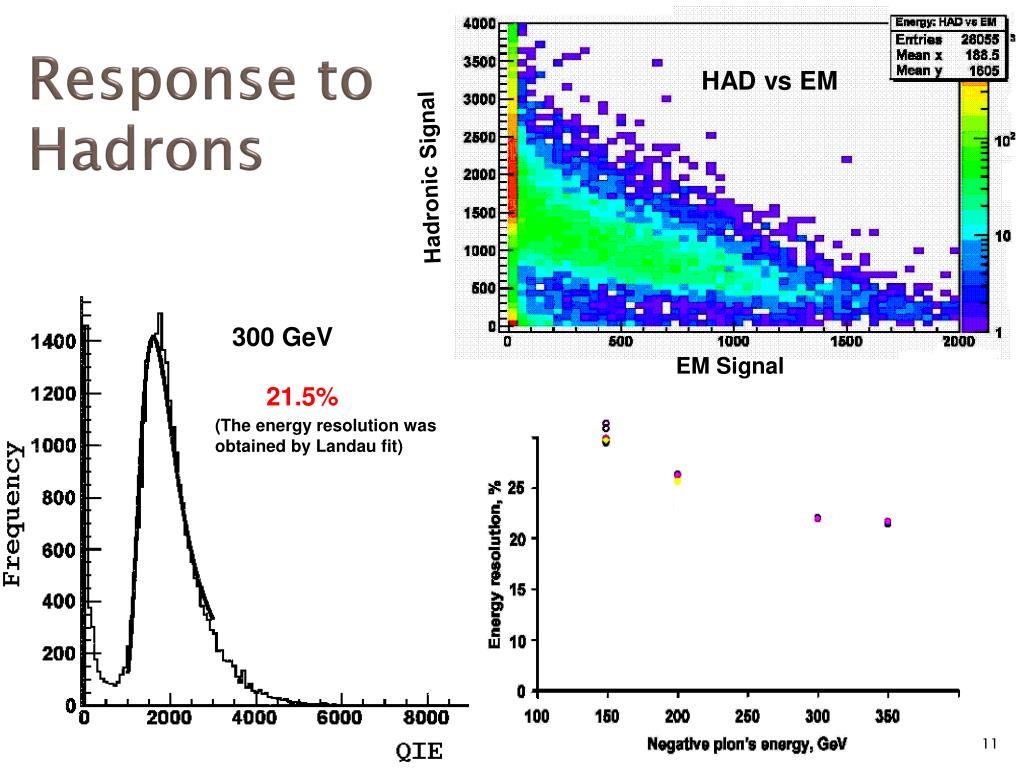

Response to Hadrons

HAD vs EM

Hadronic Signal

300 GeV

EM Signal

21.5%

(The energy resolution was obtained by Landau fit)


Current status zdc installation and testing l.jpg
Current StatusZDC Installation and Testing

  • Right and Left ZDC installed in TAN

  • Laser injection system used to debug electronics chain

  • Currently, we are working on integrating the ZDC into the CMS system

  • Injection of CCW beam September 10th

    • ZDC should see photons from beam gas collision


Current status zdc beam tuning l.jpg
Current StatusZDC Beam Tuning

  • Luminosity Monitoring

    • Van der Meer Scans to obtain relative luminosity measurements

    • ZDC information will be used with other LHC detectors

This was used at RHIC to get measurement to 5%. CMS will use the forward calorimeter, ZDC and other detectors to make a 2% measurement.


Summary l.jpg
Summary

  • ZDCs help meet very important CMS goals:

    • Luminosity (p-p, Pb-Pb),

    • Heavy-ions physics (centrality, triggering: UPC, ...),

    • Diffractive/forward physics (extended rapidity-gap, ...)

  • Beam tests showed acceptable performance

  • ZDCs are installed, debugged and being integrated to CMS

  • Next step will be LHC beam tuning with aid from ZDC

  • One proton beam will be circulating September 10th



Zdc acceptance l.jpg
ZDC Acceptance

  • CMS ZDCs are located 10x further from interaction point than RHIC ZDCs, but beam is 30x more energetic at LHC

  • CMS ZDC has 9x greater acceptance (3x in Px and 3x in Py)

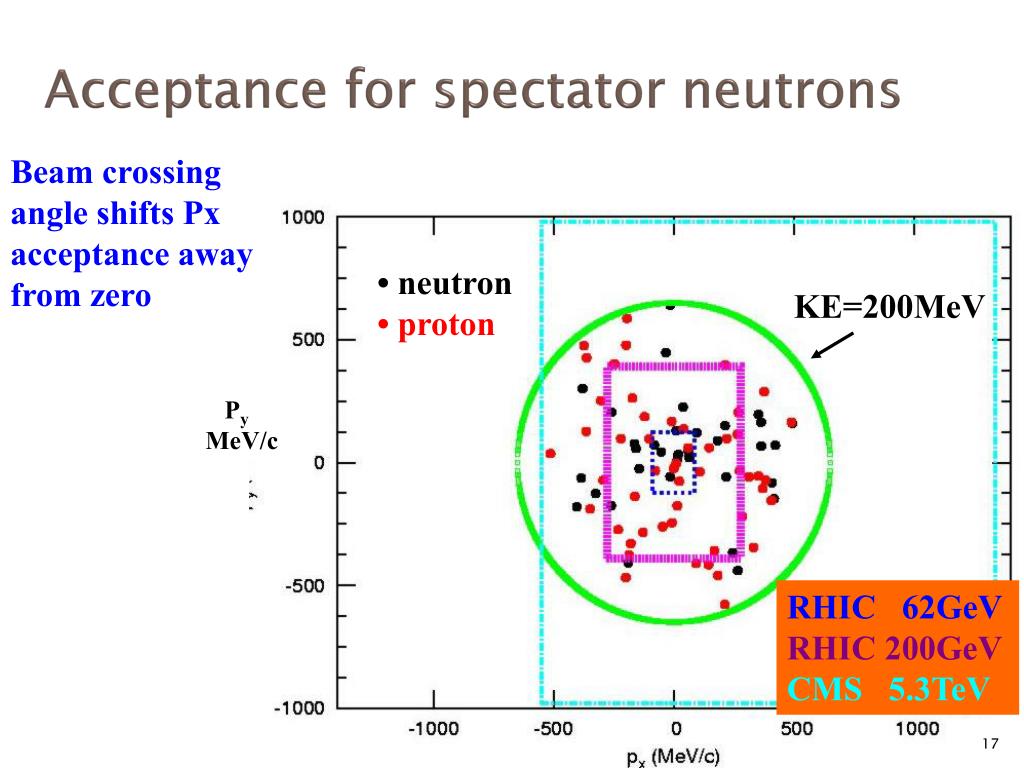

Acceptance for spectator neutrons l.jpg
Acceptance for spectator neutrons

Beam crossing angle shifts Px acceptance away from zero

• neutron

• proton

KE=200MeV

Py

MeV/c

RHIC 62GeV

RHIC 200GeV

CMS 5.3TeV


Slide18 l.jpg

Current StatusZDC Beam Tuning

EM section is sensitive to p-p bremsstrahlung with Ephoton>20GeV

X

Luminosity is proportional to rate of coincidence

Crossing angle tan()=(Xleft -Xright)/240m

Average X = Xleft +Xright

Z of interaction = c* (Tleft -Tright)

For pHe √S = 100GeV so ZDCs should see something
