  1. Overview of CrayPat and Apprentice2 Adam Leko UPC Group HCS Research Laboratory University of Florida Color encoding key: Blue: Information Red: Negative note Green: Positive note

  2. Basic Information • Name: CrayPat, Apprentice2 • Developer: Cray • Current Version: • CrayPat v24.107 • Apprentice2 v2.0 • (not available separately) • Languages: Fortran, C, C++ • Website: Documentation available at • http://www.cray.com/cgi-bin/swpubs/craydoc30/craydoc.cgi • Contact: • Luiz DeRose (ldr@cray.com)

  3. CrayPat and Apprentice2 Overview • CrayPat • Cray’s toolkit for instrumenting executables and producing data from runs • Uses static binary instrumentation • Supports tracing, profiling, and sampling • Outputs data in binary format which can be converted to • XML format (for Apprentice2) • Text format (report that contains statistical information) • Apprentice2 • Visualization tool for CrayPat data files • Can read in .xml or .xml.gz files (gzipped XML reports converted from binary output of CrayPat) • Several visualizations available

  4. CrayPat Overview • Command-line based performance optimization tools • In CrayPat, you perform experiments on instrumented executables • Several types of experiments available • Tracing: Record timestamps and arguments for all instrumented functions • Sampling: Samples hardware counters or callstack at fixed intervals • Profiling: Performs a specific sampling experiment where user + system time are sampled for all functions in a program • Type of experiment guided by setting environment variables • However, can only perform tracing experiments on executables instrumented for tracing • But, can perform sample-type experiments on executables instrumented for tracing • General workflow • 1. Compile application and run as normal • 2. Instrument using pat_build • 3. Run instrumented executable as normal; binary .xf log file will be produced • 4. View report using pat_report • Can also use pat_run to combine steps 3 & 4, or pat_hwpc on uninstrumented exectuables to get hardware counter reports • CrayPat supports many languages + extensions • C, C++, Fortran, UPC, MPI, CoArray Fortran, OpenMP, SHMEM

  5. CrayPat Instrumentation • Instrumentation is very simple! • Build application as normal (not even debugging symbols needed), keeping the .o files • Eg: • UPC: cc -hupc -hkeepfiles *.upc -o exe • C/C++/MPI C: cc -hkeepfiles *.c -o exe • Fortran: ftn -hkeepfiles *.f77 -o exe • Can also use -c flag with compilers and link in separate stage as normal • Use pat_build to build instrumented executable • For profiling or sampling: pat_build exe inst.exe • For tracing: • UPC: pat_build -g upc exe inst.exe • MPI: pat_build -g mpi exe inst.exe • Several other things can be traced with -g flag (CoArray Fortran, heap calls, I/O system calls • Passing the -u flag also traces all (non-inlined) user function calls • Then run program as normal as shown earlier • Use of binary instrumentation means low overhead and no interference with compiler optimizations • X1 and X1E are extremely dependent on compiler optimizations (loop vectorization especially), so this is an absolute necessity for CrayPat • In our informal tests, sampling instrumentation resulted in negligible overhead (< 2-3 %) • Also, .xf logfiles from runs seem very compact

  6. Sample pat_report Output Table 1: -d time%,cum_time%,time,traces,P,E,M -b exp,pe,thread,ssp,function,ca Time% | Cum.Time% | Time | Traces |Experiment=1 |PE=0 |Thread=0 |SSP=0 |Function |Caller 100.0% | 100.0% | 33.364290 | 72 |Total |------------------------------------------------------- | 100.0% | 100.0% | 33.359228 | 1 |main | | | | | (N/A) | 0.0% | 100.0% | 0.003155 | 45 |timer_now$$CFE_id_hex2UINT ||------------------------------------------------------ || 0.0% | 100.0% | 0.001608 | 21 | timer_elapsed$$CFE_id_hex2UINT || | | | | main || 0.0% | 100.0% | 0.001547 | 24 |main ||====================================================== | 0.0% | 100.0% | 0.001443 | 2 |ioctl | | | | | printf | | | | | main | 0.0% | 100.0% | 0.000395 | 21 |timer_elapsed$$CFE_id_hex2UINT | | | | | main | 0.0% | 100.0% | 0.000026 | 1 |extendDC | | | | | main | 0.0% | 100.0% | 0.000025 | 1 |_exit | | | | | sigtramp | | | | | main | 0.0% | 100.0% | 0.000018 | 1 |hex2UINT | | | | | main |======================================================= • By default, pat_report lists profile-type information • Can also produce a listing of events with -c records option, but not very useful • Although necessary for exporting traces to Apprentice2 • Lots of different summary information can be displayed using pat_report • Output very customizable • Can change text format, how stats are computed, which data is displayed, … • Like prof on steroids

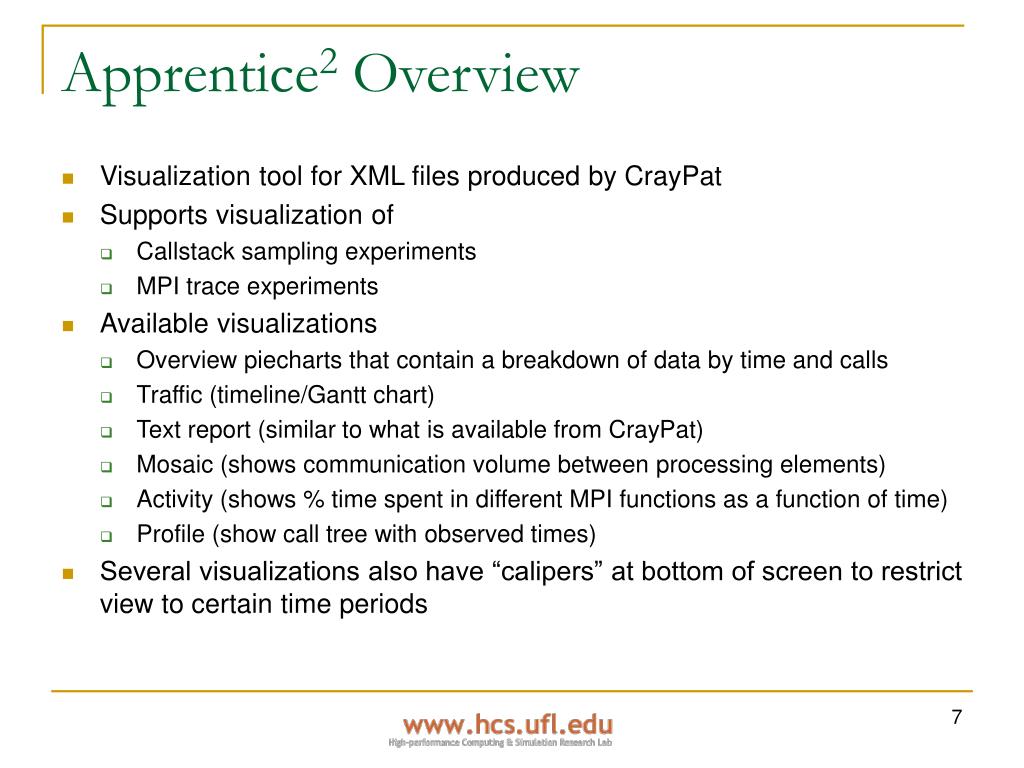

  7. Apprentice2 Overview • Visualization tool for XML files produced by CrayPat • Supports visualization of • Callstack sampling experiments • MPI trace experiments • Available visualizations • Overview piecharts that contain a breakdown of data by time and calls • Traffic (timeline/Gantt chart) • Text report (similar to what is available from CrayPat) • Mosaic (shows communication volume between processing elements) • Activity (shows % time spent in different MPI functions as a function of time) • Profile (show call tree with observed times) • Several visualizations also have “calipers” at bottom of screen to restrict view to certain time periods

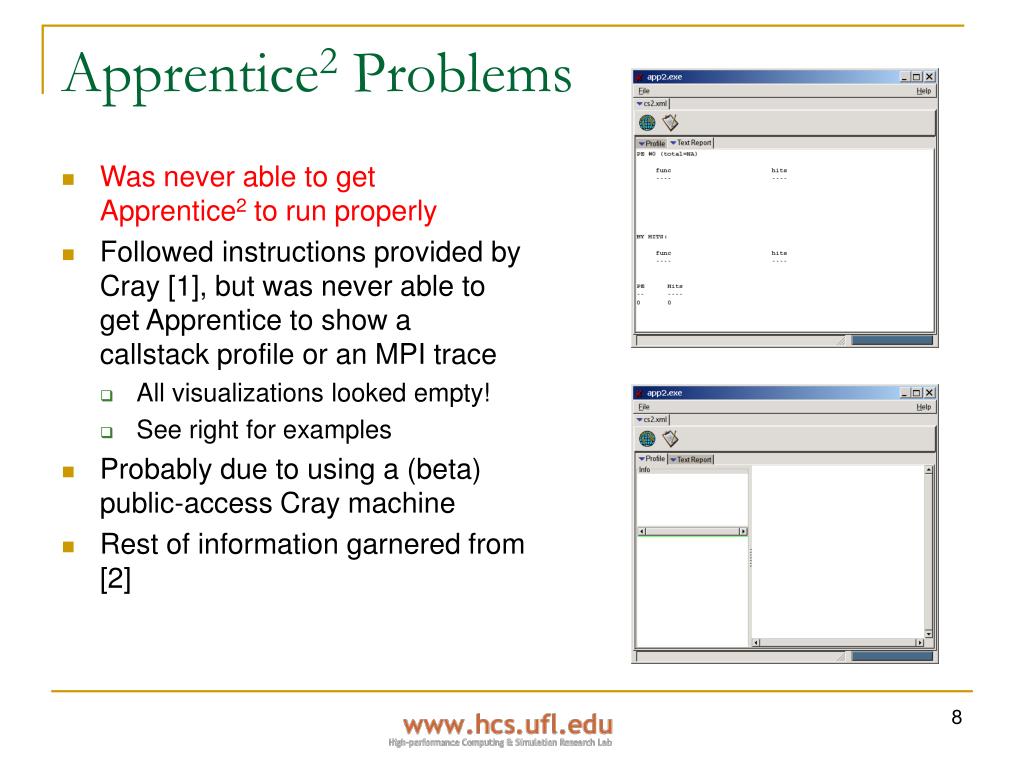

  8. Apprentice2 Problems • Was never able to get Apprentice2 to run properly • Followed instructions provided by Cray [1], but was never able to get Apprentice to show a callstack profile or an MPI trace • All visualizations looked empty! • See right for examples • Probably due to using a (beta) public-access Cray machine • Rest of information garnered from [2]

  9. Apprentice2 Visualizations • Call graph view • Shows summary of sampled call stacks • Similar to display of KCacheGrind • Inclusive/exclusive time annotated by height and width of functions

  10. Apprentice2 Visualizations (2) • Overview display • Overview shows breakdown of execution time by each function in a pie chart • Clicking on each function brings up a tab showing breakdown per node • Clicking on “other” brings up text list of other functions • Can also display pie chart of function times by node

  11. Apprentice2 Visualizations (3) • Timeline view • Shows communication in Gantt chart view • Similar to other trace-based MPI visualization tools

  12. Apprentice2 Visualizations (4) • Mosaic view • Shows pair-wise communication statistics • Can show different stats • Max time • Average time • Min time

  13. Apprentice2 Visualizations (5) • Activity view • Shows percentage of time spent in MPI calls as a function of time • Ex: • Red = barrier • Light green = broadcast • Dark green = send

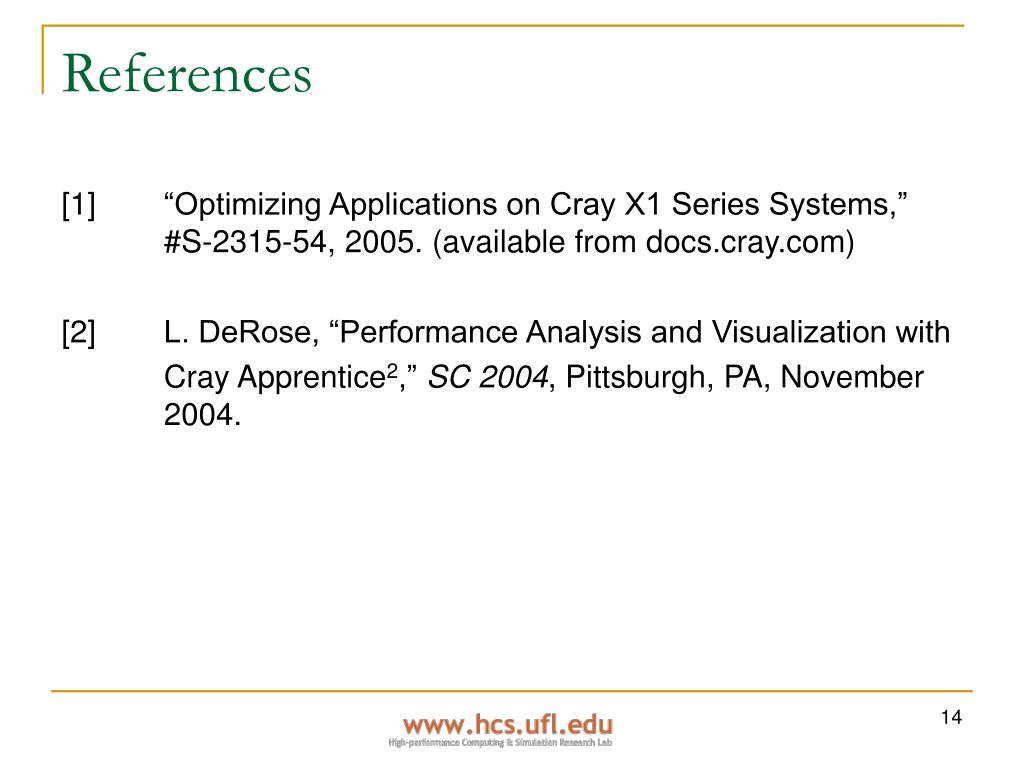

  14. References [1] “Optimizing Applications on Cray X1 Series Systems,” #S-2315-54, 2005. (available from docs.cray.com) [2] L. DeRose, “Performance Analysis and Visualization with Cray Apprentice2,” SC 2004, Pittsburgh, PA, November 2004.
