  1. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Hashimoto Thyroiditis: an UpdateDiagnosis, Pathogenesis, Pitfalls Peter M. Sadow, M.D., Ph.D. ENT, Endocrine, GU Pathology Massachusetts General Hospital Harvard Medical School April 24, 2010

  2. Struma LymphomatosaHistory • 1912 reported 4 cases of goiter • All women • Chronic thyroid disorder • Diffuse lymphocytic infiltration • Fibrosis, parenchymal atrophy Hakaru Hashimoto 1881-1934 Born, Iga-Ueno, Japan Medical School of Kyushu Imperial University

  3. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Hashimoto ThyroiditisHistory • Autoimmune nature of this condition established in 1956, Roitt et al. showed these patients to have antibodies to thyroglobulin • 1957, Trotter et al. identified a second antigen, microsomal fractions, later found to be thyroid peroxidase

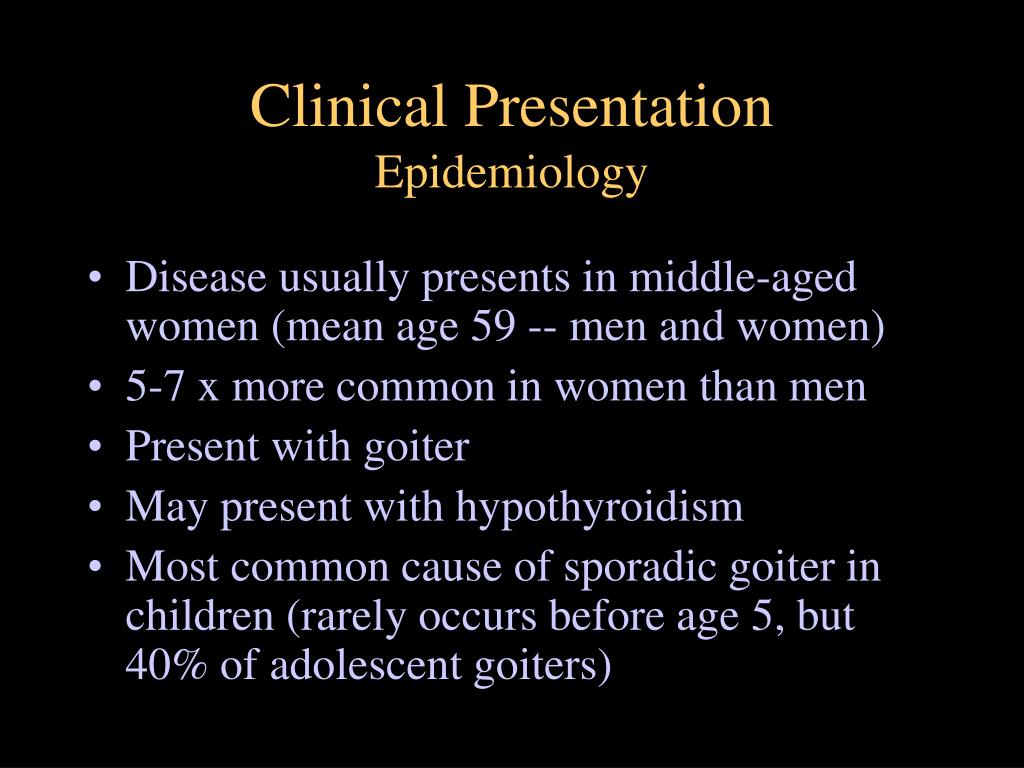

  4. Clinical PresentationEpidemiology • Disease usually presents in middle-aged women (mean age 59 -- men and women) • 5-7 x more common in women than men • Present with goiter • May present with hypothyroidism • Most common cause of sporadic goiter in children (rarely occurs before age 5, but 40% of adolescent goiters)

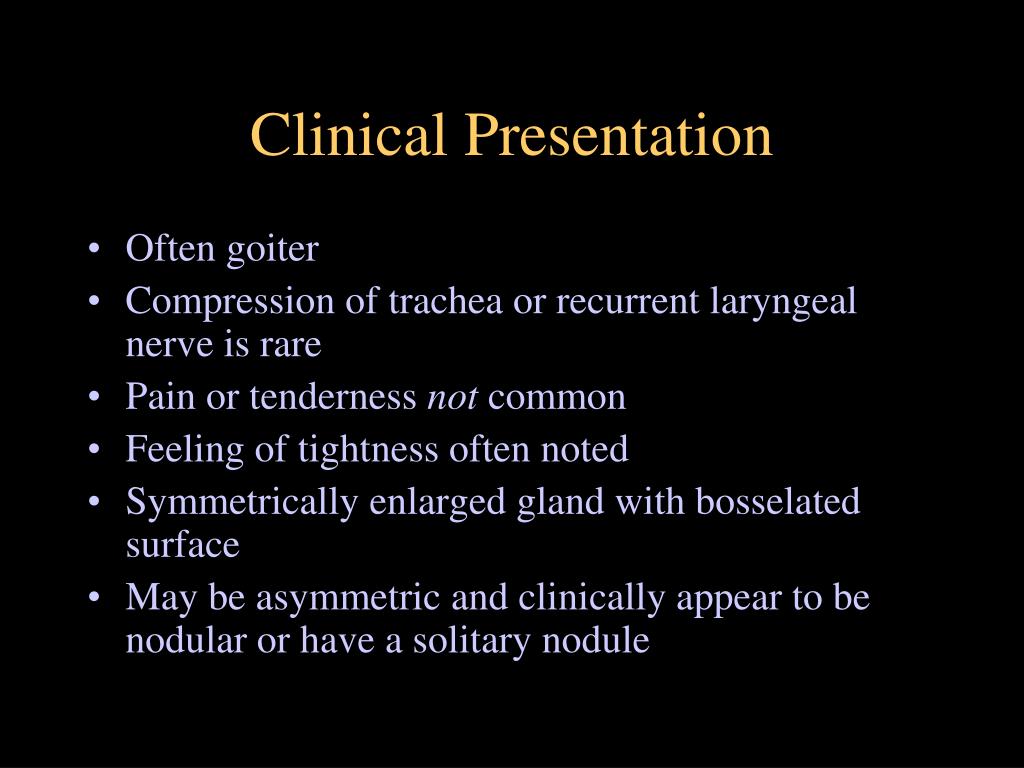

  5. Clinical Presentation • Often goiter • Compression of trachea or recurrent laryngeal nerve is rare • Pain or tenderness not common • Feeling of tightness often noted • Symmetrically enlarged gland with bosselated surface • May be asymmetric and clinically appear to be nodular or have a solitary nodule

  6. Clinical Presentation • Radiology not particularly helpful as adjunct • Uptake (RAI) can be variable and provide misleading results -- normal to elevated • Laboratory evaluation demonstrates antithyroglobulin antibodies (60%) and antithyroid peroxidase antibodies (95%)

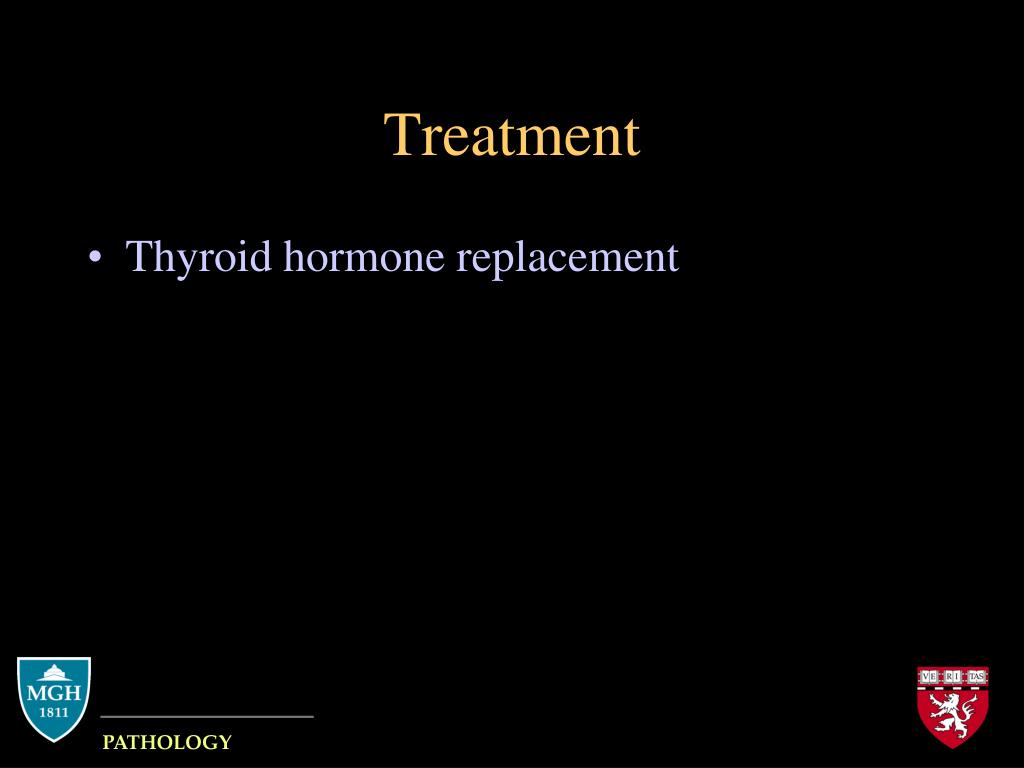

  7. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Treatment • Thyroid hormone replacement

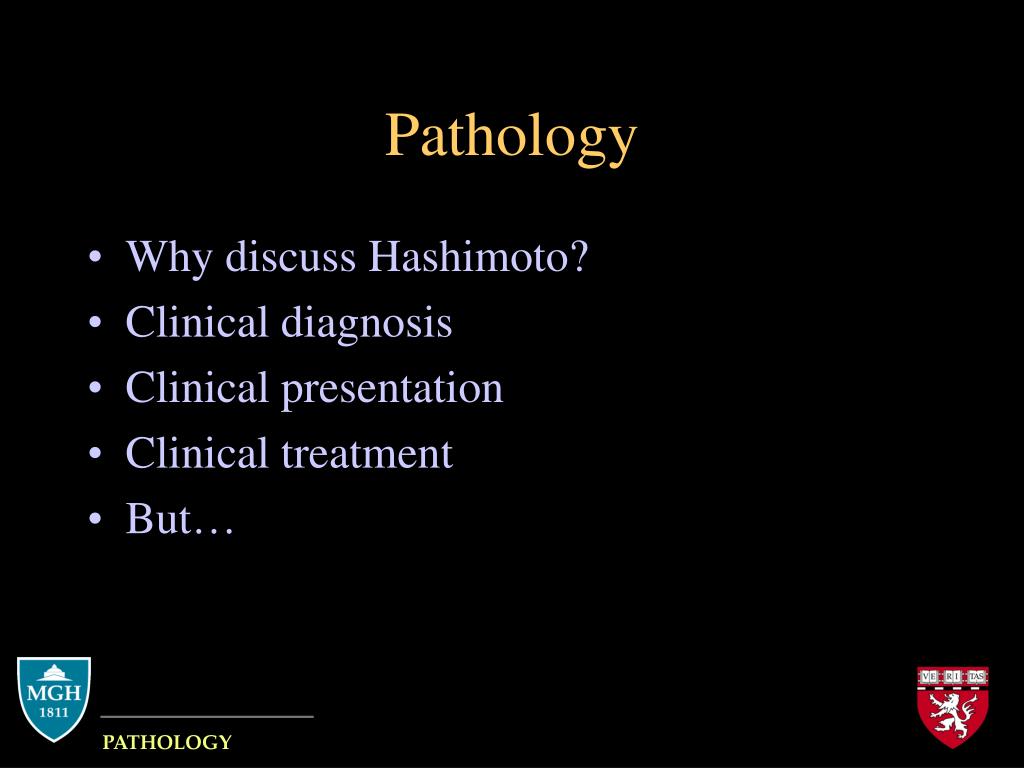

  8. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Pathology • Why discuss Hashimoto? • Clinical diagnosis • Clinical presentation • Clinical treatment • But…

  9. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Physical Exam and Clinical Correlation • As mentioned, can be asymmetry to gland • Possibly palpable, solitary nodule • Radiology may show a dominant nodule • Symptoms of compression may occur • Trachea • Recurrent laryngeal nerve

  10. Tingible Body Macrophages Hürthle Cells Fine Needle Aspiration

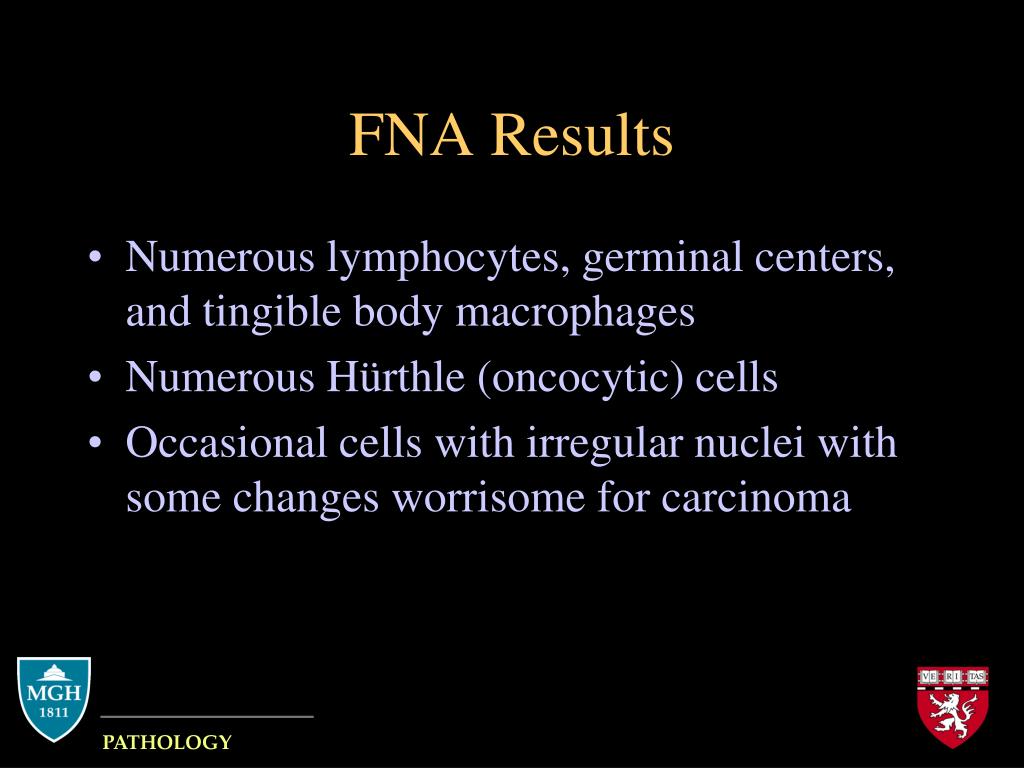

  11. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL FNA Results • Numerous lymphocytes, germinal centers, and tingible body macrophages • Numerous Hürthle (oncocytic) cells • Occasional cells with irregular nuclei with some changes worrisome for carcinoma

  12. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Post-FNA • If germinal centers, Hürthle cells, macrophages, etc, patient diagnosed with Hashimoto thyroiditis (in the appropriate clinical setting) • If no symptoms, patient followed and treated clinically

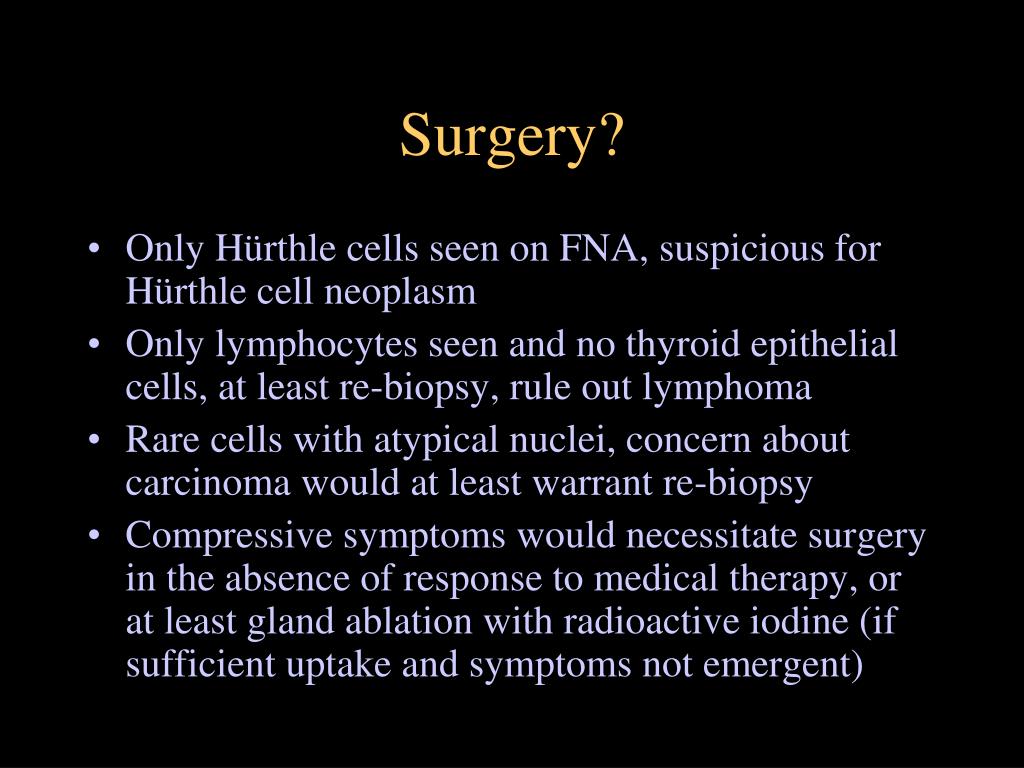

  13. Surgery? • Only Hürthle cells seen on FNA, suspicious for Hürthle cell neoplasm • Only lymphocytes seen and no thyroid epithelial cells, at least re-biopsy, rule out lymphoma • Rare cells with atypical nuclei, concern about carcinoma would at least warrant re-biopsy • Compressive symptoms would necessitate surgery in the absence of response to medical therapy, or at least gland ablation with radioactive iodine (if sufficient uptake and symptoms not emergent)

  14. Goiter in Hashimoto Thyroiditis Kumar et al, Robbins Pathology, 7th edition, 2005

  15. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Histology Hashimoto

  16. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Patterns in Hashimoto

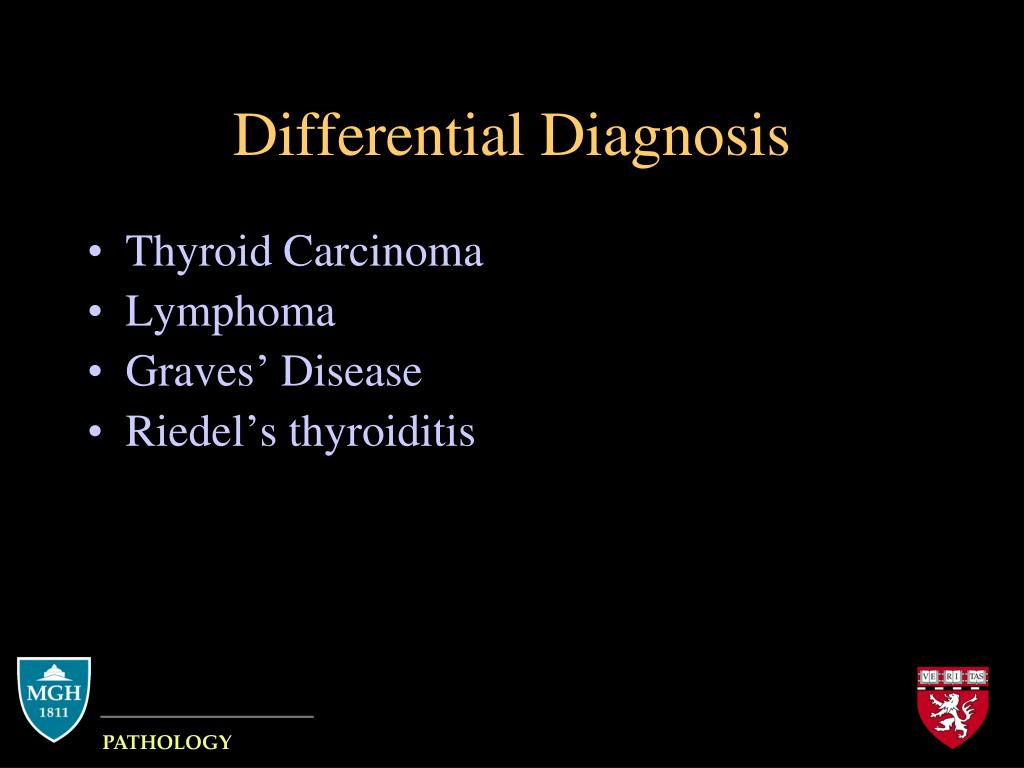

  17. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Differential Diagnosis • Thyroid Carcinoma • Lymphoma • Graves’ Disease • Riedel’s thyroiditis

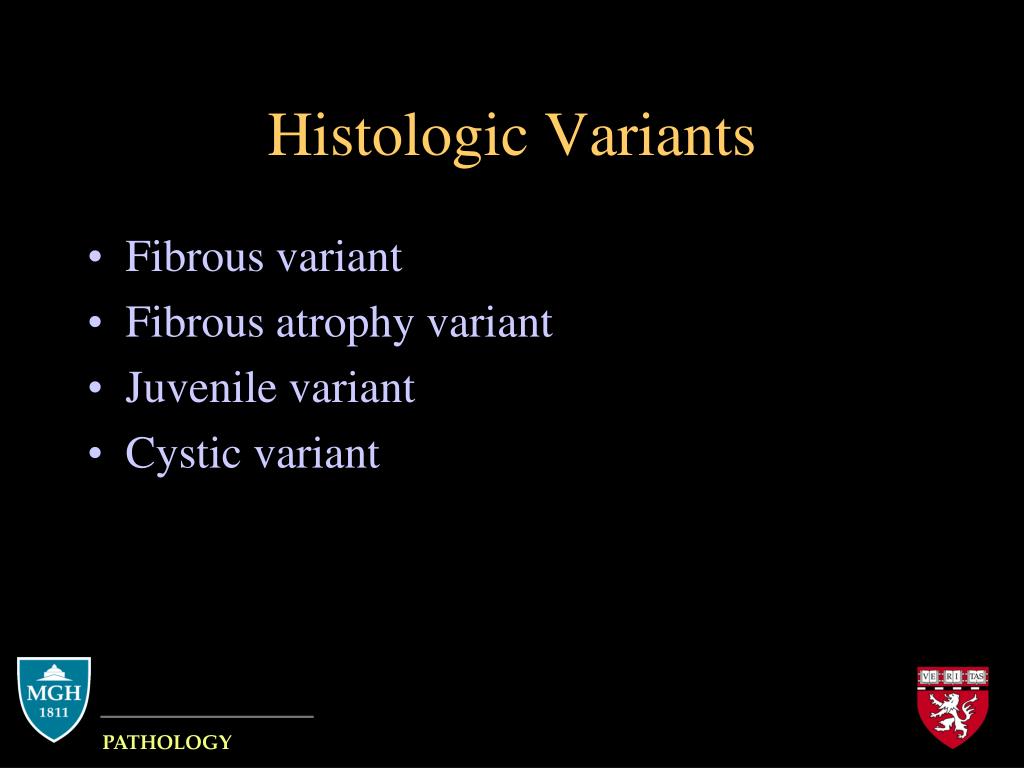

  18. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Histologic Variants • Fibrous variant • Fibrous atrophy variant • Juvenile variant • Cystic variant

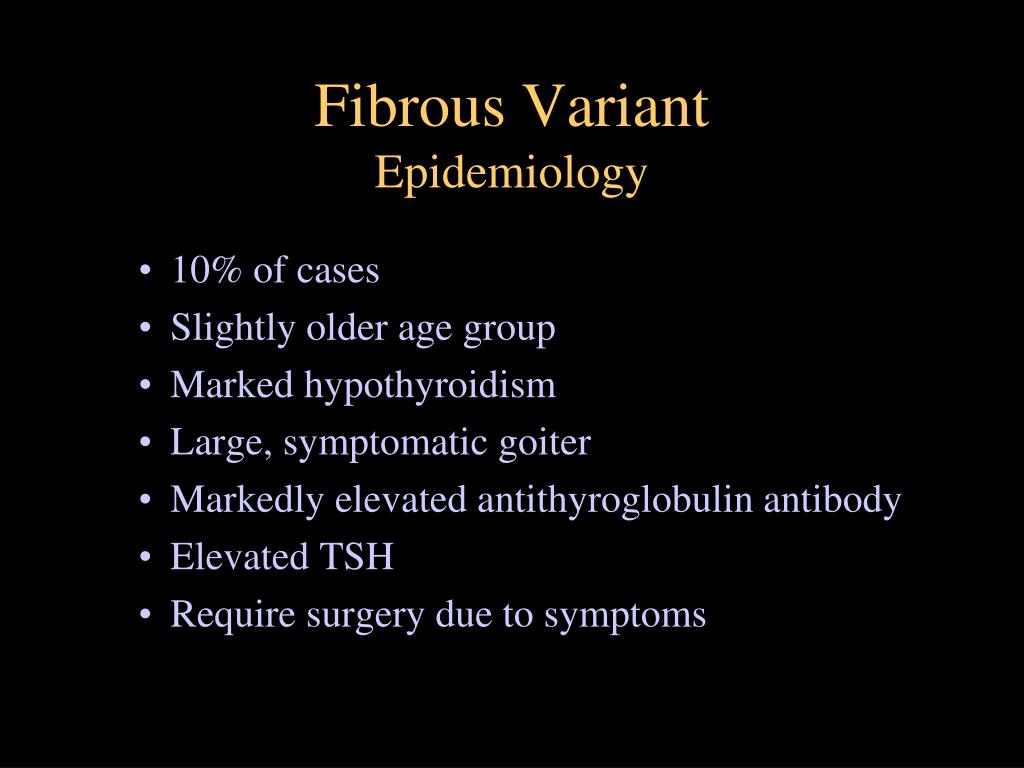

  19. Fibrous VariantEpidemiology • 10% of cases • Slightly older age group • Marked hypothyroidism • Large, symptomatic goiter • Markedly elevated antithyroglobulin antibody • Elevated TSH • Require surgery due to symptoms

  20. Fibrous VariantHistology • Larger gland than classic Hashimoto • Preserved lobulated pattern of thyroid • Atrophic follicular cells with broad bands of fibrosis • Hürthle cells, lymphoplasmacytic infiltrate and germinal centers

  21. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Fibrous Atrophy VariantEpidemiology • +/- history of Hashimoto • Elderly patients • Elevated antithyroid antibodies • Profound hypothyroidism

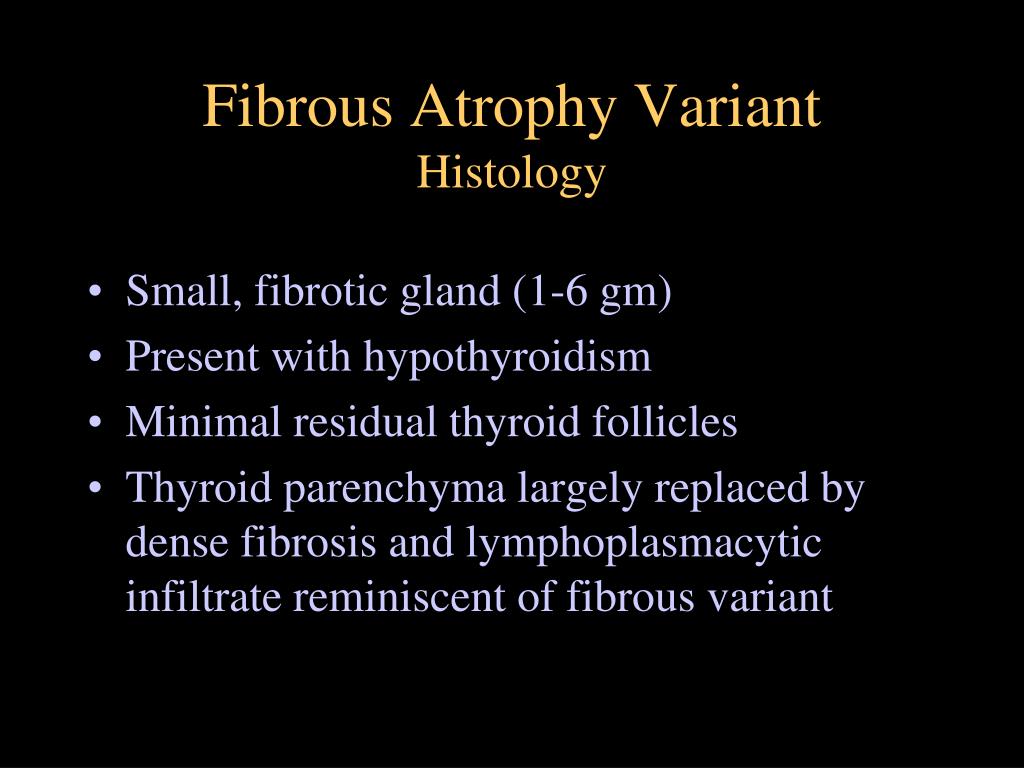

  22. Fibrous Atrophy VariantHistology • Small, fibrotic gland (1-6 gm) • Present with hypothyroidism • Minimal residual thyroid follicles • Thyroid parenchyma largely replaced by dense fibrosis and lymphoplasmacytic infiltrate reminiscent of fibrous variant

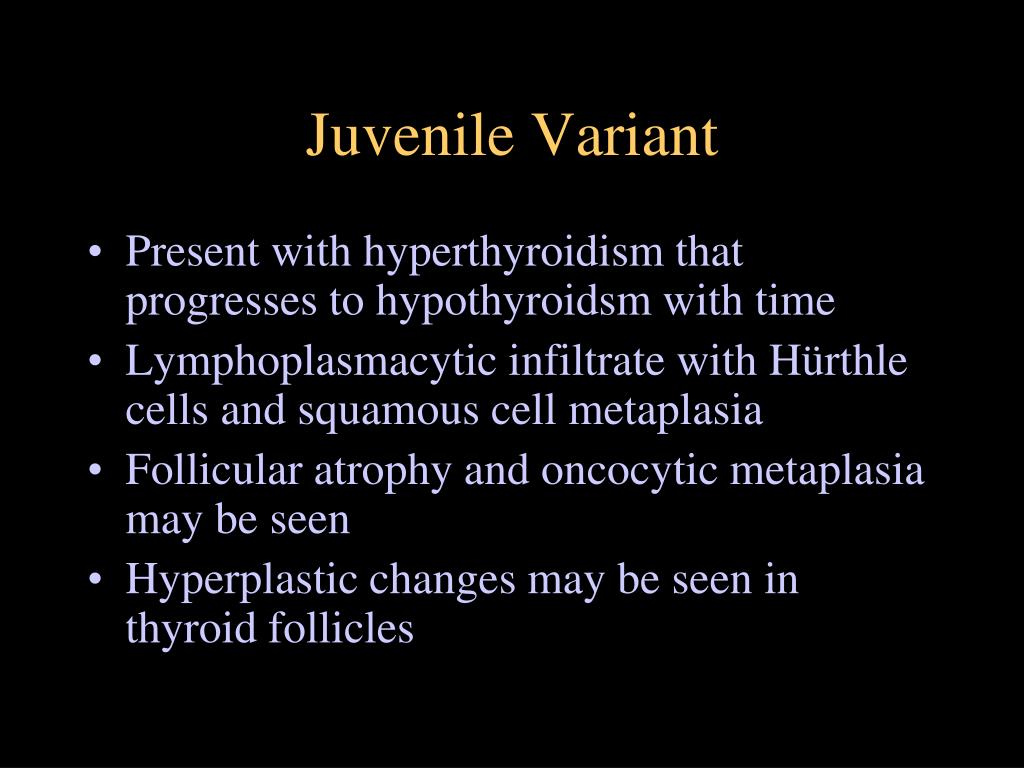

  23. Juvenile Variant • Present with hyperthyroidism that progresses to hypothyroidsm with time • Lymphoplasmacytic infiltrate with Hürthle cells and squamous cell metaplasia • Follicular atrophy and oncocytic metaplasia may be seen • Hyperplastic changes may be seen in thyroid follicles

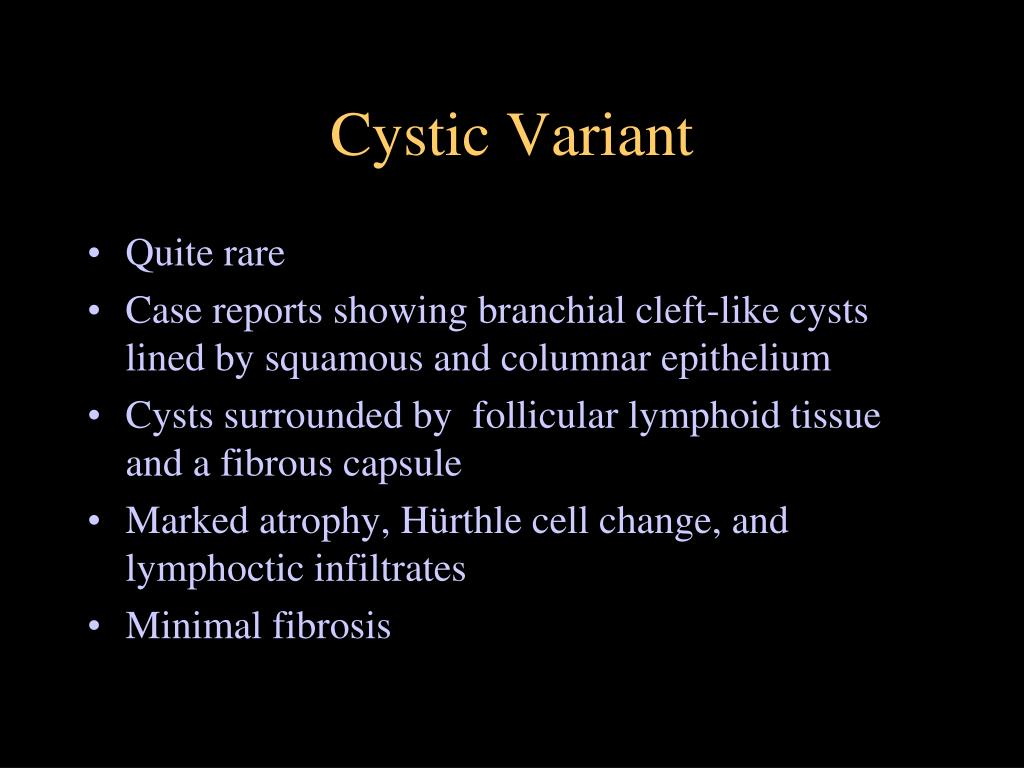

  24. Cystic Variant • Quite rare • Case reports showing branchial cleft-like cysts lined by squamous and columnar epithelium • Cysts surrounded by follicular lymphoid tissue and a fibrous capsule • Marked atrophy, Hürthle cell change, and lymphoctic infiltrates • Minimal fibrosis

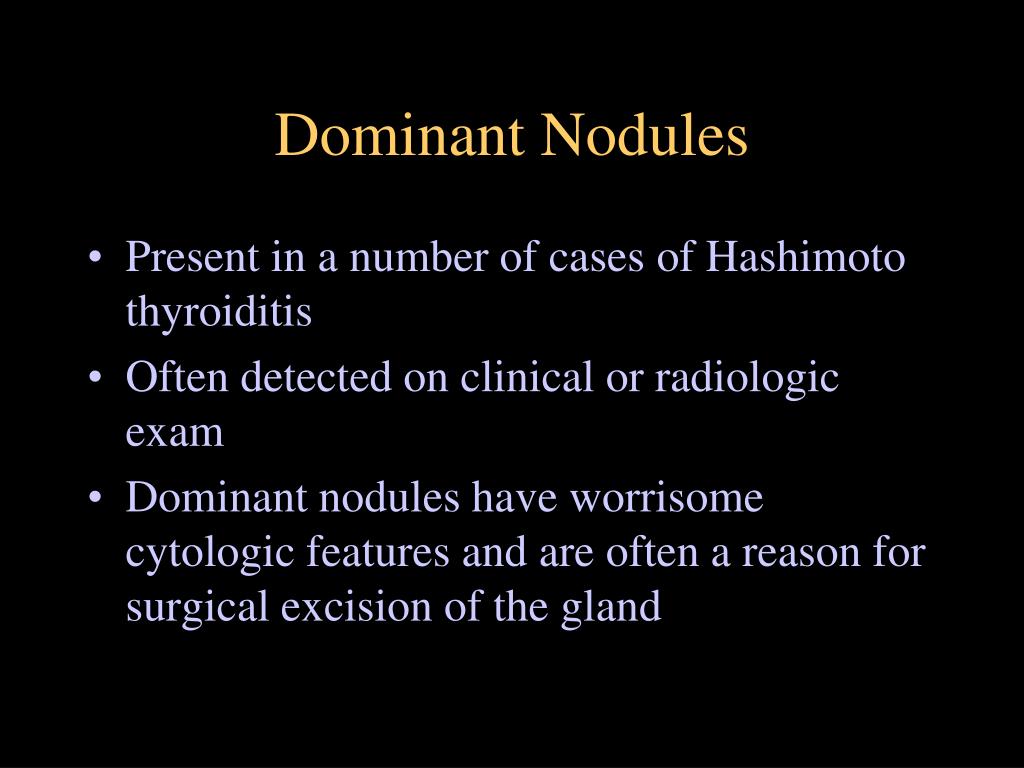

  25. Dominant Nodules • Present in a number of cases of Hashimoto thyroiditis • Often detected on clinical or radiologic exam • Dominant nodules have worrisome cytologic features and are often a reason for surgical excision of the gland

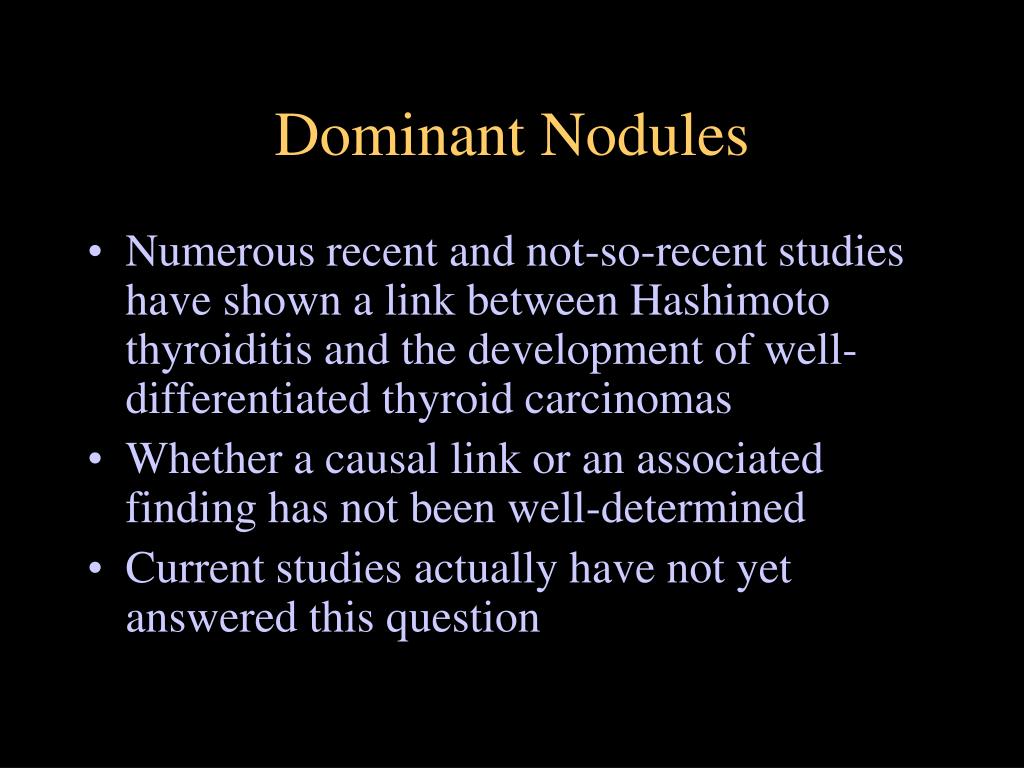

  26. Dominant Nodules • Numerous recent and not-so-recent studies have shown a link between Hashimoto thyroiditis and the development of well-differentiated thyroid carcinomas • Whether a causal link or an associated finding has not been well-determined • Current studies actually have not yet answered this question

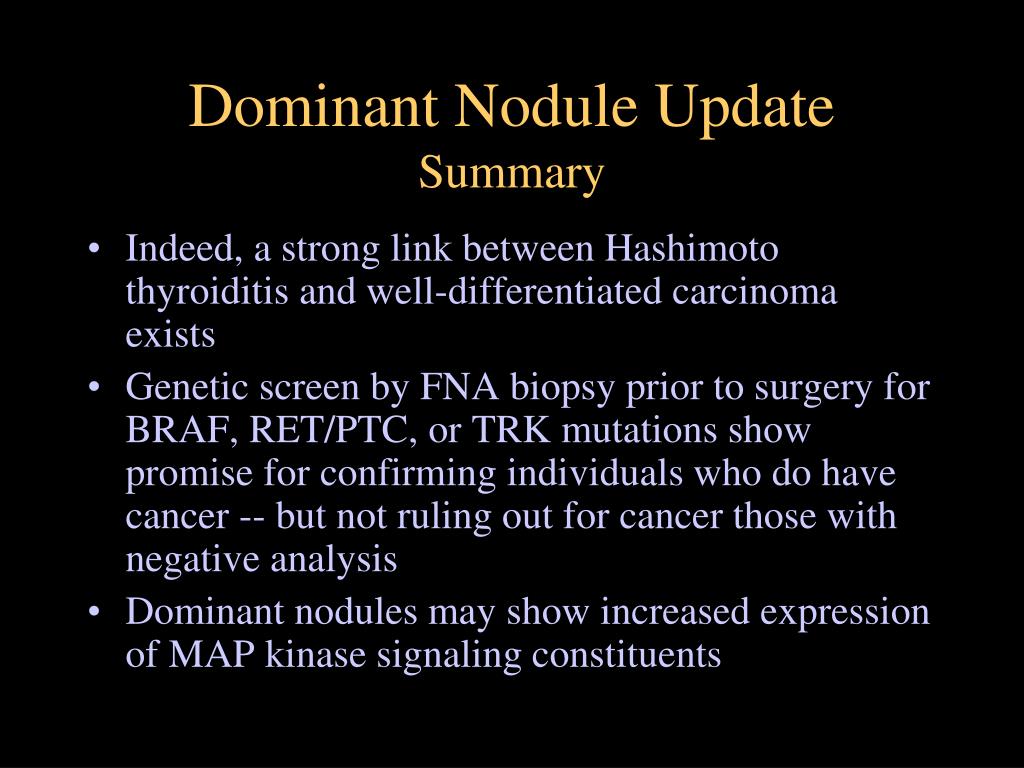

  27. Dominant Nodule UpdateSummary • Indeed, a strong link between Hashimoto thyroiditis and well-differentiated carcinoma exists • Genetic screen by FNA biopsy prior to surgery for BRAF, RET/PTC, or TRK mutations show promise for confirming individuals who do have cancer -- but not ruling out for cancer those with negative analysis • Dominant nodules may show increased expression of MAP kinase signaling constituents

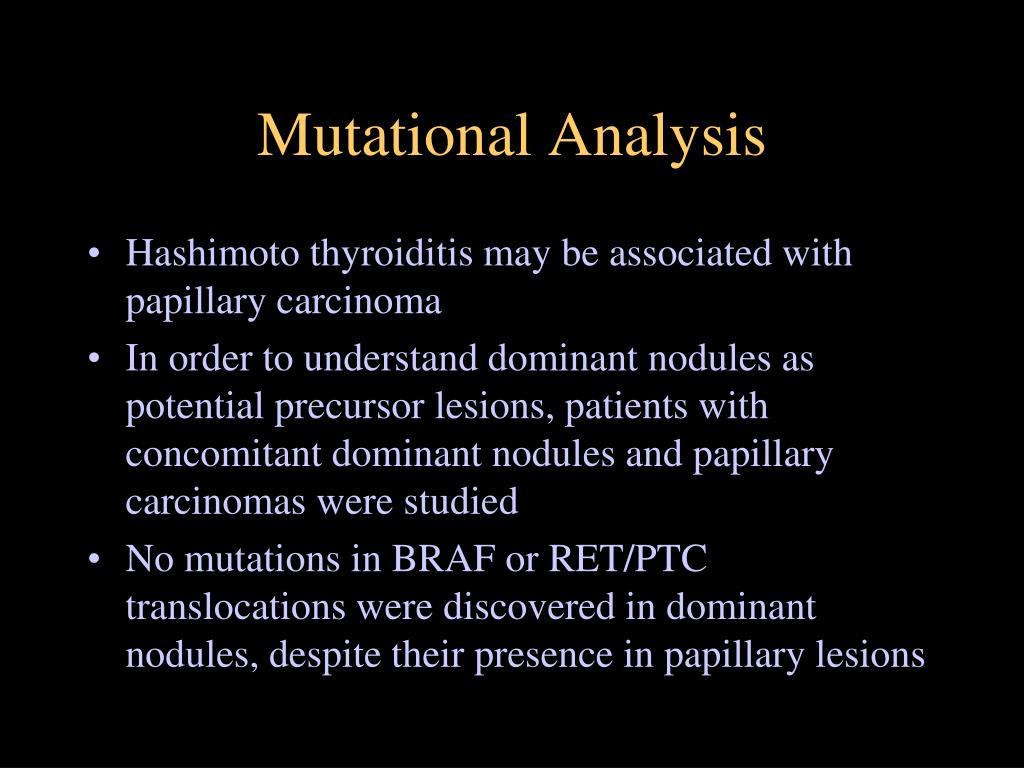

  28. Mutational Analysis • Hashimoto thyroiditis may be associated with papillary carcinoma • In order to understand dominant nodules as potential precursor lesions, patients with concomitant dominant nodules and papillary carcinomas were studied • No mutations in BRAF or RET/PTC translocations were discovered in dominant nodules, despite their presence in papillary lesions

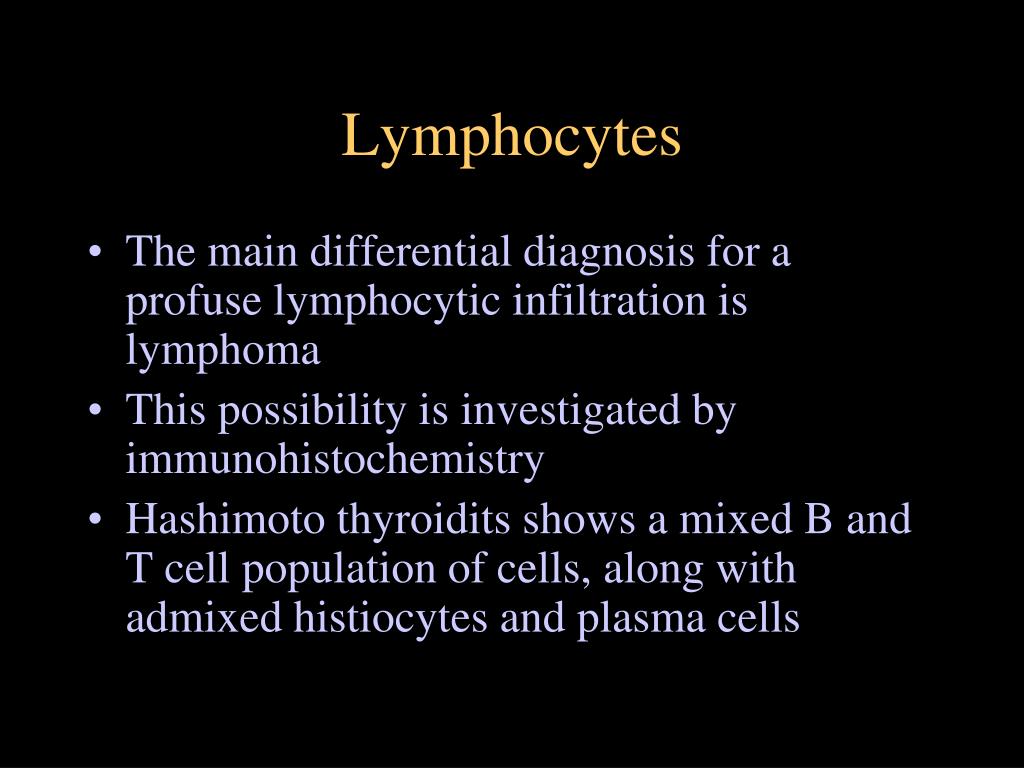

  29. Lymphocytes • The main differential diagnosis for a profuse lymphocytic infiltration is lymphoma • This possibility is investigated by immunohistochemistry • Hashimoto thyroidits shows a mixed B and T cell population of cells, along with admixed histiocytes and plasma cells

  30. Understanding PathogenesisPrevailing Hypotheses • Thyroid epithelial cells present antigens associated with certain HLA types • Recognized by T cells and facilitate a B cell-mediated immunity • Predisposing cause is unclear, whether haptens seen during a bacterial or viral infection, or simply in predisposed individual

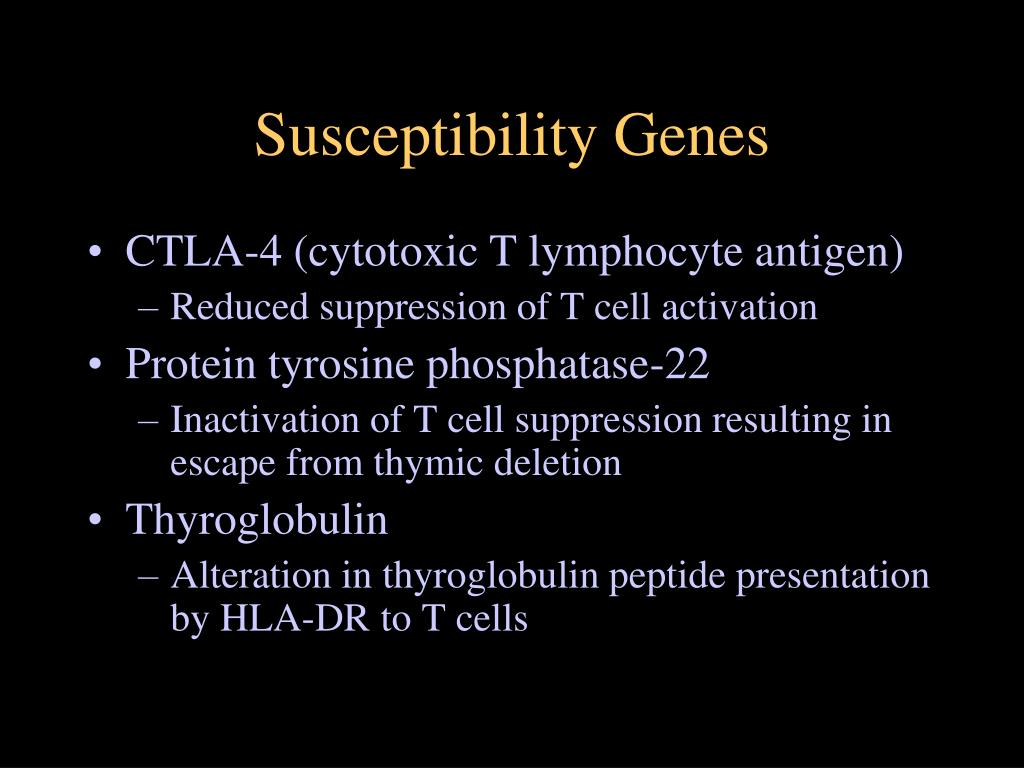

  31. Susceptibility Genes • CTLA-4 (cytotoxic T lymphocyte antigen) • Reduced suppression of T cell activation • Protein tyrosine phosphatase-22 • Inactivation of T cell suppression resulting in escape from thymic deletion • Thyroglobulin • Alteration in thyroglobulin peptide presentation by HLA-DR to T cells

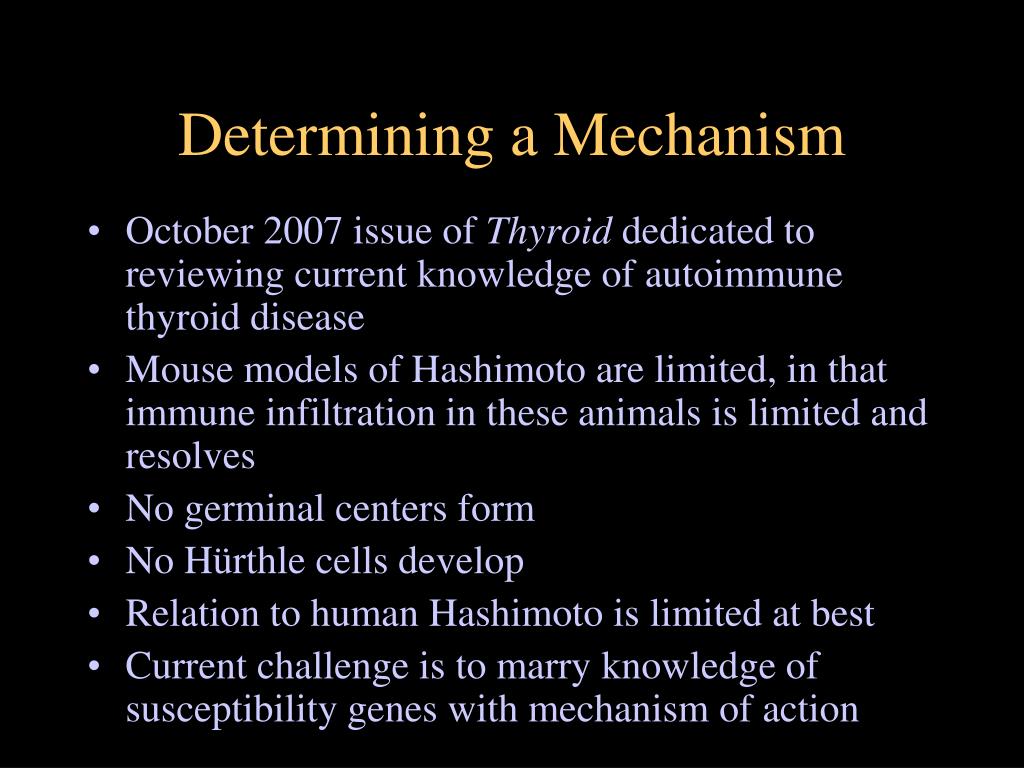

  32. Determining a Mechanism • October 2007 issue of Thyroid dedicated to reviewing current knowledge of autoimmune thyroid disease • Mouse models of Hashimoto are limited, in that immune infiltration in these animals is limited and resolves • No germinal centers form • No Hürthle cells develop • Relation to human Hashimoto is limited at best • Current challenge is to marry knowledge of susceptibility genes with mechanism of action

  33. Summary • Hashimoto thyroiditis is characterized by lymphoplasmacytic infiltrate, germinal center formation, and Hürthle cell change • Diagnosis is possible but limited by FNA • May be associated with well differentiated cancers • Dominant nodules often prompt surgery • Molecular mechanisms of Hashimoto development are still poorly understood

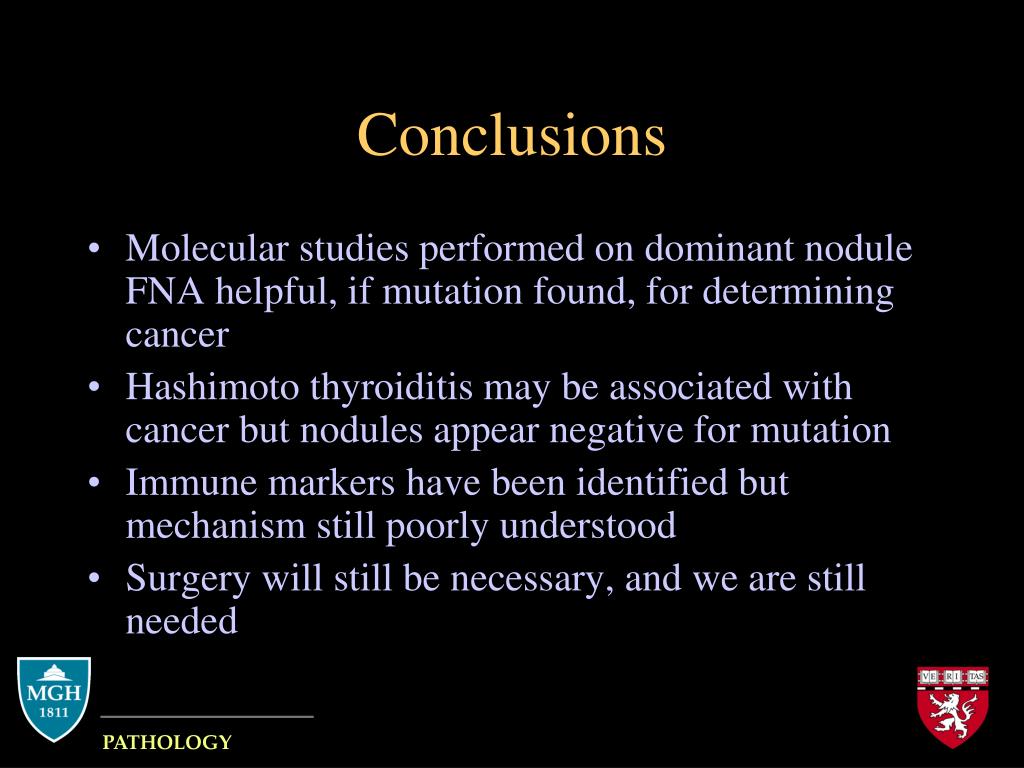

  34. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL Conclusions • Molecular studies performed on dominant nodule FNA helpful, if mutation found, for determining cancer • Hashimoto thyroiditis may be associated with cancer but nodules appear negative for mutation • Immune markers have been identified but mechanism still poorly understood • Surgery will still be necessary, and we are still needed

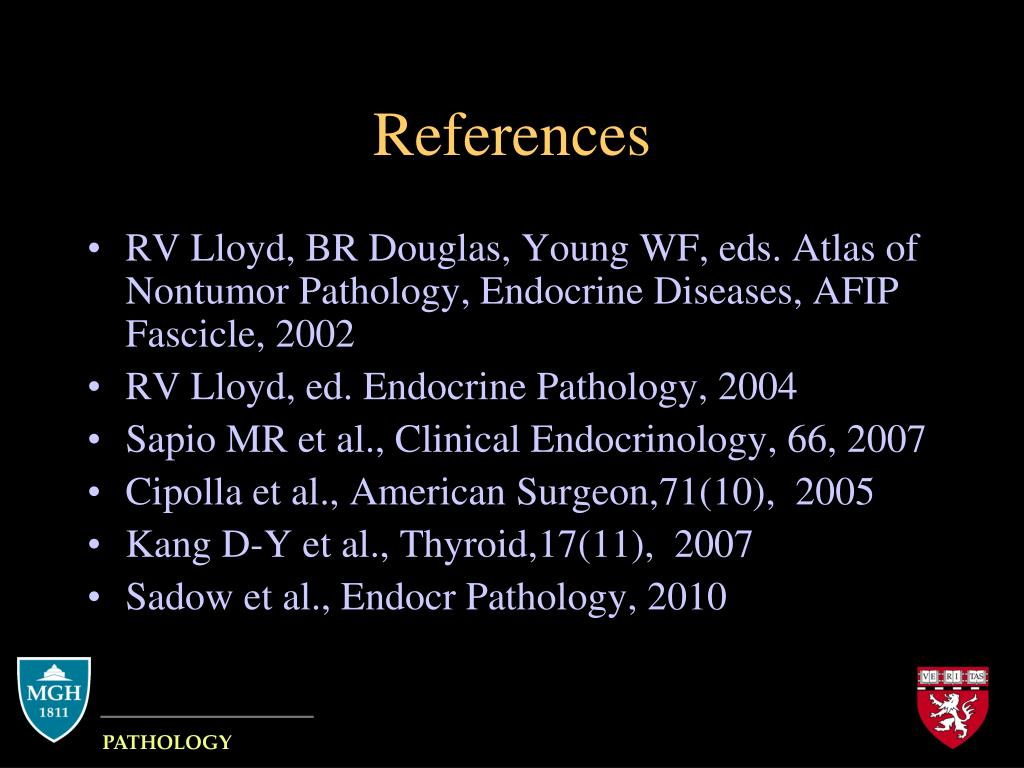

  35. MASSACHUSETTS GENERAL HOSPITAL PATHOLOGY HARVARDMEDICAL SCHOOL References • RV Lloyd, BR Douglas, Young WF, eds. Atlas of Nontumor Pathology, Endocrine Diseases, AFIP Fascicle, 2002 • RV Lloyd, ed. Endocrine Pathology, 2004 • Sapio MR et al., Clinical Endocrinology, 66, 2007 • Cipolla et al., American Surgeon,71(10), 2005 • Kang D-Y et al., Thyroid,17(11), 2007 • Sadow et al., Endocr Pathology, 2010
