geodi final meeting

GeoDI Final Meeting

Yassine Lassoued <y.lassoued@ucc.ie>

GeoDI Final Meeting, GSI, Dublin

24 October 2011

layout
Layout
  • Overall Project Objectives
  • Methodology
  • Reports
  • Recommendations
  • IGIS
  • Exploitation and Outreach
  • Difficulties

GeoDI Final Meeting - GSI - Dublin

overall project objectives
Overall Project Objectives
  • Review existing geoscientific datasets
  • Review international best practice
  • Specify integrated data model
  • Develop ontologies for geoscientific resources
  • Specify and develop automatic ETL tools
  • Specify automated processes for the generation of metadata
  • Specify data delivery methods

GeoDI Final Meeting - GSI - Dublin

overall project objectives1
Overall Project Objectives
  • Identify process changes that would improve data management
  • Implement a prototype data storage and retrieval system
  • Assess potential analyses and services
  • Identify and evaluate tools and approaches to facilitate geospatial analysis and querying of the geoscientific data

GeoDI Final Meeting - GSI - Dublin

methodology

WP1: Initiate & Identify

T1.1 Review data and applications

T1.2 User needs and prioritised data

T1.3 Metadata and quality issues

T1.4 Data familiarisation and review

T1.5 Technical issues

WP2: Review

T2.1 Review ontologies and CVs

T2.2 Identification of standards and models

T2.3 Review ontology languages & tools

T2.4 Review international best practice

T2.5 Review state of the art ontology matching

WP0

Project Management

T0.1 Co-ordination of technical implementation of the project

T0.2 Administration and financial management

T0.3 Communication and dissemination strategy

WP6: Synthesise

T6.1 Assess analyses and services

T6.2 Tools for geospatial analysis

WP3: Specify Models

T3.1 Specify integrated data models

T3.2 Specify ontologies

T3.3 Ontologies and models validation

T3.4 Prototype & benchmarking

T3.5 Ontology matching techniques

WP5: Implement & Evaluate

T5.1 Implement ontology server

T5.2 Implement ET tools

T5.3 Prototype integration & evaluation

WP4: Specify System

T4.1 Data delivery methods

T4.2 Process changes for improved management

T4.3 system specification

Methodology

GeoDI Final Meeting - GSI - Dublin

reports
Reports
  • D1.1. Review of Geoscientific Datasets
  • D2.1. Review of Ontologies and Controlled Vocabularies
  • D2.2. Identification of Standards and Models
  • D2.3. Review of Ontology Languages and Tools
  • D2.4. Review of International Best Practice for the Management of Large Geoscientific Databases
  • D2.5. Review of ETL and Ontology/Schema Matching techniques and Tools

GeoDI Final Meeting - GSI - Dublin

reports1
Reports
  • D3.1. Selected Data Model and Ontologies for Geoscientific Data
  • D4.1. Data Delivery Methods
  • D4.2. Process Changes for the Improvement of Data Management
  • D4.3. System Specification
  • D5.3. System Evaluation Report
  • D6.1. Potential Analyses, Services, and Tools for Geospatial Analysis and Querying

GeoDI Final Meeting - GSI - Dublin

recommendations
Recommendations
  • Recommendations based on international standards and best practice (including INSPIRE) regarding the following areas:
    • Data model
    • Data Management
    • Ontologies and Controlled Vocabularies
    • Metadata
    • Data delivery methods

GeoDI Final Meeting - GSI - Dublin

recommendations1
Recommendations
  • Data Model
    • Investigated three data models:
      • GeoSciML
      • Arc Geology
      • Arc Marine
    • Recommended Arc Marine
      • Supports the marine feature types
      • Used by the Marine Data Repository, and the Biological Integrated Database (BIDI project)

GeoDI Final Meeting - GSI - Dublin

recommendations2
Recommendations
  • Data Management (D2.4, and D4.3)
    • In general, we recommended that the OGC TC and DWG developments should be followed
    • Make bathymetric data available in the Bathymetric Attributed Grid (BAG) format
    • Database performance
      • Indexing, and spatial indexing
        • Recommendations regarding the index architectures to use
      • Table partitioning
      • Query optimisation
        • Consider database statistics collected by SQL Server

GeoDI Final Meeting - GSI - Dublin

recommendations3
Recommendations
  • Data Management
    • General considerations in:
      • Database design
      • Scalability
      • Network
      • Memory
      • Backup and Recovery
      • Security
    • Other useful tips:
      • Uniform management of data and metadata
      • Grid computing
      • Torrents

GeoDI Final Meeting - GSI - Dublin

recommendations4
Recommendations
  • Ontologies and Controlled Vocabularies (D2.1, D2.3, and D4.3)
    • Content should build on:
      • INSPIRE themes
      • SeaDataNet and BODC vocabularies
      • NASA’s Global Change Master Directory (GCMD)
      • General Multilingual Environmental Thesaurus (GEMET)
      • BGS vocabularies
    • An ontology structure was proposed

GeoDI Final Meeting - GSI - Dublin

recommendations5
Recommendations
  • Ontologies and Controlled Vocabularies
    • Model: Simple Knowledge Organization System (SKOS)
    • Language: RDF and OWL
    • Encoding: RDF/XML
    • Ontology Server: Jena
    • General SKOS and OWL rules
    • Term Collection
      • Use an Excel spreadsheet and a conversion tool to generate RDF/XML using SKOS
      • Alternative: Protégé ontology editor, but requires technical skills, and is not scalable

GeoDI Final Meeting - GSI - Dublin

recommendations6
Recommendations
  • Ontologies and Controlled Vocabularies
    • A strategy for ontology versioning was proposed
    • A governance structure was proposed

GeoDI Final Meeting - GSI - Dublin

recommendations7
Recommendations
  • Metadata
    • Standards: ISO-19115 & ISO-19139
    • Profile: ISDE profile (INSPIRE compliant)
    • Data and service bindings
    • Semantic annotations

GeoDI Final Meeting - GSI - Dublin

recommendations8
Recommendations
  • Data delivery Methods
    • Mainly OGC services as recommended by INSPIRE
    • Data:
      • WFS: vector data
      • WCS: grid data
      • WMS and WMTS: maps
      • KML to display seabed classification data in Google Earth
    • Metadata:
      • CSW (GeoNetwork)
    • Ontologies:
      • Jena as an ontology server
      • Semantic Web Service for providing high-level operations over HTTP

GeoDI Final Meeting - GSI - Dublin

slide17
IGIS
  • Integrated Geoscientific Information System
  • Objective
    • Manage, integrate and access the various geoscientific resources: data, metadata, and semantic knowledge (ontologies)
  • Approach
    • Service oriented architecture
    • Standards based system (INSPIRE, OGS, ISO, W3C)

Manage Resources

Discover Resources

Access Resources

IGIS

Standard Protocols

(OGC, W3C, INSPIRE)

Geoscientific Resources

Data

Ontologies

Metadata

GeoDI Final Meeting - GSI - Dublin

slide18

Web User

Web

GeoDataOnline Web Portal

Discover GUI (Geo Finder)

Meta Viewer

Ontology Browser (OB)

Data Access

Map

CSW Mediator (CSWM)

Semantic Web Service (SWS)

CSW

Data Delivery Interfaces

Ontology Server

Local

use

SQL

point to

MI Internal User

Integrated Database

Geoscientific Ontologies

Metadata

uses

generates

feeds

ETL Tool (Semi-Automatic)

New Dataset

database
Database

Integrated Data

Dataset Views

Measurements

Geo Points

Galway Bay Multibeam Grid

View1

Business Information

Geo Lines

Viewi

CV 200701 Tracks, Galway Bay

Sediment

Samples

CV 200701, Galway Bay, Sediment Samples

Viewn

Rasters

GeoDI Final Meeting - GSI - Dublin

ontologies
Ontologies

Domain Ontologies

  • Disciplines
  • Themes
  • Instruments
  • Parameters
  • Data Types
  • Places
  • Strata
  • Projects

Used by metadata, domain ontology browser, and CSW mediator for data discovery

Mappings

Data Model Ontology

  • Tables
  • Relationships
  • Attributes

Used by ETL for transforming data

Mappings

Data Controlled Vocabularies

  • Folk Classification
  • Seabed Sample Structure
  • Seabed Texture
  • Grain Sorting
  • etc.

Used within data to standardise field values

GeoDI Final Meeting - GSI - Dublin

metadata
Metadata

WMS

WFS

WCS

Metadata1

Identification

keywords

WMS Delivery

WFS Delivery

View1

Galway Bay Multibeam Grid

Geoscientific Domain Ontology

Viewi

CV 200701 Tracks, Galway Bay

CV 200701, Galway Bay, Sediment Samples

Viewn

Dataset Views

Integrated Data

Integrated Geoscientific Database (IGDB)

GeoDI Final Meeting - GSI - Dublin

metadata1
Metadata
  • Semantic Annotations – Option 1 (Preferred)

<!--A list of keywords from the same thesaurus-->

<gmd:MD_Keywords>

<!--One keyword-->

<gmd:keyword>

<gmx:Anchor

xlink:href=”http://geodi.ucc.ie/ont/20110429/geoscience.owl#SVProfiles”>

Sound Velocity Profiles

<gmx:Anchor>

</gmd:keyword>

<!--You may have as many keywords as you wish-->

...

</gmd:MD_Keywords>

GeoDI Final Meeting - GSI - Dublin

metadata2
Metadata
  • Semantic Annotations – Option 2

<!--A list of keywords from the same thesaurus-->

<gmd:MD_Keywords>

<!--One keyword-->

<gmd:keyword>

<gco:CharacterString>

http://geodi.ucc.ie/ont/20110429/geoscience.owl#SVProfiles

<gco:CharacterString>

</gmd:keyword>

<!--You may have as many keywords as you wish-->

<!--Keyword type-->

<gmd:type>

<gmd:MD_KeywordTypeCode

codeList=”http://www.isotc211.org/2005/resources/codeList.xml

#MD_KeywordTypeCode”

codeListValue=”theme”/>

</gmd:type>

<gmd:thesaurusName>

...

</gmd:thesaurusName>

</gmd:MD_Keywords>

GeoDI Final Meeting - GSI - Dublin

semantic framework

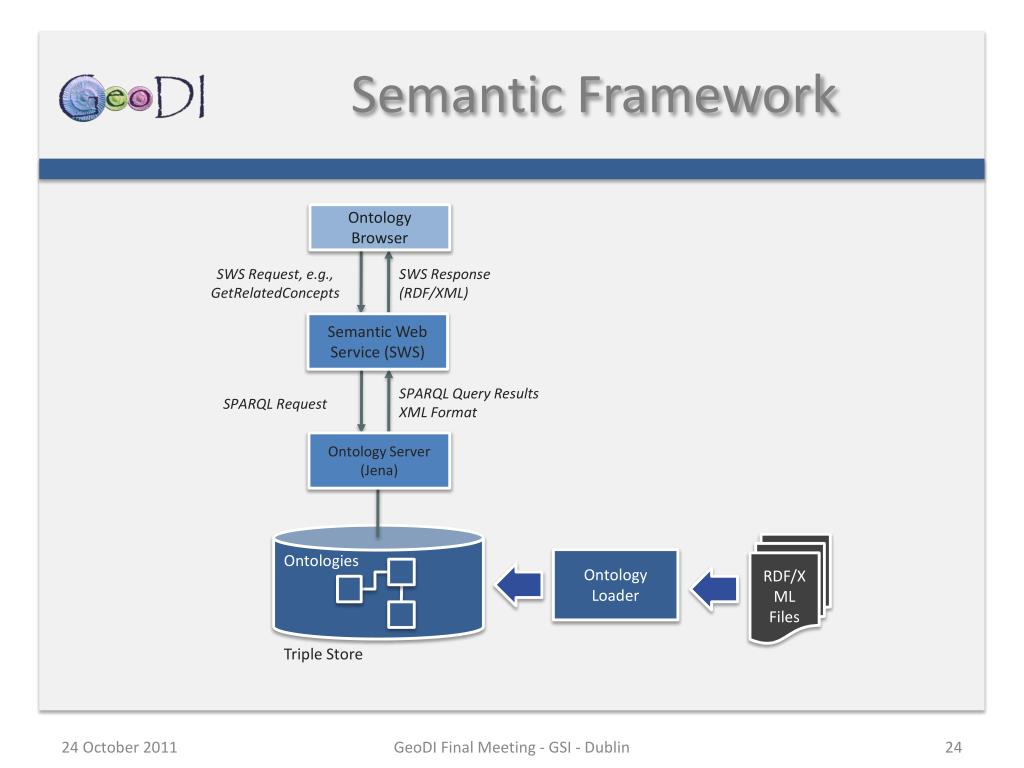

Semantic Framework

Ontology Browser

SWS Request, e.g., GetRelatedConcepts

SWS Response (RDF/XML)

Semantic Web Service (SWS)

SPARQL Query Results XML Format

SPARQL Request

Ontology Server

(Jena)

Ontologies

RDF/XML Files

Ontology Loader

Triple Store

GeoDI Final Meeting - GSI - Dublin

semantic web service
Semantic Web Service

Ontology Browser

(GUI)

CSW Mediator

Or

Data Discovery Interface

External Applications

GetConceptScheme, GetConceptHierarchy…

Semantic Web Service (SWS)

Advanced User

URI = URL

RDF Ontologies Encoded in RDF/XML

Protocol: SPARQL Protocol for RDF

SPARQL Query Results XML Format

SPARQL

Ontology Server

Triple Store

Geoscientific Ontologies

GeoDI Final Meeting - GSI - Dublin

csw mediator
CSW Mediator

Keyword=Heritage

CSW or CSWM Request

Semantic Web Service (SWS)

CSW Mediator (CSWM)

CSWM Request

CSW Request

Keyword=Heritage

Or

Keyword=Shipwrecks

Keyword=Heritage

Or

Keyword=Geoparks

MI CSW

Griffith CSW

Other CSWM

GeoDI Final Meeting - GSI - Dublin

data delivery services
Data Delivery Services

Geoscientific Web Portal

External Applications

Data Access Module

Web

Bathymetric Attributed Grid (BAG) Files

WFS

WCS

SQL

MI Internal User

V1

C1

Integrated

Geoscientific

Database

Vn

Cm

Vector Dataset Views

Coverage Dataset Views

GeoDI Final Meeting - GSI - Dublin

geodataonline portal
GeoDataOnline Portal

Web User

GeoDataOnline Web Portal

Discover GUI (Geo Finder)

Meta Viewer

Ontology Browser (OB)

Map

Data Access

Data Delivery Interfaces & Files

Semantic Web Service (SWS)

CSW Mediator (CSWM)

WMS / WMTS

WCS

WFS

BAG

Files

GeoDI Final Meeting - GSI - Dublin

etl tool

Ontology Server

ETL Tool

New Dataset

ETL Tool

input

Extractor

Loader

Transformer

Shapefile

String Based Matcher

input

Linguistic Matcher

feeds

Access DB

Constraint Based Matcher

input

IGDB

Data Type Matcher

Excel File

input

CSV File

Dataset schema

GeoDI Final Meeting - GSI - Dublin

exploitation and outreach
Exploitation and Outreach
  • GeoDI semantic framework and CSW mediator have been taken over by NETMAR and ICAN
  • The SWS specification will be further advanced by NETMAR and submitted as a GEOSS best practice
  • Journal paper to be planned, ideally to be co-authored by CMRC, MI, and GSI
  • The IGIS may benefit ISDE, USGS

GeoDI Final Meeting - GSI - Dublin

difficulties
Difficulties
  • Technical
    • ETL
      • Data processing is very complex
      • Manual processing is always required
      • Need a mechanism to generate business information

GeoDI Final Meeting - GSI - Dublin

difficulties1
Difficulties
  • Non Technical
    • Repercussive delays in 2008
    • Time initially allocated to ETL, data loading and implementation was not sufficient

GeoDI Final Meeting - GSI - Dublin

slide33

End

Yassine Lassoued <y.lassoued@ucc.ie>
